Erskine Tree Spade | 3S & 4S Model | 46"-78" Width | For Skid Steer

Erskine Tree Spade | 3S & 4S Model | 46"-78" Width | For Skid Steer

$12,995.00
$12,995.00
Sale Sold out
Customizable
Fast
24/7 Support
  • Easy Operation: Control tree spading from the loader seat.
  • Sturdy Construction: Built to handle tough transplanting tasks.
  • Precision Cutting: Overlapping blades provide clean cuts.
  • Compact Frame: Enhances down-pressure for effective cutting.
  • Versatile Application: Handles trees up to 3” for hardwoods and 4” for evergreens.
View full details

Product Description

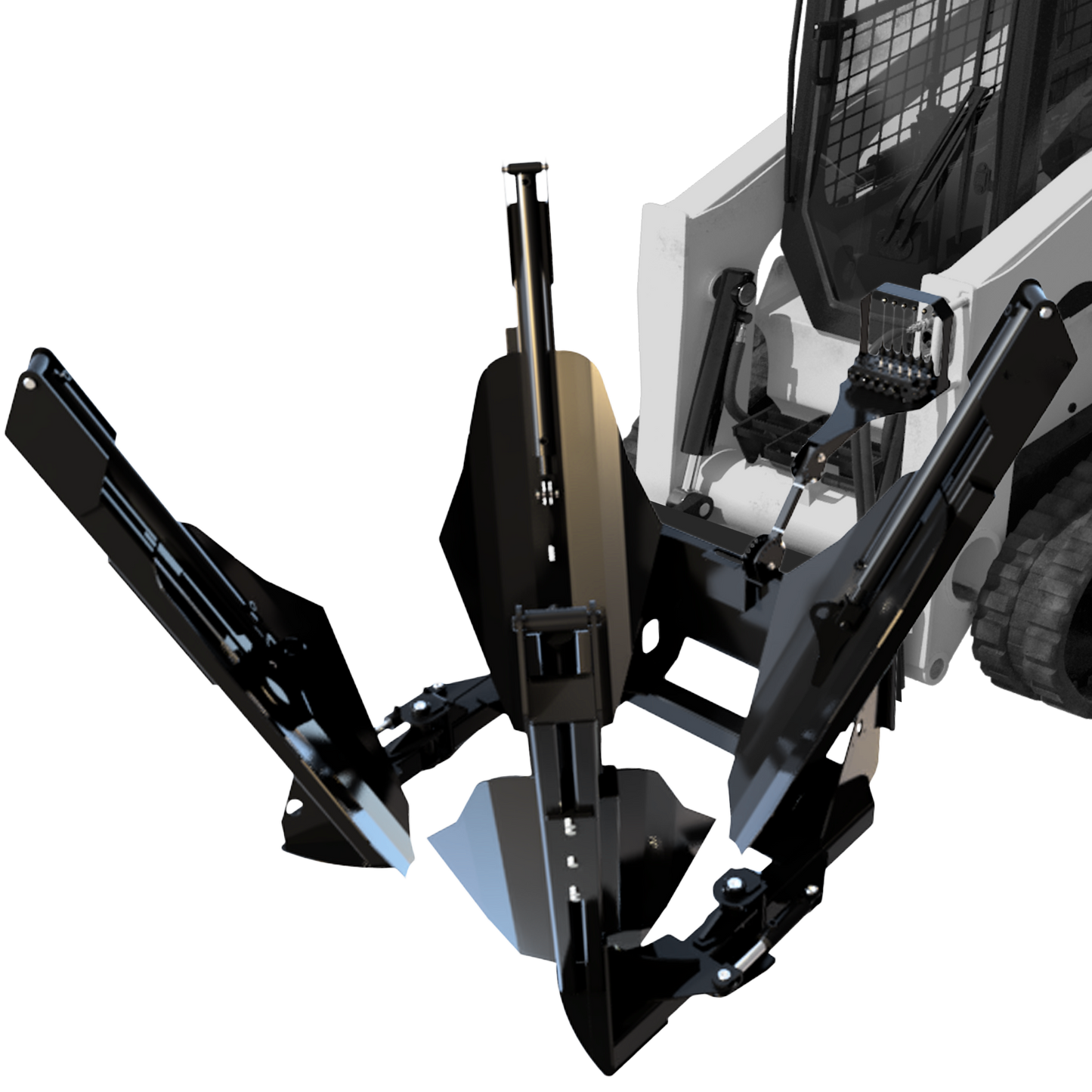

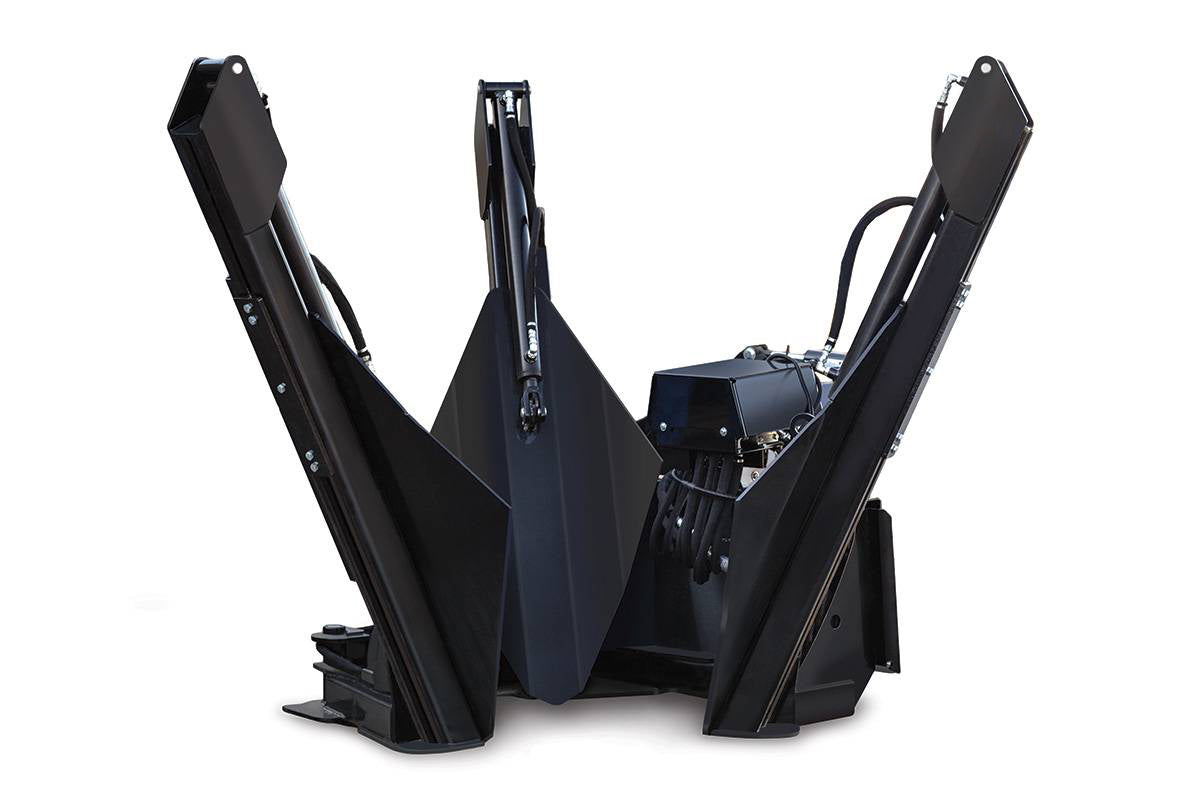

Erskine Tree Spade | 3S & 4S Model | 46"-78" Width | For Skid Steer

DESCRIPTION

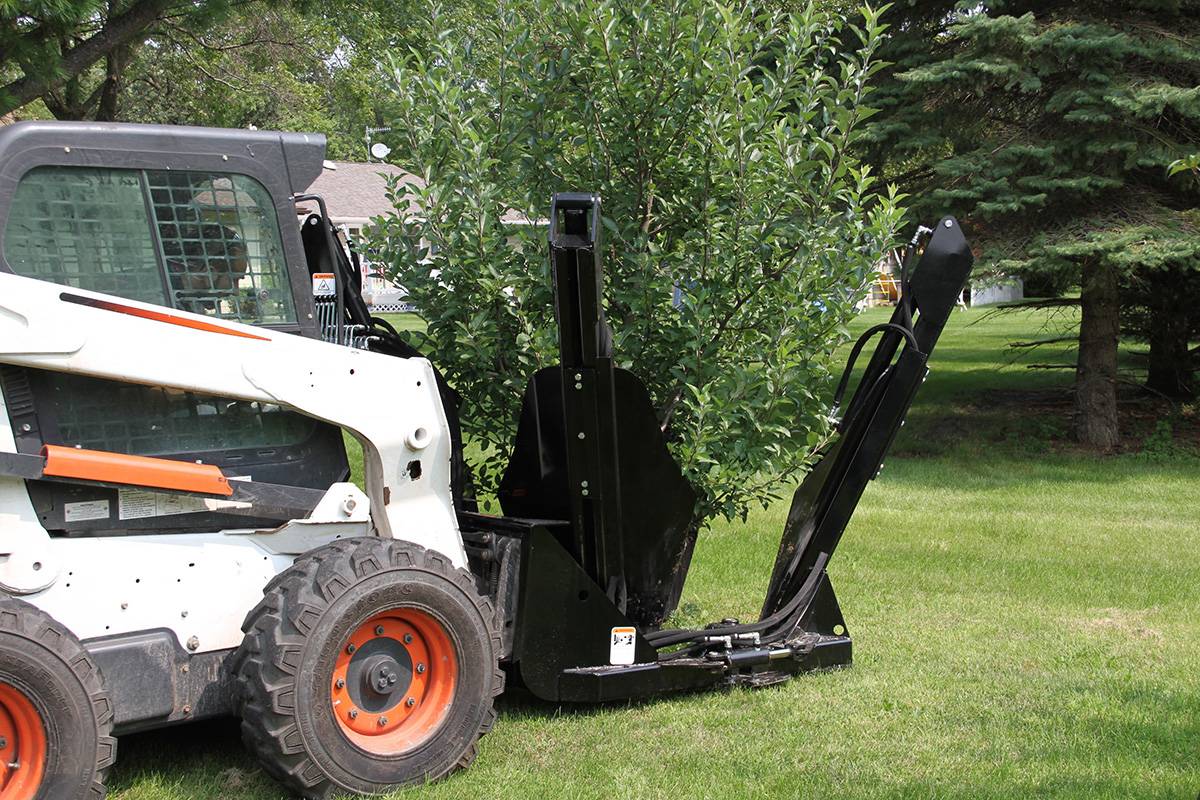

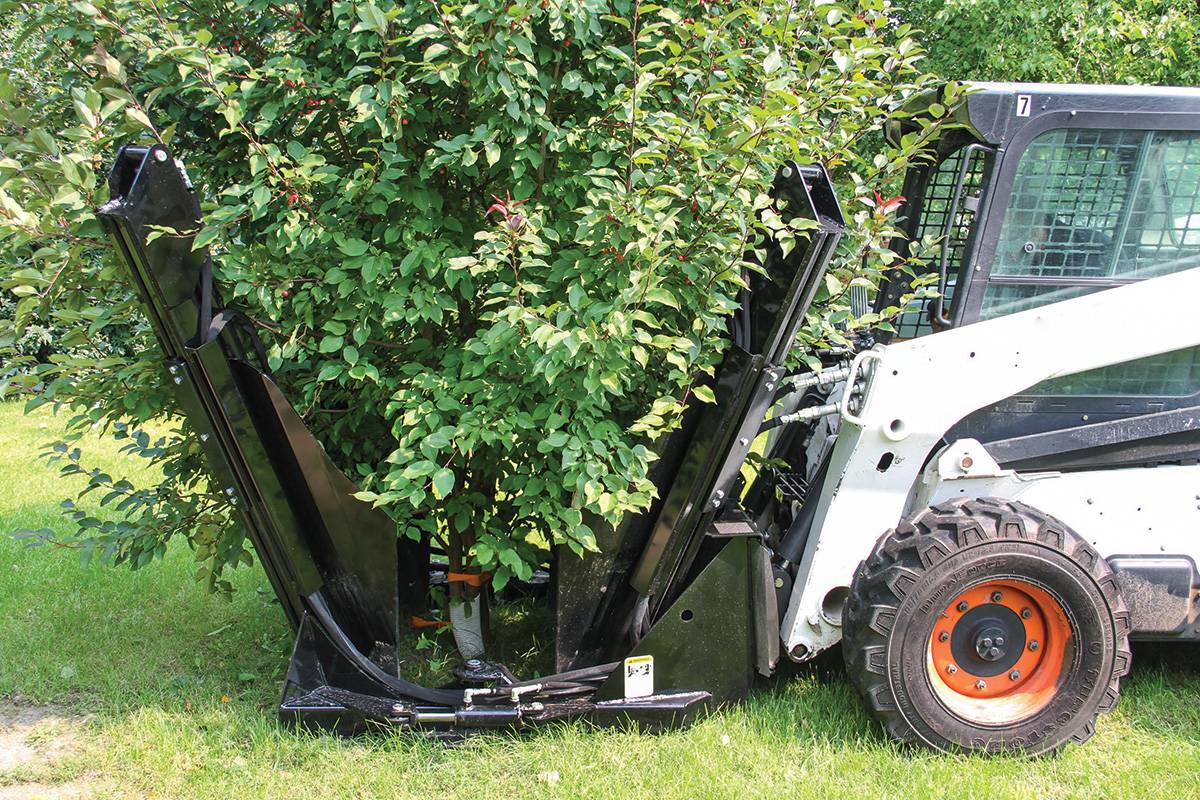

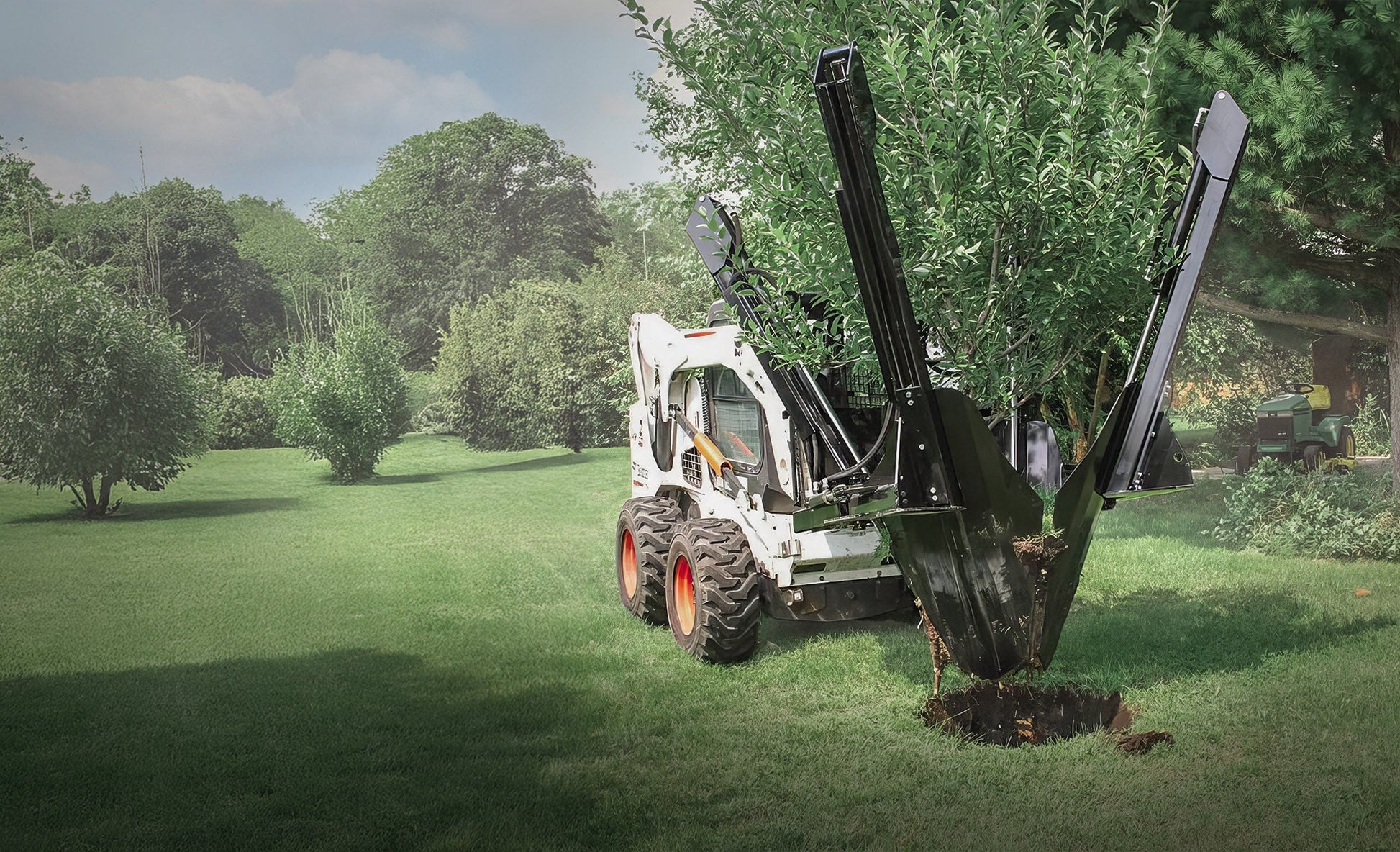

The Erskine Tree Spade attachment is designed for skid steers, simplifying and enhancing tree transplanting with precise and efficient performance. This compact attachment allows operators to dig and transplant trees without ever leaving the loader, saving valuable time and effort. Its short-frame design minimizes the need for stabilizers and counterweights, making maneuvering easier and providing enhanced down-pressure for clean, controlled cuts.

Equipped with overlapping steel blades, the Tree Spade ensures clean root cuts, preserving root integrity and promoting healthier transplants. From landscaping professionals to arborists, this attachment offers the durability and reliability needed for tree transplanting jobs of all sizes.

Key Features

  • Complete Setup: Includes hydraulic hoses, couplers, and controls.
  • Tree Capacity: Suitable for hardwoods up to 2.5” diameter and evergreens up to 3”-4”.
  • Durable Blades: Three to four steel blades, 3/8” thick, ensure long-lasting use.
  • Adjustable Controls: Hydraulic valve stand for easy operation.
  • Greaseable Joints: All joints equipped with grease fittings for smooth operation.
  • Removable Blades: Allows for easy sharpening and maintenance.

Detailed Specifications

Feature Model 3S
Part Number 901165
Tree Size Evergreen: 3”, Hardwood: 2.5”
Diameter 30”
Depth 29”
Blade Angle 25°
Number of Blades 3
Blade Thickness 3/8” A36 Steel
Blade Slides Steel
Blade Truncation Semi
Outside Towers Swing Open Yes
Operator Controls Hydraulic
Hydraulic Flow 5-25 GPM @ 2,500 psi
Hydraulic Remotes 1
Shipping Weight 1,500 lb
Weight with Root Ball 2,000 lb
Width (Bottom/Top) 46” / 84”
Length (Bottom/Top) 52” / 76”
Feature Model 4S
Part Number 901166
Tree Size Evergreen: 4”, Hardwood: 3”
Diameter 40”
Depth 30”
Blade Angle 25°
Number of Blades 4
Blade Thickness 1/4” Grade 50 Steel
Blade Slides Steel
Blade Truncation Full
Outside Towers Swing Open Yes
Operator Controls Hydraulic
Hydraulic Flow 5-25 GPM @ 2,500 psi
Hydraulic Remotes 1
Shipping Weight 1,900 lb
Weight with Root Ball 3,100 lb
Width (Bottom/Top) 62” / 78”
Length (Bottom/Top) 61” / 76”

In Package

  • Tree Spade Attachment
  • Hydraulic Hoses and Couplers
  • Hydraulic Control Valve
  • Installation and Operation Manual

Available Options

  • Blade Types: Optional blade upgrades for various soil types
  • Additional Hydraulic Remotes: For enhanced control and functionality
