Product Description
Erskine Vibratory Packer | 72" Smooth & Padded Foot Model | With Case Drain Couplers | For Skid Steer
DESCRIPTION

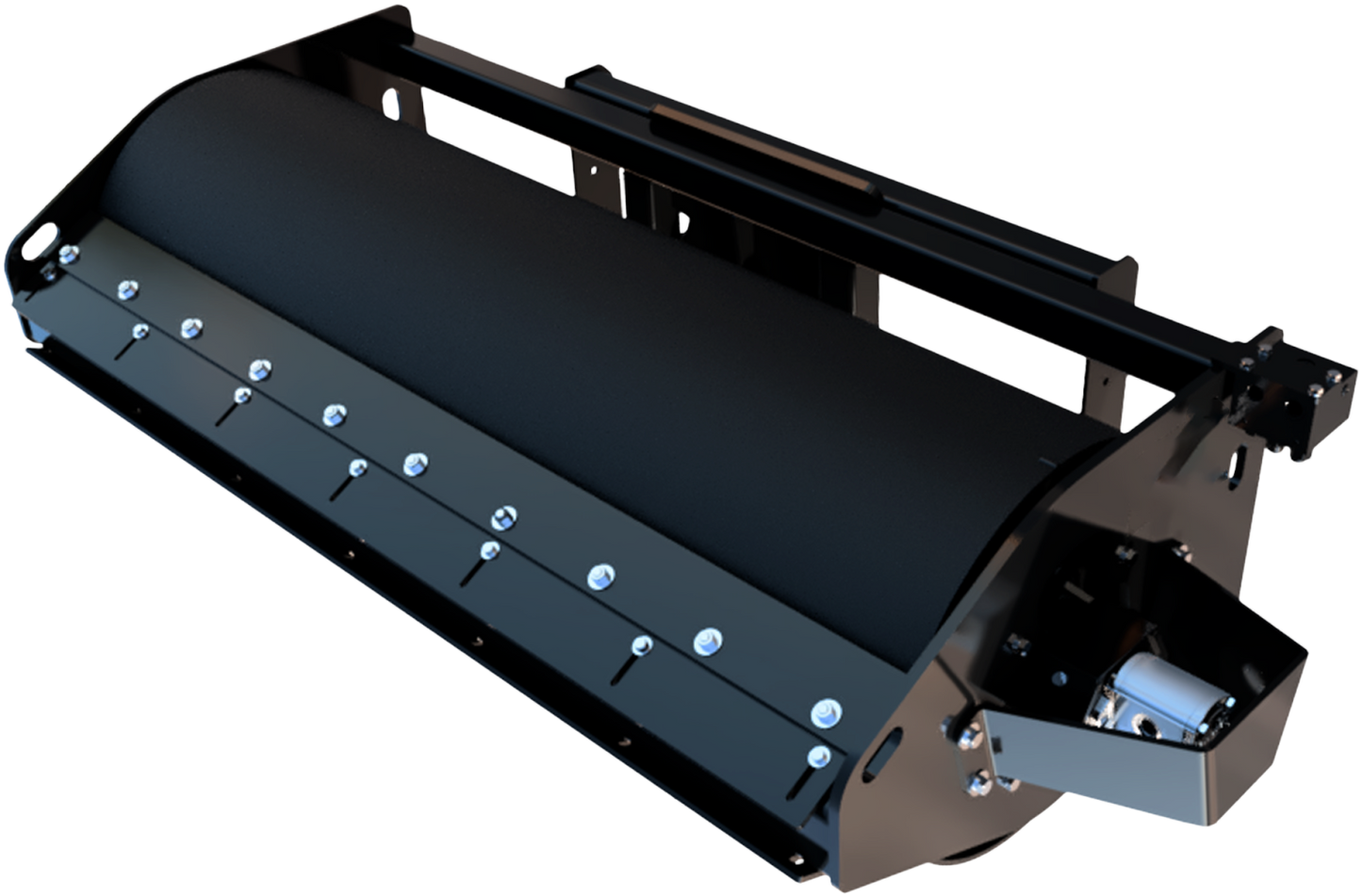

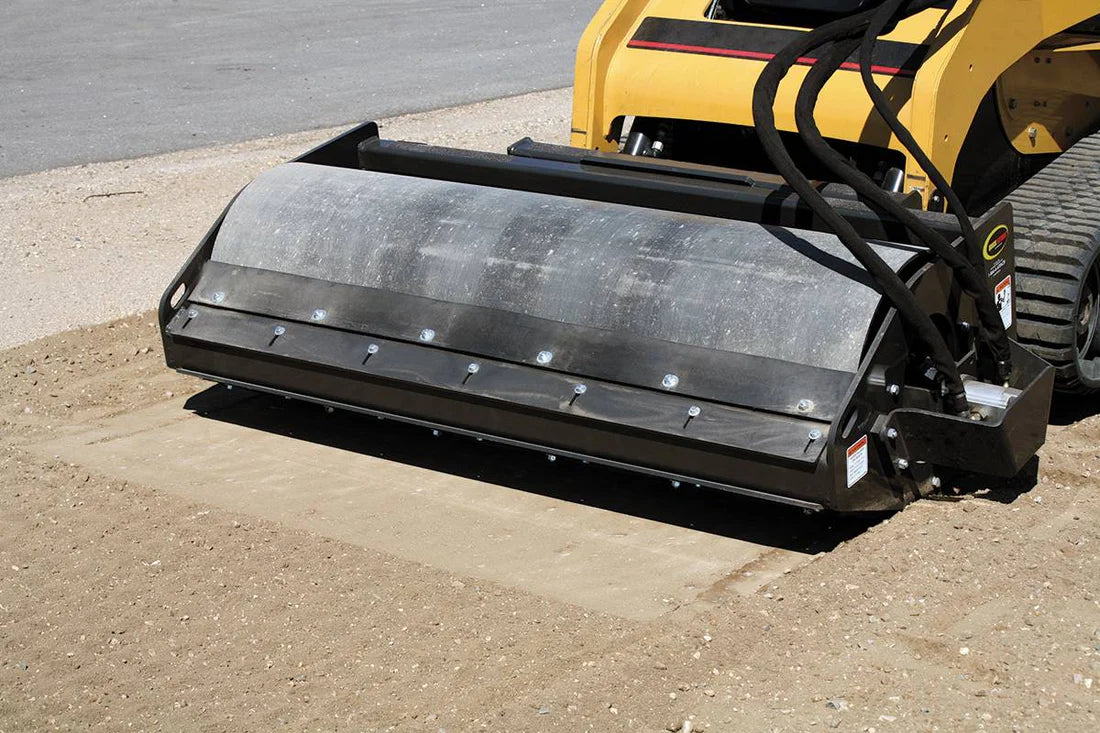

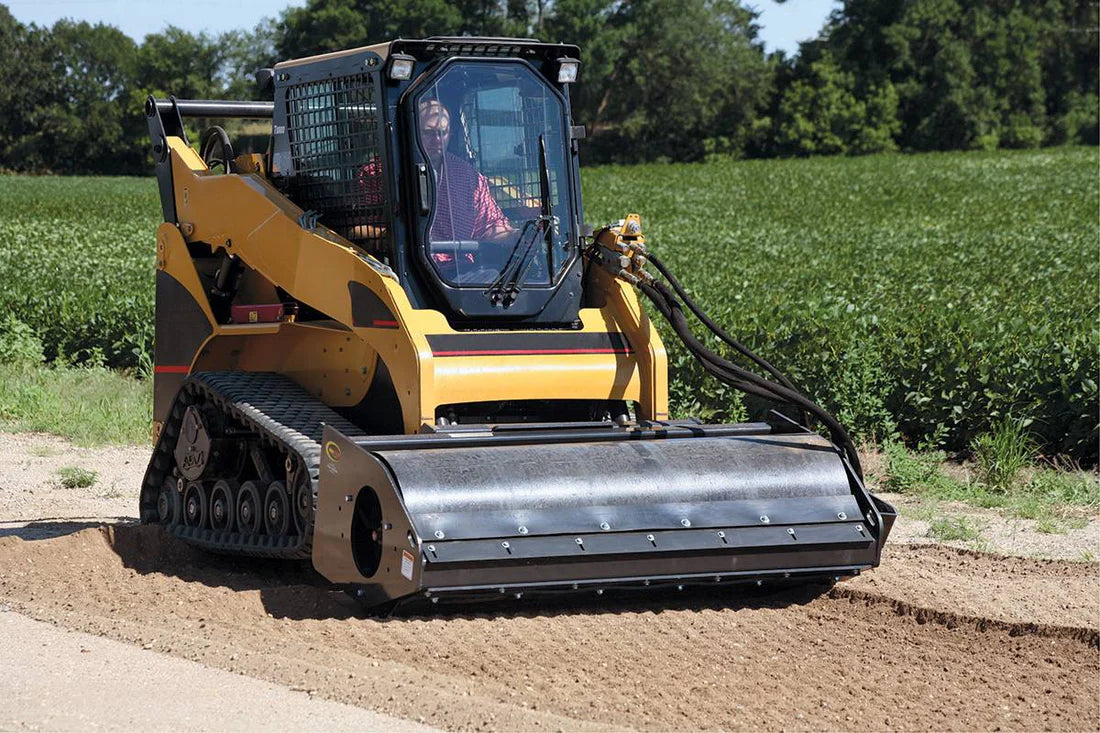

The Erskine Vibratory Packer is a powerful skid steer attachment engineered for a range of compaction tasks, including flatwork, trenching, and asphalt patching. This vibratory roller provides both forward and reverse operation, delivering exceptional flexibility and efficiency on various surfaces. With its durable one-piece drum and an offset design, the packer allows compacting right up against sidewalks, walls, or curbs, making it a versatile choice for construction and maintenance projects.
Equipped with a drum oscillation feature, this attachment maintains surface contact on uneven terrain, ensuring thorough compaction. The dual-direction vibration motor and rubber isolation mounts reduce vibration transfer, providing smoother operation and enhancing operator comfort. Choose between the 72” Smooth Drum or 72” Padded Foot Drum models to match specific project requirements.
Key Features
- Offset Drum: Extends past the machine for precision near structures.

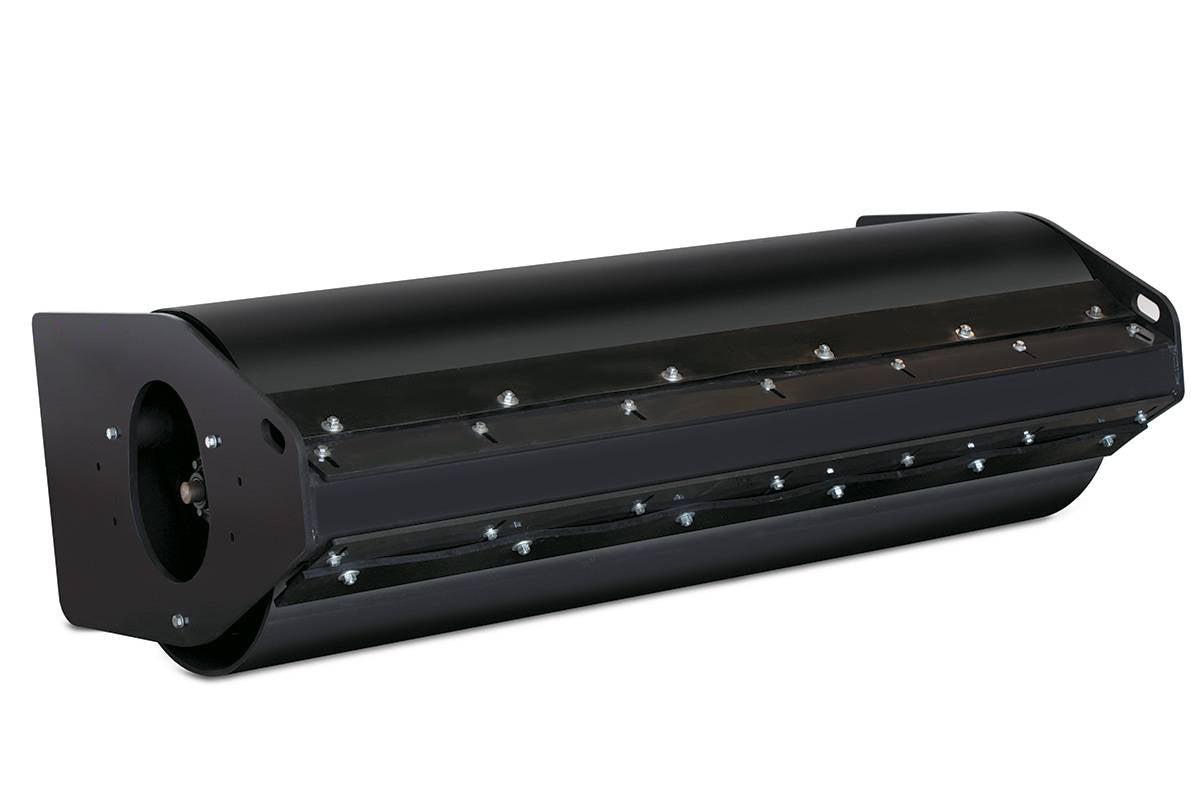

- Durable One-Piece Drum: Built for long-lasting strength.

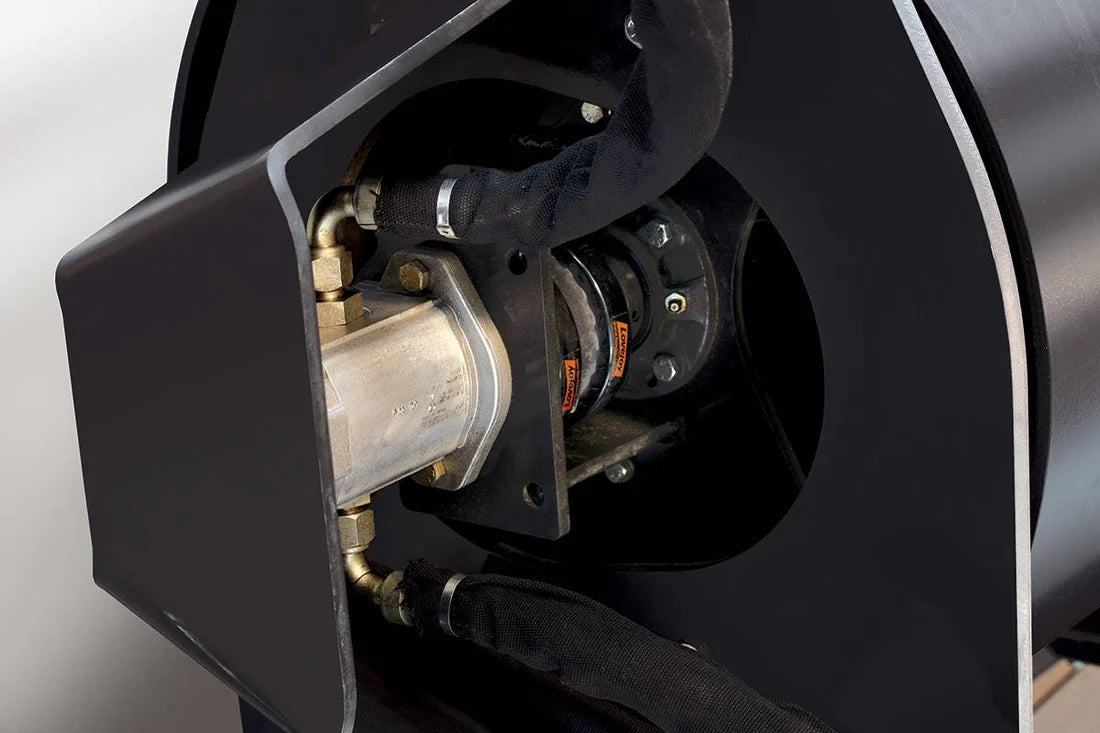

- Dual-Direction Vibration Motor: Allows compaction in both directions.
- Rubber Isolation Mounts: Minimize vibration transfer to loader and operator.
- Solid Shaft Design: Full-length shaft with four greasable bearings for durability.
Detailed Specifications
| Feature | 72 Smooth Model |
|---|---|
| Part Number | 900722 |
| Operating Weight | 1,720 lb |
| Height | 24” |
| Width | 84” |
| Length | 42” |
| VPM | 2,000 @ 18 GPM |
| Flow Range | 11-22 GPM |
| Dynamic Force | 4,150 lb |
| Amplitude | .06” |
| Compacting Energy | 80 lb./in. |
| Oscillation | +/- 15° |
| Case Drain | Required |
| Feature | 72 Padded Foot Model |
|---|---|
| Part Number | 900723 |
| Operating Weight | 1,870 lb |
| Height | 27.5” |
| Width | 84” |
| Length | 42” |
| VPM | 2,000 @ 18 GPM |
| Flow Range | 11-22 GPM |
| Dynamic Force | 4,100 lb |
| Amplitude | .05” |
| Compacting Energy | 290 lb./in. |
| Oscillation | +/- 15° |
| Case Drain | Required |
In Package
- Vibratory Packer Attachment
- Choice of 72" Smooth Drum or 72" Padded Foot Drum
- Dual-Direction Vibration Motor
- Installation and Operation Manual
Available Options
- Drum Types: Smooth or Padded Foot options for different compaction needs.
- Replacement Bearings: Greasable bearing kits for extended use.
Manuals & Documents
Product Brochure
Manual
