Express Steel HD Brush Grapple | SKU ES20030 | Width 72" | Hydraulic Flow 15–25 GPM| For Skid Steers

Product Description

Express Steel HD Brush Grapple | SKU ES20030 | Width 72" | Hydraulic Flow 15–25 GPM| For Skid Steers

DESCRIPTION

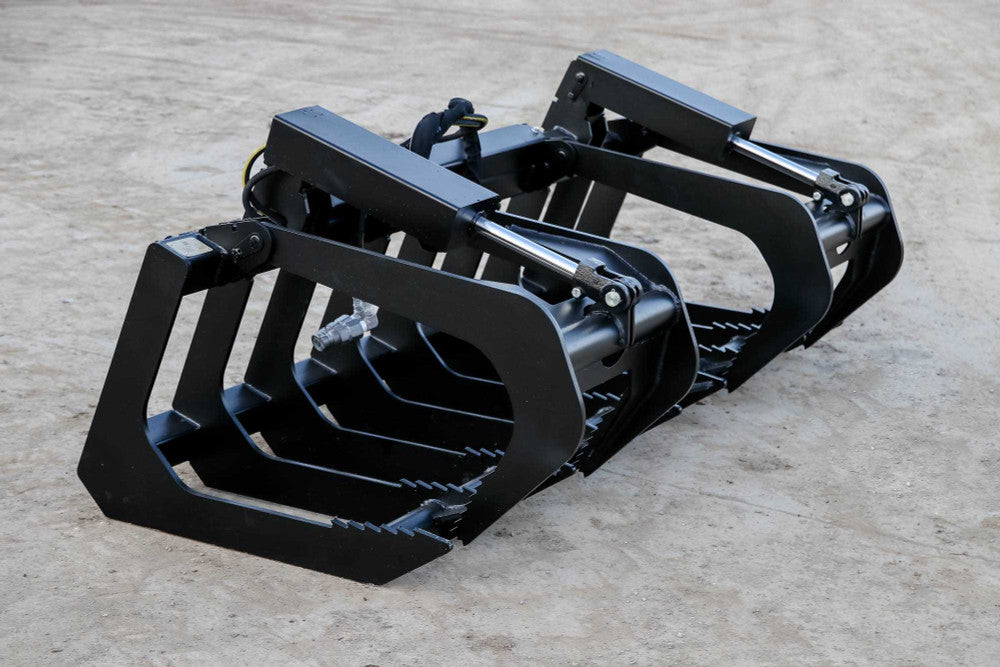

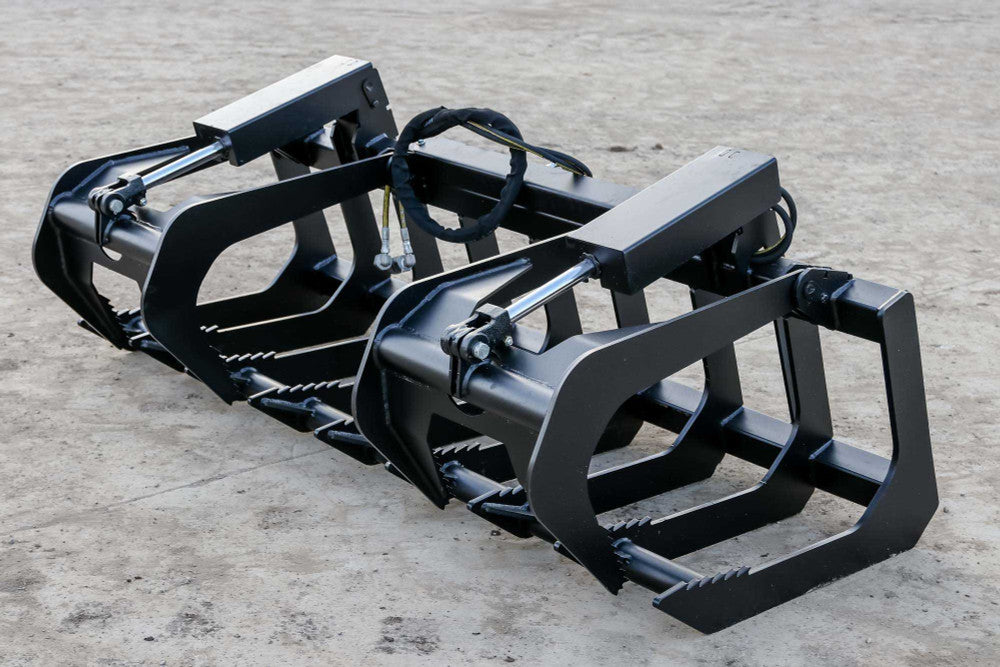

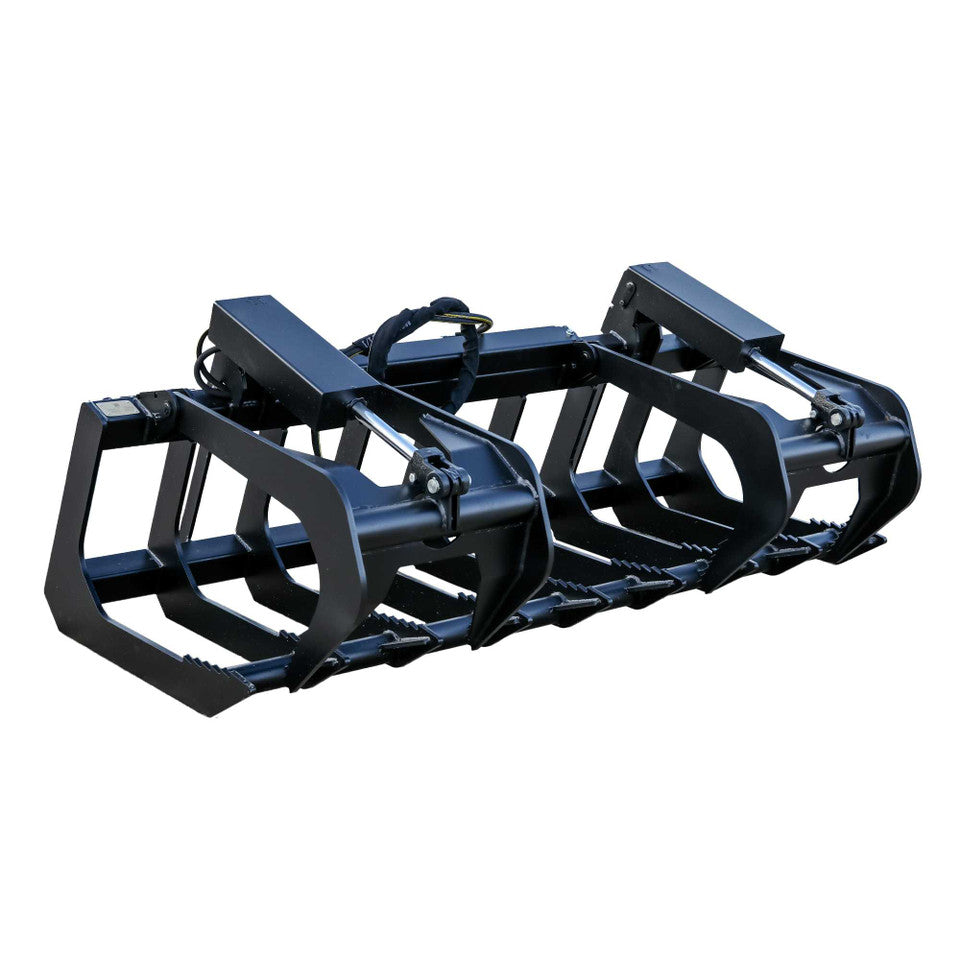

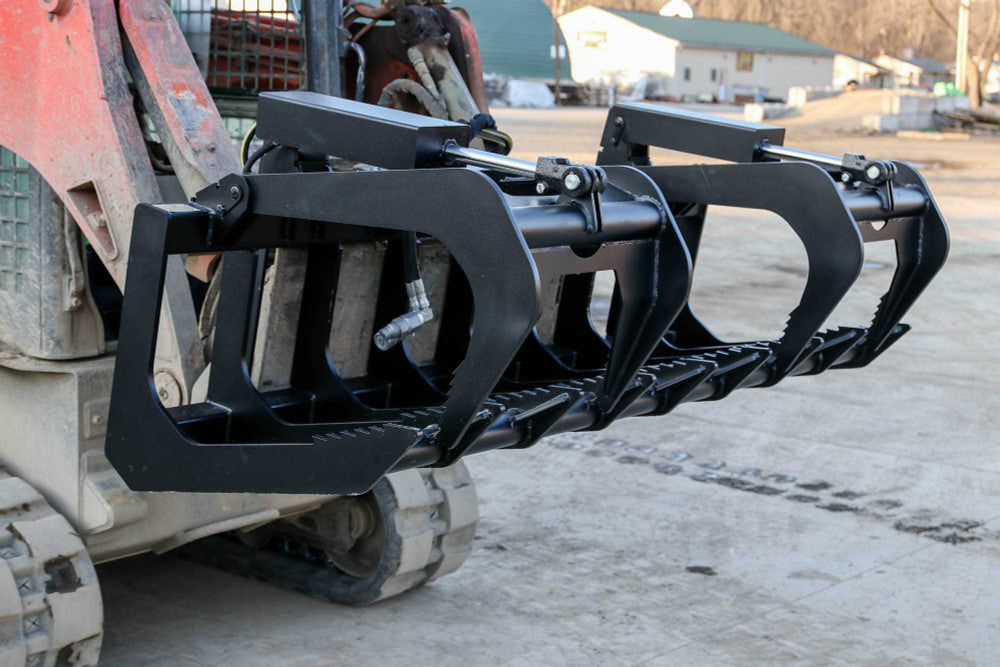

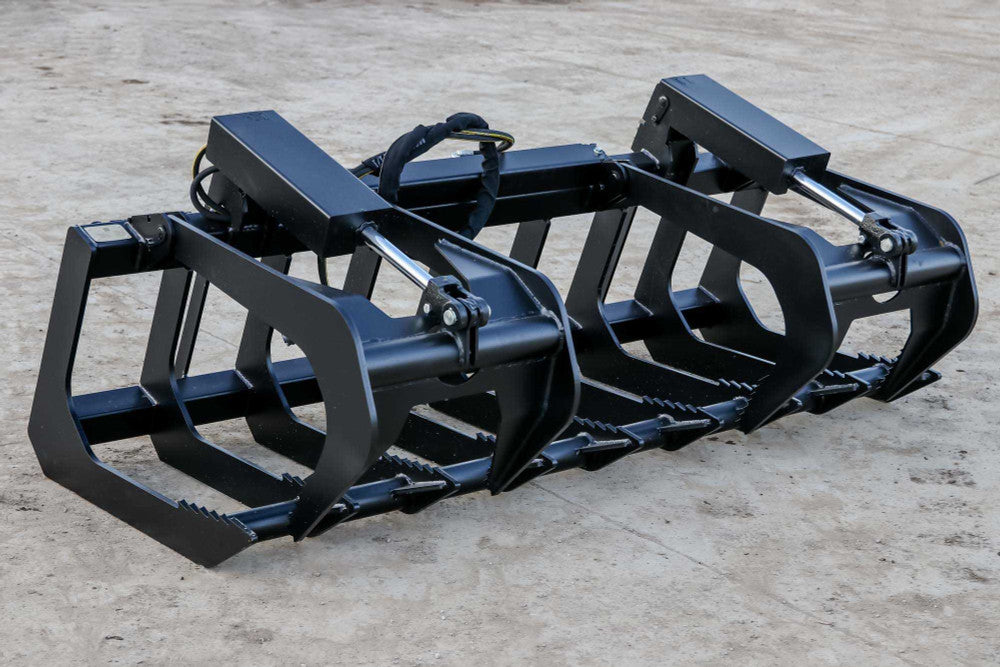

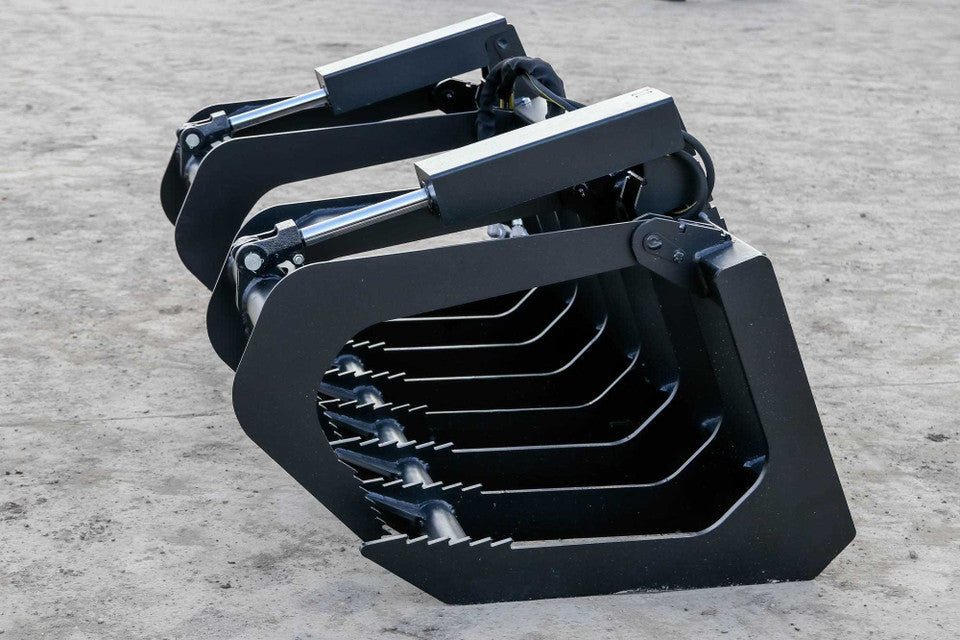

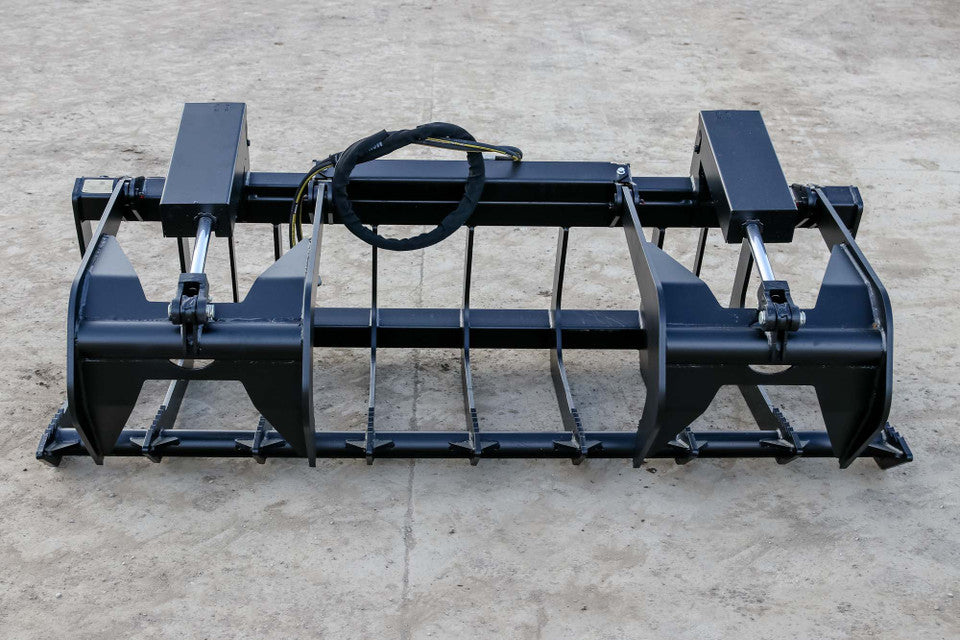

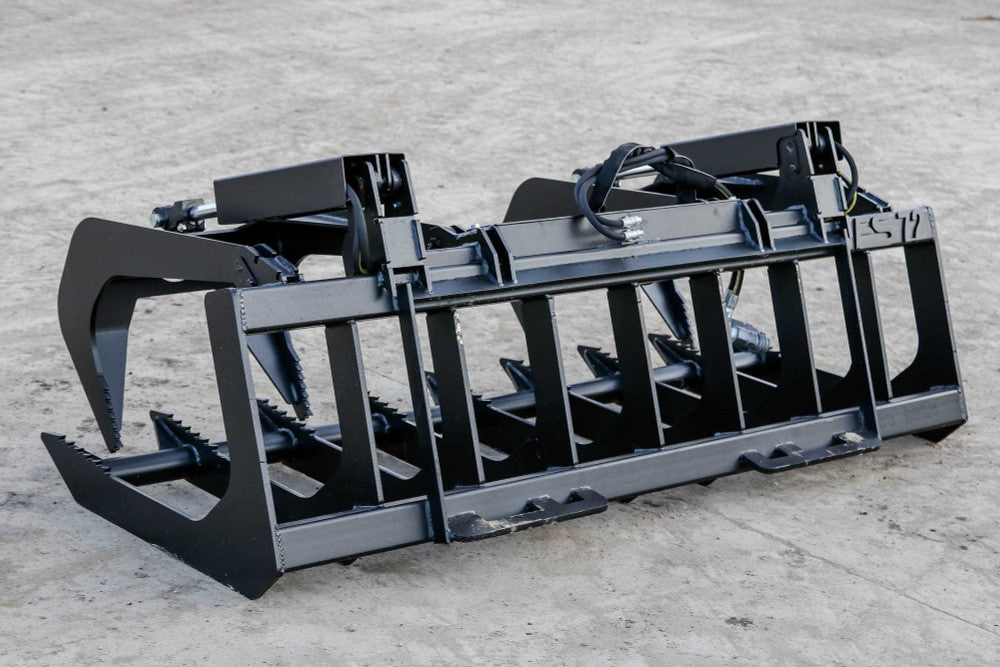

The Express Steel ES20030 72" HD Brush Grapple is a high-strength, dual-cylinder grapple designed to tackle the toughest land clearing and debris handling tasks. With independent grapple arms, ½" serrated steel tines, and dual 2" × 8" AG cylinders, this attachment delivers powerful clamping force and flexibility for uneven loads like brush, logs, stumps, and rocks.

Built for skid steers up to 65 HP, the grapple features 8.5"–9" tine spacing, a wide 72" frame, and an open height of up to 37" for maximum capacity. The universal quick attach mount ensures compatibility with most skid steer models, and the included ½" flat-faced couplers make hydraulic hookup fast and easy. Finished in powder-coated black, this American-made tool is ideal for contractors, landscapers, and property managers who need serious gripping power.

Key Features

• SKU Reference: ES20030 — Express Steel’s internal identifier for inventory and ordering.
• Grapple Width: 72" wide frame for high-volume material handling.
• Heavy-Duty Tines: ½" serrated steel tines for aggressive gripping and durability.
• Tine Spacing: 8.5"–9" spacing allows dirt and small debris to fall through.
• Independent Grapple Arms: Dual arms make uneven loads easier to secure.
• Hydraulic Cylinders: Dual 2" × 8" AG cylinders with protective covers.
• Hydraulic Hardware: Includes ½" flat-faced quick connect couplers for easy hookup.
• Open/Closed Heights: Opens to 32" at the front and 37" at the center; closes to 17".
• Mount Compatibility: Universal skid steer quick attach system.
• Horsepower Range: Recommended for machines up to 65 HP.
• Hydraulic Flow Range: Operates efficiently between 15–25 GPM.
• Machine Size Range: Ideal for skid steers in the 2–3 ton class.
• Finish: Powder-coated black for corrosion resistance and professional appearance.
• American-Made: Manufactured in the USA using premium US steel.
• Delivery Notes: Ships via LTL carrier; unloading equipment required.
