Express Steel Two-Cylinder Brush Grapple | Model ES20010 | 60" Width | Hydraulic Flow 15–20 GPM | For Skid Steers

Product Description

Express Steel Two-Cylinder Brush Grapple | Model ES20010 | 60" Width | Hydraulic Flow 15–20 GPM | For Skid Steers

DESCRIPTION

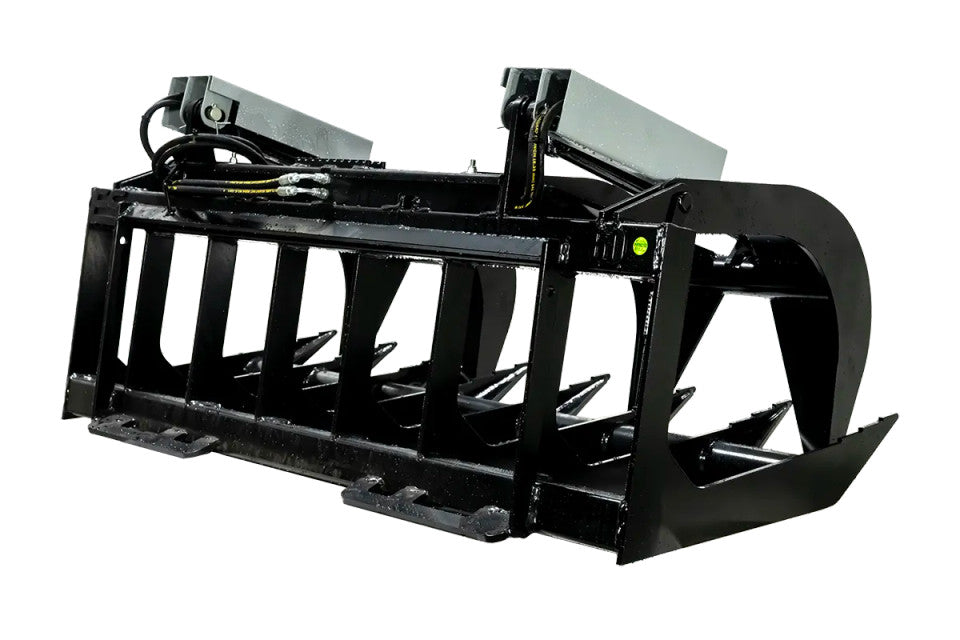

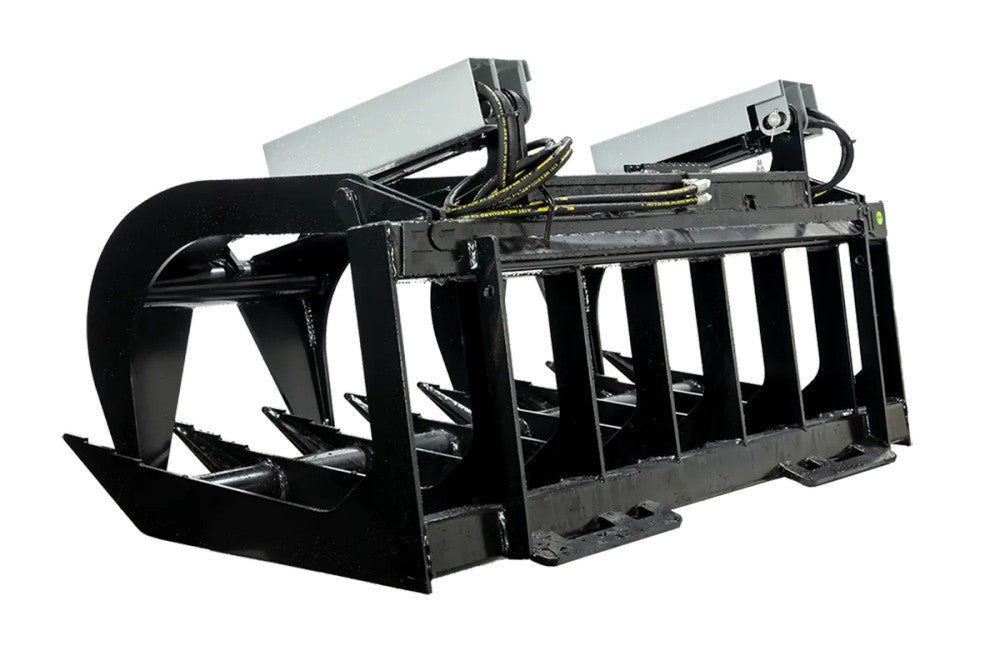

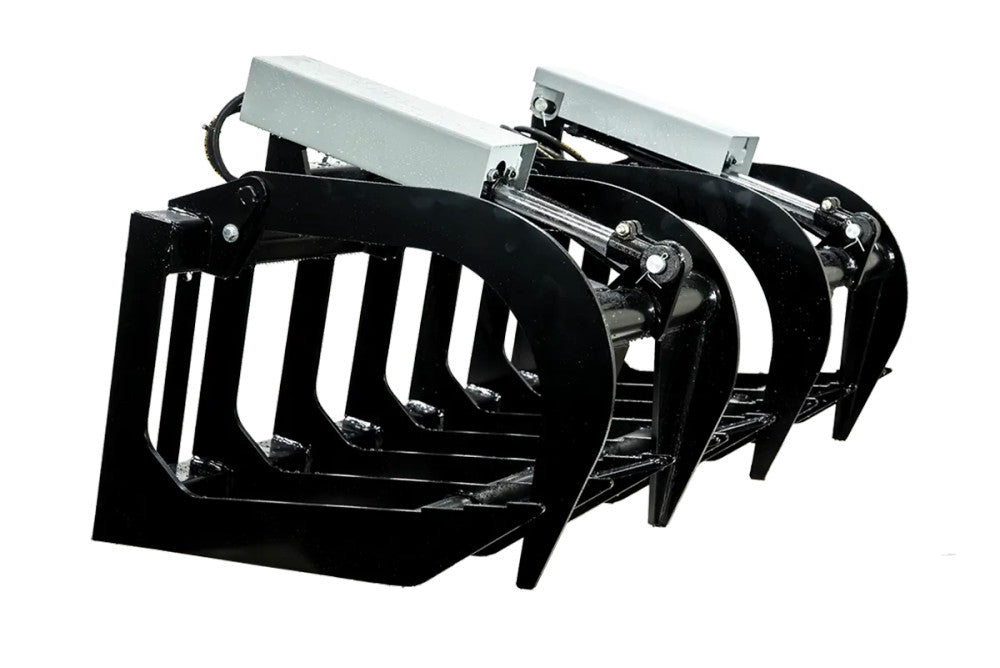

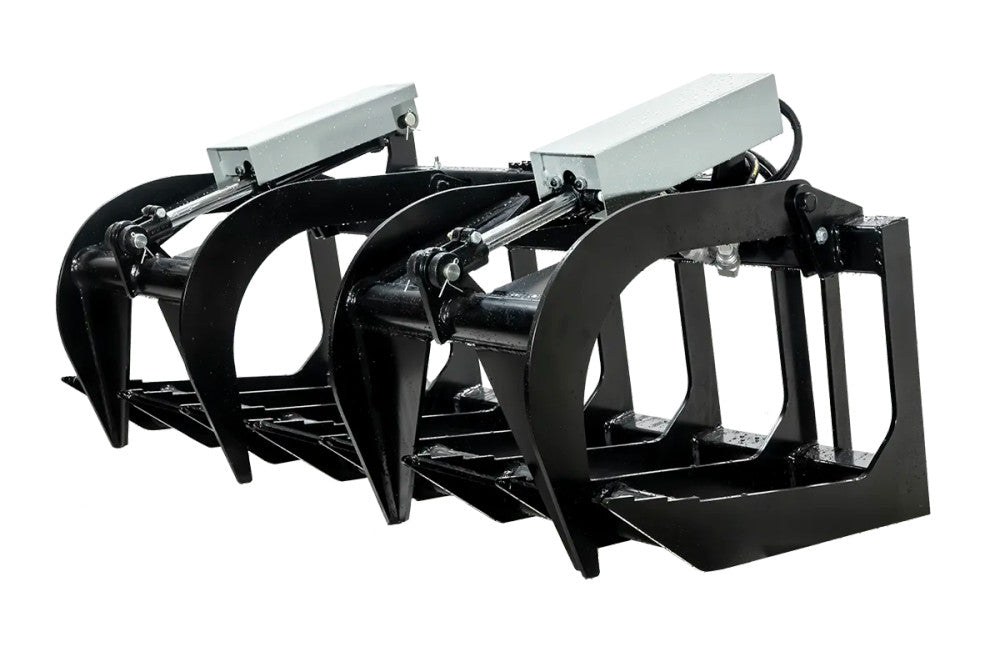

The Express Steel ES20010 60" Brush Grapple is a compact yet heavy-duty attachment built to tackle demanding land clearing and debris handling tasks. With dual independent grapple arms, 3/8" serrated steel tines, and 2" × 8" AG cylinders, this grapple delivers strong clamping force and flexibility for uneven loads like brush, logs, stumps, and rocks.

Its 60" wide frame is ideal for smaller skid steers up to 40 HP or 15–20 GPM, offering excellent maneuverability without sacrificing strength. The grapple opens to 31" at the front and 36" at the center, and closes to 17", allowing for secure handling of bulky materials. The universal quick attach mount ensures compatibility with most skid steer models, and the included ½" flat-faced hydraulic couplers make setup fast and easy. Proudly made in the USA, this grapple is built for contractors, landscapers, and property managers who need reliable performance in tight spaces.

Key Features

• SKU Reference: ES20010 — Express Steel’s internal identifier for inventory and ordering.
• Grapple Width: 60" wide frame for compact yet powerful material handling.
• Heavy-Duty Tines: 3/8" serrated steel tines for aggressive gripping and durability.
• Tine Spacing: 8.5"–9" spacing allows dirt and small debris to fall through.
• Independent Grapple Arms: Dual arms make uneven loads easier to secure.

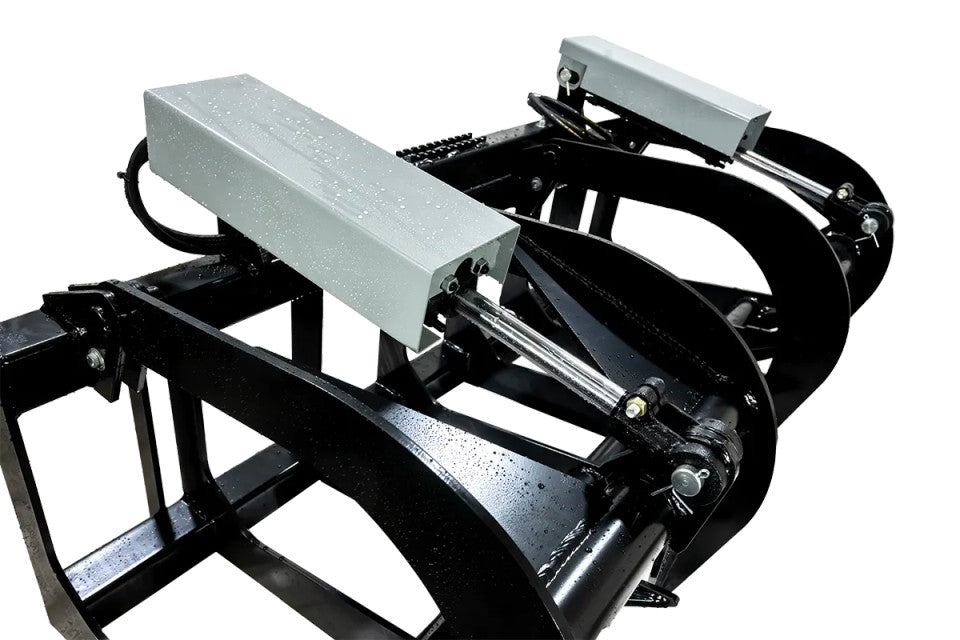

• Hydraulic Cylinders: Dual 2" × 8" AG cylinders with protective covers.

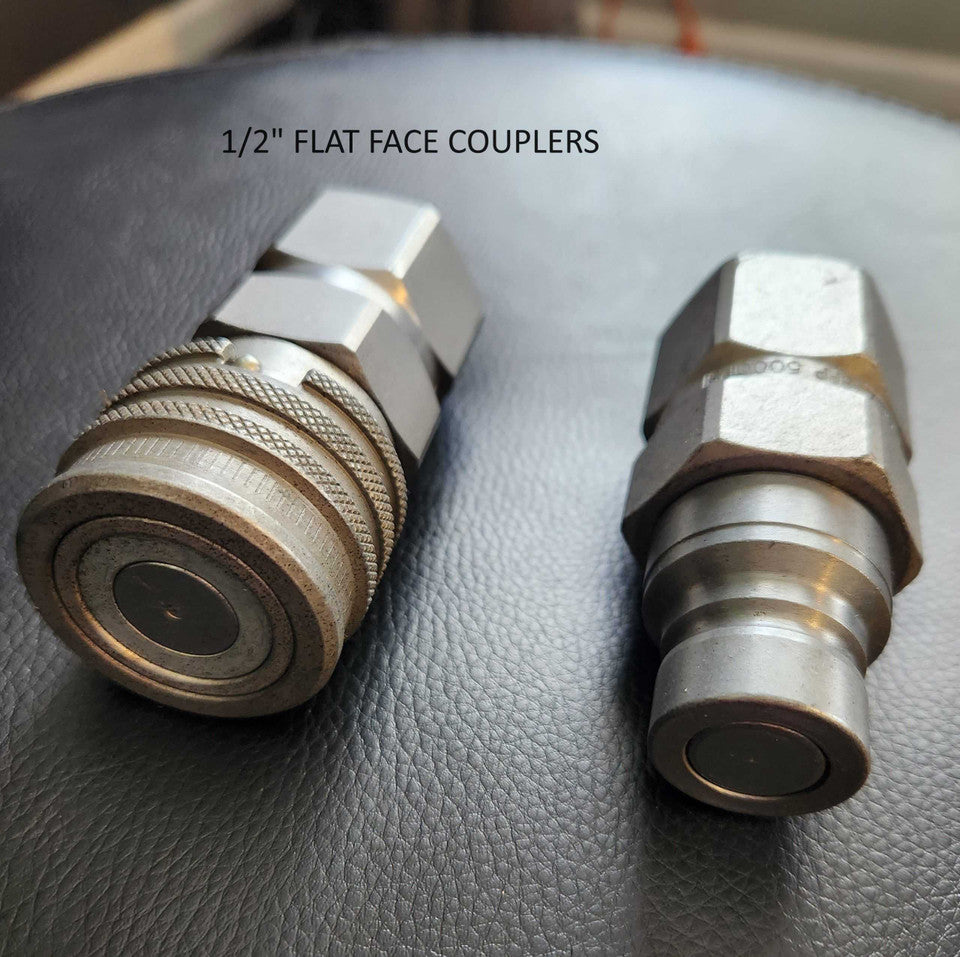

• Hydraulic Hardware: Includes ½" flat-faced quick connect couplers for easy hookup.
• Open/Closed Heights: Opens to 31" (front) and 36" (center); closes to 17".
• Pivot Points: Greaseable pivot points for smooth operation and long-term maintenance.
• Mount Compatibility: Universal skid steer quick attach system.
• Horsepower Range: Recommended for machines rated up to 40 HP.
• Hydraulic Flow Range: Operates efficiently between 15–20 GPM.
• Machine Size Range: Ideal for skid steers in the 1.5–2.5 ton class.
• Finish: Powder-coated black for corrosion resistance and professional appearance.
• American-Made: Manufactured in the USA using premium US steel.
• Delivery Notes: Ships via LTL carrier; unloading equipment required.
