Product Description

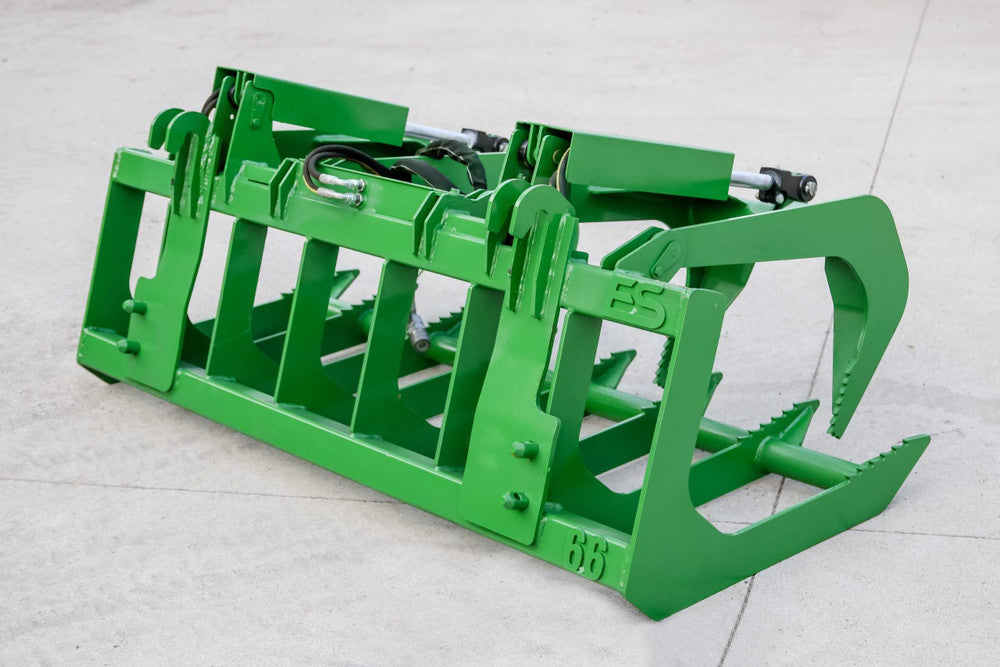

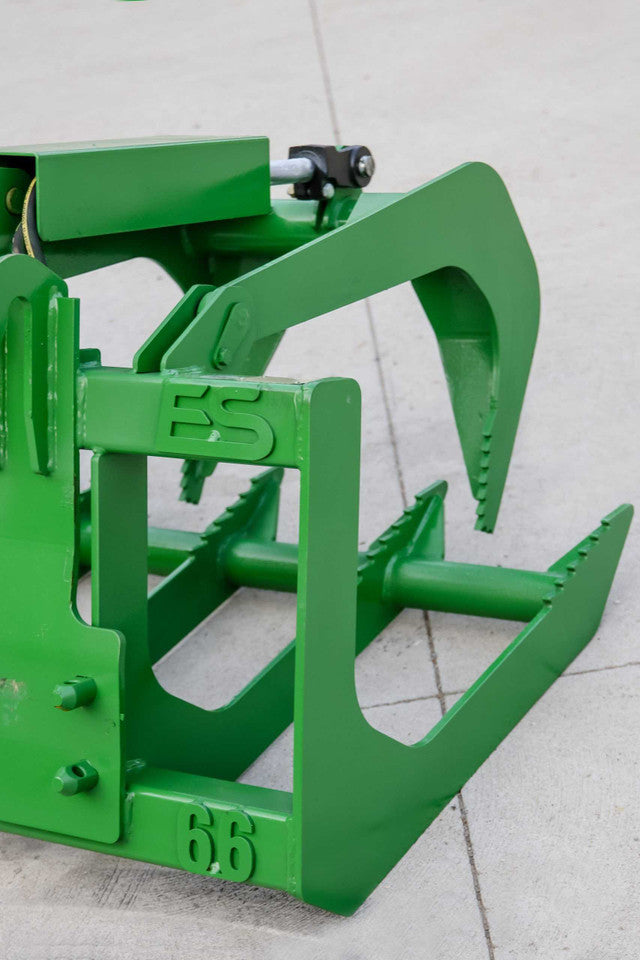

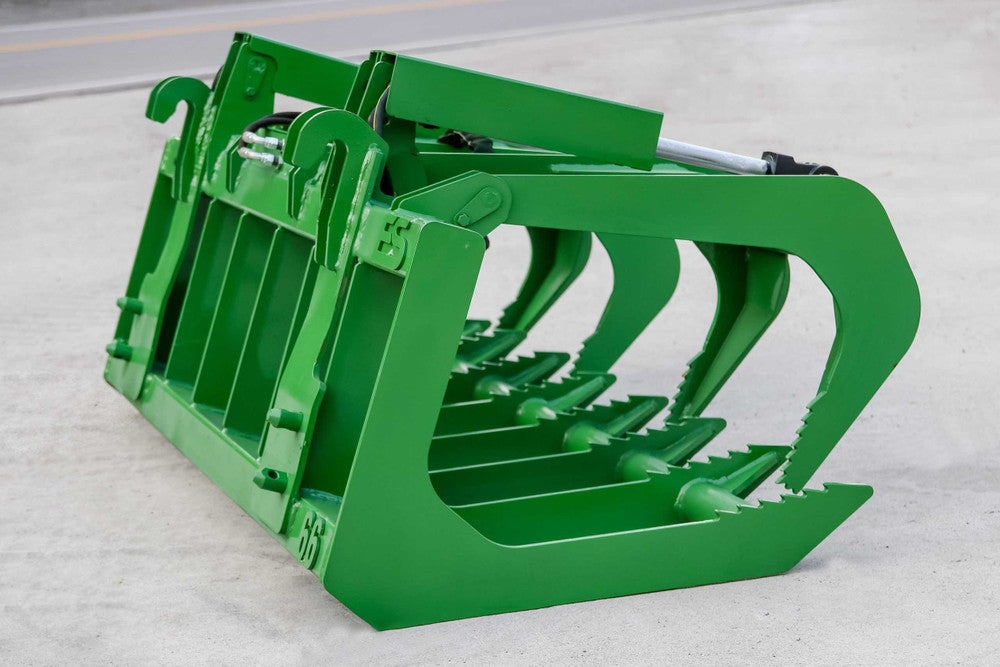

Express Steel | Two-Cylinder Root Grapple | ES21020 | Width 66" | Horsepower Up To 50 HP | For Loaders
DESCRIPTION

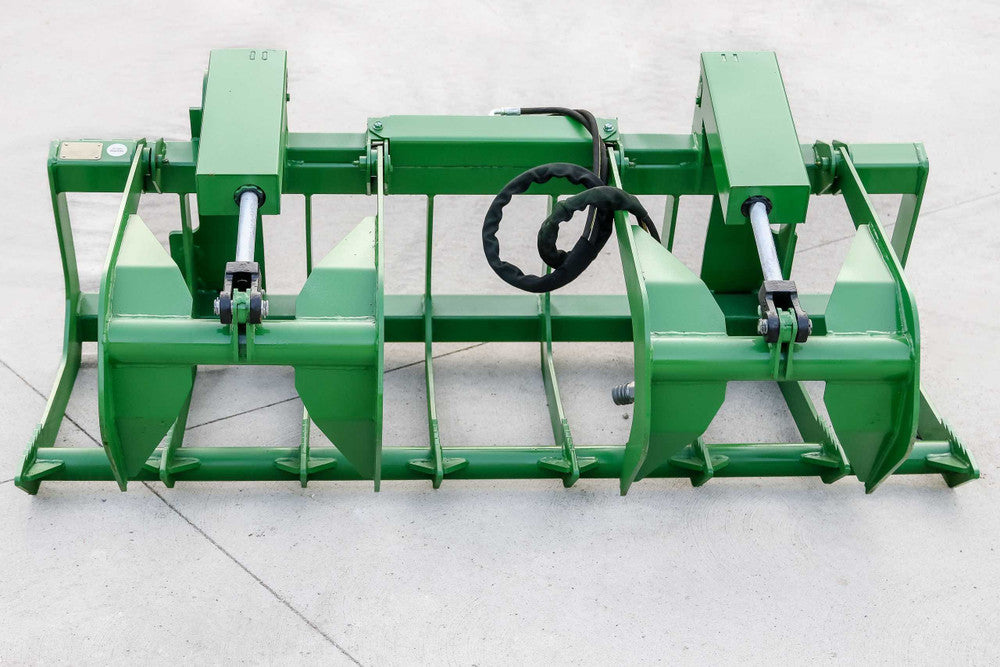

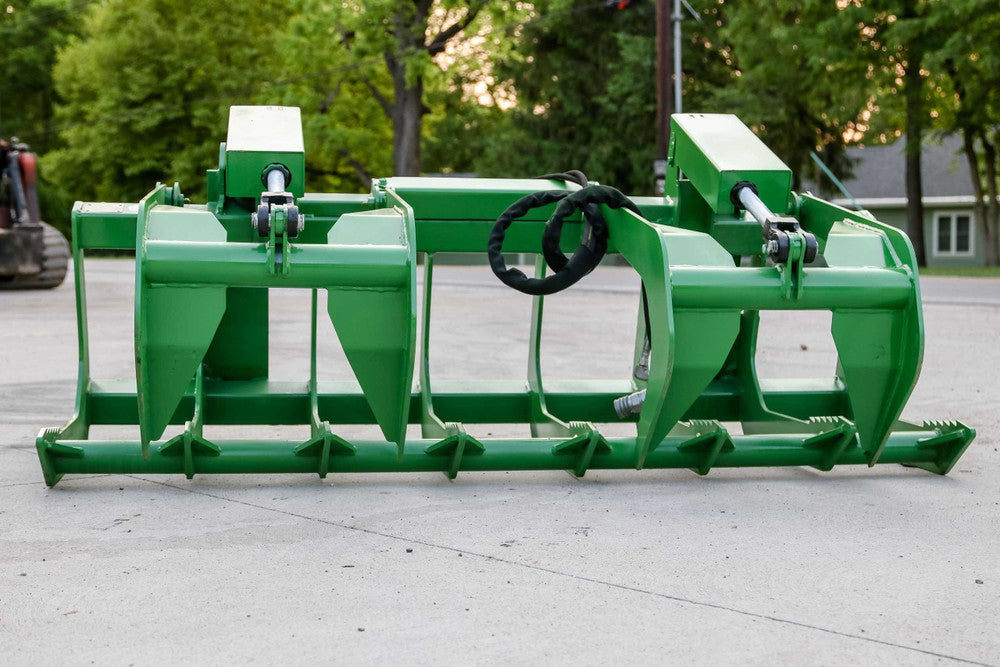

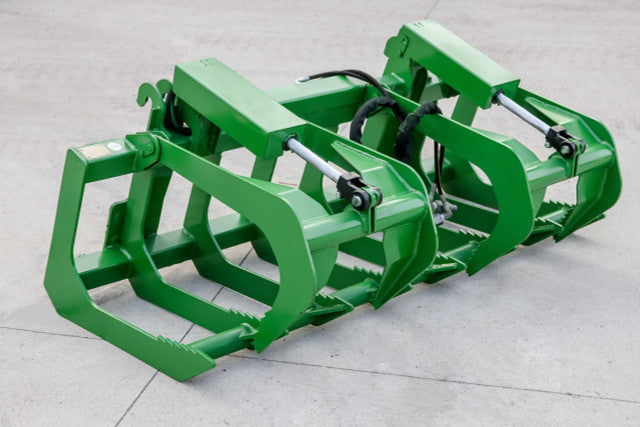

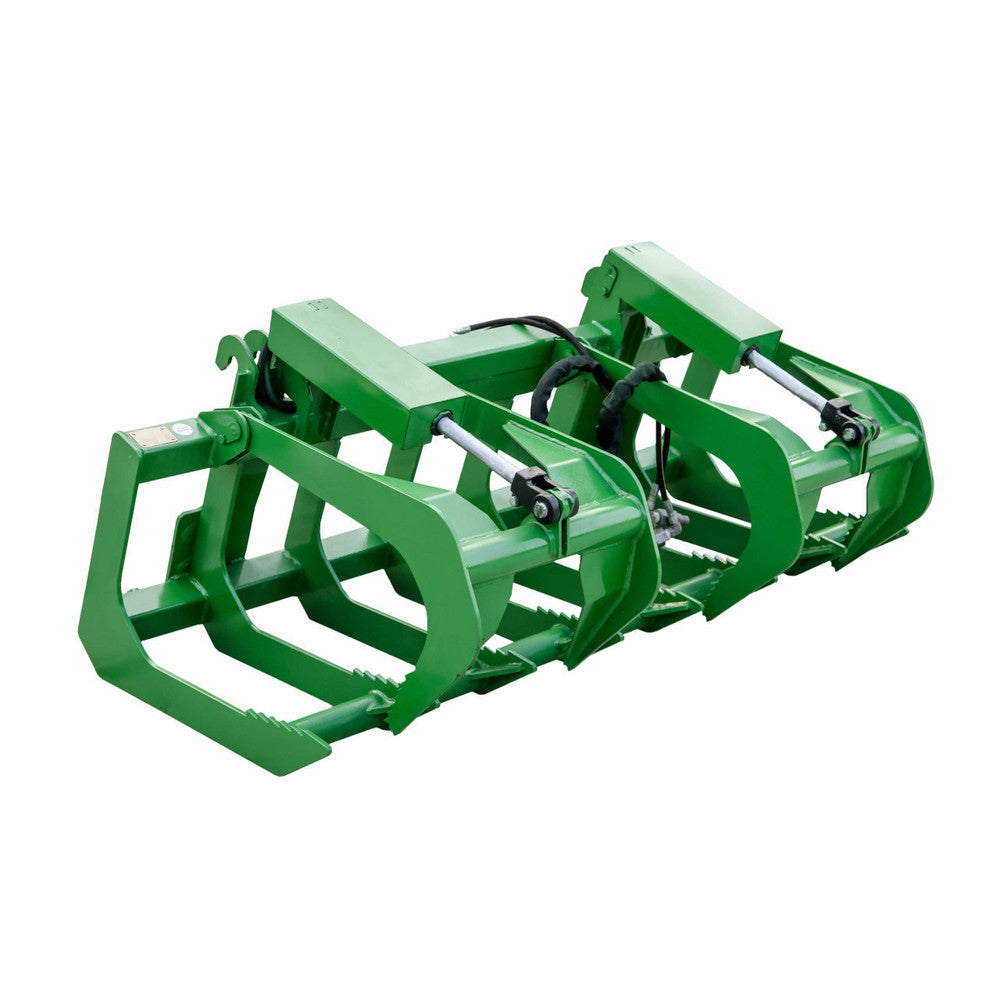

Unlock the full potential of your John Deere loader with the Express Steel 66" Two-Cylinder Root Grapple the ultimate tool for heavy-duty land clearing, brush removal, and jobsite clean-up. Engineered with rugged 3/8" thick premium American steel, this grapple is built to withstand the toughest challenges, from hauling massive logs and roots to handling uneven, bulky materials like stumps and rocks.
Designed exclusively to fit John Deere H100, D100, and 200–500 series loaders with pin-on style quick attach, this root grapple offers a seamless fit and unmatched control on every job. Dual 8" hydraulic cylinders work independently to securely grasp irregular loads, making clearing debris faster and safer. The 66" width balances maneuverability with a broad grasp, improving efficiency without sacrificing precision.
Whether you’re a professional landscaper, forestry operator, or farmer, this root grapple transforms your loader into a powerful land management machine. Its greaseable pivot points and durable powder-coated green finish ensure longevity, even under harsh working conditions. Elevate your equipment’s versatility and tackle any clearing task with confidence and ease.
Key Features
- Perfect Fit for John Deere Loaders Compatible with H100, D100, and 200–500 series loaders using John Deere pin-on quick attach systems.
- Heavy-Duty 66" Width Ideal balance between reach and control for effective brush and root removal.
- Dual Independent Hydraulic Cylinders 2 x 8” cylinders with protective covers offer powerful, precise gripping on uneven, bulky loads.
- Premium 3/8” Thick Steel Construction Built with American-made steel for maximum durability and resistance to wear.
- Greaseable Pivot Points Easy maintenance for extended lifespan and smooth operation.
- Tine Spacing of 9 Inches Perfect spacing to handle brush, roots, rocks, and stumps with minimal material loss.
- Powder-Coated Green Finish Professional look with corrosion resistance to withstand outdoor elements.

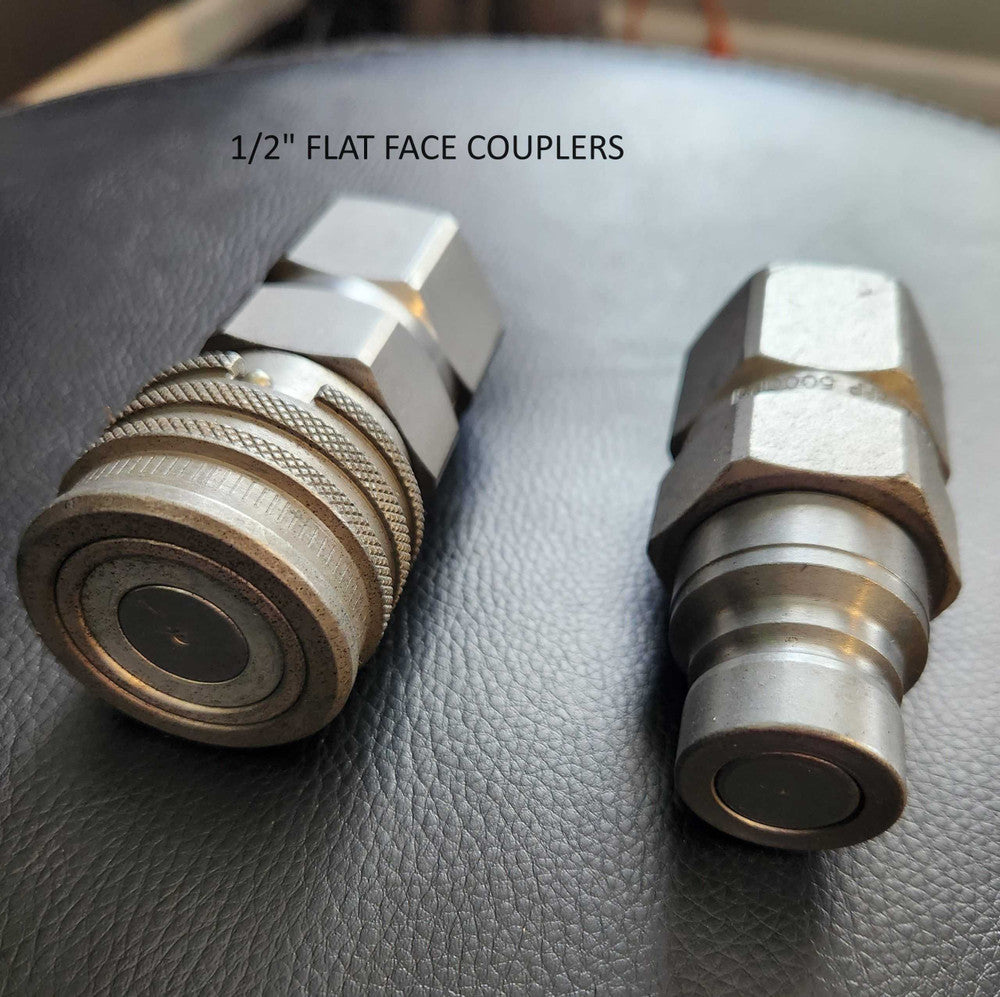

- Quick Connect Hydraulic Couplers Equipped with 1/2” flat face quick couplers for fast, leak-free hydraulic hook-up.
- Lightweight Yet Robust Weighs only 440 lbs for easy mounting without sacrificing strength.
- Optimized for up to 50 HP Loaders Perfect for mid-range John Deere equipment, ensuring efficient hydraulic performance.
- Ideal for Land Clearing & Jobsite Cleanup Efficiently lifts and transports heavy debris for faster project completion.
- Versatile Multi-Purpose Grapple From forestry to landscaping, handle a variety of materials with ease.
- American-Made Quality Assurance Manufactured 100% in the USA, ensuring top-tier craftsmanship.
- Easy to Install & Use Designed for quick attach systems to get you working with minimal downtime.
- Designed for Safety & Stability Dual top clamps and robust hydraulic systems for secure and stable operation.
Detailed Specifications
| Specification | Details |
|---|---|
| Model | 66" John Deere Two-Cylinder Root Grapple |
| SKU | ES21020 |

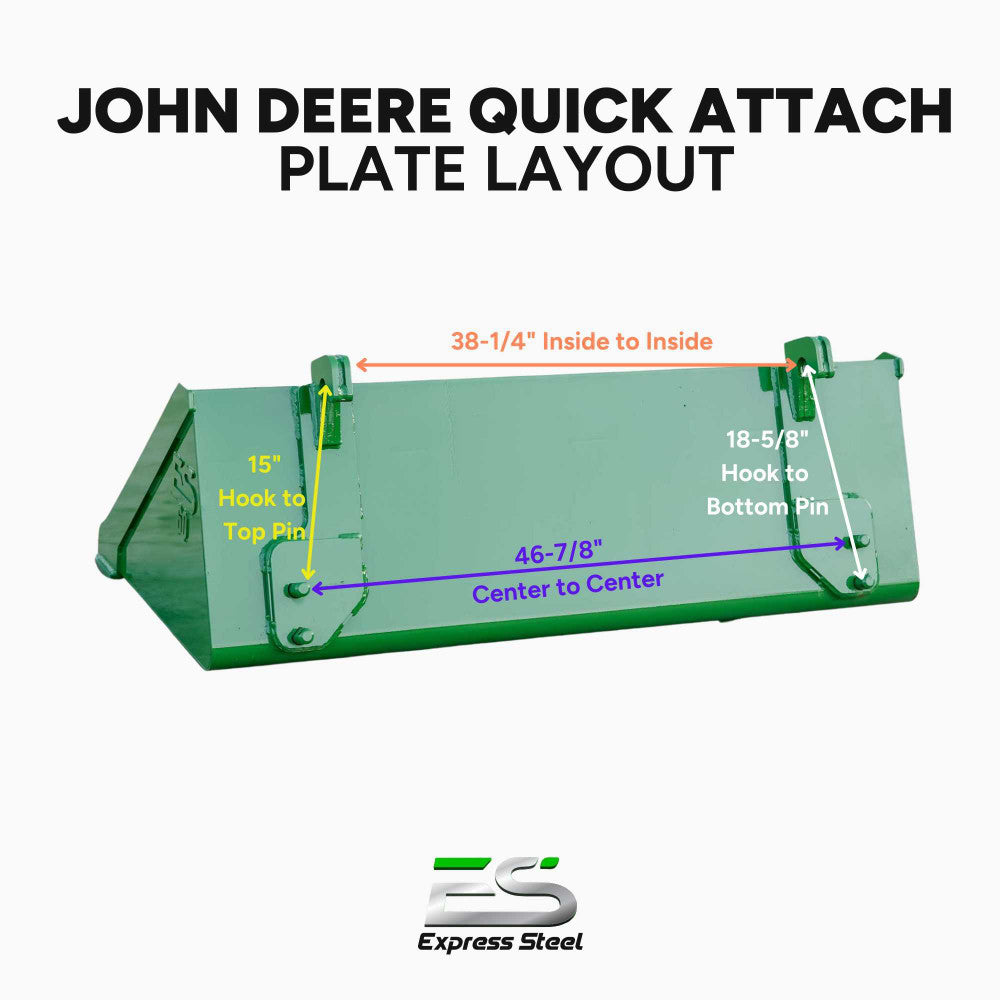

| Compatibility | John Deere H100, D100, 200–500 Series Loaders (Pin-On Quick Attach) |
| Operating Hydraulic Flow | Hydraulic quick attach couplers (1/2” flat face) |
| Recommended Horsepower | Up to 50 HP |
| Overall Width | 66" (grapple width) |
| Dimensions (W x H) | 33” wide x 32” tall |
| Opening Width | 32” front opening / 37” center opening |
| Tine Spacing | 9” between tines |
| Weight | 440 lbs |
| Material Thickness | 3/8” steel |
| Hydraulic Cylinders | 2 x 8” dual independent cylinders with covers |
| Finish | Powder-coated green |
| Pivot Points | Greaseable |
| Country of Manufacture | Made in the USA |
