Product Description

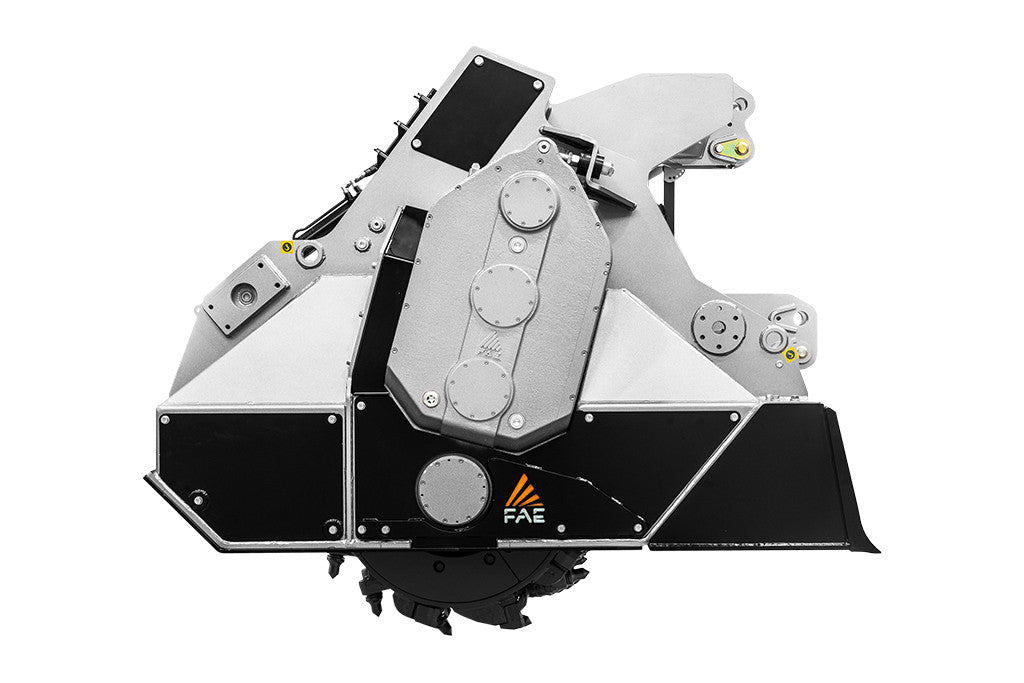

FAE | RSH/HP Stone Crusher | Model 200 To 250 | Width 83" To 101.9" | Crushed Depth Up to 20" | Horsepower 360 To 500 HP | For Tractors
DESCRIPTION

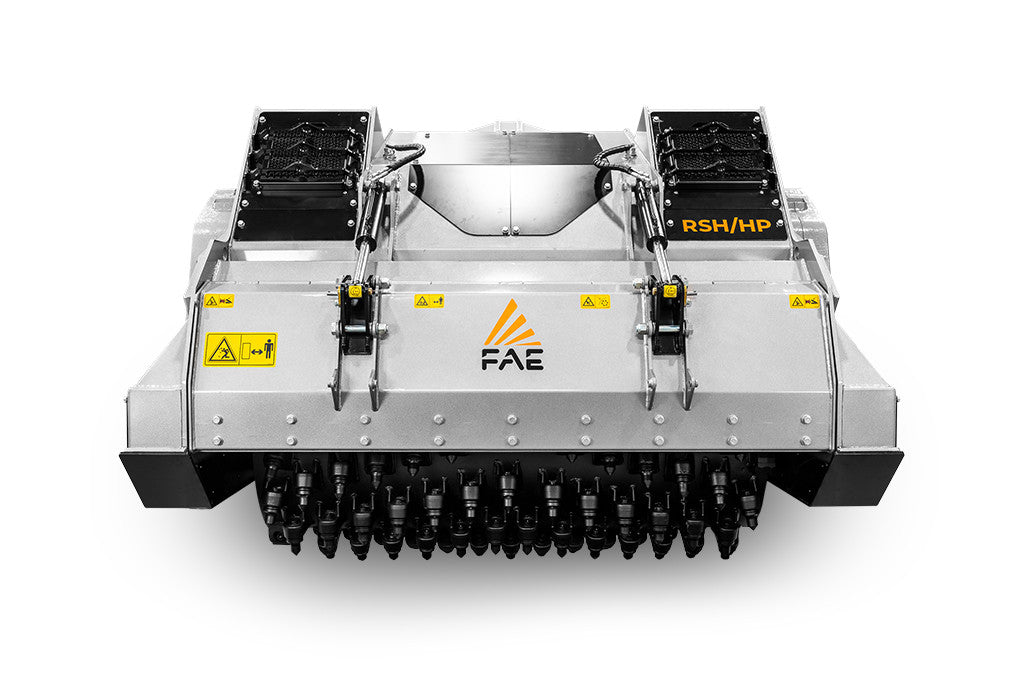

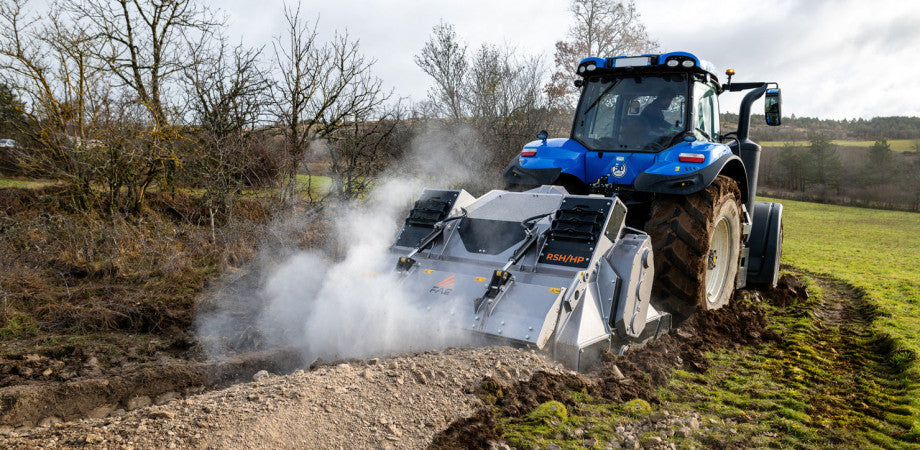

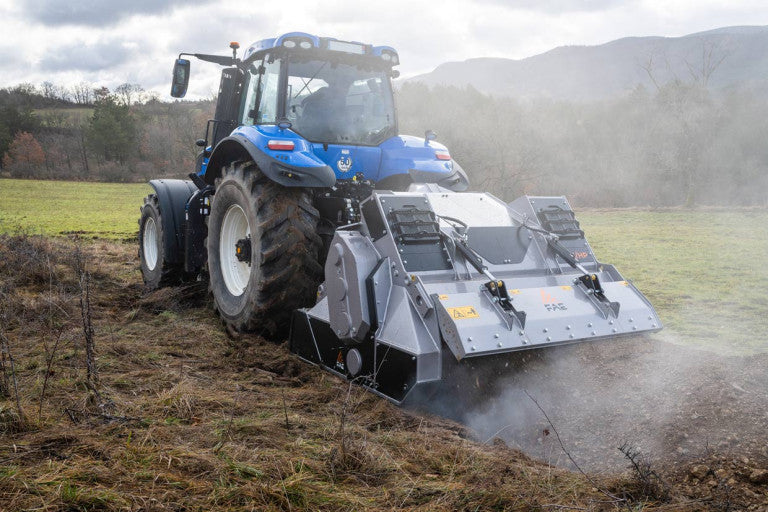

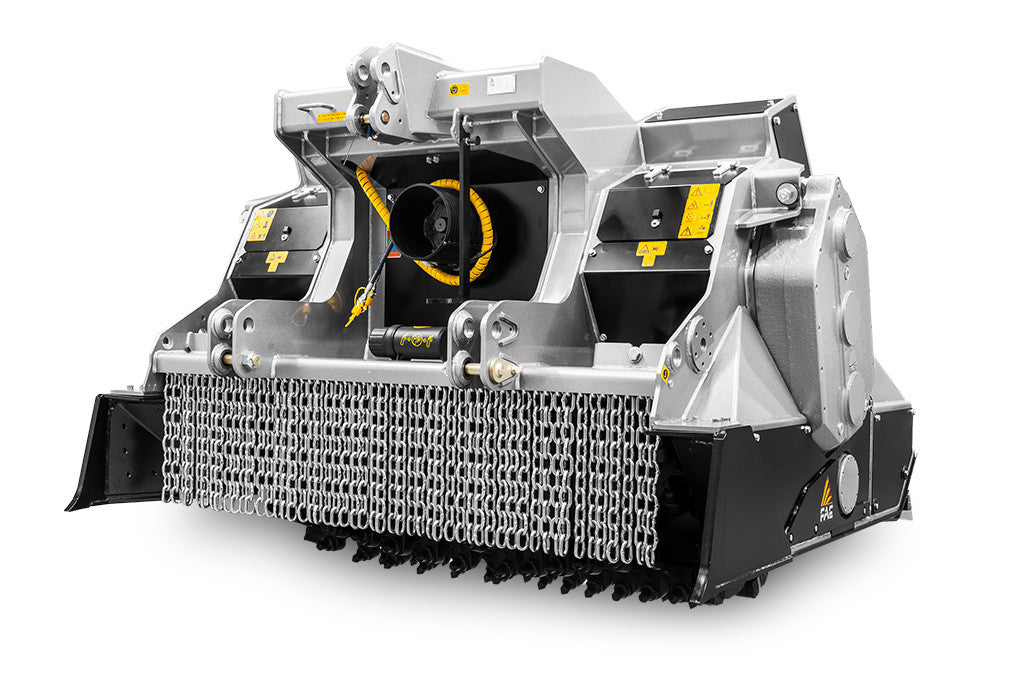

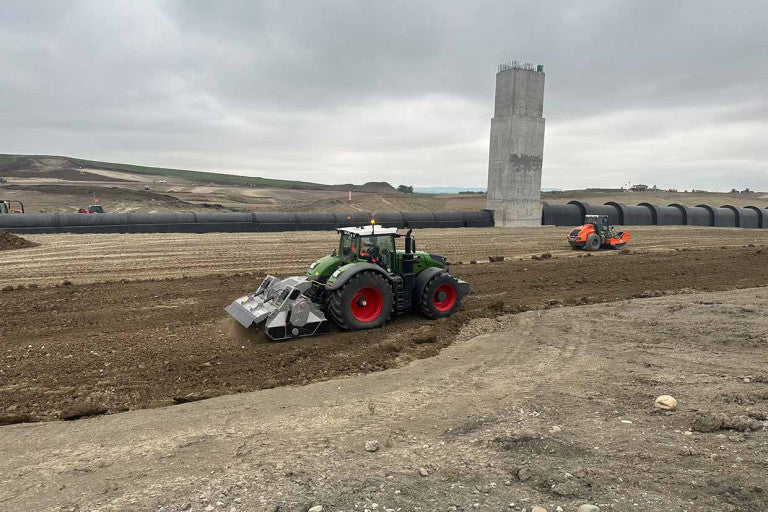

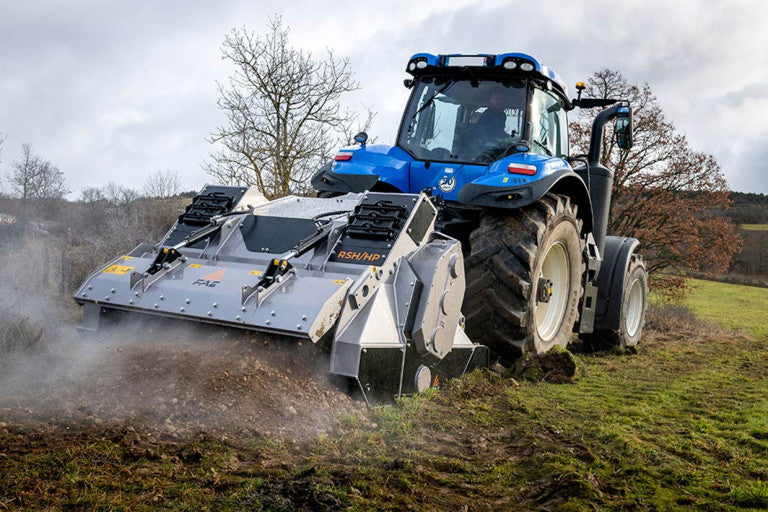

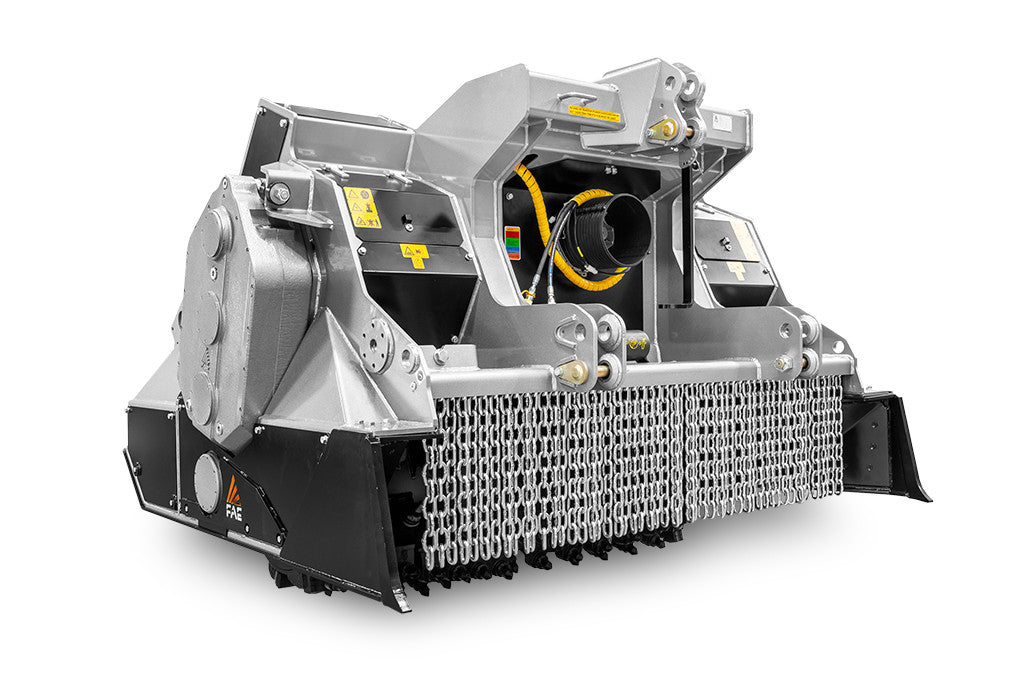

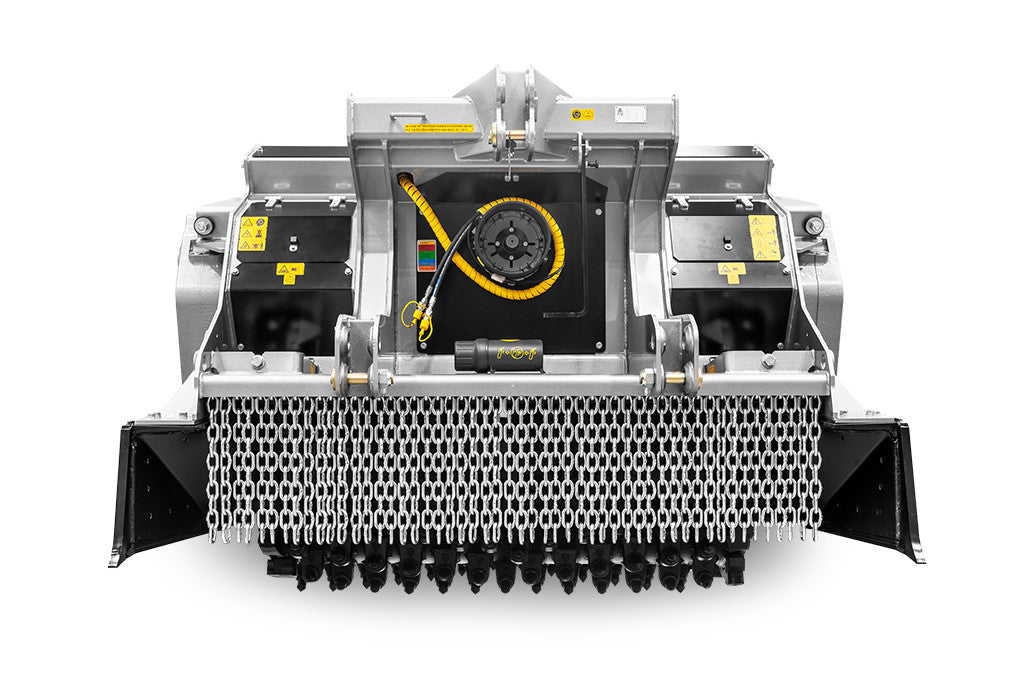

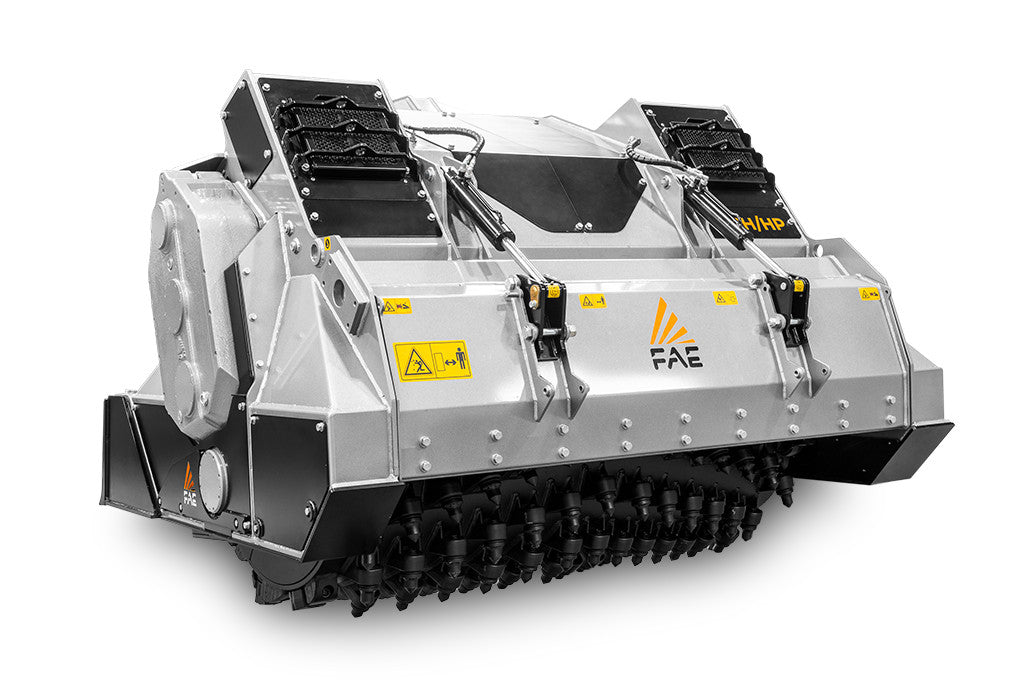

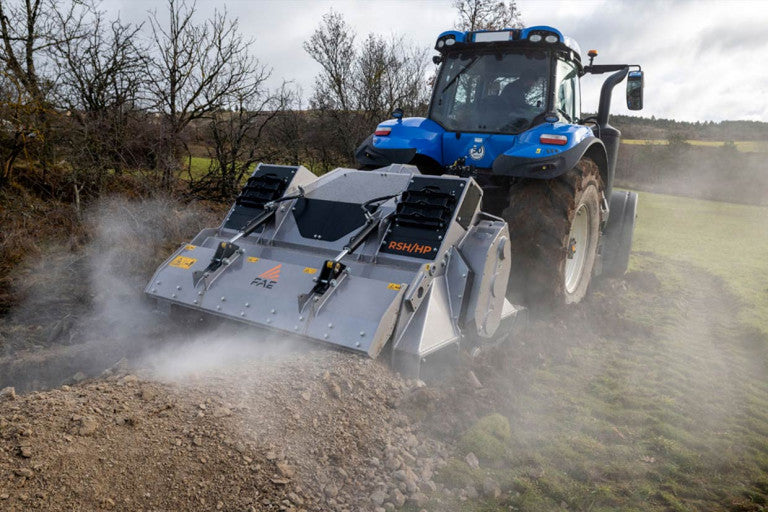

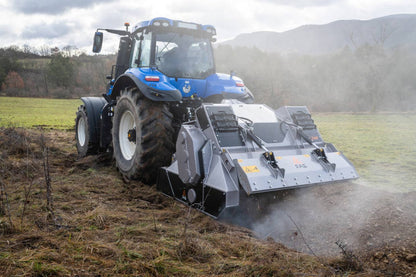

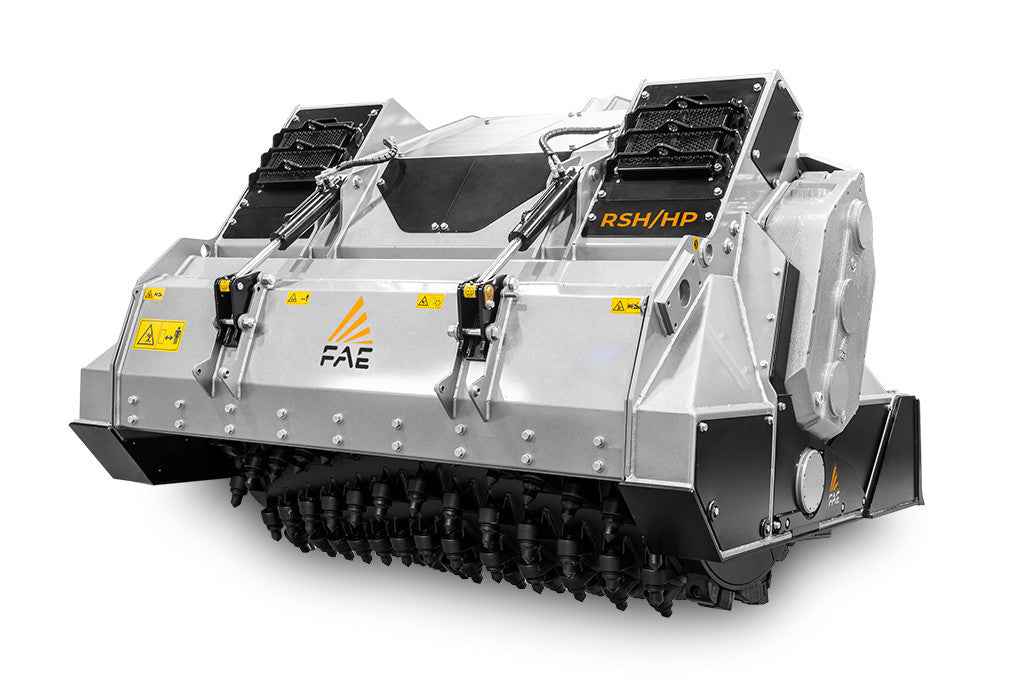

When extreme terrain demands serious power, professionals turn to the FAE RSH/HP Series FAE’s most advanced stone crusher line, built to conquer the harshest agricultural and land-clearing environments. Designed for high-powered tractors (360 to 500 HP), these crushers effortlessly crush rock and stone up to 50 cm (20") in diameter and work the ground to a depth of up to 50 cm (20").
Whether you're preparing neglected land for cultivation, reclaiming rocky terrain, or transforming dense soil into fertile ground, the RSH/HP delivers unmatched results. With its wide feed opening, high-performance rotor options, and rugged build using Hardox® anti-wear steel, this is the tool of choice for contractors, farmers, and land managers who refuse to compromise.
From its adjustable counter-blade for custom material fineness, to its side gearbox with oil cooling system for non-stop reliability in the field, the RSH/HP is engineered for heavy-duty use turning rock into ready-to-plant soil with precision, efficiency, and brute strength.
Key Features
- Crushes Rock & Stone up to 20" Diameter Ideal for breaking down oversized materials in challenging terrain.
- Deep Soil Penetration Up to 20" (50 cm) Prepares land for agriculture, construction, or restoration in one pass.
- Engineered for 360–500 HP Tractors Compatible with high-horsepower machines for maximum performance.
- Wide Working Widths Up to 102" (260 cm) Maximize field coverage and reduce operational time.
- Dual Rotor Options: G or R Type G/3 teeth for surfaced stones; R/65 picks for buried rock customize to soil type.
- Heavy-Duty Build with Hardox® Steel Components Long-lasting structural integrity in even the toughest environments.

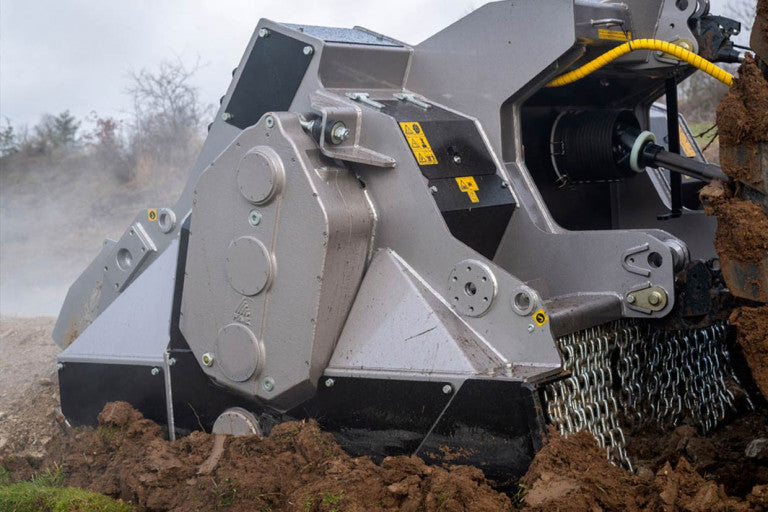

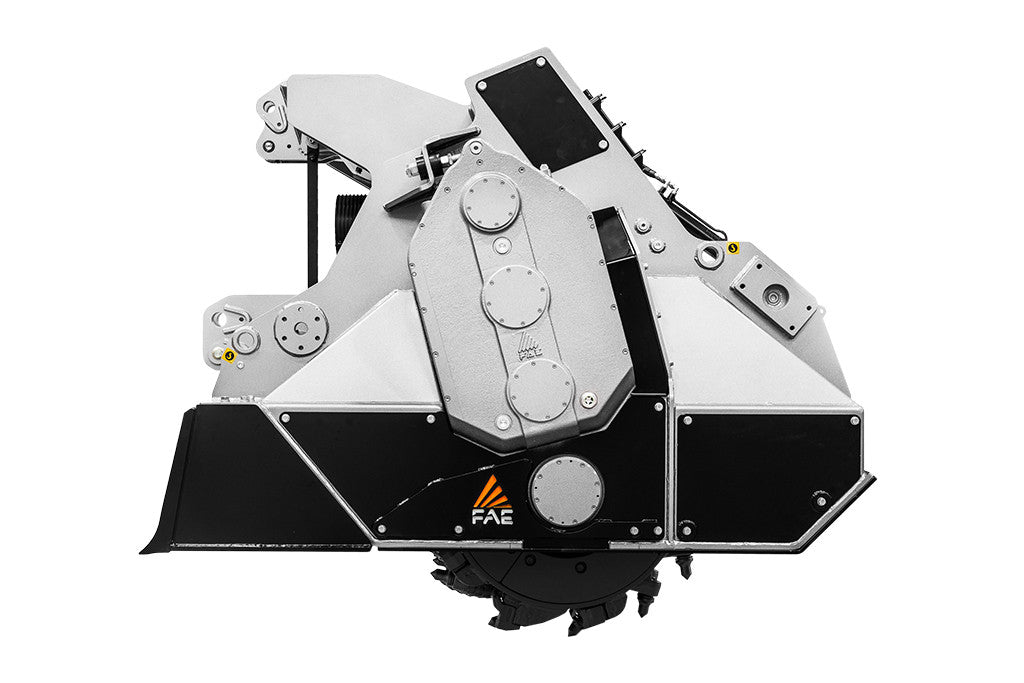

- Oil-Cooled Side & Central Gearbox Maintains optimal efficiency under high load and extended use.
- Optional Rear Grid & Dosing Blade Ensures uniform particle size and precise material distribution.
Detailed Specifications
| Model | RSH/HP-200 | RSH/HP-225 | RSH/HP-250 |
|---|---|---|---|
| Tractor Power (HP) | 360–500 | 360–500 | 360–500 |
| PTO Speed (RPM) | 1000 | 1000 | 1000 |
| Working Width (mm/in) | 2107 / 83" | 2347 / 92.4" | 2587 / 101.9" |
| Total Width (mm/in) | 2670 / 105" | 2910 / 114.6" | 3150 / 124" |
| Weight (kg/lbs) | 7050 / 15,543 lbs | 7450 / 16,424 lbs | 7850 / 17,306 lbs |
| Max Shredding Diameter (mm/in) | 500 / 20" | 500 / 20" | 500 / 20" |
| Max Working Depth (mm/in) | 500 / 19.7" | 500 / 19.7" | 500 / 19.7" |
| Rotor Diameter (G/3) | 1115 mm | 1115 mm | 1115 mm |
| Rotor Diameter (R/65) | 1065 mm | 1065 mm | 1065 mm |
| Rotor Teeth (G/3) | 104 | 116 | 132 |
| Rotor Picks (R/65) | 166 | 200 | 220 |
Manuals & Documents
Technical data sheet
General Warranty Info:
- Ripping It Outdoors works closely with our manufacturers to supply and support your products warranty needs as best as possible!
- The majority of products come with a manufacturer represented warranty against manufacturing defects for at least a 12 month period after the date of sale.
- Expendable components and "wear parts" including but not limited to blades, knives, teeth, oil, chain sprockets, skid shoes, knife mounting discs, and similar components are usually excluded from manufacturer warranties.
- Please reach out to us for any specific warranty information neededabout products and parts you can’t find!

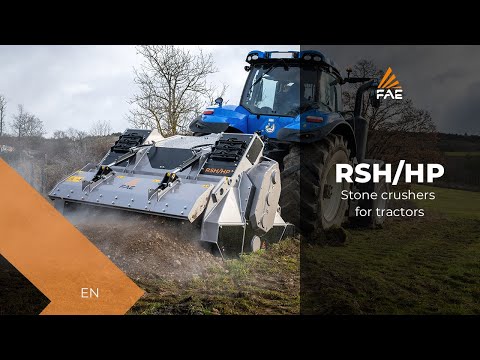

Videos
