Product Description
Farm-Maxx Greenscape Food Plotters | 750 Series | Working Width 74" & 84" | Horsepower 40-50 HP | For Tractors
DESCRIPTION

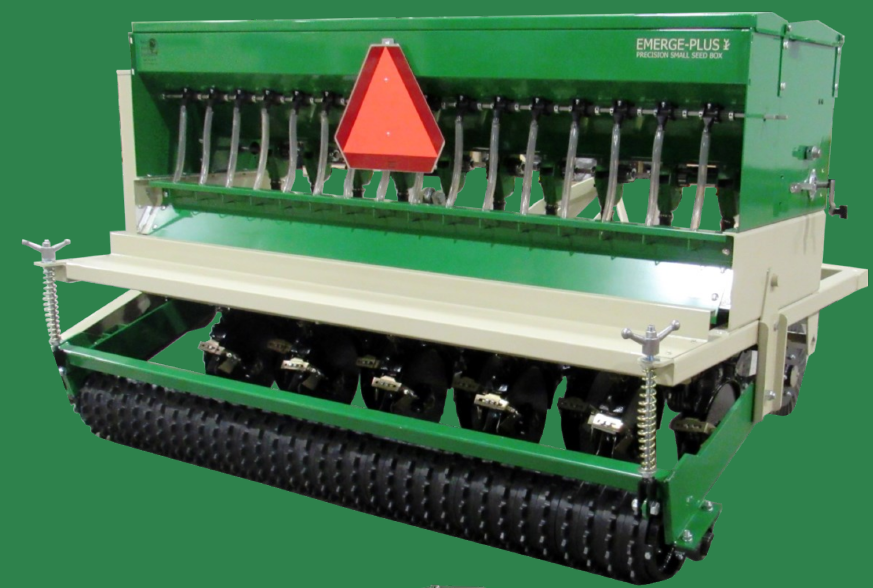

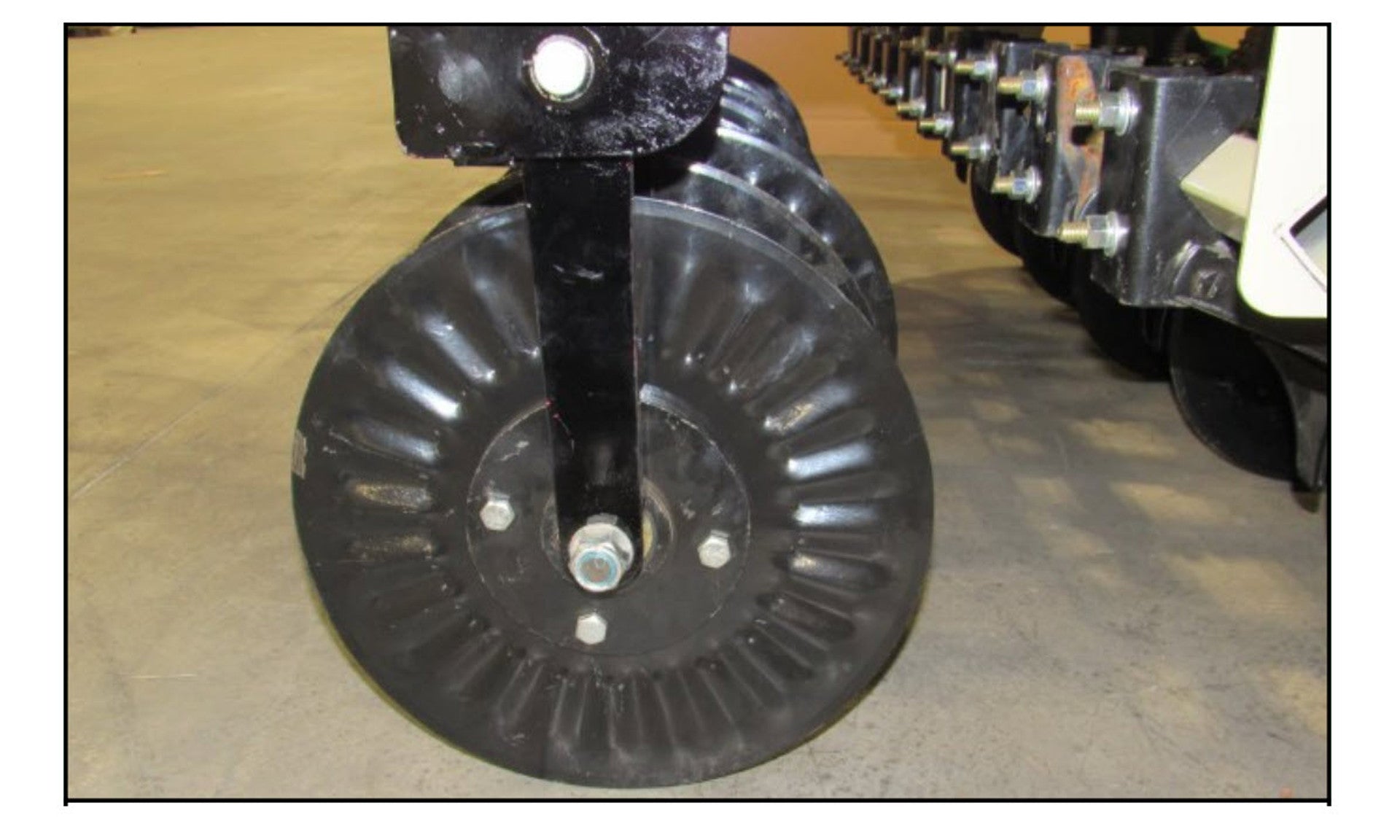

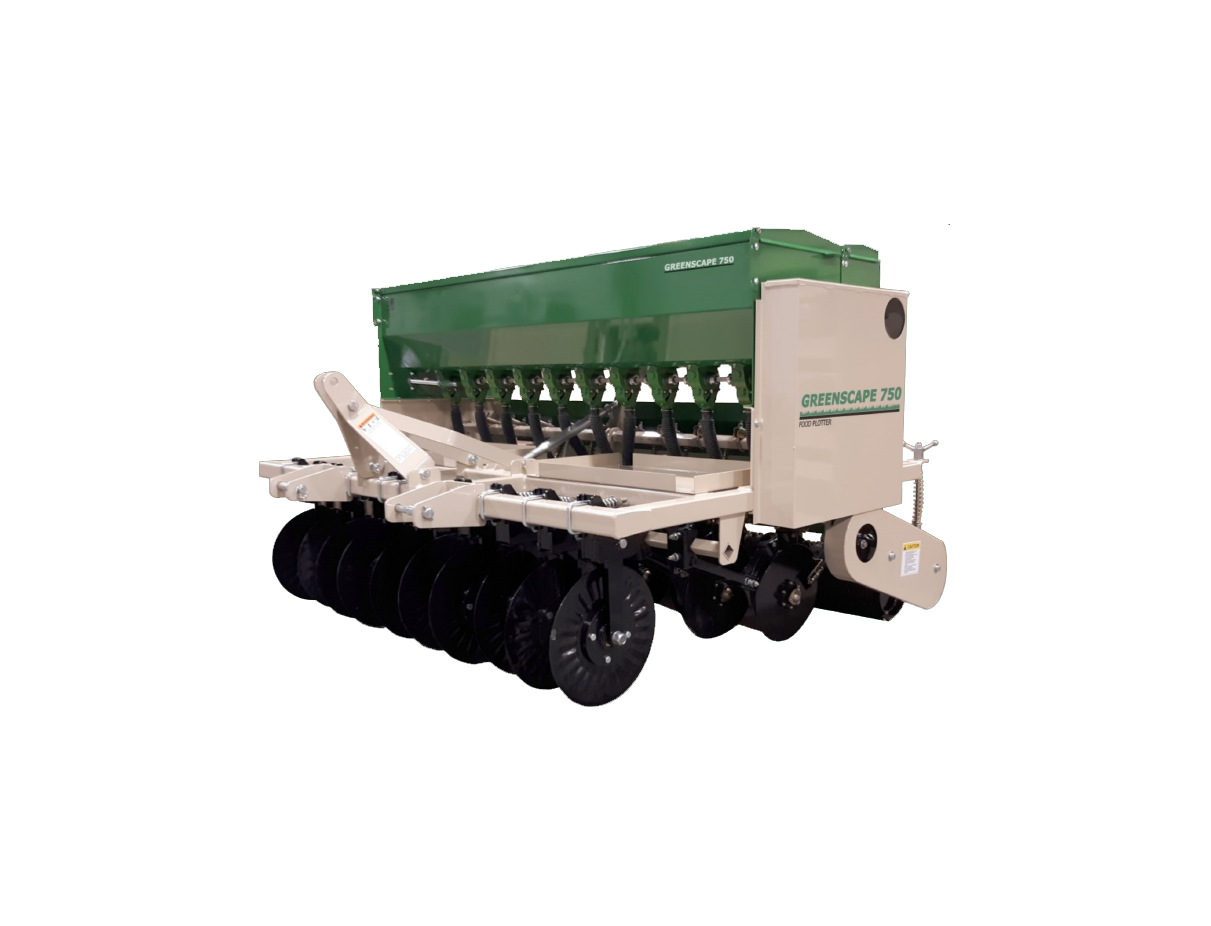

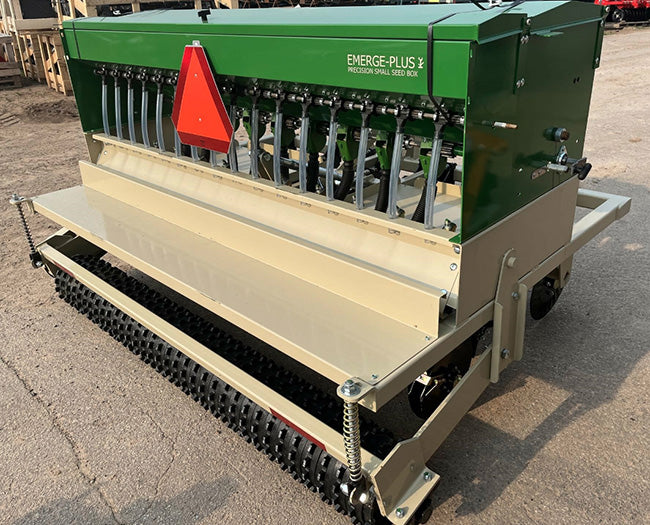

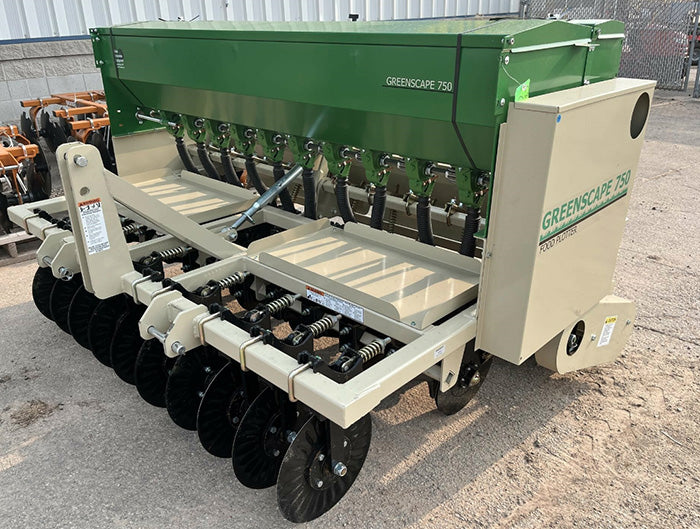

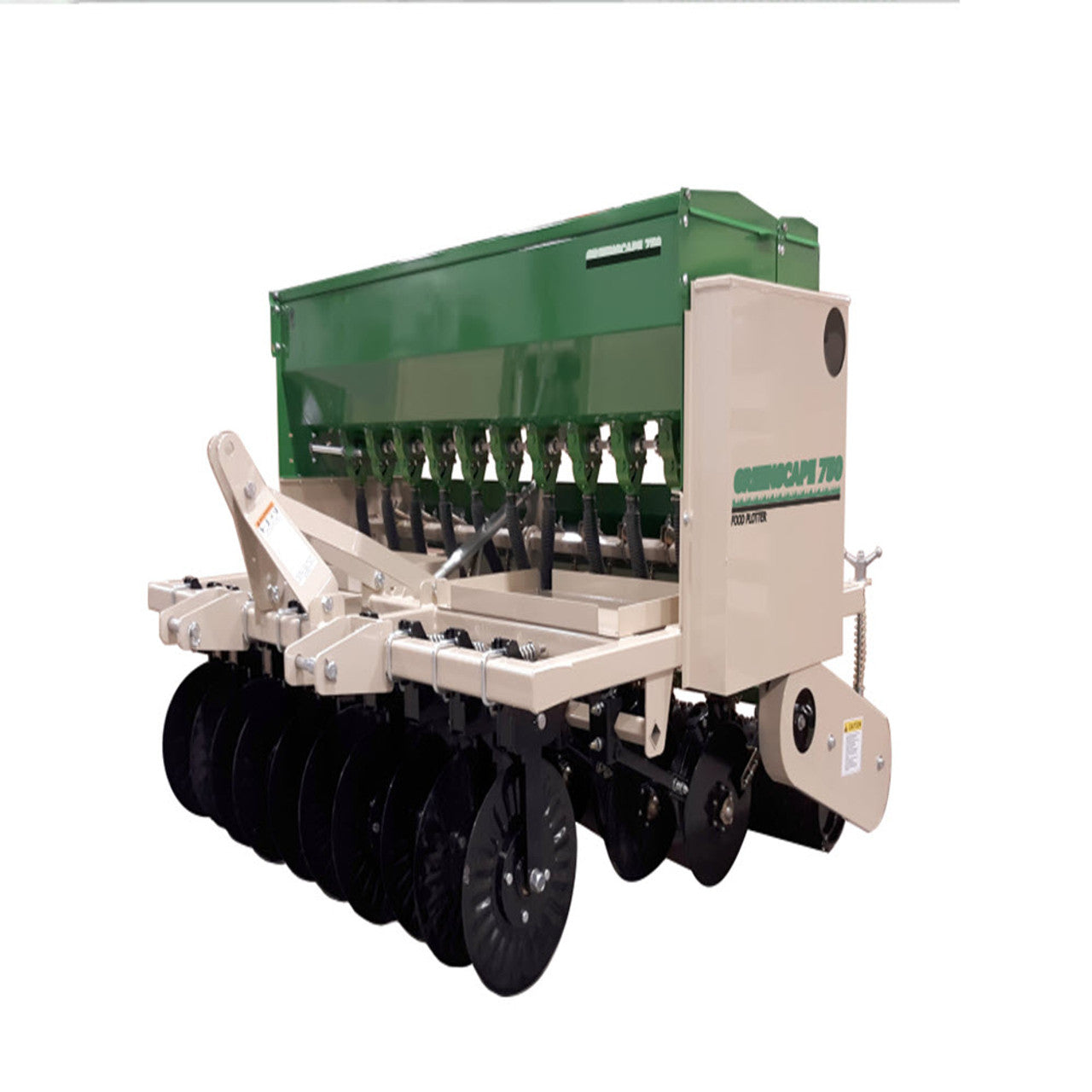

The Greenscape 750 Food Plotter No-Till Drill is the latest in the Greenscape family of the most reliable seeders produced in the US over the past 20 years. High precision seed boxes and flow control make seeding a breeze with the ability to drill many different varieties and sizes of seed into all types of plantng conditons. Heavy built, but constructed to be able to be handled by tractors as low as 50 HP, The foodplotter is designed for planting deer food plots around woodlands or high precision pasture seeding in the fall. The 10 coulters at 7 1/2” High precision large seed seedcups accurately drop seeds into the openings. A separate Legume Seedbox with high precision seed cups accurately drop seed along a “splash pan” that rains the small seed over the soil. A packer roller system with Nylon rings or optional cast iron rollers help press the seed into the ground and close up the cuts made by the disc openers.

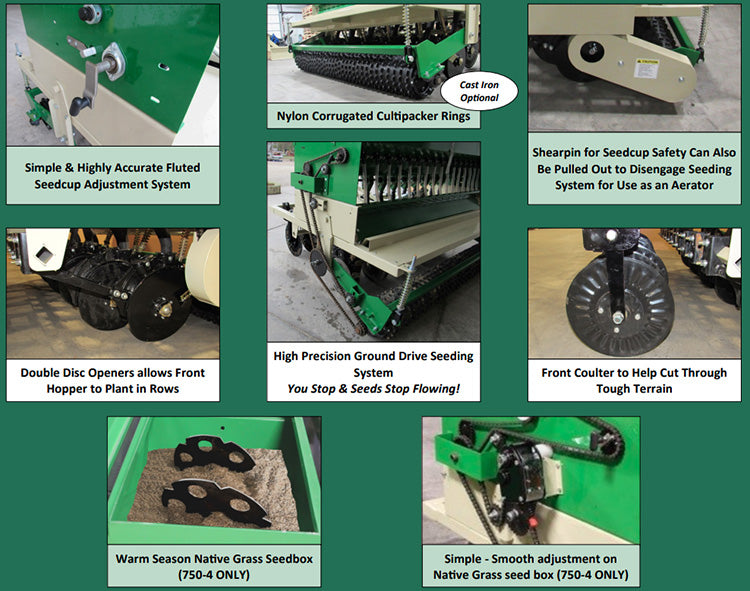

Key Features
Shared Features Across the Series:
- Cat 1 & 2 Hitch Compatibility: Enables easy attachment to a wide range of tractors.

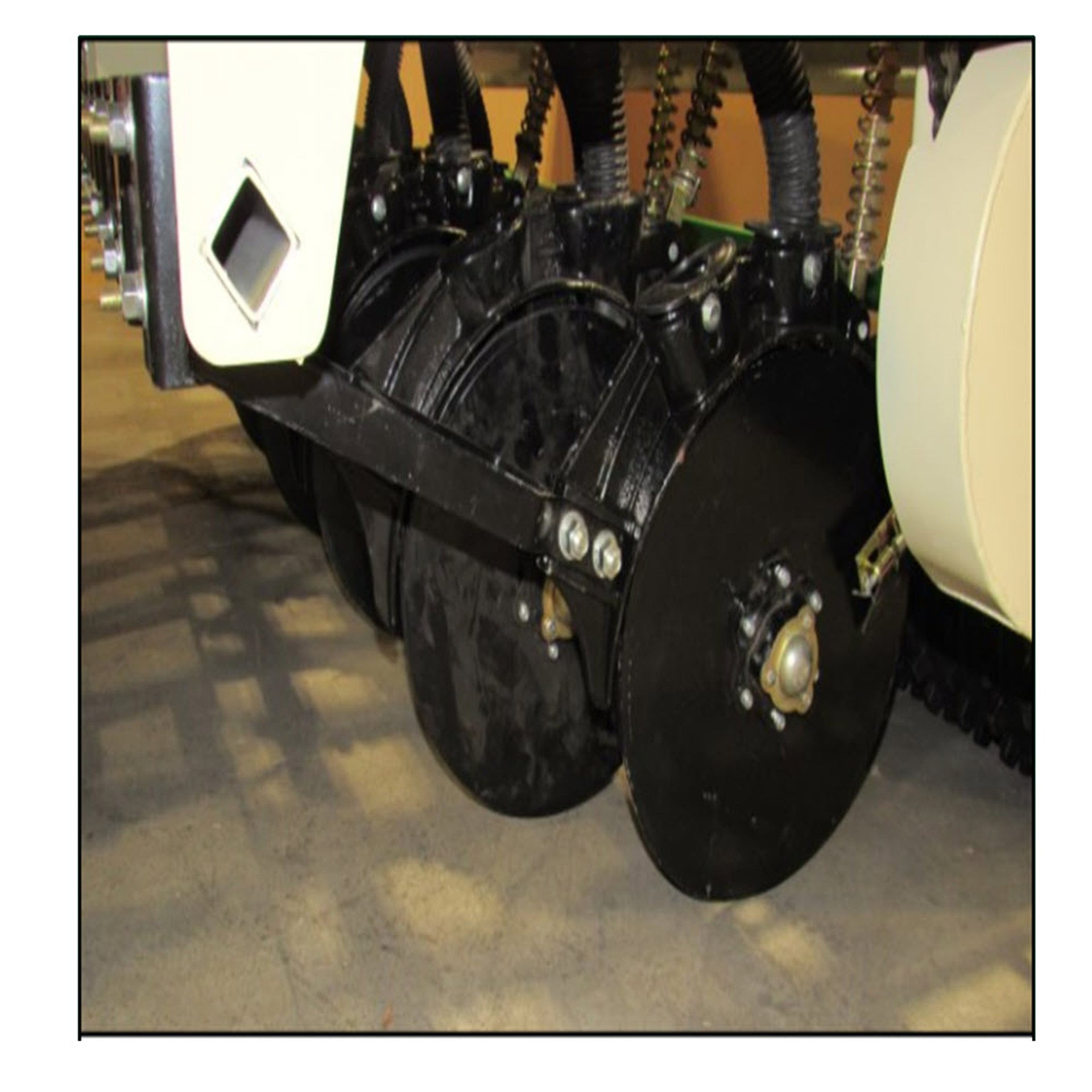

- Double Disc Openers: Ensures precise cutting with 10 openers spaced at 7.5 inches.

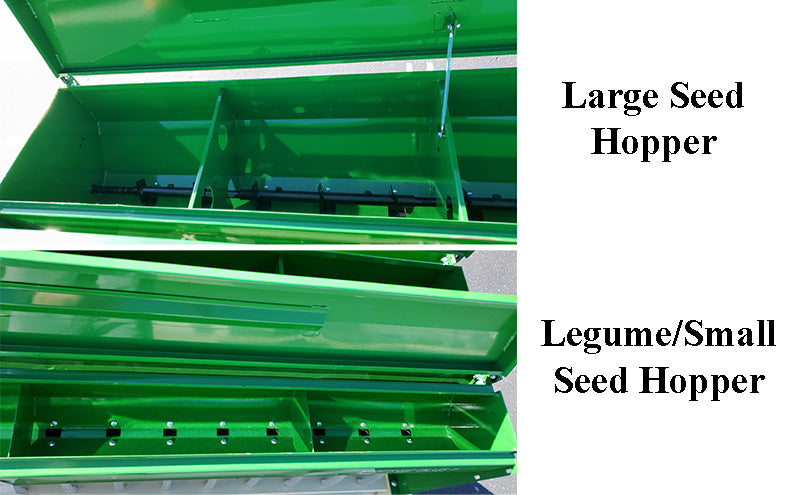

- Large Seed Box: High precision seed cups for consistent seed placement; capacity: 10.27 cu. ft.
- Legume Seed Box: Separate seed cups with splash pans for optimal distribution of smaller seeds; capacity: 2.64 cu. ft.
- Rear Cultipacker: Fiber-reinforced nylon rollers help press seeds into the soil and close disc cuts.

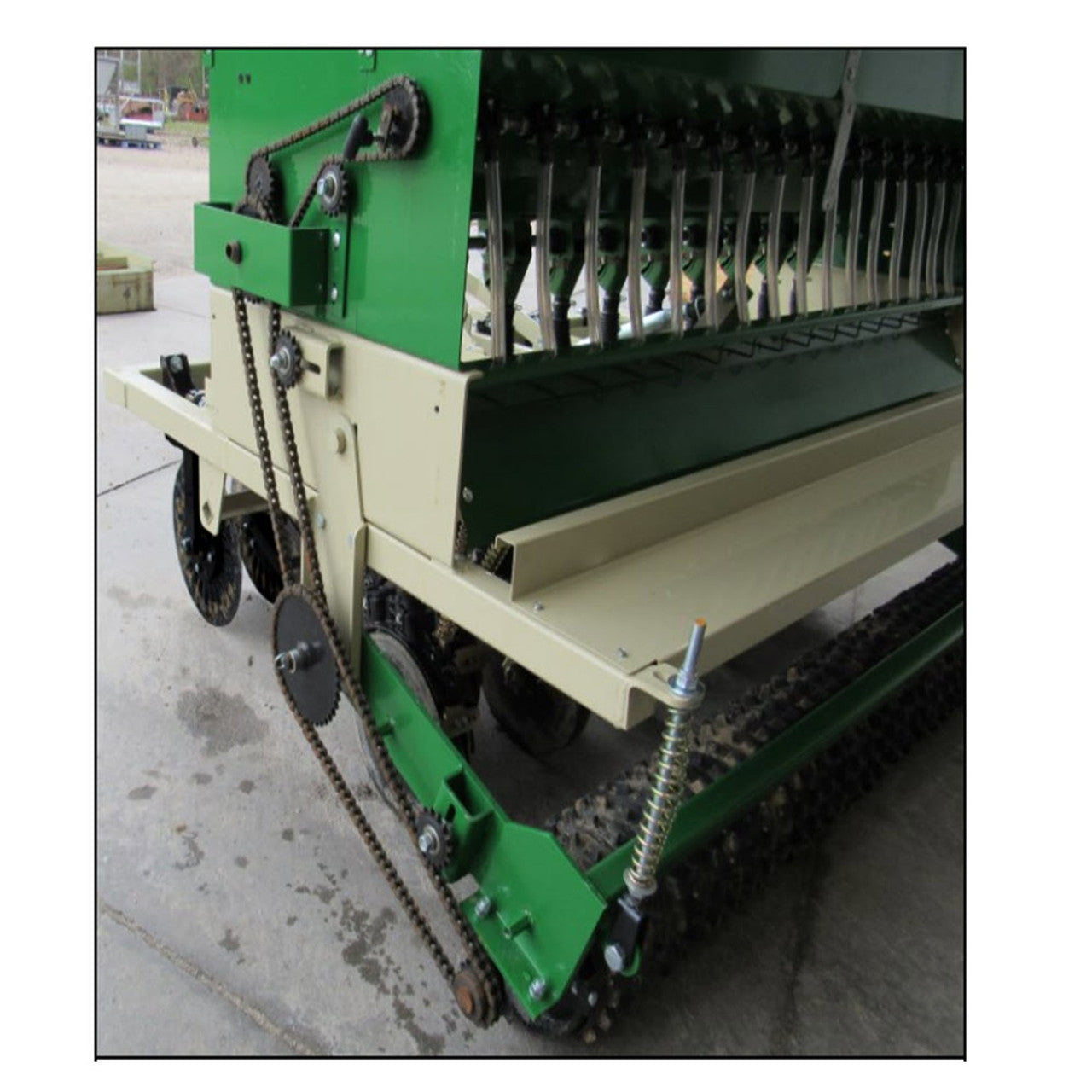

- High Precision Design: Facilitates planting in various conditions with adjustable flow controls.
- Robust Construction: Built for heavy-duty applications while remaining compact for ease of handling.
Unique Features for Model 750-2-GS:
- Minimum Horsepower: Operates efficiently with tractors requiring 40 HP.
- Working Width: 74 inches for medium-sized planting operations.
- Overall Dimensions: Width: 94 inches, Length: 75 inches, Height: 54 inches.
Unique Features for Model 750-4-GS:
- Warm Season Native Grass Box: Includes a third seed box for planting native grass varieties; capacity: 6.10 cu. ft.
- Minimum Horsepower: Requires 50 HP for optimized performance.
- Working Width: Expanded to 84 inches for larger planting operations.
- Overall Dimensions: Width: 98 inches, Length: 76 inches, Height: 54 inches.
Detailed Specifications
| Attribute | GS750-2 | GS750-4 |
|---|---|---|
| Part Number | GS750-2 | GS750-4 |
| Hitch Type | CAT 1/2 | CAT 1/2 |
| Minimum Horsepower | 50 HP | 40 HP |
| Working Width | 75″ | 75″ |
| Overall Width | 94″ | 94″ |
| Overall Length | 75″ | 76″ |
| Overall Height | 54″ | 54″ |
| Weight | 1,840 lbs | 1,650 lbs |
| Double Disc Openers | 10 units | 10 units |
| Disc Spacing | 7.5″ | 7.5″ |
| Large Seed Box Capacity | 10.27 cu ft | 10.27 cu ft |
| Legume Seed Box Capacity | 2.64 cu ft | 2.64 cu ft |
| Native Grass Seed Box | – | 6.10 cu ft (≈120 lbs of seed) |
| Rear Cultipacker Roller | Nylon rings (Cast Iron optional) | Nylon rings (Cast Iron optional) |
