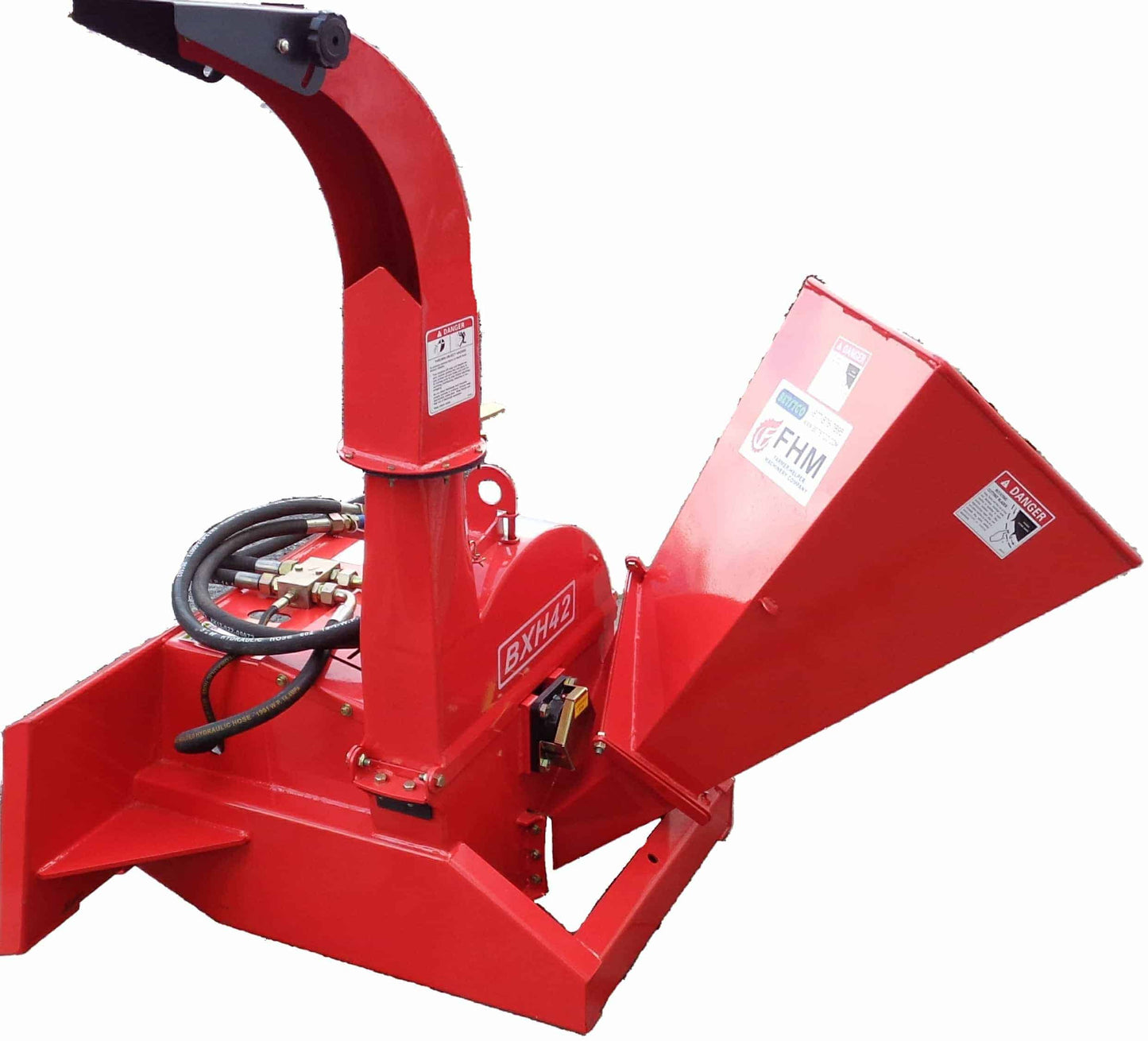

Farmer-Helper | Hydraulic Wood Chipper | Model FH-BXH42 | 3″ Capacity | Hydraulic Flow 14 To 24 GPM | For Skid Steer
Farmer-Helper | Hydraulic Wood Chipper | Model FH-BXH42 | 3″ Capacity | Hydraulic Flow 14 To 24 GPM | For Skid Steer
Couldn't load pickup availability
Couldn't load pickup availability
Product Description
Farmer-Helper | Hydraulic Wood Chipper | Model FH-BXH42 | 3″ Capacity | Hydraulic Flow 14 To 24 GPM | For Skid Steer
DESCRIPTION
The Farmer-Helper FH-BXH42 Hydraulic Wood Chipper is the go-to solution for landowners, landscapers, and forestry professionals who need dependable chipping performance from a hydraulic-powered skid steer attachment. Whether you're clearing trails, managing property debris, or producing mulch on the go, this heavy-duty 3” wood chipper delivers consistent results with minimal effort.
Designed for skid steers and compact tractors with 14 To 24 GPM hydraulic flow, the BXH42 is self-feeding and engineered for maximum efficiency. Its 4” x 10” gravity-fed hopper aggressively pulls in material using a pinch-and-pull design no need to manually push every branch. The powerful 25” flywheel with extractor wings and 4 reversible cutting blades turn even dense, awkward limbs into uniform wood chips perfect for ground cover, composting, or bedding.
You’ll appreciate the ease of use, low maintenance, and rugged construction. The foldable hopper, 360° rotating chute, and adjustable deflector make this chipper just as smart and maneuverable as it is tough.
Key Features
- Compatible with skid steers and compact tractors requiring 14 to 24 GPM hydraulic flow, no PTO needed.
- Handles branches up to 3" diameter, ideal for routine land clearing, tree maintenance, and brush cleanup.
- Self-feeding gravity hopper with pinch-and-pull action reduces manual labor and operator fatigue.
- Powered by hydraulic direct drive, eliminating belts, gears, or engine maintenance for maximum reliability.
- Heavy-duty 25” diameter flywheel (80 lbs) delivers strong cutting momentum and smooth chip ejection.
- Equipped with 4 reversible tool steel blades, offering longer service life and reduced blade replacement frequency.
- Features 1 reversible bed blade for enhanced chipping performance and consistent chip size.
- 360° swivel discharge chute with adjustable deflector allows you to direct chips with precision into piles, rows, or trailers.
- Compact design folds to 42" L x 42" W x 60" H, allowing easy storage and trailering between job sites.
- Built with industrial-grade steel construction, designed to withstand rugged field conditions.
- Weighs 565 lbs, offering stable operation on various terrain without excessive bulk.
- Includes standard hydraulic hoses and quick couplers for plug-and-play hookup with most skid steer hydraulic systems.
- Produces fine, uniform wood chips suitable for mulching, composting, bedding, or erosion control.
- Great for forestry professionals, landscapers, municipal crews, and farm owners managing mid-sized debris.
- Fits universal skid steer quick-attach plates and compact tractors equipped with compatible hydraulic outputs.
Detailed Specifications
| Specification | FH-BXH42 |
|---|---|
| Model Number | FH-BXH42 |
| Max Feed Capacity | 3” Diameter x 10” Wide |
| Hydraulic Flow Range | 14 To 24 GPM |
| Attachment Compatibility | Skid Steer / Compact Tractor (Hydraulic) |
| Feed Design | Self-Feeding, Pinch & Pull |
| Flywheel | 25” Diameter, 80 lbs, ½” Thick w/Extractor Wings |
| Cutting Blades | 4 Reversible Tool Steel Blades |
| Bed Blade | 1 Reversible Blade |
| Hopper Size | 4” x 10” Hinged, Foldable |
| Discharge Chute | 360° Rotation with Adjustable Deflector |
| Discharge Height | 60” (Ground Mounted) |
| Drive Type | Hydraulic Direct Drive |
| Dimensions (Hopper Folded) | 42” L x 42” W x 60” H |
| Hitch Type | Standard Cat I (Tractor Mount) |
| Net Weight | 565 lbs |
