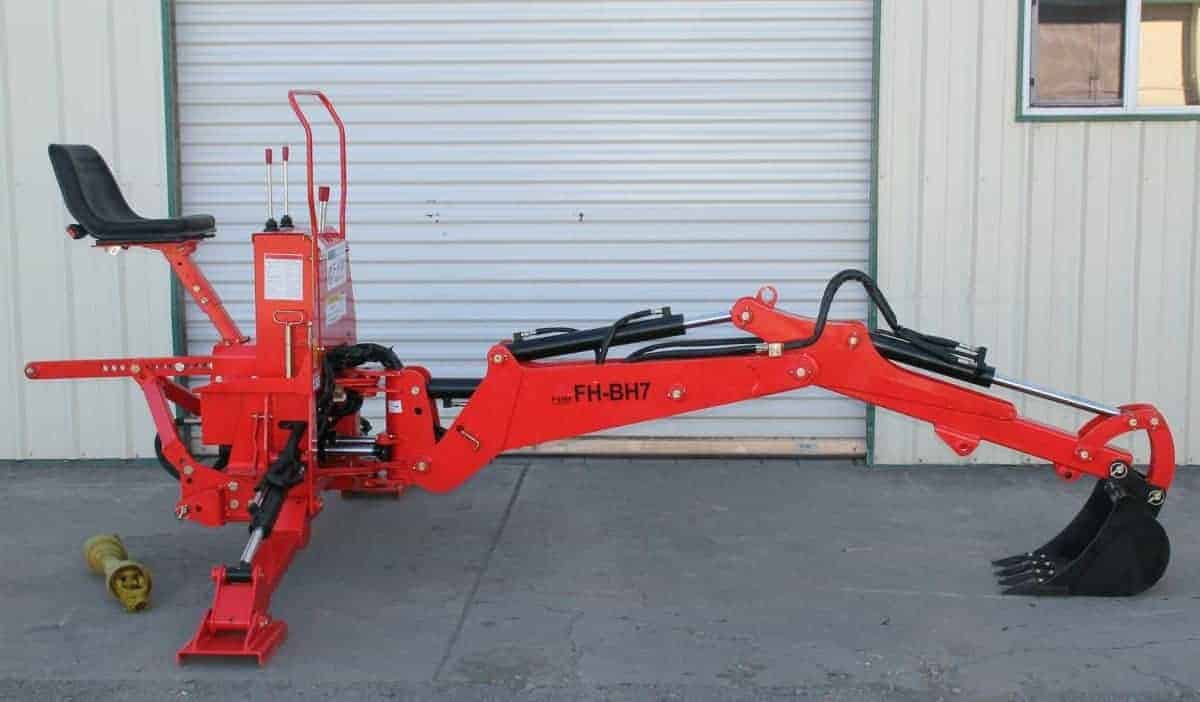

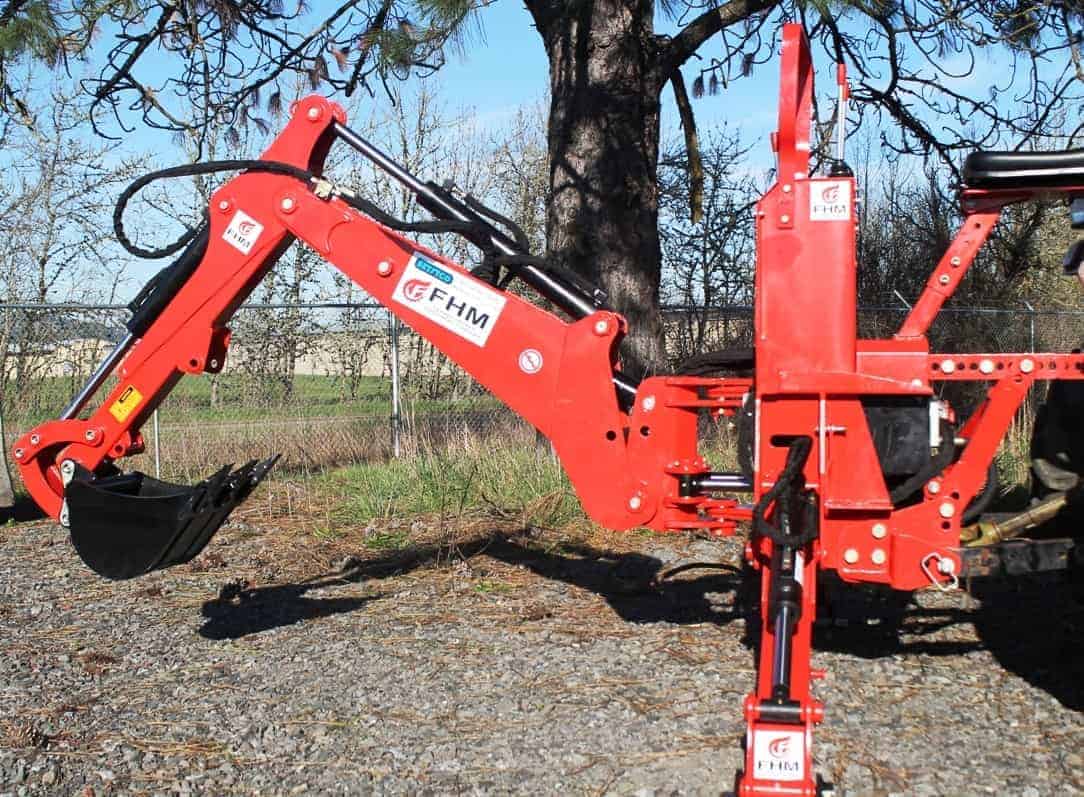

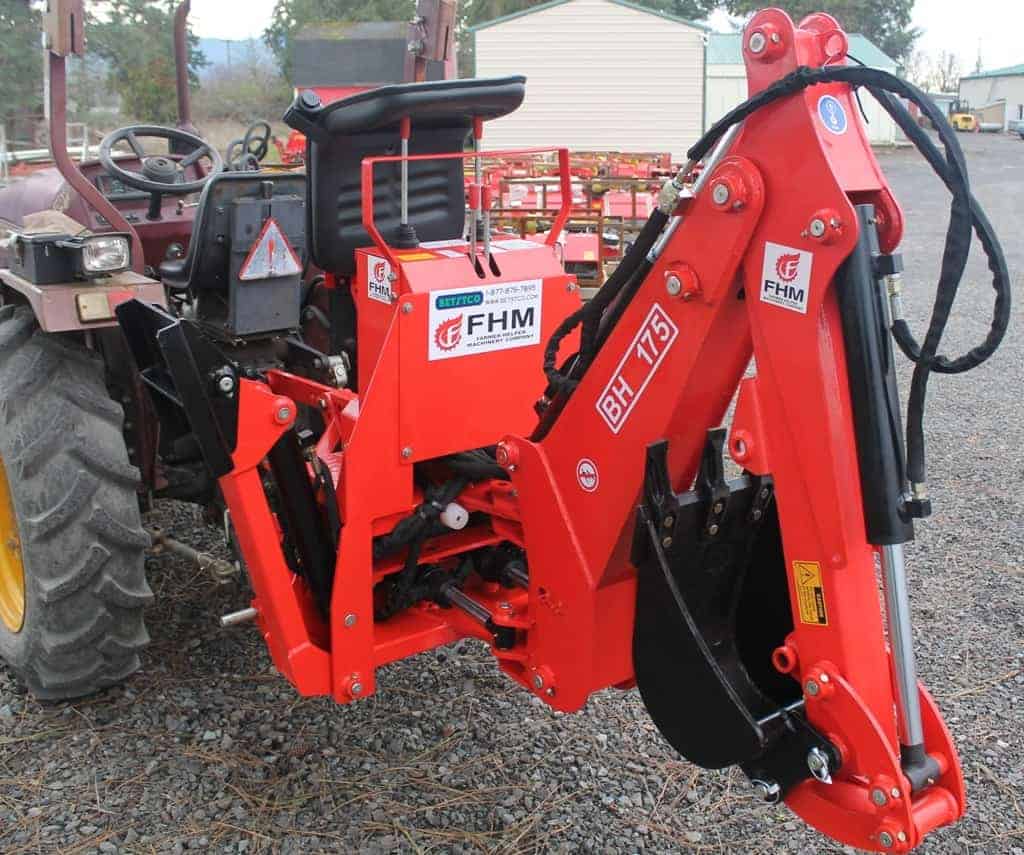

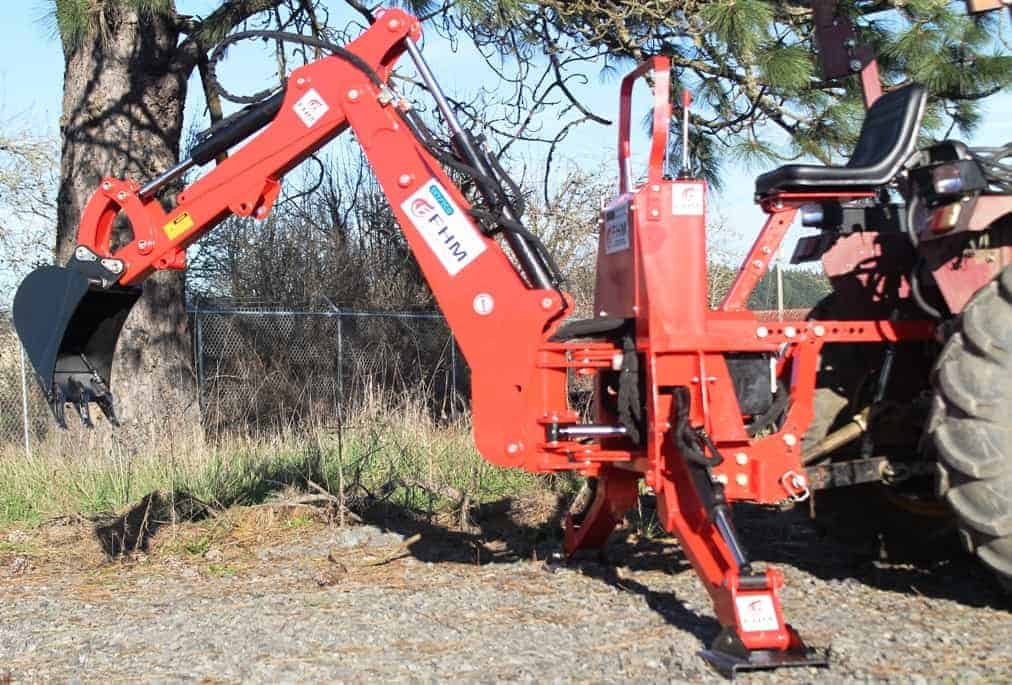

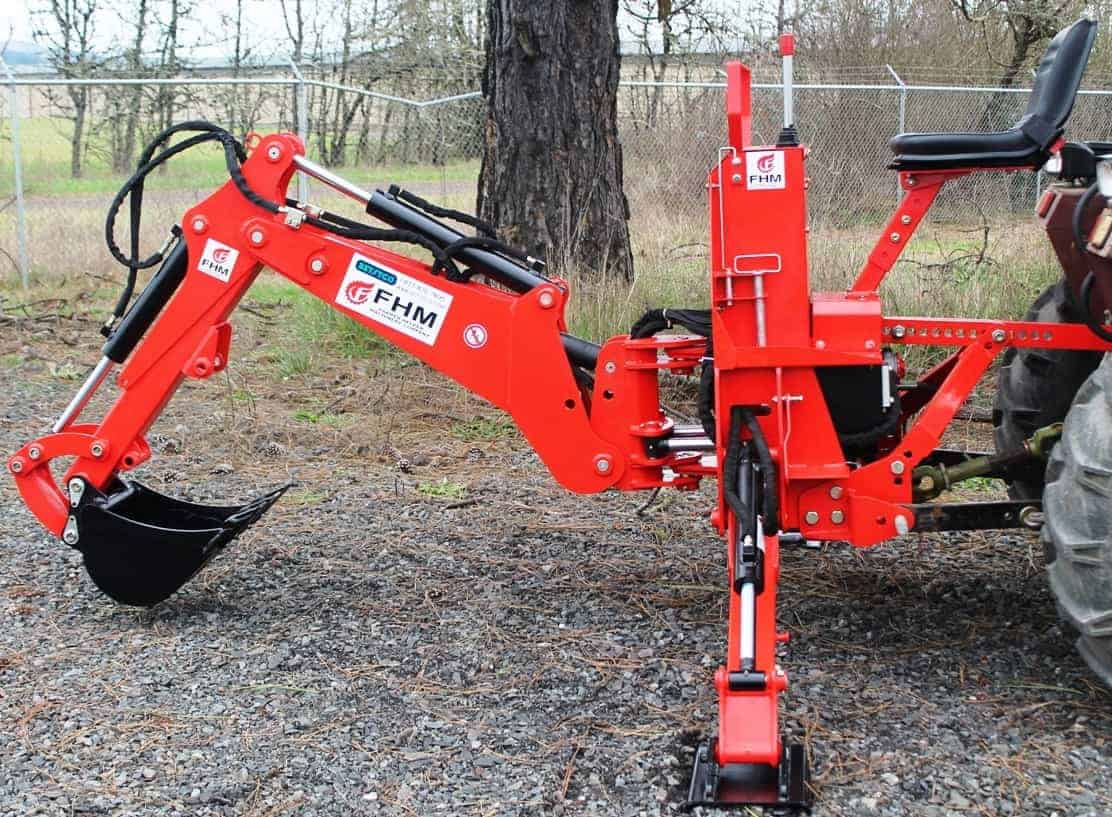

Farmer-Helper | Self-Contained Backhoes | Model FH-BH5, FH-BH6 & FH-BH7 | Digging Depth 5', 6' & 7' Feet | Horsepower 18 To 30+ HP | Cat-I 3-Point Linkage | For Tractor
DESCRIPTION

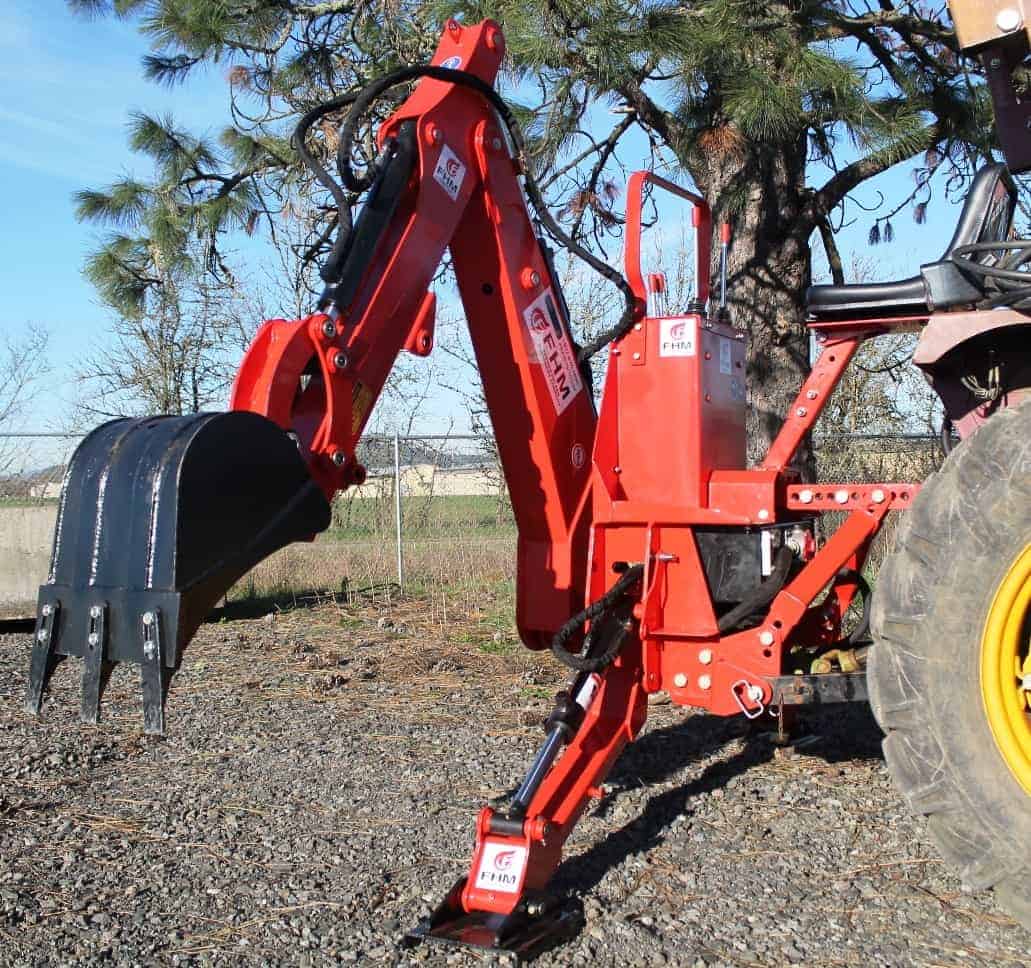

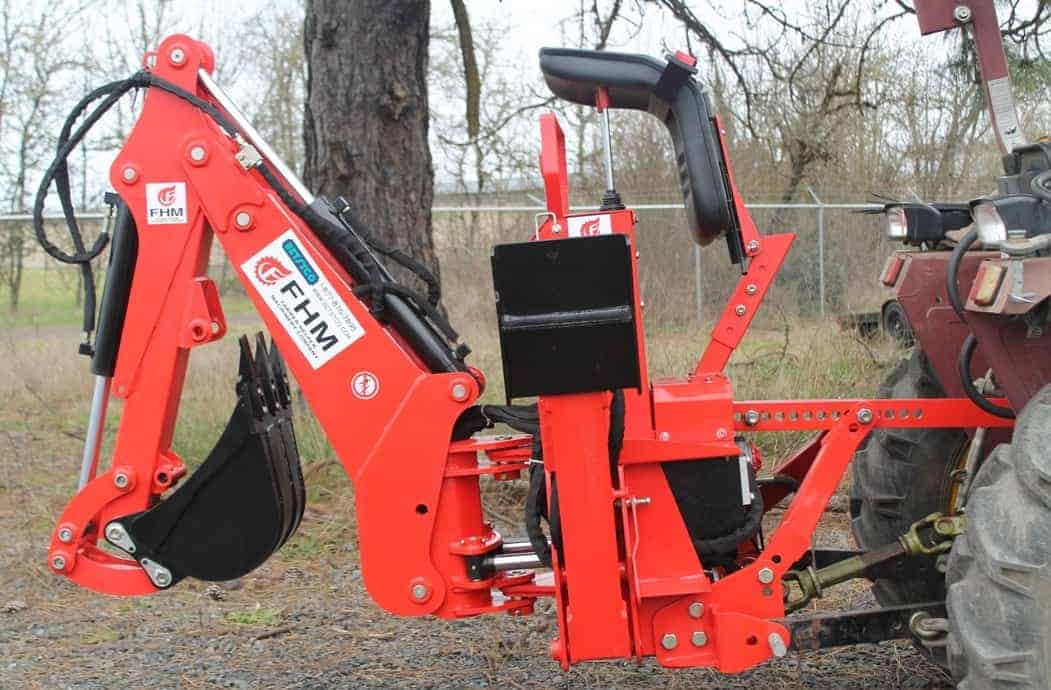

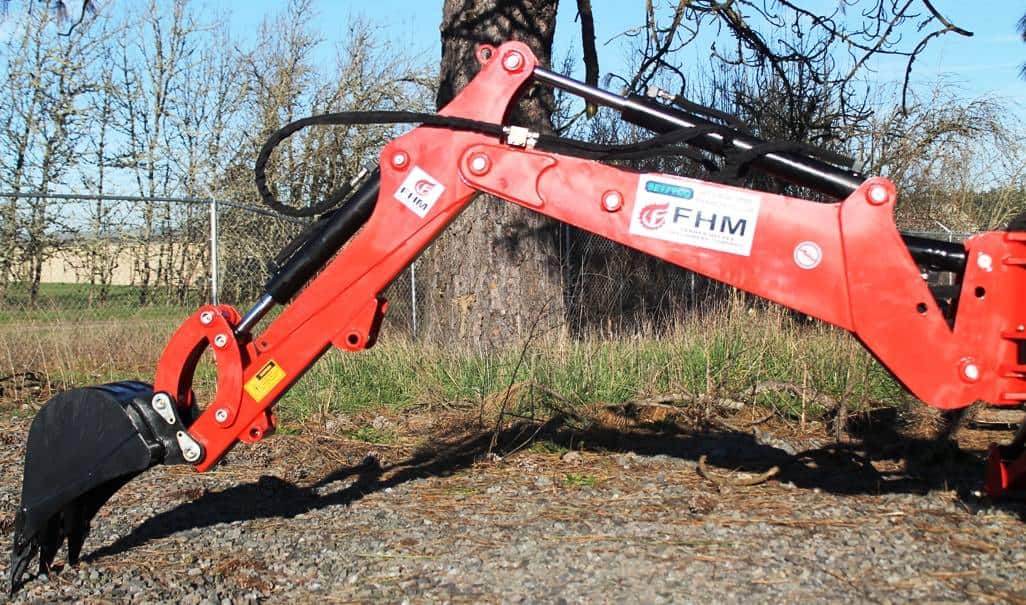

Versatile Backhoe for Efficient Digging and Landscaping Tasks The Farmer Helper FH-BH5-6-7 series backhoes are designed to tackle a wide range of digging, trenching, and material handling tasks. Built with Q-235 structural steel and high-quality components, these backhoes offer durability and reliability for both small and large-scale projects. Whether for farming, landscaping, or construction, these attachments are engineered to meet the demands of tough jobs while providing ease of use.

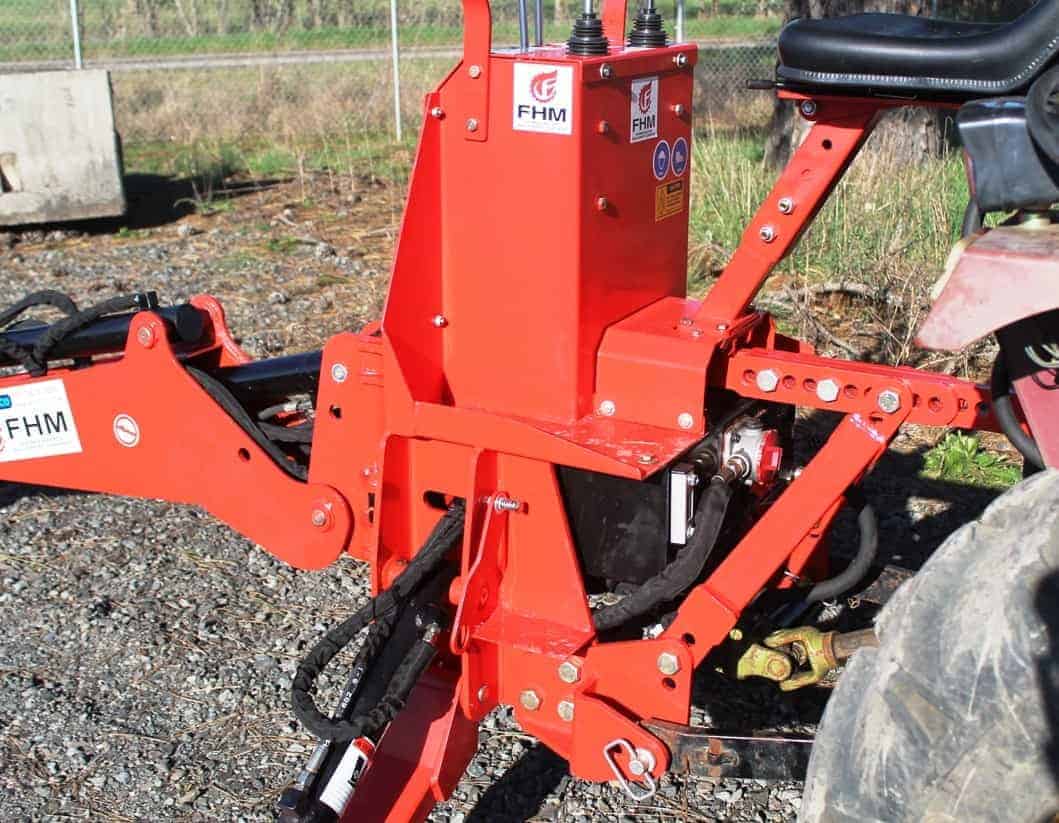

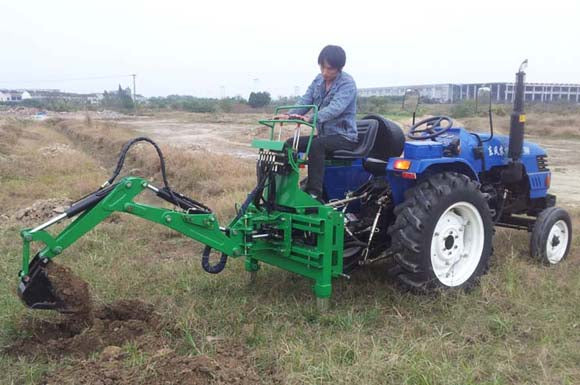

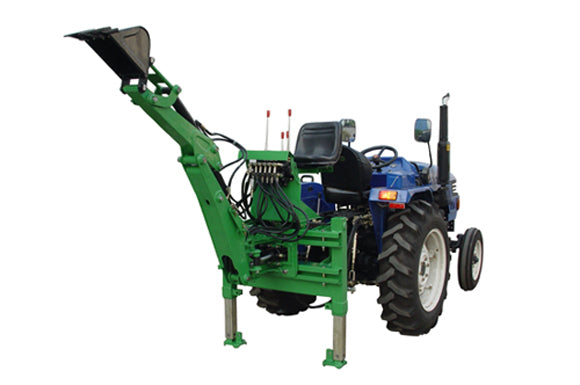

Equipped with a self-contained hydraulic system and a PTO-driven mechanism, the FH-BH series integrates seamlessly with your tractor. The 4th point top link stabilizer ensures steady operation during digging tasks, while the oversized stabilizer pads enhance safety on uneven terrain. Available in three models with digging depths ranging from 5 to 7.5 feet, this series provides flexibility for variouspplications.
Key Features
- Compatible with compact tractors ranging from 18 To 30+ HP PTO, ideal for small farms and property maintenance
- Self-contained hydraulic system powered by tractor PTO no external hydraulic hookups required
- Available in 5', 6', and 7'6" digging depths to suit trenching, drainage, and landscaping tasks
- Fits Category I and II 3-point hitch systems for broad tractor compatibility
- Heavy-duty Q-235 structural steel construction ensures long-term durability under tough conditions

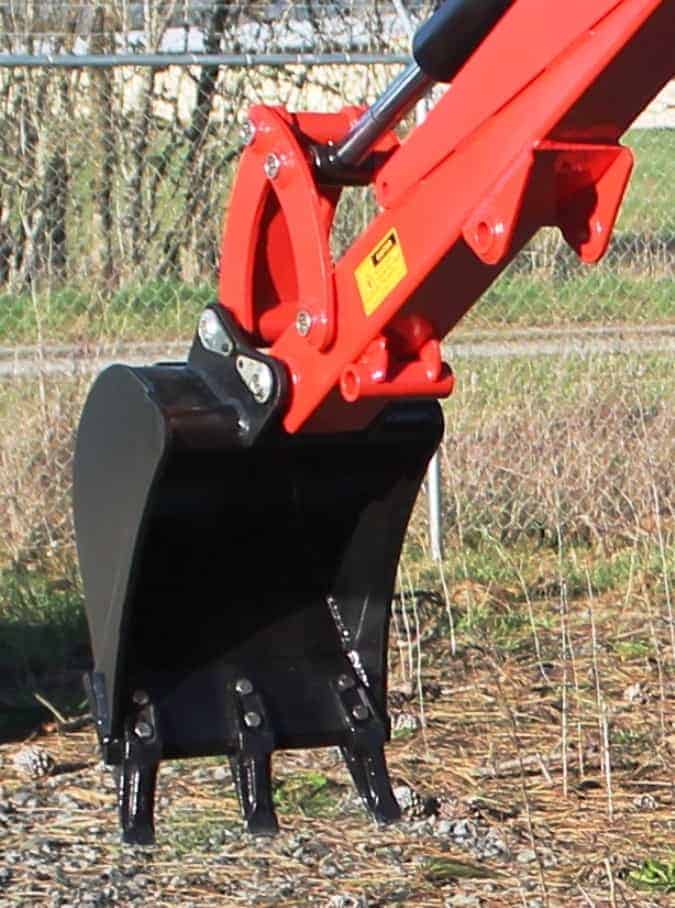

- Includes 12" bucket for FH-BH5 and FH-BH6, and 16" bucket for FH-BH7; optional sizes up to 36" available

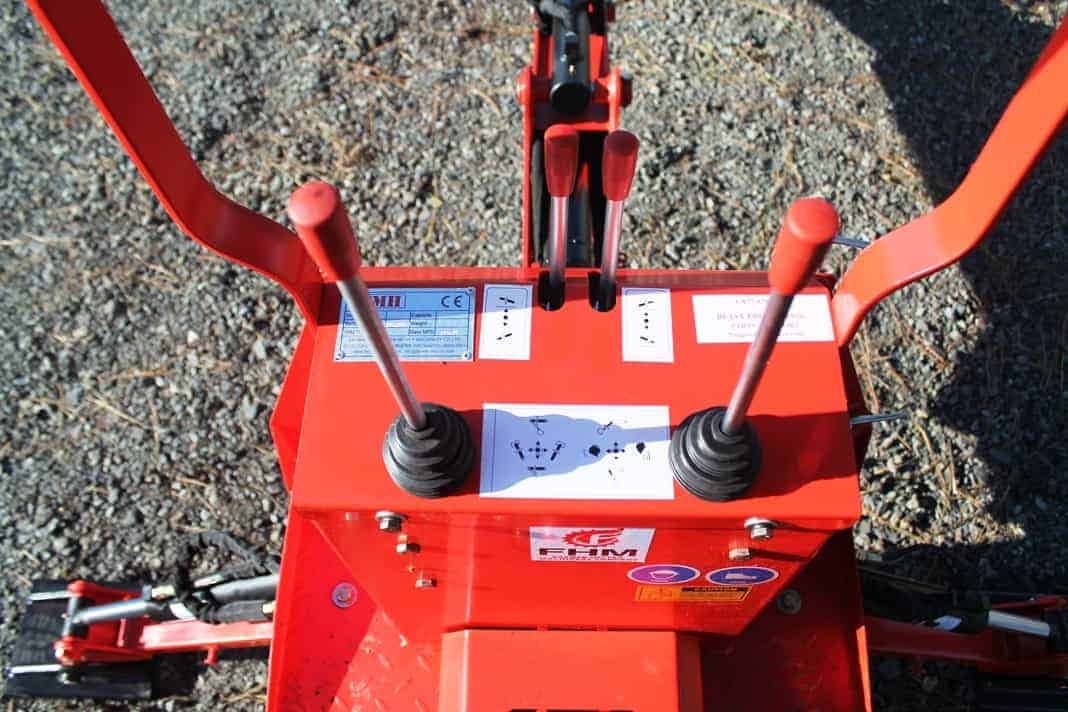

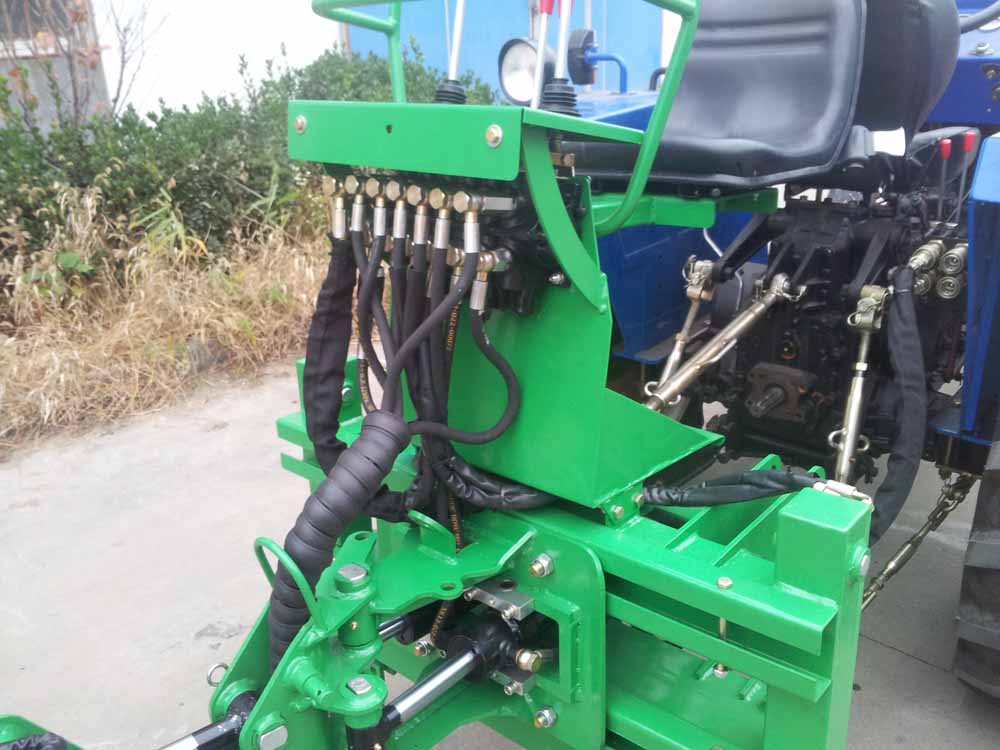

- 4-way ISO joystick controls offer precise, intuitive operation with separate stabilizer control

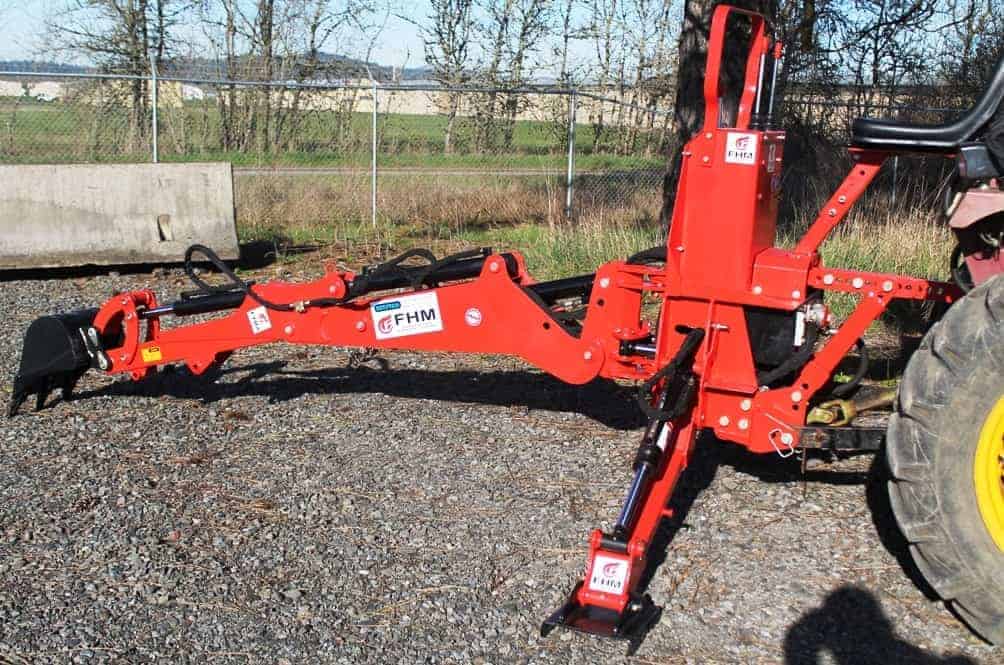

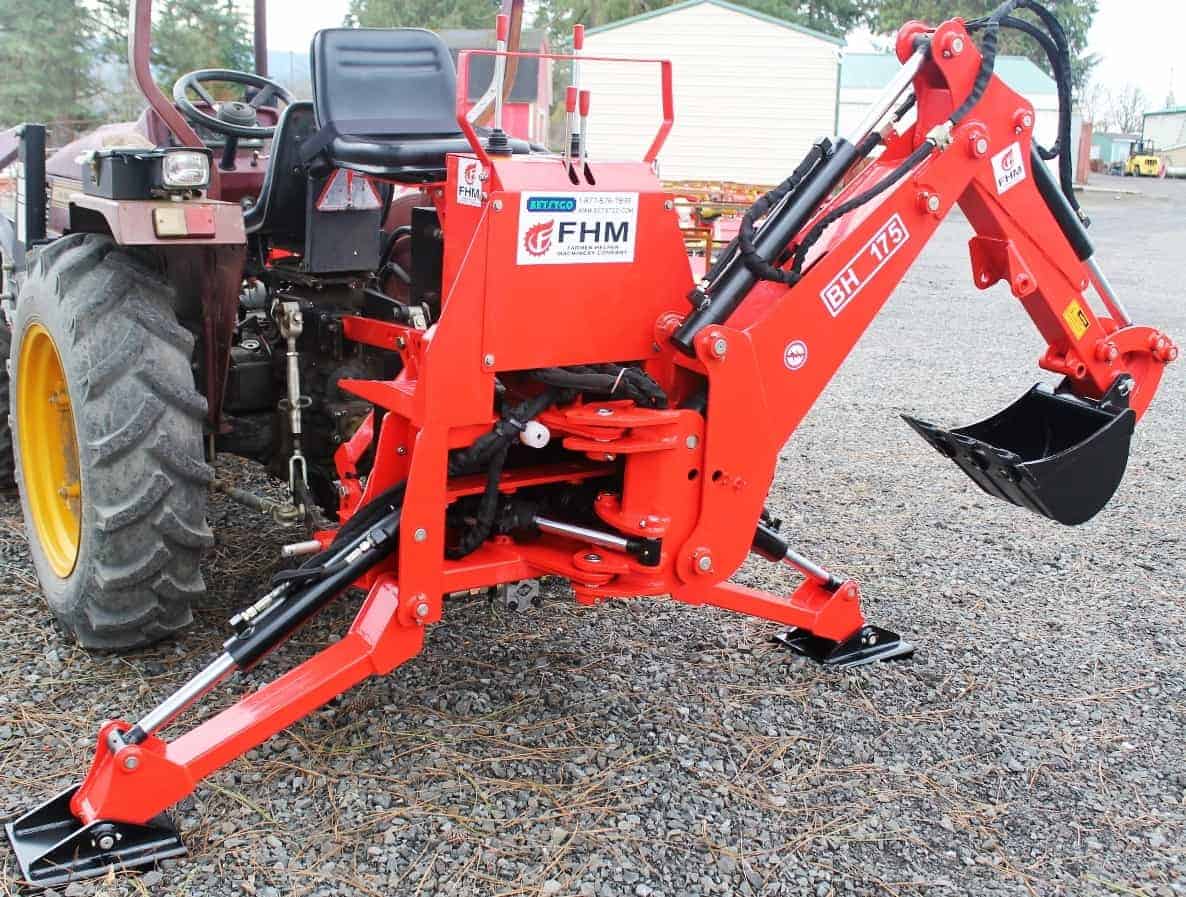

- Oversized stabilizer pads provide enhanced balance and safety during digging operations

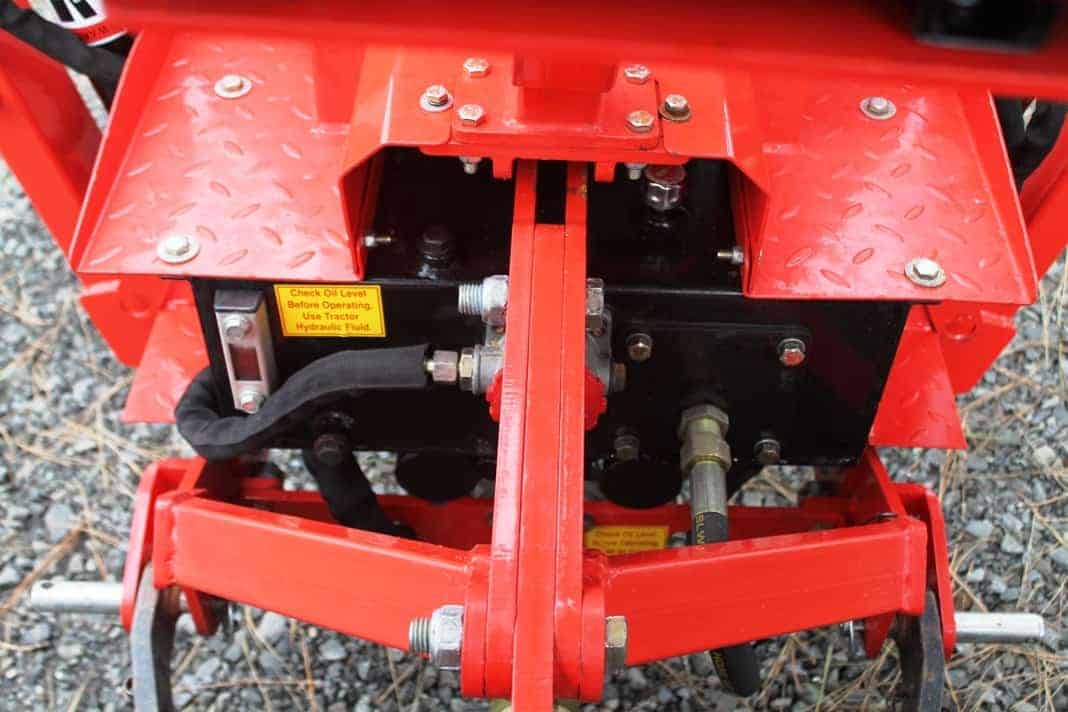

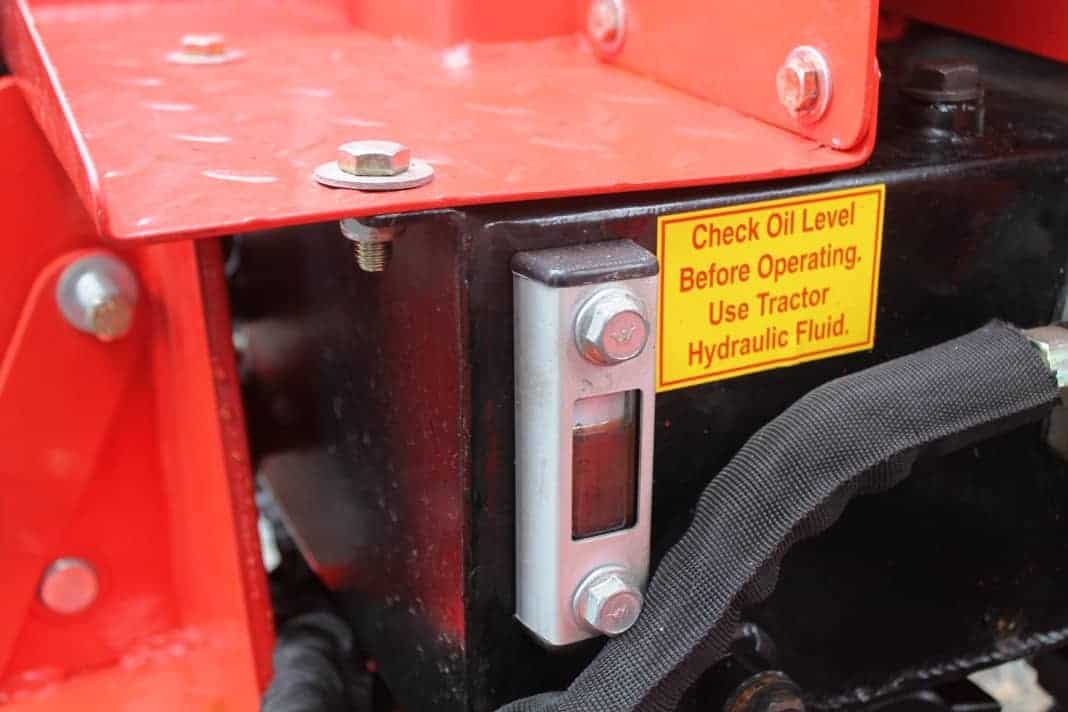

- Hydraulic tank with sight glass allows easy monitoring of fluid levels and temperature

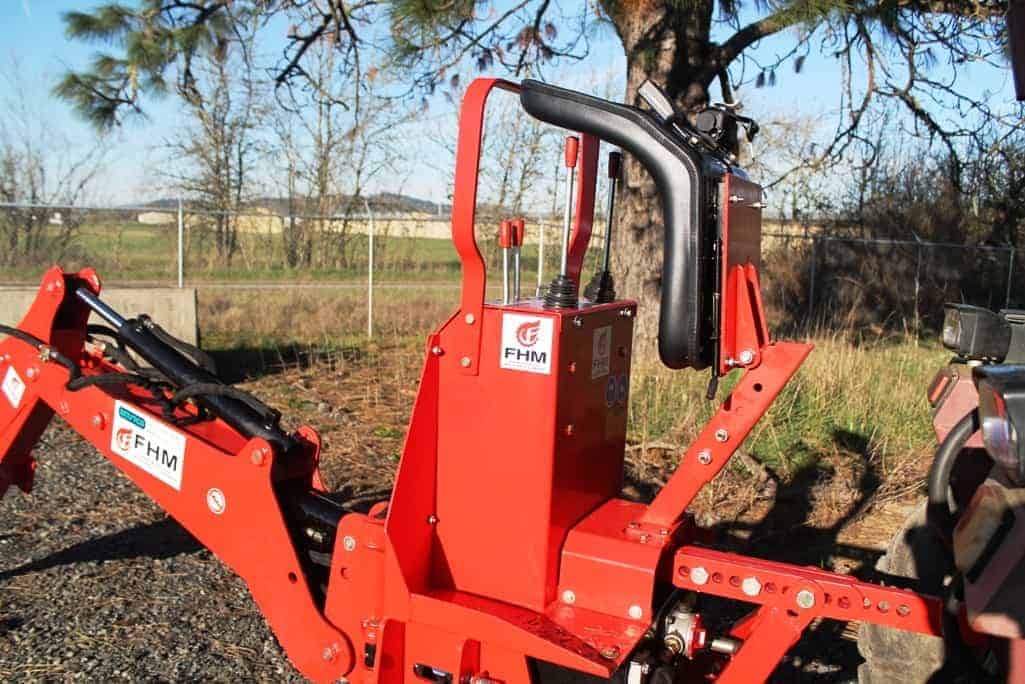

- Foldable operator seat improves transport convenience and storage efficiency

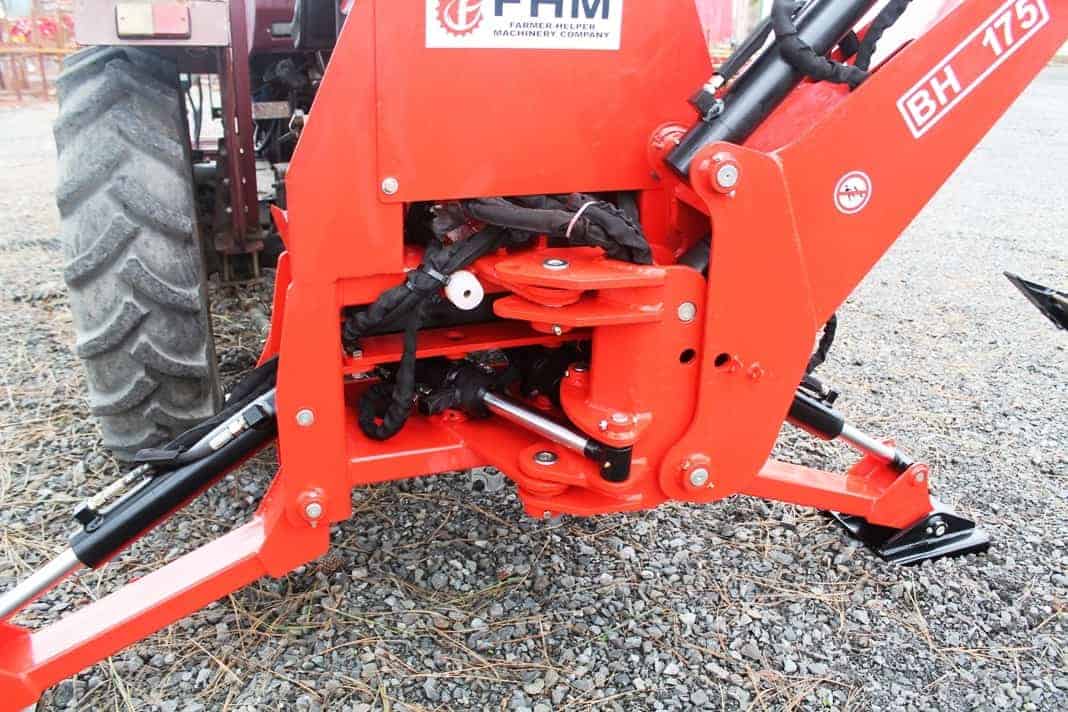

- 180° arm swing arc and up to 180° bucket rotation for wide digging coverage and flexibility
- Designed to operate efficiently even at tractor idle speed, reducing fuel consumption
- PTO driveline shaft included at no extra cost for seamless installation
- Mechanical thumb and ripper attachments available for added versatility in handling debris and roots
- Ideal for trenching, stump removal, irrigation setup, and general excavation on rural properties
Detailed Specifications
| Specification | FH-BH5 |
|---|---|
| Recommended PTO HP | 18–24 HP |
| 3-Point Linkage | Cat-I |
| Structure Weight | 630 lbs / 285 kg |
| Digging Depth (2’ flat bottom) | 5’ / 153 cm |
| Reach from Swing Pivot Center | 7’ 2” / 219 cm |
| Loading Height (bucket at 60°) | 5’ / 153 cm |
| Transport Height (max) | 5’ / 153 cm |
| Extended Height | 7’ / 215 cm |
| Loading Reach (bucket at 60°) | 90 cm |
| Transport Overhang | 78 cm |
| Undercut | 28 cm |
| Bucket Rotation | 150° |
| Stabilizer Spread (Up - Transport) | 3’ 8” / 115 cm |
| Stabilizer Spread (Down Position) | 5’ 1” / 156 cm |
| Arm Swing Arc | 180° |
| Bucket Included | 12” Bucket |
| Mechanical Thumb | Optional |
| Specification | FH-BH6 |
|---|---|
| Recommended PTO HP | 25+ HP |
| 3-Point Linkage | Cat-I |
| Structure Weight | 1185 lbs / 537 kg |
| Digging Depth (2’ flat bottom) | 6’ / 183 cm |
| Reach from Swing Pivot Center | 8’ 6” / 260 cm |
| Loading Height (bucket at 60°) | 5’ 8” / 172 cm |
| Transport Height (max) | 6’ / 184 cm |
| Extended Height | 9’ 5” / 287 cm |
| Loading Reach (bucket at 60°) | 3’ 1” / 95 cm |
| Transport Overhang | 3’ 6” / 108 cm |
| Undercut | 2’ 5” / 73 cm |
| Bucket Rotation | 180° |
| Stabilizer Spread (Up - Transport) | 4’ 4” / 131 cm |
| Stabilizer Spread (Down Position) | 7’ 2” / 210 cm |
| Arm Swing Arc | 180° |
| Bucket Included | 12” Bucket |
| Mechanical Thumb | Included |

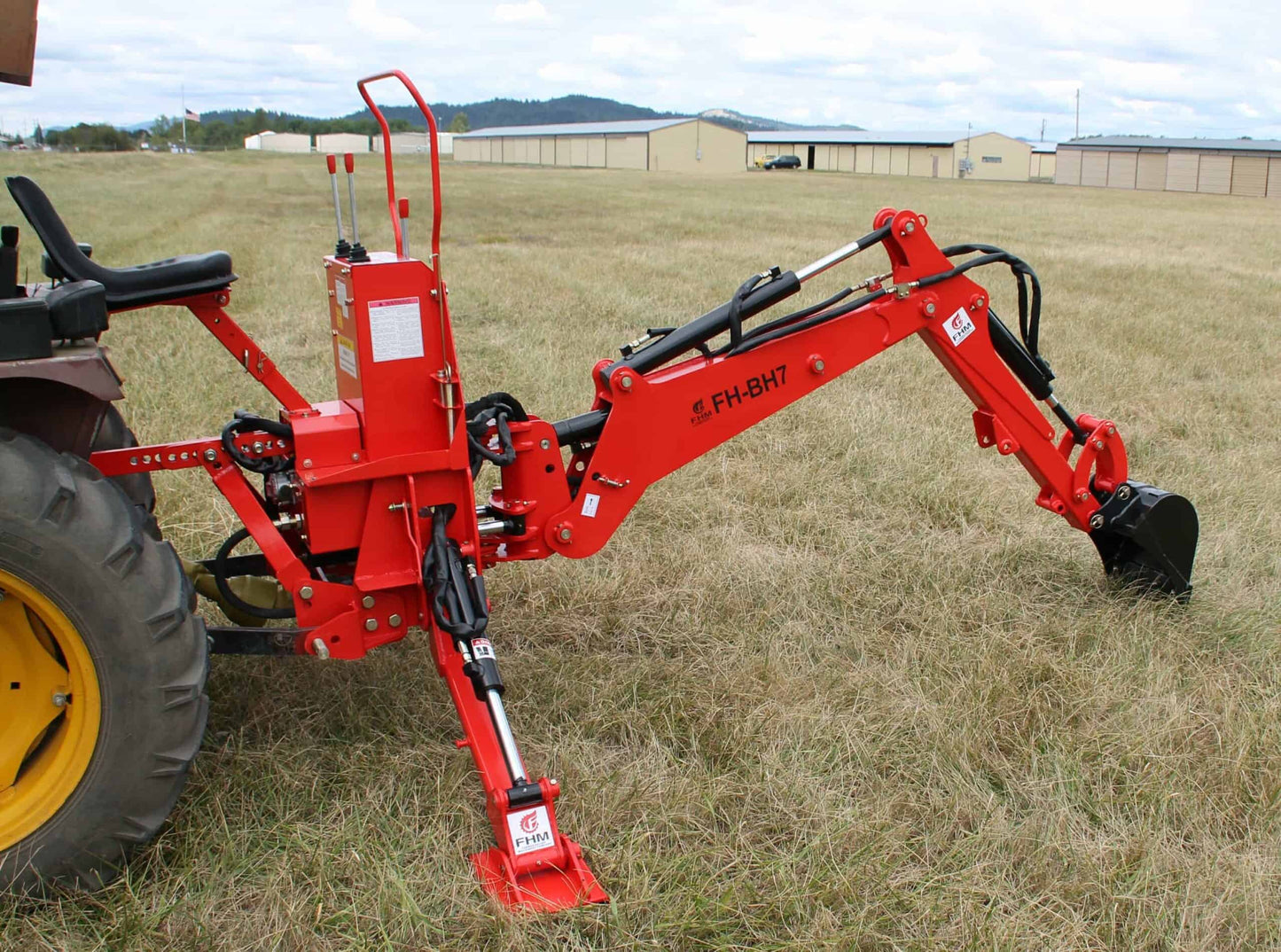

| Specification | FH-BH7 |
|---|---|
| Recommended PTO HP | 30+ HP |
| 3-Point Linkage | Cat-I |
| Structure Weight | 1271 lbs / 576 kg |
| Digging Depth (2’ flat bottom) | 7’ 6” / 201 cm |
| Reach from Swing Pivot Center | 10’ 6” / 279 cm |
| Loading Height (bucket at 60°) | 6’ 6” / 184 cm |
| Transport Height (max) | 6’ 9” / 206 cm |
| Extended Height | 10’ 2” / 311 cm |
| Loading Reach (bucket at 60°) | 4’ 6” / 118 cm |
| Transport Overhang | 3’ 8” / 111 cm |
| Undercut | 2’ 9” / 83 cm |
| Bucket Rotation | 180° |
| Stabilizer Spread (Up - Transport) | 4’ 9” / 131 cm |
| Stabilizer Spread (Down Position) | 7’ 4” / 210 cm |
| Arm Swing Arc | 180° |
| Bucket Included | 16” Bucket |
| Mechanical Thumb | Included |
Manuals & Documents
The Product Manual
The 5' Manual
General Warranty Info:
- Ripping It Outdoors works closely with our manufacturers to supply and support your products warranty needs as best as possible!
- The majority of products come with a manufacturer represented warranty against manufacturing defects for at least a 12 month period after the date of sale.
- Expendable components and "wear parts" including but not limited to blades, knives, teeth, oil, chain sprockets, skid shoes, knife mounting discs, and similar components are usually excluded from manufacturer warranties.
- Please reach out to us for any specific warranty information needed about products and parts you can’t find!

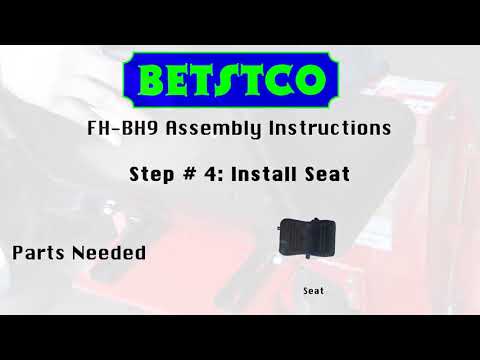

Videos
