Product Description
Fleming 12 Tonne Monocoque Tipping Trailer | Model TR12 | Width 7' 11" | 12 Tons | 20 To 30 GPM | 40 To 60 HP | For Tractors, Skid Steers, Loaders & UTVs
DESCRIPTION

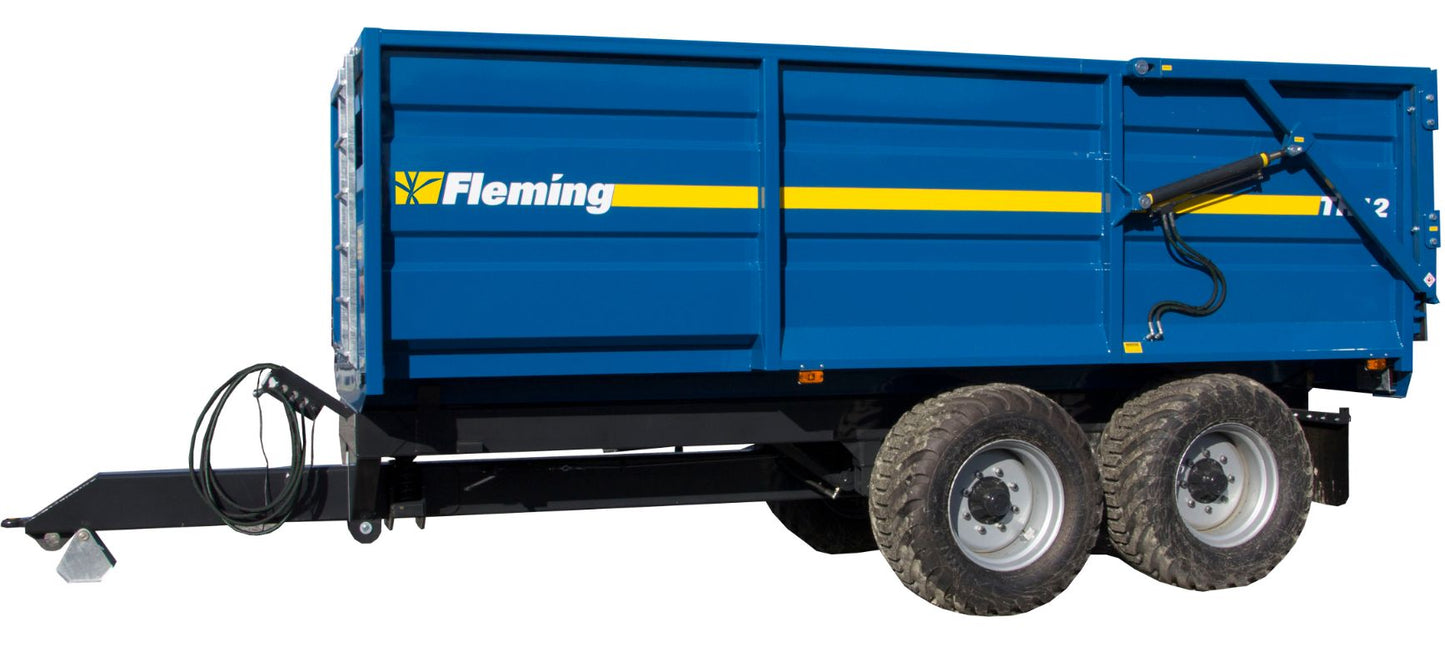

The Fleming TR12 12-Ton Monocoque Tipping Trailer is the ultimate solution for efficient and heavy-duty hauling. Designed for Tractors, Skid Steers, Loaders, and UTVs, this robust trailer features a high-tensile steel monocoque body that provides unmatched strength while keeping weight to a minimum for increased payload. The TR12 is perfect for transporting grain, silage, muck, and other heavy materials. Equipped with twin heavy-duty tipping rams and a tapered body, it ensures fast, clean unloading every time. The trailer operates with 20-30 GPM hydraulic flow and requires 40-60 HP from your machine to ensure smooth and efficient performance. With its unique sprung drawbar and multi-leaf spring suspension, this trailer delivers superior ride comfort and reduces stress on both your towing vehicle and the operator. Whether you’re working in the field or on the job site, the TR12 is built to deliver lasting, reliable performance.
Key Features
- Heavy-Duty Monocoque Body: Made from high-tensile steel for increased strength and reduced weight.
- Efficient Payload: Designed to maximize payload capacity while maintaining structural integrity for safe and efficient hauling.
- Fast Unloading: Twin heavy-duty tipping rams and tapered body ensure quick and clean dumping.
- Hydraulic Flow: Operates with 20-30 GPM, making it ideal for tractors, skid steers, loaders, and UTVs.
- Horsepower Requirement: Requires 40-60 HP for optimal hydraulic function and unloading speed.
- Smooth Suspension: Slimline sprung drawbar and multi-leaf spring suspension provide excellent ride characteristics and reduce stress on the towing vehicle.
- Safe Hydraulic System: Hydraulic pipes are safely concealed within the chassis, offering protection during use.
- Versatile Compatibility: Works seamlessly with Tractors, Skid Steers, Loaders, and UTVs for a variety of agricultural tasks.
- Flotation Tyres: Standard 550/45/22.5 tyres on an 8-stud axle provide smooth transport over rough terrain.
- Towing Ease: Equipped with a 40mm EN8 towing eye for secure attachment to your machine.
- Built-In Access Ladder: Makes maintenance and operations easier and safer.
- Durable Floor: A heavy-duty 5mm floor ensures long-lasting performance under tough conditions.
- Customizable Options: Add a hydraulic back door, silage extension kit, or tarpaulin cover to tailor the trailer to your specific needs.
- LED Lighting: Standard LED lights for safe nighttime operation.
- Grain Chute: A grain chute option allows for easy unloading of grain with minimal effort.
- Locking Safety Valve: Hydraulic back door includes a safety valve to prevent accidental spillage during operation.
- Optional Super Singles: 385/65/22.5 super singles available for enhanced flotation and durability.
Detailed Specifications
| Specification | Details |
|---|---|
| Model | TR12 |
| Body Length | 5.1m (16' 9") |
| Width | 2.4m (7' 11") |
| Floor Thickness | 5mm |
| Side Height | 51 in (1.3m) |
| Unladen Weight | 9,259 lbs (4,180 kg) |
| Cubic Capacity | 14.93 m³ |
| Brakes | Yes |
| Loading Height | 99 in (2.5m) |
| Hydraulic Flow Required | 20 To 30 GPM |
| Minimum Horsepower | 40 To 60 HP |
| Wheel Size (Standard) | 550/45/22.5 |
| Wheel Size (Optional) | 385/65/22.5 (Super Singles) |
| Hydraulic Back Door | Available with locking safety valve |
| Hydraulic Hose Carrier | Yes |
| Access Ladder | Yes |
| Towing Eye | 40mm EN8 |
| Side Height with Silage Sides | 11 ft (3.38m) |
