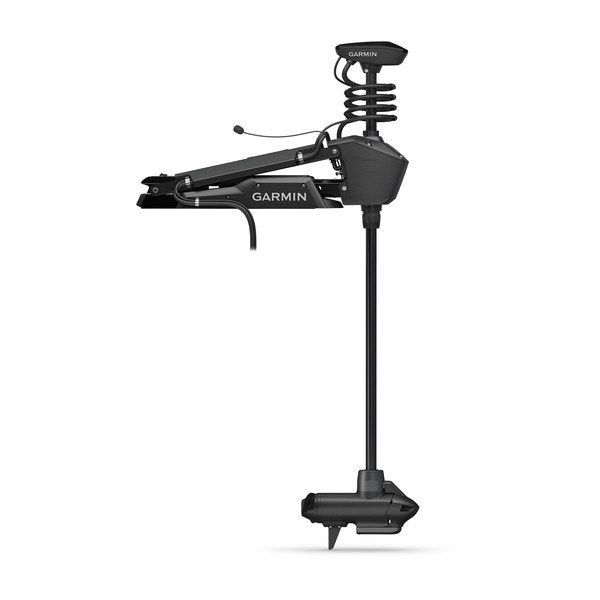

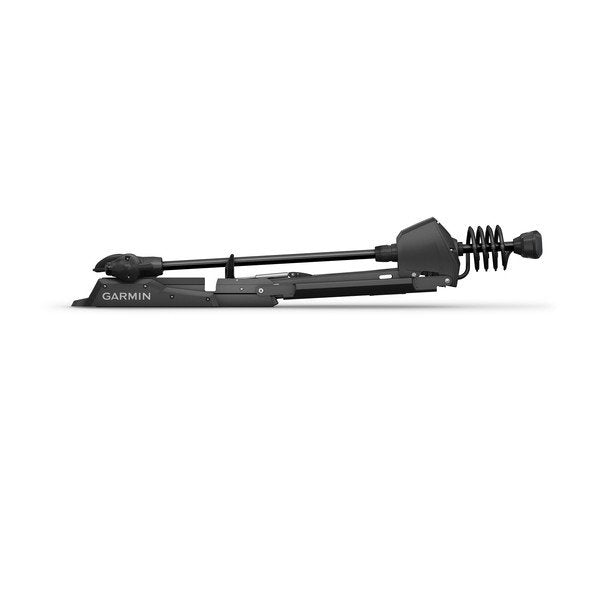

Garmin Force Trolling Motor 50" and 57"
Garmin Force Trolling Motor 50" and 57"
Couldn't load pickup availability
Couldn't load pickup availability
FISH WITH FORCE
Powerful. Efficient. Quiet.
HIGH-POWERED:
Force trolling motor has the power to move you from spot to spot more quickly and stand up better to winds and currents — and it’s still whispering quietly.
REMARKABLE EFFICIENCY:
The high-efficiency brushless motor operates at either 36 V or 24 V. When running at 24 V, it delivers comparable thrust to our competitors’ 36-V motors.
QUIET ABOVE AND BELOW THE WATER:
The ultra quiet motor doesn’t scare fish and is nearly undetectable to sonar, so it won’t fuzz up your sonar screens with static.
Gain total control.

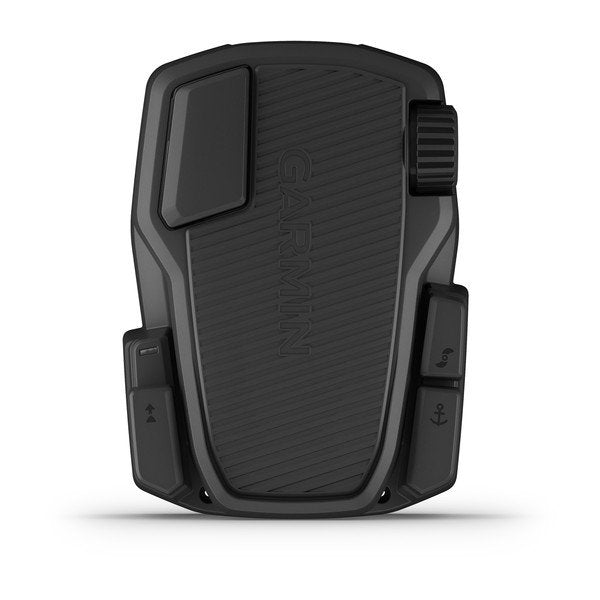

WIRELESS FOOT PEDAL:
Get instant responsiveness in a convenient pedal that feels and steers just like a cable-steered pedal. It operates wirelessly using AA batteries, but it can still be hardwire installed.

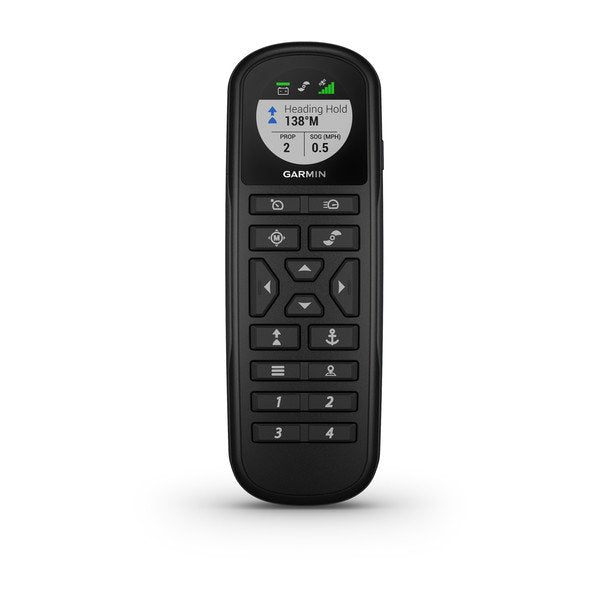

WATER-RESISTANT, FLOATING REMOTE:
The included handheld remote control with a sunlight-readable display controls the trolling motor and features point-and-go gesture steering. User-programmable keys can be used to control your chart plotter.
Fishing will never be the same.
ROBUST AND EASY TO USE:
The Force trolling motor is rugged and durable, easy to deploy, and easy to retract and stow with dual gas springs. It’s backed with a 3-year warranty and a limited lifetime warranty on the shaft.
WIRELESS CHARTPLOTTER INTEGRATION:
Wirelessly connect Force to your Garmin chartplotter, so you can create routes to your favorite waypoints and follow tracks while you fish.
Specification
- Shaft length 50"
- For use in freshwater; warranty also covers saltwater/brackish water use
- Mounting location bow

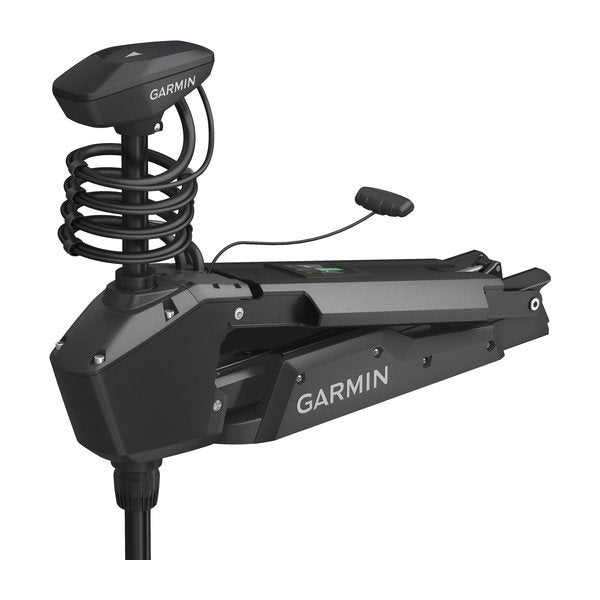

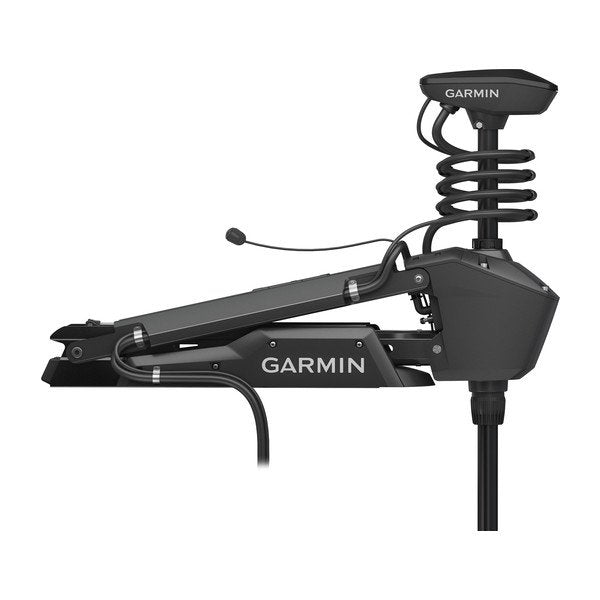

- Mount style scissor-style mount
- Max thrust 100 lbs Per ISO 13342 using high-efficiency propeller at 36V; 80lbs per ISO 13342 using high-efficiency propeller at 24 Vdc
- Voltage 24 V or 36 V
- Electric steering yes
- Lift-assist dual gas springs
- Built-in heading sensor yes
- Built-in GPS yes (high-sensitivity GPS)
- Warranty 3-year, limited lifetime on shaft
- Water rating (components above water) IPX7
- Variable speed control yes (20 steps)
- Frequencies supported CHIRP sonar: High-wide CHIRP (150-240 kHz)
- ClearVu: Ultra-high-definition 800 kHz
- SideVu: Ultra-high-definition 1200 kHz and 455 kHz
- Partial frequencies supported CHIRP Sonar: High-wide CHIRP (150-240 kHz)
- ClearVü: 800 kHz
- SideVü: 455 kHz
- Transmit power 350 W
- Maximum depth CHIRP sonar: 800'
- ClearVü: 200'
- Ultra-high-definition SideVü: 125' to each side; 250 total at a max depth of 30'
- 455 kHz SideVü: 500' to each side; 1000' total
- Depth/speed/temperature depth and temperature
- Number of pins 12-pin (orange connector)
- Route following yes
- Anchor lock yes
- Heading hold yes
- Cruise control yes
- Gesture features yes (manual+, heading hold+, jog+)
- Shaft length 57"
- For use in freshwater; warranty also covers saltwater/brackish water use
- Mounting location bow
- Mount style scissor style mount
- Max thrust 100 lbs Per ISO 13342 using high efficiency propeller at 36V; 80lbs per ISO 13342 using high efficiency propeller at 24 Vdc
- Voltage 24 V or 36 V
- Electric steering yes
- Lift-assist dual gas springs
- Built-in heading sensor yes
- Built-in GPS yes (high-sensitivity GPS)
- Warranty 3-year, limited lifetime on shaft
- Water rating (components above water) IPX7
- Variable speed control yes (20 steps)
- Frequencies supported CHIRP sonar: High-wide CHIRP (150-240 kHz)
- ClearVu: Ultra-high definition 800 kHz
- SideVu: Ultra-high definition 1200 kHz and 455 kHz
- Partial frequencies supported CHIRP Sonar: High-wide CHIRP (150-240 kHz)
- ClearVü: 800 kHz
- SideVü: 455 kHz
- Transmit power 350 W
- Maximum depth CHIRP sonar: 800'
- ClearVü: 200'
- Ultra-high definition SideVü: 125' to each side; 250 total at a max depth of 30'
- 455 kHz SideVü: 500' to each side; 1000' total
- Depth/speed/temperature depth and temperature
- Number of pins 12-pin (orange connector)
- Route following yes
- Anchor lock yes
- Heading hold yes
- Cruise control yes
- Gesture features yes (manual+, heading hold+, jog+)
In The Box
- Trolling Motor

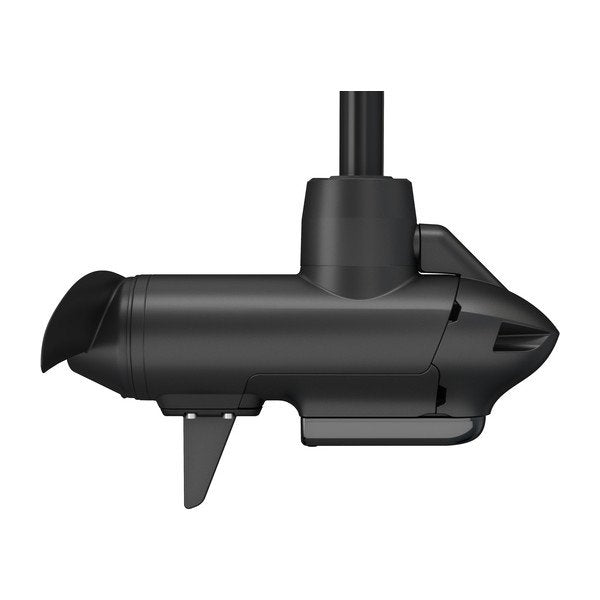

- Built-in GT54UHD-TM transducer
- Foot Pedal
- Remote
- High Efficiency Propeller
- Stabilizer
- Assembly and Mounting Hardware
- Trolling Motor
- Built-in GT54UHD-TM transducer
- Foot Pedal
- Remote
- High Efficiency Propeller
- Stabilizer
- Assembly and Mounting Hardware
