Product Description
GKB Quick-Brush | Model QB200 & QB200B | Width 79" | Modular Brush Attachment | Horsepower >15 hp | For Tractor
Description

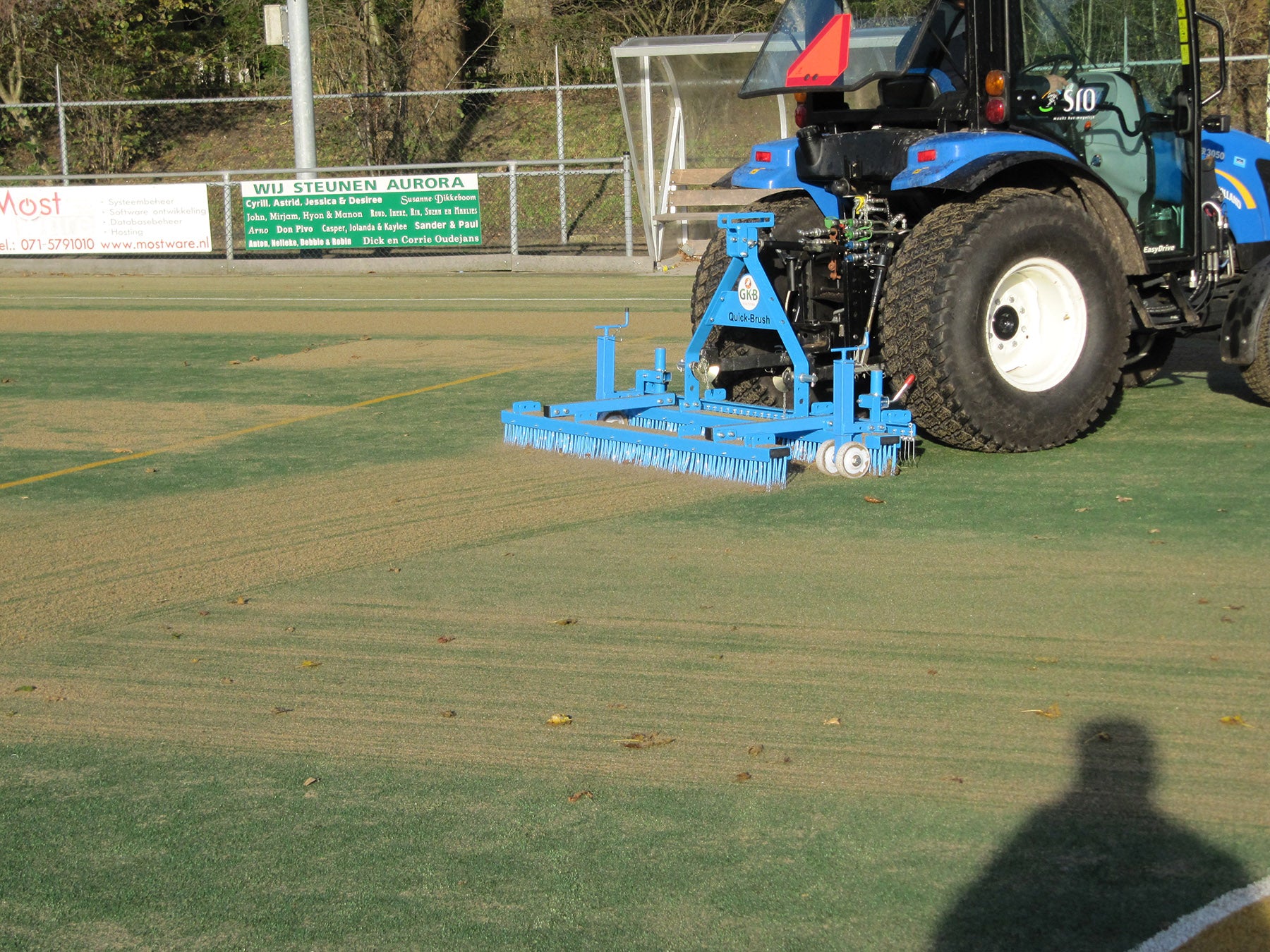

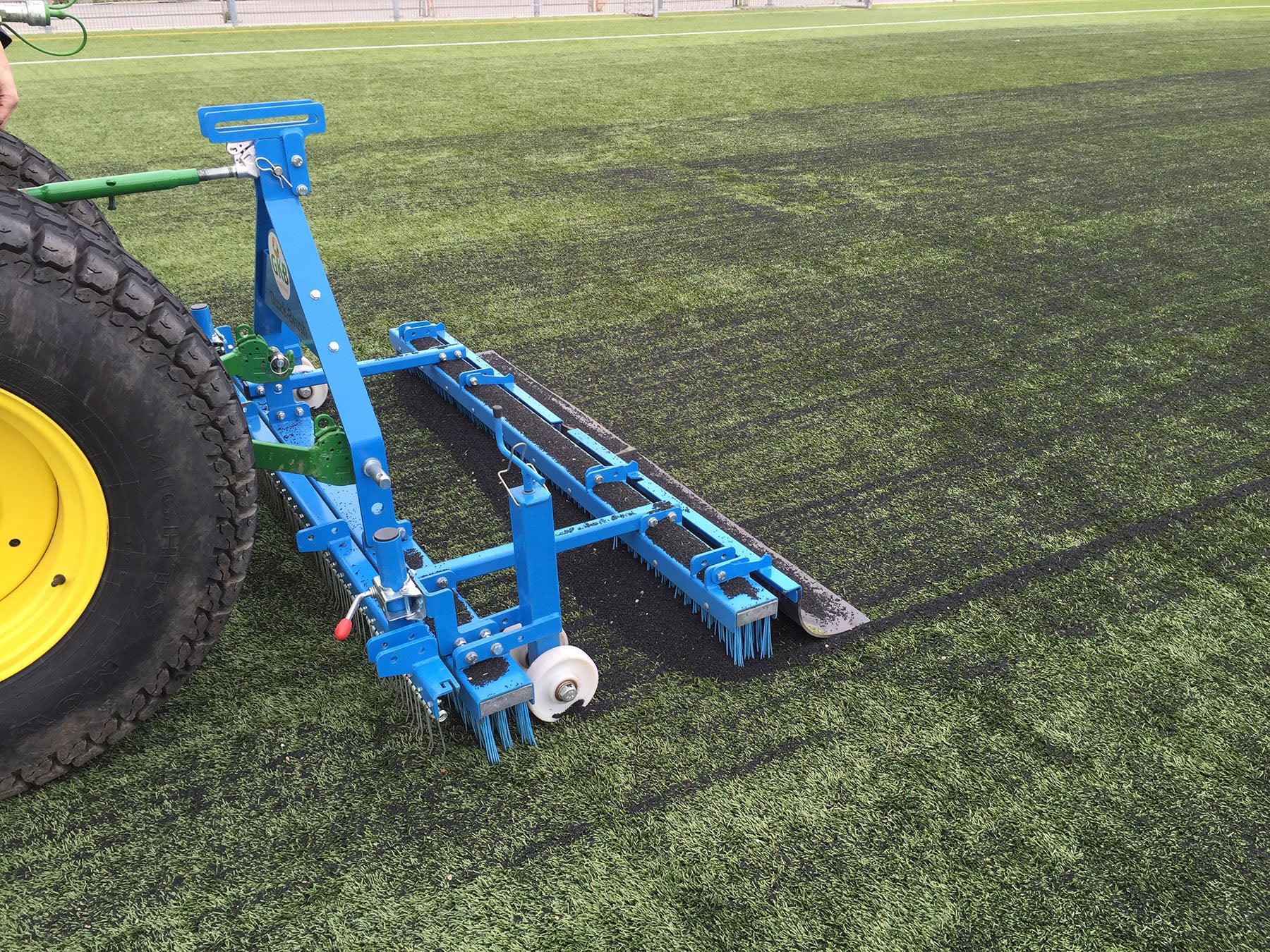

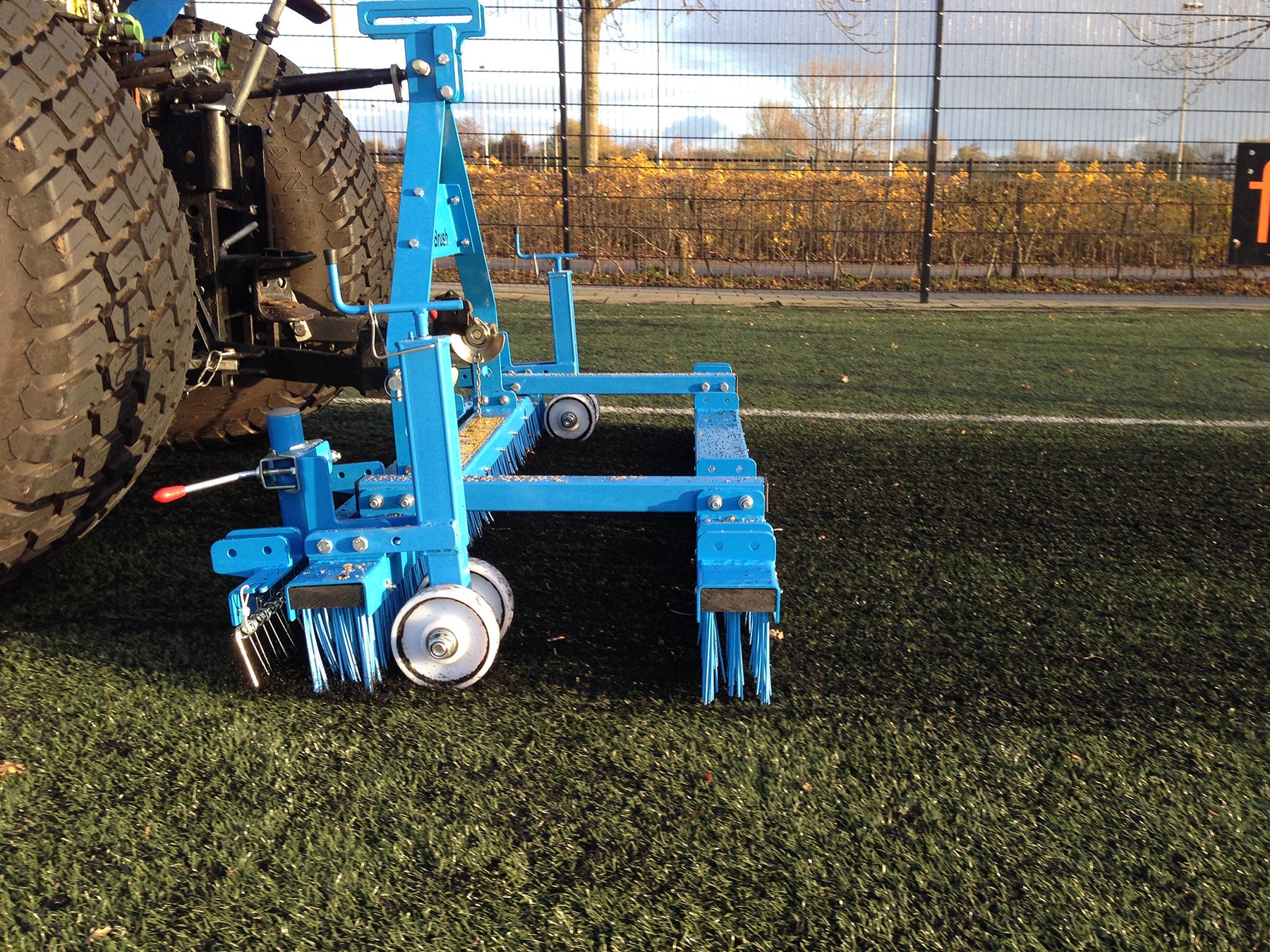

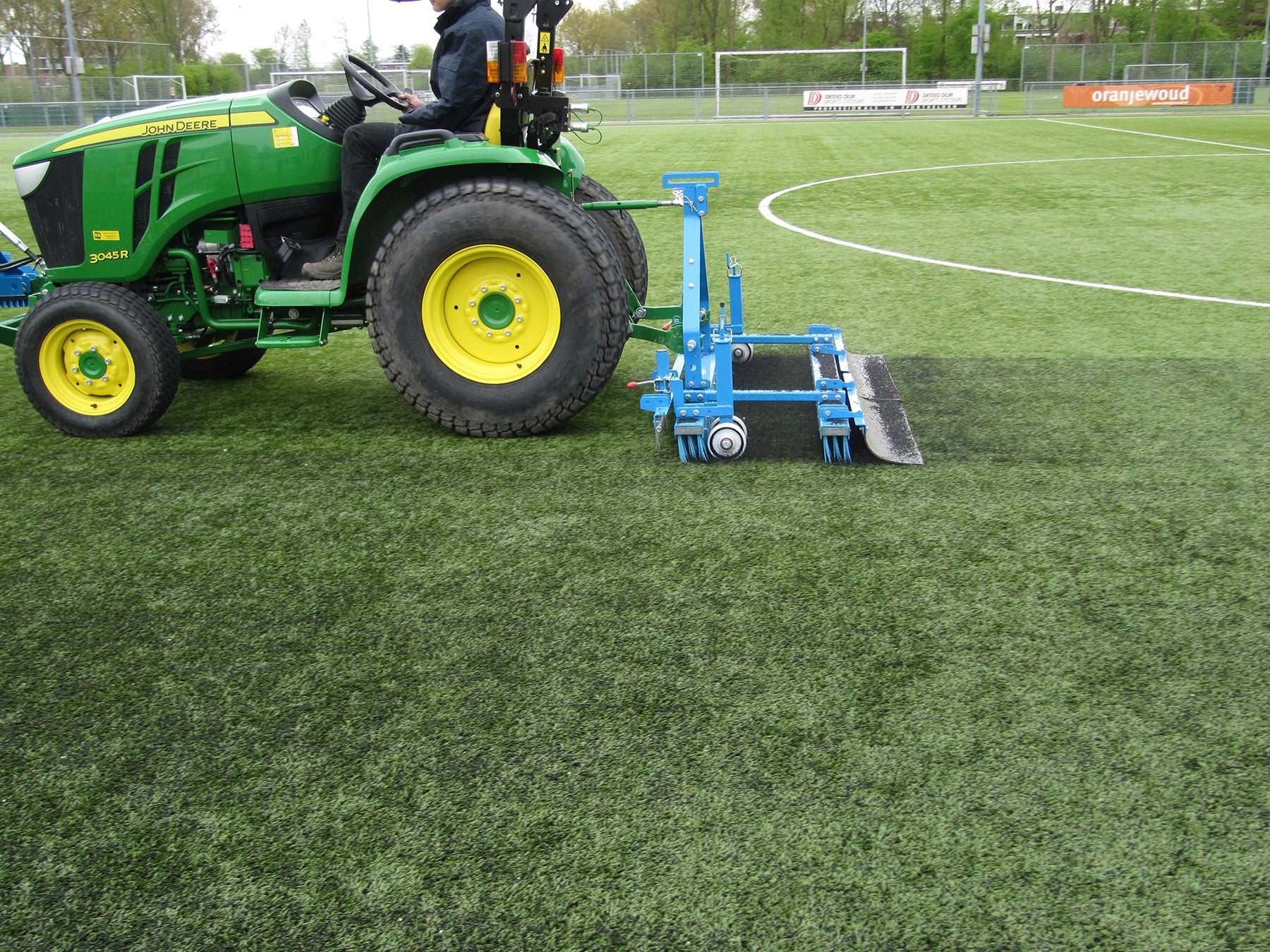

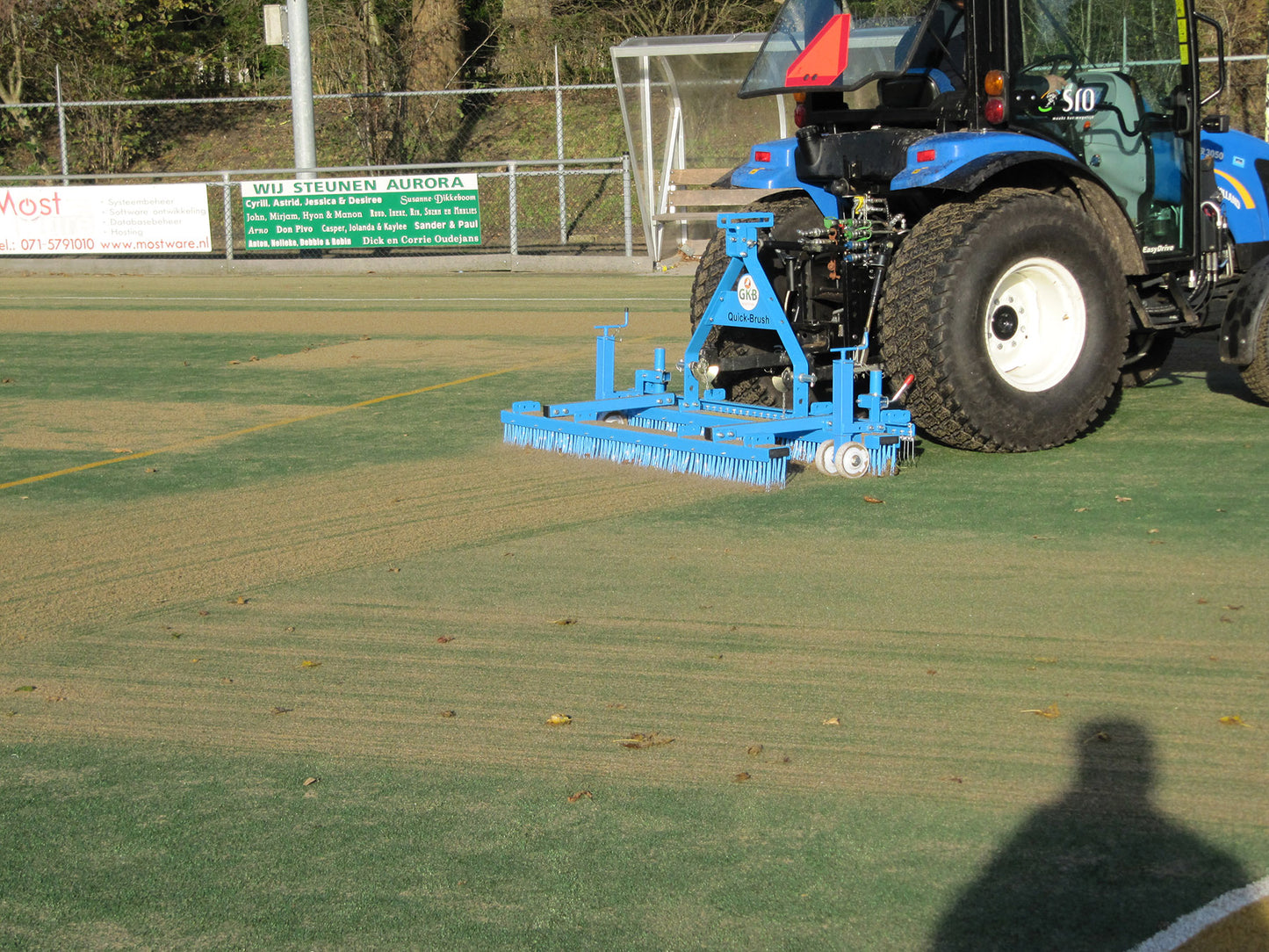

The GKB Quick-Brush is a modular, tractor-mounted brush system engineered for the professional maintenance of artificial turf surfaces. Designed to meet the rigorous demands of sports pitch upkeep, this attachment ensures optimal infill distribution, fiber rejuvenation, and surface cleanliness. Whether you're maintaining a football field, tennis court, or hockey pitch, the Quick-Brush offers a customizable solution tailored to your specific needs. Available in two models—QB200 (Complete System) and QB200B (Basic System)—the Quick-Brush can be configured with a variety of attachments including a tooth bar, additional brushes, rubber finishing flap, and height adjustment spindles. Its flip-over tool ensures directional brushing efficiency, making it ideal for both routine maintenance and new turf construction.
Key Features
- Model Overview – QB200 Complete Artificial Turf Brush: Full-featured system with all modular attachments for comprehensive turf maintenance, QB200B Basic Artificial Turf Brush: Entry-level configuration for routine brushing tasks on synthetic turf.
- Configurable Brushing System – QB200 includes tooth bar, dual brushes, rubber finishing flap, and height adjustment spindles, QB200B includes first brush and flip-over tool, with upgrade options for additional attachments.
- Generous Working Width – 200 cm / 79" coverage ensures fast, even brushing across large turf areas for both models.
- Precision Height Control – QB200 features dual spindle mechanism for fine-tuned brush depth and pressure settings, QB200B can be upgraded with height adjustment spindles.
- Tooth Bar Function – Spring-loaded teeth (QB200) lift and separate turf fibers to prevent matting and compaction. Optional for QB200B.

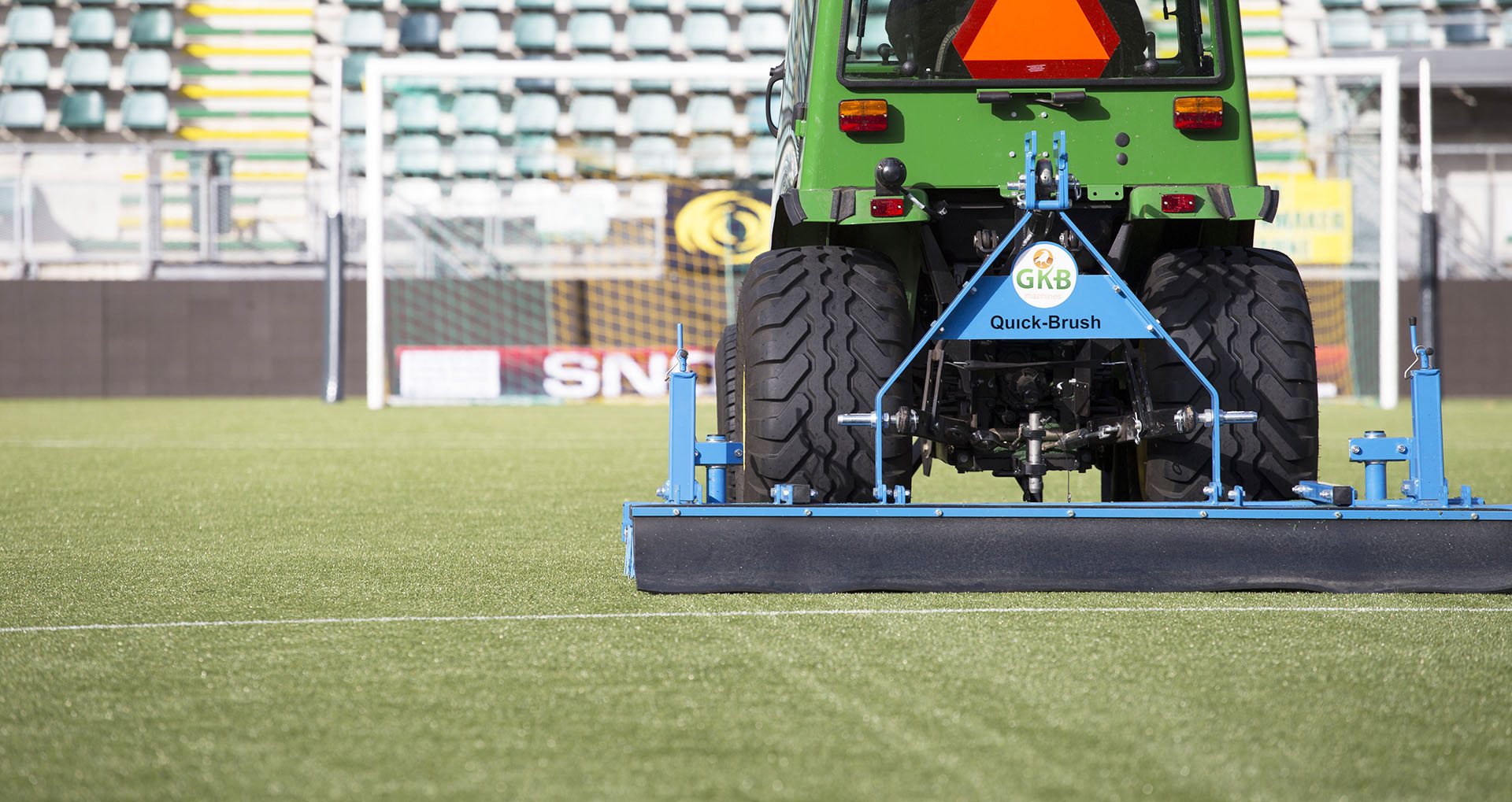

- Rubber Finishing Flap – Included in QB200 to level and settle infill material, enhancing surface uniformity and visual appeal. Optional for QB200B.
- Flip-Over Tool – Present in both models; automatically aligns with travel direction for efficient infill spreading during turf installation.
- Construction & Weight – QB200: Approx. 120 kg frame built for durability and stability during operation, QB200B: Approx. 50 kg frame for easy handling and transport.
- Horsepower Requirement – Both models operate with tractors rated >15 hp, ideal for compact and mid-size models.
- Attachment Type – Standard Cat I–II three-point hitch for quick and secure tractor mounting across both models.
- No Hydraulics Needed – Fully mechanical design ensures broad compatibility and low maintenance for both systems.
- Expandable Design – QB200B can be upgraded with tooth bar, additional brushes, rubber flap, and height adjustment tools to match QB200 capabilities.
- Field Performance Benefits – Both models help prevent drainage issues, fiber compaction, and surface contamination—preserving playability, safety, and aesthetics of synthetic turf fields.
Detailed Specifications
GKB Quick-Brush QB200
|
Specification |
Detail |
|---|---|
|
Model |
QB200 Complete System |
|
Working Width |
200 cm / 79" |
|
Dimensions (L×W×H) |
120 × 200 × 90 cm / 47" × 79" × 35" |
|
Weight |
120 kg / 265 lbs |
|
Power Requirement |
>15 hp (operational range 25–45 hp) |
|
Attachment |
Standard three‑point hitch (Cat I–II) |
|
Included Features |
First brush, flip-over tool, second brush, tooth bar, height adjustment spindles, rubber finishing flap |
|
Height Adjustment |
Twin spindle independent adjustment |
|
Hydraulic Requirement |
None |
|
Primary Use |
Full-service artificial turf maintenance: brushing, infill leveling, fiber rejuvenation, and pitch grooming |
GKB Quick-Brush QB200B
|
Specification |
Detail |
|---|---|
|
Model |
QB200B Basic System |
|
Working Width |
200 cm / 79" |
|
Dimensions (L×W×H) |
Approx. 30 × 200 × 90 cm / 12" × 79" × 35" |
|
Weight |
50 kg / 110 lbs |
|
Power Requirement |
>15 hp (operational range 25–45 hp) |
|
Attachment |
Standard three‑point hitch (Cat I–II) |
|
Included Features |
First brush, flip-over tool |
|
Height Adjustment |
Not included (upgradeable) |
|
Hydraulic Requirement |
None |
|
Primary Use |
Routine brushing and infill distribution for synthetic turf surfaces |
GKB Quick-Brush QB200 (Alt)
|
Specification |
Detail |
|---|---|
|
Model |
QB200 Basic 3‑point |
|
Working Width |
200 cm / 79" |
|
Dimensions (L×W×H) |
120 × 200 × 90 cm / 47" × 79" × 35" |
|
Weight |
70 kg / 154 lbs |
|
Power Requirement |
>15 hp (operational range 25–45 hp) |
|
Attachment |
Standard three‑point hitch (Cat I–II) |
|
Available Options |
Tooth bar, extra brush, double brush, rubber finishing flap, flip‑over tool |
|
Height Adjustment |
Twin spindle independent adjustment |
|
Hydraulic Requirement |
None |
|
Primary Use |
Artificial turf brushing, leveling, infill redistribution, and grooming |
Manual & Documents
General Warranty Info:
- Ripping It Outdoors works closely with our manufacturers to supply and support your products warranty needs as best as possible!
- The majority of products come with a manufacturer represented warranty against manufacturing defects for at least a 12 month period after the date of sale.
- Expendable components and "wear parts" including but not limited to blades, knives, teeth, oil, chain sprockets, skid shoes, knife mounting discs, and similar components are usually excluded from manufacturer warranties.
- Please reach out to us for any specific warranty information needed about products and parts you can’t find!

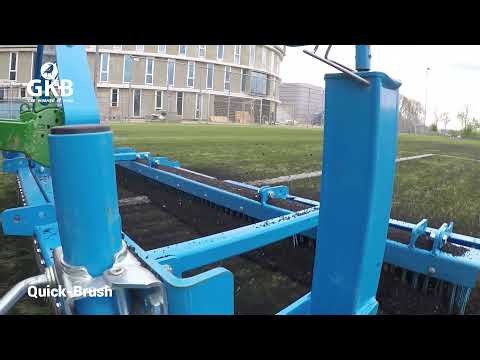

Videos
