GreenTec Limb Trimmer Hydraulic Telescopic | Model Multi Carrier Puma 3303 Tele | Transport Width 8'2" Ft | Oil Flow 13.2 GPM | For Tractors
DESCRIPTION

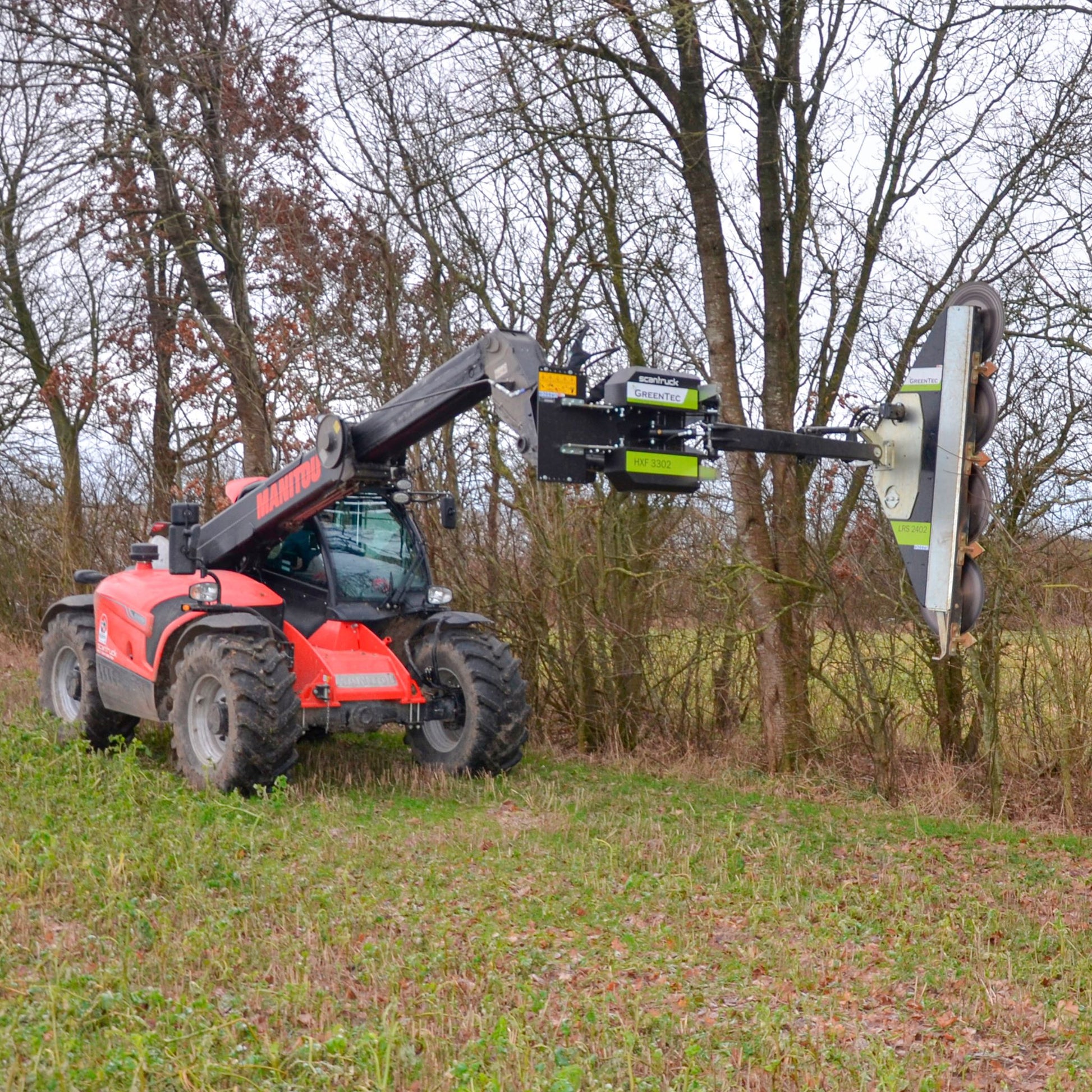

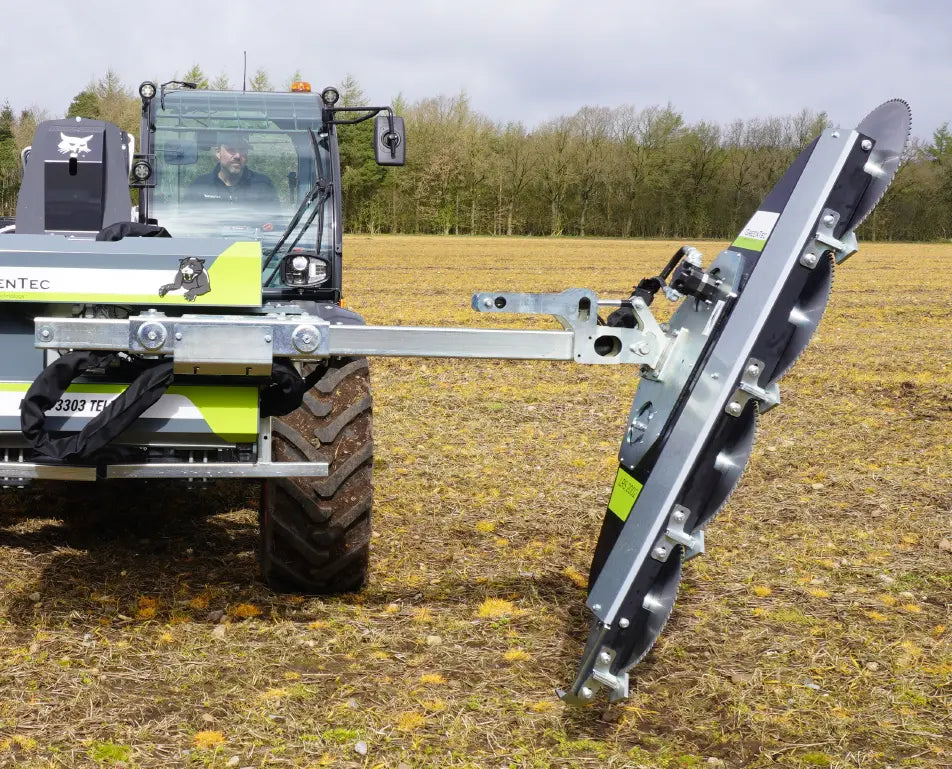

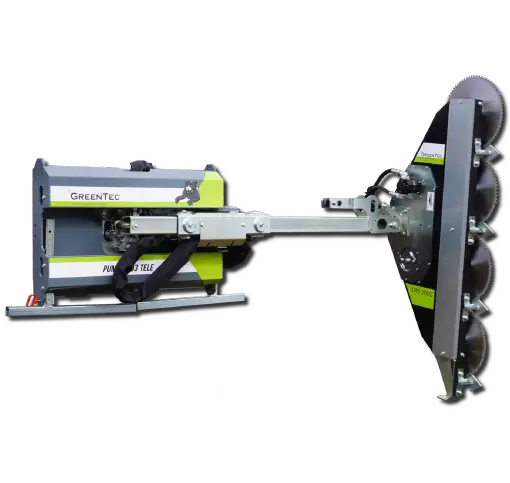

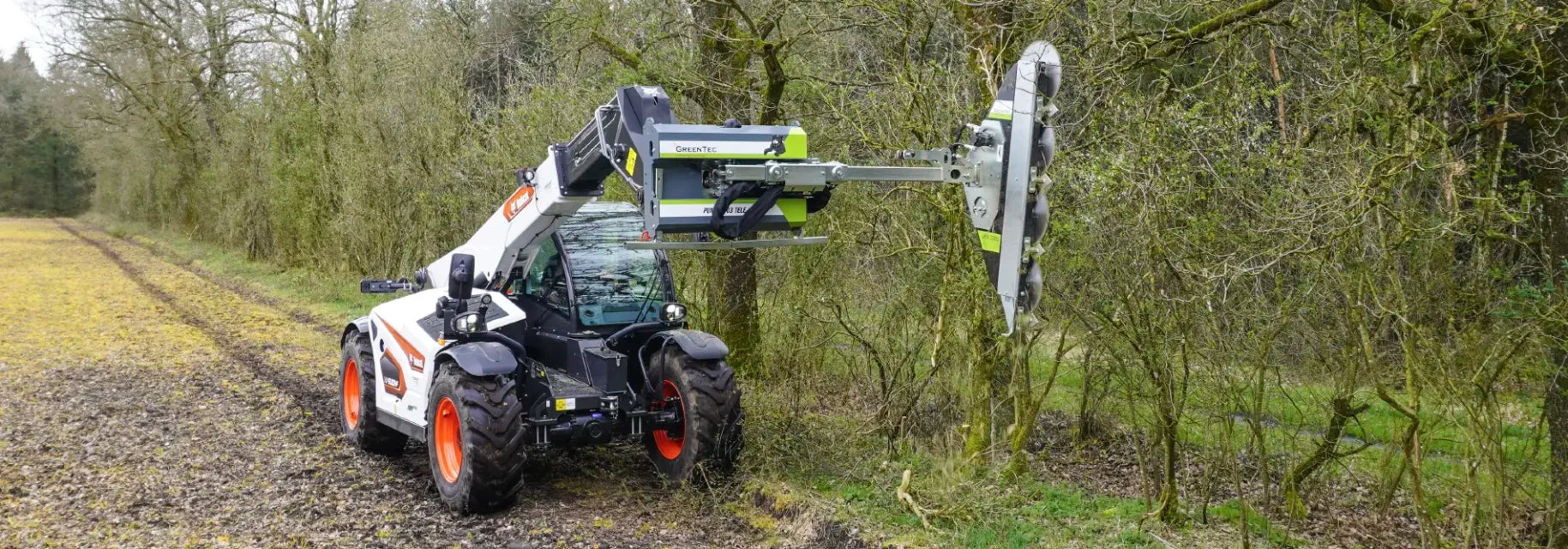

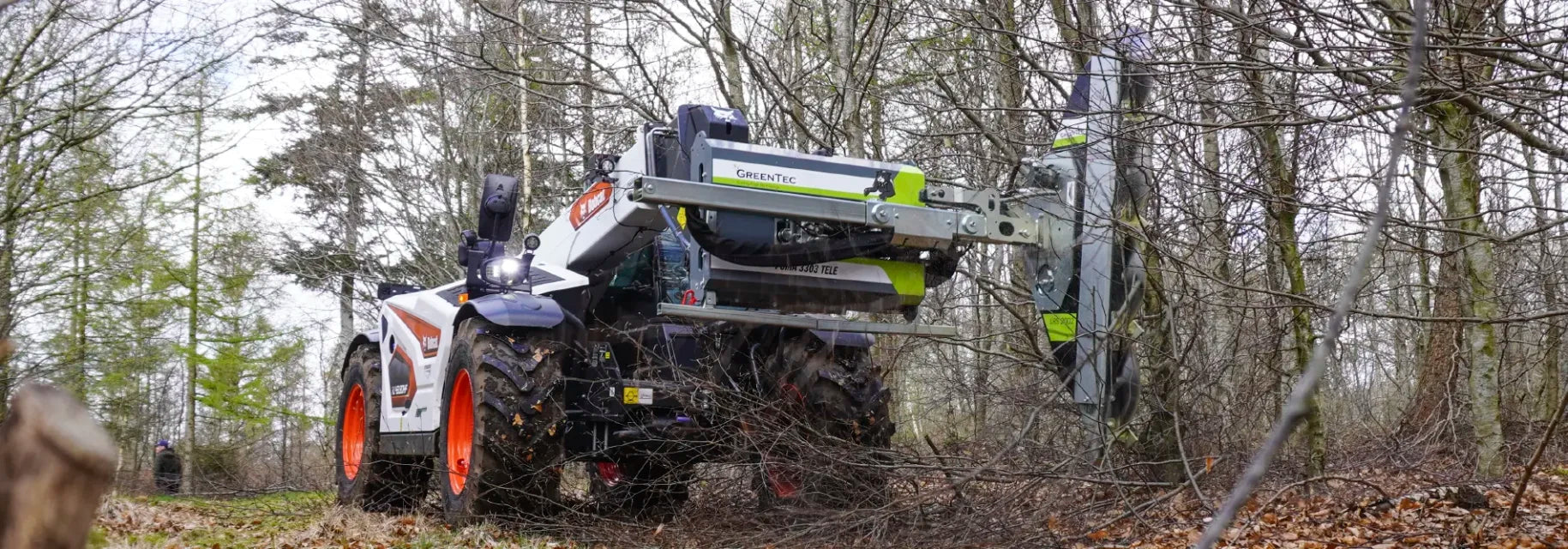

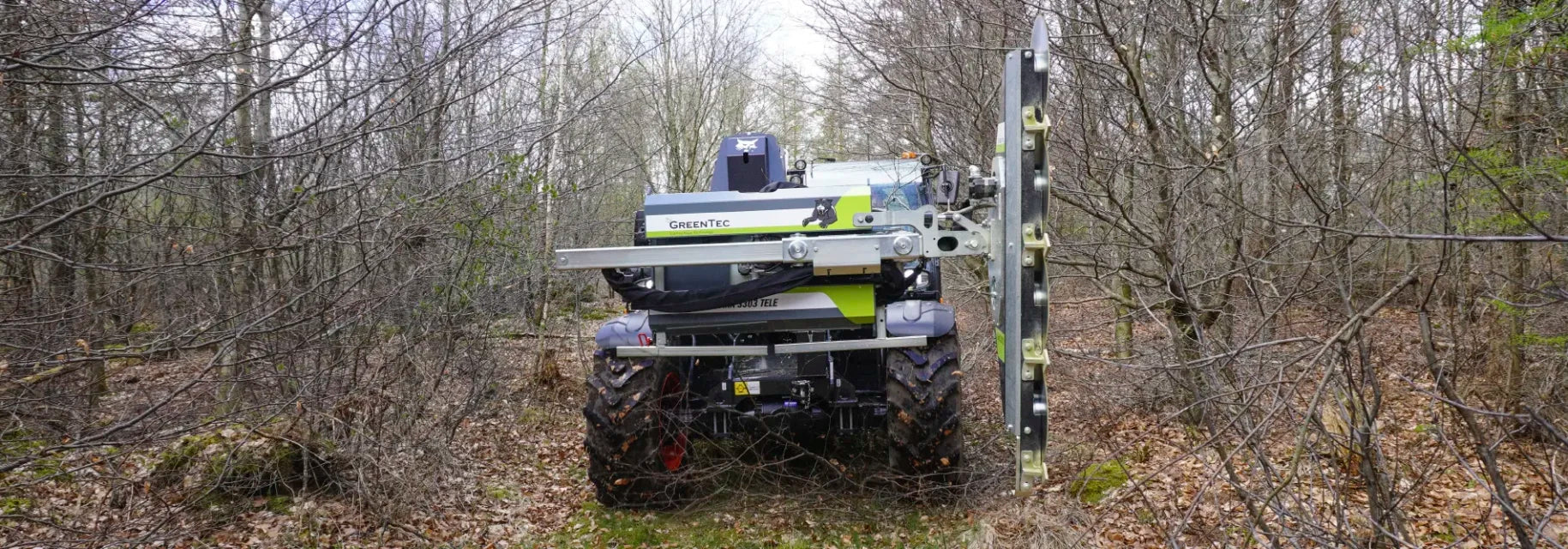

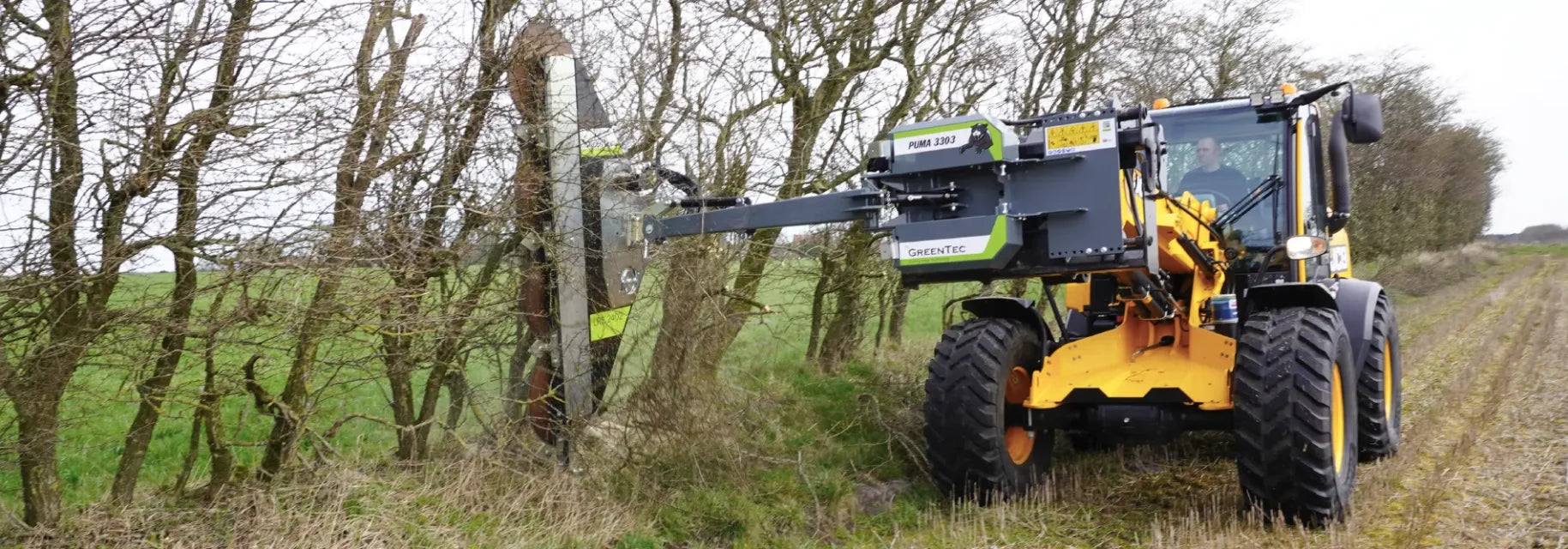

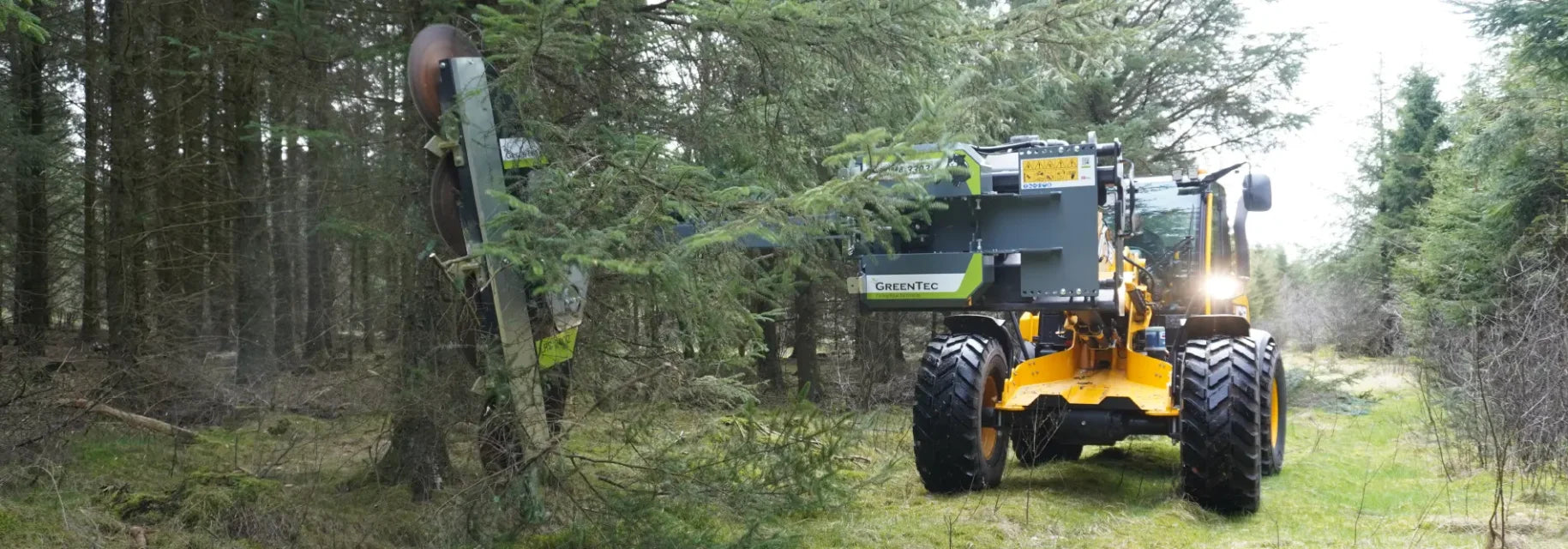

The Multi Carrier Puma 3303 Tele is the largest model in the Puma series and is mainly mounted on telehandlers, large front end loaders and excavators. An extensive range of tools for hedge cutting and tree trimming can quickly be attached or detached to the frame. Our Multi Carrier Puma 3303 Tele offers great flexibility as you can adjust the arm to the terrain. It is an ideal solution for working in conditions with limited space, such as forest tracks, bike paths and orchards.
Key Features
- Hydraulic cutting angle control: Up to 110º adjustment of cutting angle through the top bar, enabling precise trimming in various terrains.
- Hydraulic switch: Effortlessly change from working mode to transport position, enhancing operational convenience.
- Automatic hydraulic break-back with pre-pressure: The mounted cylinder connected to an accumulator ensures a soft return of the piston, preventing recoil effects when the oil pressure fluctuates.
- Oil flow divider: Helps regulate oil flow, ensuring a longer lifespan for the oil engine by optimizing distribution.
- Anti-cavitation valve: Reduces the risk of cavitation damage caused by insufficient inlet pressure, maintaining smooth hydraulic operations.
- Pressure relief valve: Safeguards the hydraulic system from excess pressure, preventing damage and performance drops.
- 1.5 m (5'2") hose kit: Provides the necessary attachment tools to optimize performance and enhance flexibility.
- Euro brackets or universal plate: Allows easy mounting on tractors, loaders, and excavators, offering versatile compatibility.
- Counterweights: Ensures weight stabilization between the Puma 3303 Tele and your vehicle, improving balance and efficiency.
- Flexible arm: Enables adjustable working width, enhancing accessibility in tight spaces.
- Right and left versions available: Designed for both right-side and left-side mounting, offering customized adaptability.
- Foldable arm: Folds easily for compact storage and safe transportation when not in use.

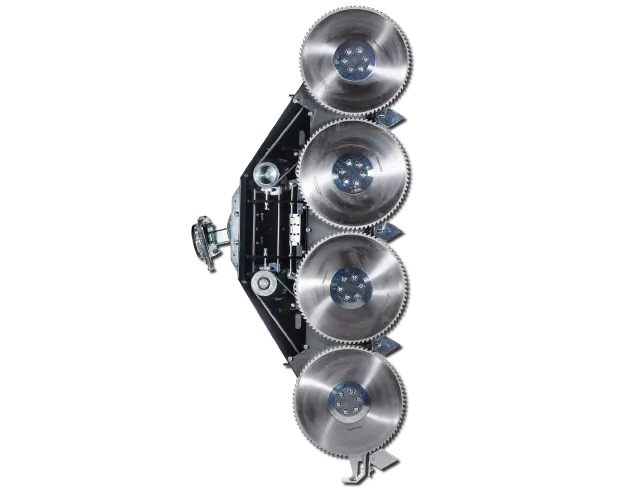

- Widia carbide-tipped teeth: Ensures a smooth cut and extended durability, eliminating frequent sharpening requirements.
- Electric remote control: Provides wireless operation, allowing effortless control without physical strain.
- Belt stretcher: Keeps belts securely in place, preventing them from loosening during operation.
| Image | Feature | Description |
 |
Foldable arm | Foldable arm Ensures safety when in transport position |
 |
Anti-cavitation valve | Anti-cavitation valve Minimize the risk of cavitation damage in connection with insufficient inlet pressure |
 |
Oil flow divider | Oil flow divider Longer life for the oil engine |
 |
Hydraulic cutting angle control | Hydraulic cutting angle control |
 |
Widia carbide tipped teeth Smooth cut and long life | Widia carbide tipped teeth Smooth cut and long life |
 |
Belt stretcher |
TO KEEP BELTS FROM BECOMING LOOSE
|
 |
Electric remote control |
WIRELESS REMOTE |
Detailed Specifications
| Feature | Details |
|---|---|
| Reach from Center of Vehicle to End of Tool | 1.6-2.5 m (5'3"-8'2") |
| Transport Width | 2.5 m (8'2") |
| Required Hydraulic Connections | 1 x double acting |
| Minimum Oil Flow | 50 l/min @ 180 bar (13.2 gpm @ 2611 psi) |
| Weight Without Brackets | 230 kg (507 lbs) |
| Hydraulic Angle Control | Includes e-control of all functions |
| Hydraulic Switch | From working to transport position |
| Automatic Hydraulic Break-back | With pre-pressure |
| Oil Flow Divider | Ensures longer life for the oil engine |
| Anti-cavitation Valve | Minimizes cavitation risk |
| Pressure Relief Valve | Protects hydraulic system |
| Hose Kit | 1.5 m (5'2") for attachment tools |
| Mounting Brackets | Euro brackets or universal plate |
- Hardox Steel Cutter Bars: Low maintenance, strong, and durable.
- No Sharpening Required: Cutter bars remain effective without the need for sharpening.

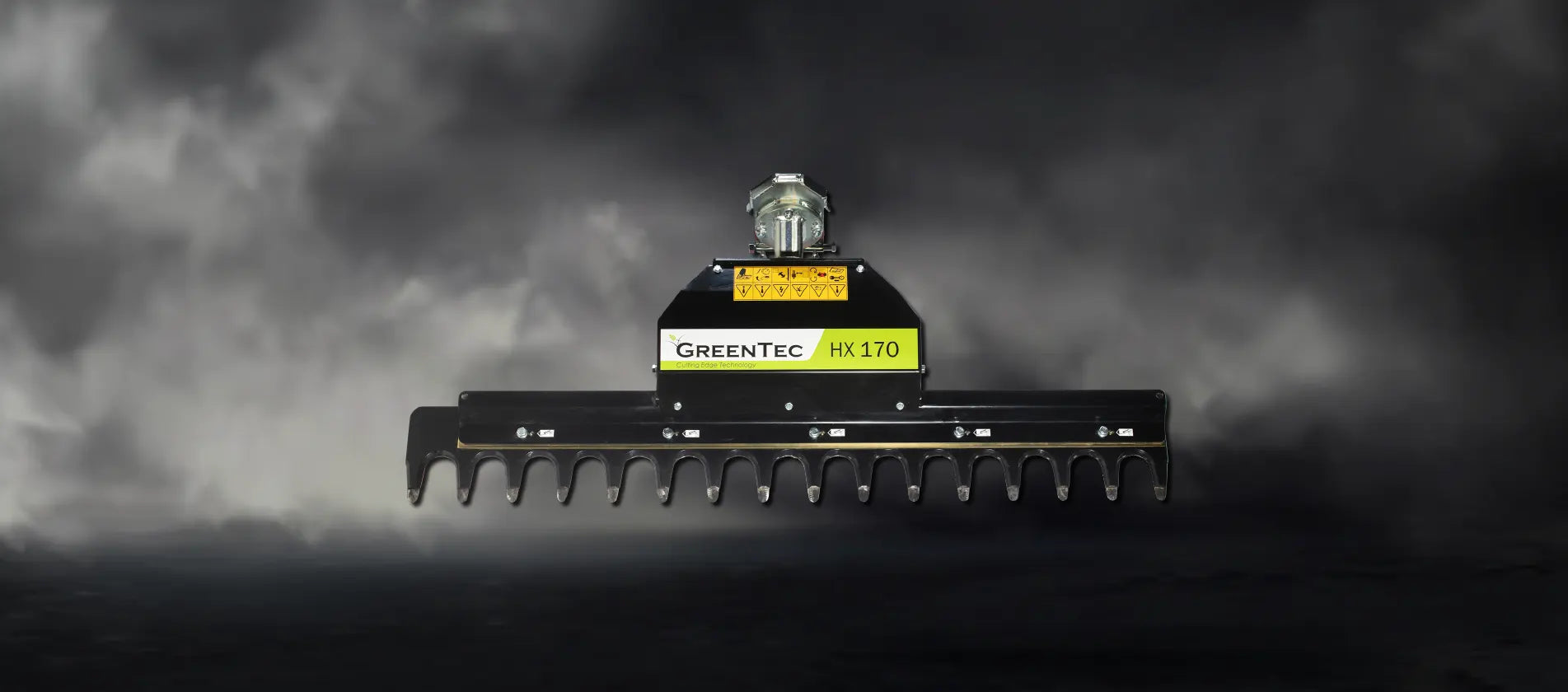

| Model | Cutting Width | Cutting Capacity |
|---|---|---|
| HX 270 | 8'10" (2.69 m) | 4.3" (10.92 cm) |
| HX 170 | 5'7" (1.70 m) | 4.3" (10.92 cm) |
Manuals & Documents
General Warranty Info:
- Ripping It Outdoors works closely with our manufacturers to supply and support your products warranty needs as best as possible!
- The majority of products come with a manufacturer represented warranty against manufacturing defects for at least a 12 month period after the date of sale.
- Expendable components and "wear parts" including but not limited to blades, knives, teeth, oil, chain sprockets, skid shoes, knife mounting discs, and similar components are usually excluded from manufacturer warranties.
- Please reach out to us for any specific warranty information needed about products and parts you can’t find!

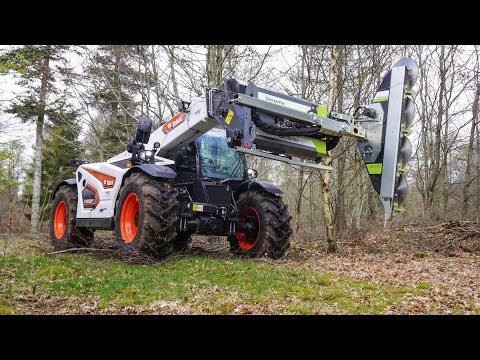

Videos
