Product Description
GreenValley UAV LiDAR System | Model LiAir H800 | Power Consumption 61 Watt | Detection Range Up-To 1000 meter
Description

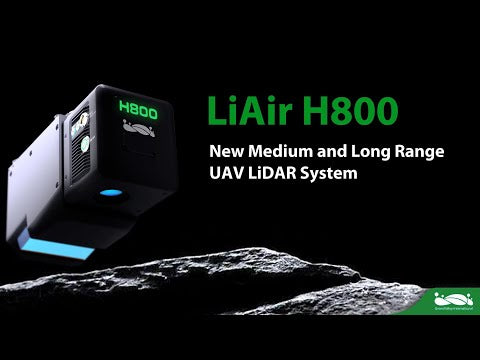

The GreenValley LiAir H800 is a cutting-edge medium-to-long-range UAV LiDAR system designed to meet the needs of various industries, including power line inspection, forest monitoring, emergency disaster assessment, and large-scale mapping and surveying projects. Developed by GreenValley International, this system integrates lightweight LiDAR technology, an advanced navigation system, and a high-resolution camera, offering precise and efficient data collection in a compact package.
Key Features
- Lightweight Design: Weighs only 2.25 kg, making it easy to mount on UAV platforms like the M350 and M300 RTK.
- Advanced Navigation: Equipped with GNSS (GPS, GLONASS, Galileo, BD) for precise positioning.
- High Detection Range: Can detect objects up to 350 meters at 10% reflectivity, 790 meters at 50% reflectivity, and 1000 meters at 80% reflectivity.
- High Resolution Camera: Features a 26-megapixel camera with focal lengths of 16 mm and 24 mm, producing detailed images sized at 6252 x 4168 pixels.
- Wide Field of View: Offers a 100-degree FOV with adaptive scan speed for consistent data coverage.
- Intelligent Flight Control: Automatically starts and stops data collection based on flight altitude.
- Durability: Operates in temperatures ranging from -20°C to 50°C and storage temperatures from -30°C to 60°C.
- Optional Software: Includes LiDAR360 and LiPowerline for advanced data processing.
Detailed Specifications
| Specification | Details |
|---|---|
| Detection Range | 350 m @ 10% reflectivity, 790 m @ 50% reflectivity, 1000 m @ 80% reflectivity |
| Vertical Accuracy | ±5 cm |
| Weight | 2.25 kg |
| Memory | 256 GB TF Card |
| Voltage | 18~24 V |
| Power Consumption | 61 W |
| Operating Temperature | -20~50 °C |
| Storage Temperature | -30~60 °C |
| Communication | WIFI |
| LiDAR Unit Wavelength | 1535 nm |
| Repeatability Accuracy | 3 mm @ 100 m |
| FOV | 100° |
| Data Frequency | 100~2000 kHz |
| Number of Returns | Unlimited Waveform Returns |
| Camera Pixels | 26 MP |
| Focal Length | 16 mm / 24 mm |
| Point Cloud Formats | 6252×4168 |
| Control Software | GreenValley |
| Pre-processing Software | LiGeoreference |
| Post-processing Software | LiDAR360 / LiPowerline (Optional) |
