Product Description
Heavy Duty Ramps Aluminum Modular Dry Van Truck Trailer Ramp System | Model 05-20-240-02-06M | 20' L x 20" W | 5,000 lb. Per Axle | Horsepower 23 HP | For Dry Vans, Box Trucks & Cargo Trailers
DESCRIPTION

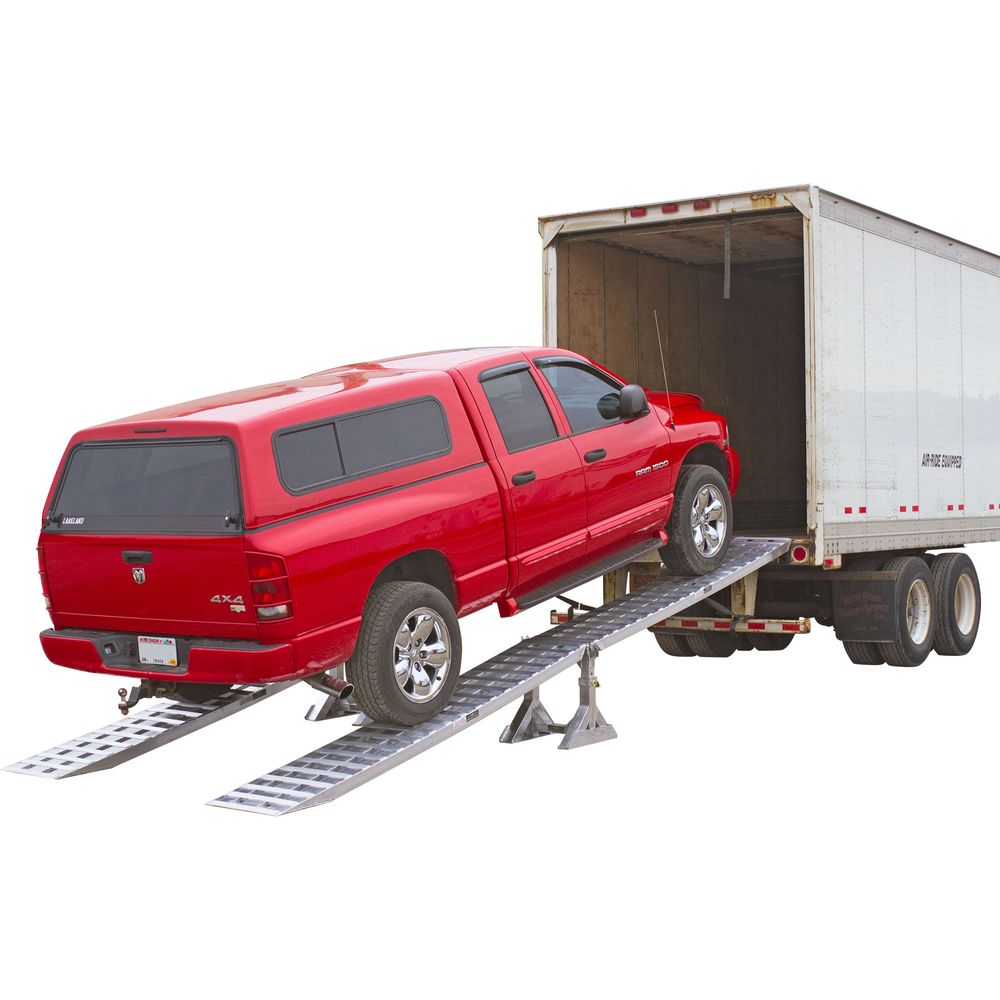

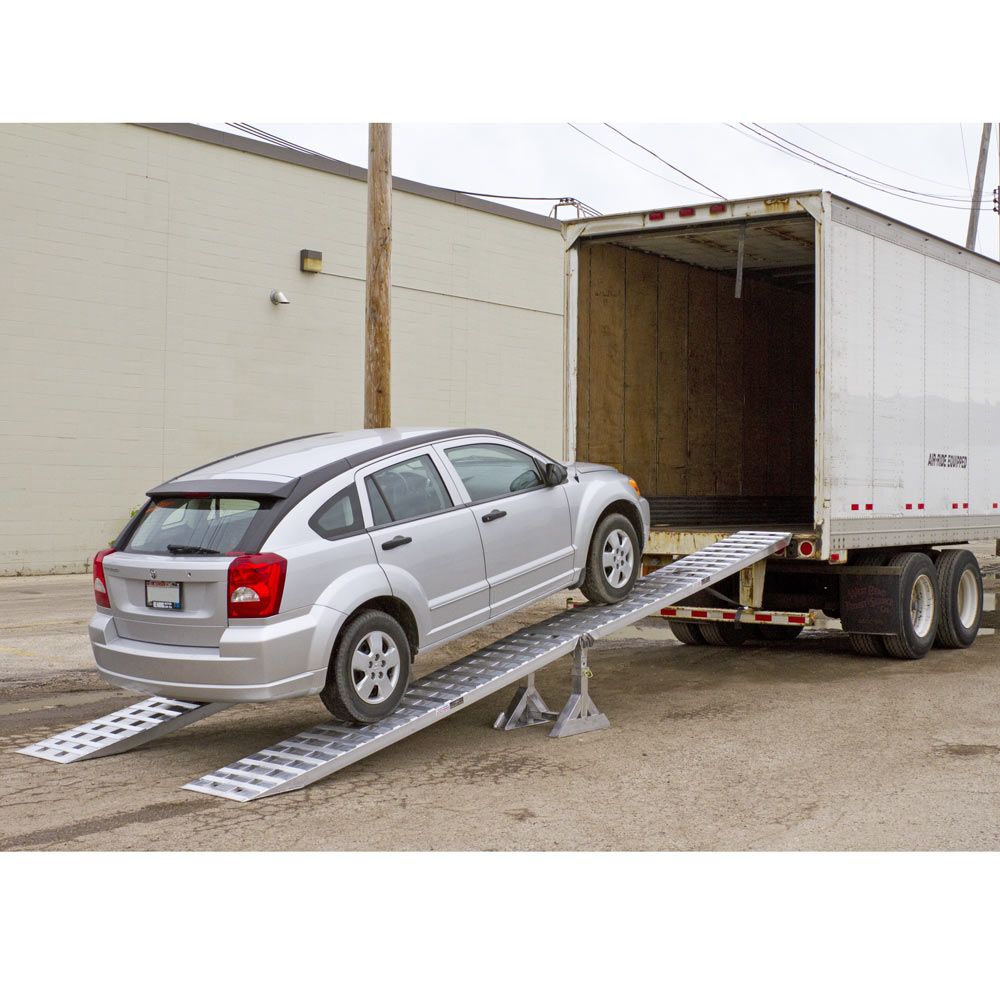

Experience safer, faster, and more efficient vehicle loading with the Heavy Duty Ramps Aluminum Modular Dry Van Truck Trailer Ramp System engineered for professionals who demand reliability on every job. Whether you’re hauling cars, pickups, ATVs, UTVs, or light equipment, this modular ramp system delivers industrial-grade performance in a lightweight, corrosion-resistant package.
Crafted in the USA from high-strength aluminum, this 20-foot-long ramp system offers a 5,000 lb. per axle capacity and requires only 23 HP for smooth hydraulic lifting support (if powered). The dual 10-foot ramp sections connect seamlessly to create a perfect loading angle for your dry van or box truck, while the two adjustable support stands ensure unwavering stability during use.
Each serrated rung is designed for superior traction no slipping, no sliding, even in wet or muddy conditions. Full-width top plates and angled knife feet create a seamless transition for vehicle tires, protecting undercarriages and ensuring a smooth drive-on experience.
Whether you’re a logistics operator, fleet manager, or independent hauler, this modular aluminum trailer ramp system is the ultimate combination of portability, strength, and professional-grade engineering.
Key Features
- Professional-Grade Aluminum Construction Built from aircraft-grade aluminum for unmatched strength and long-term durability.
- 5,000 lb. Per Axle Capacity Handles a wide range of vehicles and equipment with confidence.

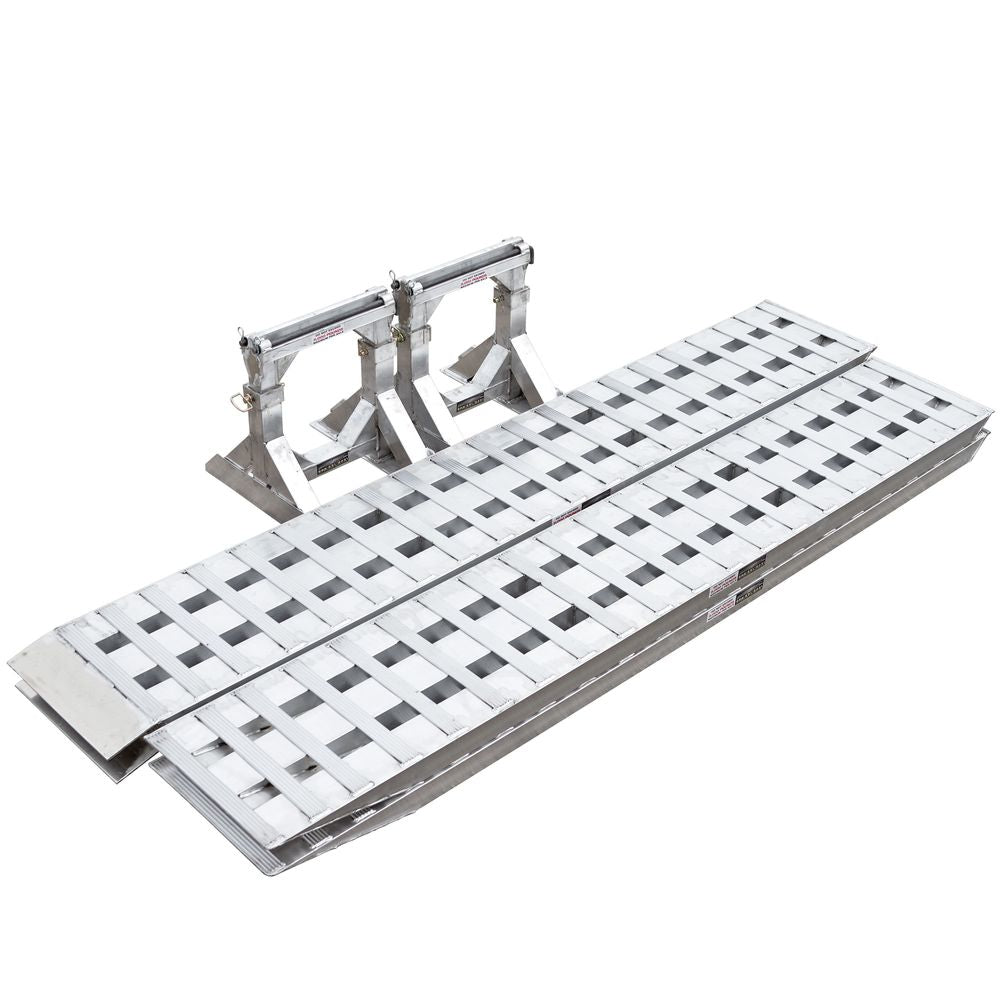

- Modular 20' Length Design Includes four 10' ramp sections and two center support stands for versatile configurations.

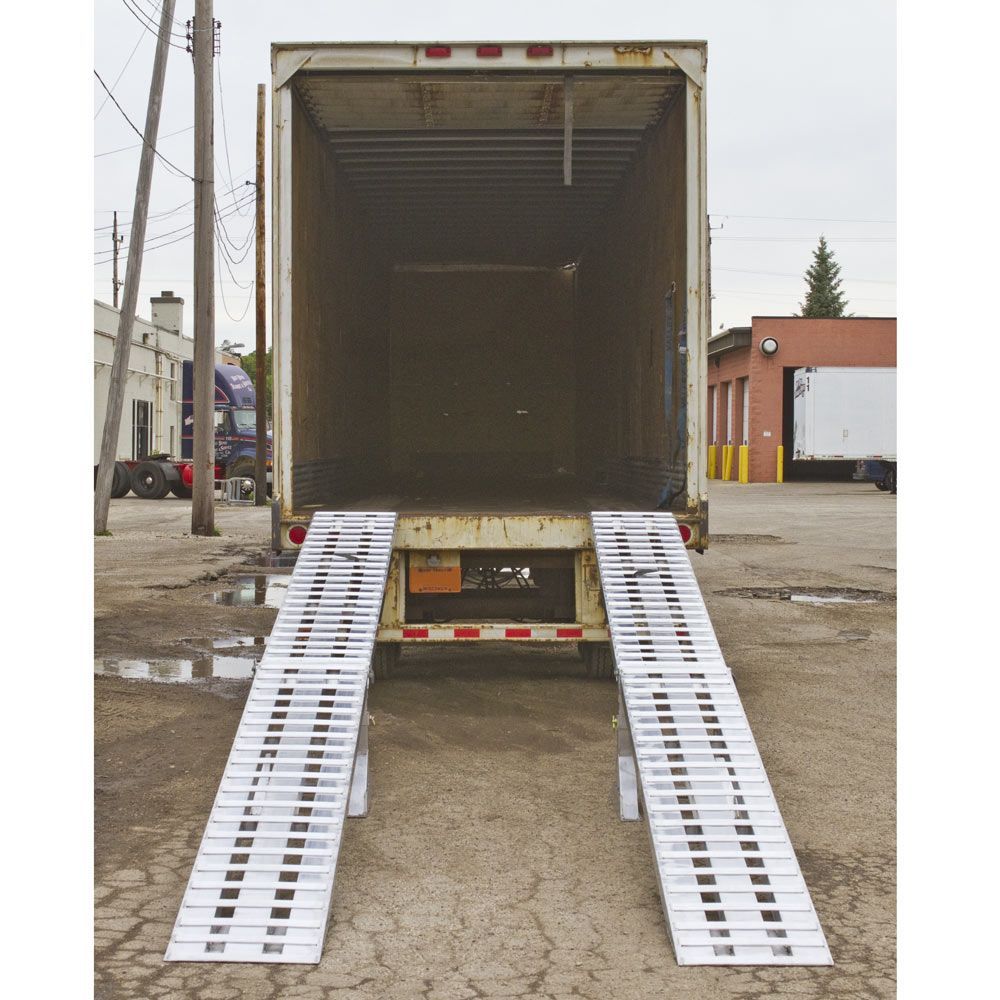

- Optimized for Dry Vans & Box Trucks Perfect fit for logistics fleets, cargo operators, and delivery professionals.
- High-Traction Serrated Rungs Provides exceptional tire grip and prevents slipping in all weather conditions.
- Lightweight Yet Strong Easier to handle and position without sacrificing load capacity.
- 23 HP Power Requirement Compatible with standard vehicle or hydraulic assist systems for effortless ramp adjustment.

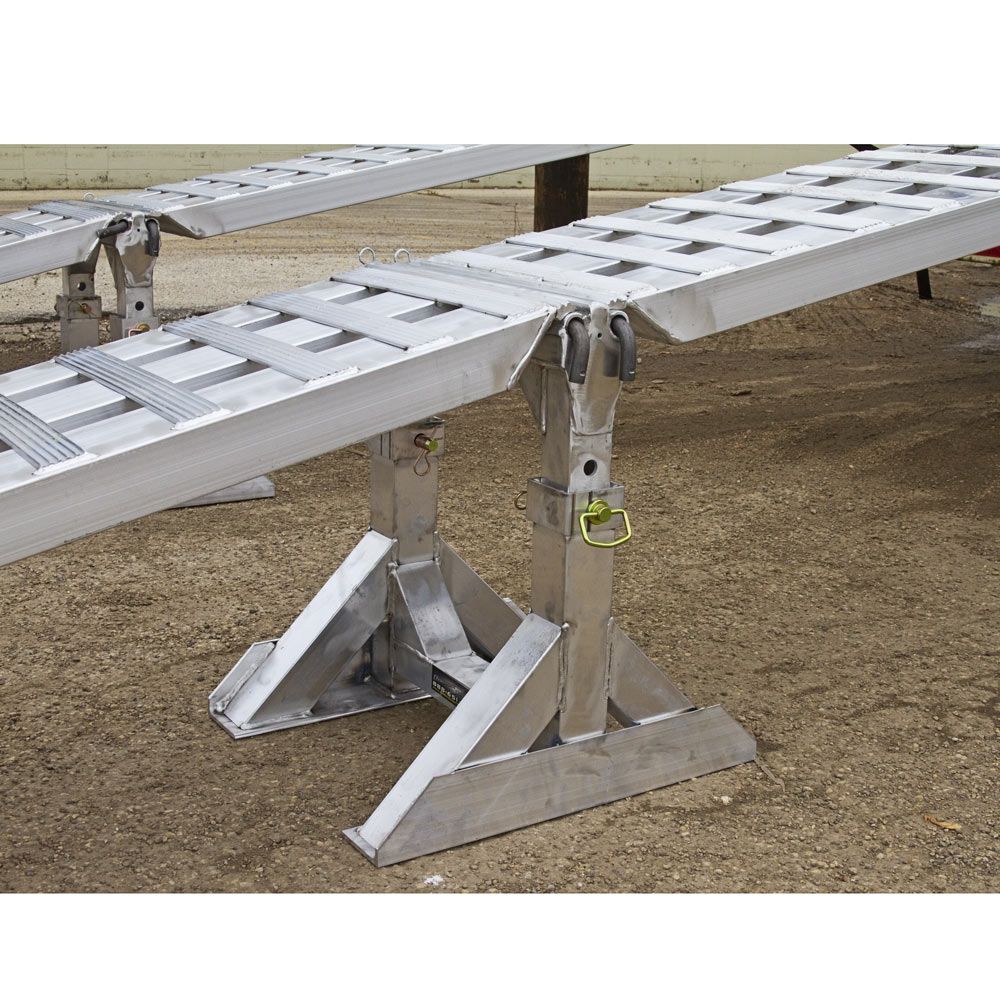

- Adjustable Center Support Stands Fine-tune your loading height and angle for different vehicles and trailer decks.

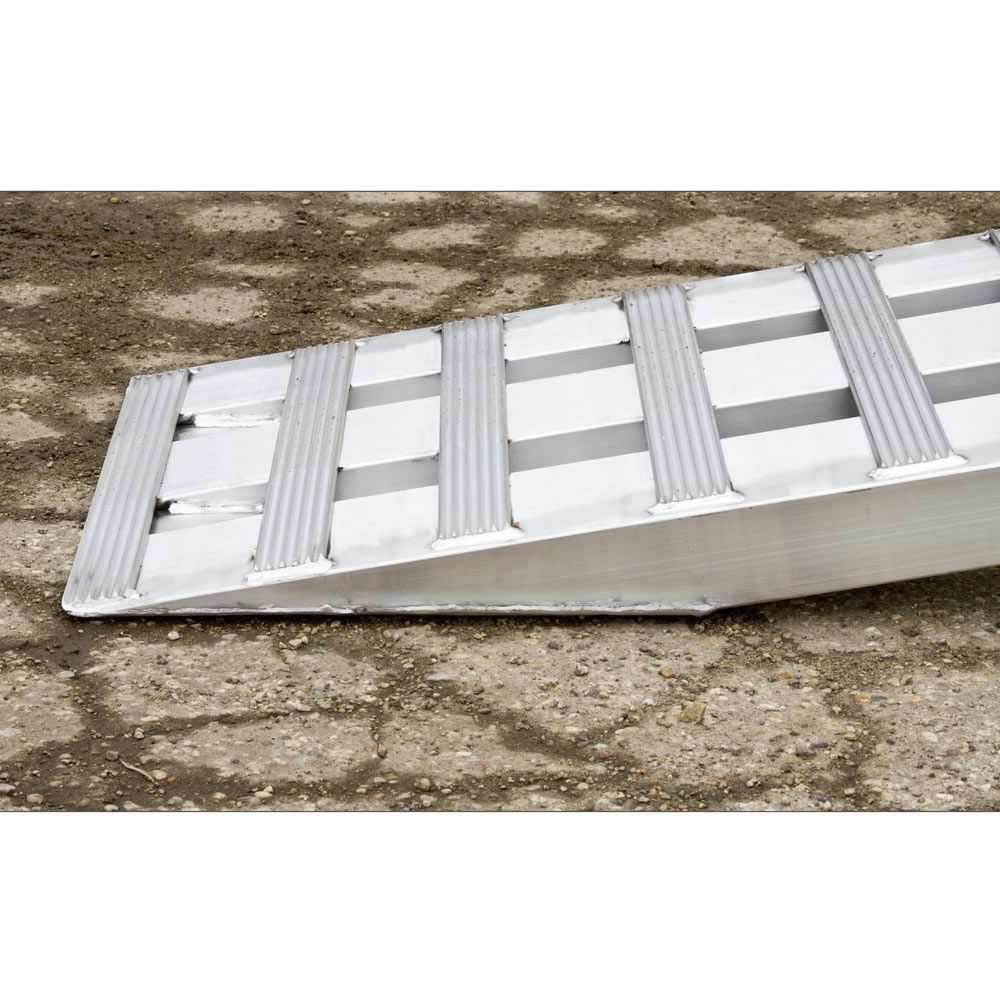

- Smooth Knife-Foot Ends Ensures seamless ground contact and easier approach for low-clearance vehicles.

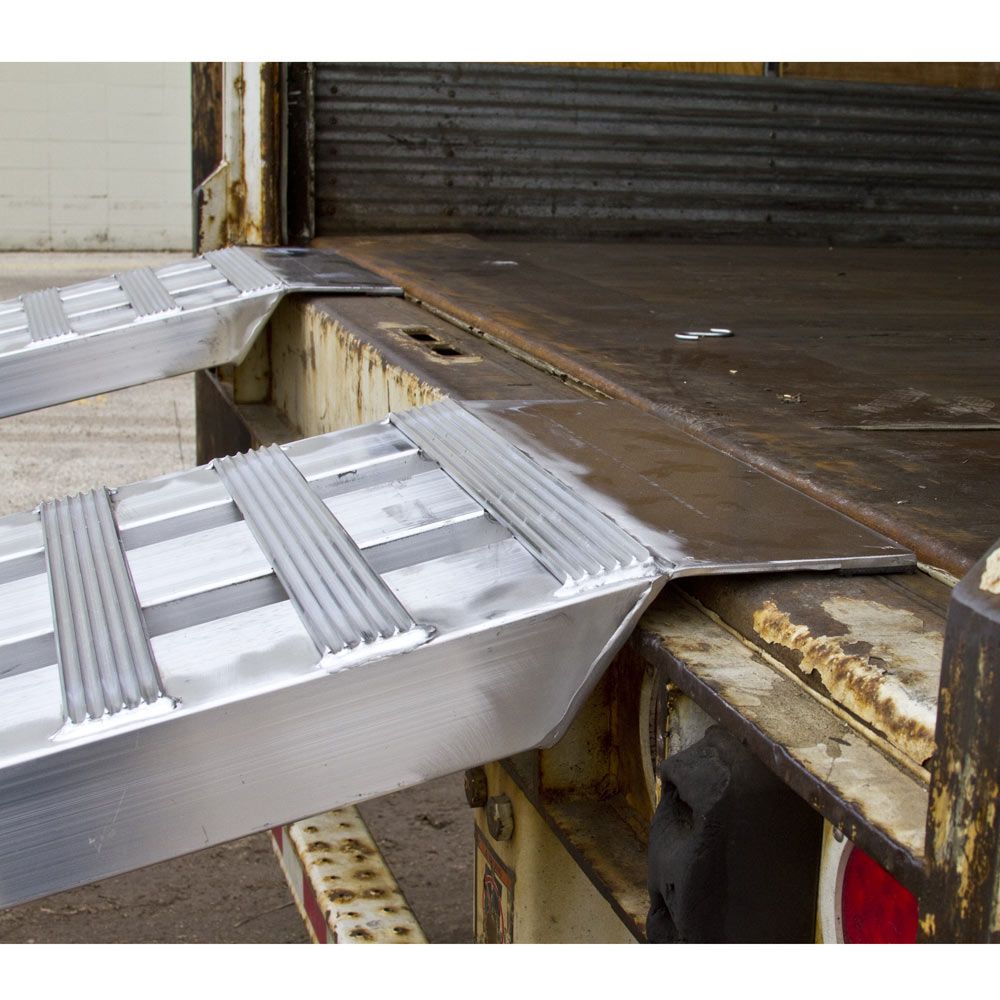

- Rubber-Bonded Top Plates Reduce ramp movement and protect trailer surfaces during loading.
- Pin-On End Connectors Keeps ramps securely attached for safer loading and unloading.
- Weather-Resistant Finish Corrosion-proof aluminum construction stands up to moisture, salt, and road debris.
- Compact & Modular Storage Easy to disassemble and stow when not in use.
- Cam Buckle Tie-Down Straps Included Prevent ramp kick-out and add another layer of safety.
- Proudly Made in the USA Precision-engineered quality you can trust from Heavy Duty Ramps.
Detailed Specifications
| Specification | Details |
|---|---|
| Brand | Heavy Duty Ramps |
| Model | 05-20-240-02-06M |
| Type | Aluminum Modular Dry Van Truck Trailer Ramp System |
| Length | 20 ft. total (Two 10 ft. sections per side) |
| Width | 20 in. per ramp |
| Height | 3.25 in. |
| System Weight | 380 lbs. total |
| Weight Capacity | 5,000 lbs. per axle |
| Required Horsepower | 23 HP |
| Ramp Surface | Flat serrated rung traction |
| Ramp Material | Aircraft-grade aluminum |
| Support Stands | 2 adjustable aluminum stands included |
| Minimum Height | 40 in. |
| Maximum Height | 54 in. |
| Connection Type | Pin-on end connectors |
| End Style | Knife foot with full-width plate top |
| Use Cases | Dry vans, box trucks, cargo trailers, light equipment transport |
| Manufactured | Made in the USA |
