HLA Attachment Heavy Duty Dirt Blade Hydraulic Angle & Tilt Less Mount | Model DB72-84-96 | 72"-84"- 96" Width | For Tractor

Product Description

HLA Attachment Heavy Duty Dirt Blade Hydraulic Angle & Tilt Less Mount | Model 72-84-96 | 72"-84"- 96" Width | For Tractor

DESCRIPTION

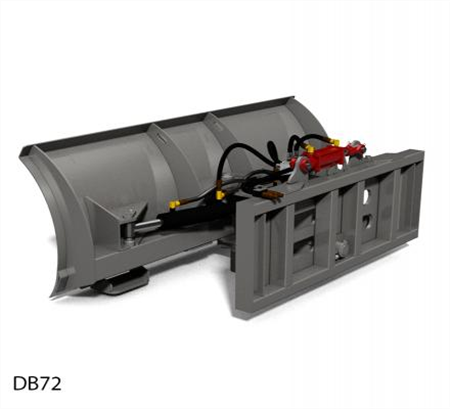

The HLA Heavy Duty Dirt Blade with Hydraulic Angle & Tilt is built to handle tough grading and clearing tasks with ease. Available in three sizes—72", 84", and 96"—this blade offers power tilt and angle adjustments, allowing operators to control blade positioning for various terrains. Constructed with a 24" moldboard and reinforced design, it’s engineered to withstand rigorous applications. The blade oscillates hydraulically up to 5 degrees, offering precision in leveling and grading, while the reversible cutting edge ensures longevity. Compatible with an array of mount options, this dirt blade adapts seamlessly to different loaders, including CAT, John Deere, and Kubota models.

Key Features

• Hydraulic Control: Dual hydraulic cylinders allow 5° up/down oscillation and precise blade angle adjustments for complex grading tasks.
• Reinforced Durability: Constructed with a 24" moldboard height and heavy-duty build, ideal for rigorous applications.
• Reversible Cutting Edge: Extends the blade’s longevity, designed to withstand repeated use on tough surfaces.
• Bolt-On Skid Shoes: Offers reliable stability, protecting the blade and maintaining even wear.
• Flexible Mounting Options: Compatible with multiple loaders (CAT, John Deere, Kubota) through various mount styles, ensuring a versatile fit.

• MOUNT SELECTION IS REQUIRED - see options
• Heavy duty construction with two angle cylinders
• Blade oscillates hydraulically 5 degrees up/down, includes electric selector control valve
• Reversible cutting edge
• 24" moldboard height
• Bolt-on skid shoes
• Weight approx. 1115#

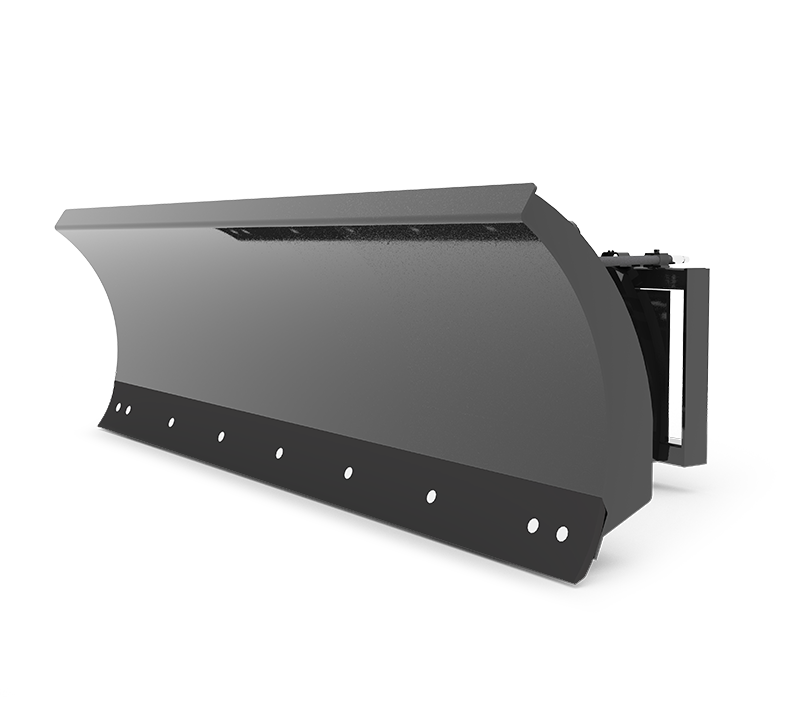

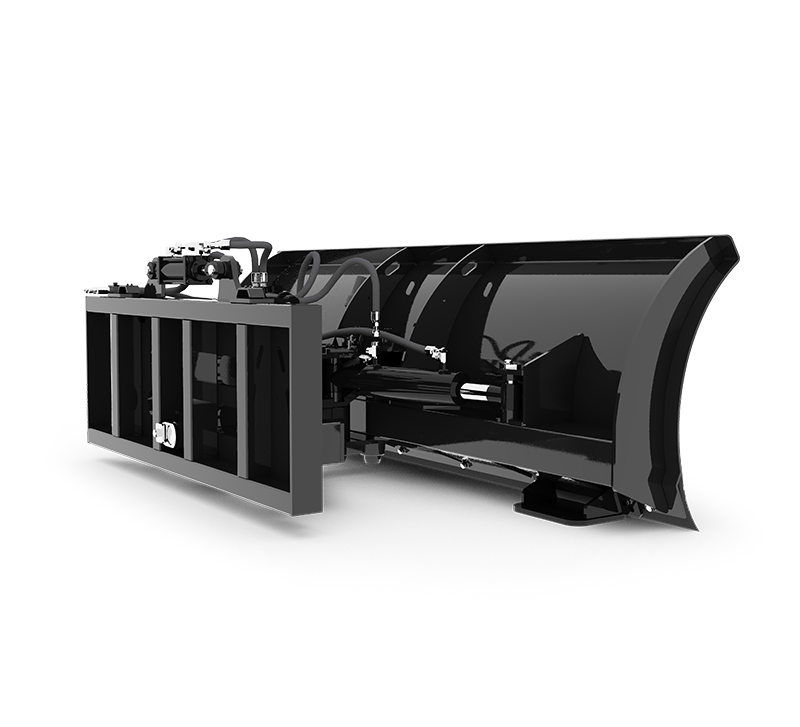

84" DIRT BLADE HYDRAULIC ANGLE & TILT LESS MOUNT

• MOUNT SELECTION IS REQUIRED - see options
• Heavy duty construction with two angle cylinders
• Blade oscillates hydraulically 5 degrees up/down, includes electric selector control valve
• Reversible cutting edge
• 24" moldboard height
• Bolt-on skid shoes
• Weight approx. 1175#

96" DIRT BLADE HYDRAULIC ANGLE & TILT LESS MOUNT

• MOUNT SELECTION IS REQUIRED - see options
• Heavy duty construction with two angle cylinders
• Blade oscillates hydraulically 5 degrees up/down, includes electric selector control valve
• Reversible cutting edge
• 24" moldboard height
• Bolt-on skid shoes
• Weight approx. 1220#
