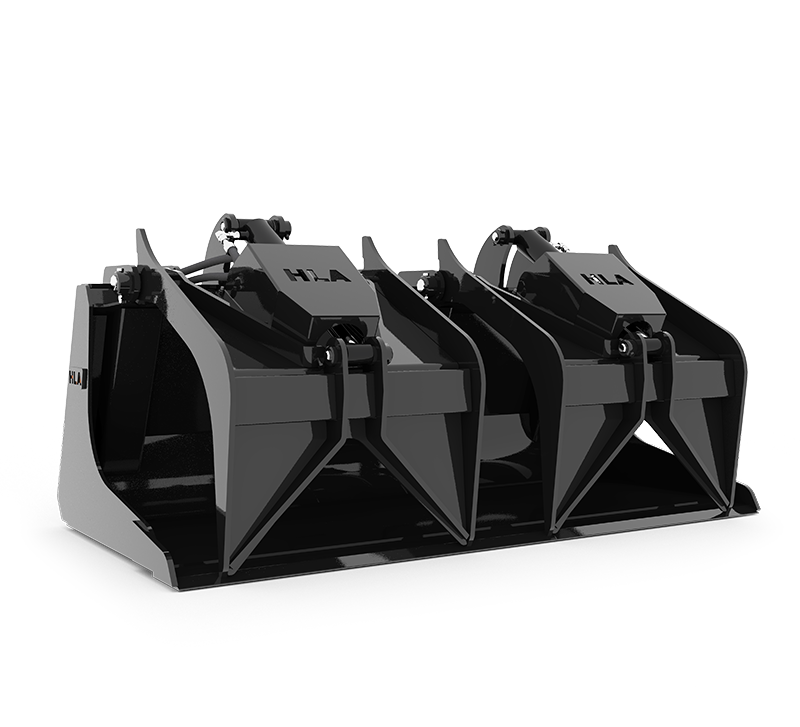

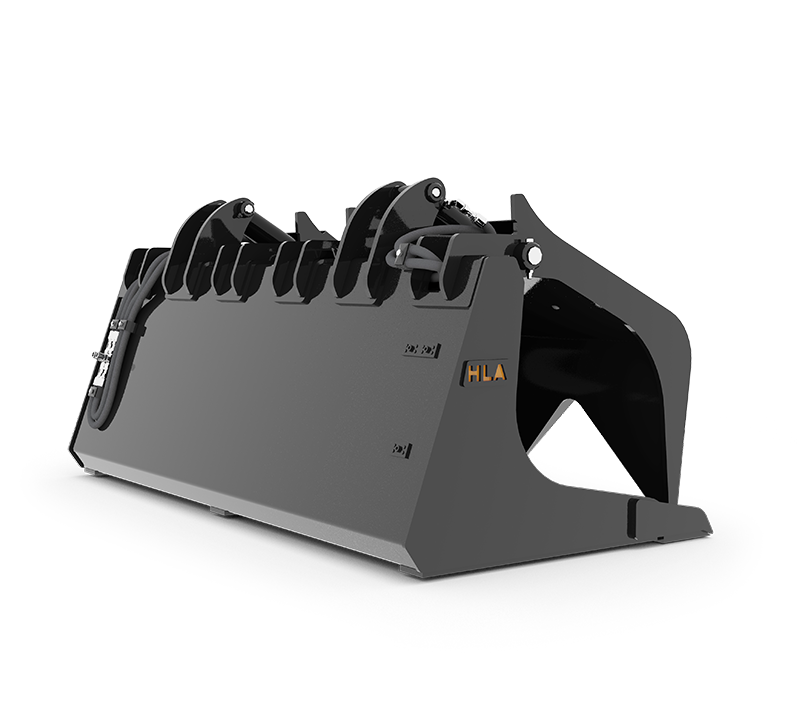

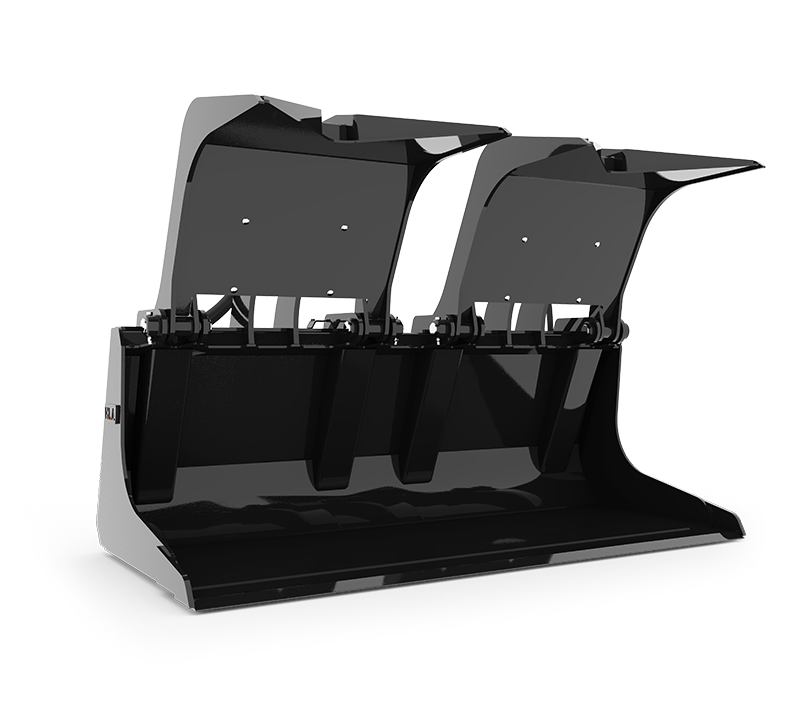

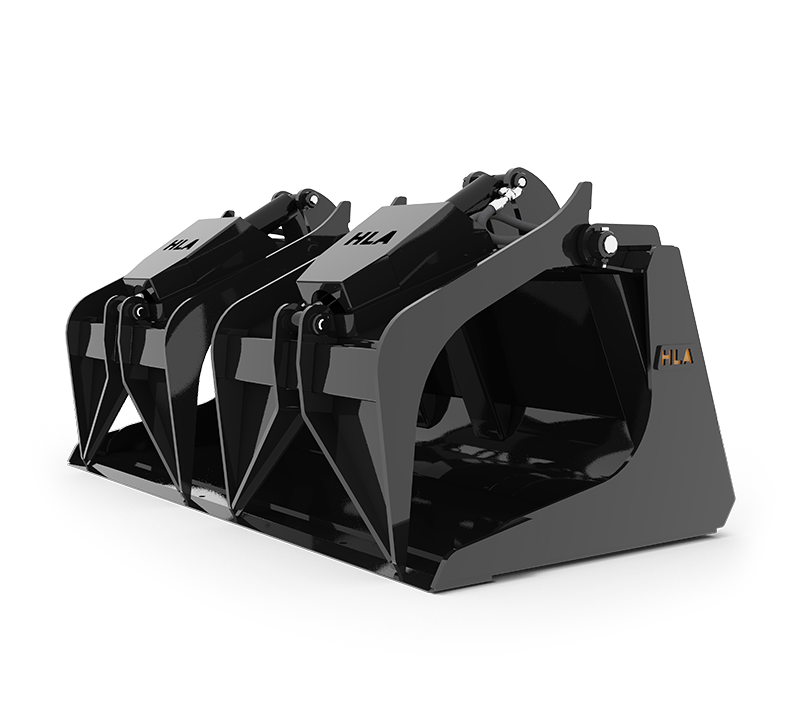

HLA ATTACHMENTS 54" TO 78" SCRAP GRAPPLE BUCKET LESS MOUNT FOR SKID STEER

78" SCRAP GRAPPLE BUCKET LESS MOUNT

DESCRIPTION

78" Scrap Grapple Bucket LESS MOUNT - REQUIRED see options to choose mounting type

FEATURES

• MOUNT SELECTION IS REQUIRED - see options
• Weight approx. 1135#
• Ideal for awkward / abrasive loads
• Two independent grapples with protected cylinders
• 31" overall height and 24" overall depth
• Capacity Struck 17.2 cu.ft. Heaped 22.5 cu.ft.


DOCUMENTS

• HLA WARRANTY
• LOADER MOUNTS

72" SCRAP GRAPPLE BUCKET LESS MOUNT

DESCRIPTION

72" Scrap Grapple Bucket LESS MOUNT - REQUIRED see options to choose mounting type

FEATURES

• MOUNT SELECTION IS REQUIRED - see options
• Ideal for awkward / abrasive loads
• Two independent grapples with protected cylinders
• 31" overall height and 24" overall depth
• Capacity Struck 15.9 cu.ft. Heaped 20.7 cu.ft.
• Weight approx. 1090#


DOCUMENTS

• HLA WARRANTY
• LOADER MOUNTS

66" SCRAP GRAPPLE BUCKET LESS MOUNT

DESCRIPTION

66" Scrap Grapple Bucket LESS MOUNT - REQUIRED see options to choose mounting type

FEATURES

• MOUNT SELECTION IS REQUIRED - see options
• Ideal for awkward / abrasive loads
• Two independent grapples with protected cylinders
• 31" overall height and 24" overall depth
• Capacity Struck 14.5 cu.ft. Heaped 18.9 cu.ft.
• Weight approx. 1050#


DOCUMENTS

• HLA WARRANTY
• LOADER MOUNTS

60" SCRAP GRAPPLE BUCKET LESS MOUNT

DESCRIPTION

60" Scrap Grapple Bucket LESS MOUNT - REQUIRED see options to choose mounting type

FEATURES

• MOUNT SELECTION IS REQUIRED - see options
• Ideal for awkward / abrasive loads
• Two independent grapples with protected cylinders
• 31" overall height and 24" overall depth
• Capacity Struck 13.2 cu.ft. Heaped 17.1 cu.ft.
• Weight approx. 1015#


DOCUMENTS

• HLA WARRANTY
• LOADER MOUNTS

54" SCRAP GRAPPLE BUCKET LESS MOUNT

DESCRIPTION

54" Scrap Grapple Bucket LESS MOUNT - REQUIRED see options to choose mounting type

FEATURES

• MOUNT SELECTION IS REQUIRED - see options
• Ideal for awkward / abrasive loads
• Two independent grapples with protected cylinders
• 31" overall height and 24" overall depth
• Capacity Struck 11.9 cu.ft. Heaped 15.3 cu.ft.
• Weight approx. 970#


DOCUMENTS

• HLA WARRANTY
• LOADER MOUNTS

Upgrades

If you would like to further upgrade your Scrap Grapple Bucket LESS MOUNT here are some Options:

• 346CEB628 3/4"x6"x62" Double Bevel Bolt On Edge f/60" Bucket $410
• 348CEB628 3/4"x8"x62" Double Bevel Bolt On Edge f/60" Bucket $540
• 346CESB628 3/4x8x62" Sgl Bevel BoltOn ser. edge f/60" Bucket $510
• 346CEB688 3/4"x6"x68" Double Bevel Bolt On Edge f/66" Bucket $451
• 348CEB688 3/4"x8"x68" Double Bevel Bolt On Edge f/66" Bucket $594
• 346CESB688 3/4x8x68" Sgl Bevel BoltOn ser. edge f/66" Bucket $561
• 346CEB748 3/4"x6"x74" Double Bevel Bolt On Edge f/72" Bucket $492
• 348CEB748 3/4"x8"x74" Double Bevel Bolt On Edge f/72" Bucket $648
• 346CESB748 3/4x8x74" Sgl Bevel BoltOn ser. edge f/72" Bucket $612
• 346CEB748 3/4"x6"x74" Double Bevel Bolt On Edge f/72" Bucket $492
• 348CEB748 3/4"x8"x74" Double Bevel Bolt On Edge f/72" Bucket $648
• 346CESB748 3/4x8x74" Sgl Bevel BoltOn ser. edge f/72" Bucket $612
• 346CEB808 3/4"x6 80" Double Bevel Bolt On Edge f/78" Bucket $533
• 348CEB808 3/4"x8"x80" Double Bevel Bolt On Edge f/78" Bucket $702
• 346CESB808 3/4x8x80" Sgl Bevel BoltOn ser. edge f/78" Bucket $663

Mount

• AO600 Euro / Global Style Loader Mount - Black ($0)
• AO600/G Euro / Global Style Loader Mount - Green ($0)
• BO500 Universal Skidsteer Style Loader Mount ($0)
• JD440/540 JD 400-500 QA Loader Mount-ONLY Skidsteer Buckets ($0)
• JD640 John Deere 600-700 Style Quick Attach Loader Mount ($224)
• JDH480 John Deere H480 Quick Attach Loader Mount ($224)
• AL595Q Allied 495, 595 & 695 Quick Attach Loader Mount ($112)
• BHM346Q Bush Hog M346,M446,M546,M646 QA Loader Mount ($224)
• BH2426Q Bush Hog 2426,2446,2846 QA Loader Mount ($224)
• FNAO600 MF 1040 - 1080 Hook Style Quick Attach Loader Mount ($0)
• JD146 John Deere 146, 148, 158 Direct Pin On Loader Mount ($112)
• JD245 John Deere 240, 245, 260, 265 QA Loader Mount ($0)
• KU1251Q Kubota 1251, 1301, 1601 Quick Attach Loader Mount ($112)
• WE20Q Westendorf Quick Attach Loader Mount 39" Spacing ($112)
• WE40Q Westendorf Quick Attach Loader Mount 45-1/2" Spacing ($112)

• HK90 Hose Kit 90" with flat face couplers ($311)
• HK9090 - 90" Hose Kit w/90" flat face couplers ($311)
•  Optional Spring Hose Mount Kit ($141)
