Product Description

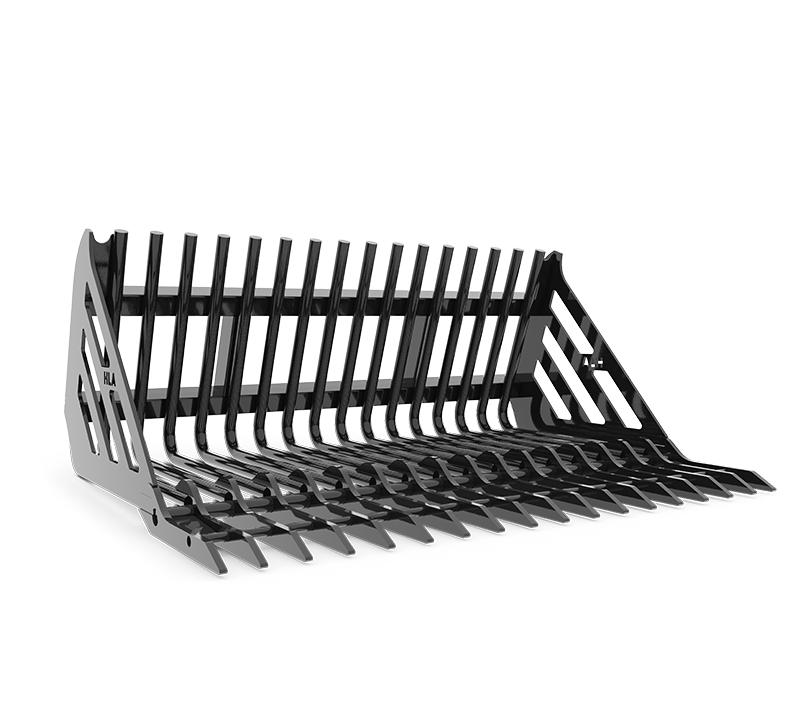

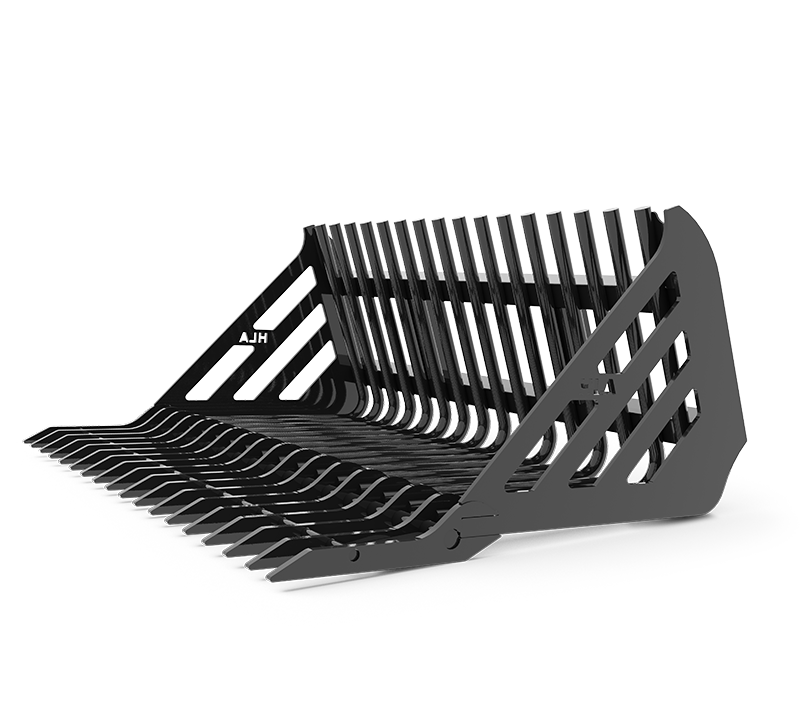

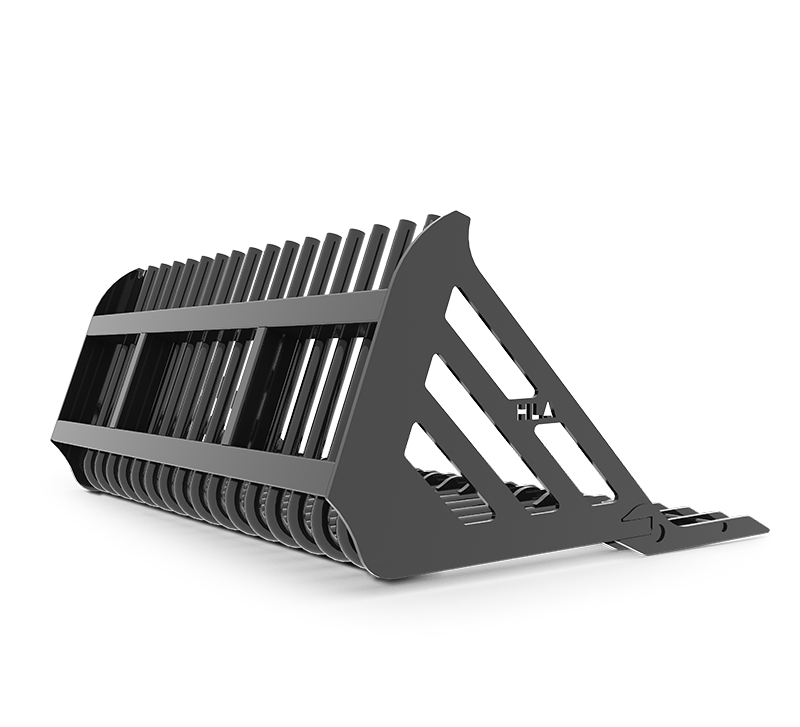

HLA Attachments Stone Fork Retainer Type Less Mount | Model 98", 103", 108" HD | For Skid Steer
DESCRIPTION
Transform your loader or skid steer into a rugged rock‑handling machine with the HLA Heavy Duty Stone Fork – Retainer‑Style Tine series. Crafted from high‑tensile steel and rated for up to 9,500 lb capacity, these forks are built to tackle rock piles, construction debris, landscaping rubble, and more.
Each model from 77″ to 108″ widths features 1¾″ diameter shafts with 2¾″ retainer spacing and ¾″ thick 400 Brinell high‑tensile tine points, engineered for rock‑sorting performance and soil retention. With a substantial 31″ height and 44″ depth, these stone forks provide excellent penetration and holding power while letting fine material fall away.
Compatible across major quick‑attach systems including Euro/Global, John Deere, Kubota, Westendorf, and skid‑steer mounts (sold separately) this series offers flexibility for any loader fleet. Whether you're clearing rockfields, prepping a site, or cleaning demolition waste, the HLA Stone Fork turns rugged terrain into manageable loads with confidence.
Key Features
- High‑Capacity Performance Handles up to 9,500 lbs, ideal for heavy rocks, root balls, or dense debris.
- Retainer‑Style Tine Design 1¾″ shafts with 2¾″ spacing and ¾″ thick 400 Brinell steel for superior strength and wear resistance.
- Optimized Load Geometry 31″ height and 44″ depth give you deep, secure penetration and excellent retention.
- Wide Model Range Available in 77″, 85″, 90″, 94″, 98″, 103″, and 108″ widths to match loader capability and job scale.
- Mount Options for Versatility Choose your preferred mount: Euro, JRB, JD, Kubota, Westendorf, or universal skid‑steer.
- Efficient Debris Handling Retainer tine spacing allows soil and small particulates to fall through while retaining heavy materials.
- Robust Construction Built for harsh work environments: construction, quarry clean‑up, landscaping, and agriculture.
- Quick Material Cycles Fast pickup and release improves jobsite productivity and reduces operator fatigue.
- Professional Grade Durability Engineered for rugged load handling across multiple applications.
- Customizable Attachment Fit Tailor to your loader with compatible mounting system (sold separately).
Detailed Specifications
| Specification | SFRH77 (77") | SFRH85 (85") | SFRH90 (90") | SFRH94 (94") |
|---|---|---|---|---|
| Width | 77" | 85" | 90" | 94" |
| Shaft Diameter | 1¾″ | 1¾″ | 1¾″ | 1¾″ |
| Tine Spacing | 2¾″ | 2¾″ | 2¾″ | 2¾″ |
| Point Material | ¾″ thick, 400 Brinell | ¾″ thick, 400 Brinell | ¾″ thick, 400 Brinell | ¾″ thick, 400 Brinell |
| Bucket Height | 31″ | 31″ | 31″ | 31″ |
| Bucket Depth | 44″ | 44″ | 44″ | 44″ |
| Rated Capacity | 9,500 lb | 9,500 lb | 9,500 lb | 9,500 lb |
| Approx. Weight | ~1,225 lb | ~1,345 lb | ~1,405 lb | ~1,465 lb |
| Mount Required | Yes | Yes | Yes | Yes |
| Ideal Material Types | Rock, debris, rubble | Rock, debris, rubble | Rock, debris, rubble | Rock, debris, rubble |
| Specification | SFRH98 (98") | SFRH103 (103") | SFRH108 (108") |
|---|---|---|---|
| Width | 98" | 103" | 108" |
| Shaft Diameter | 1¾″ | 1¾″ | 1¾″ |
| Tine Spacing | 2¾″ | 2¾″ | 2¾″ |
| Point Material | ¾″ thick, 400 Brinell | ¾″ thick, 400 Brinell | ¾″ thick, 400 Brinell |
| Bucket Height | 31″ | 31″ | 31″ |
| Bucket Depth | 44″ | 44″ | 44″ |
| Rated Capacity | 9,500 lb | 9,500 lb | 9,500 lb |
| Approx. Weight | ~1,525 lb | ~1,585 lb | ~1,650 lb |
| Mount Required | Yes | Yes | Yes |
| Ideal Material Types | Rock, debris, rubble | Rock, debris, rubble | Rock, debris, rubble |
