HORST WAGONS Contour 4‑Wheel Steer Draper Header Carriers | Model CHCFE Series | Top Rail Lengths 31′–46′ | Horsepower ~80 HP Recommended | For Tractor

Product Description

HORST WAGONS Contour 4‑Wheel Steer Draper Header Carriers | Model CHCFE Series | Top Rail Lengths 31′–46′ | Horsepower ~80 HP Recommended | For Tractor

DESCRIPTION

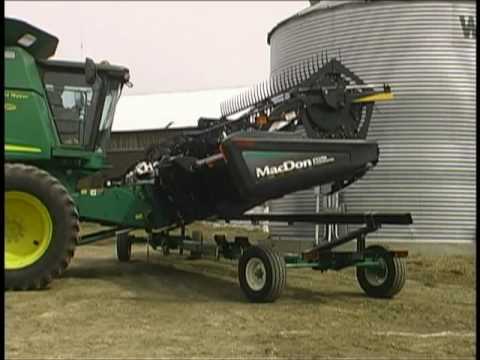

The Horst Wagons CHCFE Series (Models 30, 36, and 45) delivers precision handling, secure header transport, and smooth towing for a variety of draper head sizes. Designed with Contour 4‑wheel steering, these carriers track true behind the towing vehicle, even at road speeds, while maintaining tight turning ability for easy positioning in fields or yards. Each model features tapered roller bearings on king pins for absolute no‑sway trailing, plus rear‑axle 2‑wheel electric brakes for confident stopping. The two tool‑free configurable universal pads and pivoting head supports adapt quickly to different header designs, while two heavy‑duty ratchet straps secure the load. The length‑adjustable auto‑lock hitch with 2‑5/16″ ball coupling, double spring tongue balancer, and integrated safety chain ensure quick connection and safe towing. Standard lighting with red‑lens kit makes them road‑legal, and the F‑Range highway‑rated tires (235/85 R16 on heavy‑duty rims) ensure a smooth, stable ride. Built on heavy steel frames and rated for a 10,400‑lb maximum gross capacity, the CHCFE Series is ideal for transporting headers up to 30′ (CHCFE30), 35′ (CHCFE36), and 45′ (CHCFE45) in size, making them a versatile solution for farms and custom harvesting crews.

Key Features

• Contour 4‑Wheel Steering: Provides smooth, precise tracking and tight turning for effortless maneuvering in field or on road.
• Models & Sizes: CHCFE30 (31′ rail, for headers up to 30′), CHCFE36 (36′ rail, for headers up to 35′), CHCFE45 (46′ rail, for headers up to 45′).
• No‑Sway Towing: Tapered roller kingpin bearings keep the trailer stable and aligned, even at transport speeds.
• Rear Electric Brakes: Two‑wheel braking on the rear axle for safer stops and better control with heavy loads.
• Universal Mount Pads: Two large, tool‑free adjustable pads with pivoting head supports securely hold various header designs.
• Heavy‑Duty Ratchet Straps: Includes two high‑strength straps to firmly secure headers during transport.
• Adjustable Auto‑Lock Hitch: 2‑5/16″ ball hitch with length adjustment for quick, secure attachment to towing vehicles.
• Safety Chain & Tongue Balancer: Standard safety chain and double spring tongue balancer for added towing stability.
• Highway‑Ready Lighting: DOT‑compliant red‑lens light kit for safe and legal road transport.
• High‑Strength Tires & Rims: 235/85 R16 F‑Range highway trailer tires mounted on rugged 16 × 8 × 6 rims.
• Heavy‑Duty Axles & Hubs: Built with high‑speed 8‑bolt hubs and robust axle construction for long service life.
• Generous Load Capacity: Rated for a maximum gross weight of 10,400 lb. across all models.
• Multiple Size Options: Available in 31′, 36′, and 46′ rail lengths to suit header sizes up to 30′, 35′, and 45′.
• Tractor Power Recommendation: Tow safely and confidently with a tractor rated at approximately 80 HP or higher.


Detailed Specifications

Manuals & Documents

• CHCF OPS MANUAL
• PARTS MANUAL CHCF30
• ASSEMBLY INSTRUCTIONS CHCF
• HORST HEADER WAGONS BROCHURE
• STANDARD FEATURES
• ASSEMBLY CHARGES
• HORST WAGONS CATALOGUE
