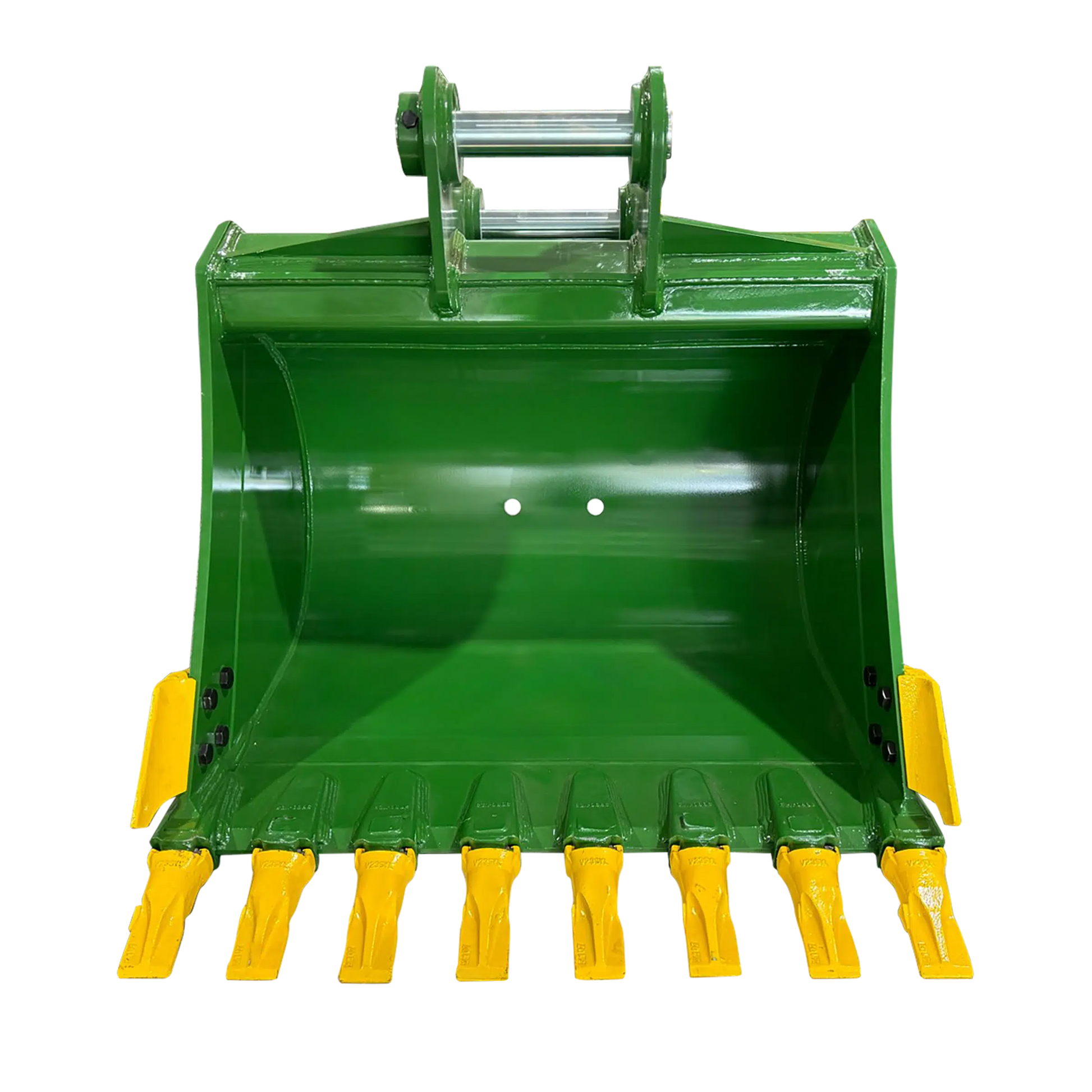

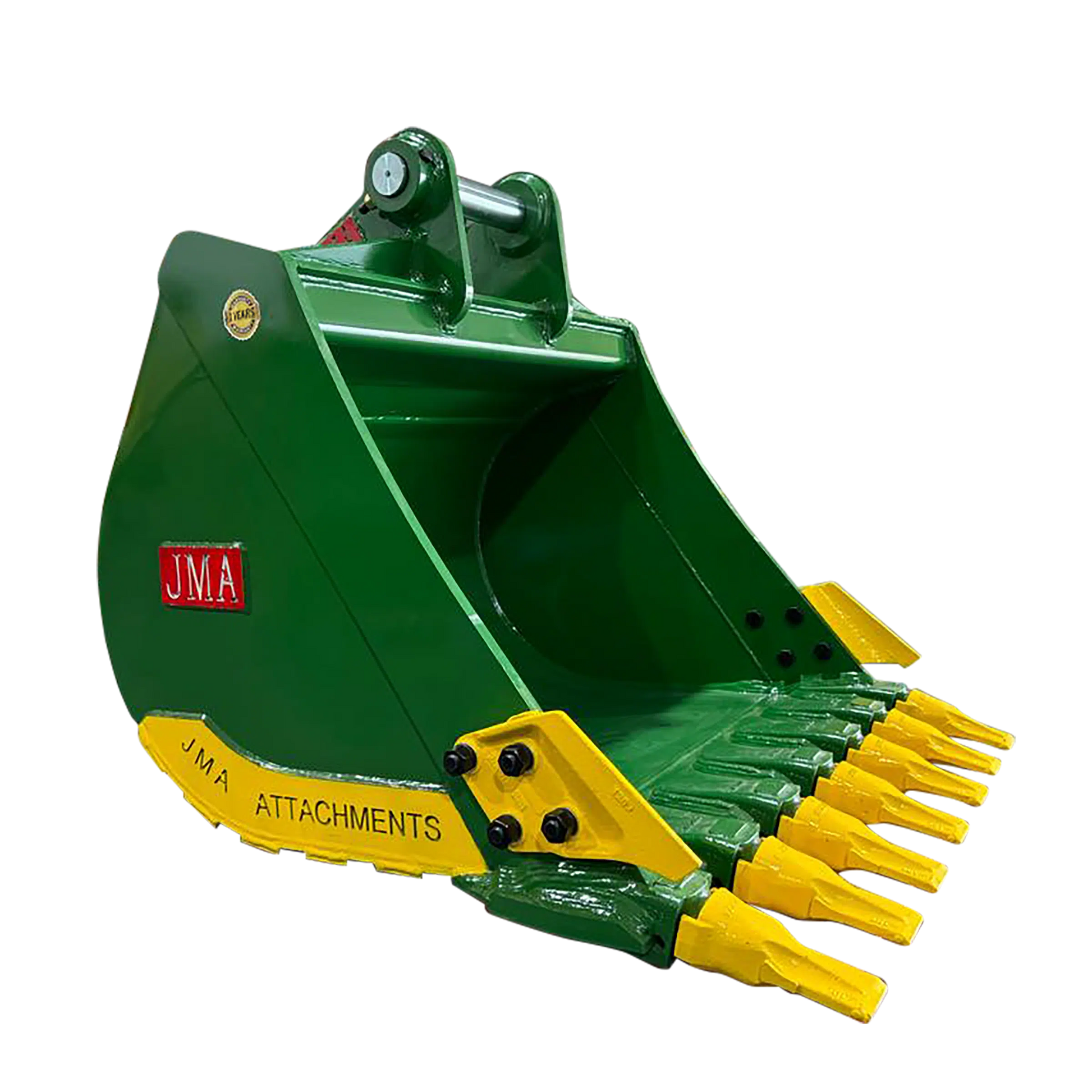

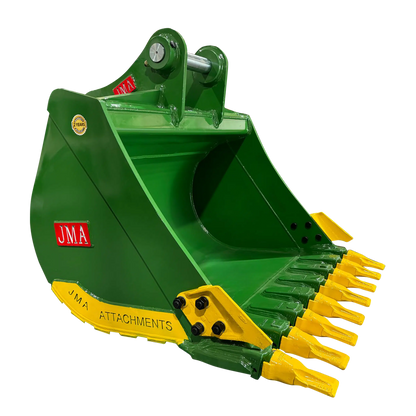

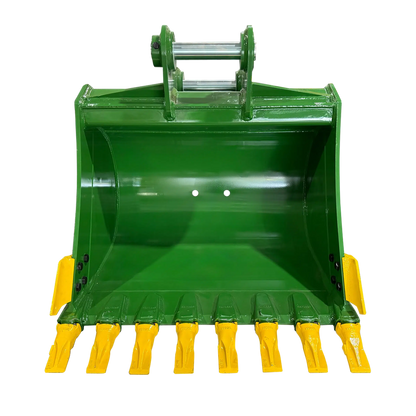

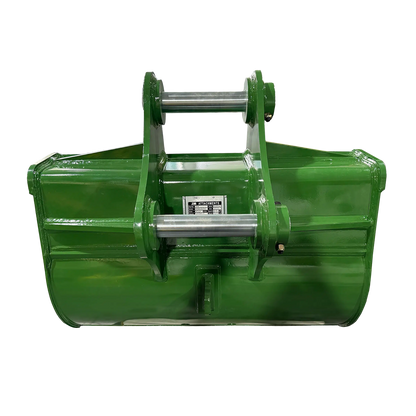

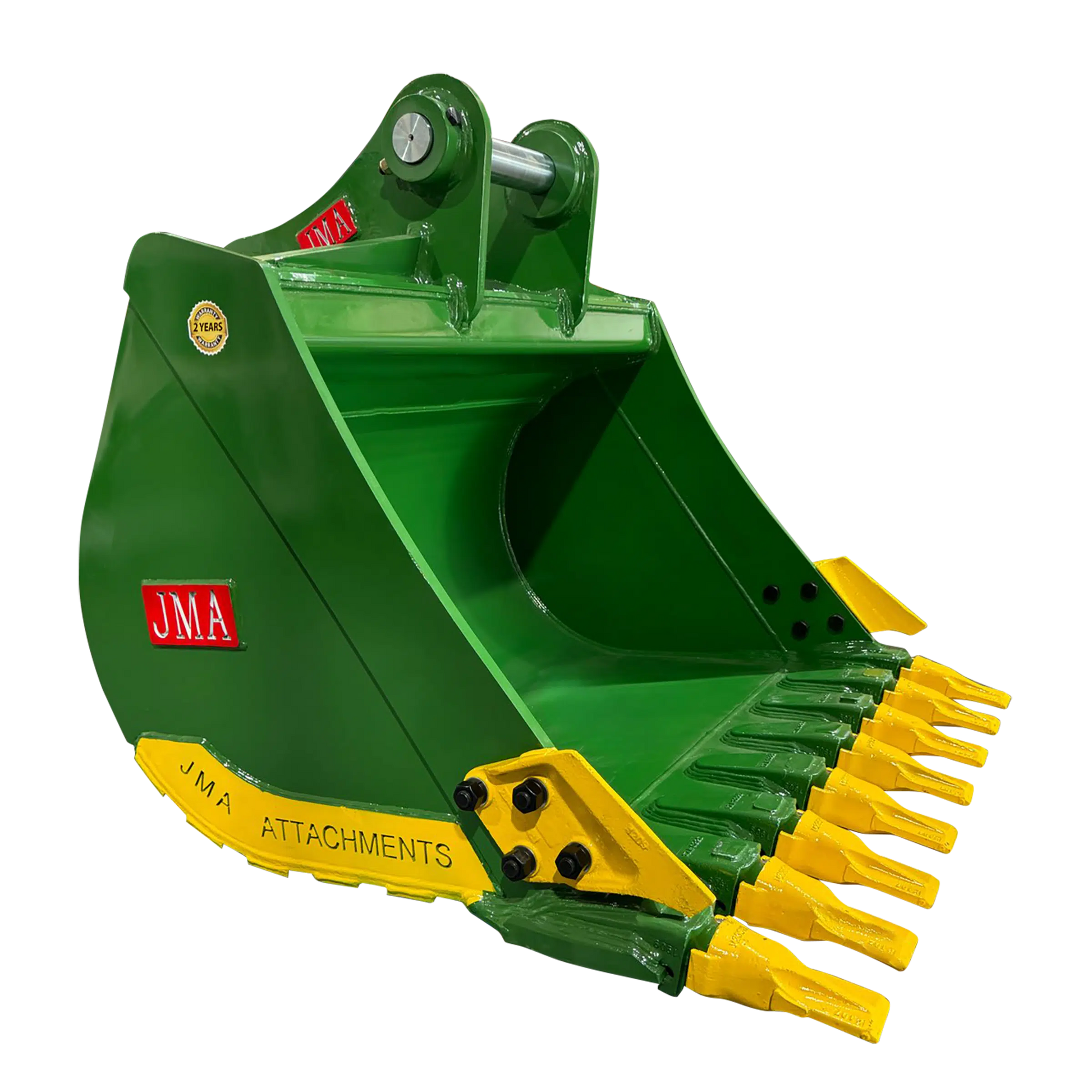

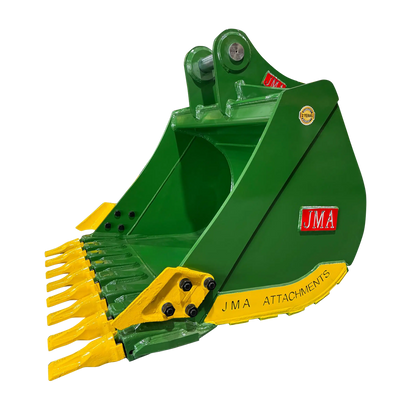

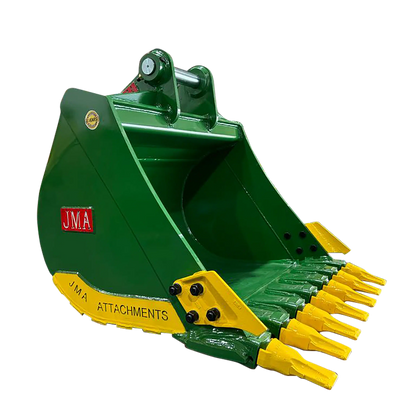

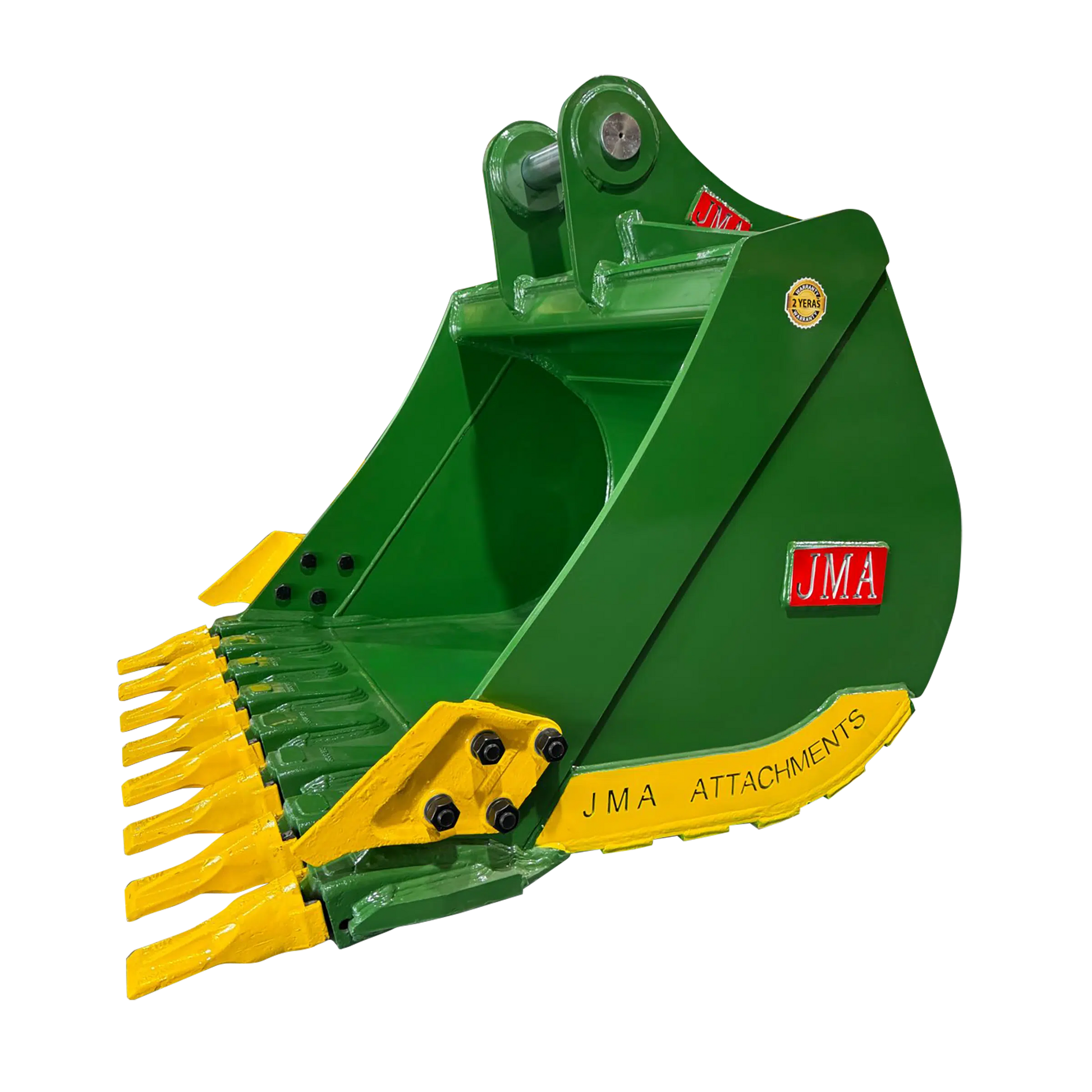

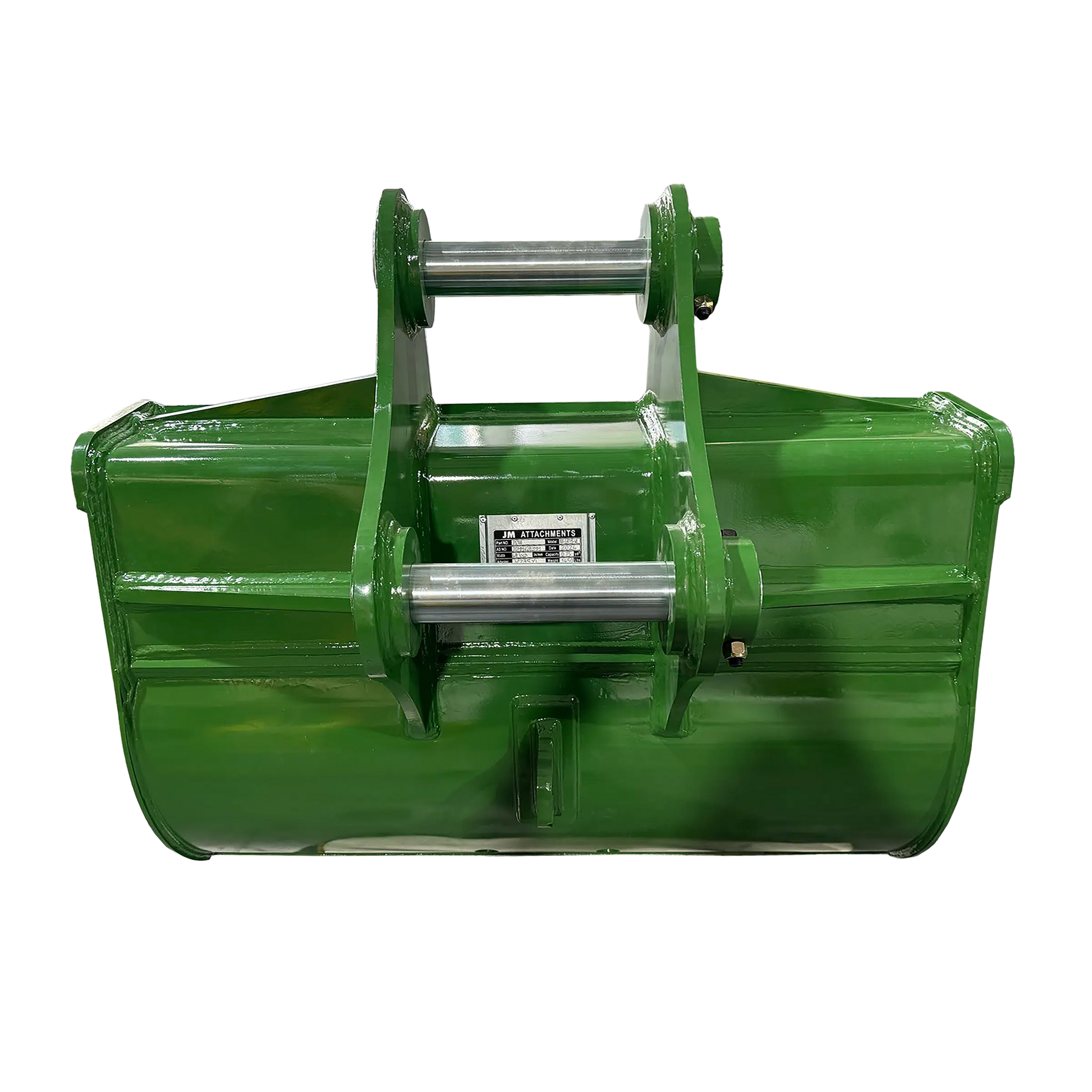

JMA Attachments Heavy Duty Digging Bucket | Bucket Width 18", 24", 30", 36", 42" & 48″ Inches | Pin Size 65mm | For 10 – 15 Tons Excavators

JMA Attachments Heavy Duty Digging Bucket | Bucket Width 18", 24", 30", 36", 42" & 48″ Inches | Pin Size 65mm | For 10 – 15 Tons Excavators

$3,131.89
$3,131.89
Sale Sold out
Customizable
Fast
24/7 Support
  • Superior Capacity: Capacities ranging from 0.38 m³ to 1.20 m³, allowing for efficient handling of substantial material volumes, reducing project timelines.
  • Unmatched Durability: Constructed from high-grade AR400 Steel, offering excellent resistance to wear and impact, ensuring an extended service life.
  • Cutting-Edge Performance: Equipped with Rock Chisel or Esco Dirt Bucket Teeth for superior ground penetration and material handling capabilities.
View full details

Product Description

JMA Attachments Heavy Duty Digging Bucket | Bucket Width 18", 24", 30", 36", 42" & 48″ Inches | Pin Size 65mm | For 10 – 15 Tons Excavators

Description

Introducing our robust series of heavy-duty digging buckets, designed to fit 10 - 15 Ton Excavators. These buckets are engineered for unparalleled performance and durability, making them the ideal choice for a range of excavation tasks. Crafted from premium AR400 steel and equipped with either Rock Chisel or Esco Dirt Bucket Teeth, these buckets ensure efficient material handling and ground penetration, boosting the productivity of your excavation projects.

Key Features

  • Superior Capacity: Capacities ranging from 0.38 m³ to 1.20 m³, allowing for efficient handling of substantial material volumes, reducing project timelines.
  • Unmatched Durability: Constructed from high-grade AR400 Steel, offering excellent resistance to wear and impact, ensuring an extended service life.
  • Cutting-Edge Performance: Equipped with Rock Chisel or Esco Dirt Bucket Teeth for superior ground penetration and material handling capabilities.
  • Versatility Amplified: Includes an AMH 20 Ton Weld-on Bucket Hook, enhancing your machine's capabilities across diverse projects.
  • Engineered for Efficiency: Featuring 3x Reinforced Side Plates, the design optimizes material flow and reduces cycle times, maintaining productivity in various soil conditions.

Detailed Specifications

Attribute 18" Bucket 24" Bucket 30" Bucket 36" Bucket 42" Bucket 48" Bucket
Carrier Weight Class (tn) 10 - 15 Tons 10 - 15 Tons 10 - 15 Tons 10 - 15 Tons 10 - 15 Tons 10 - 15 Tons
Bucket Width (mm) 457.2 mm 609.6 mm 762 mm 914.4 mm 1,066.8 mm 1,219.2 mm
Bucket Width (in) 18" 24" 30" 36" 42" 48"
Inner Bucket Height (mm) 950 mm 950 mm 950 mm 950 mm 950 mm 950 mm
Bucket Side Wall Thickness (mm) 20 mm 20 mm 20 mm 20 mm 20 mm 20 mm
Bucket Depth (mm) 630 mm 630 mm 630 mm 630 mm 630 mm 630 mm
Capacity (yd³) 0.50 yd³ 1.57 yd³ 0.78 yd³ 0.85 yd³ 0.98 yd³ 1.02 yd³
Capacity (m³) 0.38 m³ 1.20 m³ 0.60 m³ 0.65 m³ 0.75 m³ 0.78 m³
Bucket Tooth Series J250 J250 J250 V23 V23 V23
Tooth Style Rock Chisel Bucket Tooth Rock Chisel Bucket Tooth Rock Chisel Bucket Tooth Esco Dirt Bucket Tooth Esco Dirt Bucket Tooth Esco Dirt Bucket Tooth
Tooth (ct.) 3 Teeth 3 Teeth 4 Teeth 6 Teeth 7 Teeth 8 Teeth
Tooth Part Number 1U3252RC 1U3252RC 1U3252RC V23SYL V23SYL V23SYL
Tooth Pin Part Number 9J2258 9J2258 9J2258 V23PN V23PN V23PN
Tooth Retainer Part Number 8E6259 8E6259 8E6259 - - -
Material Type AR400 Steel AR400 Steel AR400 Steel AR400 Steel AR400 Steel AR400 Steel
Finish Powder-Coated Green Powder-Coated Green Powder-Coated Green Powder-Coated Green Powder-Coated Green Powder-Coated Green
Add-on included AMH 20 Ton Weld-on Bucket Hook AMH 20 Ton Weld-on Bucket Hook AMH 20 Ton Weld-on Bucket Hook AMH 20 Ton Weld-on Bucket Hook AMH 20 Ton Weld-on Bucket Hook AMH 20 Ton Weld-on Bucket Hook
Left Side Cutter Part Number PC100L PC100L PC100L PC100L PC100L PC100L
Right Side Cutter Part Number PC100R PC100R PC100R PC100R PC100R PC100R
Front Pin Length (mm) 449 mm 449 mm 449 mm 449 mm 449 mm 449 mm
Rear Pin Length (mm) 449 mm 449 mm 449 mm 449 mm 449 mm 449 mm
Front Pin Diameter (mm) 65 mm 65 mm 65 mm 65 mm 65 mm 65 mm
Rear Pin Diameter (mm) 65 mm 65 mm 65 mm 65 mm 65 mm 65 mm
Front Ear to Ear Distance (mm) 260 mm 260 mm 260 mm 260 mm 260 mm 260 mm
Rear Ear to Ear Distance (mm) 260 mm 260 mm 260 mm 260 mm 260 mm 260 mm
Center to Center Distance (mm) 362 mm 362 mm 362 mm 362 mm 362 mm 362 mm
Carrier Weight Class (lbs) 20,000 - 30,000 lbs 20,000 - 30,000 lbs 20,000 - 30,000 lbs 20,000 - 30,000 lbs 20,000 - 30,000 lbs 20,000 - 30,000 lbs
Drain Holes (ct) 2 2 2 2 2 2
Features 3x Reinforced Side Plates 3x Reinforced Side Plates 3x Reinforced Side Plates 3x Reinforced Side Plates 3x Reinforced Side Plates 3x Reinforced Side Plates
Product Weight (lbs) 954.60 lb 1,108.92 lb 1,197.11 lb 1,199.31 lb 1,329.39 lb 1,450.64 lb
Product Weight (kg) 433 kg 503 kg 543 kg 544 kg 603 kg 658 kg

Fits To


18" Bucket

Brand

Model
Case CX145D MSR, CX130B LC, CX130C LR, CX130D LC, CX130 LC, CX135MS3, CX135MSR, CX145CSR, CX145DSR, CX135CR, CX135SR, CX130B, CX130C, CX130D, CX130E, CX130K, CX135C, CX140E, CX145C, CX130, CX135, CX90
Caterpillar 314CL LCR, 312B LGP, 312D2 GC, 313D2 GC, 314C LCR, 314D LCR, 314E LCR, 314G LCR, 311DLRR, 311F RR, 311FLRR, 313B CR, 313C CR, 313D CR, 313D2 L, 313FLGC, 314C CR, 314D CR, 314E CR, 314E SR, 314F CR, 311 V2, 311C U, 311DRR, 312 V2, 312BLN, 312CLR, 312D2L, 312F L, 312FGC, 313BSR, 313CSR, 313DSR, 313FGC, 311BL, 311FL, 312BL, 312CL, 312D2, 312DL, 312EL, 312GC, 313D2, 313DL, 313FL, 313GC, 314DL, 314EL, 315FL, E120B, 311B, 311C, 311D, 312B, 312C, 312D, 312E, 312F, 312L, 313B, 313C, 313D, 313E, 313F, 314C, 311, 312, 313, 314
Daewoo S130W-111, S130 LC V, S155 LC V, S140LC-V, S130-2
Develon DX140LCR-7K, DX140LC-7K, DX140LCR-7, DX165WR-7, DX100W-7, DX140W-5, DX140W-7, DX160W-7
Doosan DX160 LC-5 HT, DX140 LC-9C, DX140 LCR-3, DX140 LCR-5, DX140 LCR-7, DX150 LC-9C, DH150 LC-7, DX140 LC-3, DX140 LC-5, DX140 LC-7, DX160 LC-3, DX140LCR-7, DX130-9CN, DX140 LCA, DX140 LCR, DX140WACE, DX150W-9C, DX165WR-7, S140WV RW, DX160 LC, DH140W-7, DH150W-7, DX100W-7, DX140W-3, DX140W-5, DX140W-7, DX160W-3, DX160W-5, DX160W-7, DX165W-5, DX140LC, DX140WA, DX140WE, S140W V, DX140W, DX160W, S130WV, S160WV, DX130, DX140, DX120, DX140LC-7K
Hitachi H15 Super Long, ZX200 H15 Supe, ZX130 LCN-5B, ZX135USOS-5B, ZX130 LC-5N, ZX130 LCN-3, ZX130 LCN-5, ZX130 LCN-6, ZX130 LCN-7, ZX135USBL-3, ZX135USBL-5, ZX135USBL-6, ZX135USBL-7, ZX135USOS-3, ZX135USOS-6, ZX135USTN-Z, EX100WD-3C, ZX120USR-5, ZX130 LC-3, ZX135US LC, ZX135US-5B, ZX135US-5N, ZX135US-6N, ZX135USB-3, ZX135USB-5, ZX135USK-3, ZX135USK-6, ZX135USR-5, EX100WD-1, EX100WD-2, EX100WD-3, EX125WD-5, EX130UR-1, EX130UR-5, EX135UR-1, EX135UR-5, ZX130 LCM, ZX130 LCN, ZX130K HG, ZX130K-5B, ZX135US-1, ZX135US-2, ZX135US-3, ZX135US-5, ZX135US-6, ZX135US-7, ZX135US-E, ZX110M-3, ZX120 IV, ZX120 LC, ZX120-5B, ZX130 LC, ZX130-5A, ZX130-5B, ZX130-5G, ZX130-5N, ZX130-6N, ZX130K-3, ZX130K-6, ZX135USK, ZX135USM, ZX140W-3, EX100-1, EX100-2, EX100-3, EX100-5, EX100WD, EX120-1, EX120-2, EX120-3, EX120-5, EX135UR, ZX110-2, ZX110-3, ZX110BL, ZX120-2, ZX120-3, ZX120-6, ZX120BL, ZX125US, ZX130-3, ZX130-5, ZX130-6, ZX130-7, ZX130BL, ZX130MT, ZX135UR, ZX135US, EX130K, EX130W, ZX110E, ZX110M, ZX120B, ZX120E, ZX130H, ZX130K, ZX130L, ZX135U, ZX140H, EX100, EX120, EX130, EX135, UH053, UH063, ZX110, ZX120, ZX130, ZX135, EX-5, ZX130-7H, ZX135US-7H
Hyundai R125LCR-9A, HX145LCR, R130LC-3, R140LC-7, R140LC-9, R145LC-9, R130W-3, R140W-7, HX140L, R110-7, R130LC, HX125, HX140, HX145, R120W, 130W, HX130A LCR, HX140A L, HX145A LCR
JCB 131LLC, 150X-1, JS130C, JS145W, JS130, JS131, JS135, JS145, JS160, JZ140, JZ141, 131X, 140X, 145X, 150X, 814S
John Deere 120C LC, 120 LC, JD120, 120C, 120D, 130G, 135C, 135D, 135G, 490D, 110, 120, 135 P-Tier
Kato HD513 MR-3, HD512 E, HD512-3, HD512, 450, 512, 572
Kobelco SK135SR 1E, SK115SRDZ, SK125SR-2, SK135SR-2, SK135SR-3, SK140LC-8, SK120-2, SK120-5, SK130-8, SK130LC, SK130UR, SK135SR, SK120v, K905, SK140SRLC, SK130LC-11
Liebherr R914
Linkbelt 135 X3 SPIN, 130 X4LC, 130 LX, 130 X2, 130 X3, 130 X4, 135 LX, 145 X3, 145 X4
Liugong 915D, 915E
Sany SY135 IV, SY135-3A, SY130-1, SY135-2, SY155U, SY155W, SY115, SY125, SY135, SY155, SY125C PRO, SY140C-9S, SY135C-9, SY155H-9, SY115C, SY135C, SY155C, SY155H
Sumitomo SH120- 2, SH120-A3, SH125X-3, SH145X-6, SH120-1, SH120-3, SH130-5, SH135X, SH120
Takeuchi TB2150R, TB1140, TB2150
Terex 145
Volvo MX135WS/LS, EC135B LC, EC140 LCM, EC140B LC, EC140E LM, SE130LC-3, EC140 LC, EC140CLM, EC140DLM, ECR145CL, ECR145EL, SE130W-3, EC140-7, EC140CL, EC140DL, EC140EL, ECR145C, EC120D, EC140B, EC140C, EC140D, EC140E, EC145E, ECR145, EC120, EC130, EC140, EW130, ECR145E, ECR145SE
XCMG XE155UCR, XE155U, XR155U

24" Bucket

Brand

Model
Case CX145D MSR, CX130B LC, CX130C LR, CX130D LC, CX130 LC, CX135MS3, CX135MSR, CX145CSR, CX145DSR, CX135CR, CX135SR, CX130B, CX130C, CX130D, CX130E, CX130K, CX135C, CX140E, CX145C, CX130, CX135, CX90
Caterpillar 314CL LCR, 312B LGP, 312D2 GC, 313D2 GC, 314C LCR, 314D LCR, 314E LCR, 314G LCR, 311DLRR, 311F RR, 311FLRR, 313B CR, 313C CR, 313D CR, 313D2 L, 313FLGC, 314C CR, 314D CR, 314E CR, 314E SR, 314F CR, 311 V2, 311C U, 311DRR, 312 V2, 312BLN, 312CLR, 312D2L, 312F L, 312FGC, 313BSR, 313CSR, 313DSR, 313FGC, 311BL, 311FL, 312BL, 312CL, 312D2, 312DL, 312EL, 312GC, 313D2, 313DL, 313FL, 313GC, 314DL, 314EL, 315FL, E120B, 311B, 311C, 311D, 312B, 312C, 312D, 312E, 312F, 312L, 313B, 313C, 313D, 313E, 313F, 314C, 311, 312, 313, 314
Daewoo S130W-111, S130 LC V, S155 LC V, S140LC-V, S130-2
Develon DX140LCR-7K, DX140LC-7K, DX140LCR-7, DX165WR-7, DX100W-7, DX140W-5, DX140W-7, DX160W-7
Doosan DX160 LC-5 HT, DX140 LC-9C, DX140 LCR-3, DX140 LCR-5, DX140 LCR-7, DX150 LC-9C, DH150 LC-7, DX140 LC-3, DX140 LC-5, DX140 LC-7, DX160 LC-3, DX140LCR-7, DX130-9CN, DX140 LCA, DX140 LCR, DX140WACE, DX150W-9C, DX165WR-7, S140WV RW, DX160 LC, DH140W-7, DH150W-7, DX100W-7, DX140W-3, DX140W-5, DX140W-7, DX160W-3, DX160W-5, DX160W-7, DX165W-5, DX140LC, DX140WA, DX140WE, S140W V, DX140W, DX160W, S130WV, S160WV, DX130, DX140, DX120, DX140LC-7K
Hitachi H15 Super Long, ZX200 H15 Supe, ZX130 LCN-5B, ZX135USOS-5B, ZX130 LC-5N, ZX130 LCN-3, ZX130 LCN-5, ZX130 LCN-6, ZX130 LCN-7, ZX135USBL-3, ZX135USBL-5, ZX135USBL-6, ZX135USBL-7, ZX135USOS-3, ZX135USOS-6, ZX135USTN-Z, EX100WD-3C, ZX120USR-5, ZX130 LC-3, ZX135US LC, ZX135US-5B, ZX135US-5N, ZX135US-6N, ZX135USB-3, ZX135USB-5, ZX135USK-3, ZX135USK-6, ZX135USR-5, EX100WD-1, EX100WD-2, EX100WD-3, EX125WD-5, EX130UR-1, EX130UR-5, EX135UR-1, EX135UR-5, ZX130 LCM, ZX130 LCN, ZX130K HG, ZX130K-5B, ZX135US-1, ZX135US-2, ZX135US-3, ZX135US-5, ZX135US-6, ZX135US-7, ZX135US-E, ZX110M-3, ZX120 IV, ZX120 LC, ZX120-5B, ZX130 LC, ZX130-5A, ZX130-5B, ZX130-5G, ZX130-5N, ZX130-6N, ZX130K-3, ZX130K-6, ZX135USK, ZX135USM, ZX140W-3, EX100-1, EX100-2, EX100-3, EX100-5, EX100WD, EX120-1, EX120-2, EX120-3, EX120-5, EX135UR, ZX110-2, ZX110-3, ZX110BL, ZX120-2, ZX120-3, ZX120-6, ZX120BL, ZX125US, ZX130-3, ZX130-5, ZX130-6, ZX130-7, ZX130BL, ZX130MT, ZX135UR, ZX135US, EX130K, EX130W, ZX110E, ZX110M, ZX120B, ZX120E, ZX130H, ZX130K, ZX130L, ZX135U, ZX140H, EX100, EX120, EX130, EX135, UH053, UH063, ZX110, ZX120, ZX130, ZX135, EX-5, ZX130-7H, ZX135US-7H
Hyundai R125LCR-9A, HX145LCR, R130LC-3, R140LC-7, R140LC-9, R145LC-9, R130W-3, R140W-7, HX140L, R110-7, R130LC, HX125, HX140, HX145, R120W, 130W, HX130A LCR, HX140A L, HX145A LCR
JCB 131LLC, 150X-1, JS130C, JS145W, JS130, JS131, JS135, JS145, JS160, JZ140, JZ141, 131X, 140X, 145X, 150X, 814S
John Deere 120C LC, 120 LC, JD120, 120C, 120D, 130G, 135C, 135D, 135G, 490D, 110, 120, 135 P-Tier
Kato HD513 MR-3, HD512 E, HD512-3, HD512, 450, 512, 572
Kobelco SK135SR 1E, SK115SRDZ, SK125SR-2, SK135SR-2, SK135SR-3, SK140LC-8, SK120-2, SK120-5, SK130-8, SK130LC, SK130UR, SK135SR, SK120v, K905, SK140SRLC, SK130LC-11
Liebherr R914
Linkbelt 135 X3 SPIN, 130 X4LC, 130 LX, 130 X2, 130 X3, 130 X4, 135 LX, 145 X3, 145 X4
Liugong 915D, 915E
Sany SY135 IV, SY135-3A, SY130-1, SY135-2, SY155U, SY155W, SY115, SY125, SY135, SY155, SY125C PRO, SY140C-9S, SY135C-9, SY155H-9, SY115C, SY135C, SY155C, SY155H
Sumitomo SH120- 2, SH120-A3, SH125X-3, SH145X-6, SH120-1, SH120-3, SH130-5, SH135X, SH120
Takeuchi TB2150R, TB1140, TB2150
Terex 145
Volvo MX135WS/LS, EC135B LC, EC140 LCM, EC140B LC, EC140E LM, SE130LC-3, EC140 LC, EC140CLM, EC140DLM, ECR145CL, ECR145EL, SE130W-3, EC140-7, EC140CL, EC140DL, EC140EL, ECR145C, EC120D, EC140B, EC140C, EC140D, EC140E, EC145E, ECR145, EC120, EC130, EC140, EW130, ECR145E, ECR145SE
XCMG XE155UCR, XE155U, XR155U

30" Bucket

Brand

Model
Case CX145D MSR, CX130B LC, CX130C LR, CX130D LC, CX130 LC, CX135MS3, CX135MSR, CX145CSR, CX145DSR, CX135CR, CX135SR, CX130B, CX130C, CX130D, CX130E, CX130K, CX135C, CX140E, CX145C, CX130, CX135, CX90
Caterpillar 314CL LCR, 312B LGP, 312D2 GC, 313D2 GC, 314C LCR, 314D LCR, 314E LCR, 314G LCR, 311DLRR, 311F RR, 311FLRR, 313B CR, 313C CR, 313D CR, 313D2 L, 313FLGC, 314C CR, 314D CR, 314E CR, 314E SR, 314F CR, 311 V2, 311C U, 311DRR, 312 V2, 312BLN, 312CLR, 312D2L, 312F L, 312FGC, 313BSR, 313CSR, 313DSR, 313FGC, 311BL, 311FL, 312BL, 312CL, 312D2, 312DL, 312EL, 312GC, 313D2, 313DL, 313FL, 313GC, 314DL, 314EL, 315FL, E120B, 311B, 311C, 311D, 312B, 312C, 312D, 312E, 312F, 312L, 313B, 313C, 313D, 313E, 313F, 314C, 311, 312, 313, 314
Daewoo S130W-111, S130 LC V, S155 LC V, S140LC-V, S130-2
Develon DX140LCR-7K, DX140LC-7K, DX140LCR-7, DX165WR-7, DX100W-7, DX140W-5, DX140W-7, DX160W-7
Doosan DX160 LC-5 HT, DX140 LC-9C, DX140 LCR-3, DX140 LCR-5, DX140 LCR-7, DX150 LC-9C, DH150 LC-7, DX140 LC-3, DX140 LC-5, DX140 LC-7, DX160 LC-3, DX140LCR-7, DX130-9CN, DX140 LCA, DX140 LCR, DX140WACE, DX150W-9C, DX165WR-7, S140WV RW, DX160 LC, DH140W-7, DH150W-7, DX100W-7, DX140W-3, DX140W-5, DX140W-7, DX160W-3, DX160W-5, DX160W-7, DX165W-5, DX140LC, DX140WA, DX140WE, S140W V, DX140W, DX160W, S130WV, S160WV, DX130, DX140, DX120, DX140LC-7K
Hitachi H15 Super Long, ZX200 H15 Supe, ZX130 LCN-5B, ZX135USOS-5B, ZX130 LC-5N, ZX130 LCN-3, ZX130 LCN-5, ZX130 LCN-6, ZX130 LCN-7, ZX135USBL-3, ZX135USBL-5, ZX135USBL-6, ZX135USBL-7, ZX135USOS-3, ZX135USOS-6, ZX135USTN-Z, EX100WD-3C, ZX120USR-5, ZX130 LC-3, ZX135US LC, ZX135US-5B, ZX135US-5N, ZX135US-6N, ZX135USB-3, ZX135USB-5, ZX135USK-3, ZX135USK-6, ZX135USR-5, EX100WD-1, EX100WD-2, EX100WD-3, EX125WD-5, EX130UR-1, EX130UR-5, EX135UR-1, EX135UR-5, ZX130 LCM, ZX130 LCN, ZX130K HG, ZX130K-5B, ZX135US-1, ZX135US-2, ZX135US-3, ZX135US-5, ZX135US-6, ZX135US-7, ZX135US-E, ZX110M-3, ZX120 IV, ZX120 LC, ZX120-5B, ZX130 LC, ZX130-5A, ZX130-5B, ZX130-5G, ZX130-5N, ZX130-6N, ZX130K-3, ZX130K-6, ZX135USK, ZX135USM, ZX140W-3, EX100-1, EX100-2, EX100-3, EX100-5, EX100WD, EX120-1, EX120-2, EX120-3, EX120-5, EX135UR, ZX110-2, ZX110-3, ZX110BL, ZX120-2, ZX120-3, ZX120-6, ZX120BL, ZX125US, ZX130-3, ZX130-5, ZX130-6, ZX130-7, ZX130BL, ZX130MT, ZX135UR, ZX135US, EX130K, EX130W, ZX110E, ZX110M, ZX120B, ZX120E, ZX130H, ZX130K, ZX130L, ZX135U, ZX140H, EX100, EX120, EX130, EX135, UH053, UH063, ZX110, ZX120, ZX130, ZX135, EX-5, ZX130-7H, ZX135US-7H
Hyundai R125LCR-9A, HX145LCR, R130LC-3, R140LC-7, R140LC-9, R145LC-9, R130W-3, R140W-7, HX140L, R110-7, R130LC, HX125, HX140, HX145, R120W, 130W, HX130A LCR, HX140A L, HX145A LCR
JCB 131LLC, 150X-1, JS130C, JS145W, JS130, JS131, JS135, JS145, JS160, JZ140, JZ141, 131X, 140X, 145X, 150X, 814S
John Deere 120C LC, 120 LC, JD120, 120C, 120D, 130G, 135C, 135D, 135G, 490D, 110, 120, 135 P-Tier
Kato HD513 MR-3, HD512 E, HD512-3, HD512, 450, 512, 572
Kobelco SK135SR 1E, SK115SRDZ, SK125SR-2, SK135SR-2, SK135SR-3, SK140LC-8, SK120-2, SK120-5, SK130-8, SK130LC, SK130UR, SK135SR, SK120v, K905, SK140SRLC, SK130LC-11
Liebherr R914
Linkbelt 135 X3 SPIN, 130 X4LC, 130 LX, 130 X2, 130 X3, 130 X4, 135 LX, 145 X3, 145 X4
Liugong 915D, 915E
Sany SY135 IV, SY135-3A, SY130-1, SY135-2, SY155U, SY155W, SY115, SY125, SY135, SY155, SY125C PRO, SY140C-9S, SY135C-9, SY155H-9, SY115C, SY135C, SY155C, SY155H
Sumitomo SH120- 2, SH120-A3, SH125X-3, SH145X-6, SH120-1, SH120-3, SH130-5, SH135X, SH120
Takeuchi TB2150R, TB1140, TB2150
Terex 145
Volvo MX135WS/LS, EC135B LC, EC140 LCM, EC140B LC, EC140E LM, SE130LC-3, EC140 LC, EC140CLM, EC140DLM, ECR145CL, ECR145EL, SE130W-3, EC140-7, EC140CL, EC140DL, EC140EL, ECR145C, EC120D, EC140B, EC140C, EC140D, EC140E, EC145E, ECR145, EC120, EC130, EC140, EW130, ECR145E, ECR145SE
XCMG XE155UCR, XE155U, XR155U

36" Bucket

Brand

Model
Case CX145D MSR, CX130B LC, CX130C LR, CX130D LC, CX130 LC, CX135MS3, CX135MSR, CX145CSR, CX145DSR, CX135CR, CX135SR, CX130B, CX130C, CX130D, CX130E, CX130K, CX135C, CX140E, CX145C, CX130, CX135, CX90
Caterpillar 314CL LCR, 312B LGP, 312D2 GC, 313D2 GC, 314C LCR, 314D LCR, 314E LCR, 314G LCR, 311DLRR, 311F RR, 311FLRR, 313B CR, 313C CR, 313D CR, 313D2 L, 313FLGC, 314C CR, 314D CR, 314E CR, 314E SR, 314F CR, 311 V2, 311C U, 311DRR, 312 V2, 312BLN, 312CLR, 312D2L, 312F L, 312FGC, 313BSR, 313CSR, 313DSR, 313FGC, 311BL, 311FL, 312BL, 312CL, 312D2, 312DL, 312EL, 312GC, 313D2, 313DL, 313FL, 313GC, 314DL, 314EL, 315FL, E120B, 311B, 311C, 311D, 312B, 312C, 312D, 312E, 312F, 312L, 313B, 313C, 313D, 313E, 313F, 314C, 311, 312, 313, 314
Daewoo S130W-111, S130 LC V, S155 LC V, S140LC-V, S130-2
Develon DX140LCR-7K, DX140LC-7K, DX140LCR-7, DX165WR-7, DX100W-7, DX140W-5, DX140W-7, DX160W-7
Doosan DX160 LC-5 HT, DX140 LC-9C, DX140 LCR-3, DX140 LCR-5, DX140 LCR-7, DX150 LC-9C, DH150 LC-7, DX140 LC-3, DX140 LC-5, DX140 LC-7, DX160 LC-3, DX140LCR-7, DX130-9CN, DX140 LCA, DX140 LCR, DX140WACE, DX150W-9C, DX165WR-7, S140WV RW, DX160 LC, DH140W-7, DH150W-7, DX100W-7, DX140W-3, DX140W-5, DX140W-7, DX160W-3, DX160W-5, DX160W-7, DX165W-5, DX140LC, DX140WA, DX140WE, S140W V, DX140W, DX160W, S130WV, S160WV, DX130, DX140, DX120, DX140LC-7K
Hitachi H15 Super Long, ZX200 H15 Supe, ZX130 LCN-5B, ZX135USOS-5B, ZX130 LC-5N, ZX130 LCN-3, ZX130 LCN-5, ZX130 LCN-6, ZX130 LCN-7, ZX135USBL-3, ZX135USBL-5, ZX135USBL-6, ZX135USBL-7, ZX135USOS-3, ZX135USOS-6, ZX135USTN-Z, EX100WD-3C, ZX120USR-5, ZX130 LC-3, ZX135US LC, ZX135US-5B, ZX135US-5N, ZX135US-6N, ZX135USB-3, ZX135USB-5, ZX135USK-3, ZX135USK-6, ZX135USR-5, EX100WD-1, EX100WD-2, EX100WD-3, EX125WD-5, EX130UR-1, EX130UR-5, EX135UR-1, EX135UR-5, ZX130 LCM, ZX130 LCN, ZX130K HG, ZX130K-5B, ZX135US-1, ZX135US-2, ZX135US-3, ZX135US-5, ZX135US-6, ZX135US-7, ZX135US-E, ZX110M-3, ZX120 IV, ZX120 LC, ZX120-5B, ZX130 LC, ZX130-5A, ZX130-5B, ZX130-5G, ZX130-5N, ZX130-6N, ZX130K-3, ZX130K-6, ZX135USK, ZX135USM, ZX140W-3, EX100-1, EX100-2, EX100-3, EX100-5, EX100WD, EX120-1, EX120-2, EX120-3, EX120-5, EX135UR, ZX110-2, ZX110-3, ZX110BL, ZX120-2, ZX120-3, ZX120-6, ZX120BL, ZX125US, ZX130-3, ZX130-5, ZX130-6, ZX130-7, ZX130BL, ZX130MT, ZX135UR, ZX135US, EX130K, EX130W, ZX110E, ZX110M, ZX120B, ZX120E, ZX130H, ZX130K, ZX130L, ZX135U, ZX140H, EX100, EX120, EX130, EX135, UH053, UH063, ZX110, ZX120, ZX130, ZX135, EX-5, ZX130-7H, ZX135US-7H
Hyundai R125LCR-9A, HX145LCR, R130LC-3, R140LC-7, R140LC-9, R145LC-9, R130W-3, R140W-7, HX140L, R110-7, R130LC, HX125, HX140, HX145, R120W, 130W, HX130A LCR, HX140A L, HX145A LCR
JCB 131LLC, 150X-1, JS130C, JS145W, JS130, JS131, JS135, JS145, JS160, JZ140, JZ141, 131X, 140X, 145X, 150X, 814S
John Deere 120C LC, 120 LC, JD120, 120C, 120D, 130G, 135C, 135D, 135G, 490D, 110, 120, 135 P-Tier
Kato HD513 MR-3, HD512 E, HD512-3, HD512, 450, 512, 572
Kobelco SK135SR 1E, SK115SRDZ, SK125SR-2, SK135SR-2, SK135SR-3, SK140LC-8, SK120-2, SK120-5, SK130-8, SK130LC, SK130UR, SK135SR, SK120v, K905, SK140SRLC, SK130LC-11
Liebherr R914
Linkbelt 135 X3 SPIN, 130 X4LC, 130 LX, 130 X2, 130 X3, 130 X4, 135 LX, 145 X3, 145 X4
Liugong 915D, 915E
Sany SY135 IV, SY135-3A, SY130-1, SY135-2, SY155U, SY155W, SY115, SY125, SY135, SY155, SY125C PRO, SY140C-9S, SY135C-9, SY155H-9, SY115C, SY135C, SY155C, SY155H
Sumitomo SH120- 2, SH120-A3, SH125X-3, SH145X-6, SH120-1, SH120-3, SH130-5, SH135X, SH120
Takeuchi TB2150R, TB1140, TB2150
Terex 145
Volvo MX135WS/LS, EC135B LC, EC140 LCM, EC140B LC, EC140E LM, SE130LC-3, EC140 LC, EC140CLM, EC140DLM, ECR145CL, ECR145EL, SE130W-3, EC140-7, EC140CL, EC140DL, EC140EL, ECR145C, EC120D, EC140B, EC140C, EC140D, EC140E, EC145E, ECR145, EC120, EC130, EC140, EW130, ECR145E, ECR145SE
XCMG XE155UCR, XE155U, XR155U

42" Bucket

Brand

Model
Case CX145D MSR, CX130B LC, CX130C LR, CX130D LC, CX130 LC, CX135MS3, CX135MSR, CX145CSR, CX145DSR, CX135CR, CX135SR, CX130B, CX130C, CX130D, CX130E, CX130K, CX135C, CX140E, CX145C, CX130, CX135, CX90
Caterpillar 314CL LCR, 312B LGP, 312D2 GC, 313D2 GC, 314C LCR, 314D LCR, 314E LCR, 314G LCR, 311DLRR, 311F RR, 311FLRR, 313B CR, 313C CR, 313D CR, 313D2 L, 313FLGC, 314C CR, 314D CR, 314E CR, 314E SR, 314F CR, 311 V2, 311C U, 311DRR, 312 V2, 312BLN, 312CLR, 312D2L, 312F L, 312FGC, 313BSR, 313CSR, 313DSR, 313FGC, 311BL, 311FL, 312BL, 312CL, 312D2, 312DL, 312EL, 312GC, 313D2, 313DL, 313FL, 313GC, 314DL, 314EL, 315FL, E120B, 311B, 311C, 311D, 312B, 312C, 312D, 312E, 312F, 312L, 313B, 313C, 313D, 313E, 313F, 314C, 311, 312, 313, 314
Daewoo S130W-111, S130 LC V, S155 LC V, S140LC-V, S130-2
Develon DX140LCR-7K, DX140LC-7K, DX140LCR-7, DX165WR-7, DX100W-7, DX140W-5, DX140W-7, DX160W-7
Doosan DX160 LC-5 HT, DX140 LC-9C, DX140 LCR-3, DX140 LCR-5, DX140 LCR-7, DX150 LC-9C, DH150 LC-7, DX140 LC-3, DX140 LC-5, DX140 LC-7, DX160 LC-3, DX140LCR-7, DX130-9CN, DX140 LCA, DX140 LCR, DX140WACE, DX150W-9C, DX165WR-7, S140WV RW, DX160 LC, DH140W-7, DH150W-7, DX100W-7, DX140W-3, DX140W-5, DX140W-7, DX160W-3, DX160W-5, DX160W-7, DX165W-5, DX140LC, DX140WA, DX140WE, S140W V, DX140W, DX160W, S130WV, S160WV, DX130, DX140, DX120, DX140LC-7K
Hitachi H15 Super Long, ZX200 H15 Supe, ZX130 LCN-5B, ZX135USOS-5B, ZX130 LC-5N, ZX130 LCN-3, ZX130 LCN-5, ZX130 LCN-6, ZX130 LCN-7, ZX135USBL-3, ZX135USBL-5, ZX135USBL-6, ZX135USBL-7, ZX135USOS-3, ZX135USOS-6, ZX135USTN-Z, EX100WD-3C, ZX120USR-5, ZX130 LC-3, ZX135US LC, ZX135US-5B, ZX135US-5N, ZX135US-6N, ZX135USB-3, ZX135USB-5, ZX135USK-3, ZX135USK-6, ZX135USR-5, EX100WD-1, EX100WD-2, EX100WD-3, EX125WD-5, EX130UR-1, EX130UR-5, EX135UR-1, EX135UR-5, ZX130 LCM, ZX130 LCN, ZX130K HG, ZX130K-5B, ZX135US-1, ZX135US-2, ZX135US-3, ZX135US-5, ZX135US-6, ZX135US-7, ZX135US-E, ZX110M-3, ZX120 IV, ZX120 LC, ZX120-5B, ZX130 LC, ZX130-5A, ZX130-5B, ZX130-5G, ZX130-5N, ZX130-6N, ZX130K-3, ZX130K-6, ZX135USK, ZX135USM, ZX140W-3, EX100-1, EX100-2, EX100-3, EX100-5, EX100WD, EX120-1, EX120-2, EX120-3, EX120-5, EX135UR, ZX110-2, ZX110-3, ZX110BL, ZX120-2, ZX120-3, ZX120-6, ZX120BL, ZX125US, ZX130-3, ZX130-5, ZX130-6, ZX130-7, ZX130BL, ZX130MT, ZX135UR, ZX135US, EX130K, EX130W, ZX110E, ZX110M, ZX120B, ZX120E, ZX130H, ZX130K, ZX130L, ZX135U, ZX140H, EX100, EX120, EX130, EX135, UH053, UH063, ZX110, ZX120, ZX130, ZX135, EX-5, ZX130-7H, ZX135US-7H
Hyundai R125LCR-9A, HX145LCR, R130LC-3, R140LC-7, R140LC-9, R145LC-9, R130W-3, R140W-7, HX140L, R110-7, R130LC, HX125, HX140, HX145, R120W, 130W, HX130A LCR, HX140A L, HX145A LCR
JCB 131LLC, 150X-1, JS130C, JS145W, JS130, JS131, JS135, JS145, JS160, JZ140, JZ141, 131X, 140X, 145X, 150X, 814S
John Deere 120C LC, 120 LC, JD120, 120C, 120D, 130G, 135C, 135D, 135G, 490D, 110, 120, 135 P-Tier
Kato HD513 MR-3, HD512 E, HD512-3, HD512, 450, 512, 572
Kobelco SK135SR 1E, SK115SRDZ, SK125SR-2, SK135SR-2, SK135SR-3, SK140LC-8, SK120-2, SK120-5, SK130-8, SK130LC, SK130UR, SK135SR, SK120v, K905, SK140SRLC, SK130LC-11
Liebherr R914
Linkbelt 135 X3 SPIN, 130 X4LC, 130 LX, 130 X2, 130 X3, 130 X4, 135 LX, 145 X3, 145 X4
Liugong 915D, 915E
Sany SY135 IV, SY135-3A, SY130-1, SY135-2, SY155U, SY155W, SY115, SY125, SY135, SY155, SY125C PRO, SY140C-9S, SY135C-9, SY155H-9, SY115C, SY135C, SY155C, SY155H
Sumitomo SH120- 2, SH120-A3, SH125X-3, SH145X-6, SH120-1, SH120-3, SH130-5, SH135X, SH120
Takeuchi TB2150R, TB1140, TB2150
Terex 145
Volvo MX135WS/LS, EC135B LC, EC140 LCM, EC140B LC, EC140E LM, SE130LC-3, EC140 LC, EC140CLM, EC140DLM, ECR145CL, ECR145EL, SE130W-3, EC140-7, EC140CL, EC140DL, EC140EL, ECR145C, EC120D, EC140B, EC140C, EC140D, EC140E, EC145E, ECR145, EC120, EC130, EC140, EW130, ECR145E, ECR145SE
XCMG XE155UCR, XE155U, XR155U

48" Bucket

Brand

Model
Case CX145D MSR, CX130B LC, CX130C LR, CX130D LC, CX130 LC, CX135MS3, CX135MSR, CX145CSR, CX145DSR, CX135CR, CX135SR, CX130B, CX130C, CX130D, CX130E, CX130K, CX135C, CX140E, CX145C, CX130, CX135, CX90
Caterpillar 314CL LCR, 312B LGP, 312D2 GC, 313D2 GC, 314C LCR, 314D LCR, 314E LCR, 314G LCR, 311DLRR, 311F RR, 311FLRR, 313B CR, 313C CR, 313D CR, 313D2 L, 313FLGC, 314C CR, 314D CR, 314E CR, 314E SR, 314F CR, 311 V2, 311C U, 311DRR, 312 V2, 312BLN, 312CLR, 312D2L, 312F L, 312FGC, 313BSR, 313CSR, 313DSR, 313FGC, 311BL, 311FL, 312BL, 312CL, 312D2, 312DL, 312EL, 312GC, 313D2, 313DL, 313FL, 313GC, 314DL, 314EL, 315FL, E120B, 311B, 311C, 311D, 312B, 312C, 312D, 312E, 312F, 312L, 313B, 313C, 313D, 313E, 313F, 314C, 311, 312, 313, 314
Daewoo S130W-111, S130 LC V, S155 LC V, S140LC-V, S130-2
Develon DX140LCR-7K, DX140LC-7K, DX140LCR-7, DX165WR-7, DX100W-7, DX140W-5, DX140W-7, DX160W-7
Doosan DX160 LC-5 HT, DX140 LC-9C, DX140 LCR-3, DX140 LCR-5, DX140 LCR-7, DX150 LC-9C, DH150 LC-7, DX140 LC-3, DX140 LC-5, DX140 LC-7, DX160 LC-3, DX140LCR-7, DX130-9CN, DX140 LCA, DX140 LCR, DX140WACE, DX150W-9C, DX165WR-7, S140WV RW, DX160 LC, DH140W-7, DH150W-7, DX100W-7, DX140W-3, DX140W-5, DX140W-7, DX160W-3, DX160W-5, DX160W-7, DX165W-5, DX140LC, DX140WA, DX140WE, S140W V, DX140W, DX160W, S130WV, S160WV, DX130, DX140, DX120, DX140LC-7K
Hitachi H15 Super Long, ZX200 H15 Supe, ZX130 LCN-5B, ZX135USOS-5B, ZX130 LC-5N, ZX130 LCN-3, ZX130 LCN-5, ZX130 LCN-6, ZX130 LCN-7, ZX135USBL-3, ZX135USBL-5, ZX135USBL-6, ZX135USBL-7, ZX135USOS-3, ZX135USOS-6, ZX135USTN-Z, EX100WD-3C, ZX120USR-5, ZX130 LC-3, ZX135US LC, ZX135US-5B, ZX135US-5N, ZX135US-6N, ZX135USB-3, ZX135USB-5, ZX135USK-3, ZX135USK-6, ZX135USR-5, EX100WD-1, EX100WD-2, EX100WD-3, EX125WD-5, EX130UR-1, EX130UR-5, EX135UR-1, EX135UR-5, ZX130 LCM, ZX130 LCN, ZX130K HG, ZX130K-5B, ZX135US-1, ZX135US-2, ZX135US-3, ZX135US-5, ZX135US-6, ZX135US-7, ZX135US-E, ZX110M-3, ZX120 IV, ZX120 LC, ZX120-5B, ZX130 LC, ZX130-5A, ZX130-5B, ZX130-5G, ZX130-5N, ZX130-6N, ZX130K-3, ZX130K-6, ZX135USK, ZX135USM, ZX140W-3, EX100-1, EX100-2, EX100-3, EX100-5, EX100WD, EX120-1, EX120-2, EX120-3, EX120-5, EX135UR, ZX110-2, ZX110-3, ZX110BL, ZX120-2, ZX120-3, ZX120-6, ZX120BL, ZX125US, ZX130-3, ZX130-5, ZX130-6, ZX130-7, ZX130BL, ZX130MT, ZX135UR, ZX135US, EX130K, EX130W, ZX110E, ZX110M, ZX120B, ZX120E, ZX130H, ZX130K, ZX130L, ZX135U, ZX140H, EX100, EX120, EX130, EX135, UH053, UH063, ZX110, ZX120, ZX130, ZX135, EX-5, ZX130-7H, ZX135US-7H
Hyundai R125LCR-9A, HX145LCR, R130LC-3, R140LC-7, R140LC-9, R145LC-9, R130W-3, R140W-7, HX140L, R110-7, R130LC, HX125, HX140, HX145, R120W, 130W, HX130A LCR, HX140A L, HX145A LCR
JCB 131LLC, 150X-1, JS130C, JS145W, JS130, JS131, JS135, JS145, JS160, JZ140, JZ141, 131X, 140X, 145X, 150X, 814S
John Deere 120C LC, 120 LC, JD120, 120C, 120D, 130G, 135C, 135D, 135G, 490D, 110, 120, 135 P-Tier
Kato HD513 MR-3, HD512 E, HD512-3, HD512, 450, 512, 572
Kobelco SK135SR 1E, SK115SRDZ, SK125SR-2, SK135SR-2, SK135SR-3, SK140LC-8, SK120-2, SK120-5, SK130-8, SK130LC, SK130UR, SK135SR, SK120v, K905, SK140SRLC, SK130LC-11
Liebherr R914
Linkbelt 135 X3 SPIN, 130 X4LC, 130 LX, 130 X2, 130 X3, 130 X4, 135 LX, 145 X3, 145 X4
Liugong 915D, 915E
Sany SY135 IV, SY135-3A, SY130-1, SY135-2, SY155U, SY155W, SY115, SY125, SY135, SY155, SY125C PRO, SY140C-9S, SY135C-9, SY155H-9, SY115C, SY135C, SY155C, SY155H
Sumitomo SH120- 2, SH120-A3, SH125X-3, SH145X-6, SH120-1, SH120-3, SH130-5, SH135X, SH120
Takeuchi TB2150R, TB1140, TB2150
Terex 145
Volvo MX135WS/LS, EC135B LC, EC140 LCM, EC140B LC, EC140E LM, SE130LC-3, EC140 LC, EC140CLM, EC140DLM, ECR145CL, ECR145EL, SE130W-3, EC140-7, EC140CL, EC140DL, EC140EL, ECR145C, EC120D, EC140B, EC140C, EC140D, EC140E, EC145E, ECR145, EC120, EC130, EC140, EW130, ECR145E, ECR145SE
XCMG XE155UCR, XE155U, XR155U
