Brand |
Model |
|---|---|
| Airman | AX20U-3, AX22, AX25 |
| Bobcat | E35ER2, E32EM, E32R2, E35EM, X328G, X331G, X425G, E26C, E32I, E32M, E32R, E35I, E35R, E35Z, X331, X425, X428, X334, X335, X337, X341, 425G, E25, E26, E32, E34, E35, E37, E38, 334, 341, 418, 425, 425ZHS, 428, 430, 430AG ZHS, 430HAG, 430ZHS, 435HAG, 435ZHS, 435HEGZHS, 430HGZHS, 435AGZHS, 430D ZHS, 430GZHS, 435DZHS, 435GZHS, 435, 418AA, 425EG, 428EG, 430AG, 430CD, 435AG, 435EG, 435HG, E25EM, E26EM, E26GM, E35R2, 442A, 442B, 442C, 442D, 442E, 442G, 442R, 442X, 444A, 444B, 418A, 428G, 428U, 430D, 430E, 430G, 430H, 435G, 435H, E27Z, E35M, E26GAM |
| Case | CX22B, CX27B, CX20, CX22, CX23, CX25 |
| Caterpillar | 302.5C CR, 302.7D CR, 302.7CR, 302C CR, 302.2D, 302.4D, 302.5C, 302.7D, 302ESR, 302.7, 302.5, 302CR |
| Doosan | DX27Z, DX30Z, DX35Z, DX27, DH35, S30 |
| Hanix | H15A, H15B, H22A, H22B, H24A, H25B, H26B, H26C, H29A, 20S |
| Hitachi | EX30UR-2C, EX20UR-2, EX20UR-3, EX30UR-2, EX30UR-3, ZX26U-5A, EX20U-3, ZX22U-2, ZX27U-2, EX20UR, EX22-2, EX25-2, EX30UR, EX27U, EX30, ZX19U |
| Hyundai | R27Z-9, R30-9A, R25-5, R28-5 |
| Ihi | IS35NX-2, 30NX-2, IS28J, IS30J, 25NX, 28NX, 30NX, IS25, IS27, IS28, IS30, 28G, 32J |
| JCB | 802.7 ZTS, 8025 ZTS, 8026 CTS, 8027 ZTS, 8030 ZTS, 8032 ZTS, 8035 CTS, 8035 C, 802.4, 802.7, 8025, 8026, 8029, 8030, 8035, 1CX, 2CX, 802, 803, 8035 ZTS, 35Z-1 |
| John Deere | 17G, 17P |
| Kobelco | SK20SR-1, SK20SR-3, SK20SR-5, SK25SR-1, SK25SR-2, SK25SR-5, SK27SR-3, SK27SR-5, SK20SR, SK30SR, SK025, SK027, SK030 |
| Komatsu | PC27 MRX-1, PC30 MRX-1, PC30 MRX-2, PC30 MR-3, PC35MRX-1, PC27MR-2, PC27MR-3, PC28UU-1, PC28UU-2, PC30MR-2, PC30MR-3, PC35MR-2, PC35MR-3, PC27R-8, PC30 MR, PC35R-8, PC20-6, PC30-6, PC30-7, PC35RS, PC25, PC26, PC27, PC30, PC35 |
| Kubota | U27-4, U25-3 |
| Linkbelt | MS035 |
| Liugong | 9027F ZTS |
| Nagano | NS25-3 |
| New Holland | E25-2SR, E27-2SR |
| Sumitomo | SWE40u, SWE30, SWE45 |
| Takeuchi | TB 125, TB28FR, TB025, TB125, TB228, TB230, TB23R, TB25, TB30 |
| Terex | TC25 |
| Volvo | E25 |
| Yanmar | VIO20-2, VIO20 |
JMA Attachments Hydraulic Hammer | Model JMA-302 EBH | Energy Class 350 Joules | For 2 – 3 Tons Mini Excavators
JMA Attachments Hydraulic Hammer | Model JMA-302 EBH | Energy Class 350 Joules | For 2 – 3 Tons Mini Excavators
Regular price
$4,170.85
Regular price
Sale price
$4,170.85
Unit price
per
Couldn't load pickup availability
Couldn't load pickup availability
Product Description

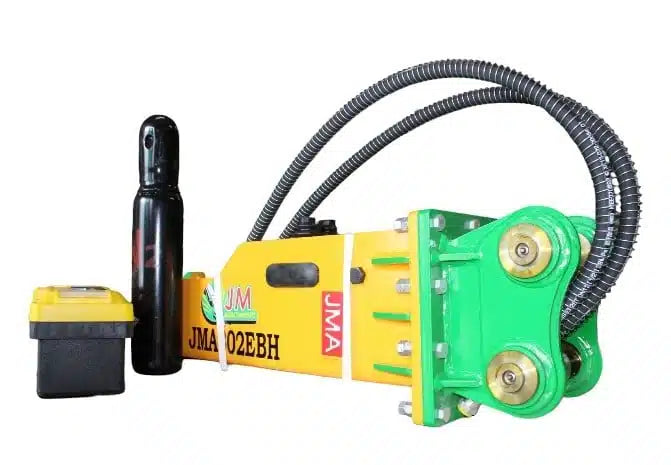

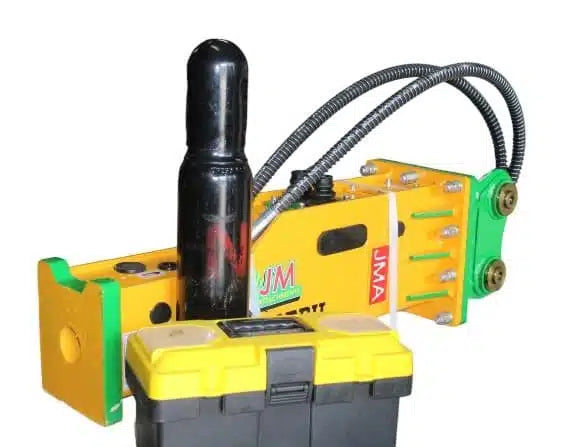

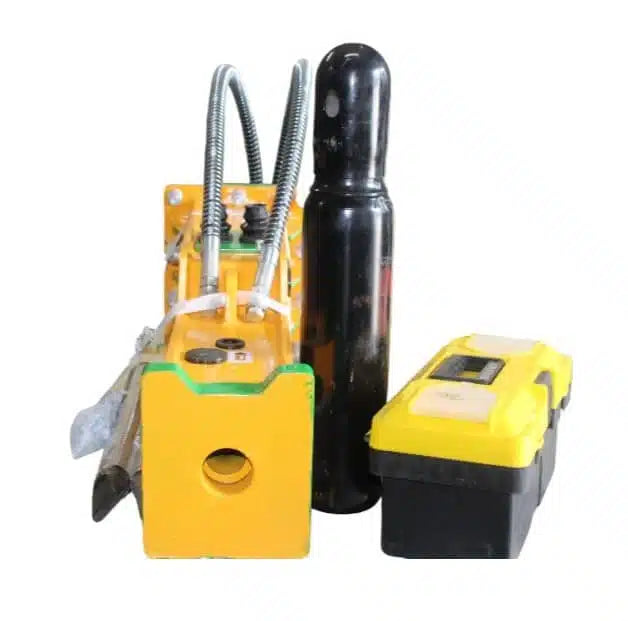

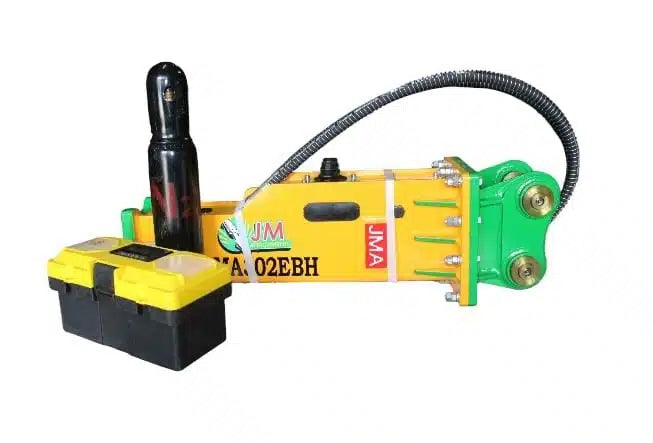

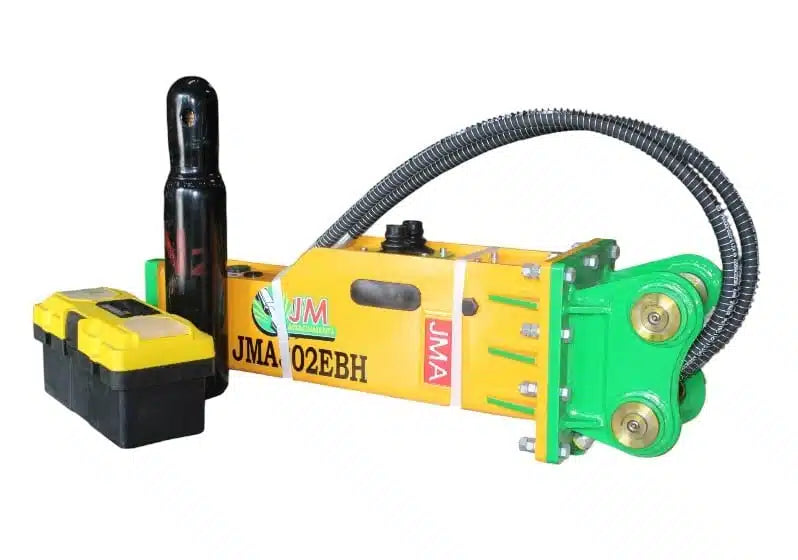

JMA Attachments Hydraulic Hammer | Model JMA-302 EBH | Energy Class 350 Joules | For 2 – 3 Tons Mini Excavators
Description
Unleash the power of efficient demolition with the 350 Joules Hydraulic Hammer for 2 - 3 Tons Mini Excavators. 35mm pins. Precision-engineered for Excavators, this hydraulic hammer is the ultimate tool for conquering the most demanding breaking tasks. Take your demolition projects to the next level. With the 350 Joules Hydraulic Hammer for 2 - 3 Tons Mini Excavators. 35mm pins, you're investing in a tool that combines raw power with intelligent design to deliver unmatched results in any breaking application.
Key Features
- Exceptional Breaking Power: 350 Joules energy class ensures superior performance on tough materials.
- High-Frequency Impact: 700 -1,200 bpm strikes per minute for rapid material processing.
- Durability Redefined: AR400 Steel construction guarantees longevity in harsh working conditions.
- Operator-Friendly Design: Engineered to minimize recoil and enhance safety.
- Complete Package: Includes 2 Hydraulic Hoses,1 Moil Rock Chisel Bit, 1 Wedge Rock Chisel Bit, Tool Box, Nitrogen Gauge, Nitrogen Bottle, Repair Seal Kit, 2 Greasable Pins, 4 Bushings for immediate deployment and optimal performance.
Detailed Specifications
| Attribute | Value |
|---|---|
| Material Type | AR400 Steel |
| Finish | Powder-Coated Green |
| Energy Class (J) | 350 Joules |
| Energy Class (ft·lb) | 258.15 ft·lb |
| Impact Frequency (bpm) | 700 - 1,200 bpm |
| Operating Pressure (kgf/m²) | 90 - 120 kgf/m² |
| Operating Pressure (lbs/ft²) | 18.43 - 24.58 lb/ft² |
| Oil Flow (GPM) | 5.3 - 7.9 gpm |
| Tool Chisel Bit Diameter (mm) | 45 mm |
| Tool Chisel Bit Length (mm) | 500 mm |
| Working Weight (kg) | 126 kg |
| Accessories Included | 2 Hydraulic Hoses, 1 Moil Rock Chisel Bit, 1 Wedge Rock Chisel Bit, Tool Box, Nitrogen Gauge, Nitrogen Bottle, Repair Seal Kit, 2 Greasable Pins, 4 Bushings |
| Front Pin Diameter (mm) | 35 mm |
| Rear Pin Diameter (mm) | 35 mm |
| Front Ear to Ear Distance (mm) | 136 mm |
| Rear Ear to Ear Distance (mm) | 136 mm |
| Center to Center Distance (mm) | 165 mm |
| Carrier Weight Class (tn) | 2 - 3 Tons |
| Carrier Weight Class (lbs) | 4,000 - 6,000 lbs |
| Product Weight (lbs) | 387.54 lb |
| Product Weight (kg) | 175.79 kg |
Fits To
