Larson Electronics 100' Hydraulic Megatower™ Light Plant - 33' Trailer - (20) LED Fixtures - 1,350,000 lms - 480V 1PH

DESCRIPTION

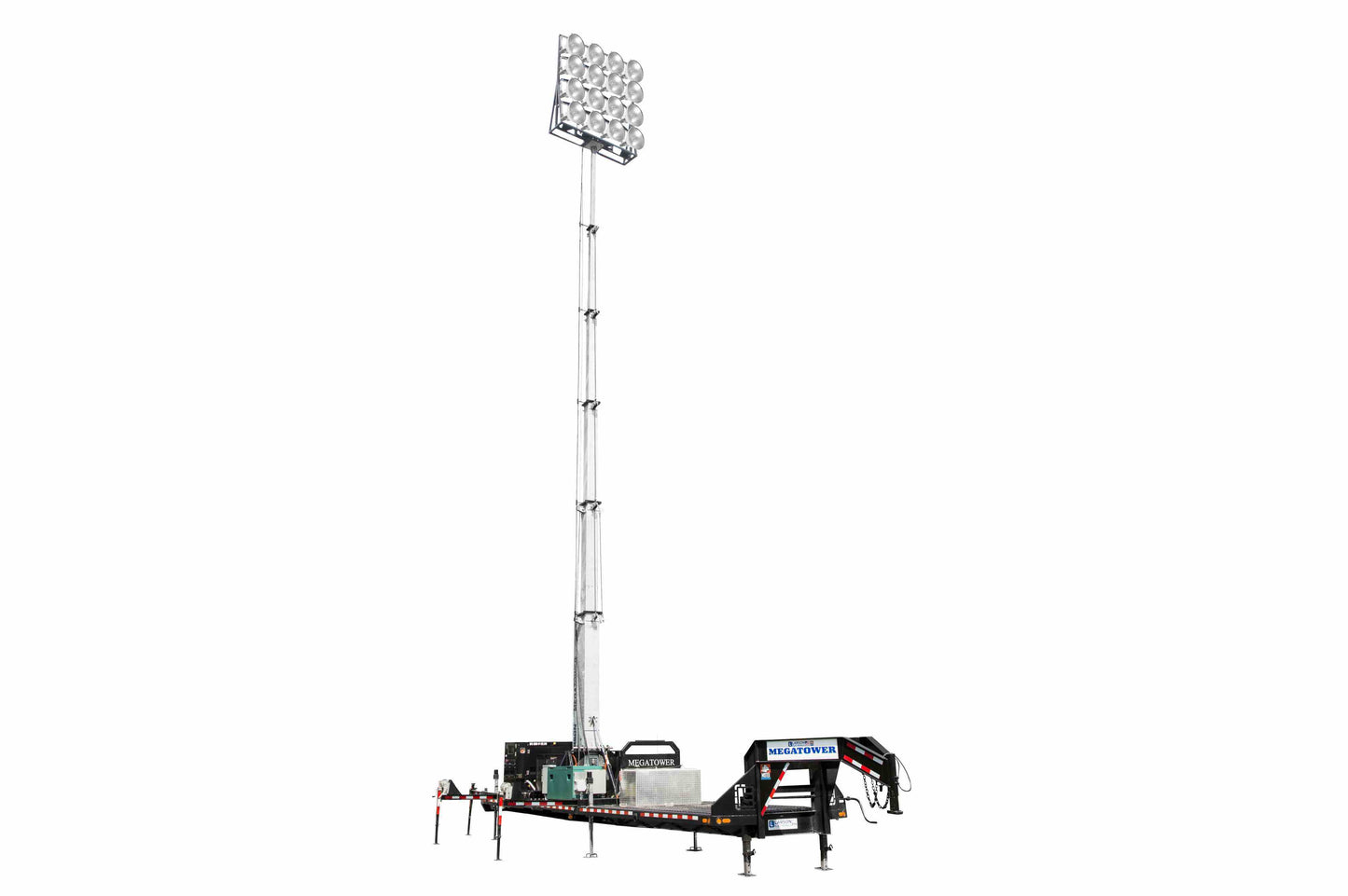

The LM-HLM100-20X500LTL-LED-TLR-ATM-WSM-240V.1P LED Light Plant is a self contained, towable, high power light tower package. This grid-tie unit operates on 480V AC single phase and connects to local mains power, which supplies the current for twenty 500-watt LED lights producing 67,500 lumens each, for a combined total of 1,350,000 lumens of light. This system includes a hydraulic telescoping light mast which can elevate twenty high output LED lamps to heights above 65`. The hydraulic tower is capable of reaching heights up to 100` with the light head assembly, which measures 11` in height, and an overall transport height of 8` 6".

This heavy-duty Megatower has been specifically made for extremely rough applications and can be transported over almost any kind of rough terrain. This mobile floodlight package is ideal for large scale event illumination, construction, mining, industrial operations, and anywhere a mobile full power, durable lighting system capable of extended operation and rough abuse is needed.

This telescoping seven stage hydraulic light mast from Larson Electronics is designed to allow operators to quickly and safely deploy up to 10,000 watts of high intensity LED lighting in locations where illumination must be elevated to heights above 65` (from ground to mast head; 100` in total height with 11` light head assembly) for effective coverage. This light boom can be collapsed to 30` for applications where a smaller footprint is required. The tower is constructed of carbon steel tubing with 2` foot of overlap per section. The mast is elevated using an included hydraulic ram and extended to its full height using a second hydraulic system.

A 90" wide by 132" tall and 2" by 2" by 1/4" thick steel mast head is attached to the upper section of the mast which provides a strong and stable platform for the twenty 480-watt LED light heads.

Lights: The LM-HLM100-20X500LTL-LED-TLR-ATM-WSM-240V.1P Hydraulic LED Megatower™ from Larson Electronics features twenty GAU-LTL-500W-LED fixtures that each draw 500 watts, for a total fixture wattage of 10,000 watts. Each module produces 67,500 lumens at a color temperature of 5000K for an impressive lumen total of 1,350,000 lumens which provides operators with a superior lighting solution for even the most challenging areas to illuminate. To ensure even coverage of wide areas, the LED modules used on this hydraulic light plant are configured in Larson Electronics for even distribution pattern.

LED Benefits: Unlike gas burning and arc type lamps that have glass bulbs, LEDs have no filaments or fragile housings to break during operation and/or transportation. Instead of heating a small filament or using a combination of gases to produce light, light emitting diodes (LEDs) use semi-conductive materials that illuminate when electric current is applied, providing instant illumination with no warm up or cool down time before re-striking. Because there is no warm up period, this light can be cycled on and off with no reduction in lamp life.

LED lights run at significantly cooler temperatures than traditional metal halide and high pressure sodium lights and contain no harmful gases, vapors, or mercury, making them both safer and more energy efficient. No extra energy is wasted in cooling enclosed work areas due to external heat emissions from bulb type lights, and the operator risks associated with traditional lighting methods, such as accidental burns and exposure to hazardous substances contained in the glass bulbs, are eliminated. In addition, LEDs are also safer for the environment as they are 100% recyclable, which eliminates the need for costly special disposal services required with traditional gas burning and arc type lamps.

Durability: As well as unparalleled heat control, the LED lights used in the LM-HLM100-20X500LTL-LED-TLR-ATM-WSM-240V.1P also offer IP67 rated construction that is designed to withstand extremes of environmental and operating conditions. These units can withstand rapid temperature changes of -40° Celsius to +85° Celsius, are waterproof, and resist ingress of dust, dirt and humidity. We recommend these LED lights for use in applications where a lot of vibration, dust, dirt, dampness and abusive working conditions are encountered.

Heat Management: Heat is the single largest factor in premature LED failure and color shifting. The heat-sink on the LED modules has been engineered to provide optimum heat dissipation. Each LED module has been sized for proper passive cooling to prevent premature failure of LEDs or color shifting and to eliminate the need for an active cooling system typically associated with high powered LED systems.

Telescoping Boom: The hydraulic telescoping boom is constructed of carbon steel with a galvanized finish and extends 100` of total height with the light assembly (measures 11` in height). This boom is raised from and lowered to the folded position by a single hydraulic ram and extended or retracted by a second hydraulic system.

Auto Retract: To prevent damage and shaking from strong winds during operation, this tower is equipped with a robust wind monitoring system. When exposed to strong winds, such as 40 mph, the system automatically retracts the mast for safe operation. In a retracted state, operators must re-adjust the height of the mast back to its original height (or another preferred height). This cutting-edge feature is designed to improve safety at industrial work sites.

Wiring/Controls: The LED light heads are grouped into banks of four. Each bank in wired into the NEMA 3R breaker control box at the base of the mast. Operators control the light heads via an on/off switched breaker per bank of five light heads. The hydraulics are also powered from within this breaker box. The mast elevation is controlled by a push button switch to operate the hydraulic ram allowing operators to raise the mast to the upright position. The vertical deployment is operated by a second push button switch allowing operators to extend it to its full 100` height or retract it to the collapsed height.

Trailer: The entire unit is mounted onto a four wheel, dual tandem axle trailer with 12" I-beam construction. Each axle is rated at 10,000 lbs and equipped with P235/80R16 tubeless tires and wheels. The rear axle is equipped with electric brakes. A gooseneck hitch system that extends to the truck bed, above the rear axle and the trailer, is available for secure hauling. Standard heavy duty safety chains are included. Overall length of the trailer is 33`.

Six 7,000 lbs hand crank jacks are used for raising the trailer up off the ground, and four 7,000 lbs hand crank jacks mounted on extending outriggers are used for leveling and stabilizing the trailer assembly. Each of the four jacks are attached to a pivoting outrigger constructed of 6` by 6" by 6.3" steel I-beams. The jacks can be leveled by hand crank or attachment provided for power drills. These outriggers can be extended 6` out from the side of the trailer for added stability. This light plant can withstand 35 mph winds when fully extended. When lowered to 30`, the mast can withstand 50 mph winds. When lowered to 33`, the mast can withstand wind speeds up to 95 mph with gusts of 125 mph. Custom builds can be provided for higher wind speed resistance when fully raised.

We offer a choice of finishing, equipped light heads, and with or without gensets. These towers can be fitted with Larson Electronics line of high output light heads, or customize the mast head to meet the mounting requirements for your equipment. Optional diesel generators and fuel cells can be equipped from factory, or retrofitted after purchase.

Cold Weather Package: The LED light tower is designed to withstand extreme cold environments and harsh winters. The hydraulic system is equipped with a de-icing system to prevent the hydraulic lines and system from freezing from moisture building within system. This de-icing system uses an environmentally friendly (non-toxic) fluid. All hydraulic lines are equipped with cold weather rated hydraulic hoses rated for -65°C and fitted with metallic hardware. All the hydraulic controls are housed within an insulated and weather tight enclosure. This hydraulic control box features 1/2" thick polystyrene foam insulation and heat trace.

The hydraulic system features -65°C cold weather rated rubber hydraulic hoses with metallic fittings and a cold weather rated high viscosity hydraulic fluid. All electrical components are wired using cold weather rated SOOW cable with rated to -50°C that features high flexibility, and extreme abrasion, acid, oil, and water resistance even in sub-zero climates.

Suggested Applications: Temporary lighting, construction site illumination, outdoor event lighting, job site lighting and any other application that requires a self-contained source of illumination capable of covering a very large area effectively.

SPECIFICATIONS

LM-HLM100-20X500LTL-LED-TLR-ATM-WSM-240V.1P Trailer Mounted LED Megatower™

System Specs:

• System Type: Grid Tie
• Voltage: 480V AC
• Phase: Single
• Cold Weather Package: Yes - Factory Included
• Safety: Wind Speed Monitoring System/Auto Retract

Light Mast Specs

• Tower Length: 30` to 100`
• Lamp Qty: 20
• Materials: Carbon Steel
• Finish: Galvanized
• Operation: Hydraulic (Upright and Extension)
• Safety: Wind Speed Monitoring System/Auto Retract

Light Head Specs

• Lamp Type: LED
• Total Wattage: 10,000W (500W per lamp)
• Total Lumens: 1,350,000 (67,500 per lamp)
• Lighting Configuration: Flood Beam Pattern

Trailer Specs

• Materials: Steel    7,000 lb Leveling Jacks
• Trailer Dimensions: 33`-L x 8`-W trailer bed
• Transportation Dimensions: 10` 6.31" H x 9`1.81"-W x 41` 10.44" L
• Deployed (Mast Collapsed) Dimensions: 34` 1.38" H x 18` 2.25" W x 44` 6.69" L
•  Deployed (Mast Extended) Dimensions: 100` 10.44" H x 18` 2.25" W x 44` 6.69" L
• Height (Mast Collapsed): 33`-H
•  Height (Mast Extended): 100`-H
• Footprint (Outriggers Extended): 36` x 19`-11"
•  Hitch: Gooseneck (12" I-beam Construction)
• Wiring: 7-Pin Flat
• Axles: (2) 10,000 lbs w/ Electric Brakes
• Suspension:  Tandem Dually

• Outriggers: (6) 12` x 12" x 12" I-Beams Retractable w/ (6) 7,000 lbs Manual Leveling Jacks
• Wheels: (8) 16" 5x4.5" Steel Rims
• Tires: (8) P235/80R16
• Weight: 18,000 lbs
• Shipping: Common Freight
• Shipping Weight:

Quick Summary

• Tied-to-Grid System
• Cold Weather Package Factory Installed
• 33.5` to 100` Light Mast
• Hydraulic Aluminum Mast
• Hydraulic Aluminum Mast
• Steel Construction Trailer
• Powered Boom Deployment
• High Output LED Lamps
• Extreme Area Coverage
• Direct Replacement for (20) 1000W MH Light Plants
• 10,000W LED compared to 16,000W MH
• Independently Adjustable Light Heads
• Dial-in Adjustability per light head
• 1,350,000 Total Lumen Output
• 98% Transmission High Purity PMMA Optics
• Multiple LED Banks for Heat Dispersion
• 135 Lumens Per Watt Efficiency
• 70% Lumen Retention after 80,000 Hours
• IP67 Waterproof LED Fixtures
• All Equipment Mounted on a 33` x 8` Trailer
• Steel Trailer w/ Industrial Grade Paint Finish
• Towable Height Under 13` w/ Light Heads
• 6-Point Outrigger System
• Wind Speed Monitoring System/Auto Retract
• Switched Breaker System per Lamp Head
• Wind Speed Monitoring System
• Auto Retract/Safety Stop


Larson Electronics LLC manufactures a wide variety of products, including custom built to spec designs. The pictures displayed for this unit are a general representation of form factor for the product line and may not accurately represent this exact configuration in every detail due to custom builds and changes between similar products in our standard catalog. The specifics for this configuration are listed in the specification table and supporting documentation (CAD files, Dimensional Drawing, Name Plate Diagram, Wiring Diagram, etc.). This means that specific details (receptacles, plugs, wires, connections, mounting brackets, external finishes, etc.) may not be accurately represented in images vs specifications. Please review specifications and do not order based solely on images.
