Product Description
Larson Electronics 1920 Watt High Output LED Light Plant - 7KW Kubota Genset - Pneumatic Mast - 150 Gallon Fuel Tank
Description

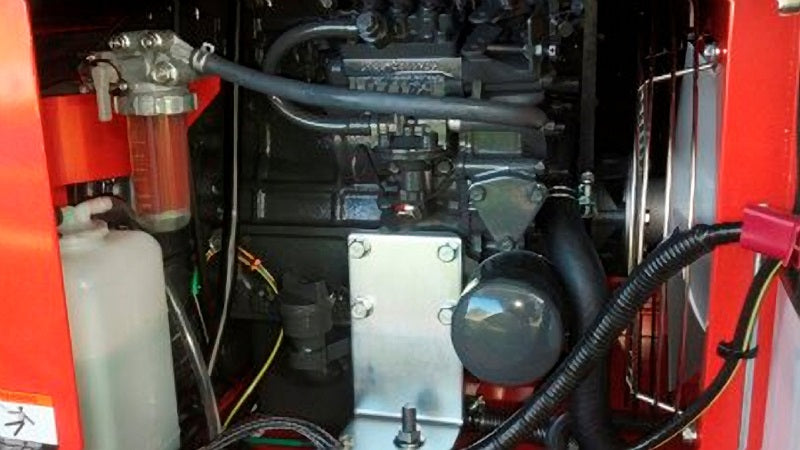

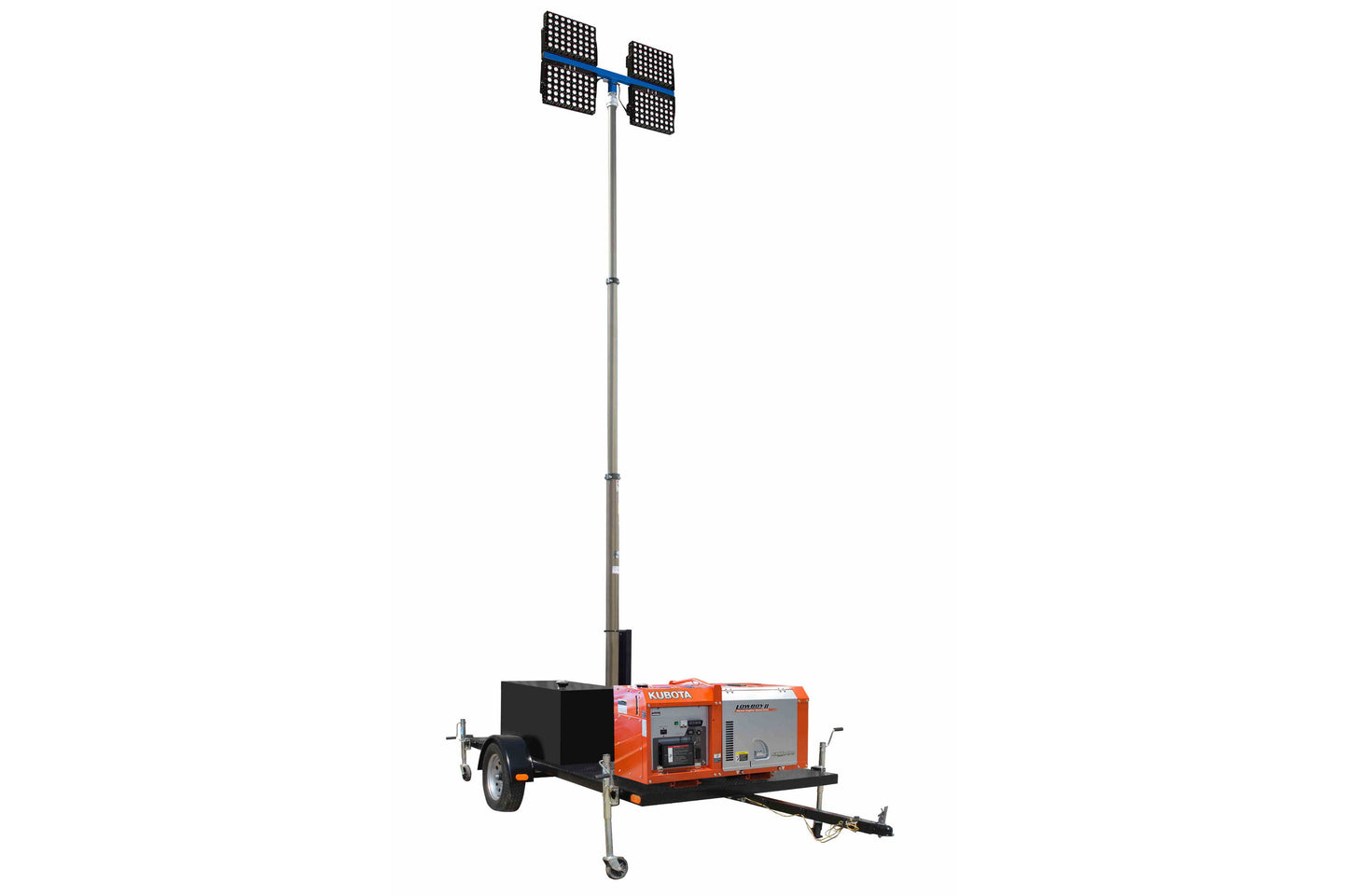

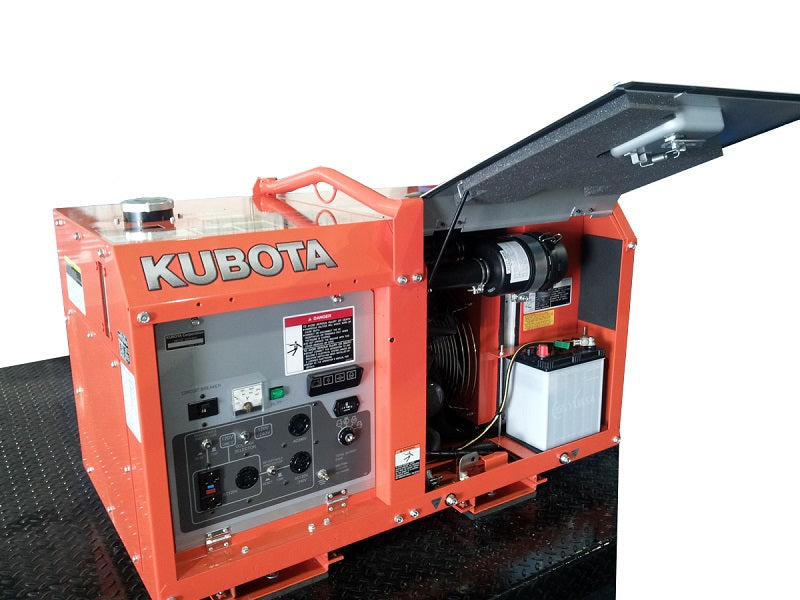

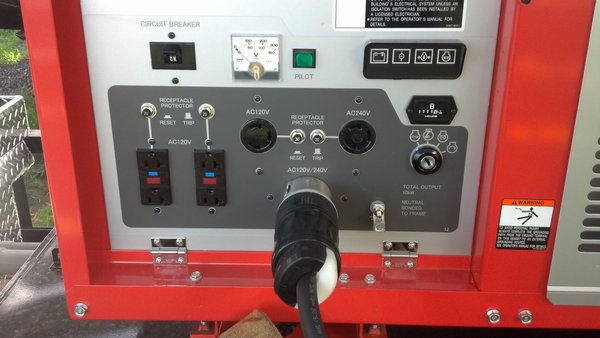

The WCDE-7-PLM30-4X400W-LED is a powerful, trailer-mounted LED light tower equipped with a 7 kW water-cooled diesel generator. It includes four 400-watt LED lamps, producing a total output of 216,000 lumens, making it an ideal replacement for traditional 800-watt metal halide light towers. With a 150-gallon fuel tank, this system can operate continuously for up to 225 hours without refueling, providing reliable, high-intensity lighting for large-scale outdoor applications.
Key Feature

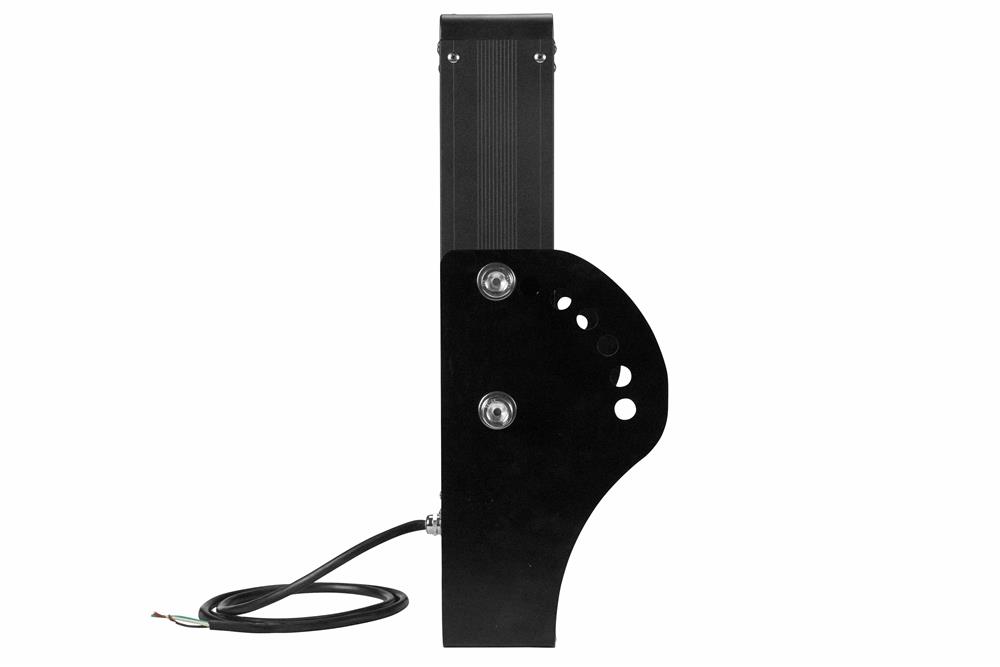

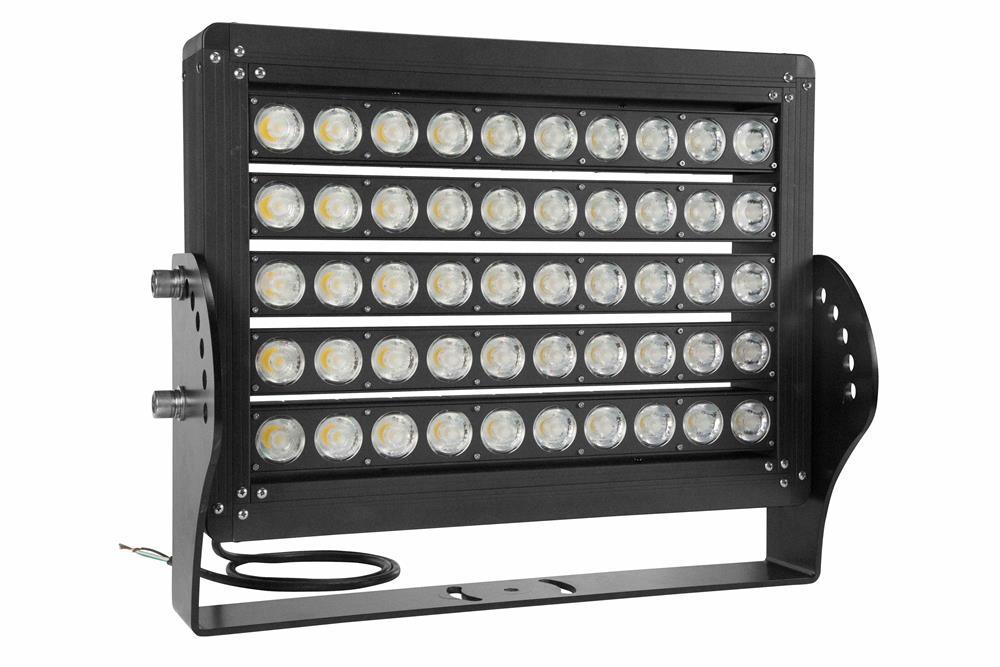

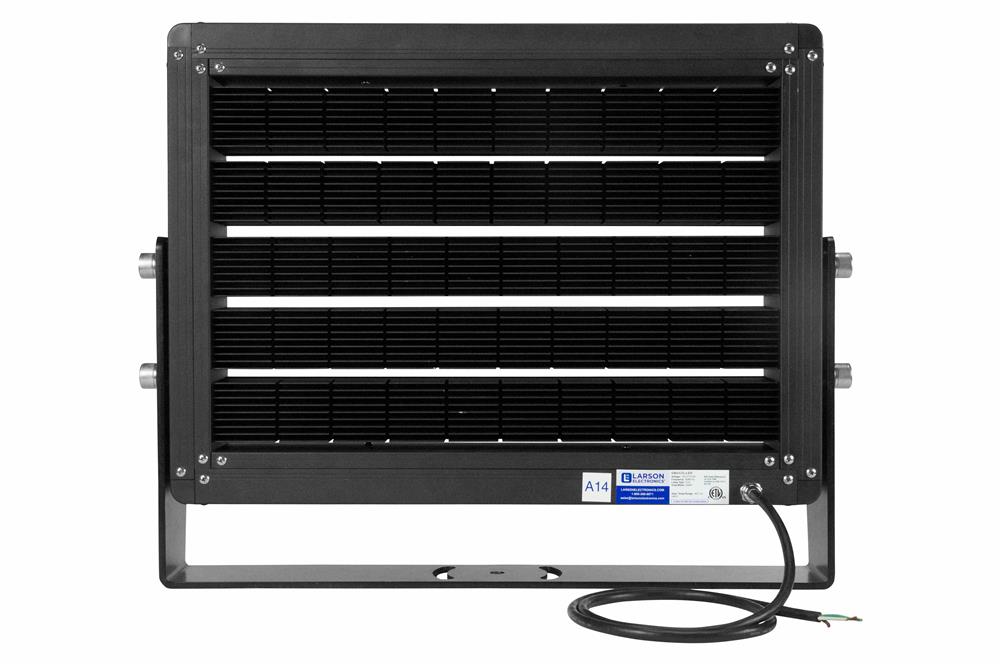

- High Lumen Output: Four 400W LED lamps deliver 216,000 lumens, suitable for expansive illumination.
- Extended Operation: 225-hour runtime on a single fuel tank for continuous use.
- Pneumatic Telescoping Mast: Adjustable from 8.25 to 30 feet, offering versatile lighting coverage.
- Energy Efficiency: Consumes less power than metal halide lights, with significant operational savings.
- Durability: IP67 rated for water and dust resistance, ideal for harsh environments
Detailed Specifications
| Category | Specification |
|---|---|
| 🔆 Lighting System | |
| Total Wattage | 640W (4 × 160W LED heads) |
| Brightness | 86,400 lumens, illuminates up to 4 acres |
| Waterproof Rating | IP67 (dustproof and submersible) |
| Light Operation | Dust-to-dawn sensor with manual override option |
| 🔋 Solar Panel Assembly | |
| Panel Configuration | Eight 265W solar panels |
| Total Output | 2.12 kW |
| Positioning | Adjustable for seasonal sun angle optimization |
| Deployment Mechanism | Manual winch-operated, single-person setup |
| 🔋 Battery & Charging System | |
| Battery Bank | 1000aH at 24V (eight 250aH 12V SLA batteries) |
| Charging Capacity | ~500 amp-hours in 5.5 hours under optimal sunlight |
| Charge Controller | Outback Extreme 80A with integrated cooling system |
| Battery Protection | Min/max voltage sensors, ground fault protection, 50% discharge threshold |
| 🧠 Component Control Center | |
| Job Box | NEMA 3R enclosure with secure locking |
| Cooling System | 1,400 CFM fan activates at 90°F |
| Monitoring | Outback Mate 3 with SD card logging and battery diagnostics |
| 📡 Telescoping Mast | |
| Height | Adjustable from 12 to 20 feet |
| Operation | 1,000 lb hand crank |
| Wind Resistance | Withstands up to 125 mph when fully deployed |
| Construction | Powder-coated steel with corrosion-resistant finish |
| Rotation | 360° with T-handle locking mechanism |
| 🚚 Trailer Specs | |
| Dimensions | 16’ L × 6’ W |
| Axle Capacity | 3,500 lbs |
| Safety Features | Pintle hitch, removable tongue, safety chains |
| Finish | Industrial AL82807 yellow paint for high visibility |
| Additional Features | Optional removable wheels and lockable outriggers |

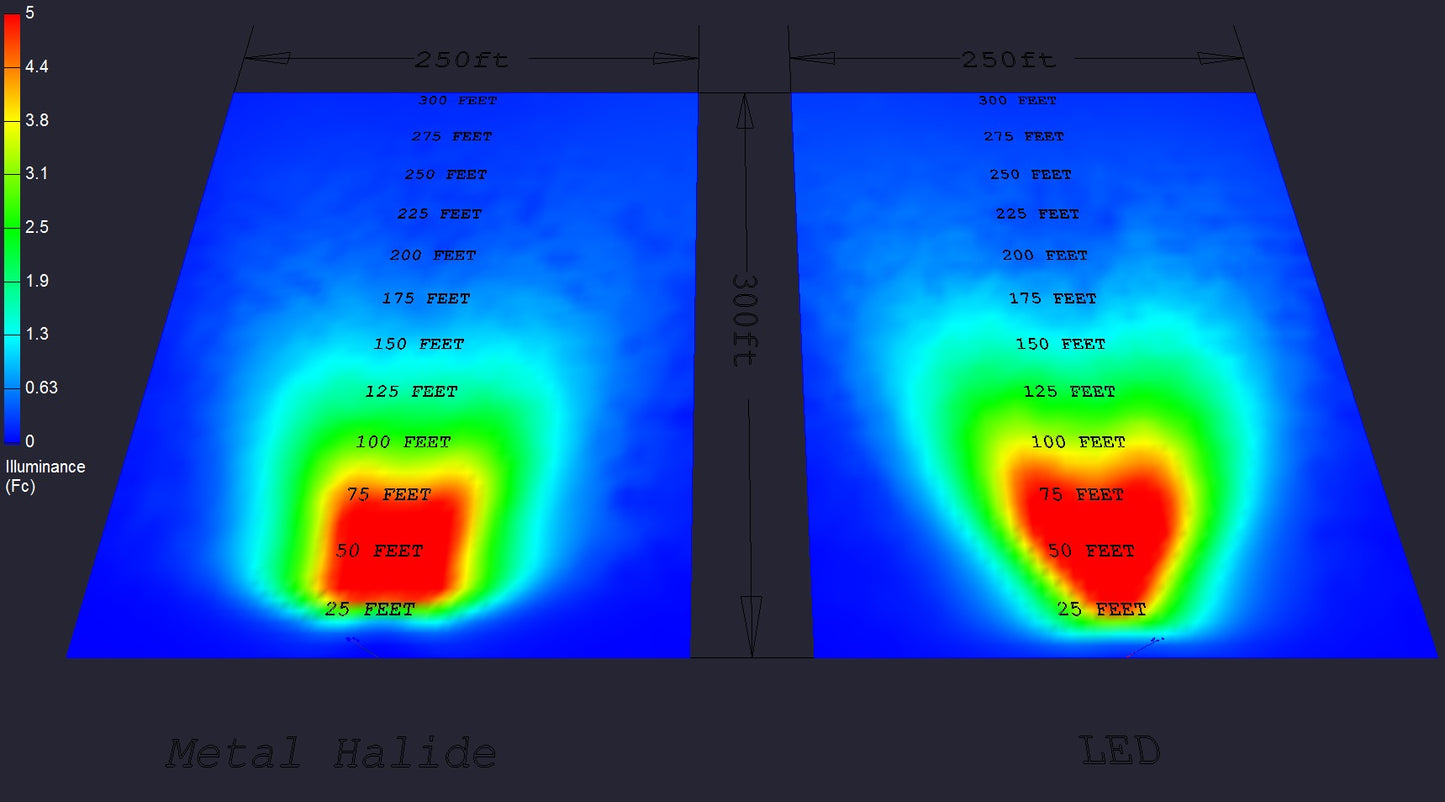

Performance Comparison to Metal Halide Systems
| Operation Mode | LED Runtime | Metal Halide Runtime | LED Advantage |
|---|---|---|---|
| Continuous | 225 hours | 100 hours | +125% |
| 8 Hours/Day | 28 days | 12 days | +15 days |
| 12 Hours/Day | 18 days | 8 days | +10 days |
| 18 Hours/Day | 12 days | 5 days | +6 days |
Annual Cost Savings (8-18 hours/day):
- Lower 48 States: Up to $8,004.45
- Northern Alaska: Up to $51,848.25
Applications
This light plant is suitable for:
-
- Construction and Industrial Sites
- Large-Scale Events
- Emergency and Disaster Response
- Remote Work Locations
