Larson Electronics 50' Pneumatic Megatower™ on 21 Foot Trailer - 11KW Genset - 110 Gallons - Lights NOT Included

DESCRIPTION

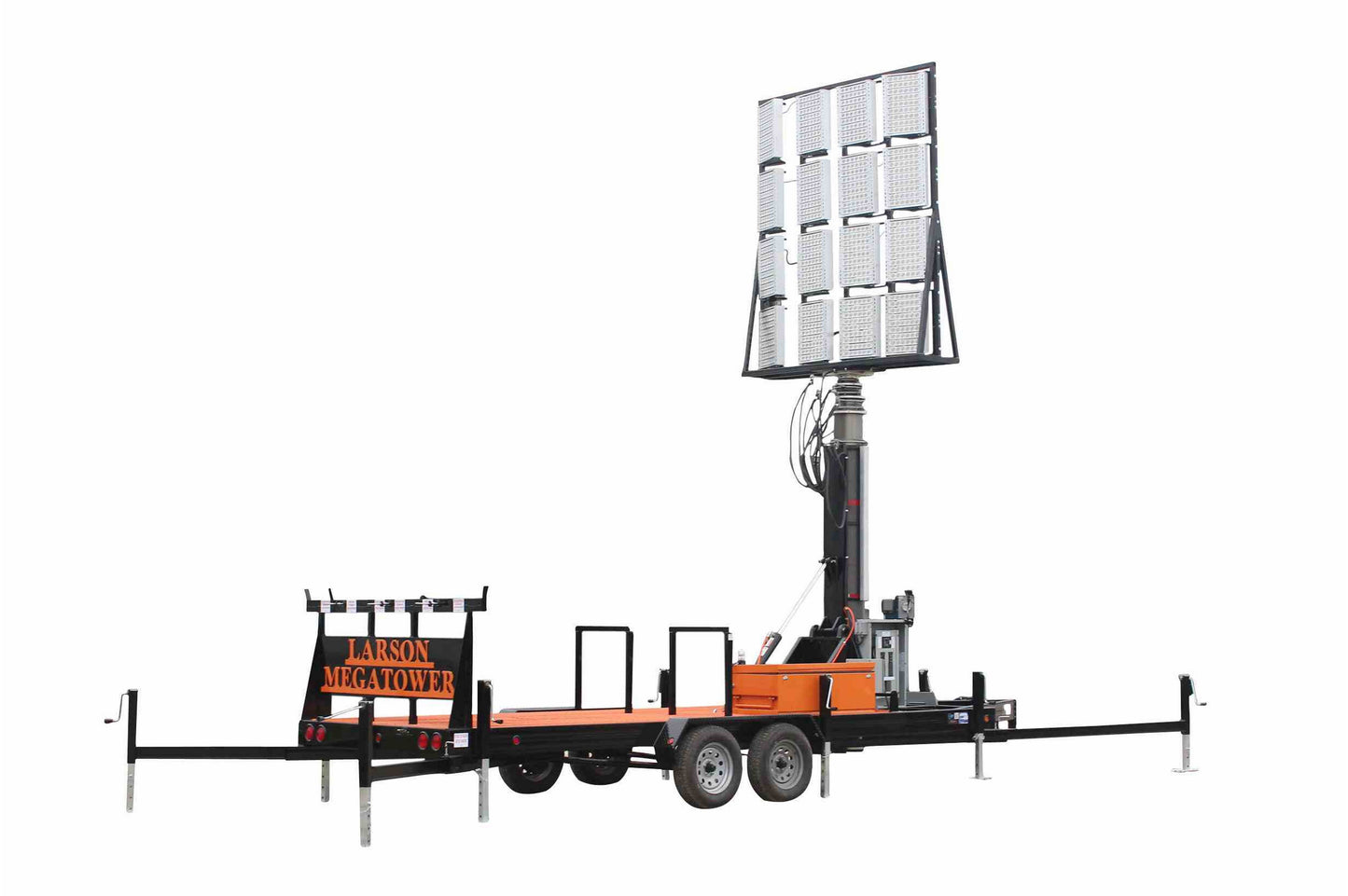

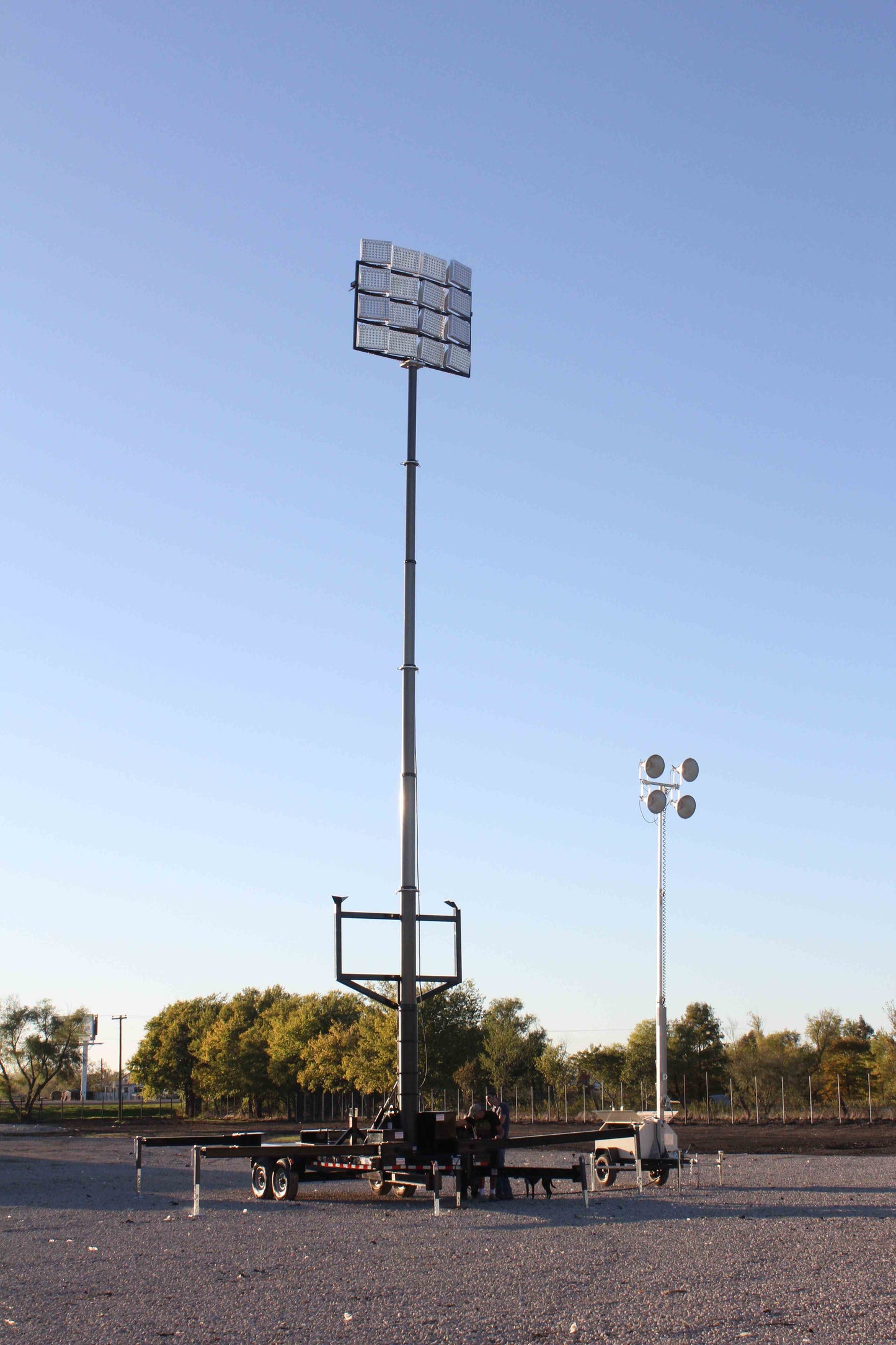

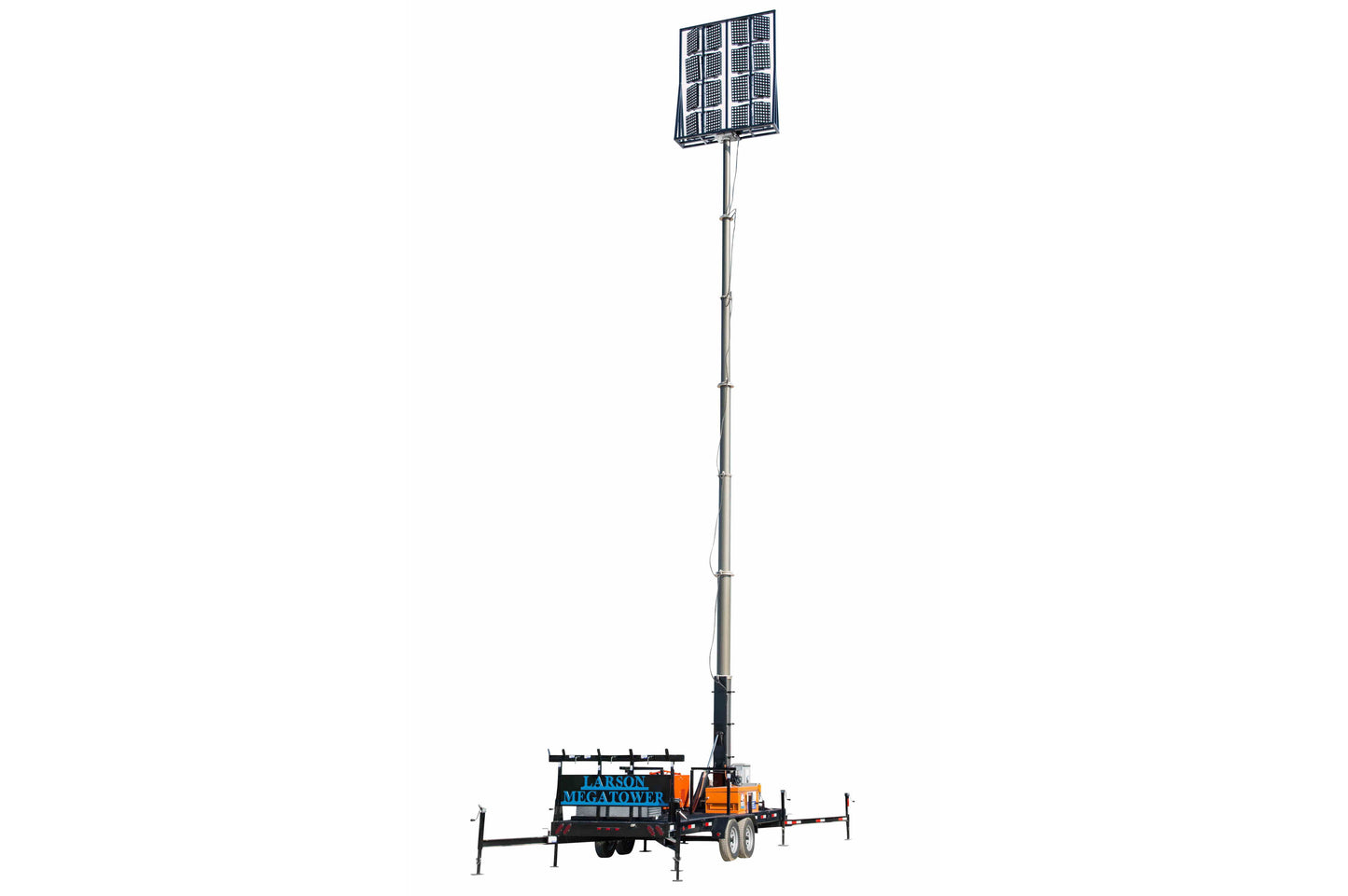

The WCDE-11-PLM50 Megatower™ is a self contained, towable, high power light tower package. This unit contains a water cooled diesel engine powering a 11KW Kubota generator, which supplies the current for customer provided lights and other equipment. This durable light tower can run uninterrupted for up to 43 continuous hours without refueling and includes a pneumatic telescoping light mast which can br elevatef to a height of 58`. This mobile light tower is ideal for large scale event illumination, construction, mining, industrial operations, and anywhere a mobile full power lighting system capable of extended operation is needed.

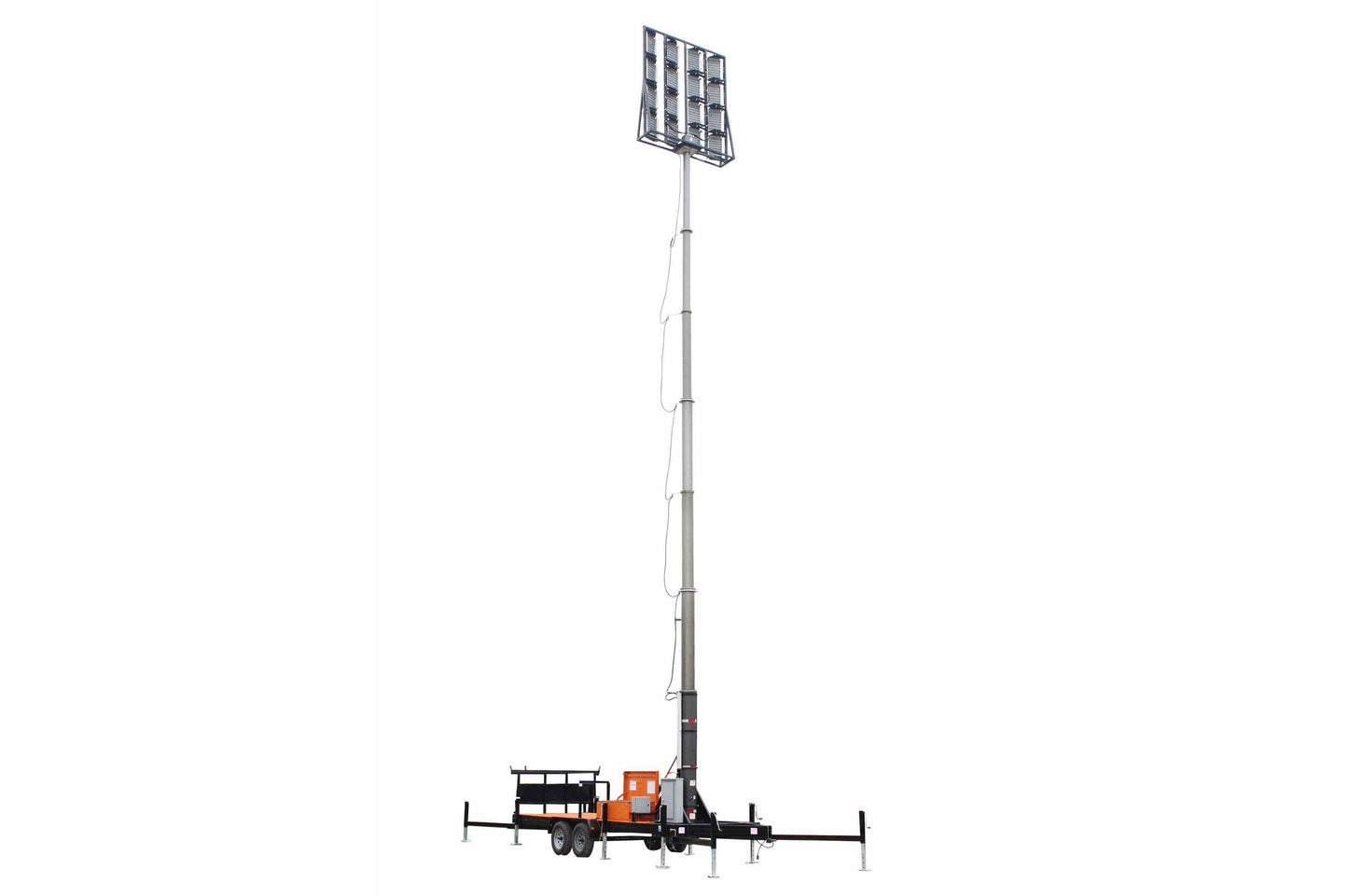

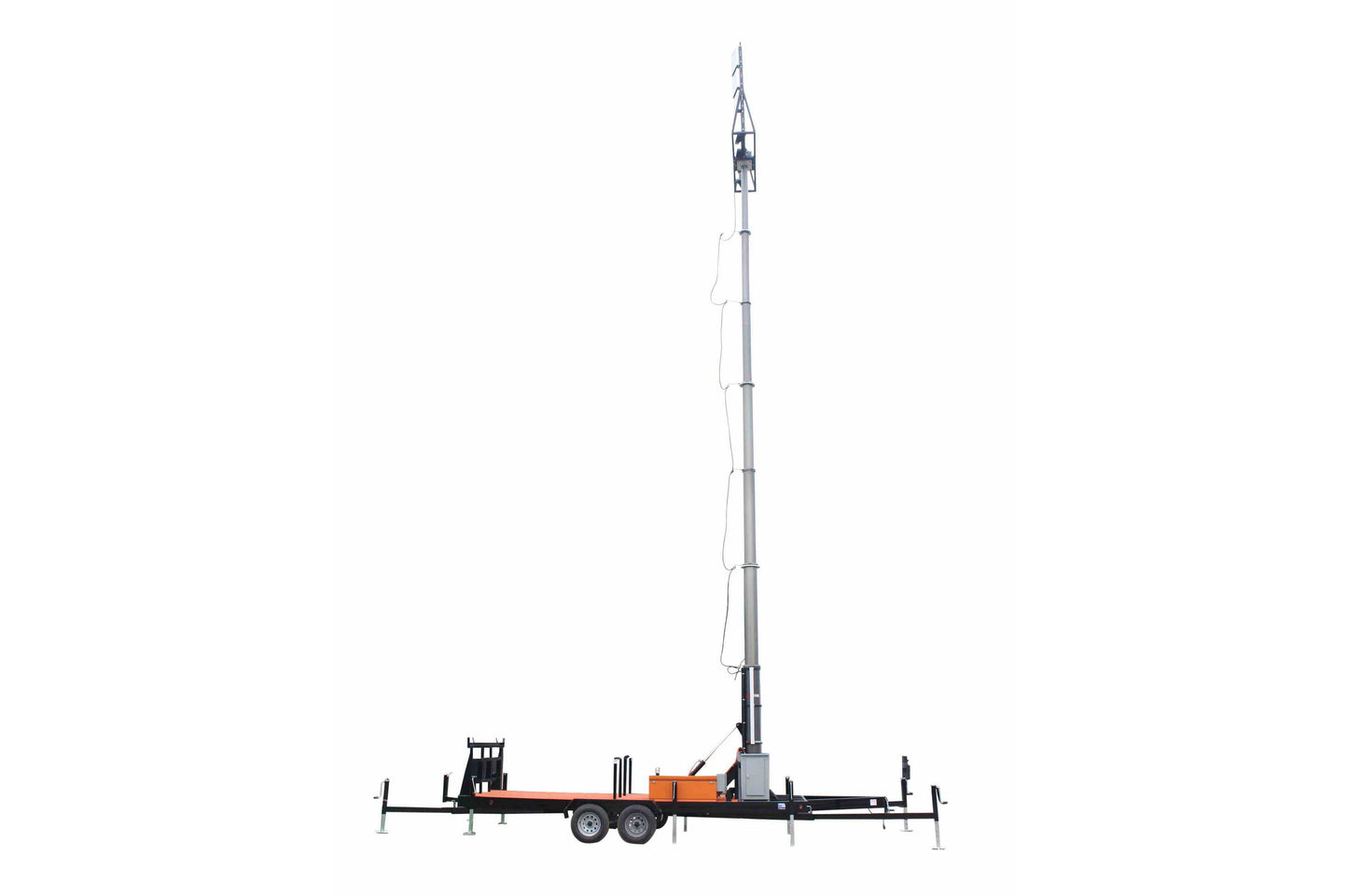

This telescoping seven stage pneumatic light mast from Larson Electronics’ is designed to allow operators to quickly and safely deploy customer provided lights and equipment in locations where they must be elevated to heights up to 58` for effective coverage. This light boom can be extended to 58` for maximum area coverage, and collapsed to 22` for applications where a footprint smaller is required. The tower is constructed of heat treated aluminum tubing with 2.69` foot of overlap per section. The mast is elevated using an included hydraulic ram, and extended to its full height using a trailer mounted air compressor.

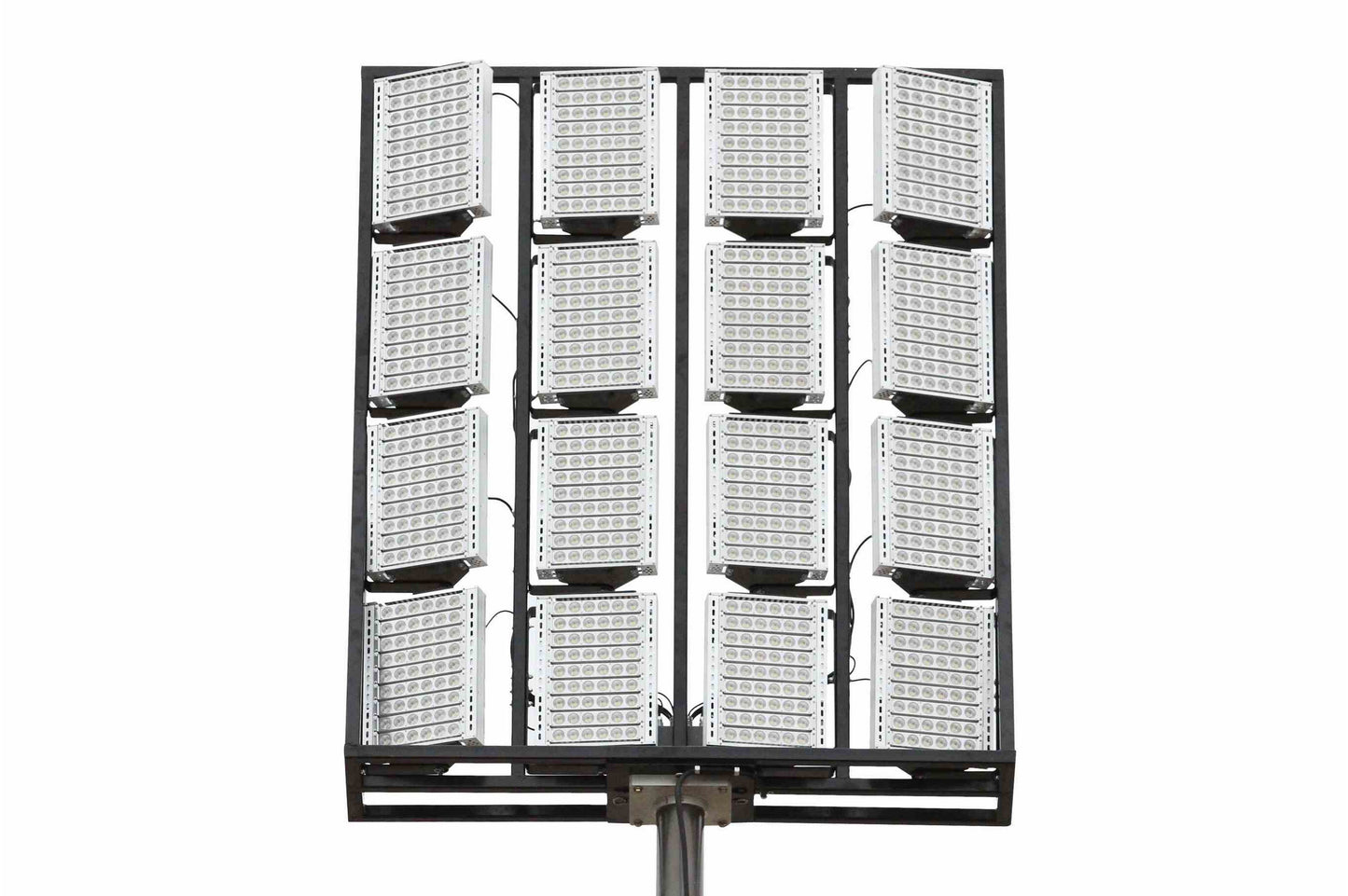

A 90" wide by 109.5" tall and 2" by 2" by 1/4" thick steel mast head is attached to the upper section of the mast which provides a strong and stable platform for the sixteen 500 watt LED light heads.

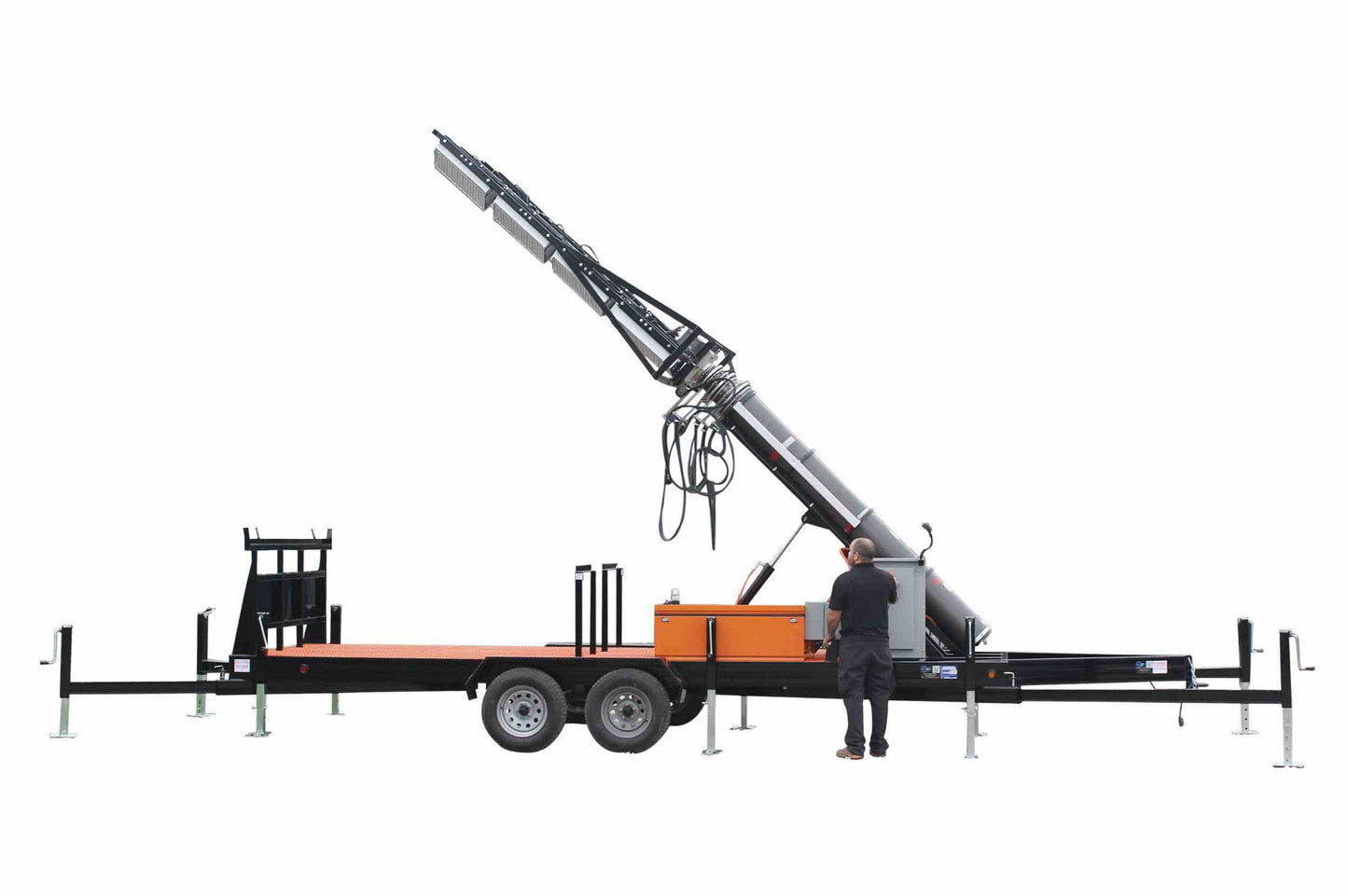

Telescoping Boom: The pneumatic telescoping boom is constructed of heat treated aluminum with an powder coated finish and extends up 58` in height. This boom is raised from and lowered to the folded position by a single hydraulic ram, and extended or retracted by pnumaitc system with equipped air compressor.

Wiring/Controls: Each bank is wired into the NEMA 3R breaker control box at the base of the mast. Operators control the light heads or equipment via an on/off switched breaker per bank of four. The air compressor and battery charger are also powered from within this breaker box. Power is provided to the control box via an integraged 11KW genset. The mast elevation is controlled by a push button switch to operate the hydraulic ram, allowing operators to raise the mast to the upright position. The vertical deployment is operated by an up/down level, allowing operators to extend it to its full 58` height or retract it to the collapsed height.

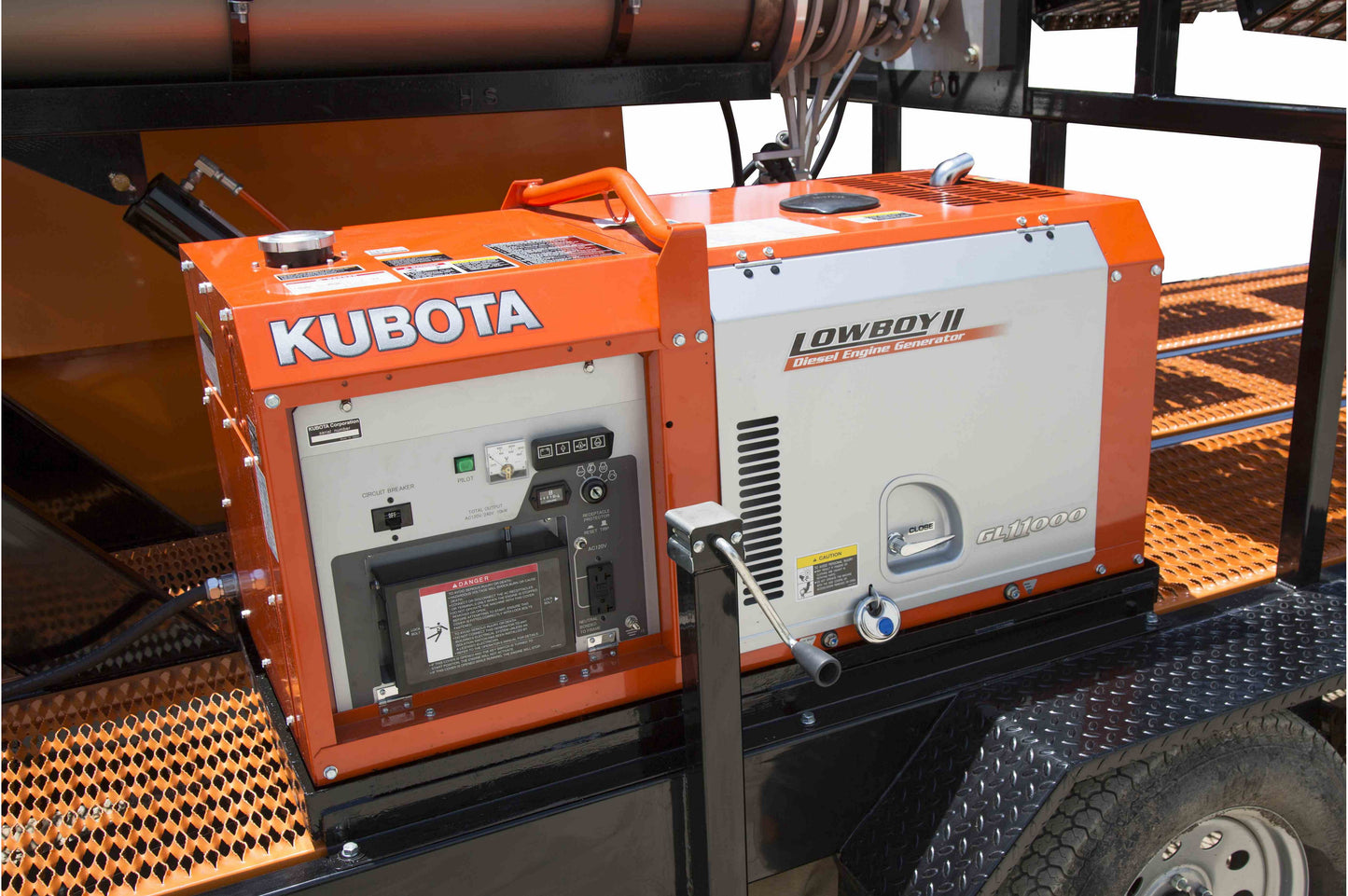

Genset: The WCDE-11-PLM50 Megatower™ includes a Kubota Lowboy II GL11000TM genset that houses a Kubota D722 diesel engine that powers the 11KW 120/240V brushless generator. This genset is liquid cooled and features a single phase generator with electric start ignition. The diesel generator runs at 3600 RPM and is equipped with an EPA/CARB Tier 4 emissions system. A 110 gallon fuel cell sits beside the genset and is equipped with an electric fuel delivery system. The fuel cell is constructed of single a heavy gauge steel single wall frame with internal anti-splash baffles. This genset features key operated electric starting, a twelve volt electrical system, liquid cooling, replaceable dry element air cleaner, and a full enclosure for safe operation and protection against the elements. This engine also features cold weather options to improve performance under cold weather conditions.

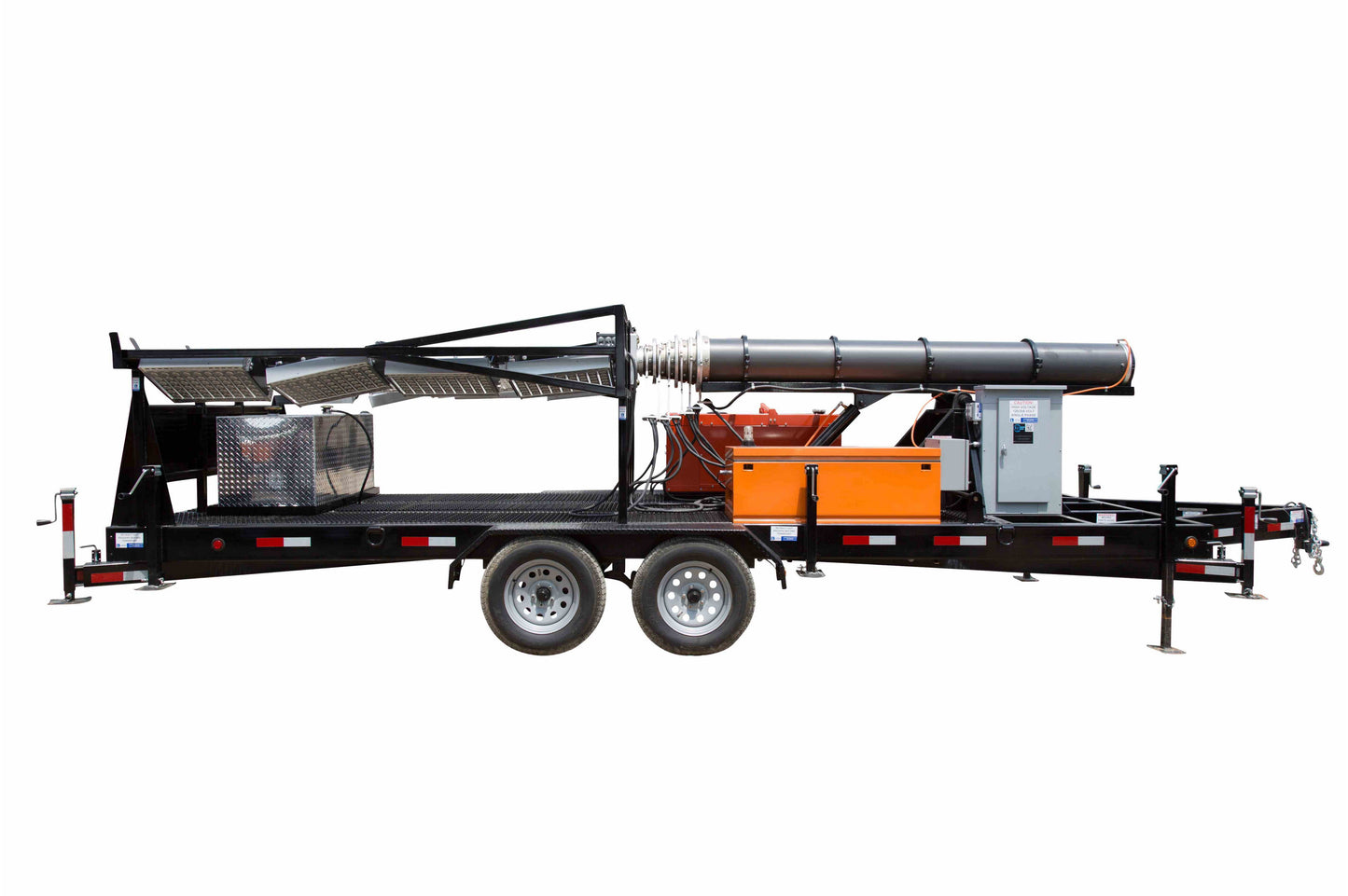

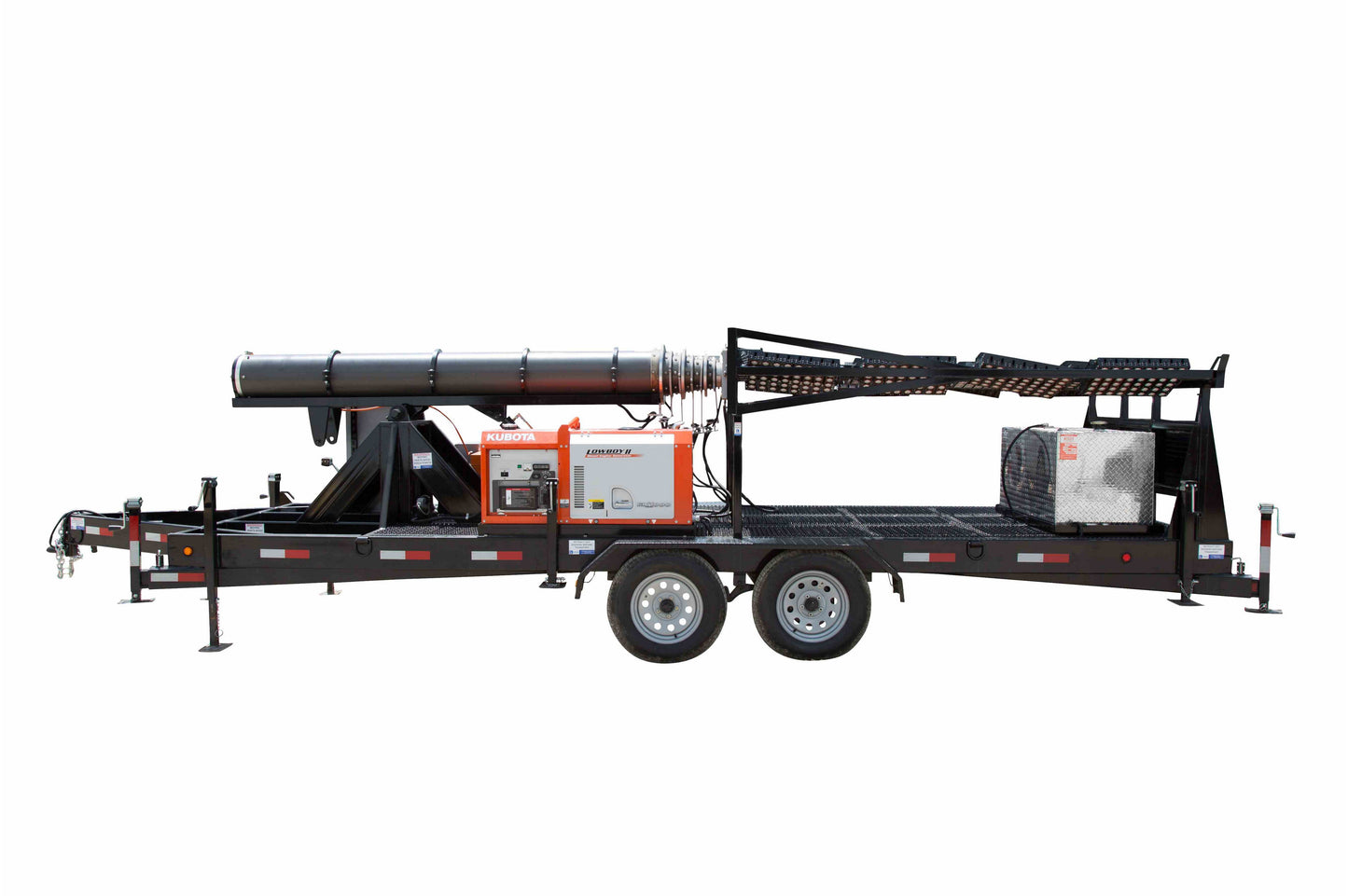

Trailer: The entire unit is mounted onto a four wheel, tandem axle trailer constructed of 8" box steel equipped with torsion axles. Each torsion axle is rated at 7,000 lbs and equipped with P235/80R16 tubeless tires and wheels. The rear axle is equipped with electric brakes. Tongue weight is rated at 650 lbs and an adjustable 3” lunnett eye for pintle hitches provides secure hookup to tow vehicles. A single 7,000 lbs rated tongue jack provides a stable connect-disconnect platform as well as additional stability during tower deployment. Standard heavy duty safety chains are included. This trailer also includes a front mounted storage area for stowing tools and accessories. The trailer is finished in industrial grade Dupont™ paint for protection against rust and corrosion and provides an attractive finish. Overall dimensions of the entire trailer and boom assembly in the stowed for travel configuration is 21` long by 8’ wide.

Trailer: The entire unit is mounted onto a four wheel, tandem axle trailer constructed of 8" box steel equipped with axles. Each axle is rated at 7,000 lbs and equipped with P235/80R16 tubeless tires and wheels. The rear axle is equipped with electric brakes. Tongue weight is rated at 650 lbs and an adjustable 3” lunnett eye for pintle hitches provides secure hookup to tow vehicles. A single 7,000 lbs rated tongue jack provides a stable connect-disconnect platform as well as additional stability during tower deployment. Standard heavy duty safety chains are included. This trailer also includes a front mounted storage area for stowing tools and accessories. The trailer is finished in industrial grade Dupont™ paint for protection against rust and corrosion and provides an attractive finish. Overall dimensions of the entire trailer and boom assembly in the stowed for travel configuration is 21` long by 7’ wide.

Six 7,000 lbs hand crank jacks are used for raising the trailer up off the ground, and four 7,000 lbs hand crank jacks mounted on extending outriggers are used for leveling and stabilizing the trailer assembly. Each of the four jacks are attached to a pivoting outrigger constructed of 6` by 6" by 6.3" steel I-beams. The jacks can be leveled by hand crank or attachment provided for power drills. These outriggers can be extended 6` out from the side of the trailer for added stability. This light plant can withstand 35 mph winds when fully extended. When lowered to 30`, the mast can withstand 50 mph winds. When lowered to 22`, the mast can withstand wind speeds up to 95 mph with gusts of 125 mph. Custom builds can be provided for higher wind speed resistance when fully raised.

Runtime: The WCDE-11-PLM50 is able to achieve up to 43 hours of continual use on a single tank of gas when only operating the light heads or equipment and air compressor. When running 24 hours a day and 7 days a week, this light plant will run for nearly 2 days straight without refueling. When the genset is running for 12 hours a day, this tower will provide on-site illumination for up to 4 days before needing more fuel.

We offer a choice of finishing, equipped light heads, and with or without gensets. These towers can be fitted with Larson Electronics line of high output light heads, or customize the mast head to meet the mounting requirements for your equipment. Optional diesel generators and fuel cells can be equipped from factory, or retrofitted after purchase.

Cold Weather Package: The WCDE-11-PLM50 is designed to withstand extreme cold environments and harsh winters. The pneumatic system is equipped with a de-icing system to prevent the air compressor, air lines, and pneumatic mast from freezing from moisture building within the air system. This de-icing system uses an environmentally friendly (non-toxic) fluid. All air lines are equipped with cold weather rated hydraulic hoses rated for -65°C and fitted with metallic hardware. The air compress consists of an oil-less unit equipped with an aluminum air regulator, stainless steel ball valves, and stainless steel valve controls. The head of the air compressor is wrapped with heat trace to prevent the compressor from freezing over in subzero temperatures. All the pneumatic controls are housed within an insulated and weather tight enclosure. This pneumatic control box features 1/2" thick polystyrene foam insulation and heat trace.

The hydraulic system features -65°C cold weather rated rubber hydraulic hoses with metallic fittings and a cold weather rated high viscosity hydraulic fluid. The battery system that powers the hydraulic system features a cold weather rated sealed acid glass mat 12 volt battery wrapped in a heated battery blanket. A cold weather rated battery charger keeps the 12 volt battery charged. All battery components are enclosed within a NEMA 3R housing. All electrical components are wired using cold weather rated SOOW cable with rated to -50°C that features high flexibility, and extreme abrasion, acid, oil, and water resistance even in sub-zero climates.

The Kubota genset is retrofitted with a coolant heater to keep engine temperatures at optimum levels. The fuel system is equipped with an in-tank fuel heater to prvent gelling in arctic environments. The genset is equipped with 0W-40 synthetic oil. The genset`s electric battery is equipped with a battery blanket.

Suggested Applications: Temporary lighting, construction sites, and security camera deployment. We can equip this mast with 1000W HID-22-SL-REM or 1500W HID-22-15M-SL-REM Metal Halide lights or a wide variety of high powered LED lights with comparable power, including the LED10WSA-160, LED10WSA-320, LEDP5W-30, LEDP5W-60, and GAU-HB-160LED.

SPECIFICATIONS

WCDE-11-PLM50 Trailer Mounted Megatower™

Genset Specs:

• Genset: Kubota GL11000TM
• Engine: Kubota D722 16.3 HP
• Engine Type: Vertical, liquid-cooled, 4-cycle diesel engine
• Engine Speed: 3600 RPM
• No. of Cylinders: 3
• Generator: 11KW 2-Pole Brushless
• Voltage: 120/240V Single Phase
• Battery 12V @ 36aH
• Fuel Cell Capacity: 110 Gallons - External Tank w/ Anti-Splash Baffles
• Fuel Delivery: Electric
• Sound Level: 68 dB - Full load @ 23` away
• Cold Weather Package: Yes -Factory Included

Light Mast Specs

• Tower Length: 13.5` to 50`
• Lamp Qty: (16)
• Materials: Heat Treated 6063B/T5 Aluminum
• Finish: Powder Coated
• Operation: Pneumatic w/ Hydraulic Ram

Trailer Specs

• Materials: Steel
• Trailer Dimensions: 21`-L x 8`-W trailer bed
• Height (Mast Collapsed): 9` 7"-H
• Height (Mast Extended): 56`-H
• Footprint (Outriggers Extended): 28`-6" x 19`-11"
• Hitch: 3" Lunnett
• Wiring: 7-Pin Flat
• Axles: 7,000 lbs Torsion w/ Electric Brakes
• Suspension: Torsion
• Outriggers: (6) 6` x 6" x 6" I-Beams Retractable w/ (6) 10,000 lbs Manual Leveling Jacks
• Wheels: (4) 16" 5x4.5" Steel Rims
• Tires: (4) P235/80R16

Quick Summary

• 11KW Kubota Brushless Genset
• 110 Gallon External Fuel Cell
• Cold Weather Package Factory Installed
• Up to 43 Hour Continuous Operation
• 13.5` to 50` Light Mast
• Pneumatic Aluminum Mast
• Steel Construction Trailer
• Electric Air Powered Mast Operation
• 1/3 HP Electric Air Compressor
• Extreme Area Coverage
• Multiple Banks for Heat Dispersion
• All Equipment Mounted on a 21` x 8` Trailer
• Steel Trailer w/ Industrial Grade Paint Finish
• Towable Height Under 13` w/ Light Heads
• 6-Point Outrigger System
• 10,000 lb Leveling Jacks
• Powered Boom Deployment

Larson Electronics LLC manufactures a wide variety of products, including custom built to spec designs. The pictures displayed for this unit are a general representation of form factor for the product line and may not accurately represent this exact configuration in every detail due to custom builds and changes between similar products in our standard catalog. The specifics for this configuration are listed in the specification table and supporting documentation (CAD files, Dimensional Drawing, Name Plate Diagram, Wiring Diagram, etc.). This means that specific details (receptacles, plugs, wires, connections, mounting brackets, external finishes, etc.) may not be accurately represented in images vs specifications. Please review specifications and do not order based solely on images.
