Larson Electronics 97' Hydraulic Megatower™ Light Plant - 33' Trailer - (20) 500W LED Fixtures - 20KW Genset w/ 110 Gal

Product Description

Larson Electronics 97' Hydraulic Megatower™ Light Plant - 33' Trailer - (20) 500W LED Fixtures - 20KW Genset w/ 110 Gal

Description

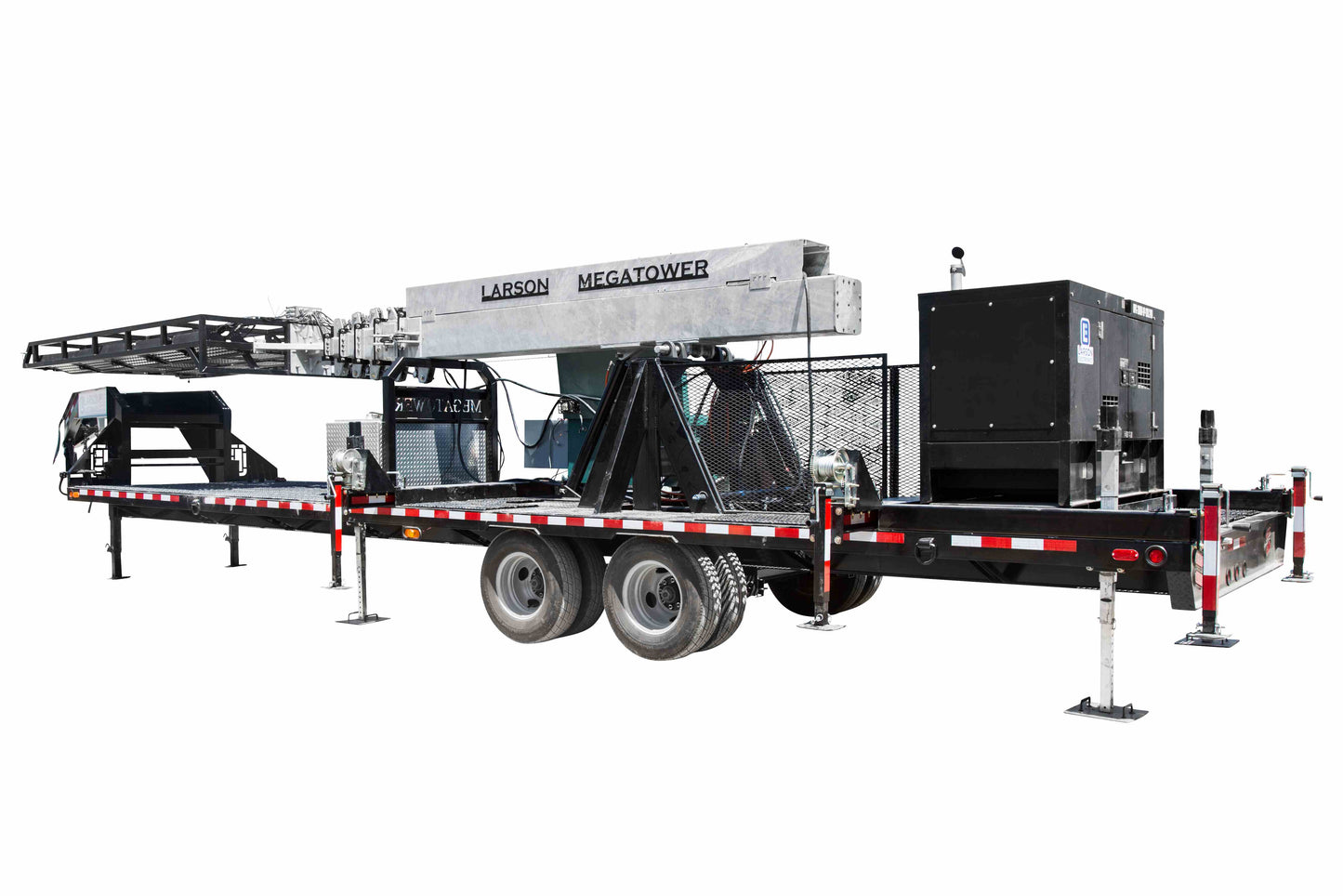

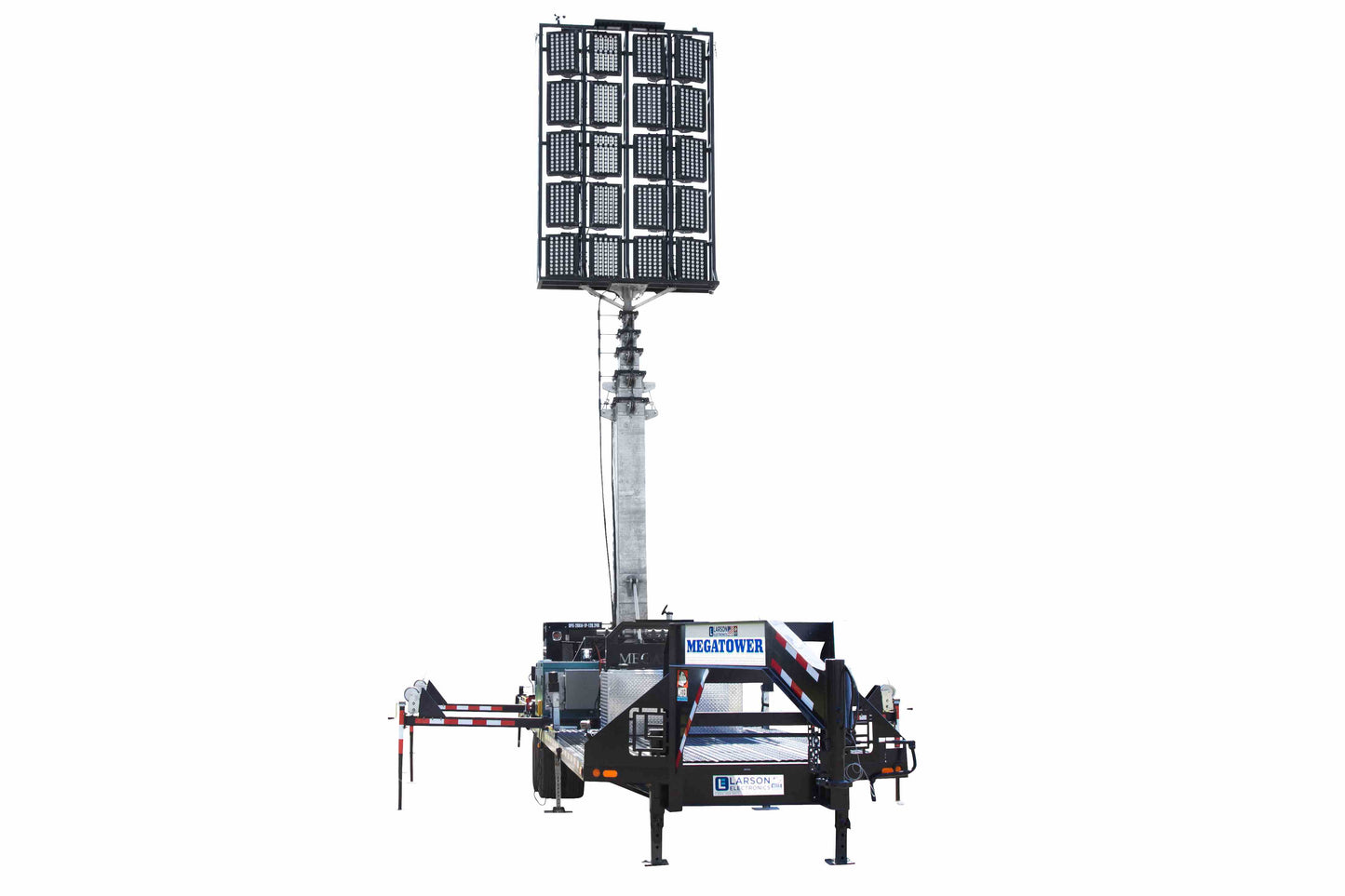

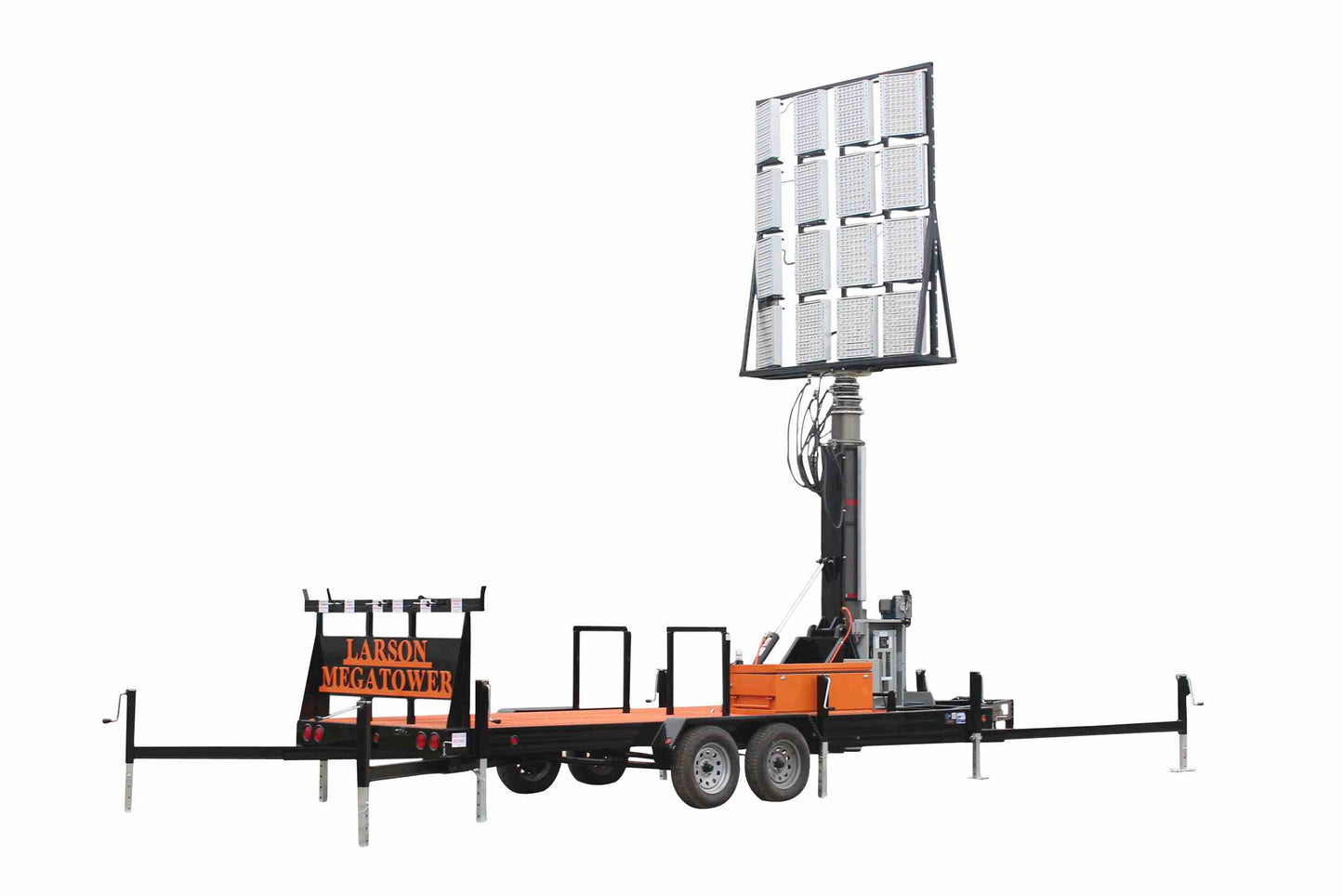

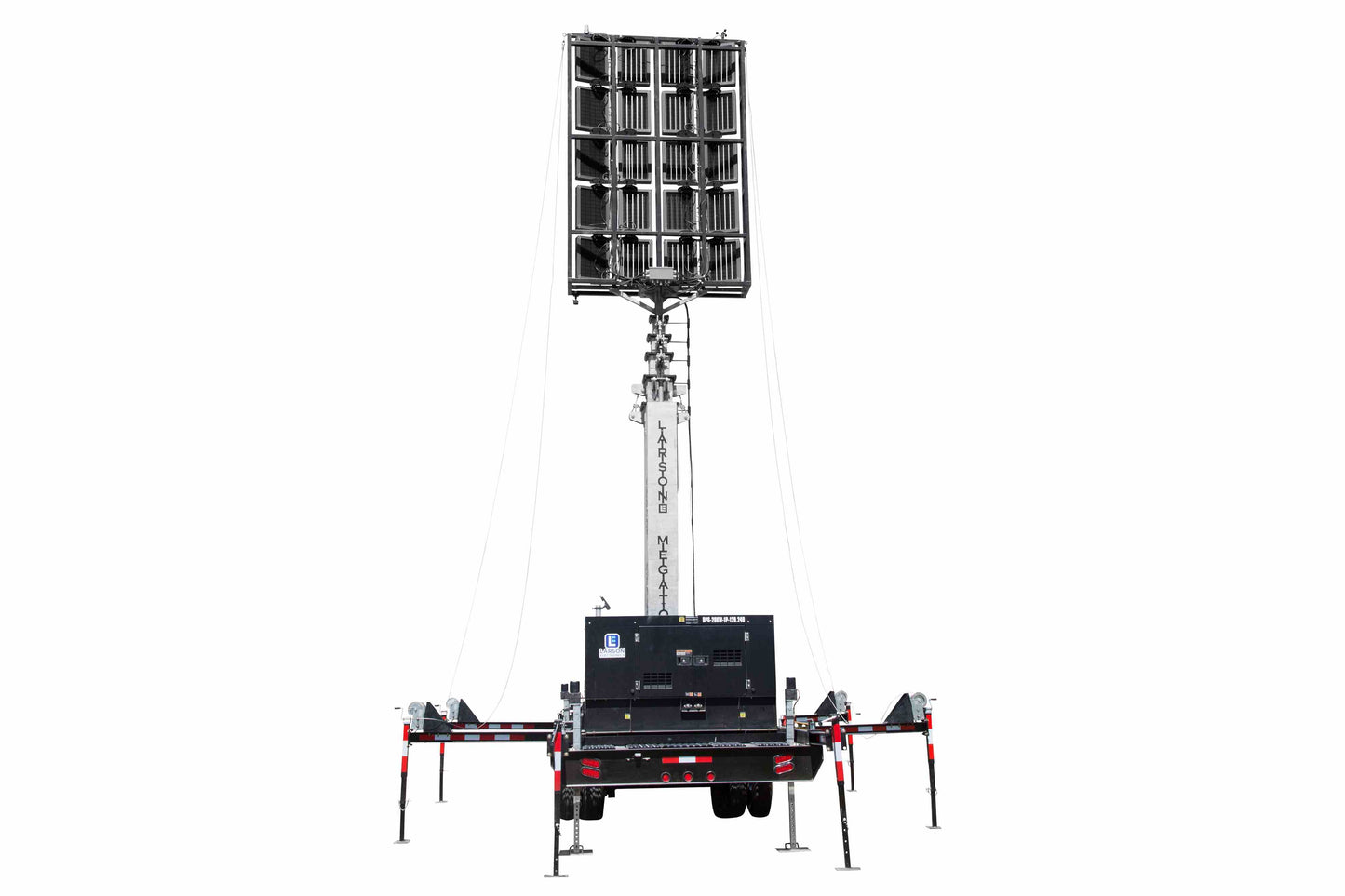

The WCDE-11-HLM85-16X500LTL-LED LED Light Plant by Larson Electronics is a high-powered, self-contained, and towable LED light tower, designed for large-scale, high-intensity illumination needs. With its hydraulic telescoping mast, which extends to an impressive 97 feet, and twenty 500-watt LED lights producing a combined 1,350,000 lumens, this unit is well-suited for lighting expansive work sites, outdoor events, mining operations, and challenging terrain where robust and continuous illumination is essential.

Key Features

• Lumens Output: 1,350,000 lumens total (67,500 lumens per light head), with even distribution for wide-area coverage.

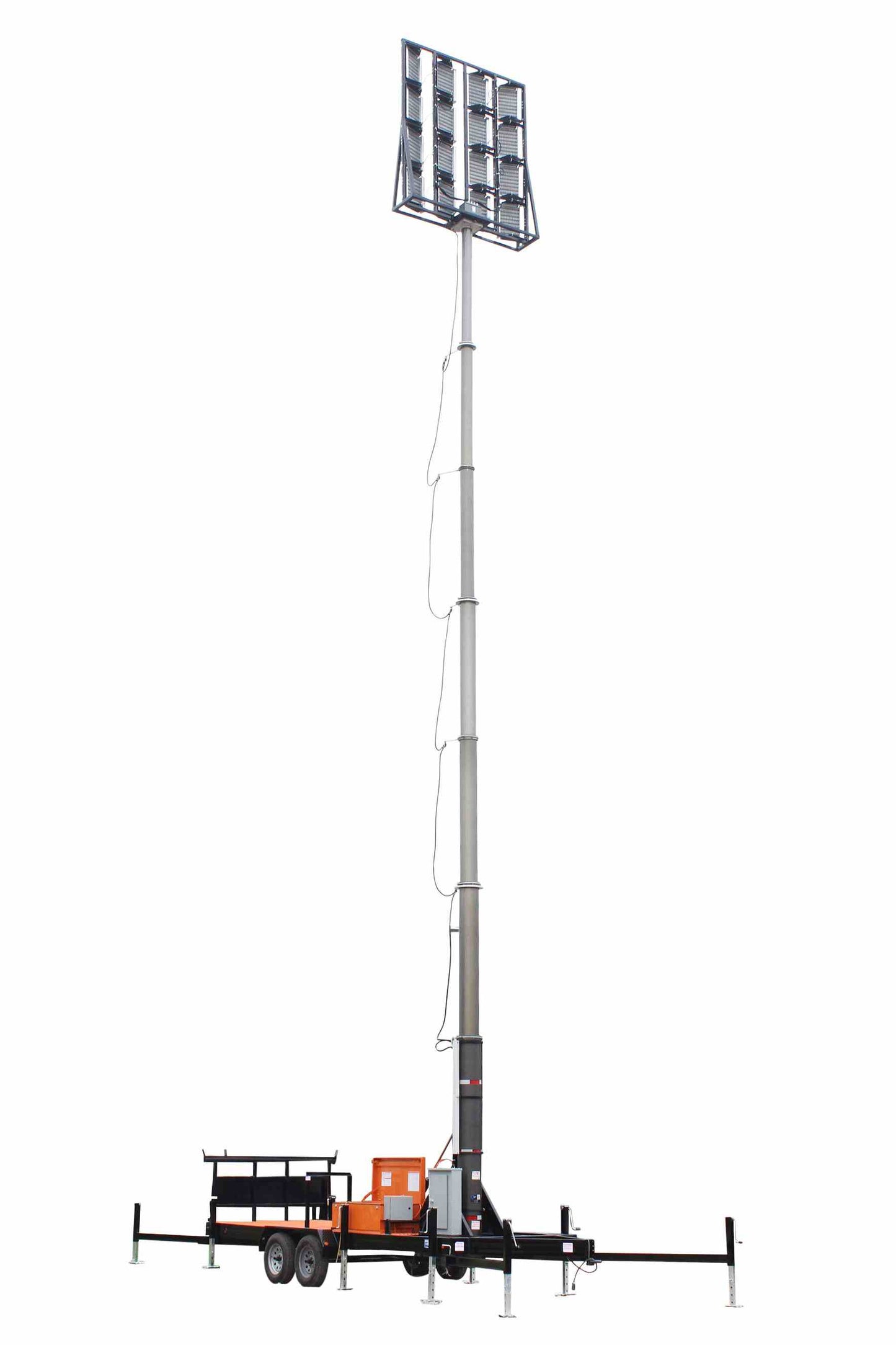

• Mast Height: Telescoping hydraulic mast extends from 30 to 97 feet, with a transport height of 33 feet for compact storage.
• Generator and Runtime: Equipped with a 20KW Kubota brushless generator, allowing up to 43 hours of continuous operation on a single tank (110 gallons).
• Cold Weather Package: Integrated de-icing system, heated fuel tank, coolant heater, and -65°C rated hydraulic lines for harsh climates.
• Heavy-Duty Construction: Carbon steel mast, galvanized finish, with a 12" I-beam steel trailer designed for stability on rough terrain.
• Environmental and Safety: IP67-rated LED lights for weather resistance, with no harmful gases, reduced heat, and complete recyclability.

Detaileed Specifications

• Lighting:

  • Lamp Type: CREE LED, 10,000W total
  • Color Temperature: 5000K
  • Efficiency: 135 lumens per watt, with a 70% lumen retention after 80,000 hours

• Generator:

  • Engine Type: Perkins 28.9 HP liquid-cooled diesel
  • Voltage: 120/240V Single Phase
  • Fuel Capacity: 110 gallons with anti-splash baffles, allowing for extended runtime and reduced refueling needs
  • Sound Level: 68 dB at full load, 23 feet away

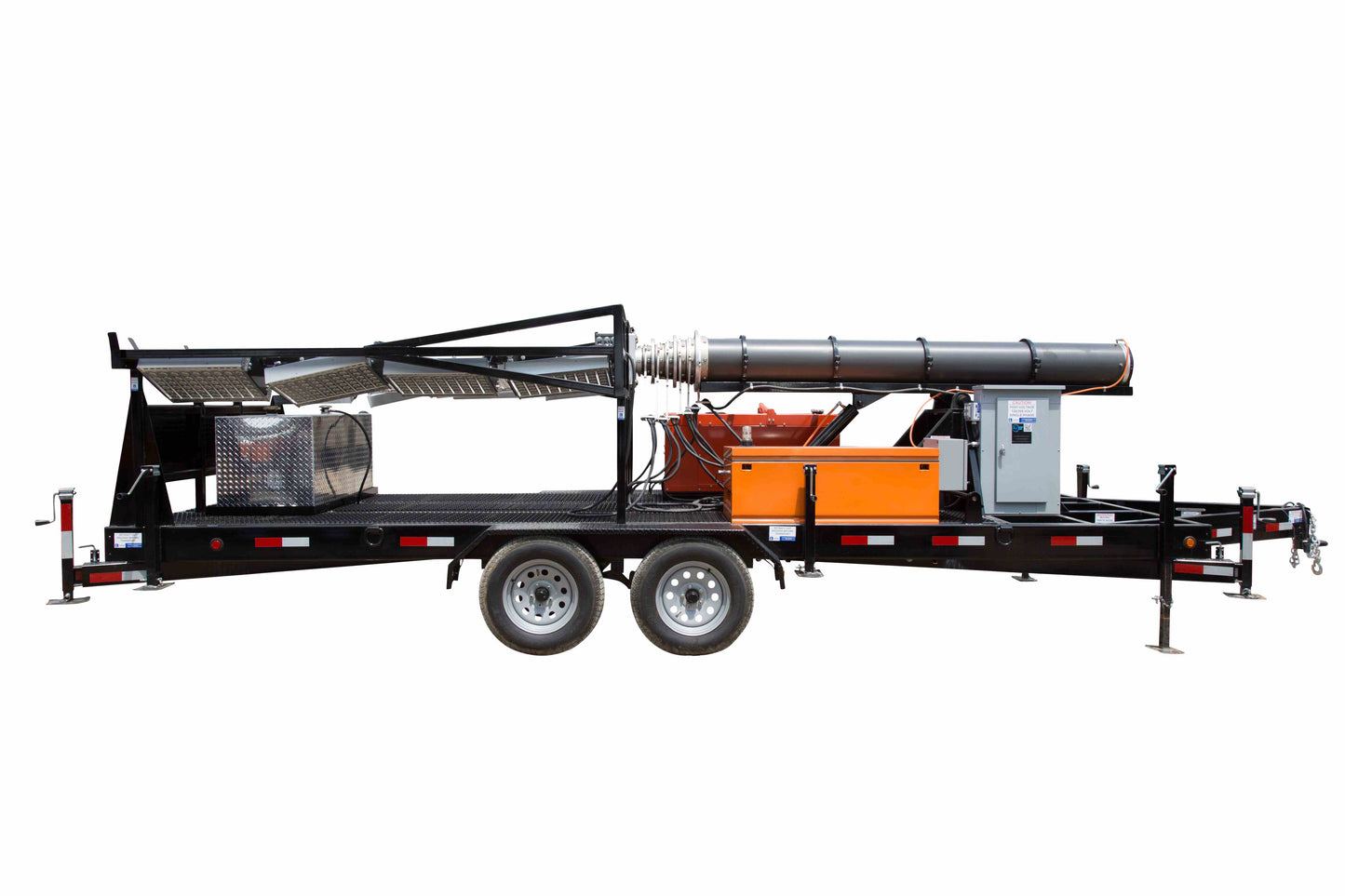

• Trailer Specs:

  • Construction: 33-foot steel bed, dual tandem 10,000 lb axles with P235/80R16 tubeless tires
  • Outriggers: 6-point, 12" I-beam extendable outriggers with 7,000 lb manual leveling jacks for stability
  • Tow Compatibility: Gooseneck hitch with standard heavy-duty safety chains

Durability and Heat Management

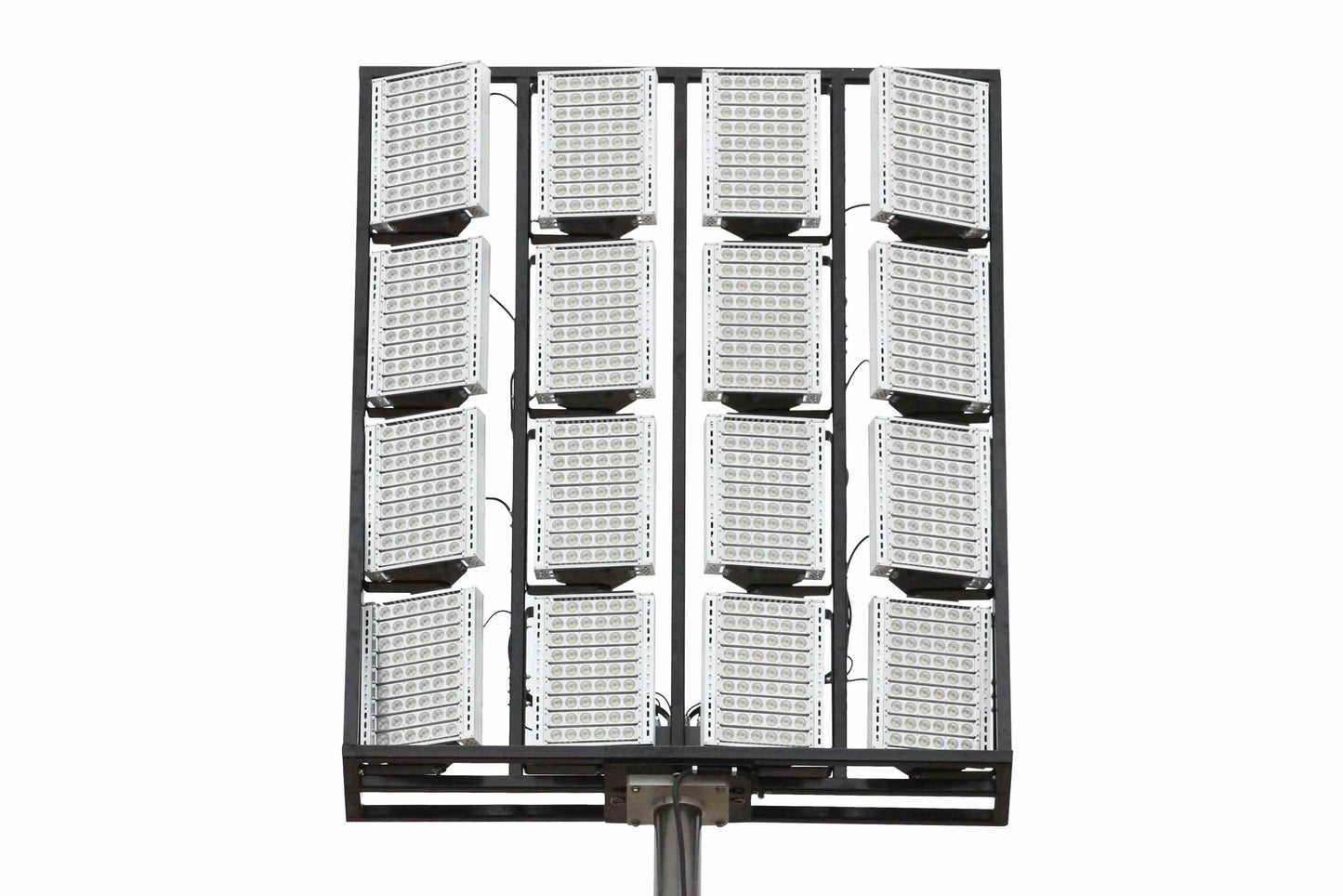

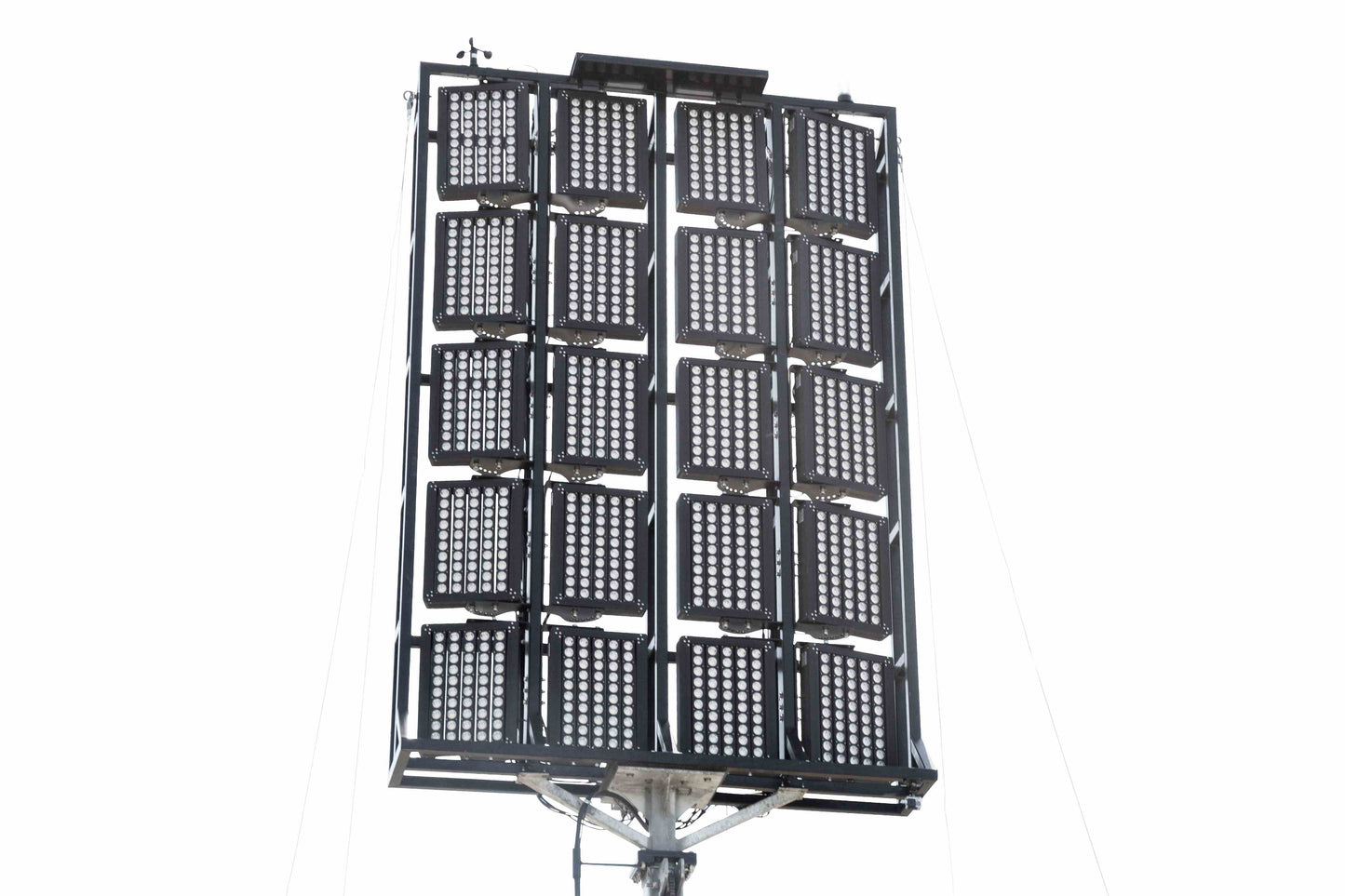

The light heads are equipped with high-efficiency PMMA optics and engineered heat sinks for optimal cooling, ensuring longevity and performance even under extreme environmental conditions. The IP67-rated construction is designed for withstanding temperatures from -40° to +85° Celsius, making the system highly reliable in diverse and challenging climates.

Applications

Ideal for construction sites, large outdoor events, job sites, and any applications requiring a self-contained, large-scale illumination source. This tower provides a durable and energy-efficient alternative to traditional metal halide systems with customizable light head options, ensuring maximum flexibility and brightness.

Quick Summary

• Mast Range: 33.5 to 97 feet with hydraulic boom deployment
• Fuel Efficiency: 43 hours of continuous operation
• Wind Resistance: Stabilizes in winds up to 125 mph
• Maintenance: External oil pump with extended 3,000-hour service intervals
• Modular LED Banks: Adjustable light heads, breaker-controlled for individual lighting needs
• Transport and Storage: Compact transport height under 13 feet, with gooseneck hitch for secure towing
