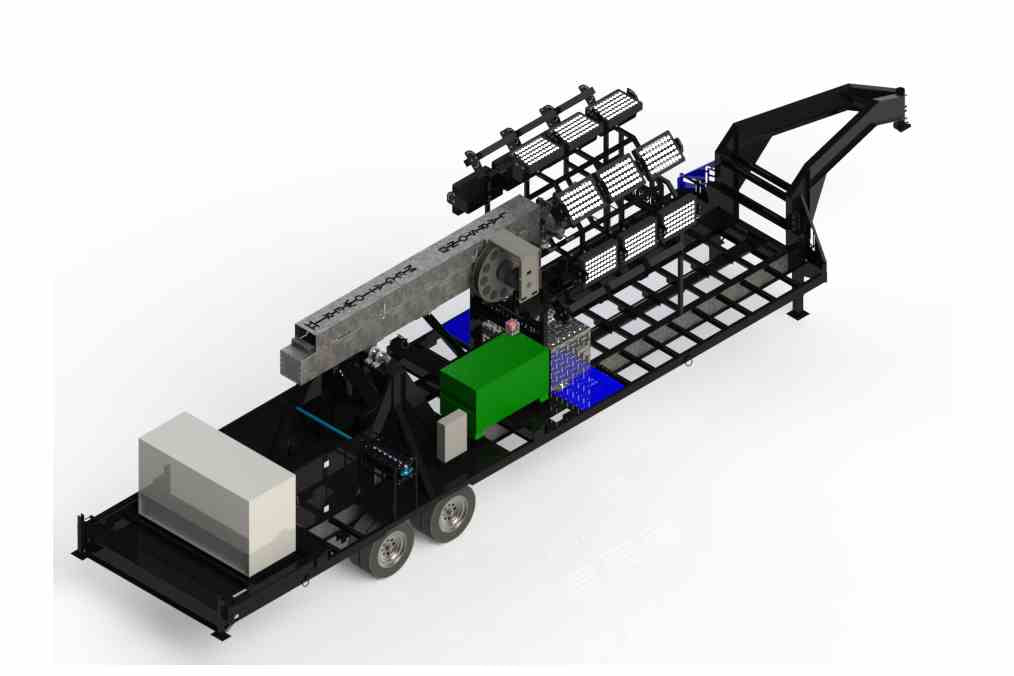

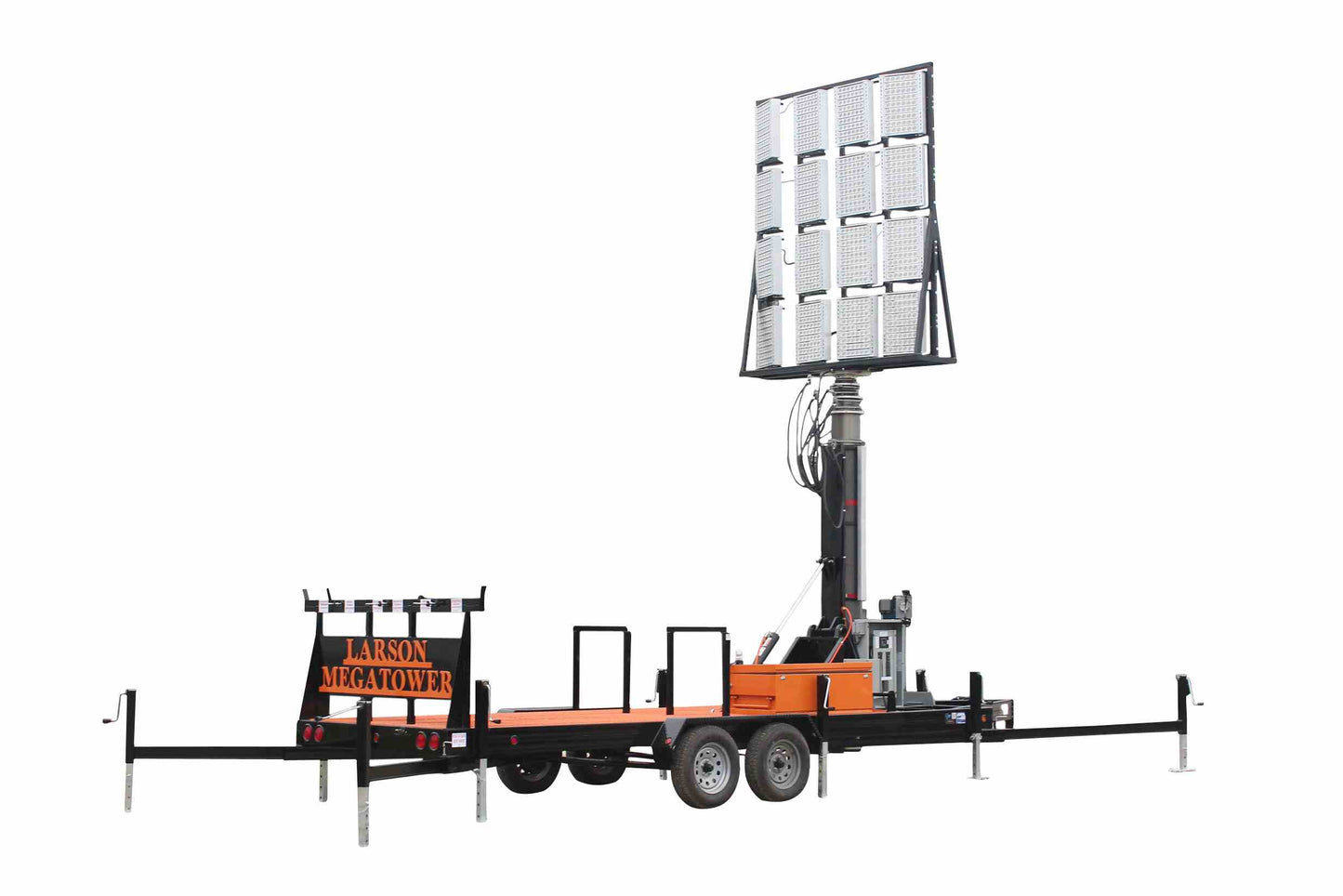

Larson Electronics MegaTower 50' Pneumatic Megatower™ - 21 Foot Trailer - Extends 22-58 Feet - 48V - (16) 480 Watt LED

Product Description

Larson Electronics MegaTower 50' Pneumatic Megatower™ - 21 Foot Trailer - Extends 22-58 Feet - 48V - (16) 480 Watt LED

Description

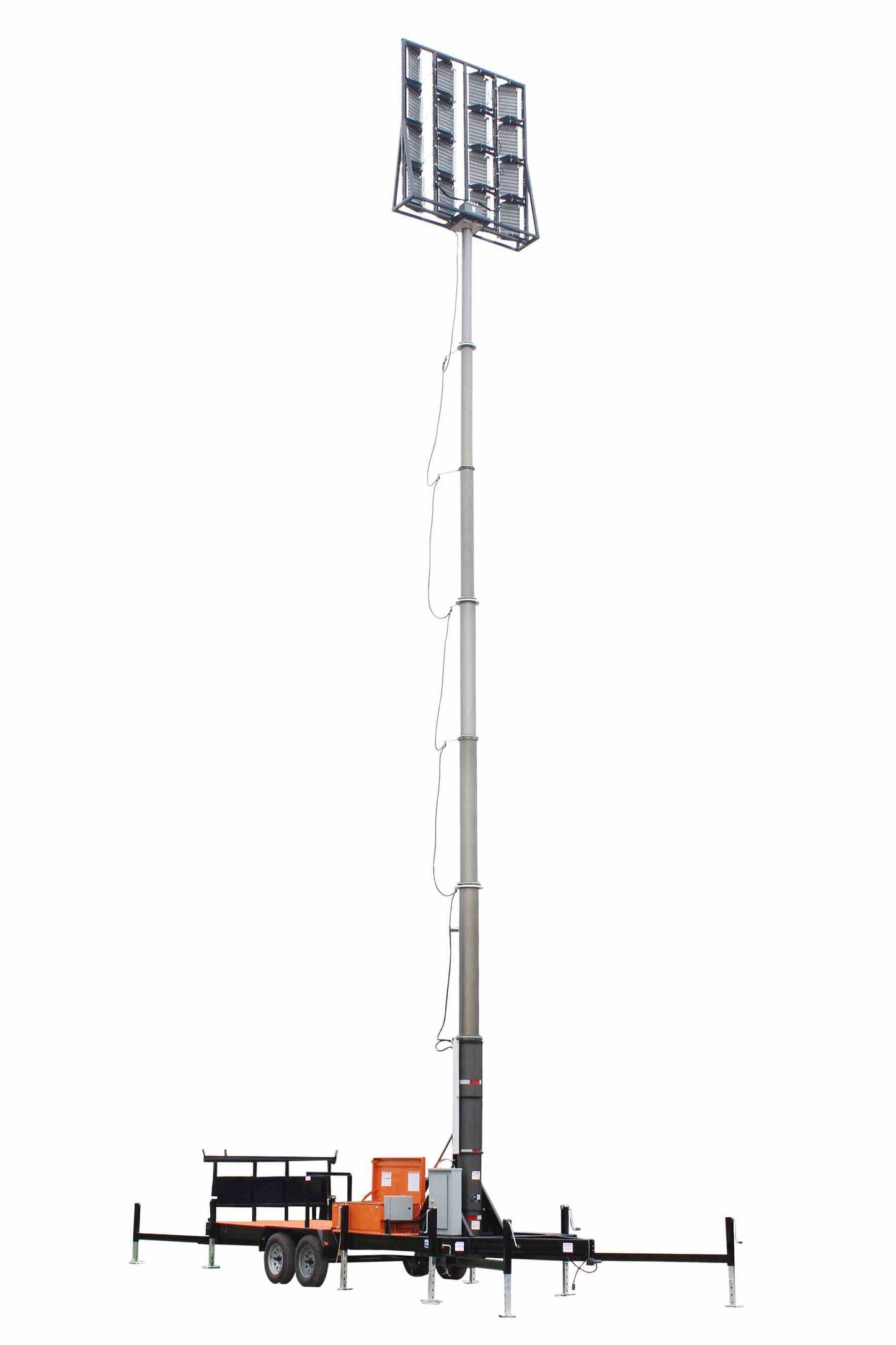

The Larson Electronics 7-Stage Pneumatic Megatower™ is an advanced telescoping lighting solution for large, high-intensity illumination needs, reaching heights up to 58 feet. Designed for robust outdoor use, this Megatower™ delivers 1,036,800 lumens with sixteen 500W LED light heads, ensuring expansive light coverage across construction sites, event spaces, and other temporary setups requiring bright, high-elevation lighting.

Key Features

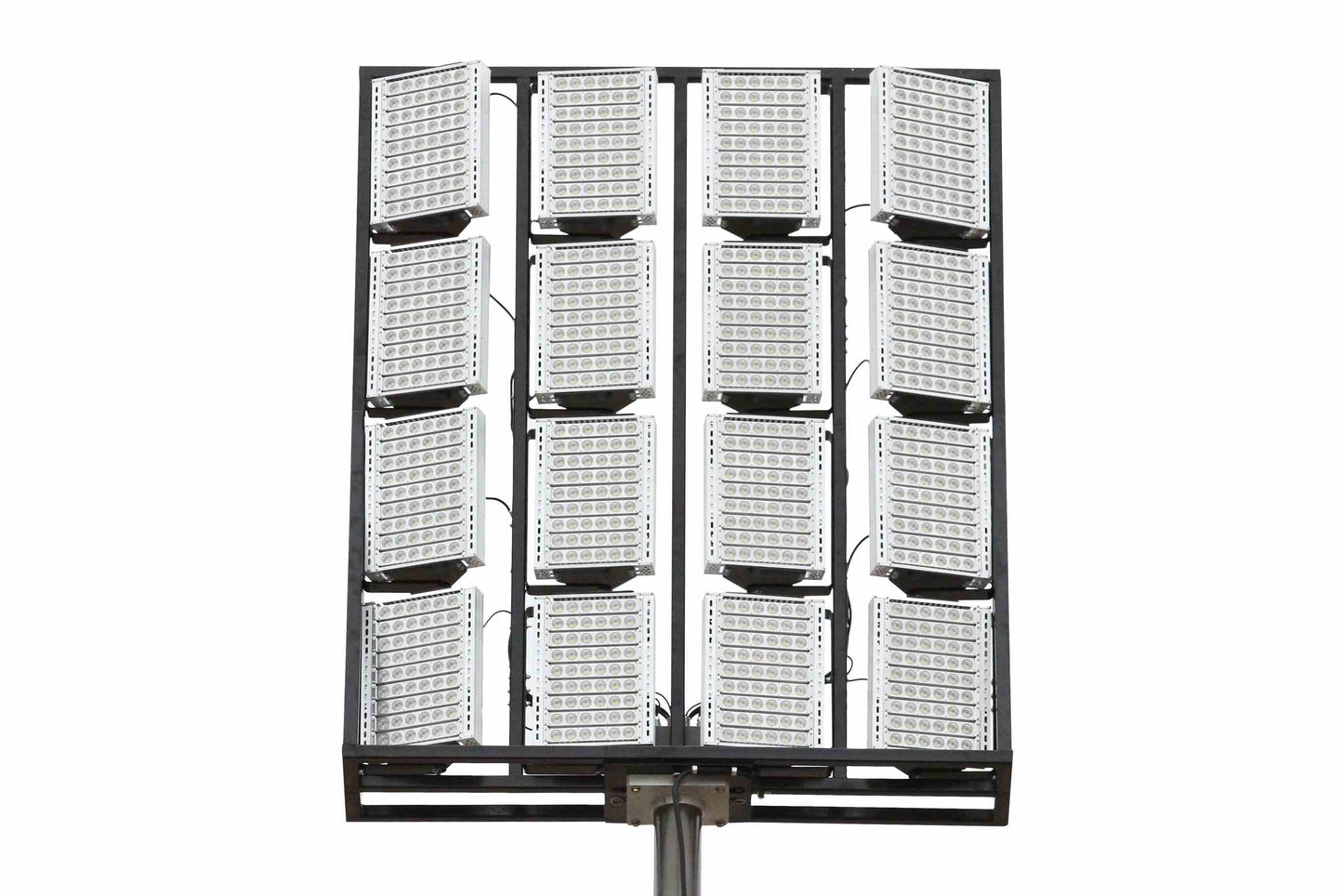

• Lumens Output: 1,036,800 lumens total (64,800 per light head) with high-output CREE™ LEDs, offering options for 10° spot to 90° flood beam spreads.

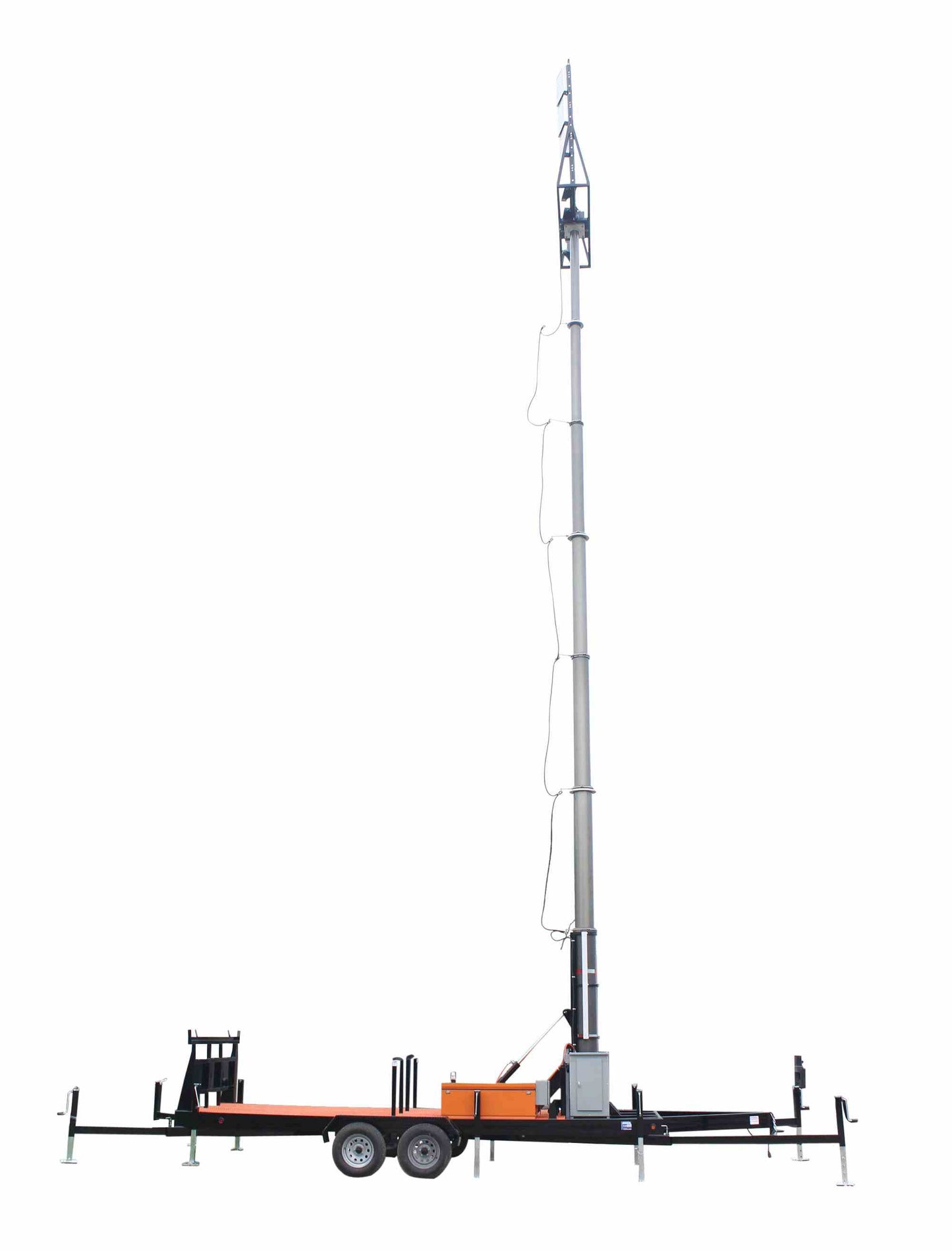

• Extendable Mast Height: Seven-stage pneumatic mast extends from 22 to 58 feet with a hydraulic lift system for flexible positioning.
• Heavy-Duty Construction: Powder-coated aluminum mast with steel trailer base, durable enough for rough conditions and weather extremes.
• Durability and Weather Resistance: IP67-rated LED heads withstand -40° to +80°C, offering resistance to dust, dirt, and water, with die-cast aluminum housings.

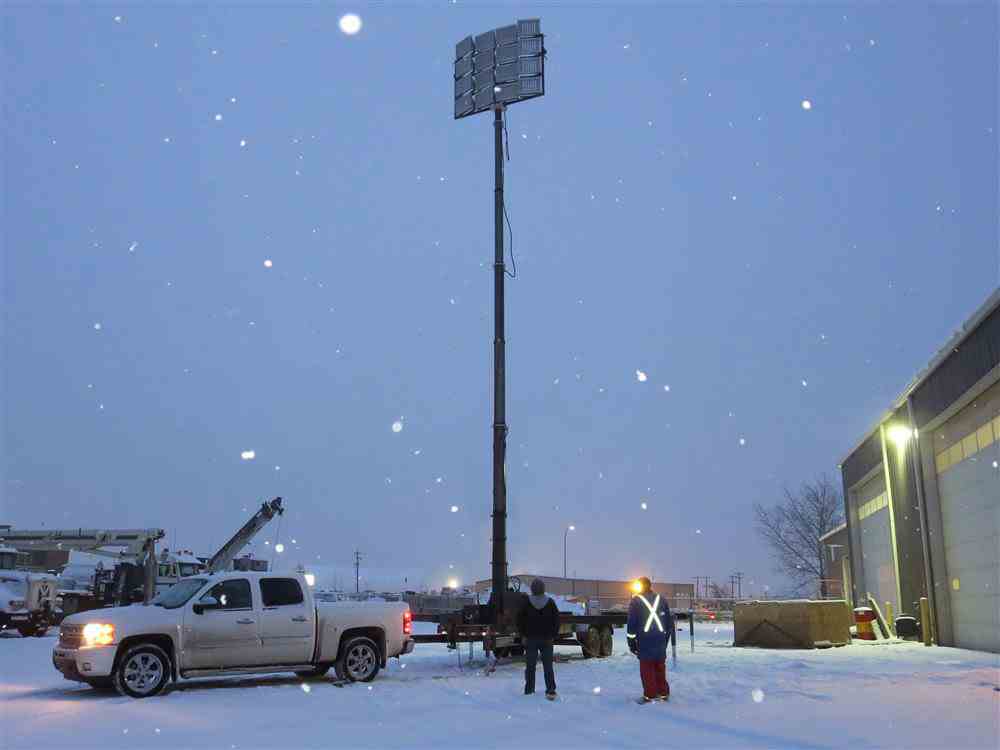

• Cold Weather Package: Includes a de-icing system, insulated controls, and heated enclosures, operating reliably in temperatures down to -65°C.

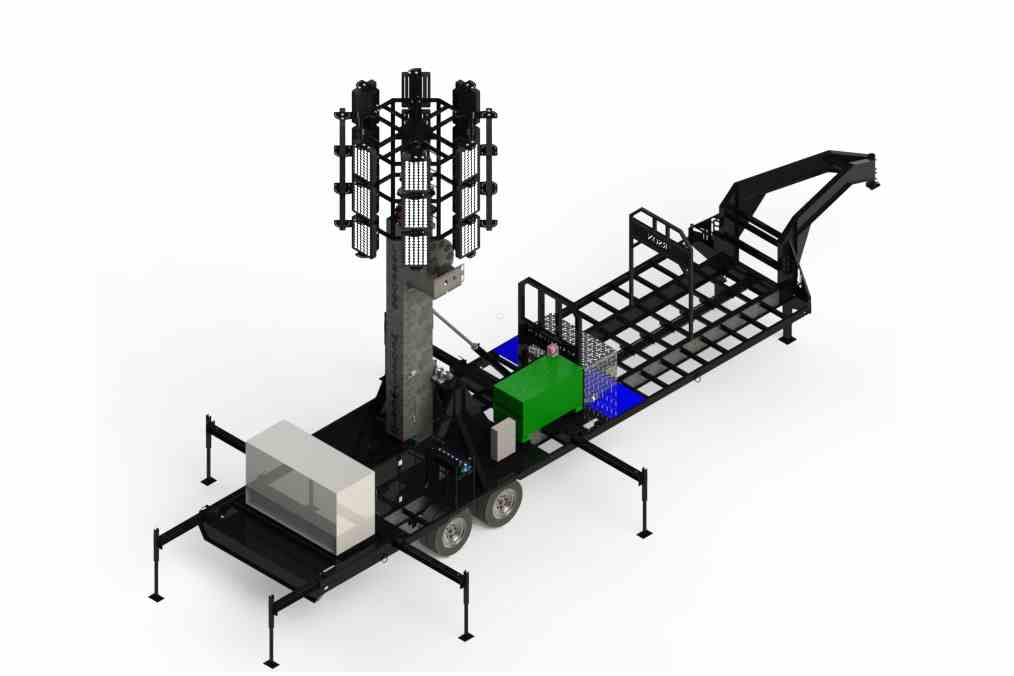

• Trailer and Stability: Equipped with tandem 7,000 lb axles with electric brakes, and a 4-point I-beam outrigger system for wind resistance up to 125 mph.

Detailed Specifications

• Lamp Type: CREE LED with a total wattage of 7,680W

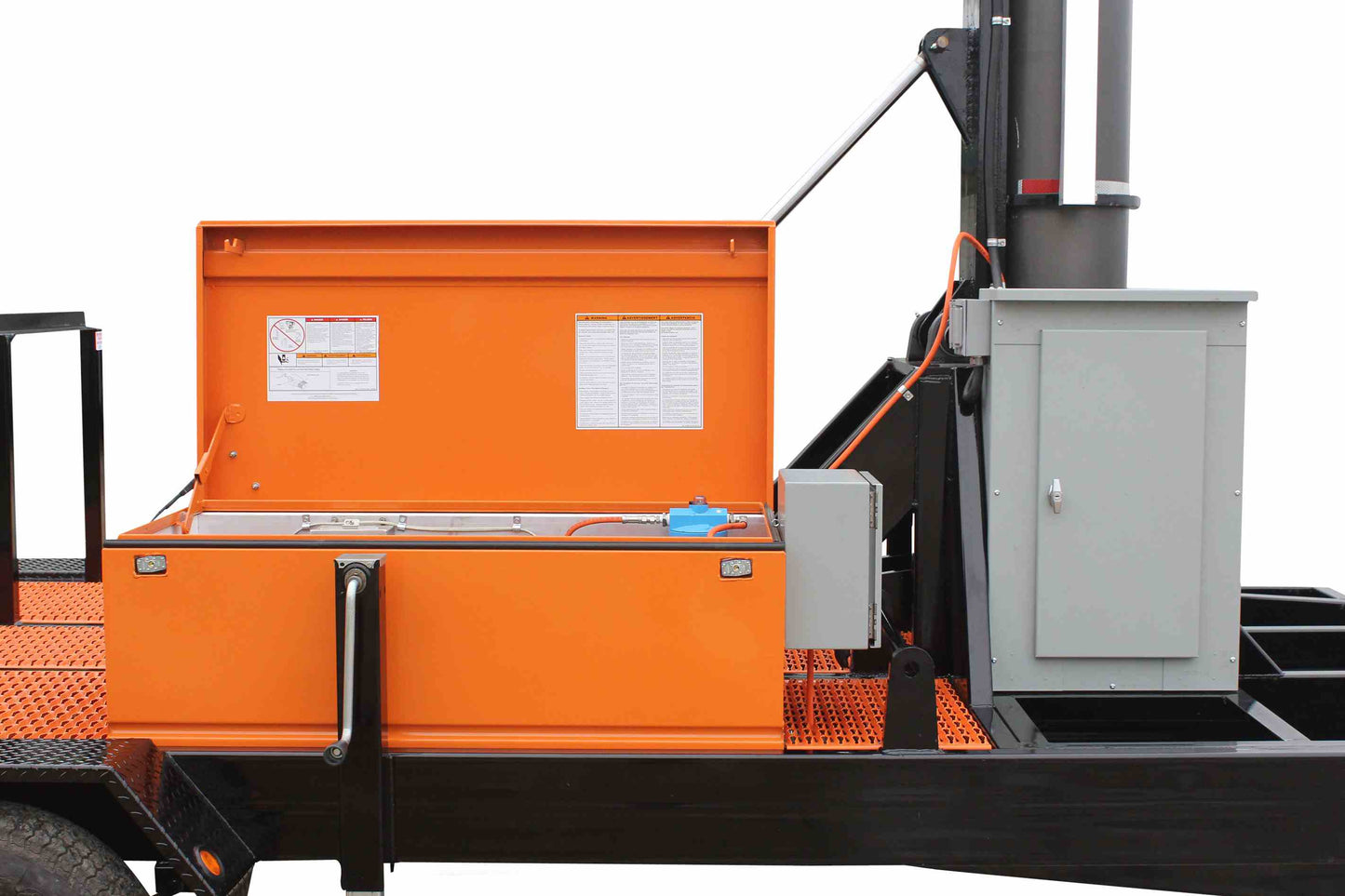

• Voltage: Operates on 48V with NEMA 3R breaker control box
• Trailer Dimensions: 21 ft (L) x 7 ft (W)
• Height (Collapsed/Extended): 22 ft to 58 ft
• Trailer Materials: Steel frame, equipped with 16" tubeless tires on a tandem axle
• Weather Resistance: Includes cold-weather-rated SOOW cabling and heated battery systems
• Wind Resistance: Can withstand up to 125 mph winds when lowered to 22 ft, ensuring stability in varied conditions

Applications

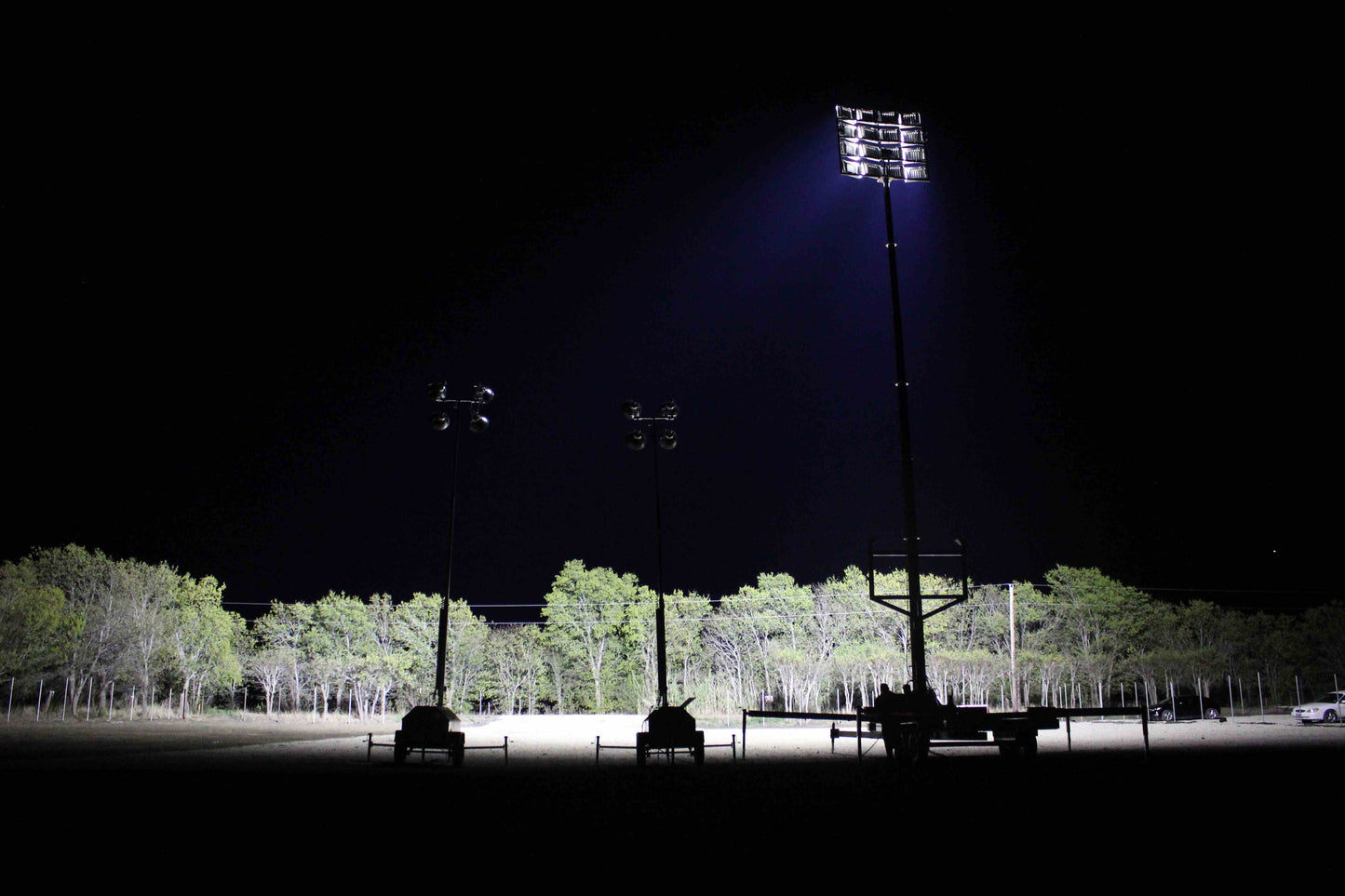

Perfect for temporary lighting on construction sites, large outdoor events, and security applications. Compatible with various LED and metal halide light head options and available with additional generator and fuel cell setups.

Quick Summary

• 1,036,800 lumens
• IP67 waterproof rating for extreme durability
• Adjustable LED configuration with customizable beam spreads
• Cold-weather resilience and de-icing equipped
• Wind-resistant up to 125 mph with four stabilizing outriggers
• Made in the USA, tailored to meet client-specific needs
