Loflin Fabrication | 4-N-1 Combo Bucket w/ Teeth | Widths 60" To 96" | Hydraulic Flow 15 To 25 GPM | For Skid Steer

Product Description

Loflin Fabrication | 4-N-1 Combo Bucket w/ Teeth | Widths 60" To 96" | Hydraulic Flow 15 To 25 GPM | For Skid Steer

DESCRIPTION

The Loflin Fabrication 4-N-1 Combo Bucket with Teeth, a versatile and powerful attachment designed to elevate your skid steer’s capabilities. This innovative bucket combines four essential functions digging, loading, grading, and clamping into one robust design, making it an indispensable tool for contractors, landscapers, and farmers alike.

Engineered for durability, the 4-N-1 Combo Bucket features 1/2” thick steel side plates and a 1/4” thick reinforced steel floor plate, ensuring it can withstand the toughest job site conditions. The 3/4” thick x 6” wide front cutting edge and 5/8” thick x 6” wide rear cutting edge are heat-treated and reversible, providing exceptional performance and longevity for all your material handling needs.

Equipped with two 2 1/2” x 8” hydraulic cylinders, this bucket offers a 38” opening width for efficient material handling. The oversized, greaseable pins ensure smooth operation and easy maintenance, while the reinforced quick attach system allows for quick and secure connections to your skid steer.

The 4-N-1 Combo Bucket is available in a variety of sizes, including 60”, 66”, 72”, 78”, 84”, 90”, and 96”, with custom sizes also available to meet your specific needs. The bucket comes standard with teeth, enhancing its digging capabilities, and can be equipped with an optional front bolt-on edge for added versatility.

Designed for job site readiness, the bucket comes equipped with Parker brand hoses, fittings, and couplers, ensuring you have everything you need to get to work right away. The treaded step provides easy access for operators, enhancing safety and convenience during operation.

Key Features

• Multi-Function Utility Dig, doze, grade, and load with one attachment, improving efficiency and adaptability on the job.
• Powerful Hydraulic System Two 2½″ x 8″ hydraulic cylinders ensure strong force for gripping and material handling.
• Hydraulic Flow 15 To 25 GPM.
• Heavy-Duty Steel Construction Built with ½″ thick steel side plates, delivering durability and impact resistance for extreme applications.
• Precision Cutting Edges Front cutting edge: ¾″ thick x 6″ wide, rear dozing edge: 5/8″ thick x 6″ wide heat-treated reversible bolt-on edge, guaranteeing long-lasting wear resistance.
• Oversized Greasable Pins High-strength pivot points, ensuring smooth articulation and extended component lifespan.

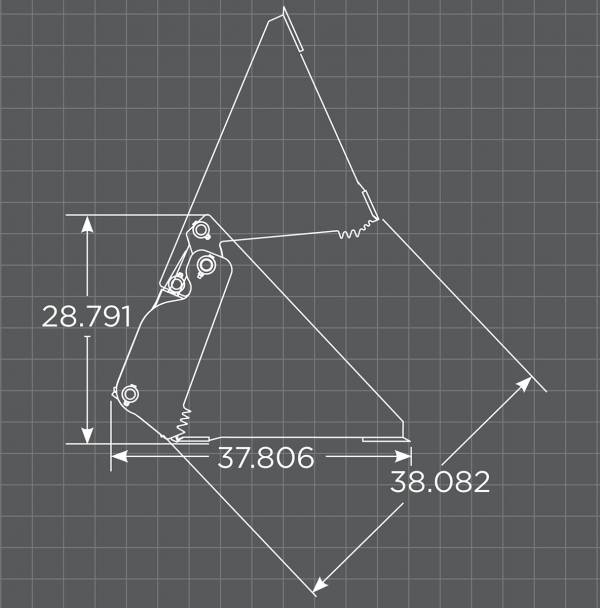

• Optimized Load Control 38″ opening width, allowing for secure grip and enhanced material movement.
• Customization Options Available with or without teeth, with or without a toothbar, and optional front bolt-on edge for added versatility.
• Reinforced Floor Plate ¼″ thick steel, designed for stability, longevity, and impact resistance.
• Premium Hydraulic Components Equipped with Parker brand hoses, fittings, and couplers, ensuring job-site-ready reliability.
• Multiple Width Options Available in 60″, 66″, 72″, 78″, 84″, 90″, and 96″, catering to diverse worksite needs.
• Reinforced Quick Attach System Allows secure skid steer connection, improving maneuverability and efficiency.
• Treaded Step for Operator Safety Provides secure footing, ensuring safe entry and exit from the skid steer.
