Mazio Auger Drive | Motor 100 to250 cc | Weight 60 to 350 Kg | Hexagon 50 to 70 Ø | For Skid Steers

Mazio Auger Drive | Motor 100 to250 cc | Weight 60 to 350 Kg | Hexagon 50 to 70 Ø | For Skid Steers

$1.00
$1.00
Sale Sold out
Customizable
Fast
24/7 Support
  • Pricing Unavalible, Request Quote.
  • Six Models: Suitable for excavators from 1 to 20 tons.
  • Reversible Epicyclical Gear Motor: Allows for both clockwise and anti-clockwise rotation.
  • Hexagonal Output Shaft: Ensures secure connection of the drill.
View full details

How To Request A Quote

***Online pricing not available, Please request a quote:***

How To Get A Quote:

Option 1:
Contact Us to make sure you are getting the best unit possible. These machines are complex so let us help you get exactly what you need!

Option 2: (quickest response times)
Step 1. Add the item to your cart
Step 2. Checkout or Click on the Chat button box that is at the bottom right of your screen
Step 3. Please tell us any info you think we would need to know
Step 4. Relax, our team is processing your request and an expert will be in touch to get you exactly what you need!

Product Description

Mazio Auger Drive | Motor 100 to250 cc | Weight 60 to 350 Kg | Hexagon 50 to 70 Ø | For Skid Steers

Description

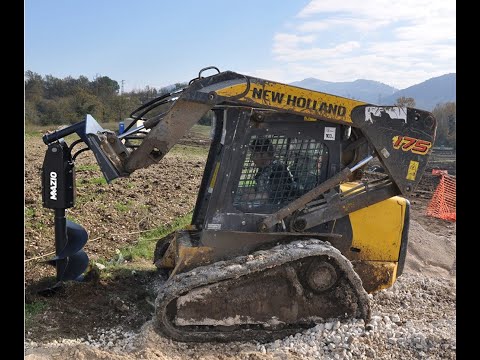

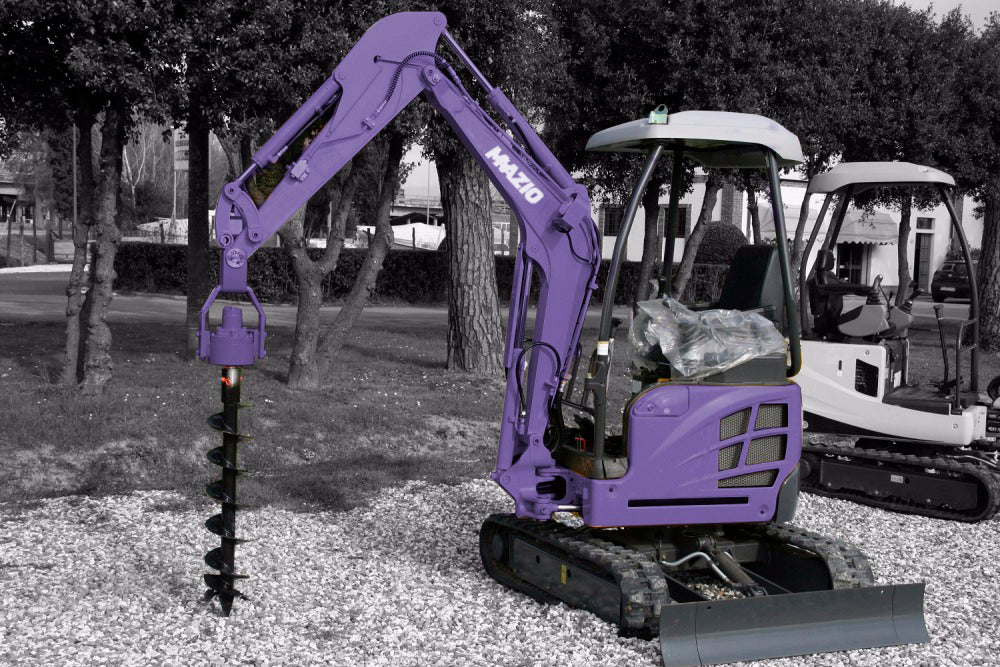

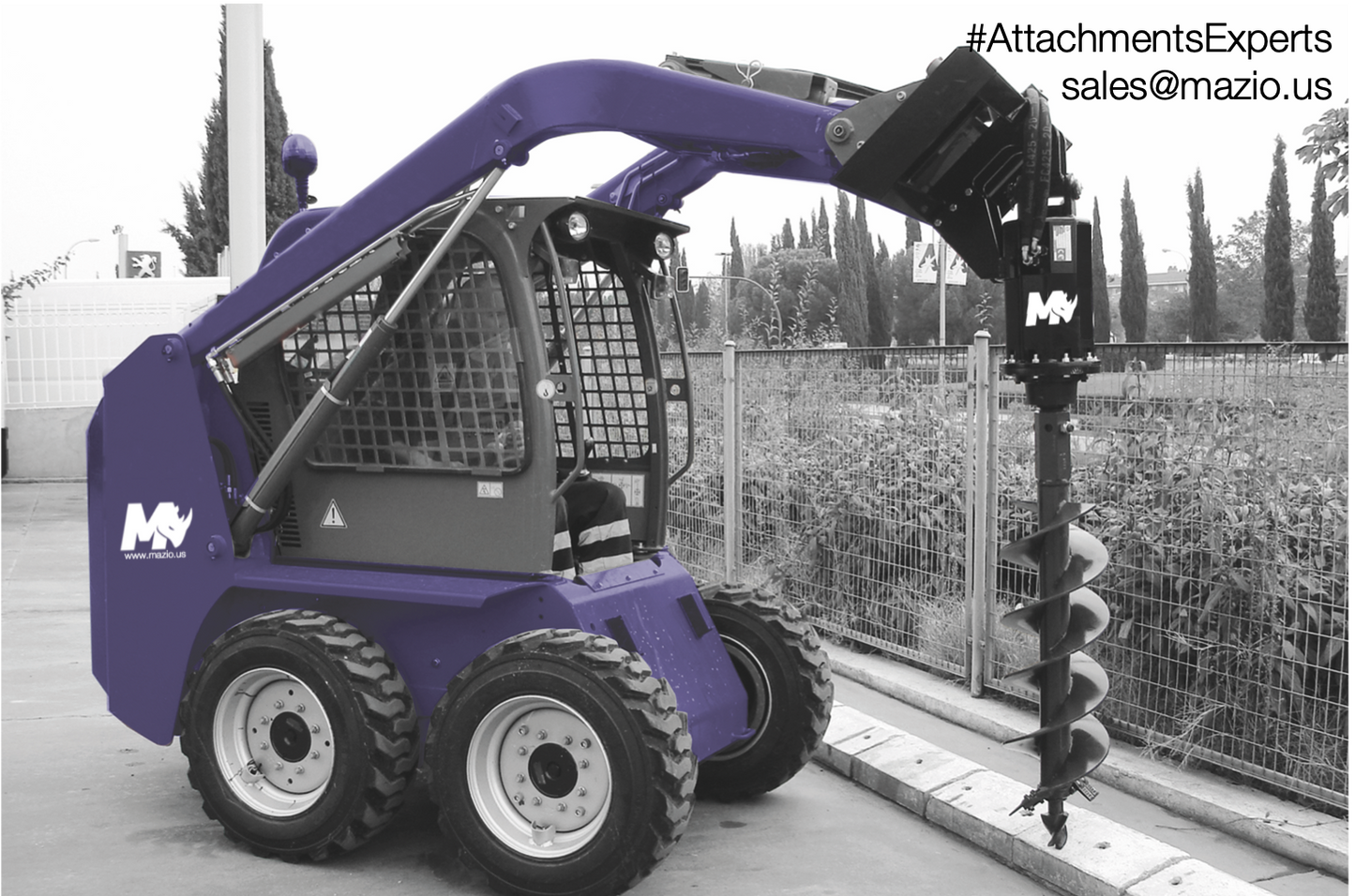

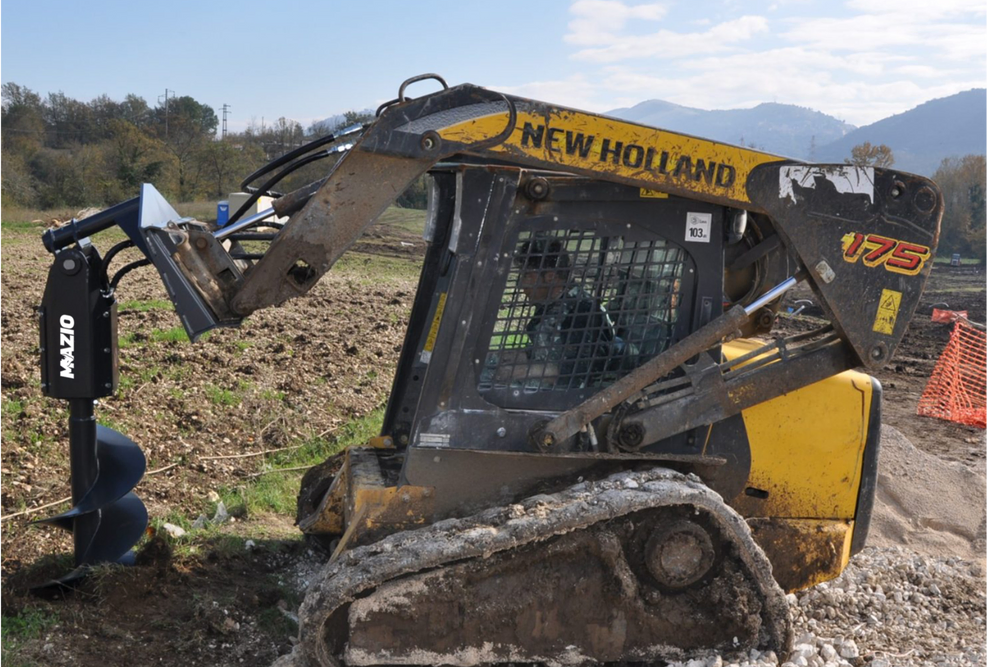

The Mazio Auger Drive Skid Steer series, known as MAZIO Series AD, consists of six models designed to equip excavators ranging from 1 to 20 tons. Each model features a reversible epicyclical gear motor, which allows for both clockwise and anti-clockwise rotation of the drill. The drill is connected to the gear motor through a hexagonal output shaft. These augers are not only suitable for excavators but can also be used with other industrial machines through a specially dedicated linkage system. The hydraulic motor and gear motor are housed inside a protective steel shell with a bolted carter. The Mazio augers are simple to use, extremely efficient, and offer power and reliability due to the high-quality components used in their manufacturing.

Key Features

  • Six Models: Suitable for excavators from 1 to 20 tons.
  • Reversible Epicyclical Gear Motor: Allows for both clockwise and anti-clockwise rotation.
  • Hexagonal Output Shaft: Ensures secure connection of the drill.
  • Protective Steel Shell: Provides durability and protection for the motor.
  • Dedicated Linkage System: Compatible with various industrial machines.
  • High-Quality Components: Ensures power and reliability.

Detailed Specifications

Models AD 10 AD 20 AD 45 AD 65 AD 90 AD 150
Motor (cc) 100 160 160 250 250 250
Motor Axial (cc) 55 75 75 100 125 150
Weight (kg) 60 90 110 265 290 350
Hexagon (Ø) 50 50 50 70 70 70
Max Drill (Ø/mm) 400 600 600 600 600 600
Max Oil Flow (l/min) 15-45 25-65 25-70 20-125 40-140 60-200
Max Pressure (bar) 165 210 210 240 350 350
Max Torque (DaNm) 126 207 359 1061 1300 1410
Axial Load (DaN) 900 3500 3500 5000 6000 6800
Tons Capacity 1-2.5 2.5-4 4-5 5-8 8-12 12-20



These specifications ensure that the Mazio Auger Drive Skid Steer series is highly versatile and reliable for a wide range of drilling applications. The series offers powerful performance, durability, and efficiency, making it an ideal choice for various industrial and construction needs.
