Mazio Demolition Sorting Excavator Grapple | GR Series GR-1 To GR-40 Models | Width 17.9" To 59" Inches | For Excavators

Mazio Demolition Sorting Excavator Grapple | GR Series GR-1 To GR-40 Models | Width 17.9" To 59" Inches | For Excavators

$1.00
$1.00
Sale Sold out
Customizable
Fast
24/7 Support
  • Pricing Unavalible, Request Quote
  • Adaptable Opening Sizes: Ranges from 850 mm to 3000 mm, suitable for various tasks.
  • Robust Oil Pressure: Operates efficiently with oil pressures from 180 bar to 300 bar.
  • Efficient Oil Flow: Supports high efficiency with oil capacities between 15-140 lt/min.
View full details

How To Request A Quote

***Online pricing not available, Please request a quote:***

How To Get A Quote:

Option 1:
Contact Us to make sure you are getting the best unit possible. These machines are complex so let us help you get exactly what you need!

Option 2: (quickest response times)
Step 1. Add the item to your cart
Step 2. Checkout or Click on the Chat button box that is at the bottom right of your screen
Step 3. Please tell us any info you think we would need to know
Step 4. Relax, our team is processing your request and an expert will be in touch to get you exactly what you need!

Product Description

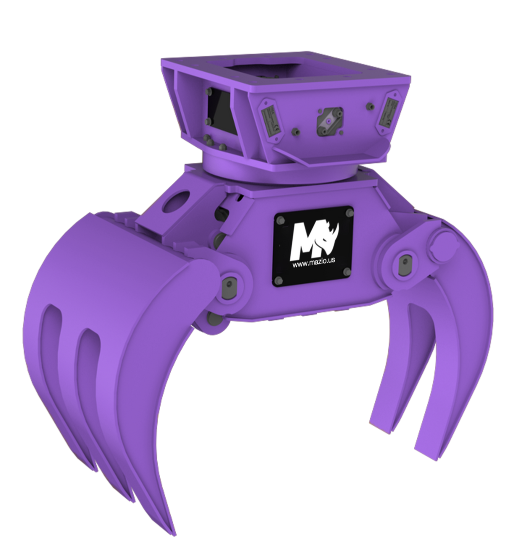

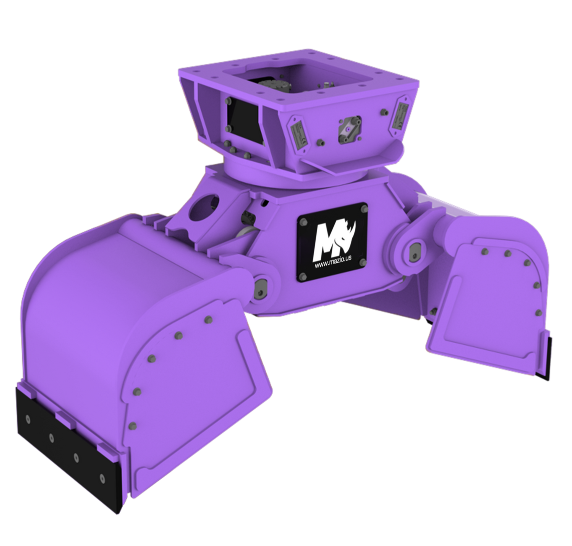

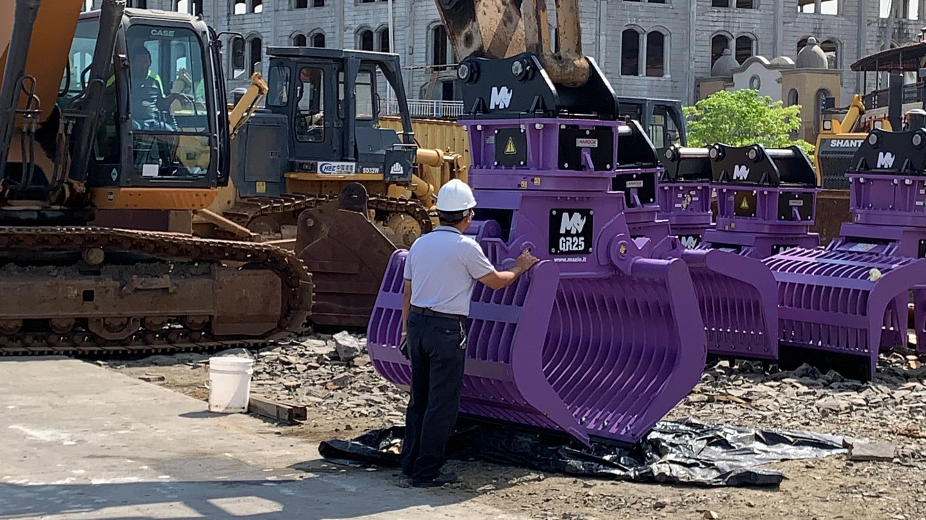

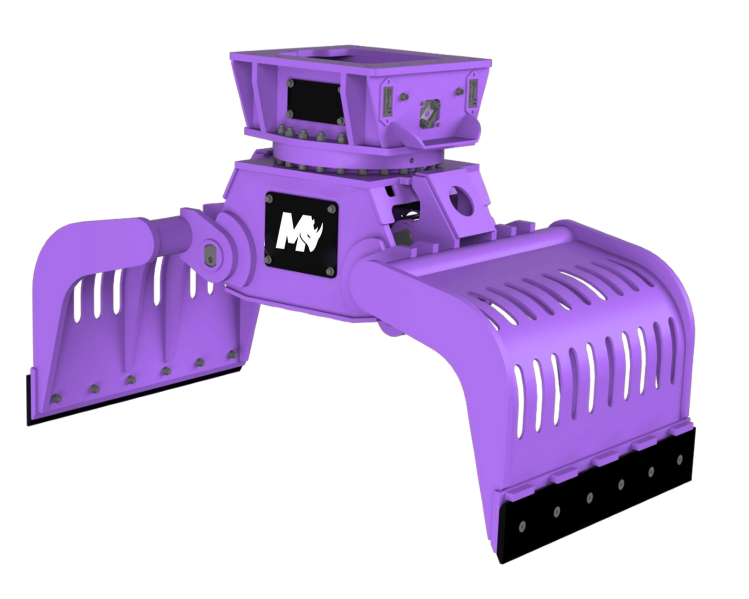

Mazio Demolition Sorting Excavator Grapple | GR Series GR-1 To GR-40 Models | Width 17.9" To 59" Inches | For Excavators

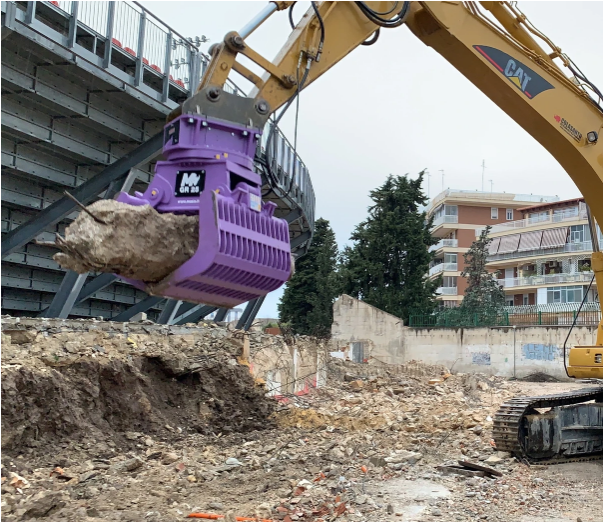

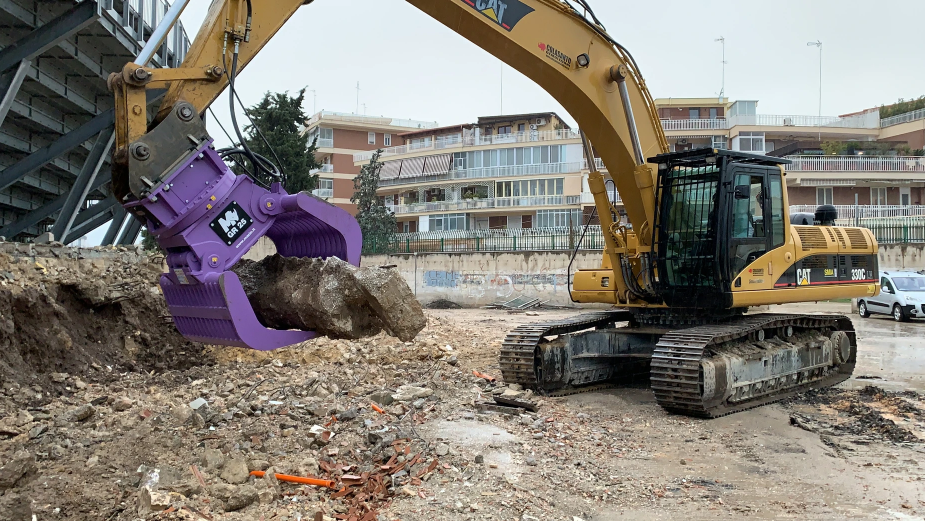

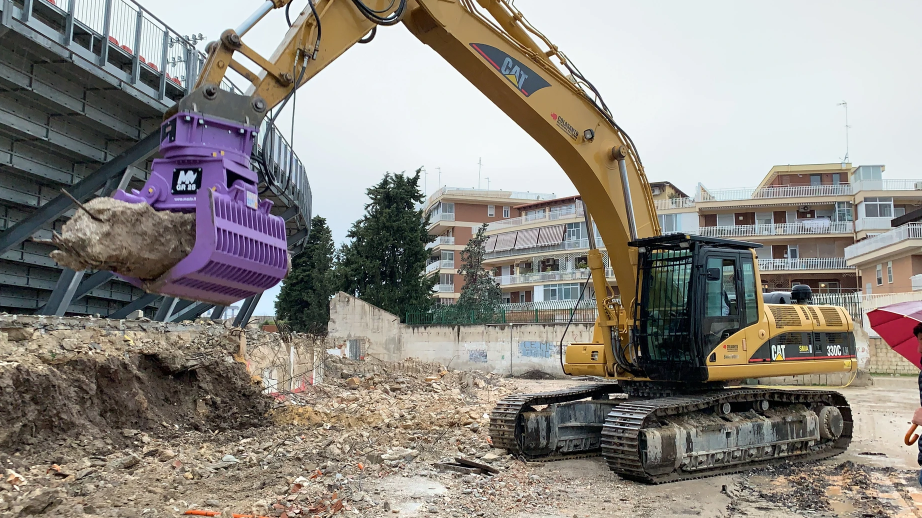

The Mazio GR Series are made with resistant, anti-wear, and tear steel, and they can be used for different kinds of jobs like wood, bricks, and other types of material demolition. At the same time, they select the demolished material to facilitate recycling.

Key Features

  • Speed and Strength: Designed for pulverizing demolition materials. Effective on concrete structures, pillars, and trellises
  • Separation Capability: Efficient at separating reinforcing rods from concrete
  • Hydraulic-Free Operation: Utilizes the piston pushing force of the excavator arm. No need for additional hydraulic installation
  • Robust Construction: Built for fast, powerful, and solid performance. Guarantees excellent working results

Detailed Specifications

GR 1 & GR 3

Attribute GR 1 GR 3
Opening 850 mm 1050 mm
Height 740 mm 940 mm
Width 450 mm 500 mm
Weight 195 kg 300 kg
Excavator Weight 1.8-2.5 Ton 2.5-4 Ton
Oil Pressure 180 bar 180 bar
Oil Flow 15 lt/min 20 lt/min
Rotation Oil Pressure 50 bar 50 bar
Rotation Oil Flow 4 lt/min 4 lt/min

GR 5 & GR 7

Attribute GR 5 GR 7
Opening 1555 mm 1750 mm
Height 1170 mm 1375 mm
Width 500 mm 700 mm
Weight 480 kg 810 kg
Excavator Weight 4-8 Ton 9-14 Ton
Oil Pressure 200 bar 250 bar
Oil Flow 25 lt/min 50 lt/min
Rotation Oil Pressure 50 bar 120-130 bar
Rotation Oil Flow 4 lt/min 5 lt/min

GR 10 & GR 15

Attribute GR 10 GR 15
Opening 2060 mm 2145 mm
Height 1445 mm 1475 mm
Width 800 mm 900 mm
Weight 1180 kg 1550 kg
Excavator Weight 14-18 Ton 18-22 Ton
Oil Pressure 300 bar 300 bar
Oil Flow 80-100 lt/min 80-100 lt/min
Rotation Oil Pressure 120-130 bar 120-130 bar
Rotation Oil Flow 5-8 lt/min 5-8 lt/min

GR 20 & GR 25

Attribute GR 20 GR 25
Opening 2200 mm 2430 mm
Height 1581 mm 1650 mm
Width 1200 mm 1400 mm
Weight 1960 kg 2475 kg
Excavator Weight 22-30 Ton 30-40 Ton
Oil Pressure 300 bar 300 bar
Oil Flow 80-120 lt/min 120-140 lt/min
Rotation Oil Pressure 120-130 bar 120-130 bar
Rotation Oil Flow 5-8 lt/min 30-40 lt/min

GR 30 & GR 40

Attribute GR 30 GR 40
Opening 2450 mm 3000 mm
Height 1700 mm 2000 mm
Width 1500 mm 1500 mm
Weight 2950 kg 3900 kg
Excavator Weight 35-60 Ton 50-65 Ton
Oil Pressure 300 bar 300 bar
Oil Flow 120-140 lt/min 120-140 lt/min
Rotation Oil Pressure 120-130 bar 120-130 bar
Rotation Oil Flow 30-40 lt/min 50 lt/min

Manuals & Documents

Product Brochure

 General Warranty Info:

  • Ripping It Outdoors works closely with our manufacturers to supply and support your products warranty needs as best as possible!
  • The majority of products come with a manufacturer represented warranty against manufacturing defects for at least a 12 month period after the date of sale.
  • Expendable components and "wear parts" including but not limited to blades, knives, teeth, oil, chain sprockets, skid shoes, knife mounting discs, and similar components are usually excluded from manufacturer warranties.
  • Please reach out to us for any specific warranty information neededabout products and parts you can’t find!

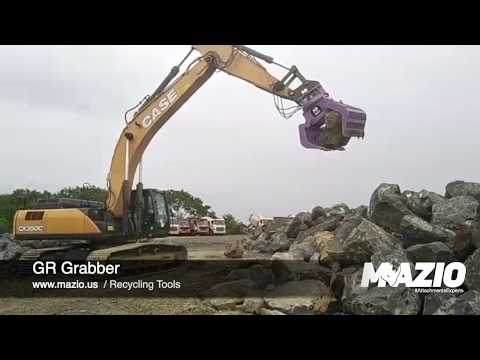

Videos
