Product Description

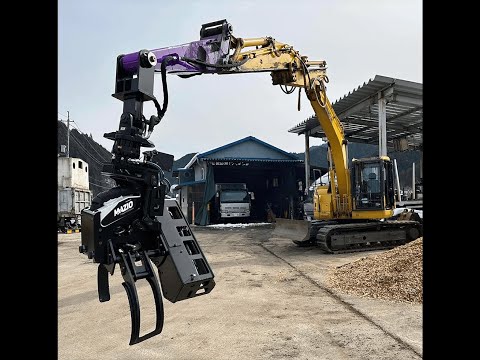

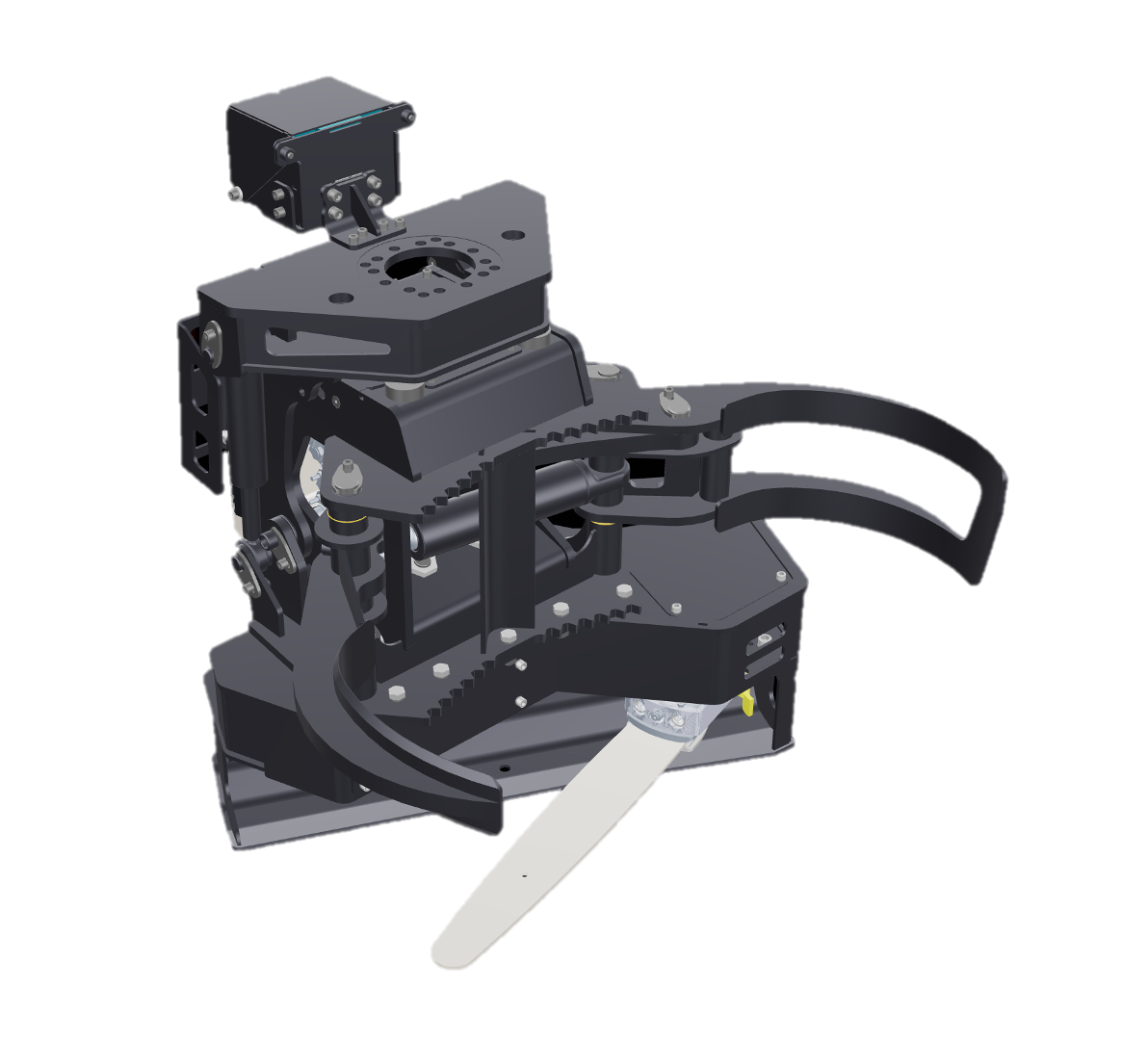

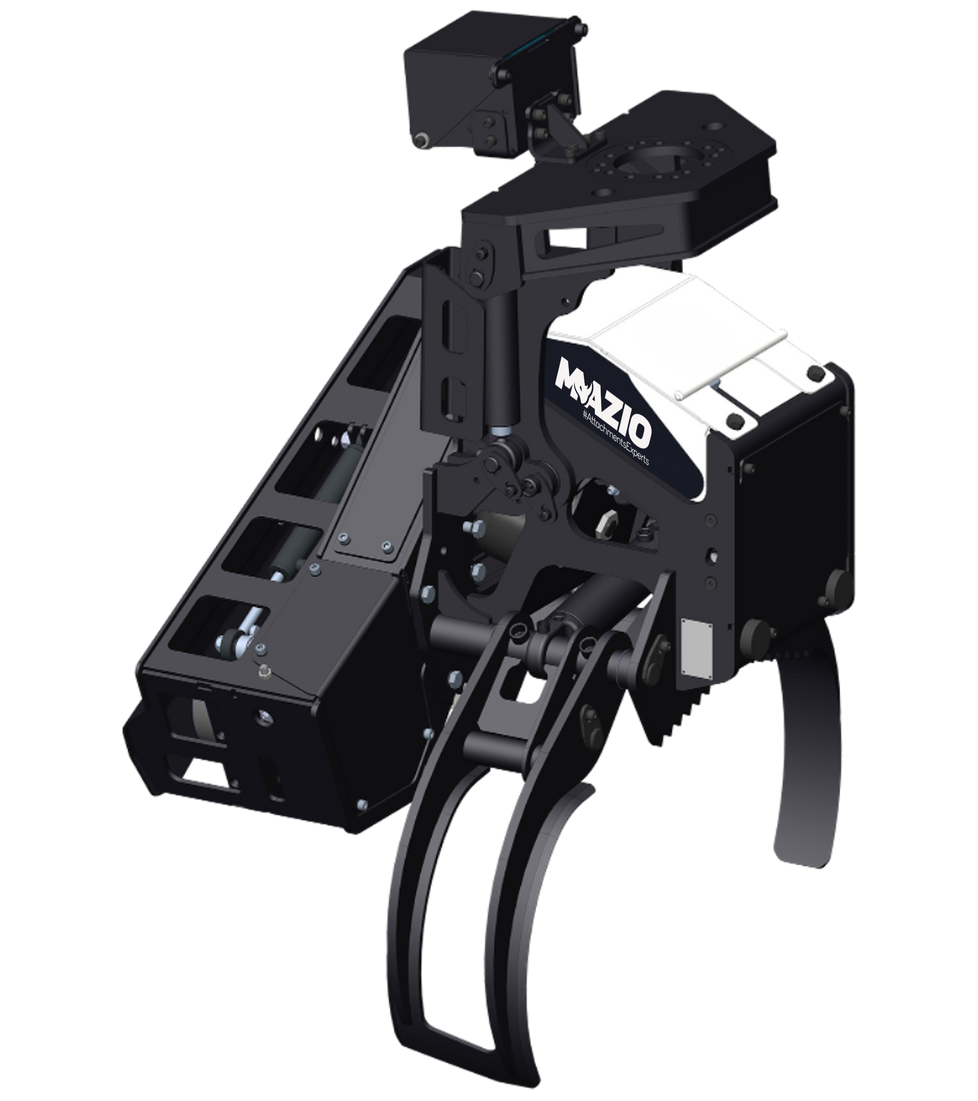

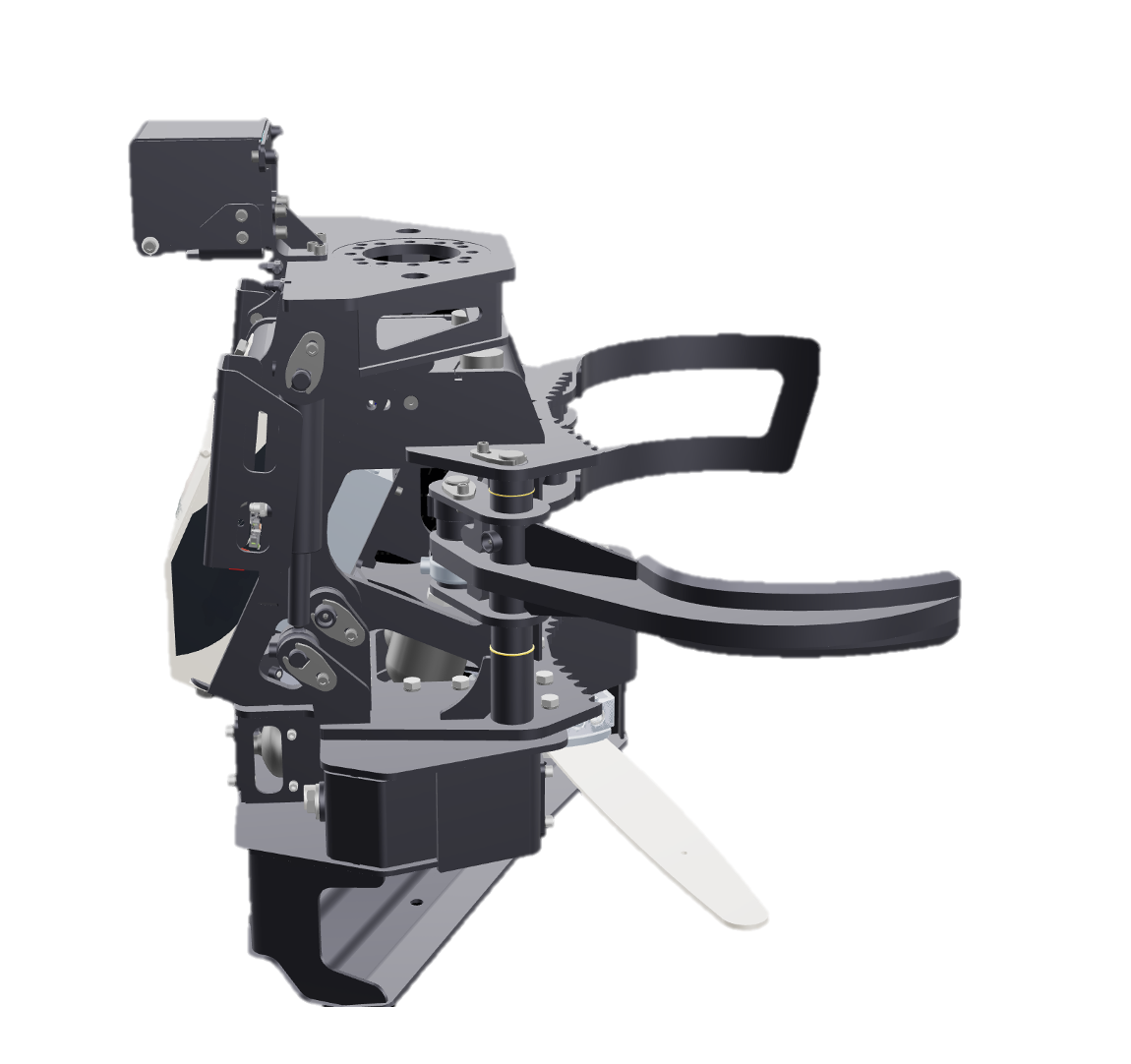

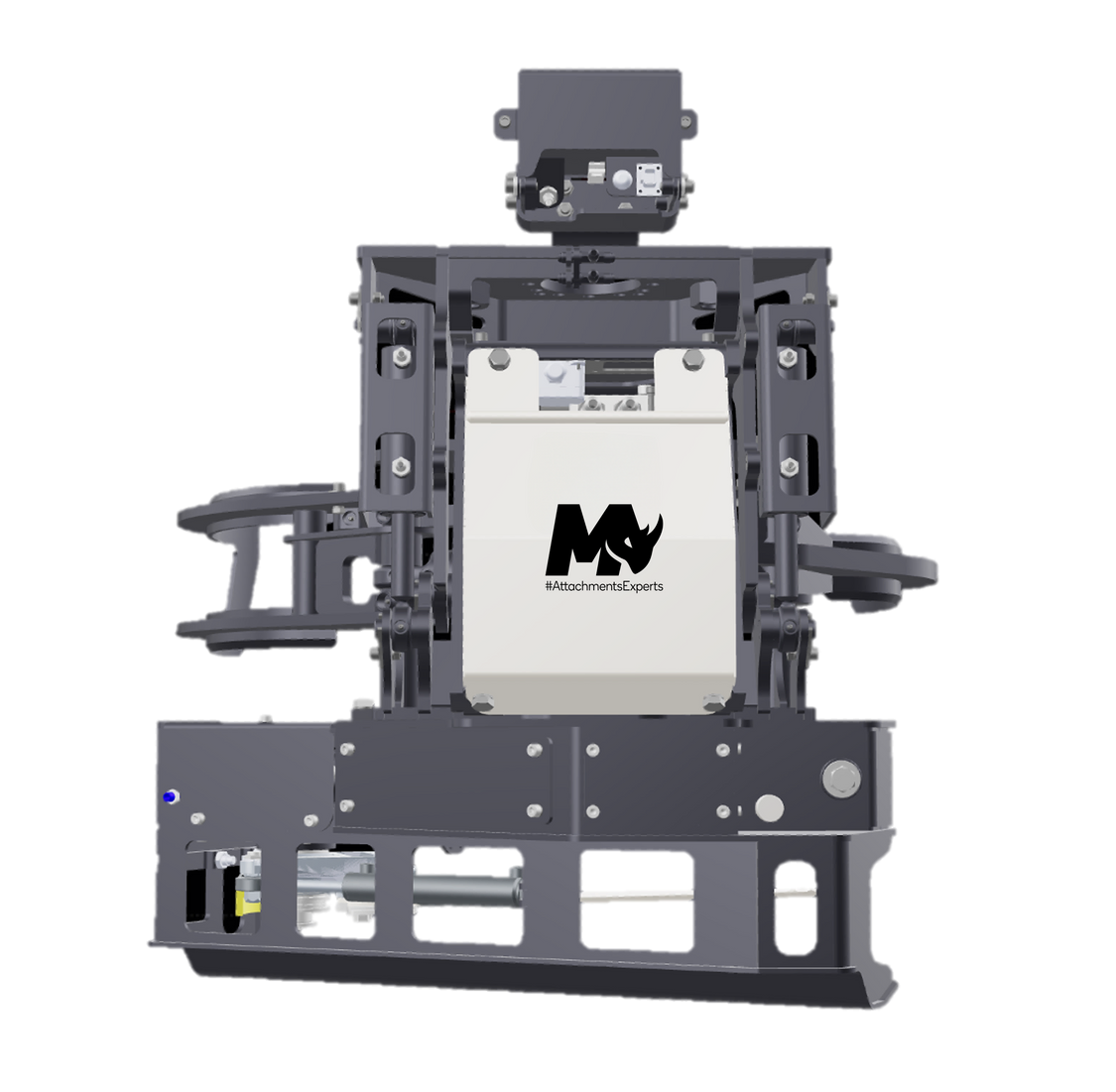

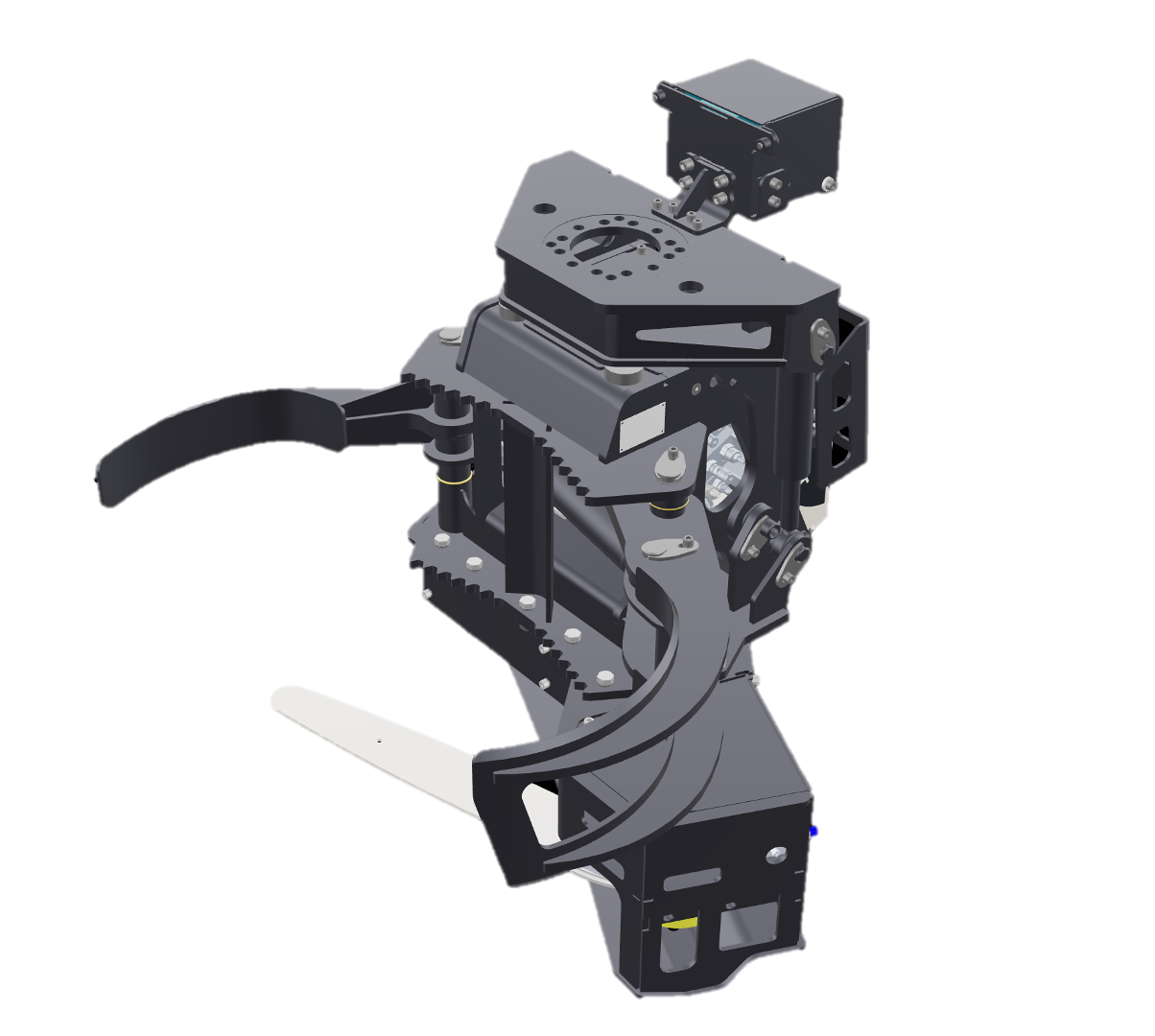

Mazio Forestry Tools HEX Saw Grapple | Hydraulic System Flow 50-180 L/Min | Machine Size 8-14 Ton | For Excavators
DESCRIPTION
The Mazio Forestry Tools HEX Saw Grapple is tailored for excavators in the 8-14 ton range. This saw grapple excels in providing efficient and precise forestry operations, making it a vital tool for demanding tasks.
Key Features
- Hydraulic System Flow: 50-180 lpm
- Recommended Base Machine Size: 8-14 Ton
- Felling Diameter Max: 750 cm (30 in)
- Optimum Tree Diameter: 5-40 cm (2-16 in)
- Feeding Speed: Up to 6m/s
- Material: High-strength steel knives for durability
- Feeding System: Non-sliding, proportional pressure on roller arms and knives to reduce fiber damage
Detailed Specifications
| Category | Attribute | Details |
|---|---|---|
| Dimensions & Rotator | Max Grip Arms Opening | 1005 mm |
| Height (HEX Harvest) | 1450 mm | |
| Width (HEX Harvest) | 1500 mm | |
| Rotator | Vane type, radio controlled | |
| Recommended Base Machine Size | Machine | Purpose-built or excavator, 8-14 ton |
| Weight (without rotator & link) | 395 kg | |
| Felling/Cutting | Max Felling/Cutting Diameter | 750 mm |
| Saw Bar Length | 67-75 cm | |
| Saw Chain Tensioning | Automatic | |
| Chain Pitch | 0.404" | |
| Hydraulic System | Flow Required for 10cc Saw | 50 - 100 l/min |
| Flow Required for 20cc Saw | 100 - 180 l/min |
