Mazio Hydraulic Breaker Hammer | Carrier Weight 1 to 14-ton | Weight 130 to 580 Kg | For Front Loader, Excavator, & Skid Steers

Mazio Hydraulic Breaker Hammer | Carrier Weight 1 to 14-ton | Weight 130 to 580 Kg | For Front Loader, Excavator, & Skid Steers

$1.00
$1.00
Sale Sold out
Customizable
Fast
24/7 Support
  • Pricing Unavalible, Request Quote.
  • Carrier Weight: 1 to 14 tons
  • Weight: 130 to 580 kg
  • Material: HARDOX & STRENX steels
View full details

How To Request A Quote

***Online pricing not available, Please request a quote:***

How To Get A Quote:

Option 1:
Contact Us to make sure you are getting the best unit possible. These machines are complex so let us help you get exactly what you need!

Option 2: (quickest response times)
Step 1. Add the item to your cart
Step 2. Checkout or Click on the Chat button box that is at the bottom right of your screen
Step 3. Please tell us any info you think we would need to know
Step 4. Relax, our team is processing your request and an expert will be in touch to get you exactly what you need!

Product Description

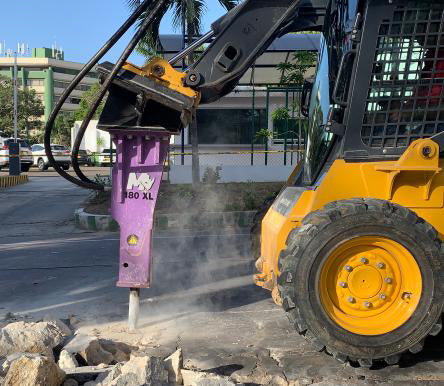

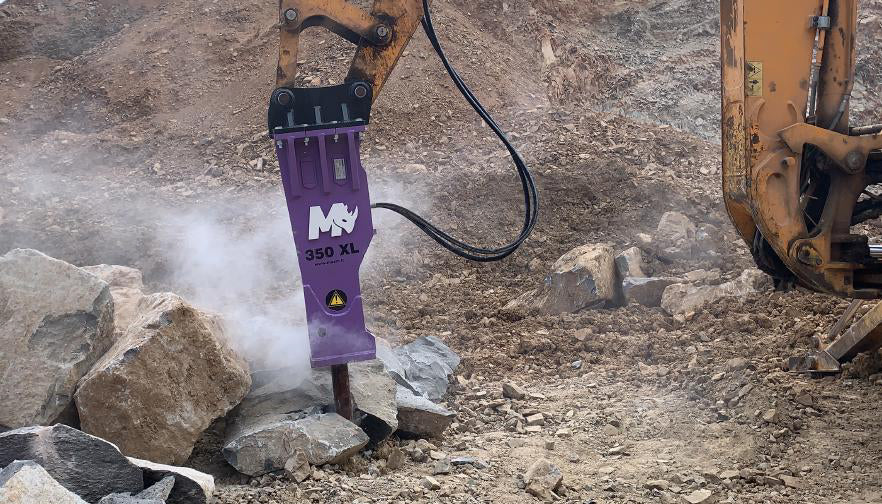

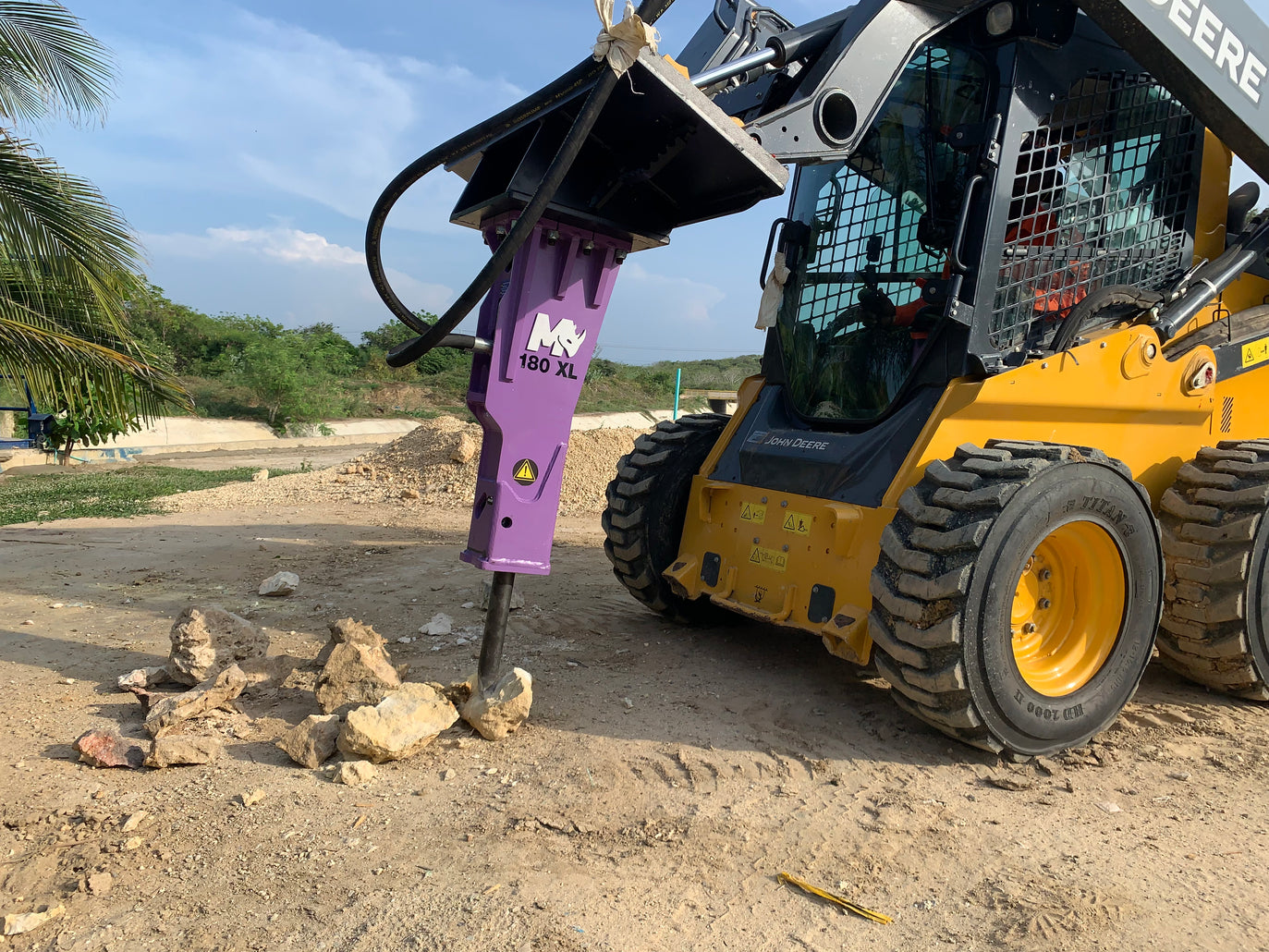

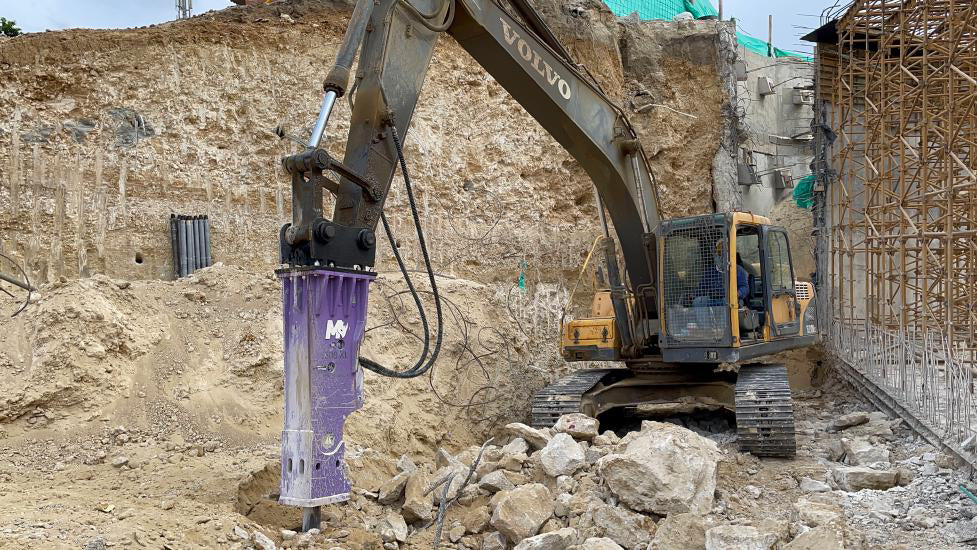

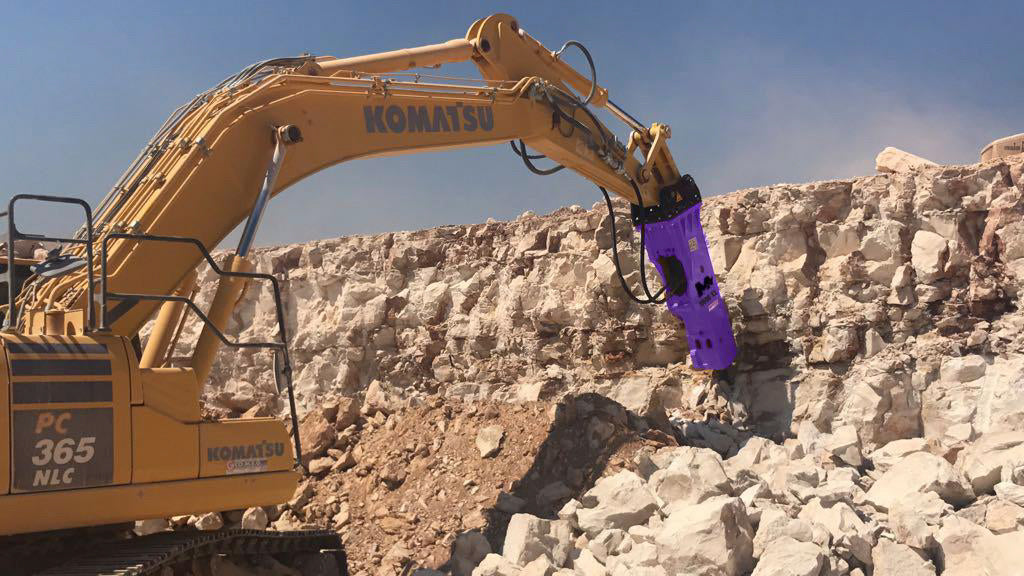

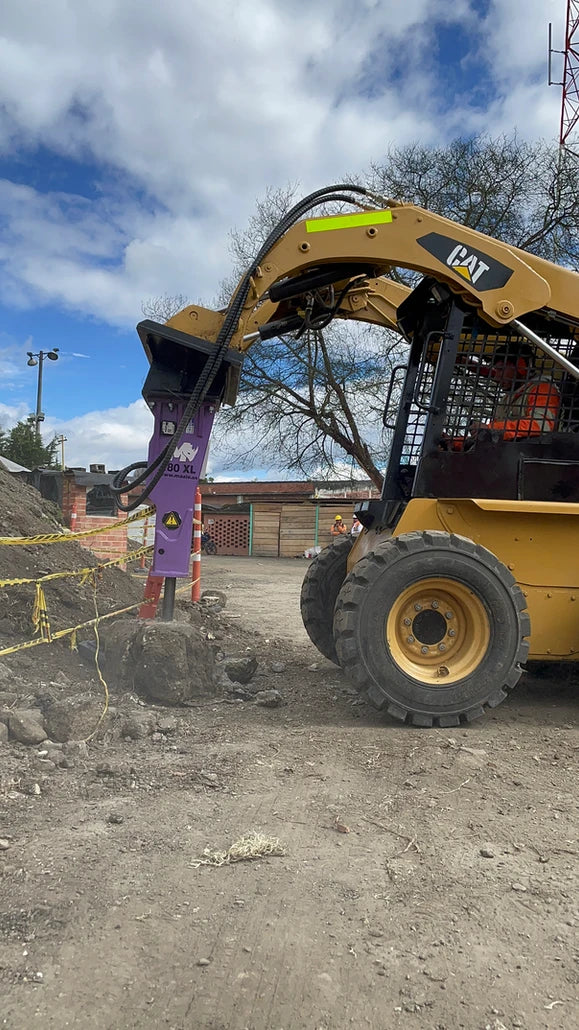

Mazio Hydraulic Breaker Hammer | Carrier Weight 1 to 14-ton | Weight 130 to 580 Kg | For Front Loader, Excavator, & Skid Steers

Description

The Mazio Hydraulic Breaker Hammer is a powerful and versatile attachment designed for front loaders, excavators, and skid steers. Built with HARDOX & STRENX steels, this hydraulic breaker offers exceptional durability and longevity. It caters to a wide range of carrier weights from 1 to 14 tons and comes in various models with weights ranging from 130 to 580 kg. This breaker hammer is renowned for its simplicity in design, reliability in performance, and Italian engineering. It incorporates advanced technologies like Anti-Blank-Fire, Energy Recovery System, and Double Damping System, ensuring efficient and safe operation. The gas technology design reduces the number of moving parts, resulting in lower maintenance costs. With options for tunnel and underwater operations, it is ideal for diverse applications such as quarries, tunneling, urban demolition, trench construction, and underwater works. The hydraulic breaker is also equipped with a pre-configured vibration-activated hour meter and comes with a twelve-month standard warranty.

Key Features

  • Carrier Weight: 1 to 14 tons
  • Weight: 130 to 580 kg
  • Material: HARDOX & STRENX steels
  • Technology: Anti-Blank-Fire, Energy Recovery, Double Damping
  • Design: Gas technology with fewer moving parts
  • Durability: Pre-configured vibration-activated hour meter
  • Warranty: Twelve months standard warranty
  • Applications: Quarries, tunneling, urban demolition, trench construction, underwater works
  • Operational Efficiency: Lower oil flow, fewer vibrations, wear reduction
  • Productivity: High impact speed and power
  • Reliability: Certified raw materials, greater availability, proven versatility

Detailed Specifications

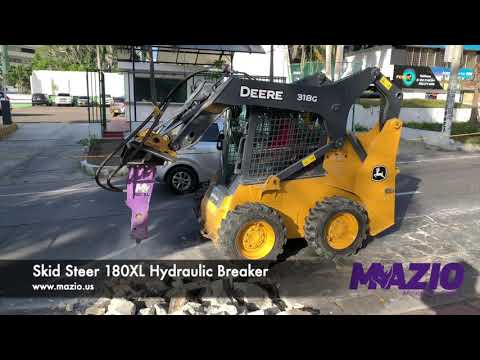

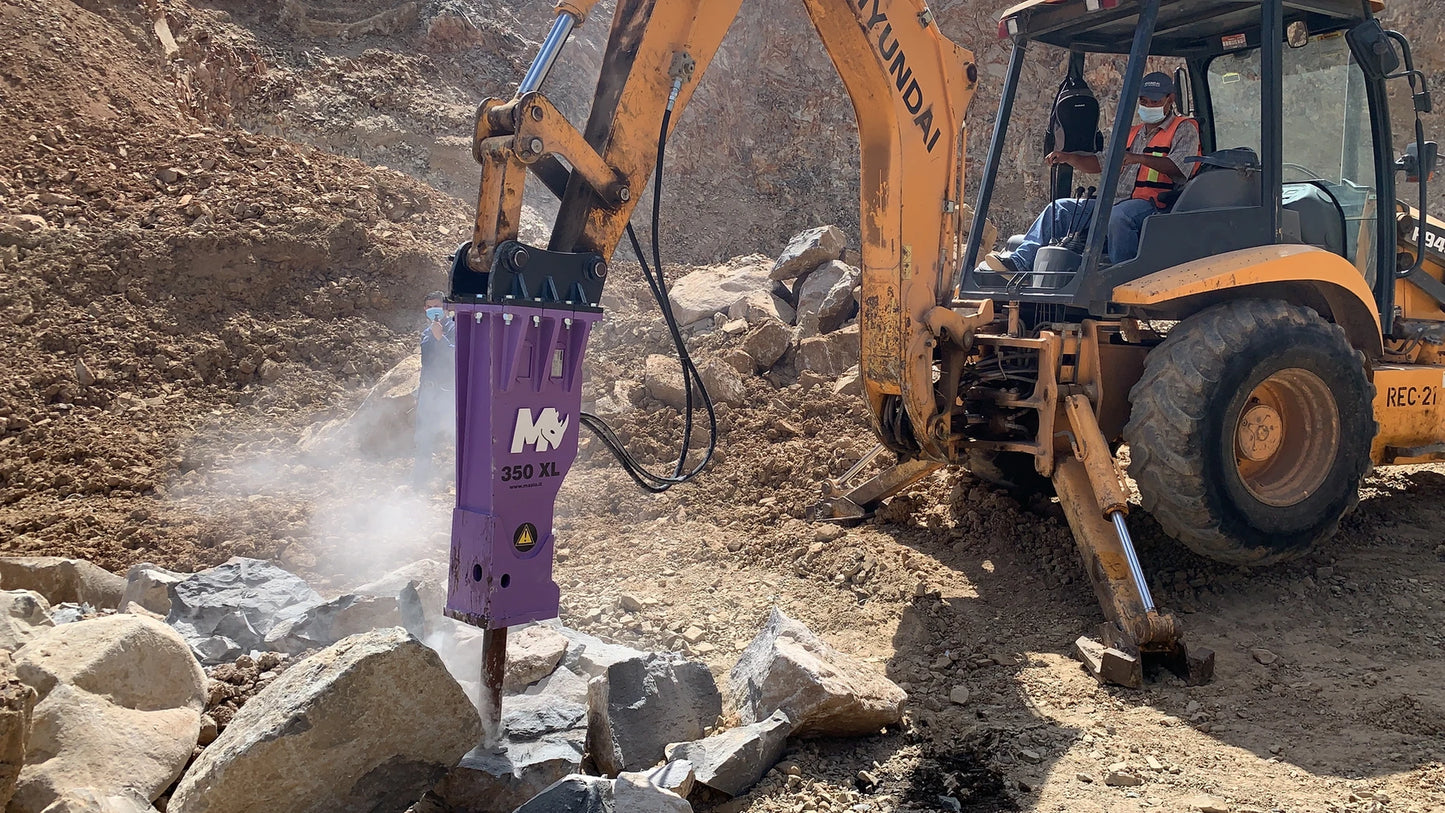

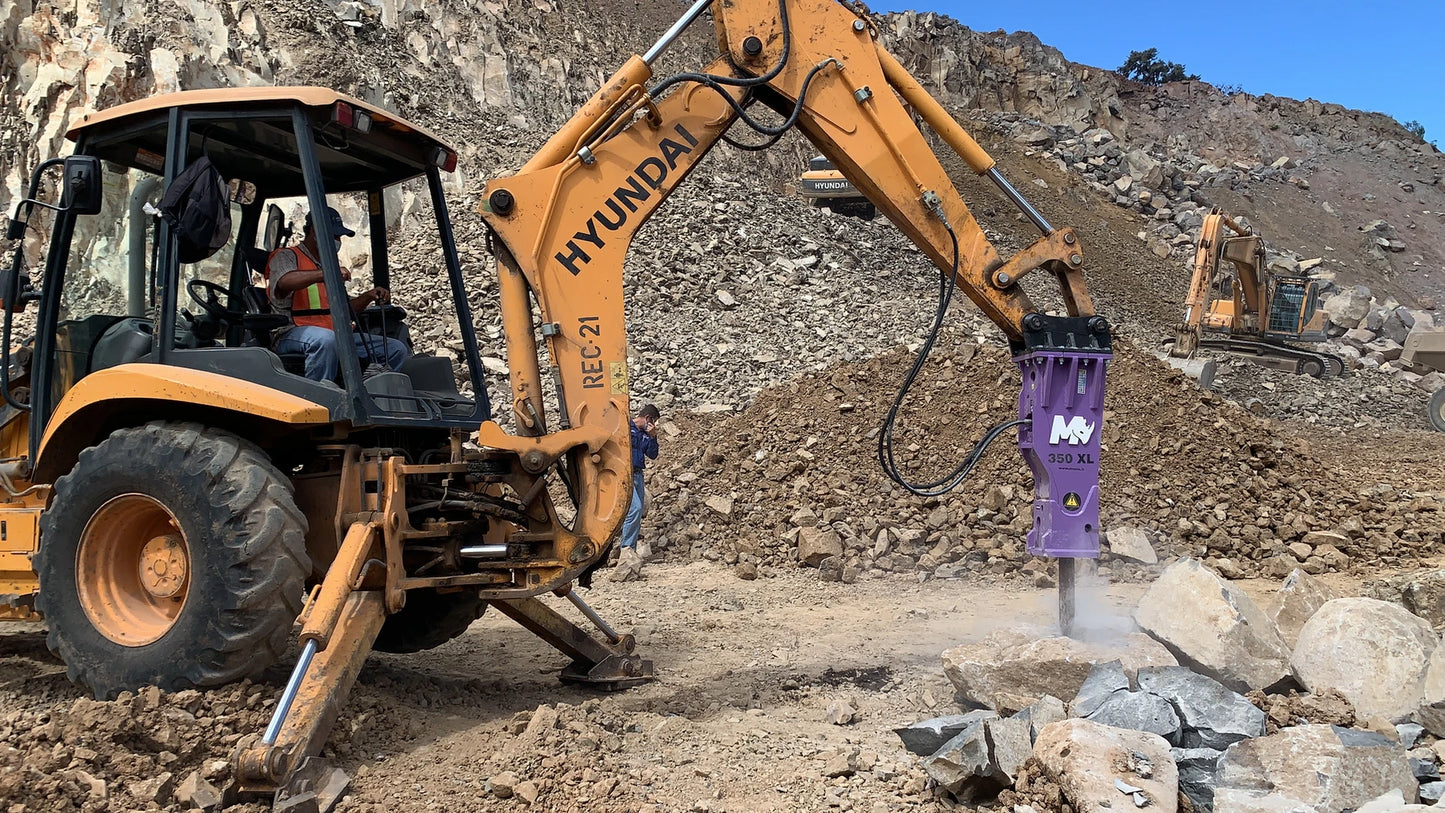

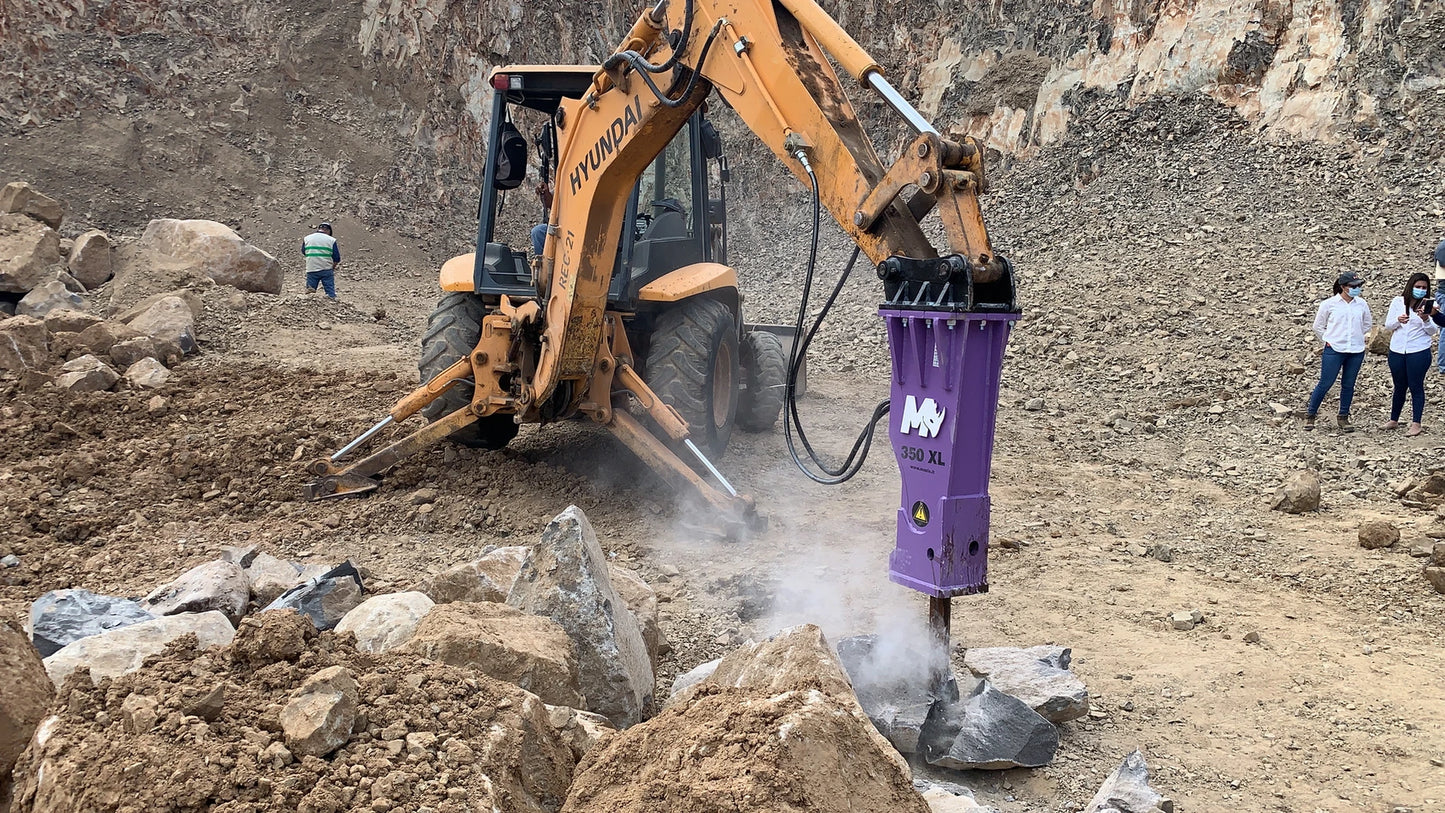

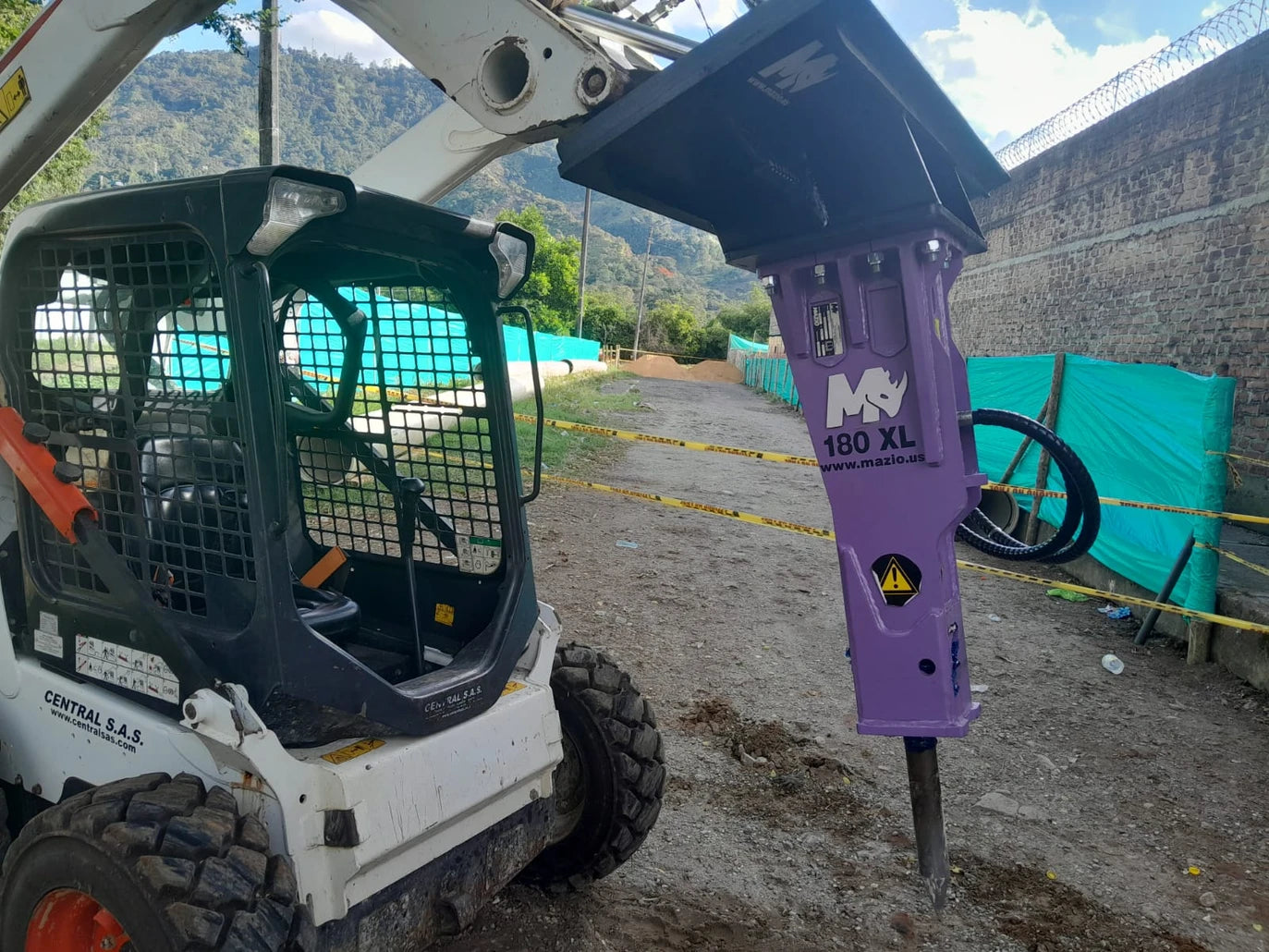

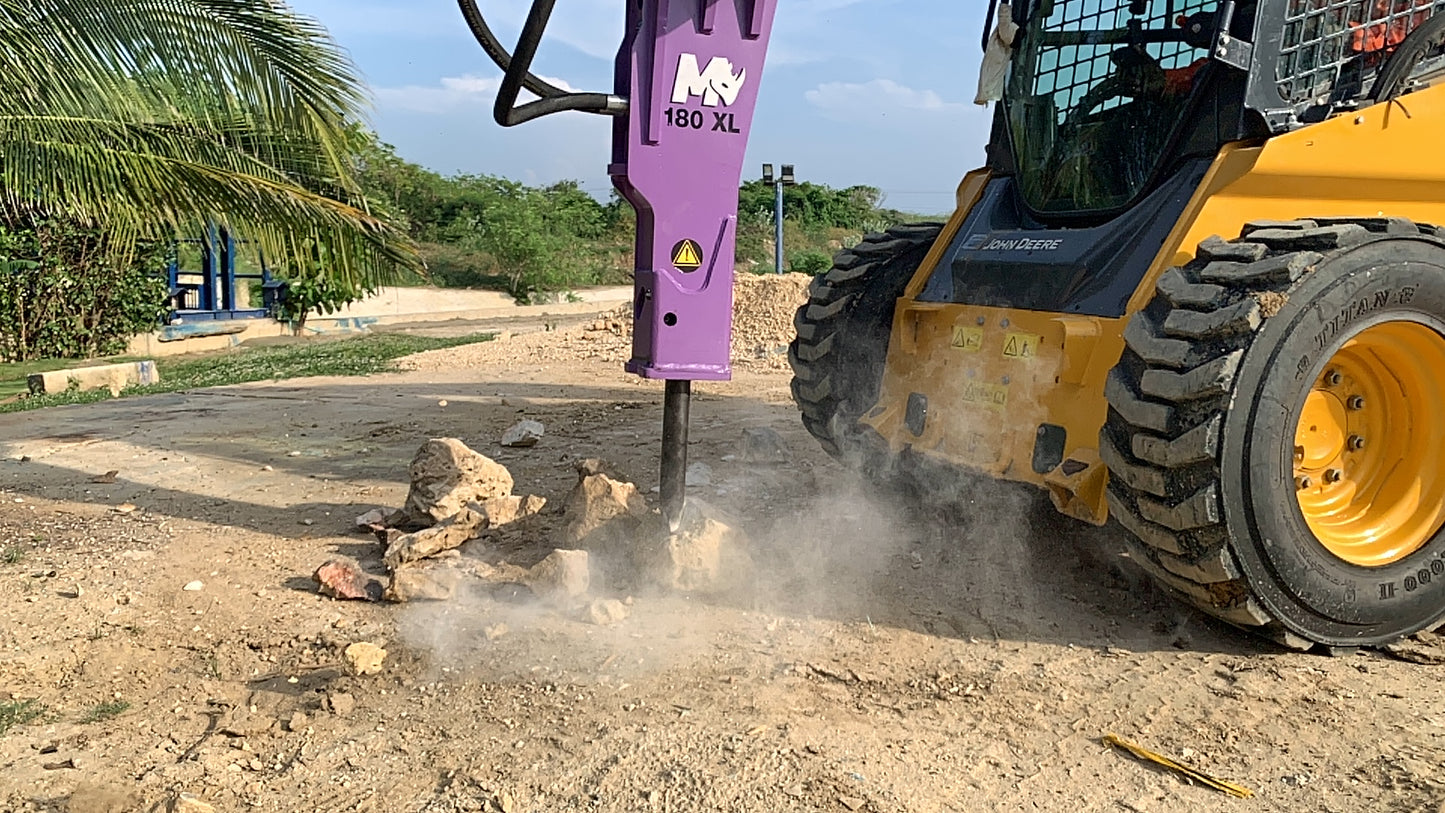

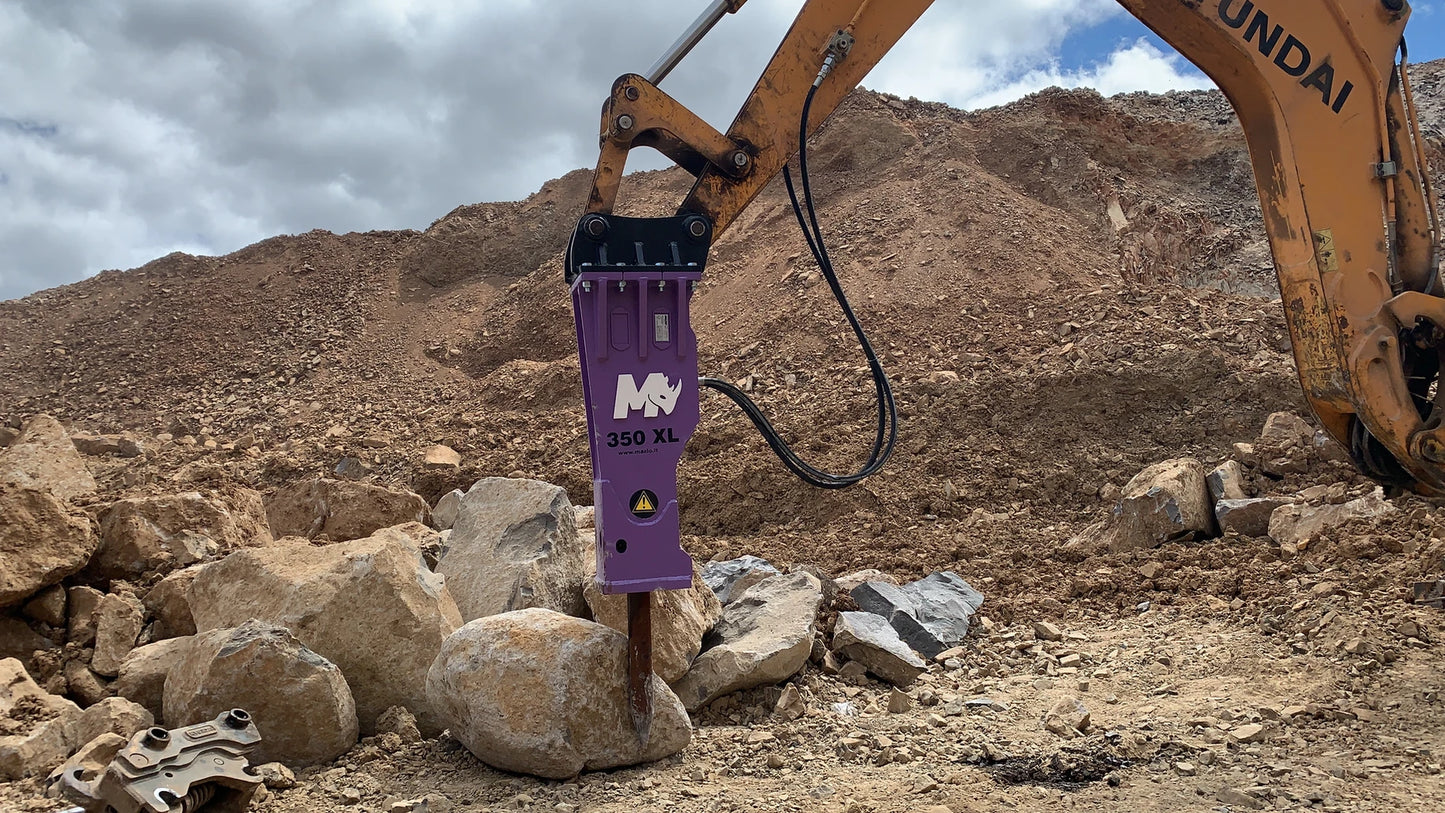

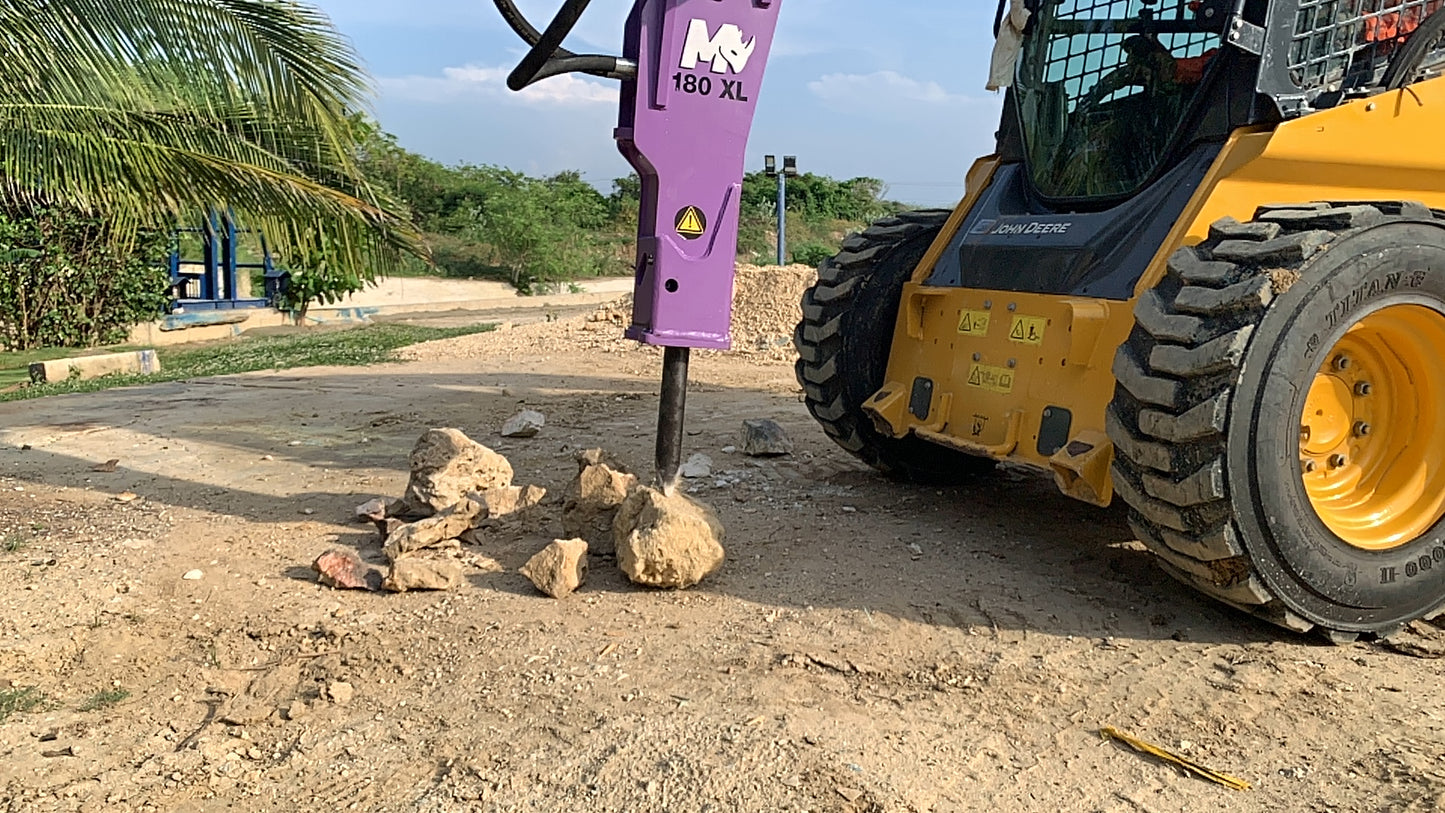

Specifications 140XL 180XL 250XL 350XL 450XL 580XL
Weight (Kg) 130 180 250 350 450 580
Height with Tool (mm) 990 1230 1280 1480 1600 1800
Tool Diameter (mm) 42 55 63 77 85 92
Oil Flow (l/min) 15/30 25/50 30/60 50/90 60/100 70/100
Frequency (c/min) 700/1400 600/1200 500/1000 400/850 400/800 400/850
Working Pressure (bar) 90/120 90/120 100/130 120/150 90/140 130/160
Impact Energy (joule) 190 330 450 750 850 1300
Carrier Weight (ton) 0.8 - 2.5 2.5 - 4.5 3 - 5.5 6 - 9 7 - 10 7 - 14



Mazio Hydraulic Breakers/Hammers: MAZIO's hydraulic breakers are synonymous with simplicity in design, reliability in performance, and Italian engineering. These unique characteristics guarantee quality and productivity for your projects. The new TEAM-WORK concept combines your excavator with our reliable, high-productivity hydraulic breaker for enhanced operations. MAZIO Hydraulic Breakers are well-known for their applications

Manual & Documents

    General Warranty Info:

    • Ripping It Outdoors works closely with our manufacturers to supply and support your products warranty needs as best as possible!
    • The majority of products come with a manufacturer represented warranty against manufacturing defects for at least a 12 month period after the date of sale.
    • Expendable components and "wear parts" including but not limited to blades, knives, teeth, oil, chain sprockets, skid shoes, knife mounting discs, and similar components are usually excluded from manufacturer warranties.
    • Please reach out to us for any specific warranty information needed about products and parts you can’t find!
