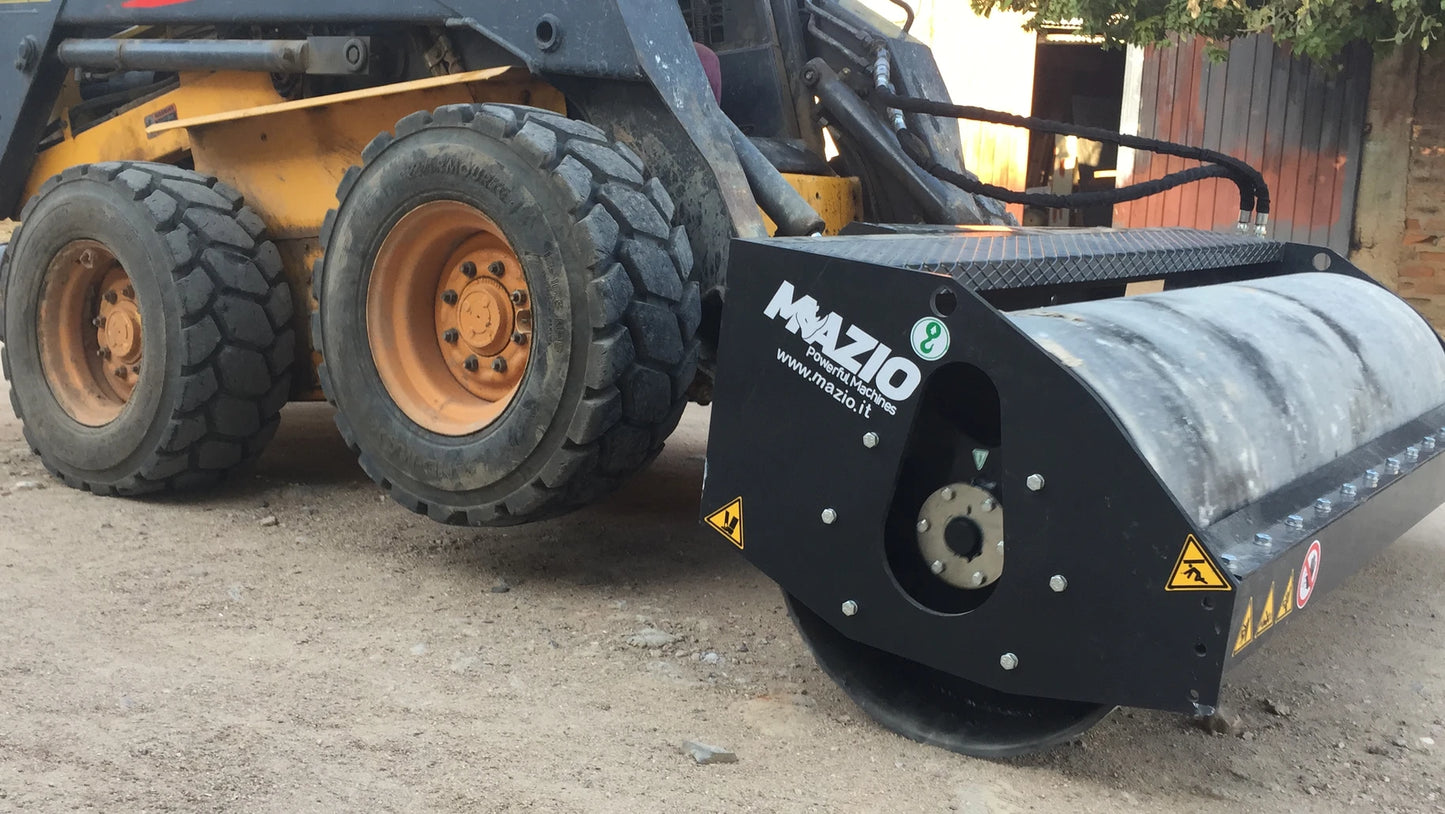

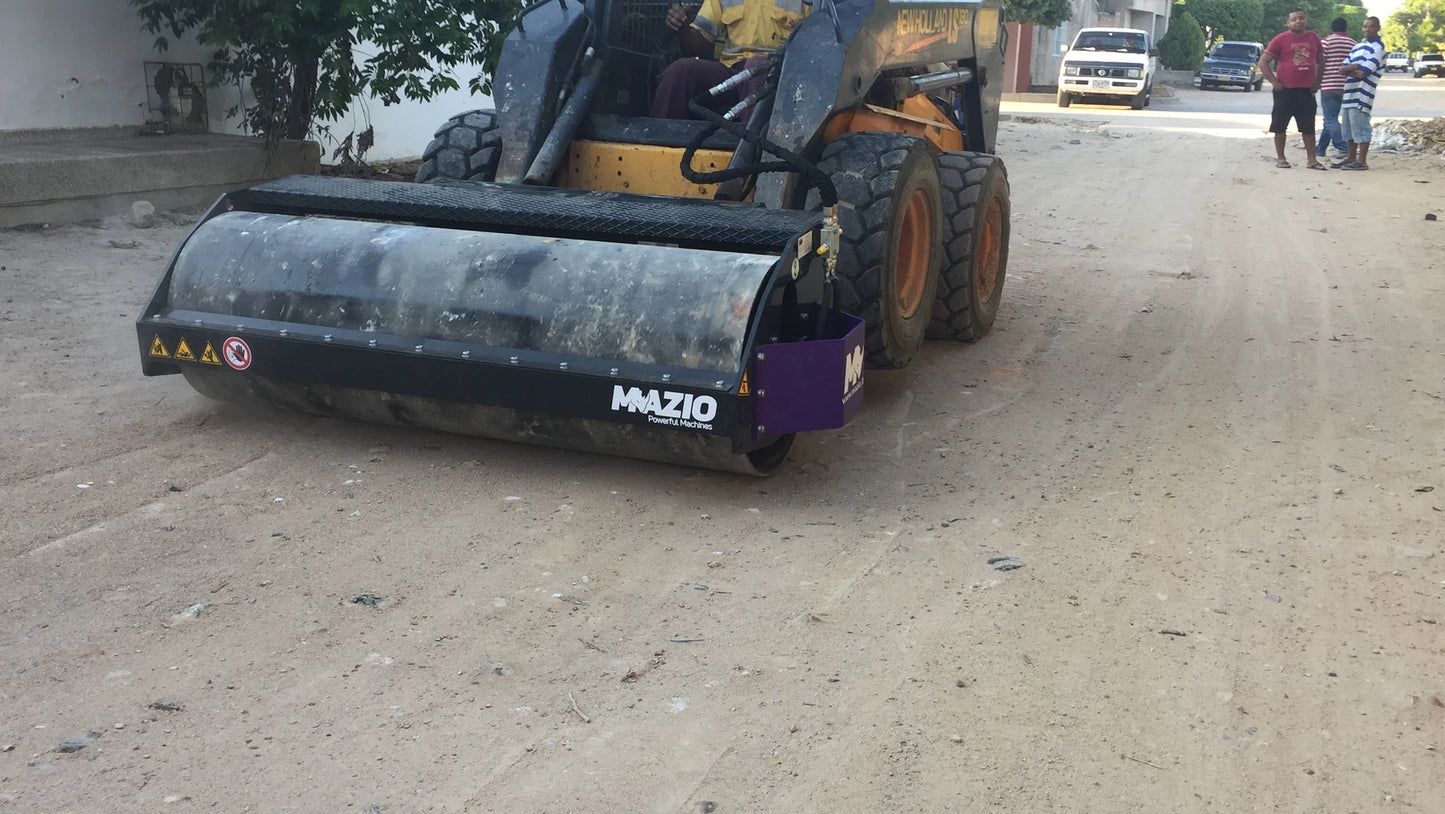

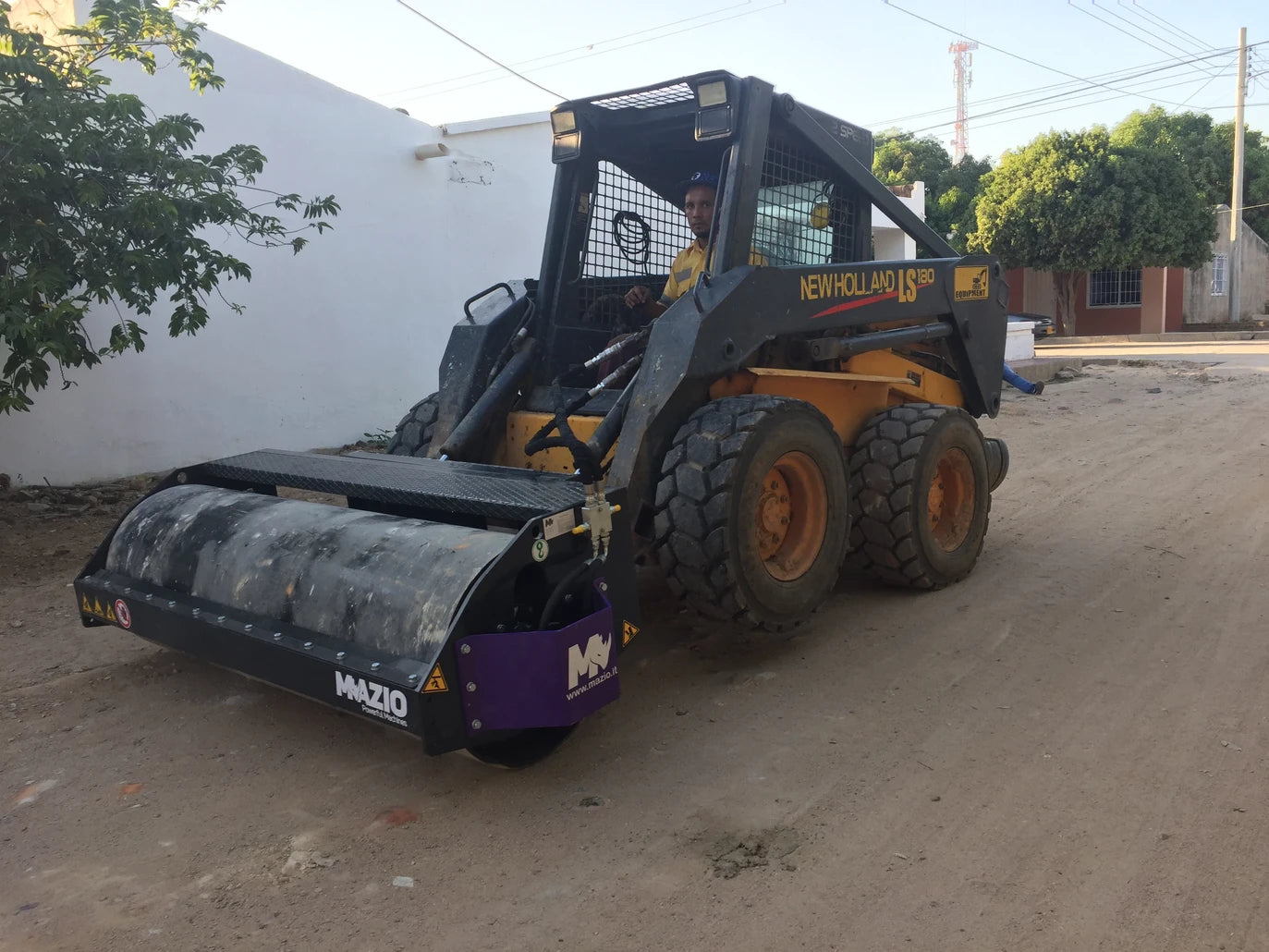

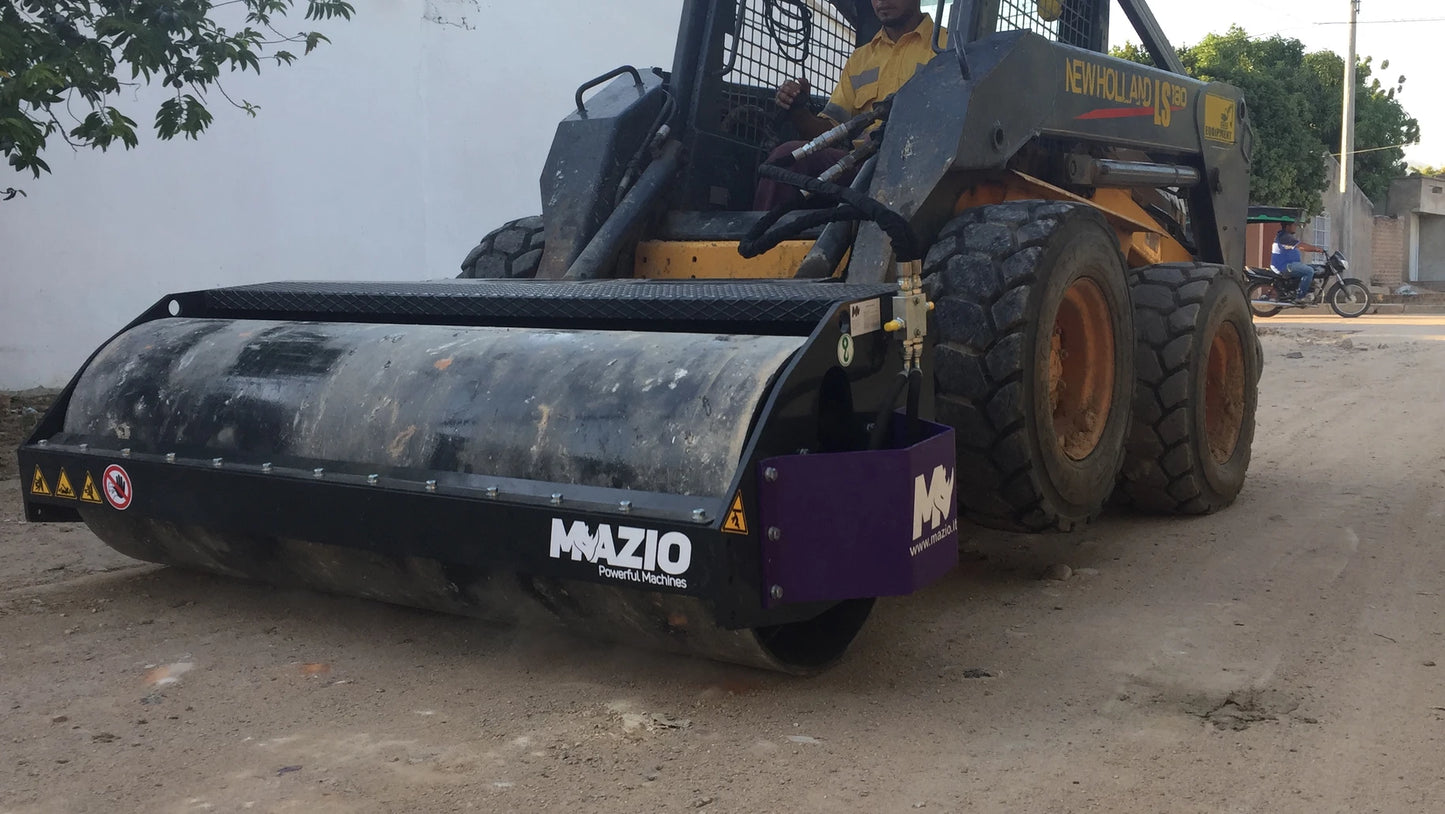

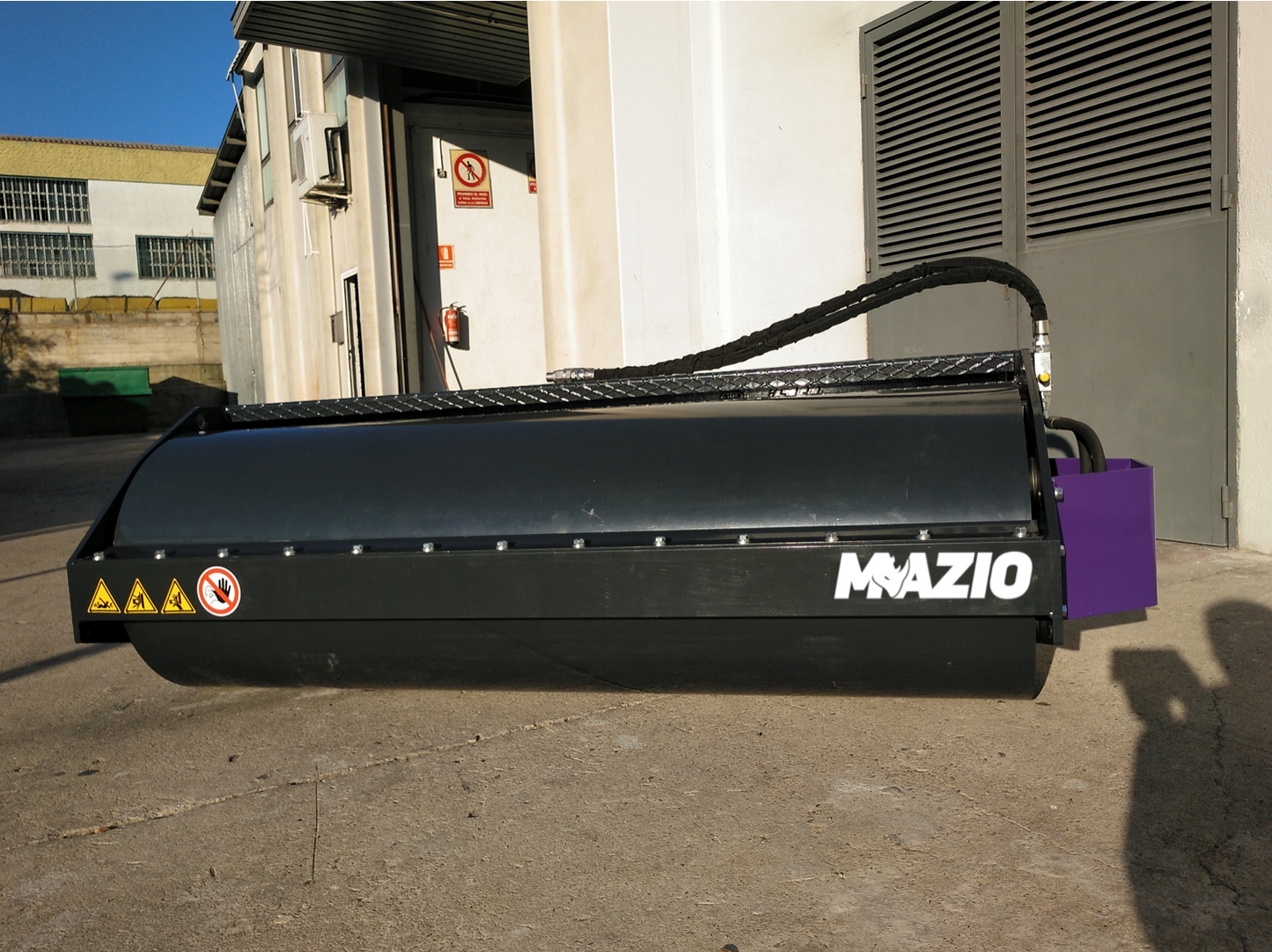

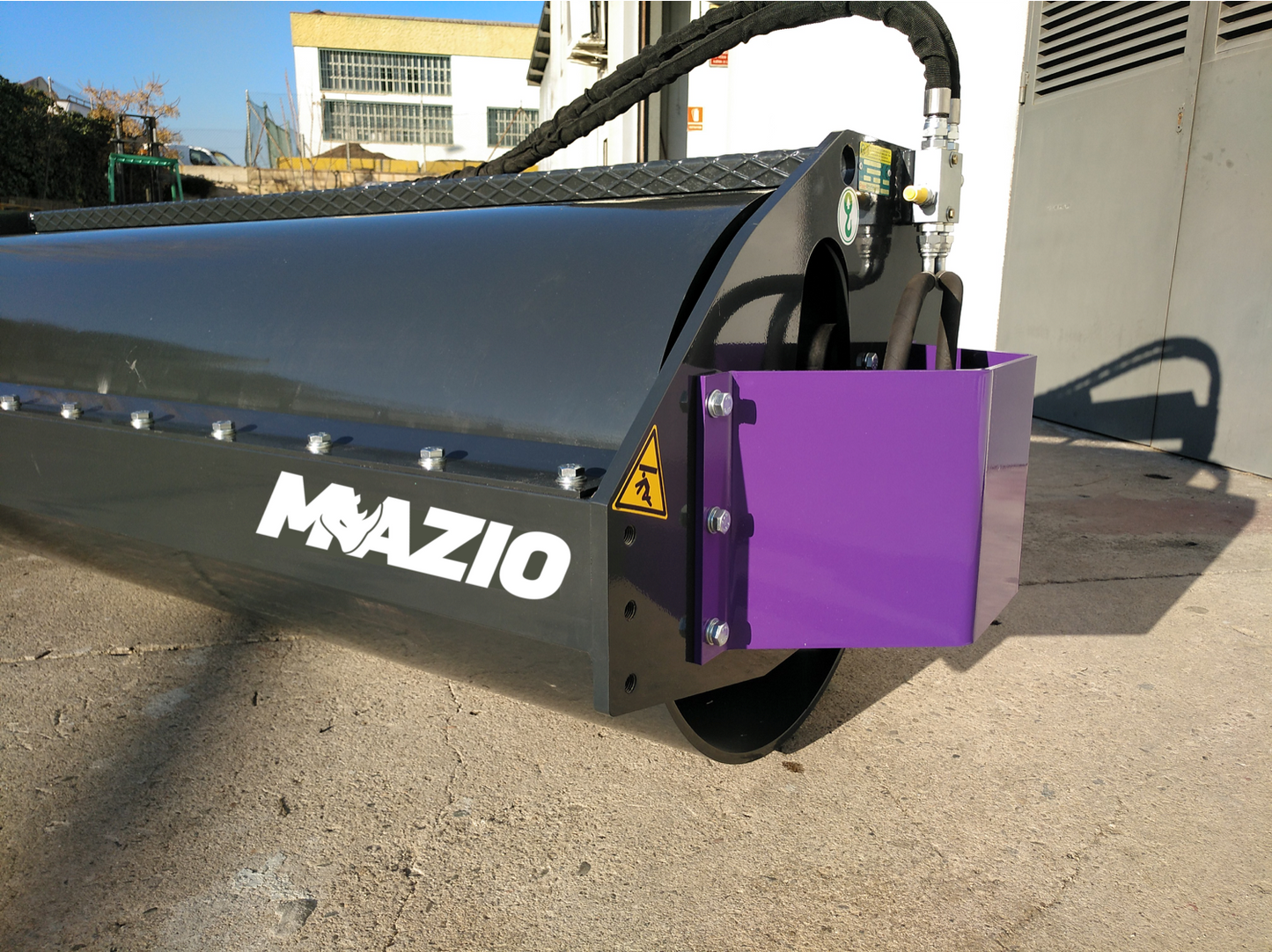

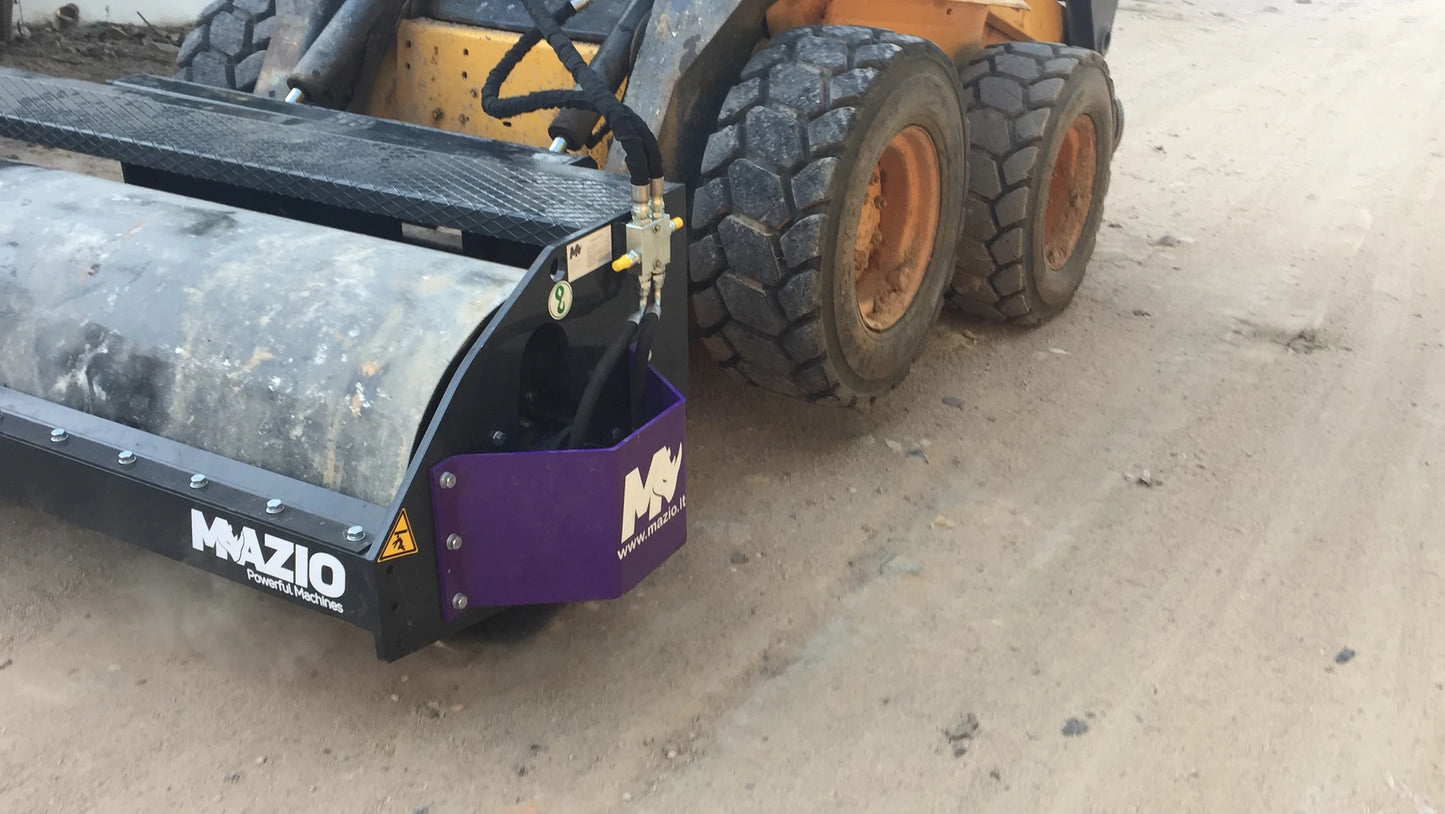

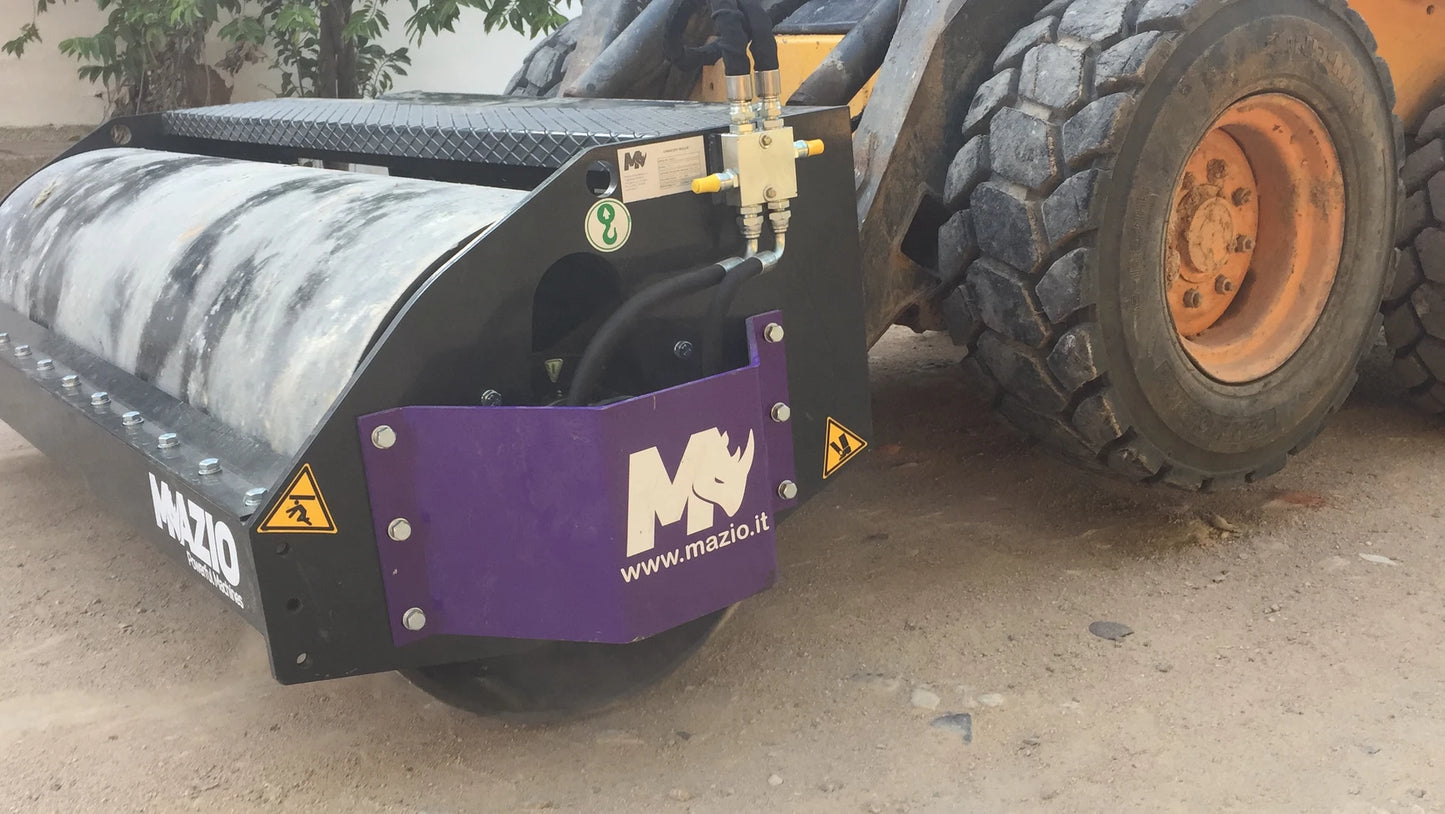

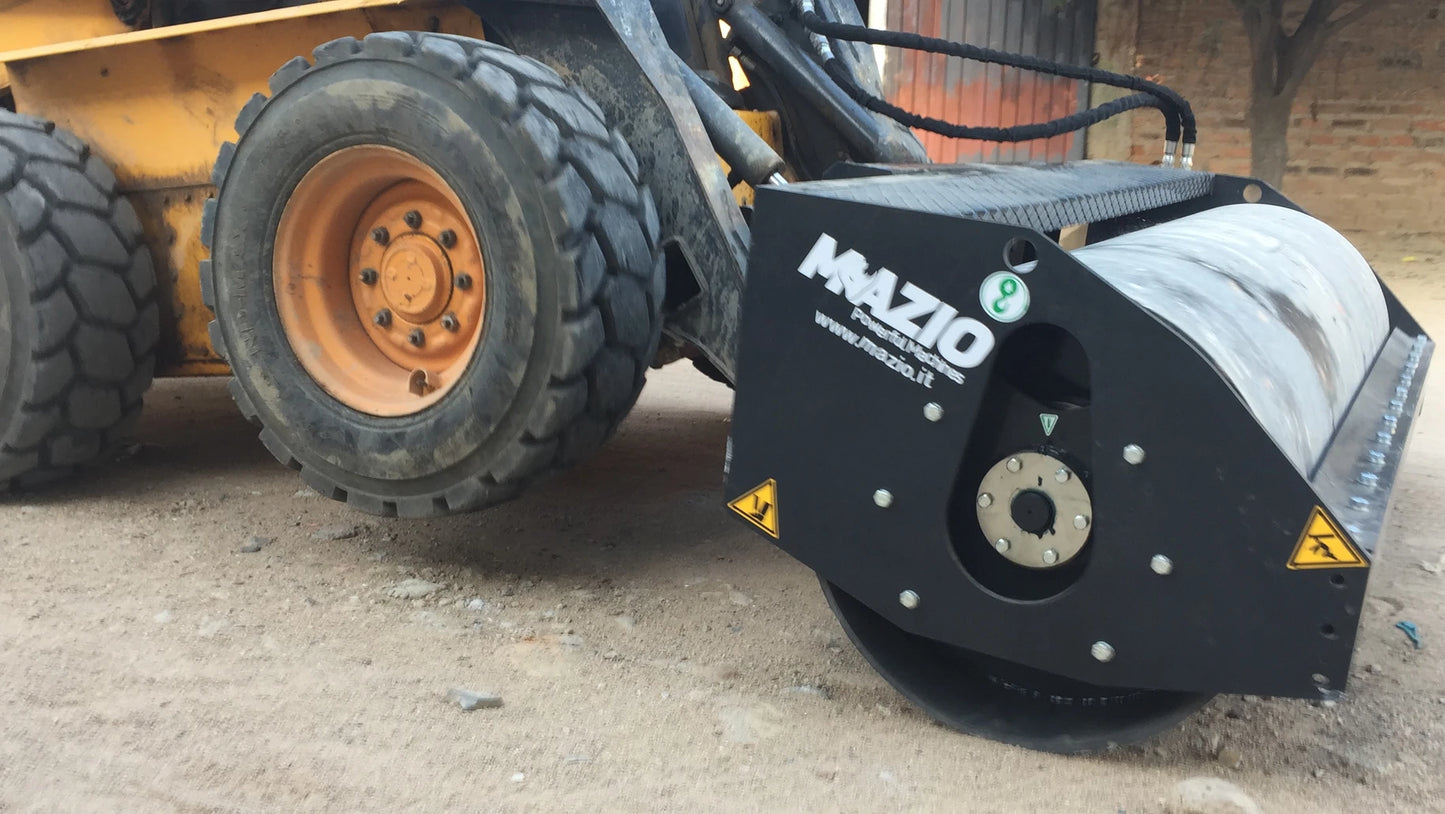

The Mazio Vibratory Roller is an essential attachment for skid steers, designed to enhance compaction tasks with precision and efficiency. Available in models VR-1250, VR-1550, VR-1850, and VR-2150, this roller features a total width range from 1488 mm to 2388 mm, accommodating various project requirements. Constructed to suit skid steers and other mini loaders (ISO 24410), the vibratory roller comes with options for smooth and padded configurations, offering high dynamic force to tackle different terrains. Additionally, a dozer blade option enhances its versatility, making the Mazio Vibratory Roller a robust and reliable choice for construction and landscaping projects.
Mazio Vibratory Roller | Models VR-1250, VR-1550, VR-1850 & VR-2150 | Total Width 1488 To 2388 mm | For Skid Steer
Mazio Vibratory Roller | Models VR-1250, VR-1550, VR-1850 & VR-2150 | Total Width 1488 To 2388 mm | For Skid Steer
Regular price
$1.00
Regular price
Sale price
$1.00
Unit price
per
Couldn't load pickup availability
Couldn't load pickup availability
How To Get A Quote
***Online pricing not available, Please request a quote:***
How To Get A Quote:
Option 1:
Contact Us to make sure you are getting the best unit possible. These machines are complex so let us help you get exactly what you need!
Option 2: (quickest response times)
Step 1. Add the item to your cart
Step 2. Checkout or Click on the Chat button box that is at the bottom right of your screen
Step 3. Please tell us any info you think we would need to know
Step 4. Relax, our team is processing your request and an expert will be in touch to get you exactly what you need!
Product Description
Mazio Vibratory Roller | Models VR-1250, VR-1550, VR-1850 & VR-2150 | Total Width 1488 To 2388 mm | For Skid Steer
DESCRIPTION
Key Features
- Compatibility: Can be installed on any ISO 24410 mini loader, including skid steers.
- Models: Available in VR-1250, VR-1550, VR-1850, and VR-2150.
- Total Width: Ranges from 1488 mm to 2388 mm.
- Options: Available in both smooth and padded configurations.
- Performance: High dynamic force for effective compaction.
- Versatility: Optional dozer blade enhances functionality.
Detailed Specifications
1250 VR
| Feature | Details |
|---|---|
| Dynamic Force (Kg-f) | 5230 |
| Working Width (mm) | 1250 |
| Length (mm) | 950 |
| Height (mm) | 680 |
| Drum Diameter (mm) | 610 |
| Total Width (mm) | 1488 |
| Frequency (rpm) | 55 / 3300 |
| Oil Flow (lpm) | 38 / 68 |
| Working Pressure (bar) | 152 / 207 |
| Weight (kg) | 768 |
1550 VR
| Feature | Details |
|---|---|
| Dynamic Force (Kg-f) | 5310 |
| Working Width (mm) | 1550 |
| Length (mm) | 950 |
| Height (mm) | 680 |
| Drum Diameter (mm) | 610 |
| Total Width (mm) | 1788 |
| Frequency (rpm) | 55 / 3300 |
| Oil Flow (lpm) | 38 / 68 |
| Working Pressure (bar) | 152 / 207 |
| Weight (kg) | 850 |
1850 VR
| Feature | Details |
|---|---|
| Dynamic Force (Kg-f) | 5390 |
| Working Width (mm) | 1850 |
| Length (mm) | 950 |
| Height (mm) | 680 |
| Drum Diameter (mm) | 610 |
| Total Width (mm) | 2088 |
| Frequency (rpm) | 55 / 3300 |
| Oil Flow (lpm) | 38 / 68 |
| Working Pressure (bar) | 152 / 207 |
| Weight (kg) | 930 |
2150 VR
| Feature | Details |
|---|---|
| Dynamic Force (Kg-f) | 5480 |
| Working Width (mm) | 2150 |
| Length (mm) | 950 |
| Height (mm) | 680 |
| Drum Diameter (mm) | 610 |
| Total Width (mm) | 2388 |
| Frequency (rpm) | 55 / 3300 |
| Oil Flow (lpm) | 38 / 68 |
| Working Pressure (bar) | 152 / 207 |
| Weight (kg) | 930 |
