Product Description

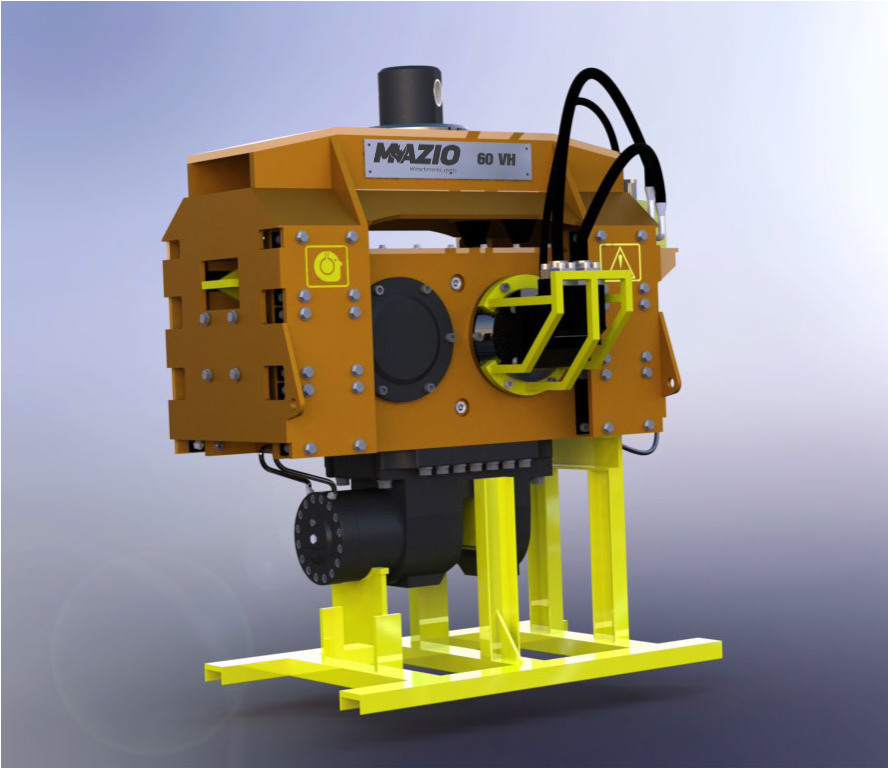

MAZIO VIBRO HAMMER | VH-20 TO VH-120 MODELS | CARRIER WEIGHT 8-45 TON RANGE | FOR EXCAVATOR
DESCRIPTUION
These Mazio Vibro Hammer models sound powerful! Covering a carrier weight range of 8-45 tons, these hammers are built for excavators. Whether you're demolishing, constructing, or performing any heavy-duty task, these models have got you covered.
Key Characteristics
- High Mobility: Designed for easy movement and positioning.
- Cost Performance: Offers excellent value for various applications.
- Versatility: Suitable for Sheet piles, H-beams, Casings, Tubes, Concrete piles, and wooden piles.
- Specially Designed Clamps: Ensures secure handling of different materials.
Key Features.
- Powerful Performance: Eccentric moment ranging from 2.2 to 12.4 kgm and centrifugal force up to 750 kN.
- Optimal Speed: From 2350 to 3150 rpm for high-efficiency operations.
- Strong Hydraulics: 95 to 290 L/min flow with consistent 300 bar working pressure.
- Impressive Force: Max pulling force up to 180 kN and max pushing force up to 160 kN.
- Built to Last: Constructed with durable materials to withstand rigorous use.
- Adaptable Sizes: Caters to carrier weights from 8 to 45 tons.
- Power Range: 61 to 175 kW, equipped with Parker hydraulic motors for reliable performance.
- Compact Dimensions: Designed to fit various operational needs with ease.
Detailed Specifications
20VH & 30VH
| Attribute | 20VH | 30VH |
|---|---|---|
| Carrier Operating Weight (Ton) | 8-14 | 14-20 |
| Eccentric Moment (Kgm) | 2.2 | 3 |
| Centrifugal Force (kN) | 250 | 310 |
| Max. Amplitude (mm) | 7.5 | 9 |
| Speed (rpm) | 3150 | 3000 |
| Flow (Lt/min) | 95 | 120 |
| Working Pressure (bar) | 300 | 300 |
| Max. Pulling Force (kN) | 60 | 60 |
| Max. Pushing Force (kN) | 40 | 40 |
| Dynamic Weight (kg) | 600 | 600 |
| Total Length A (mm) | 1100 | 1100 |
| Total Width B (mm) | 1025 | 1025 |
| Total Height C (mm) | 625 | 625 |
| Power (kW) | 61 | 70 |
| Parker Hydraulic Motor | F12-30 | F12-40 |
| Total Weight (kg) | 850 | 850 |
40VH & 60VH
| Attribute | 40VH | 60VH |
|---|---|---|
| Carrier Operating Weight (Ton) | 18-24 | 24-32 |
| Eccentric Moment (Kgm) | 4 | 6 |
| Centrifugal Force (kN) | 370 | 440 |
| Max. Amplitude (mm) | 8.7 | 12 |
| Speed (rpm) | 2800 | 2500 |
| Flow (Lt/min) | 171 | 204 |
| Working Pressure (bar) | 300 | 300 |
| Max. Pulling Force (kN) | 120 | 120 |
| Max. Pushing Force (kN) | 80 | 80 |
| Dynamic Weight (kg) | 940 | 1000 |
| Total Length A (mm) | 1000 | 1000 |
| Total Width B (mm) | 1400 | 1400 |
| Total Height C (mm) | 700 | 750 |
| Power (kW) | 85 | 119 |
| Parker Hydraulic Motor | F12-60 | F12-80 |
| Total Weight (kg) | 1230 | 1350 |
70VH & 80VH
| Attribute | 70VH | 80VH |
|---|---|---|
| Carrier Operating Weight (Ton) | 28-35 | 34-42 |
| Eccentric Moment (Kgm) | 7 | 8 |
| Centrifugal Force (kN) | 560 | 604 |
| Max. Amplitude (mm) | 14 | 10 |
| Speed (rpm) | 2700 | 2500 |
| Flow (Lt/min) | 204 | 275 |
| Working Pressure (bar) | 300 | 300 |
| Max. Pulling Force (kN) | 150 | 175 |
| Max. Pushing Force (kN) | 80 | 90 |
| Dynamic Weight (kg) | 1000 | 1780 |
| Total Length A (mm) | 1000 | 1190 |
| Total Width B (mm) | 1400 | 1650 |
| Total Height C (mm) | 750 | 800 |
| Power (kW) | 125 | 165 |
| Parker Hydraulic Motor | F12-80 | F12-110 |
| Total Weight (kg) | 1350 | 2150 |
120VH
| Attribute | 120VH |
|---|---|
| Carrier Operating Weight (Ton) | 42-Up |
| Eccentric Moment (Kgm) | 12.4 |
| Centrifugal Force (kN) | 750 |
| Max. Amplitude (mm) | 16 |
| Speed (rpm) | 2350 |
| Flow (Lt/min) | 290 |
| Working Pressure (bar) | 300 |
| Max. Pulling Force (kN) | 180 |
| Max. Pushing Force (kN) | 160 |
| Dynamic Weight (kg) | 1500 |
| Total Length A (mm) | 1700 |
| Total Width B (mm) | 1850 |
| Total Height C (mm) | 475 |
| Power (kW) | 175 |
| Parker Hydraulic Motor | F12-125 |
| Total Weight (kg) | 2600 |
Manuals & Documents
General Warranty Info:
- Ripping It Outdoors works closely with our manufacturers to supply and support your products warranty needs as best as possible!
- The majority of products come with a manufacturer represented warranty against manufacturing defects for at least a 12 month period after the date of sale.
- Expendable components and "wear parts" including but not limited to blades, knives, teeth, oil, chain sprockets, skid shoes, knife mounting discs, and similar components are usually excluded from manufacturer warranties.
- Please reach out to us for any specific warranty information needed about products and parts you can’t find!

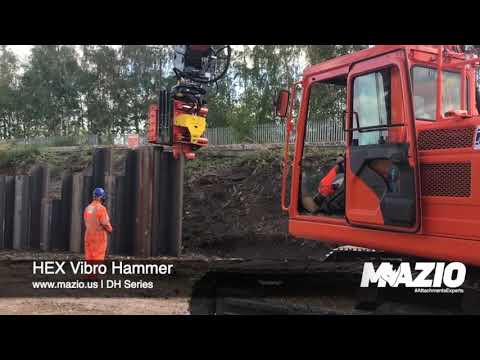

Videos
