Product Description

Mazio Winter Tools Two Stages Snow Blowers | Working Width 61" to 98.4" inche | Weight 224 to 4180 Lbs | For Skid Steer Loaders

Description

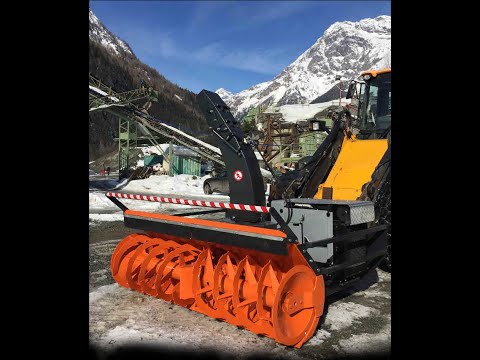

Mazio's Winter Tools | Two Stages Snowblowers are designed with robust and compact structures to deliver exceptional performance for various snow removal tasks. The BLH Series - Front Loader is a two-stage snowblower equipped with an independent diesel engine, gearbox, and torque limiter. This series is ideal for machines without hydrostatic systems, allowing for slow driving (~1 mph) with high oil flow at low RPM. The Stage 5 Yanmar 69.3 hp engine at 2500 RPM powers the hydraulic power pack, ensuring high productivity and reliability. The torque limiter prevents damage caused by objects hidden in the snow that can get stuck in the first stage helix.

The BLS Series is equipped with a bolted lower blade made of wear-resistant steel, side-adjustable slides, and ice breaker helixes made of HARDOX steel, ensuring strong wear resistance. The mechanical edge chute and flap orientation, with options for electric or hydraulic control sets, make this series versatile for different snow conditions. The BLS Series allows for quick and efficient snow removal from roads and yards, whether the snow is icy, soft, or heavy.

Key Features

• Independent Diesel Engine: Provides high power and efficiency.
• Two-Stage Snowblower: Ensures effective snow removal.
• Torque Limiter: Prevents breakage due to accidental entry of objects.
• High Strength Steel Construction: Durable and robust.
• Adjustable Height Rear Roller: Customizable based on task requirements.
• Sliding Skids: Facilitates smooth operation.
• Ice Breaker Helixes Made of HARDOX Steel: Ensures wear resistance.
• Hydraulic Chute and Deflector Regulation: Enhances control and efficiency.
• Versatile Applications: Suitable for wheel loaders, backhoe loaders, telehandlers, and large CTLs.

Detailed Specifications

BLS 63

Feature	Details
Total Width (in)	62
Working Width (in)	61
Weight (Lbs)	224
I° and II° Stage Helixes Diameter (in)	22 / 14
Frontal Height (in)	30
Maximum Oil Flow (gpm)	15-24
Working Pressure (psi)	2465-3045
Maximum Pressure (psi)	3120
Edge Chute Rotation Angle (°)	264
Working Autonomy at Full Tank (hours)	-

BLS 72

Feature	Details
Total Width (in)	70
Working Width (in)	68
Weight (Lbs)	230
I° and II° Stage Helixes Diameter (in)	22 / 14
Frontal Height (in)	30
Maximum Oil Flow (gpm)	15-24
Working Pressure (psi)	2465-3045
Maximum Pressure (psi)	3120
Edge Chute Rotation Angle (°)	264
Working Autonomy at Full Tank (hours)	-

BLS 82

Feature	Details
Total Width (in)	82
Working Width (in)	80
Weight (Lbs)	238
I° and II° Stage Helixes Diameter (in)	22 / 14
Frontal Height (in)	30
Maximum Oil Flow (gpm)	15-24
Working Pressure (psi)	2465-3045
Maximum Pressure (psi)	3120
Edge Chute Rotation Angle (°)	264
Working Autonomy at Full Tank (hours)	-

BLH 90

Feature	Details
Total Width (in)	92.5
Working Width (in)	90.5
Weight (Lbs)	3740
I° and II° Stage Helixes Diameter (in)	24.8 / 21.6
Frontal Height (in)	39.3
Maximum Oil Flow (gpm)	23.7
Working Pressure (psi)	-
Maximum Pressure (psi)	3118
Edge Chute Rotation Angle (°)	240
Working Autonomy at Full Tank (hours)	~ 8

 BLH 98

Feature	Details
Total Width (in)	100
Working Width (in)	98.4
Weight (Lbs)	4180
I° and II° Stage Helixes Diameter (in)	24.8 / 21.6
Frontal Height (in)	39.3
Maximum Oil Flow (gpm)	23.7
Working Pressure (psi)	-
Maximum Pressure (psi)	3118
Edge Chute Rotation Angle (°)	240
Working Autonomy at Full Tank (hours)	~ 8
