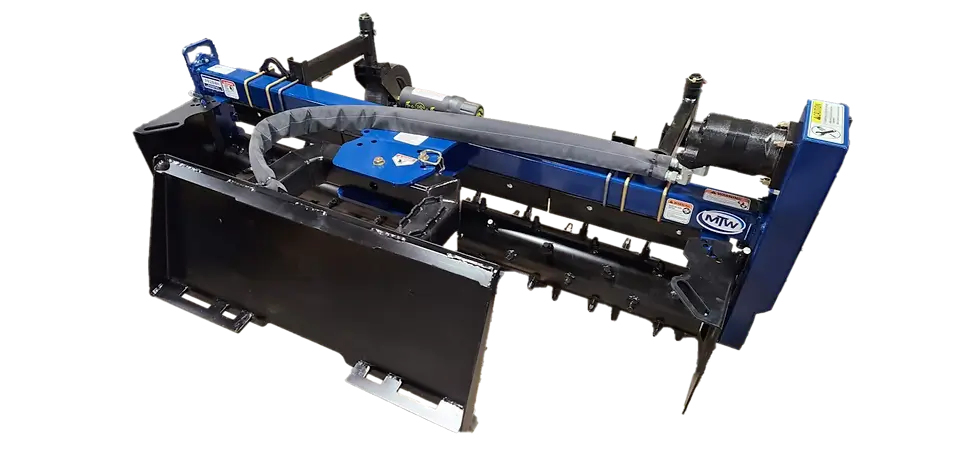

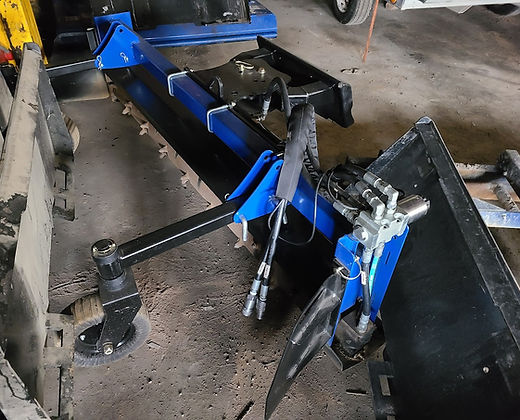

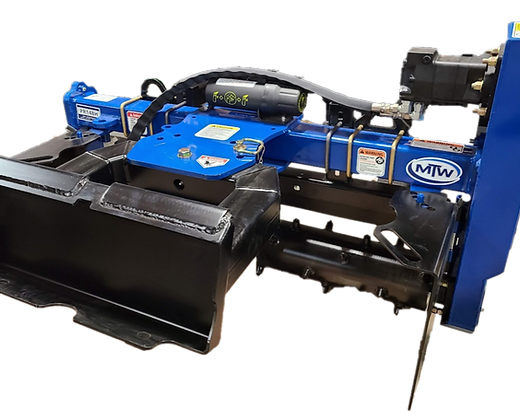

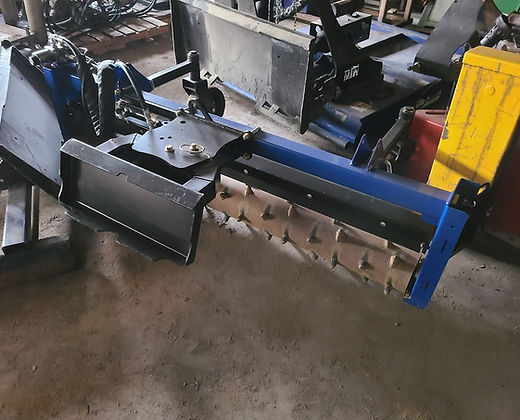

MTW | RTS Power Rake | Series 1 | Carbide & Replaceable Teeth | Sizes 48" To 84" | 50" Length | Universal & Mini Mount | Hydraulic Flow 8 To 20 GPM | For Skid Steer
MTW | RTS Power Rake | Series 1 | Carbide & Replaceable Teeth | Sizes 48" To 84" | 50" Length | Universal & Mini Mount | Hydraulic Flow 8 To 20 GPM | For Skid Steer
Couldn't load pickup availability
Couldn't load pickup availability
Product Description
MTW | RTS Power Rake | Series 1 | Carbide & Replaceable Teeth | Sizes 48" To 84" | 50" Length | Universal & Mini Mount | Hydraulic Flow 8 To 20 GPM | For Skid Steer
DESCRIPTION
The MTW RTS Skid Steer Power Rake Series 1 is a game-changer in the world of landscaping and site preparation. Designed for versatility and efficiency, this attachment utilizes the innovative Rotary Tool System (RTS), allowing you to transform your skid steer into a powerful tool for a variety of applications. Whether you're leveling ground, grading, or preparing soil for planting, the Series 1 Power Rake is engineered to deliver exceptional performance.

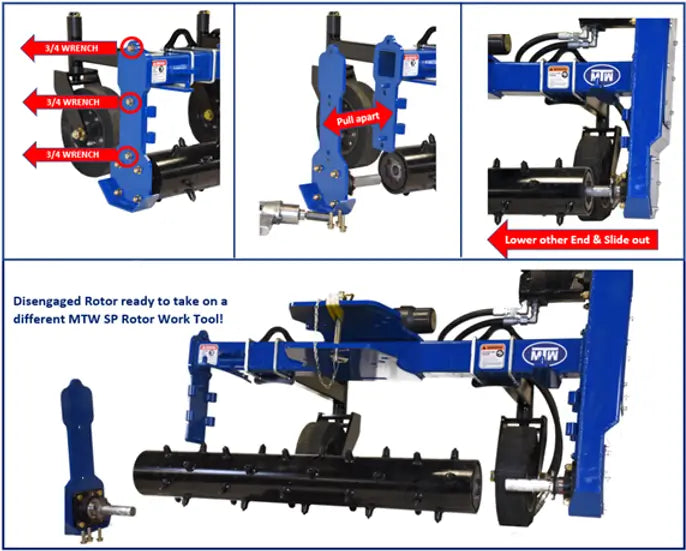

One of the standout features of the RTS system is its fast-changing rotor drive, which simplifies the process of switching out the power rake rotor. With a patent-pending design, you can change the rotor in as little as 15 minutes using just one tool, all while keeping the chain case undisturbed. This means less downtime and more productivity on the job site.
The Series 1 Power Rake is compatible with various rotor types, including abrasion-resistant steel teeth, carbide-tipped weld-on teeth, and replaceable hardened steel teeth. Additionally, it can accommodate specialized rotors such as the Tiller Rotor and Broom Rotor, making it a truly versatile attachment for any skid steer.
Key Features
- Rotary Tool System (RTS): Patented system for fast and easy rotor changes.
- Versatile Application: Suitable for landscaping, seedbed preparation, site cleanup, and material conditioning.
- Interchangeable Rotors: Compatible with power rake, tiller, broom, and other rotor diameters.
- Carbide Teeth: Replaceable carbide teeth for aggressive material conditioning and long life.
- Durable Construction: Built with a .25" frame tube for strength and reliability.
- Skid Steer Compatibility: Mount options for standard skid steers, mini skid steers, Bobcat MT, and ASV.
- Hydraulic Angle: Choice of manual or hydraulic angle adjustment.
- Designed for Lower Flow: Optimized for mini skid steers and lower-flow skid steers.
Detailed Specifications
| Hydraulic Model | Mount | Overall Width | Overall Height | Work Width | Approx. Weight | Angled Width 10° | Angled Width 20° | Chain | Rotor Diameter | Angle Type |
|---|---|---|---|---|---|---|---|---|---|---|
| PR148H CR | Universal or Mini | 58" | 34" | 48" | 590 lbs | 45" | 42" | 80 Single | 6" | Manual or Hydraulic |
| PR148H RT | Universal or Mini | 58" | 34" | 48" | 590 lbs | 45" | 42" | 80 Single | 6" | Manual or Hydraulic |
| PR160H CR | Universal or Mini | 70" | 34" | 60" | 650 lbs | 57" | 54" | 80 Single | 6" | Manual or Hydraulic |
| PR160H RT | Universal or Mini | 70" | 34" | 60" | 650 lbs | 57" | 54" | 80 Single | 6" | Manual or Hydraulic |
| PR172H CR | Universal or Mini | 82" | 34" | 72" | 725 lbs | 69" | 66" | 80 Single | 6" | Manual or Hydraulic |
| PR172H RT | Universal or Mini | 82" | 34" | 72" | 725 lbs | 69" | 66" | 80 Single | 6" | Manual or Hydraulic |
| PR184H CR | Universal or Mini | 94" | 34" | 84" | 900 lbs | 81" | 78" | 80 Single | 6" | Manual or Hydraulic |
| PR184H RT | Universal or Mini | 94" | 34" | 84" | 900 lbs | 81" | 78" | 80 Single | 6" | Manual or Hydraulic |
Manuals & Documents
General Warranty Info:
- Ripping It Outdoors works closely with our manufacturers to supply and support your products warranty needs as best as possible!
- The majority of products come with a manufacturer represented warranty against manufacturing defects for at least a 12 month period after the date of sale.
- Expendable components and "wear parts" including but not limited to blades, knives, teeth, oil, chain sprockets, skid shoes, knife mounting discs, and similar components are usually excluded from manufacturer warranties.
- Please reach out to us for any specific warranty information neededabout products and parts you can’t find!

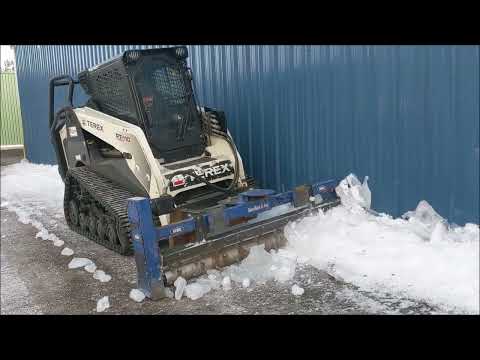

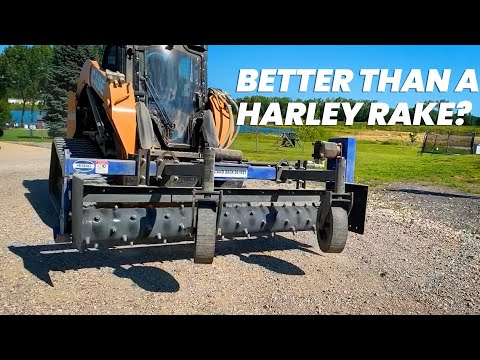

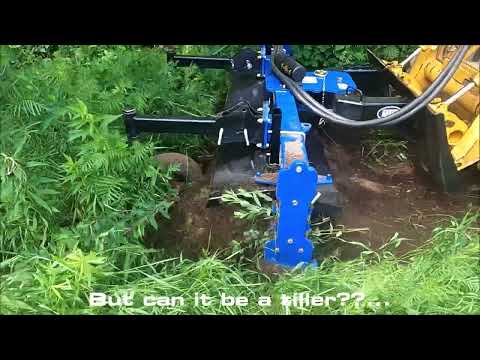

Videos
