Product Description
MTW | RTS Power Rake | Series 2 | Carbide & Replaceable Teeth | Sizes 72", 84", & 96" | 8" Rotor | Universal & Mini Mount | High Flow 20-30 GPM | For Skid Steer
DESCRIPTION

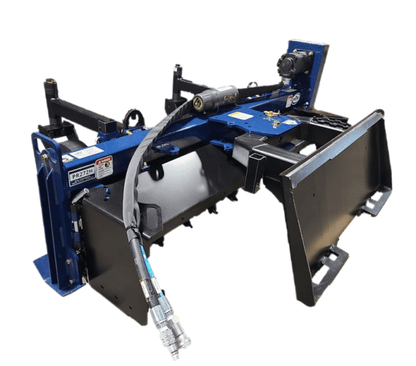

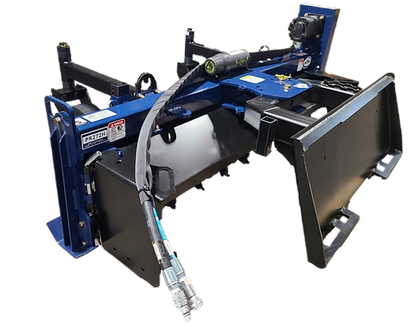

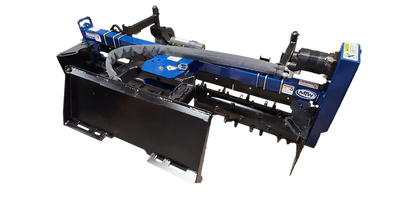

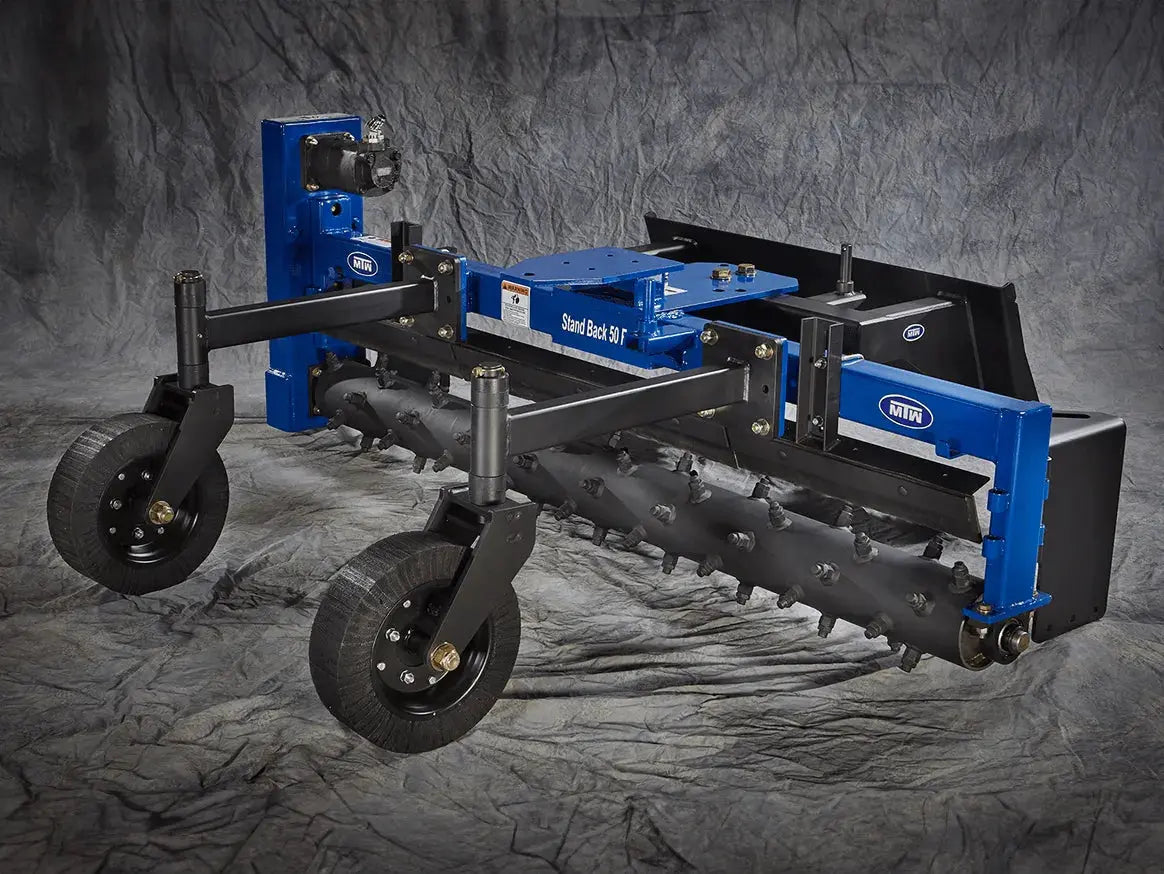

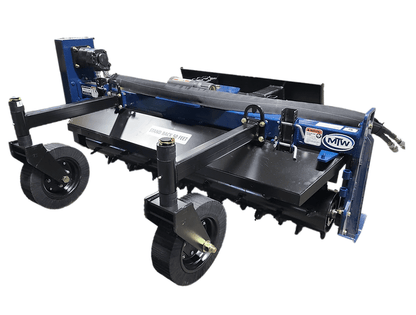

The MTW RTS Skid Steer Power Box Rake Series 2 is a high-performance land preparation tool, designed for high-flow skid steers (20-30 GPM). Featuring the Rotary Tool System (RTS) a patent-pending quick-change rotor drive system this attachment redefines versatility by allowing operators to swap rotors effortlessly in the field within 15 minutes.

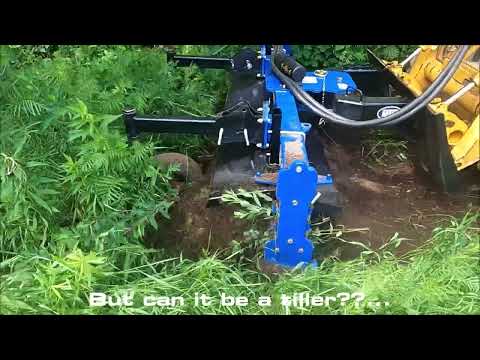

Unlike traditional power rakes, the RTS system eliminates the cumbersome process of rotor replacement, ensuring maximum efficiency without disturbing the chain case. With just one tool, operators can transition between Power Rake, Tiller, and Sweeper Rotors, making this attachment ideal for professionals who require multi-functional capabilities.
Built with heavy-duty construction, the Series 2 Power Rake features abrasion-resistant steel teeth, carbide-tipped weld-on teeth, and replaceable hardened steel teeth, ensuring long-lasting durability in demanding terrain conditions.
Key Features
- Quick Change Rotary Tool System: Change rotors in as little as 15 minutes with just one tool, without disturbing the chain case.
- Versatile Rotor Compatibility: Use traditional rotors like Abrasion Resistant Steel Teeth, Carbide Tipped Weld-on Teeth, and Replaceable Hardened Steel Teeth, or switch to Tiller and Broom Rotors for added functionality.
- High Flow Design: Optimized for skid steers with flow rates between 20 to 30 GPM, ensuring maximum efficiency.
- Durable Construction: Built with a .25 frame tube and standard .25 skid mounts for enhanced durability and stability.
- Multiple Size Options: Available in 72", 84", and 96" working widths to suit various project needs.
- Choice of Angling Mechanisms: Select between manual angle or hydraulic options for precise control during operation.
Detailed Specifications
| Hydraulic Model | Mount | Overall Width | Overall Height | Work Width | Approx. Weight | Angled Width 10° | Angled Width 20° | Chain | Rotor Diameter | Angle Type |
|---|---|---|---|---|---|---|---|---|---|---|
| PR272H CR | Heavy Universal | 82" | 35" | 72" | 960 lbs | 69" | 66" | 80 Single | 8" | Manual or Hydraulic |
| PR272H RT | Heavy Universal | 82" | 35" | 72" | 960 lbs | 69" | 66" | 80 Single | 8" | Manual or Hydraulic |
| PR284H CR | Heavy Universal | 94" | 35" | 84" | 1,030 lbs | 81" | 78" | 80 Single | 8" | Manual or Hydraulic |
| PR284H RT | Heavy Universal | 94" | 35" | 84" | 1,030 lbs | 81" | 78" | 80 Single | 8" | Manual or Hydraulic |
| PR296H CR | Heavy Universal | 106" | 35" | 96" | 1,100 lbs | 93" | 90" | 80 Single | 8" | Manual or Hydraulic |
| PR296H RT | Heavy Universal | 106" | 35" | 96" | 1,100 lbs | 93" | 90" | 80 Single | 8" | Manual or Hydraulic |
Manuals & Documents
General Warranty Info:
- Ripping It Outdoors works closely with our manufacturers to supply and support your products warranty needs as best as possible!
- The majority of products come with a manufacturer represented warranty against manufacturing defects for at least a 12 month period after the date of sale.
- Expendable components and "wear parts" including but not limited to blades, knives, teeth, oil, chain sprockets, skid shoes, knife mounting discs, and similar components are usually excluded from manufacturer warranties.
- Please reach out to us for any specific warranty information neededabout products and parts you can’t find!
