Product Description

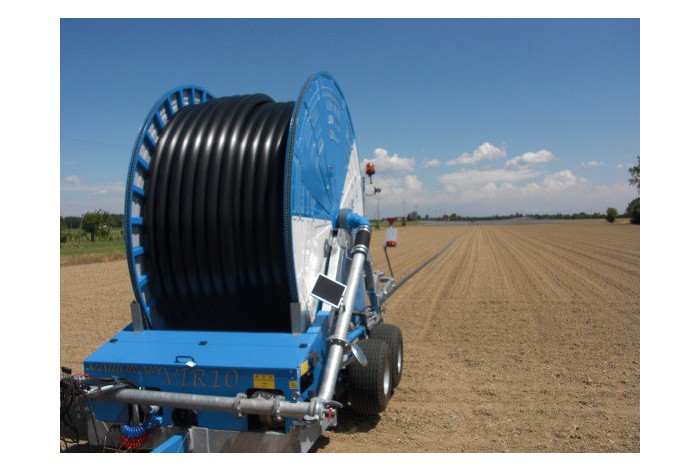

Ocmis VIR10 Vario Rain Series Irrigation Reel With Galvanized Double Water Inlet
Included Options:
- Raingun options: REFLEX, LANCER, or EXPLORER.
- Nozzle sizes from Ø 24 mm to Ø 42 mm.
- Hose diameters from 125 mm to 160 mm.
- Hose lengths up to 820 meters.
- End hose configurations: A, B, C, D, E, F, H, I, J
DESCRIPTION
The OCMIS VIR10 Vario Rain Series irrigation reel offers advanced irrigation technology, making it a top choice for agriculturalists worldwide. Its synchronized gearbox ensures efficient water usage while minimizing pressure losses, providing consistent and reliable irrigation performance. The VIR10's versatility allows it to adapt to various irrigation needs, ensuring crops receive optimal water coverage without wasting resources. Designed for user-friendliness, this irrigation reel is simple to operate, making it accessible to all users, regardless of experience level.
Engineered for durability, the VIR10 features a hot-galvanized chassis and reel, coated with epoxy resin and painted with polyurethane for long-lasting protection. The system is equipped with hydraulic controls for lifting, turning, and stabilization, making setup and operation easier. The VIR10 also offers various raingun and nozzle options, ensuring adaptability to different field sizes and water distribution requirements.
Key Features
- Synchronized 4-speed VR gearbox for efficient and consistent irrigation.
- Water-saving technology reduces consumption without compromising performance.
- Minimal pressure losses ensure consistent water flow and distribution.
- Hydraulic system for lifting, rotation, and drawbar adjustments.
- Hot-galvanized chassis and reel with epoxy resin coating for durability.
- Polyethylene hose made from unadulterated raw materials for long-lasting use.
- REFLEX, LANCER, and EXPLORER raingun options with variable nozzle sizes.
- Aqua System computer for precise irrigation control.
- Safety guards made from swaged galvanized steel for protection.
- Telescopic hydraulic feet for stable positioning during operation.
Detailed Specifications
| Feature | VIR10 Specification |
|---|---|
| Wheel Chassis | Included |
| Hydraulic Turntable Rotation | Included |
| Hydraulic Drawbar Lifting | Included |
| Gearbox | 4 Speed VR |
| Flexible Connection Pipe | Included |
| Pressure Gauge | Glycerine bath |
| Nozzles (REFLEX Raingun) | Ø 24 to Ø 32 |
| Nozzles (LANCER Raingun) | Ø 30 to Ø 40 |
| Aqua System Computer | Included |
| Hydraulic System (Tractor Couplings) | Included |
| Wheels | 150/70-18 148A8 14PR 6F (4 wheels) |
| Safety Guards | Galvanized steel, swaged, painted |
| Water Inlet | Bauer 133 |
| Hydraulic Lifting Device (Trolley) | Included |
| Telescopic Hydraulic Feet | Included |
| Power Take Off | Included |
| Turbine | Flanged with double built-in by-pass |
| Raingun Trolley | Galvanized, mounted on variable track wheels |
| Raingun | Included |
| Nozzles (EXPLORER Raingun) | Ø 28 to Ø 40 |
| Winding Handle | Included |
| Hose Retraction | Double chain |
| Chassis and Reel Coating | Hot galvanized, epoxy resin, polyurethane paint |
| Water Inlet (Galvanized Double) | Included |
| Hose Material | Polyethylene, unadulterated raw material |
Versions & Performances
|
Hose Diameter / Hose Length |
Raingun / Nozzles (mm) |
End Hose |
|---|---|---|
| 125 mm / 750 m | EXPLORER / 28/30/32 | D |
| 125 mm / 820 m | EXPLORER / 30/32/34 | A |
| 135 mm / 650 m | EXPLORER / 32/34/36 | E |
| 135 mm / 700 m | EXPLORER / 32/34/36 | C |
| 135 mm / 750 m | EXPLORER / 32/34/36 | A |
| 140 mm / 550 m | EXPLORER / 34/36/38 | F |
| 140 mm / 600 m | EXPLORER / 34/36/38 | I |
| 140 mm / 630 m | EXPLORER / 34/36/38 | E |
| 140 mm / 700 m | EXPLORER / 34/36/38 | B |
| 140 mm / 720 m | EXPLORER / 34/36/38 | A |
| 150 mm / 500 m | EXPLORER / 36/38/40 | F |
| 150 mm / 550 m | EXPLORER / 36/38/40 | H |
| 150 mm / 600 m | EXPLORER / 36/38/40 | J |
| 160 mm / 400 m | LANCER / 38/40/42 | E |
| 160 mm / 450 m | LANCER / 38/40/42 | C |
| 160 mm / 480 m | LANCER / 38/40/42 | A |
Technical Features
| Category | Measurement (CM) |
|---|---|
| A | 498 |
| B | 450 |
| C | 420 |
| D | 396 |
| E | 265 |
| F | 312 |
| G | 363 |
| H | 250 |
In Package
- VIR10 Vario Rain Series irrigation reel.
- Aqua System computer for precise control.
- REFLEX, LANCER, or EXPLORER raingun with a full set of nozzles.
- Hydraulic system for lifting and rotating the turntable.
- Flexible connection pipe for easy setup.
- Double chain hose retraction system.
- Telescopic hydraulic feet for stability.
- Glycerine bath pressure gauge for accurate pressure reading.
- Hot-galvanized chassis and reel with epoxy resin and polyurethane paint.
