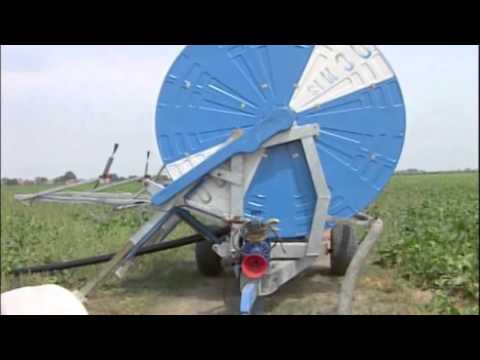

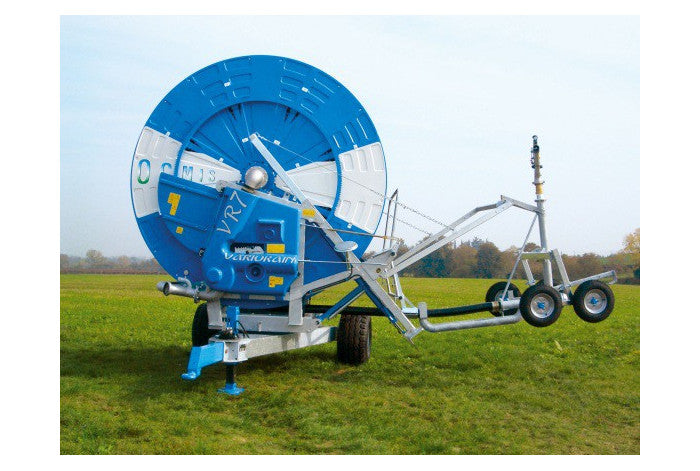

OCMIS VR7 / VR7R / VR7/1 VARIO RAIN SERIES IRRIGATION REEL WITH GALVANIZED DOUBLE WATER INLET

DESCRIPTION

The VR7 / VR7R / VR7/1 Vario Rain Series is indeed a standout in the irrigation reel collection. Here are some key features and benefits:

• Gearbox with Synchronized Speeds: This is the core of the new generation machines, ensuring efficient operation.
• Versatility: Widely appreciated by agriculturalists globally for its adaptability to various irrigation needs.
• User-Friendliness: Designed for ease of use, making it accessible for all users.
• Water Saving: Efficient water usage helps in conserving this vital resource.
• Minimal Pressure Losses: Ensures consistent performance without significant pressure drops.
• Water Saving: Helps in reducing water consumption.
• Ease of Use: User-friendly design makes it easy to operate.
• Consistent Performance: No significant pressure losses ensure reliable irrigation.

TECHNICAL FEATURE- VR7

TECHNICAL FEATURE- VR7/1

SPECIFICATIONS

• Hydraulic lifting device: Trolley
• Gearbox: 4 speed VR
• Turbine: Flanged on gearbox with built-in by-pass
• Raingun trolley: Galvanized, mounted on variable track wheels
• Nozzles (REFLEX raingun): Ø 24 to Ø 32
• Winding handle: Included
• Tachometer: Included
• Drawbar lifting: Mechanical
• Wheels: 2 wheels mod. 11.5/80-15.3 12PR 6F
• Reel coating: Epoxy resin, painted with polyurethane paint
• Water inlet: Galvanized double, Bauer Ø 133 for hose diam. 135-140
• Telescopic hydraulic feet: Included
• Power take off: Included
• Connection pipe: Flexible
• Raingun: Included
• Nozzles (EXPLORER raingun): Ø 28 to Ø 40
• Speed equalizer: Included
• Pressure gauge: Glycerine bath
• Safety guards: Included, made of steel, swaged galvanized and painted
• Chassis and turret: Hot galvanized
• Water inlet (for hose diam. 100-125): Bauer Ø 108
• Hose material: Polyethylene, made from unadulterated raw material





  VERSIONS & PERFORMANCES- VR7

  Hose Diameter (mm)	Hose Length (m)	Raingun	Nozzles (mm)	End Hose
  100	650	REFLEX	26/28/30	A
  110	550	REFLEX	24/26/28	C
  110	600	REFLEX	24/26/28	A
  120	540	EXPLORER	30/32/34	A
  125	450	EXPLORER	32/34/36	D
  125	500	EXPLORER	32/34/36	B
  135	400	EXPLORER	34/36/38	J
  400	380	EXPLORER	36/38/40	J



  VERSIONS & PERFORMANCES- VR7/1

  Hose Diameter (mm)	Hose Length (m)	Raingun	Nozzles (mm)	End Hose
  110	700	REFLEX	24/26/28	D
  110	750	REFLEX	24/26/28	C
  120	750	EXPLORER	30/32/34	J
  125	550	EXPLORER	32/34/36	H
  125	600	EXPLORER	32/34/36	J
  135	460	EXPLORER	34/36/38	B
  140	450	EXPLORER	36/38/40



  PERFORMANCE SUMMARY - 135X400

  Flow Rate (GPM)	Inlet Pressure (PSI)	Sprinkler Pressure (PSI)	Width 80% (FT)
  448	125	80	325
  502	133	80	336
  560	142	80	342
  585	153	87	357
