Paladin Grapple Rake | JRB 416 Mount | Working Width 100.39" | 25,000–40,000 lbs | Dual Hydraulic Clamp | For Wheel Loaders
DESCRIPTION

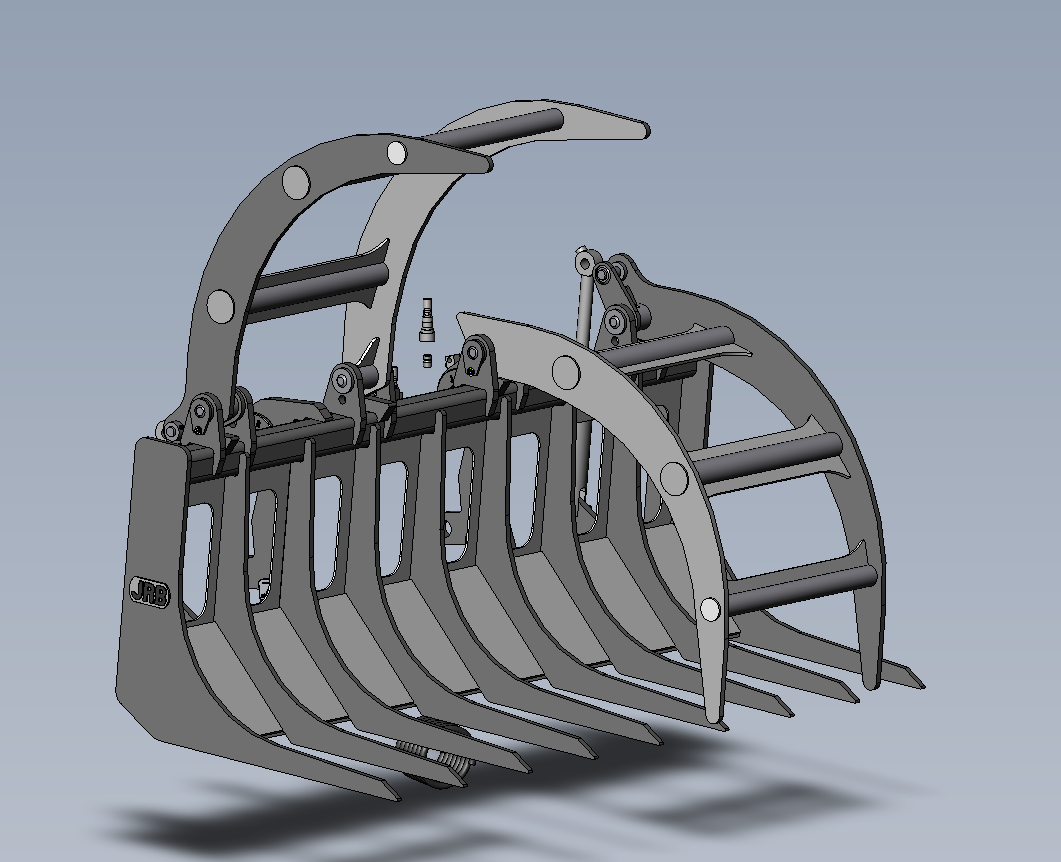

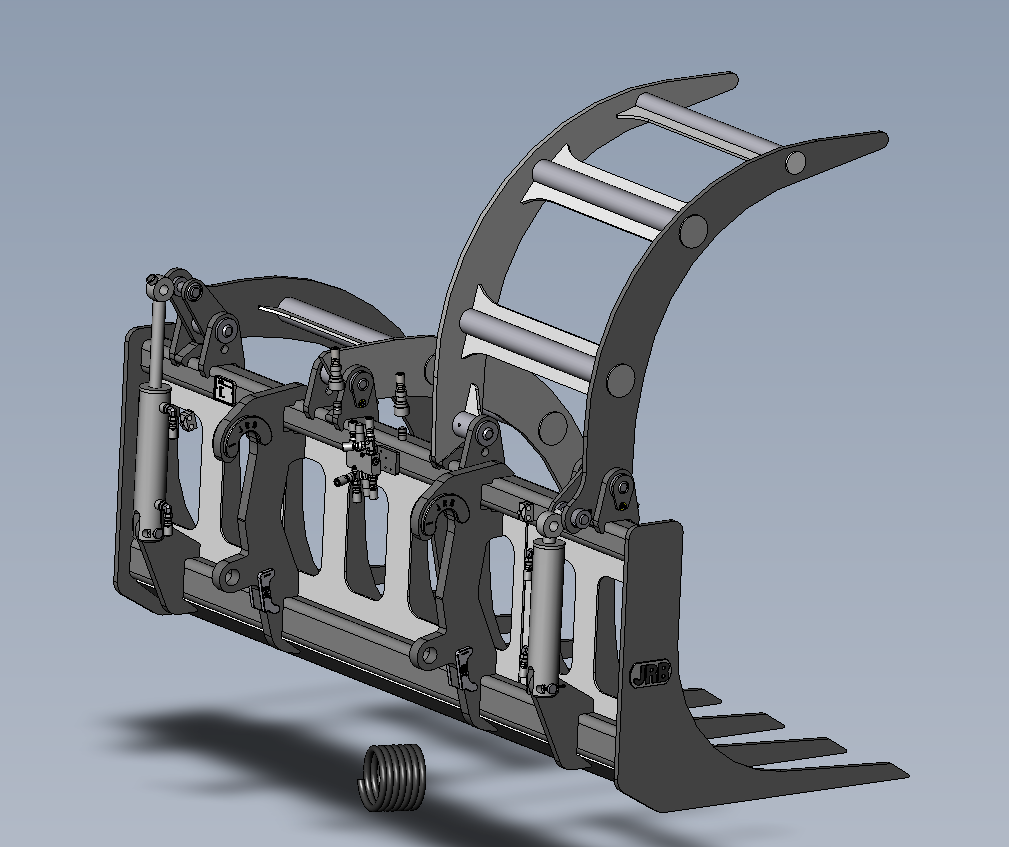

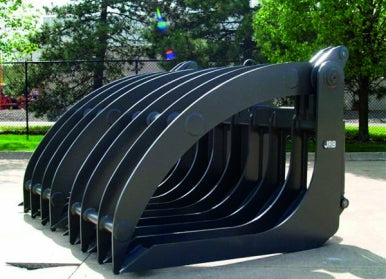

The Paladin Grapple Rake is a powerful and versatile attachment designed for heavy-duty cleanup, tire handling, and land clearing tasks on wheel loaders. With a wide 100.39-inch working width and rugged rake-style frame, this unit is ideal for sorting, hauling, and transferring high-volume debris in construction, landfill, and demolition environments. Equipped with multi-tine grapple arms and dual hydraulic cylinders, it provides independent clamp control for securing uneven loads. Compatible with JRB 416 quick coupler mounts, the rake comes pre-installed with whip hoses and requires third function loader hydraulics for full grapple actuation. Optional sidebars further enhance load retention across wider material spreads.
Key Features
- Wide Working Width: 100.39" rake span for large material capture.
- Dual Hydraulic Grapples: Independent cylinder actuation grips uneven or bulky debris.
- Multi-Tine Frame: Improves material retention and raking efficiency.
- Mount Configuration: Compatible with JRB 416 quick coupler or pin-on systems.
- Jumper & Whip Hoses Included: Simplifies hydraulic connectivity for rapid deployment.
- Third Function Hydraulics Required: Enables full grapple control with loader-integrated hydraulics.
- Optional Sidebars: Add lateral containment for tire loading and scrap bundling.
- Heavy-Duty Construction: Withstands high-impact clearing, waste transfer, and refuse loading.
-
Recommended Loader Class: Ideal for wheel loaders rated between 25,000–40,000 lbs.
Detailed Specification
| Part Number | 90F0988 |
|---|---|
| Model Name | Grapple Rake – Severe Duty |
| Manufacturer | Paladin |
| Attachment Type | Grapple Rake |
| Working Width | 100.39" |
| Mount Type | JRB 416 Quick Coupler / Pin-On |
| Clamp System | Dual Hydraulic Cylinders |
| Frame Style | Multi-Tine Rake with Open Bottom |
| Hydraulic Setup | Third Function + Jumper/Whip Kit |
| Weight | 2,300 lbs |
| Optional Features | Sidebars |
| Machine Size Range | 25,000–40,000 lbs Wheel Loaders |
| Applications | Tires, Trash, Scrap, Land Clearing |
