Product Description
Paladin JRB Roll-Out High Dump Bucket | Working Width 106" | 3 yd³ Capacity | 22,000–35,000 lbs | Dual-Cylinder | For Wheel Loaders
DESCRIPTION

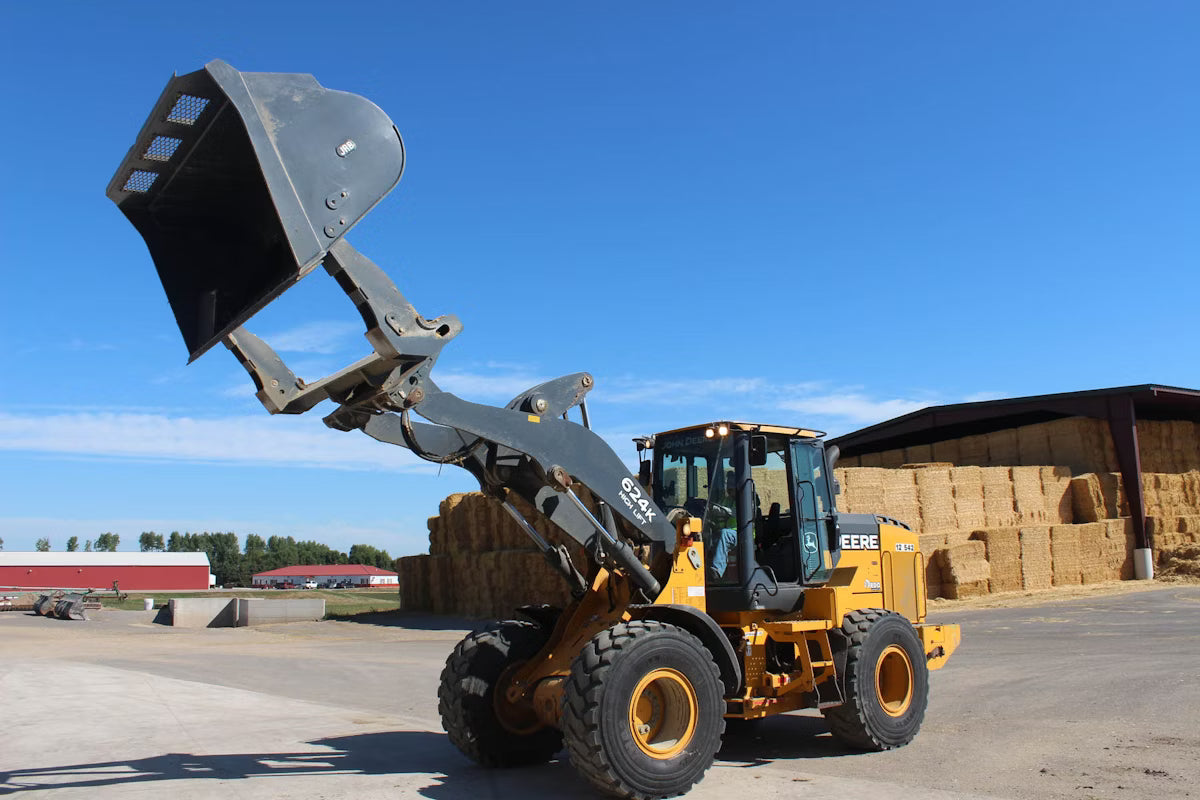

The Paladin Model 92L0010 High Dump Bucket with JRB roll-out geometry is engineered to maximize dump height and material efficiency in demanding work environments like recycling centers, feed transport, and construction yards. Compatible with wheel loaders weighing 22,000–35,000 lbs, this bucket's 106" working width and 3-yard capacity offer excellent performance for high-volume single-side loading operations.

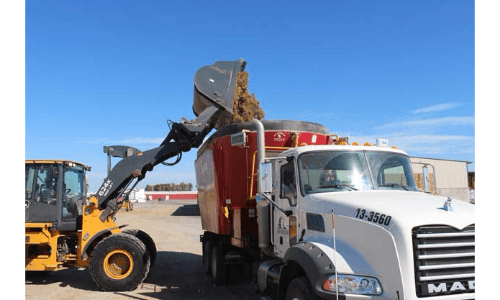

Twin cushioned hydraulic cylinders allow the bucket to roll forward—clearing trailers as tall as 13'6" with ease. The included bolt-on cutting edge enhances floor durability and scraping performance. Designed to mount via a JRB 416 coupler, this unit also includes jumper hoses for ready-to-run integration.
Key Features
- High Dump Roll-Out Design: Achieves elevated discharge height for trailer, feed truck, and bin loading.
- Machine Compatibility: Designed for wheel loaders weighing between 22,000–35,000 lbs.
- Dual Hydraulic Cylinders: Cushioned roll-out tipping system delivers smooth control and minimal shock.
- 3 yd³ Material Capacity: Ideal for bulk loading of soil, aggregate, compost, or refuse.
- Bolt-On Cutting Edge: Replaceable edge extends service life and scraping efficiency.
- Mount Style: JRB 416 coupler system for fast connect/disconnect flexibility.
- Includes Jumper Hoses: Ready-to-run hydraulic integration.
-
Applications: Transfer stations, trailer loading, feed bunkers, waste management, volume fill sites.
Detailed Specification
| Attribute | Value |
|---|---|
| Part Number | 92L0010 |
| Model Name | High Dump Roll-Out Bucket |
| Working Width | 106" |
| Capacity | 3 yd³ |
| Mount Type | JRB 416 Coupler |
| Dump Style | Dual Hydraulic Roll-Out |
| Cutting Edge | Bolt-On |
| Machine Weight Range | 22,000–35,000 lbs |
| Applications | Recycling, Feedlots, Landfills |
