Product Description
Ranco | Anvil Dump Body | 18ft Length | High-Capacity 60" Wall Height | 84.5" Inside Width | For Dump Trucks & Heavy Construction Hauling
Ripping It is Partnered with Western Truck to provide the best pricing and service for Ranco.
DESCRIPTION

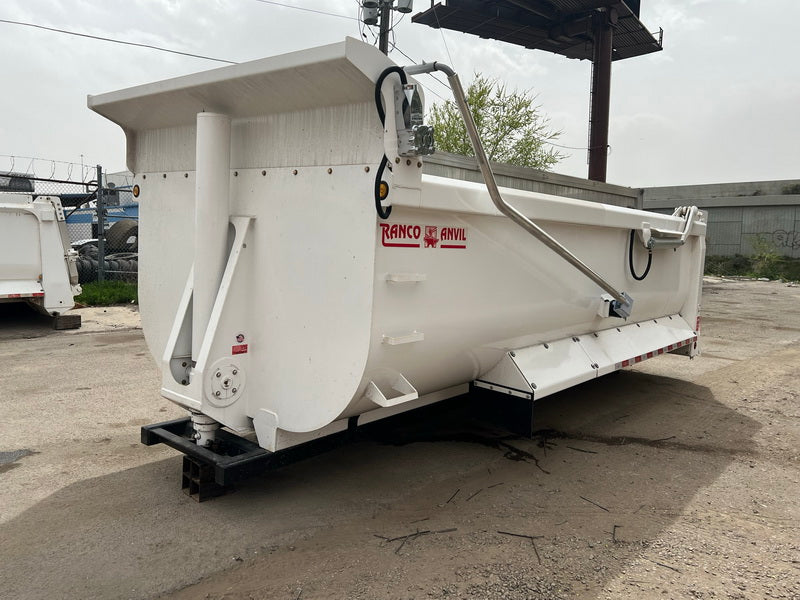

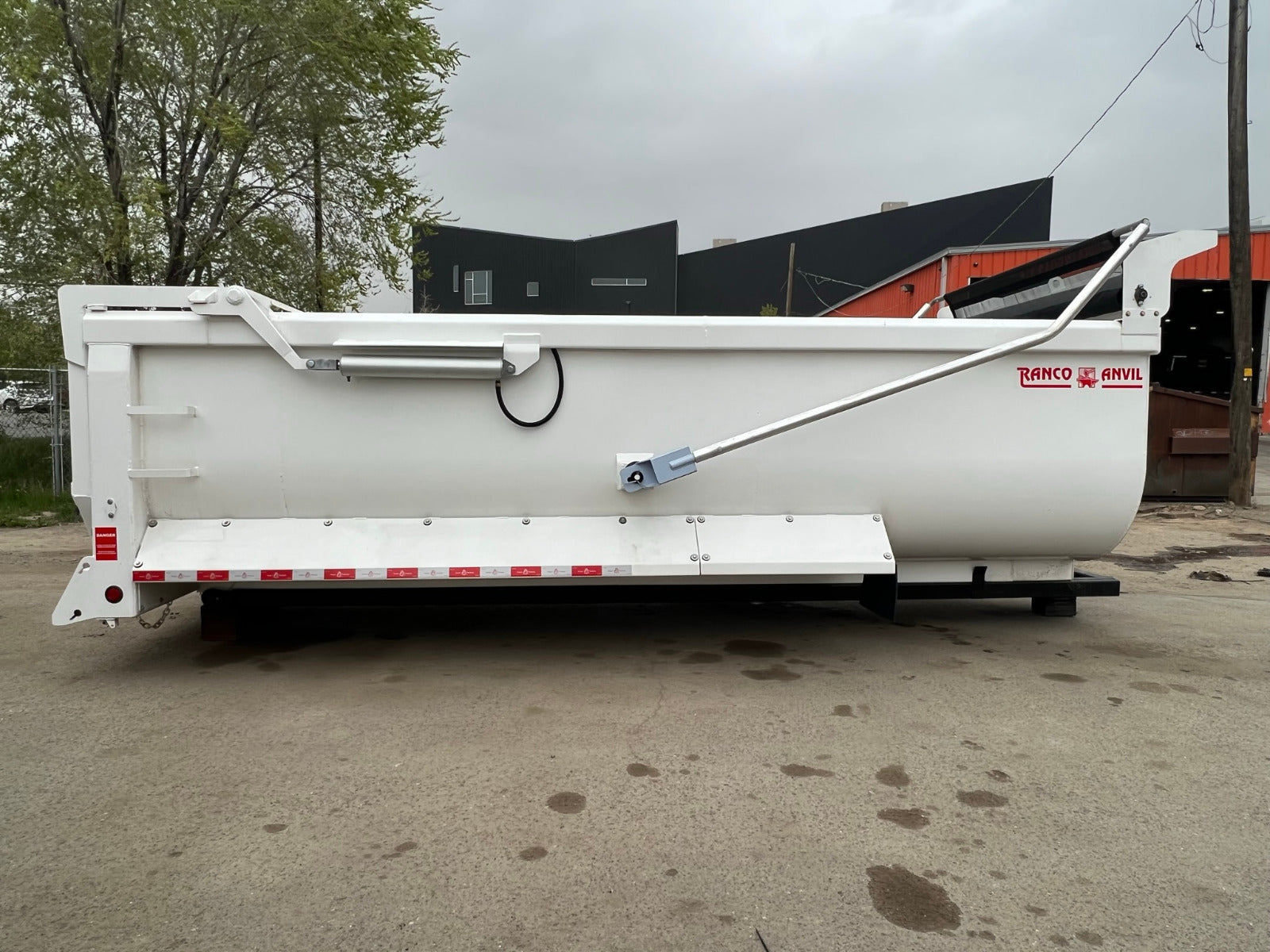

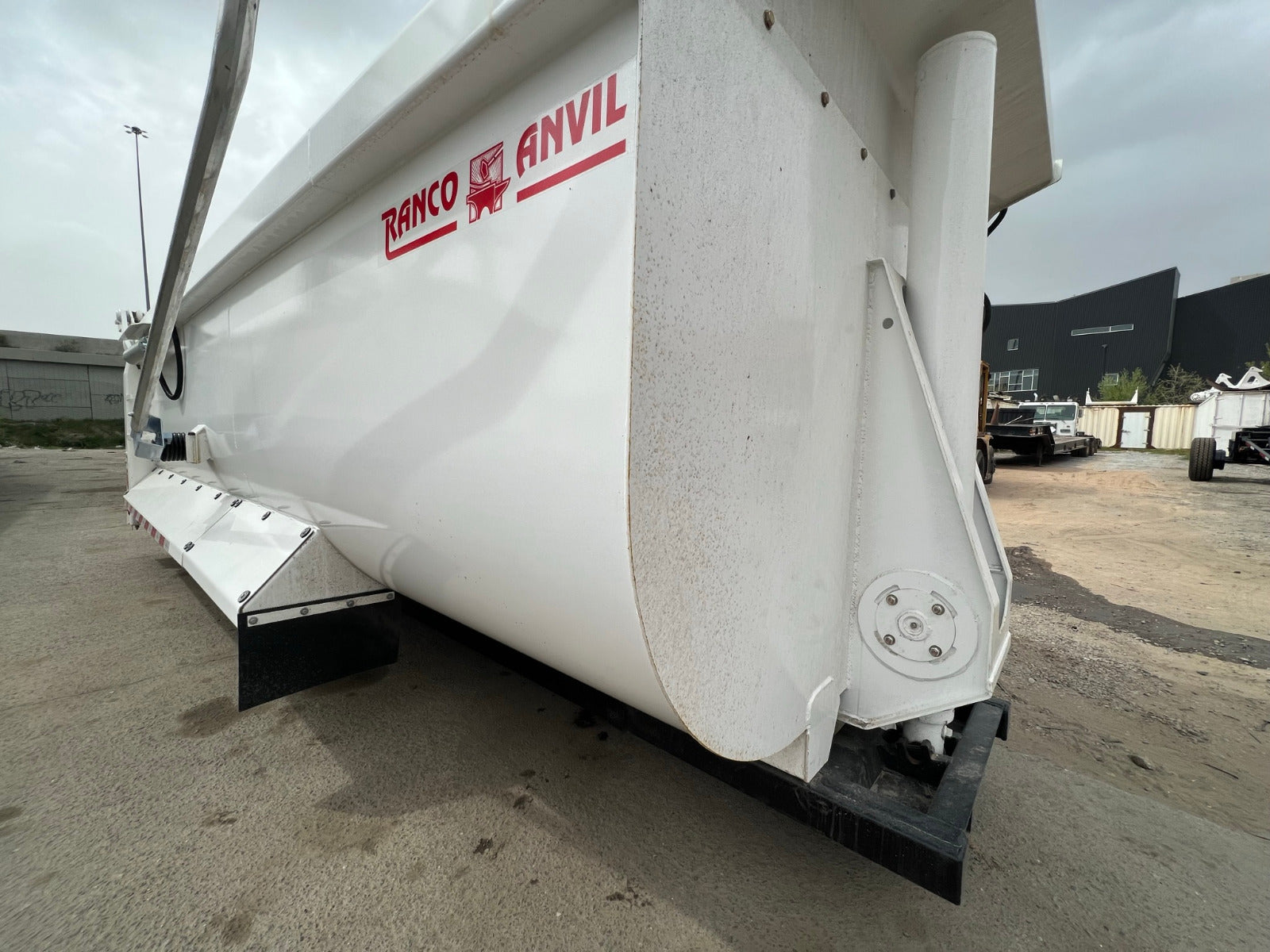

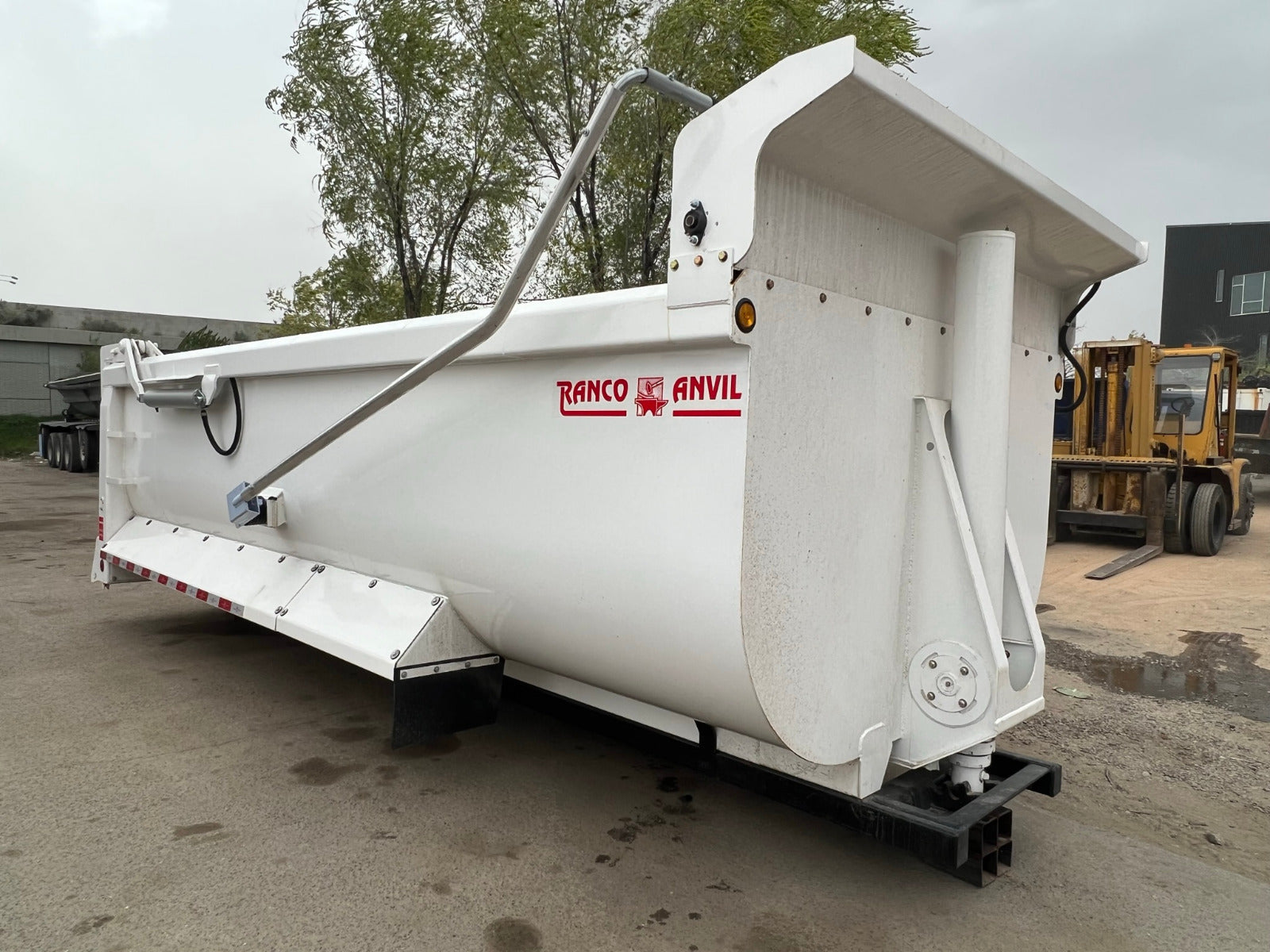

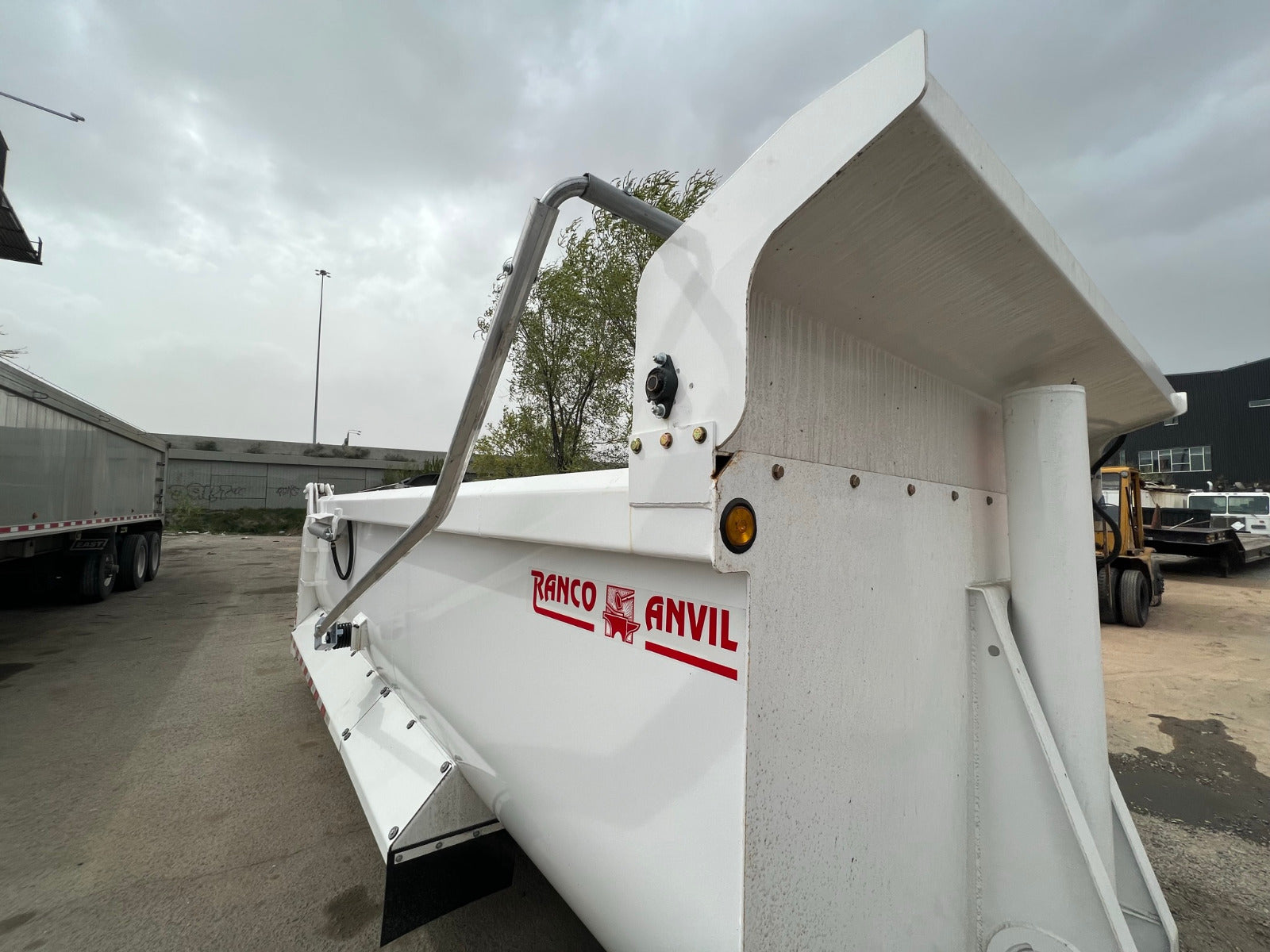

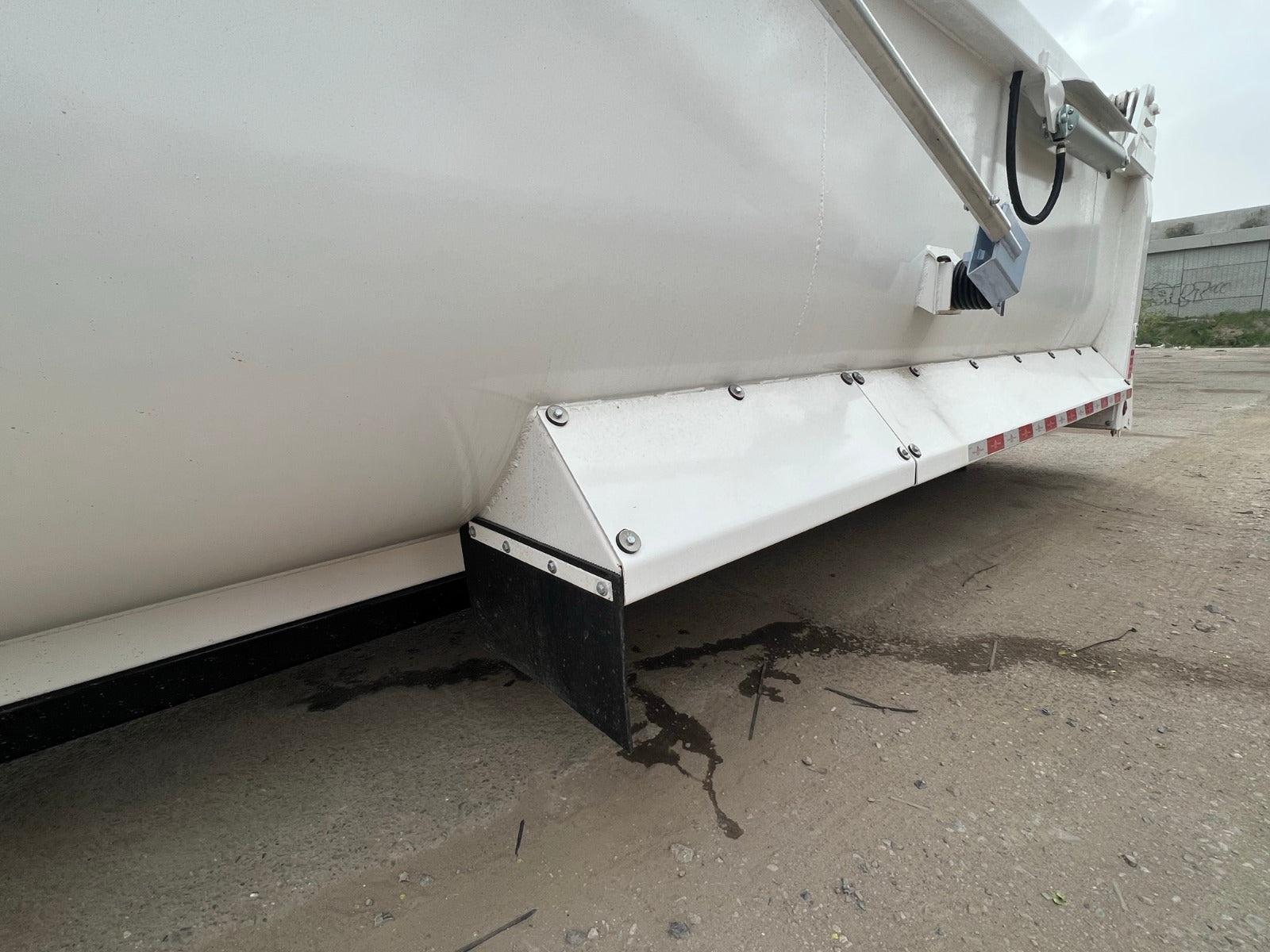

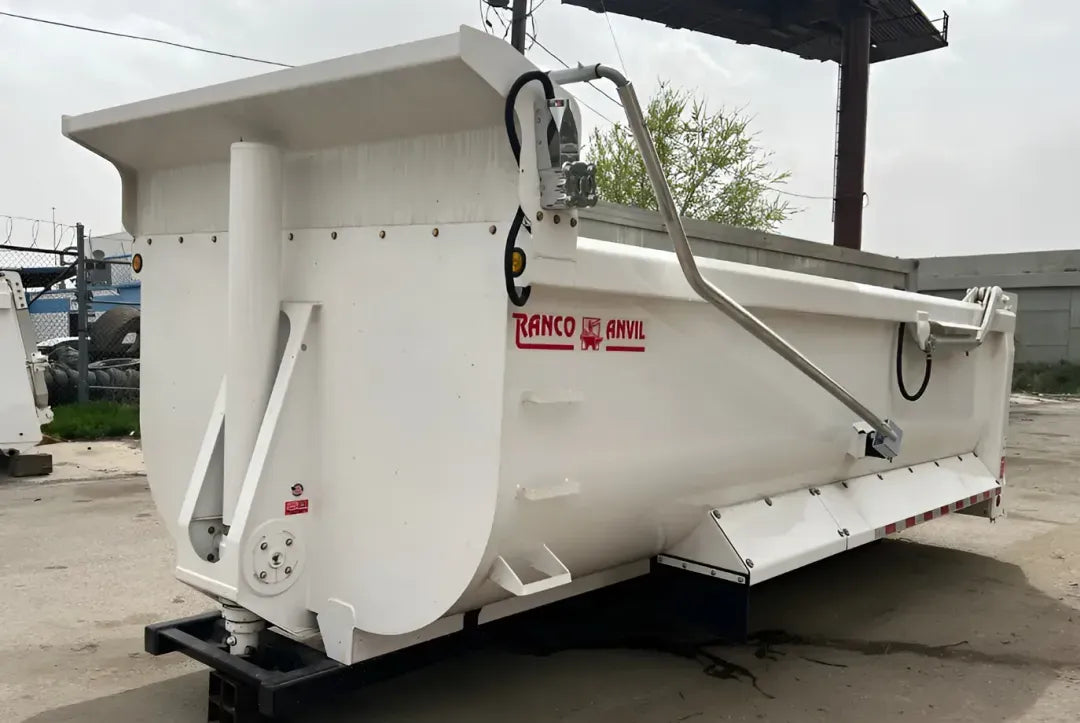

The Ranco Anvil Dump Body is your go-to solution for extreme-duty hauling in construction, demolition, and heavy transport industries. Crafted from 1/4" AR steel plate and supported by a robust elliptical design, this dump body delivers unmatched strength and reliability in the toughest work environments.

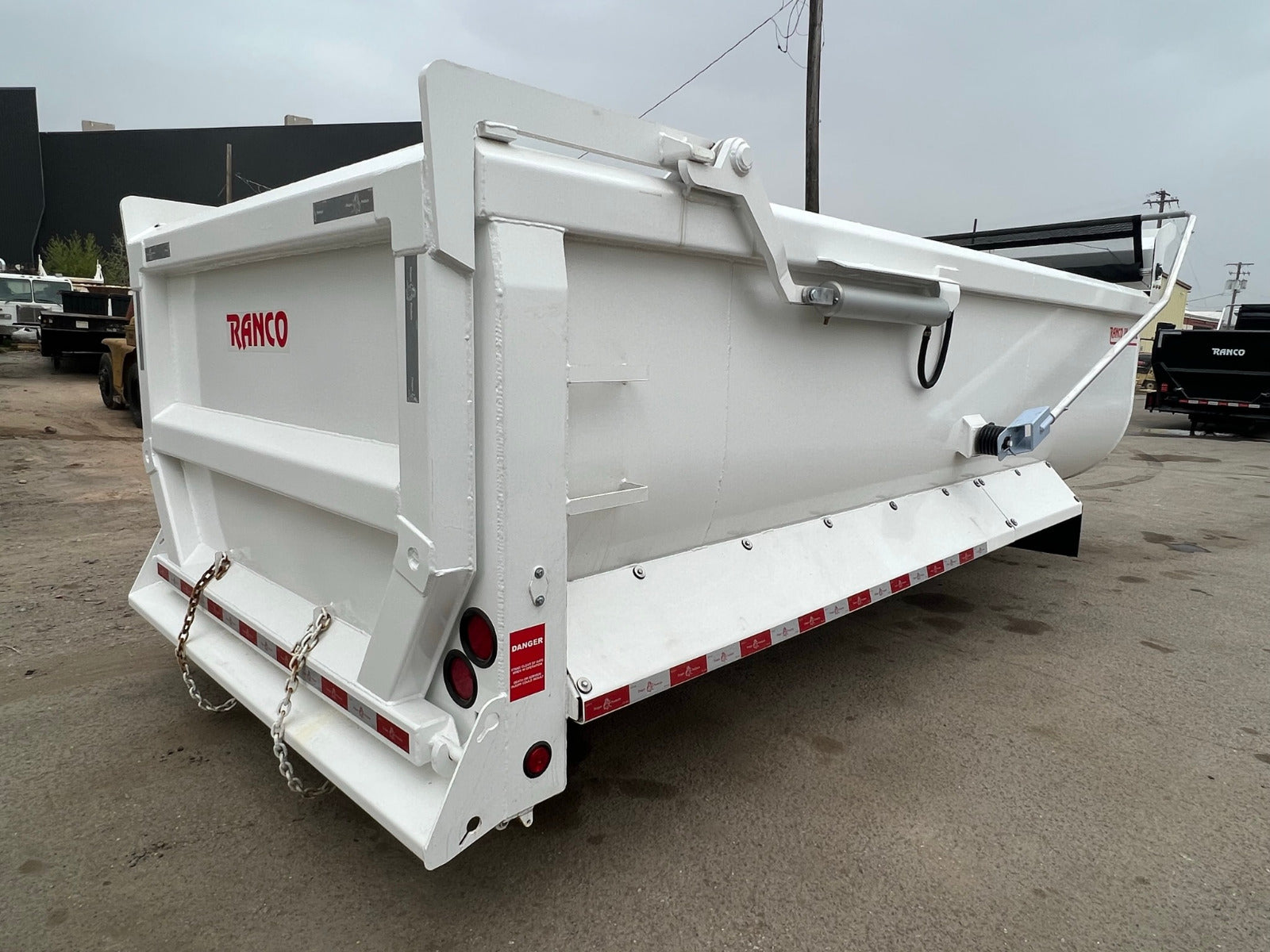

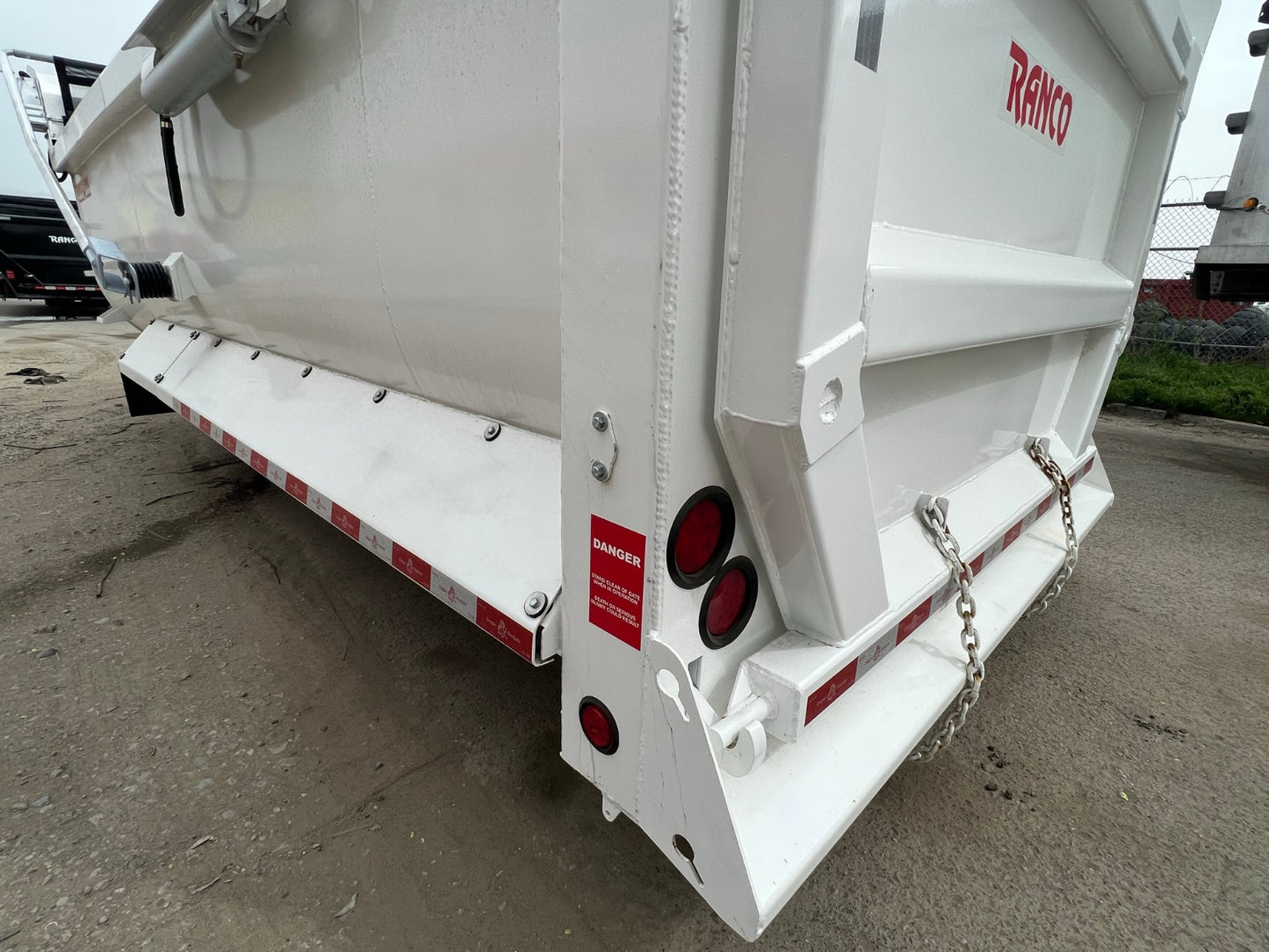

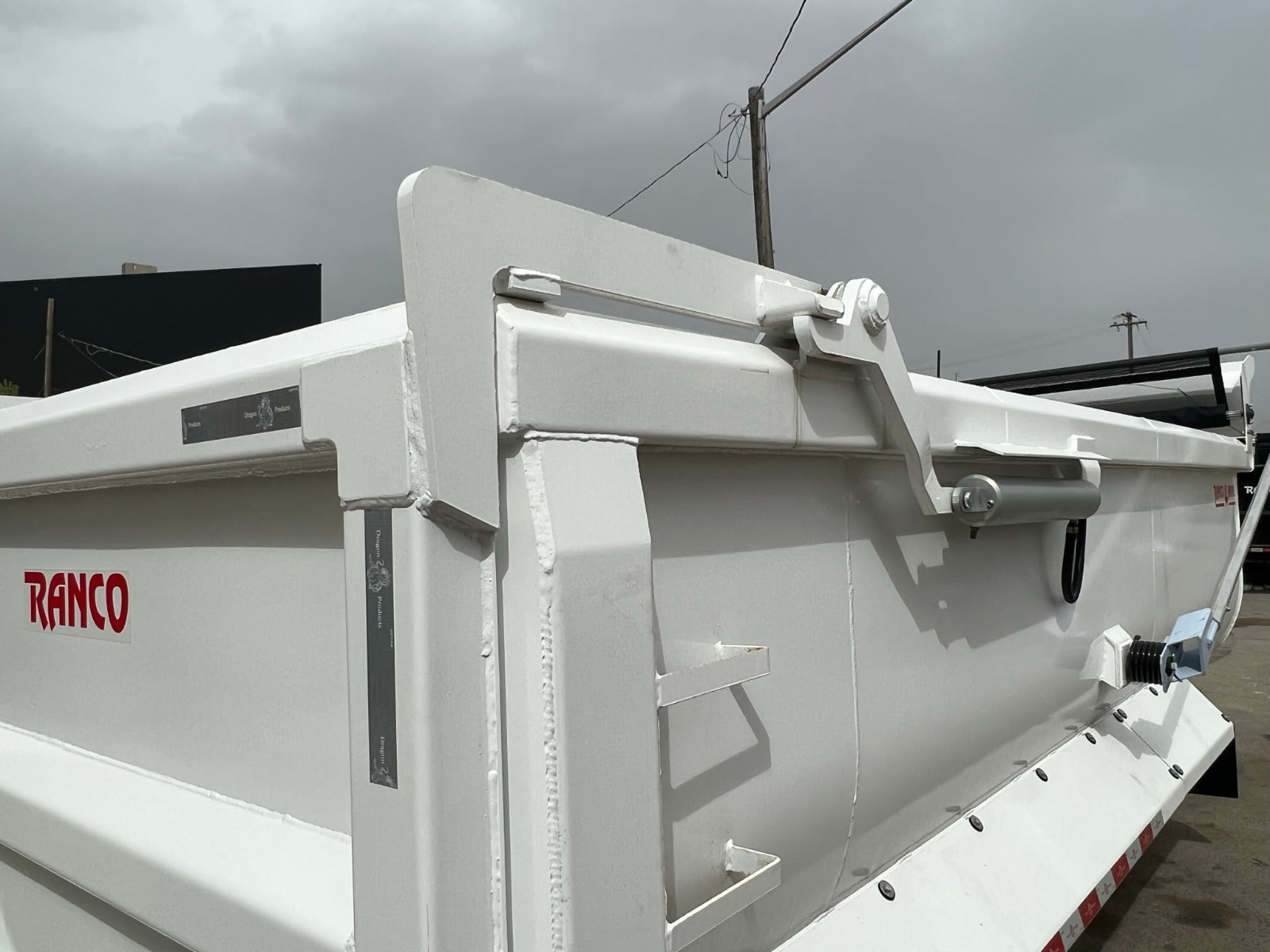

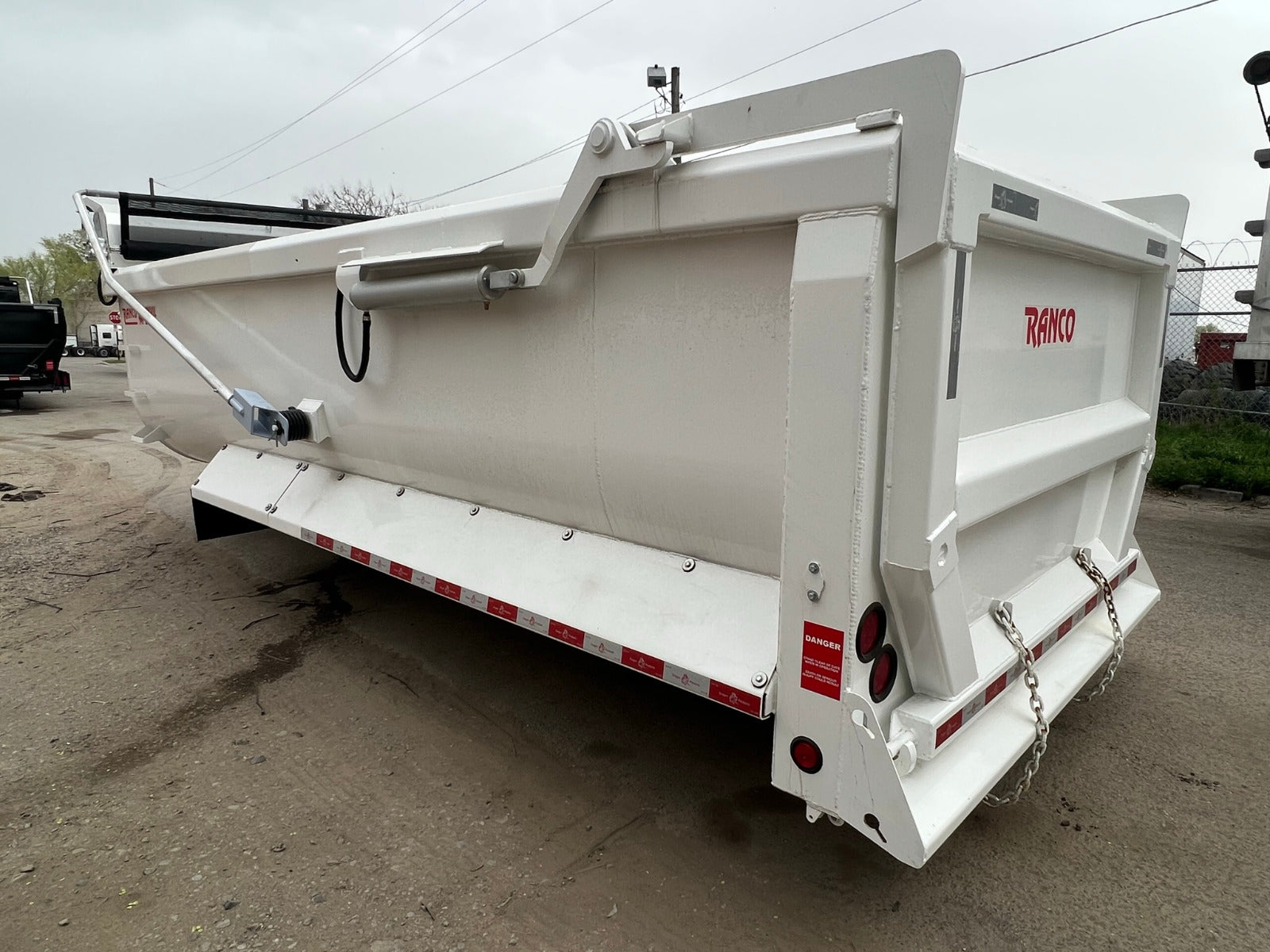

With its 18-foot length, 60-inch wall height, and a heavy-duty subframe, the Ranco Anvil is designed to take on high-volume loads without compromise. The 7" diameter, 4-stage single-acting hoist offers smooth and controlled dumping at a 45° slope, while the electrically actuated rear gate with air cylinder latches ensures secure material control.

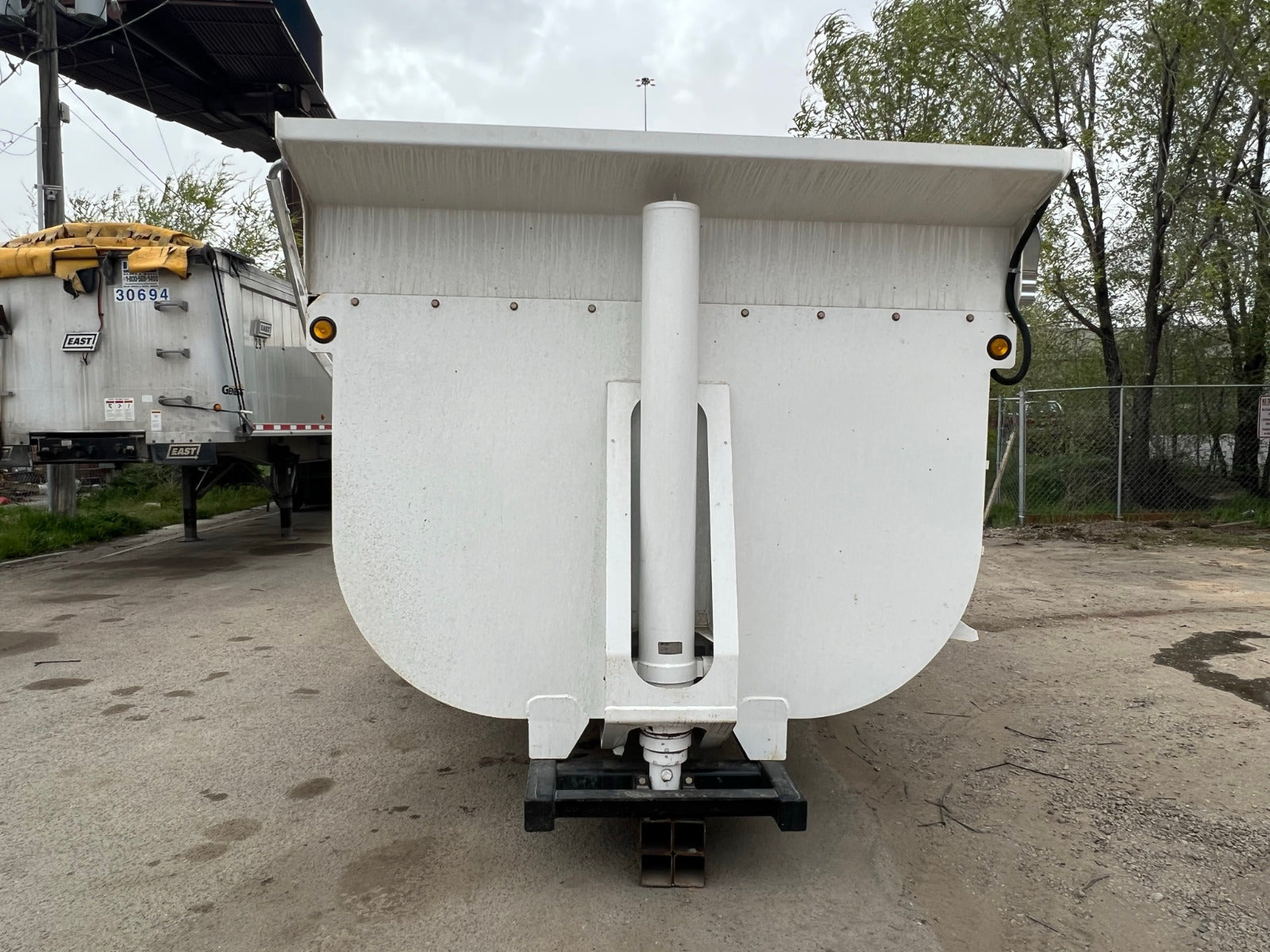

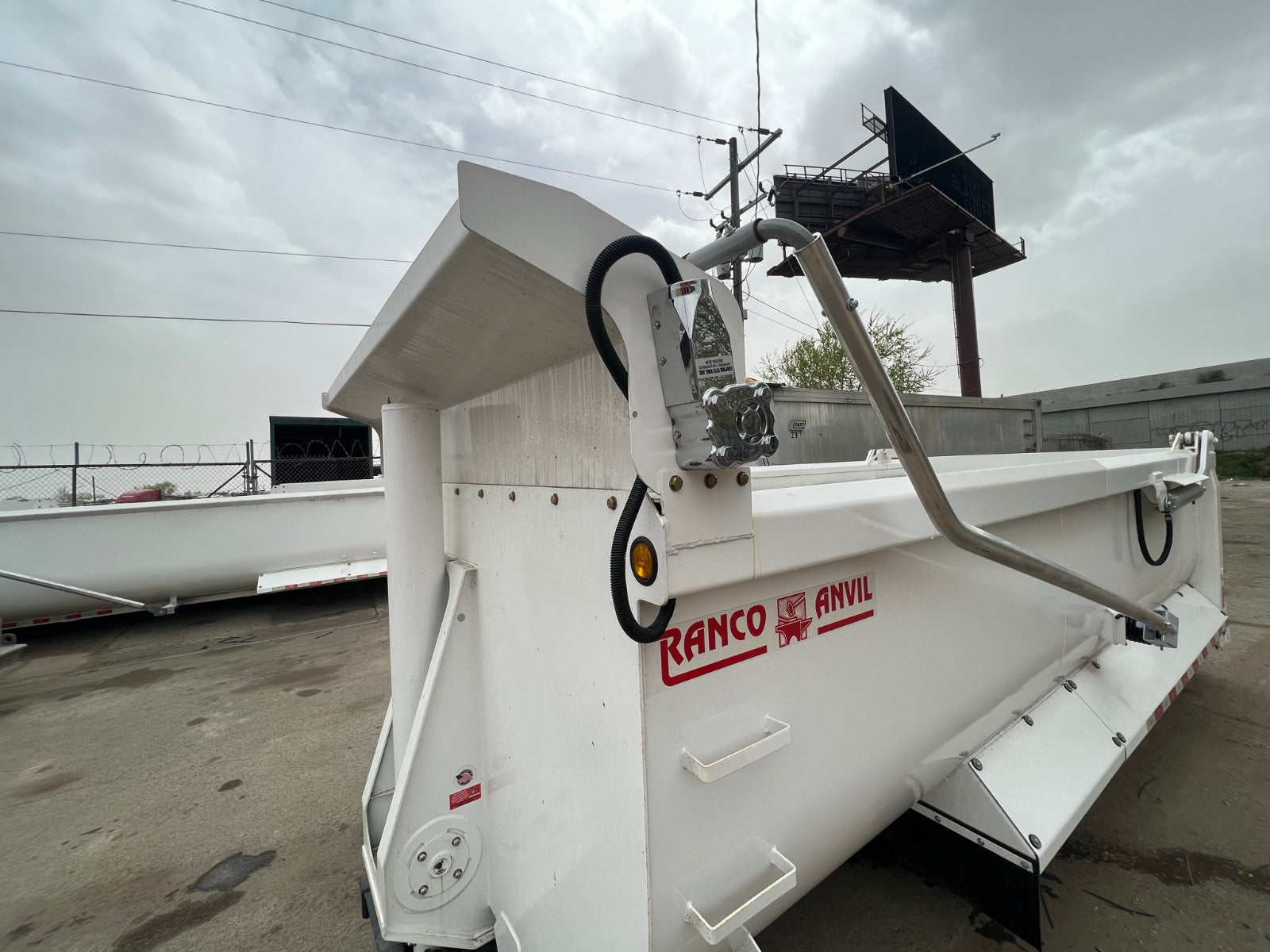

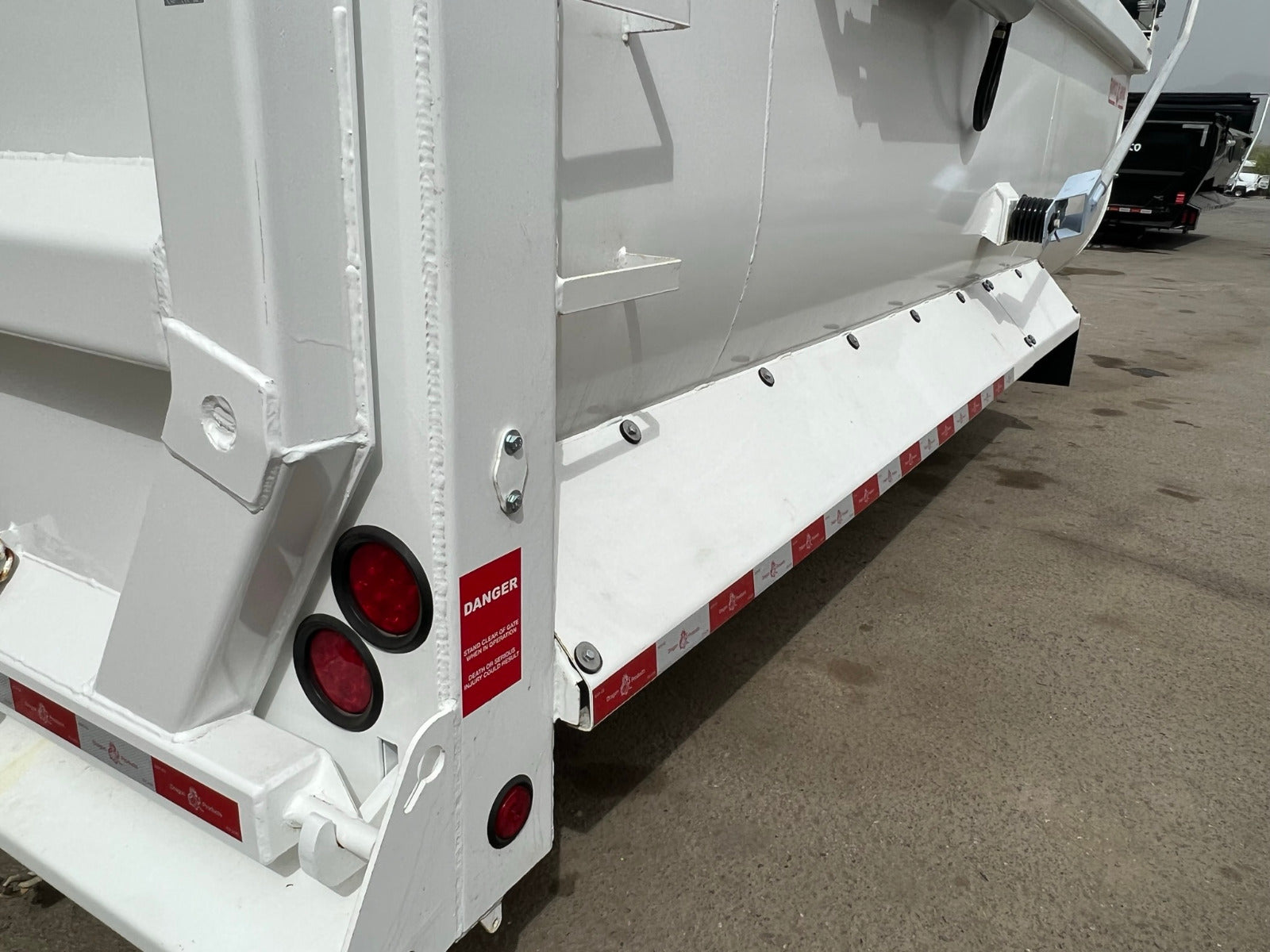

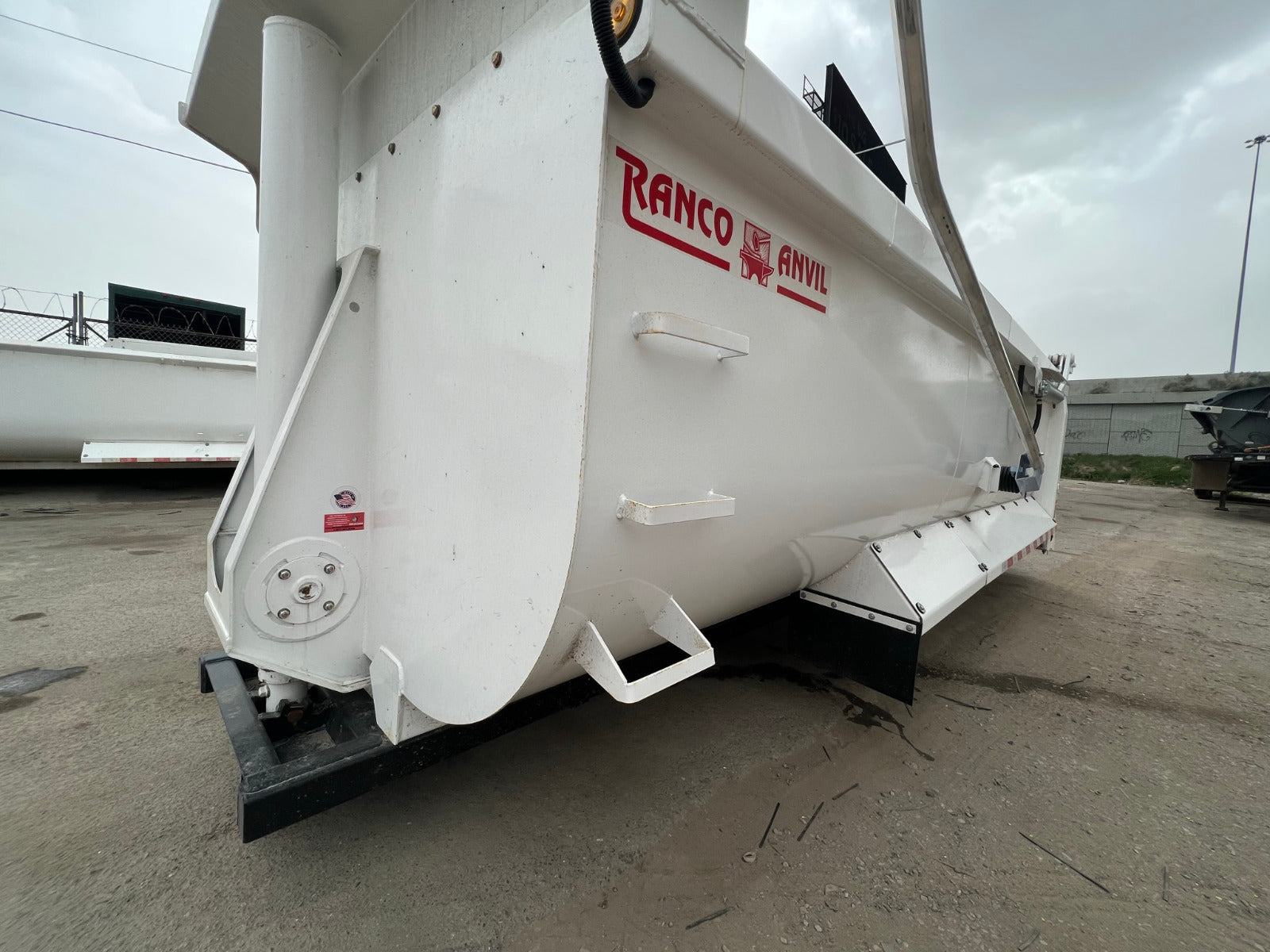

Safety and serviceability are at the heart of this design, featuring greaseable bushings at all joints, full DOT LED lighting, internal access steps, and a protective doghouse hoist structure. The body is finished with durable polyurethane paint, blasted and sealed for long-lasting performance.
Power Requirement: The hydraulic system is supported by a 22-gallon oil tank and operates efficiently with a flow demand suitable for modern dump truck setups. (Exact kW/HP dependent on truck system.)
Key Features
- Heavy-Duty 18ft Elliptical Body made of 1/4" AR steel plate.
- High 60" walls for large-capacity hauling.
- 84.5" interior width and 10" apron for smooth material flow.
- 7" Diameter, 4-Stage Hoist for reliable 45° dumping angle.

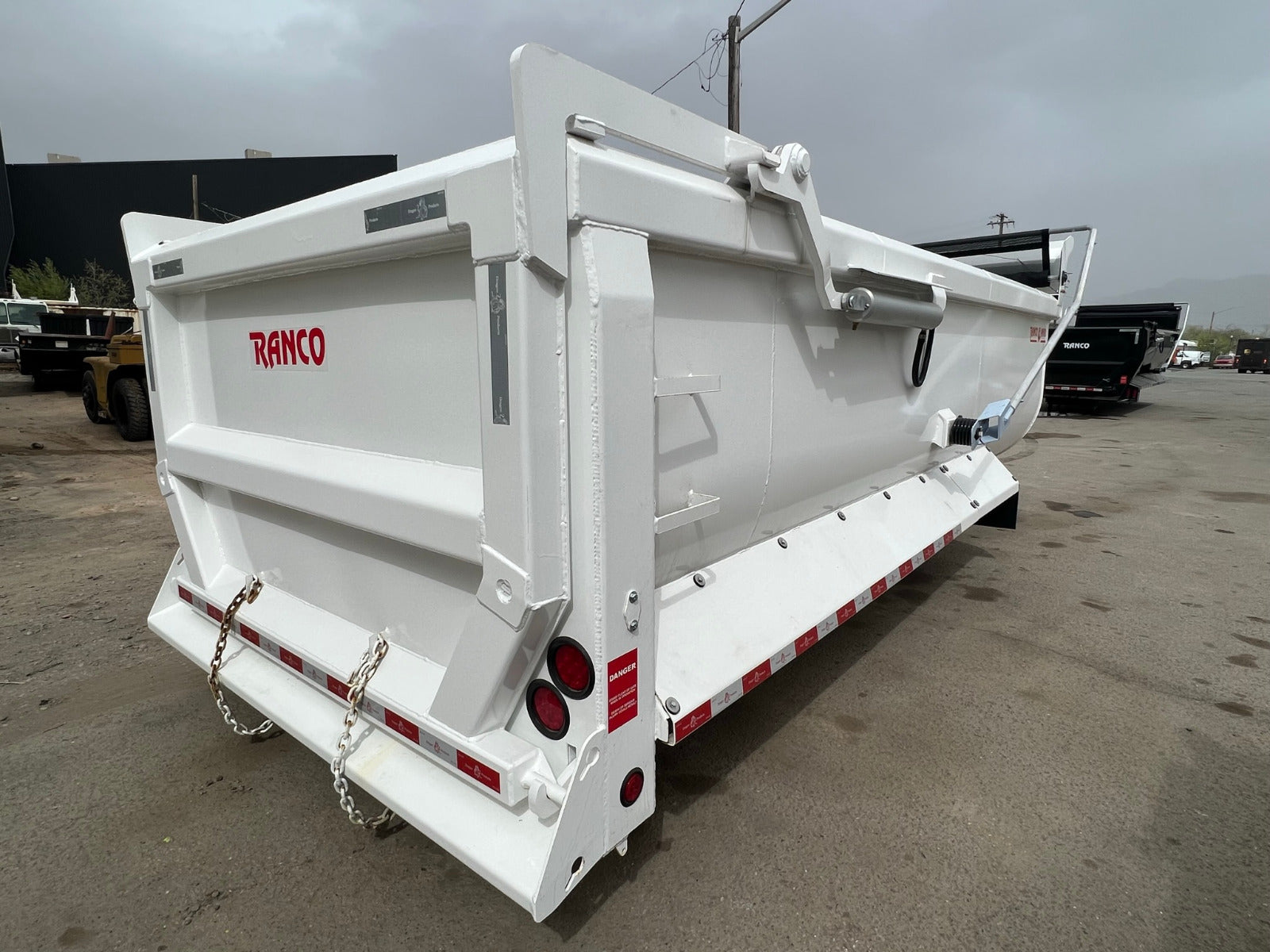

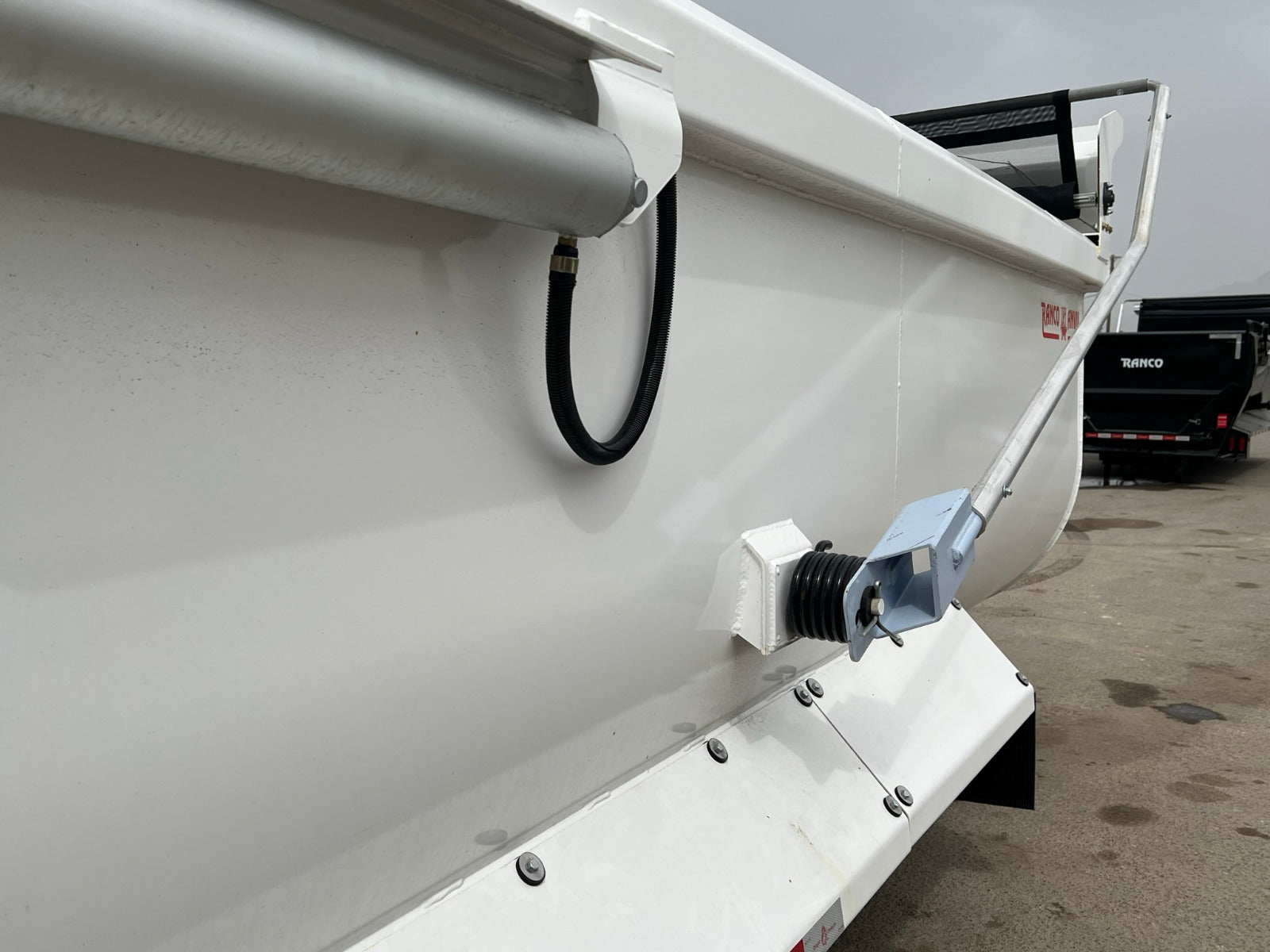

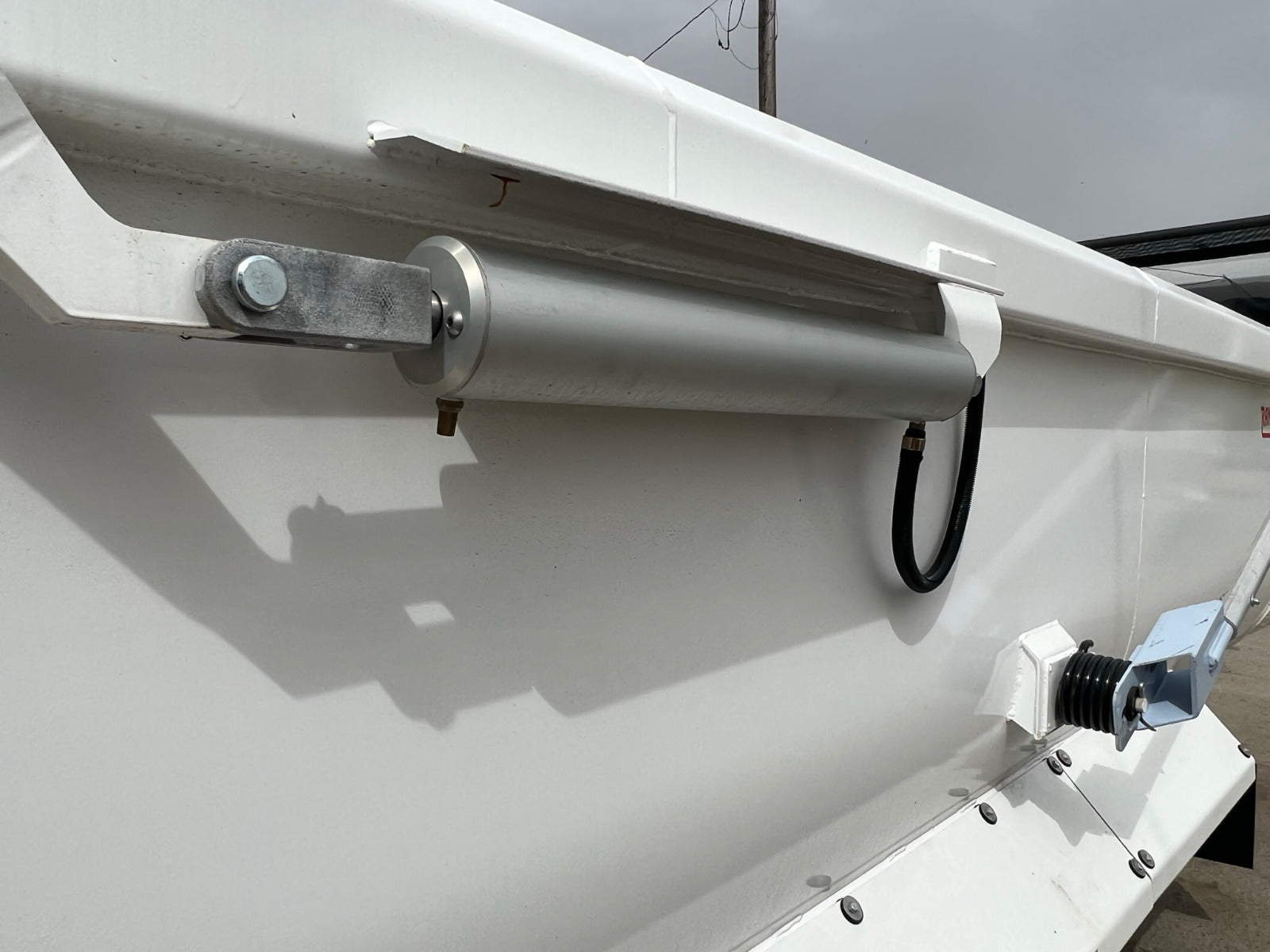

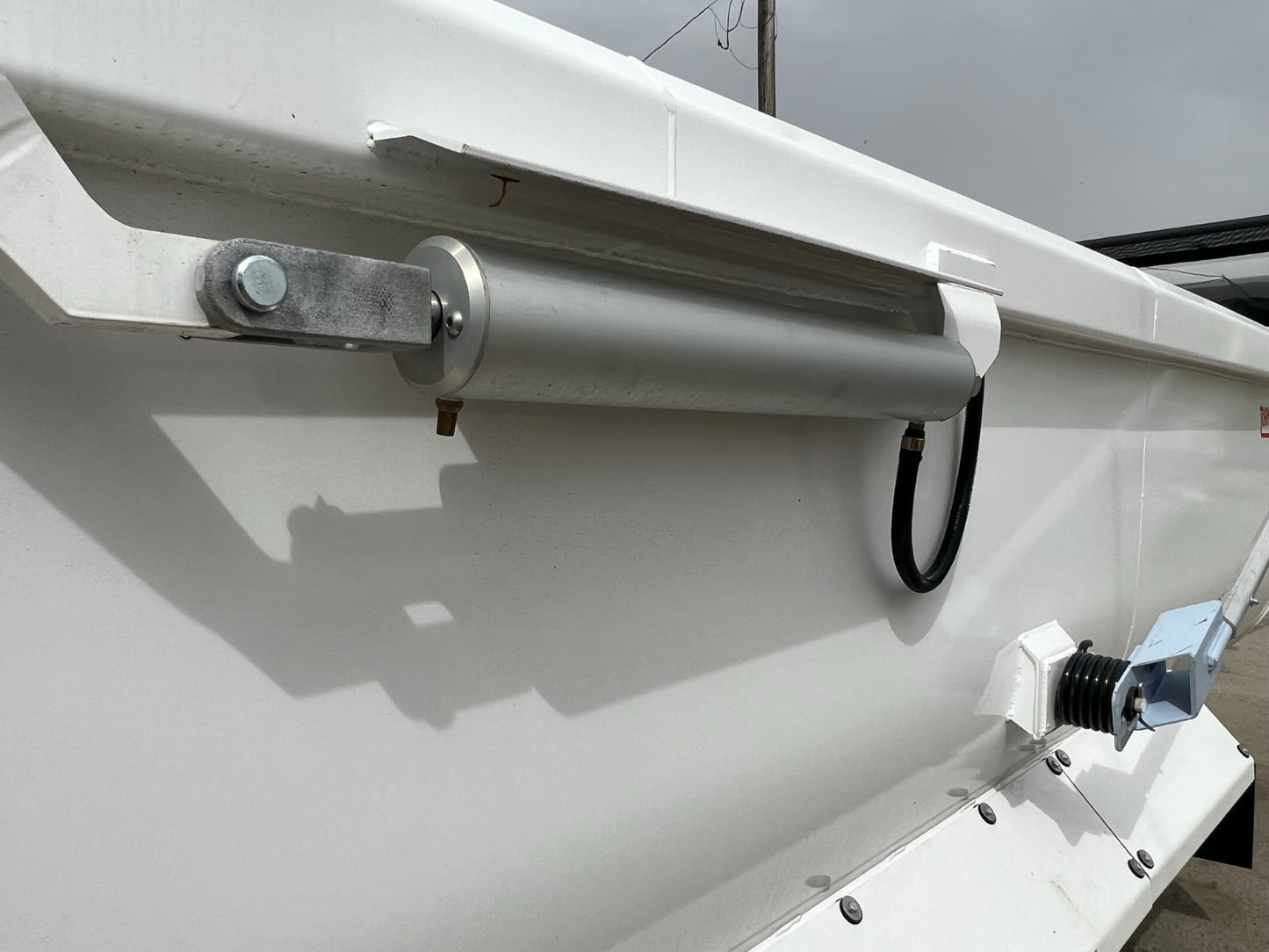

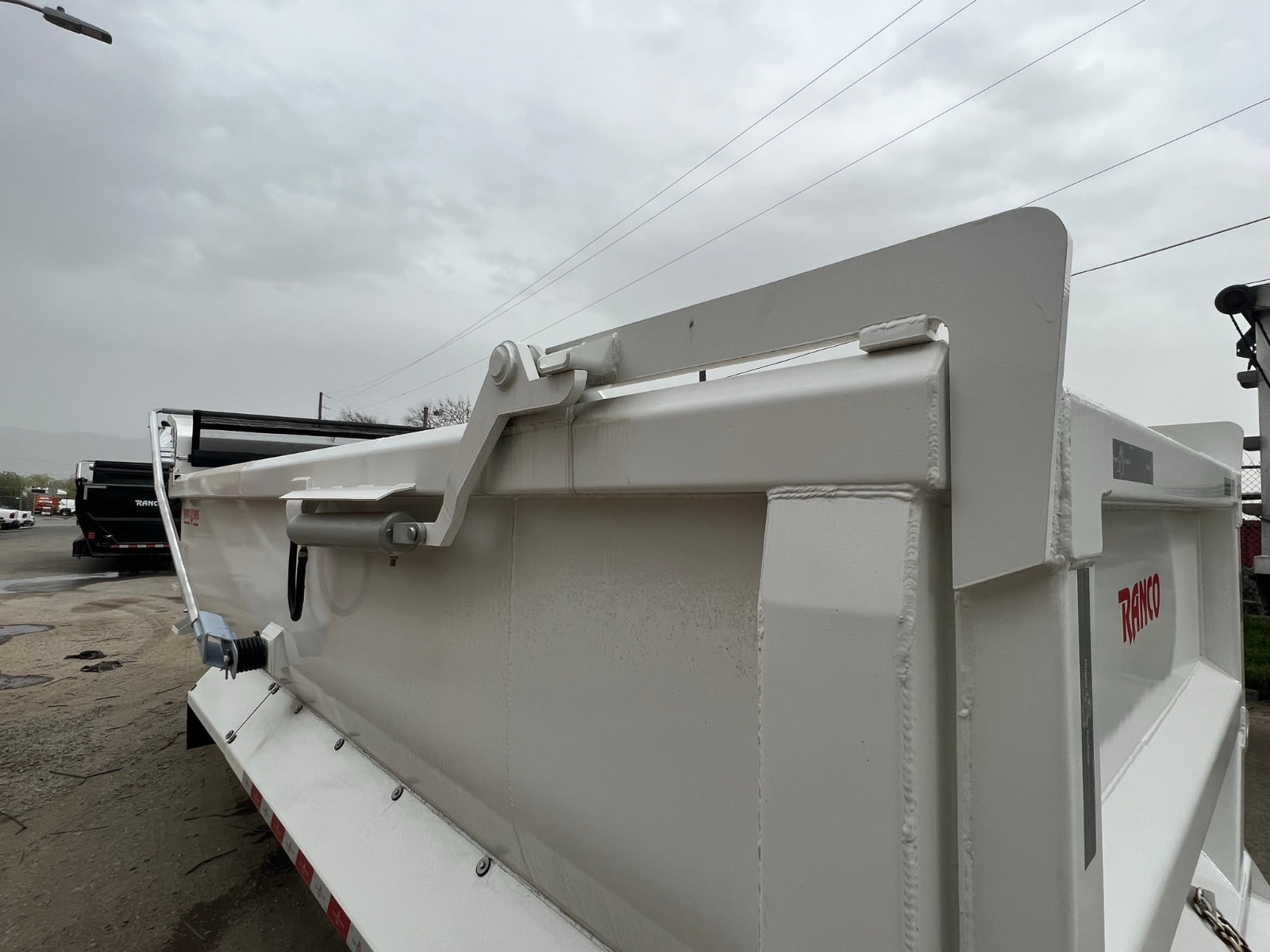

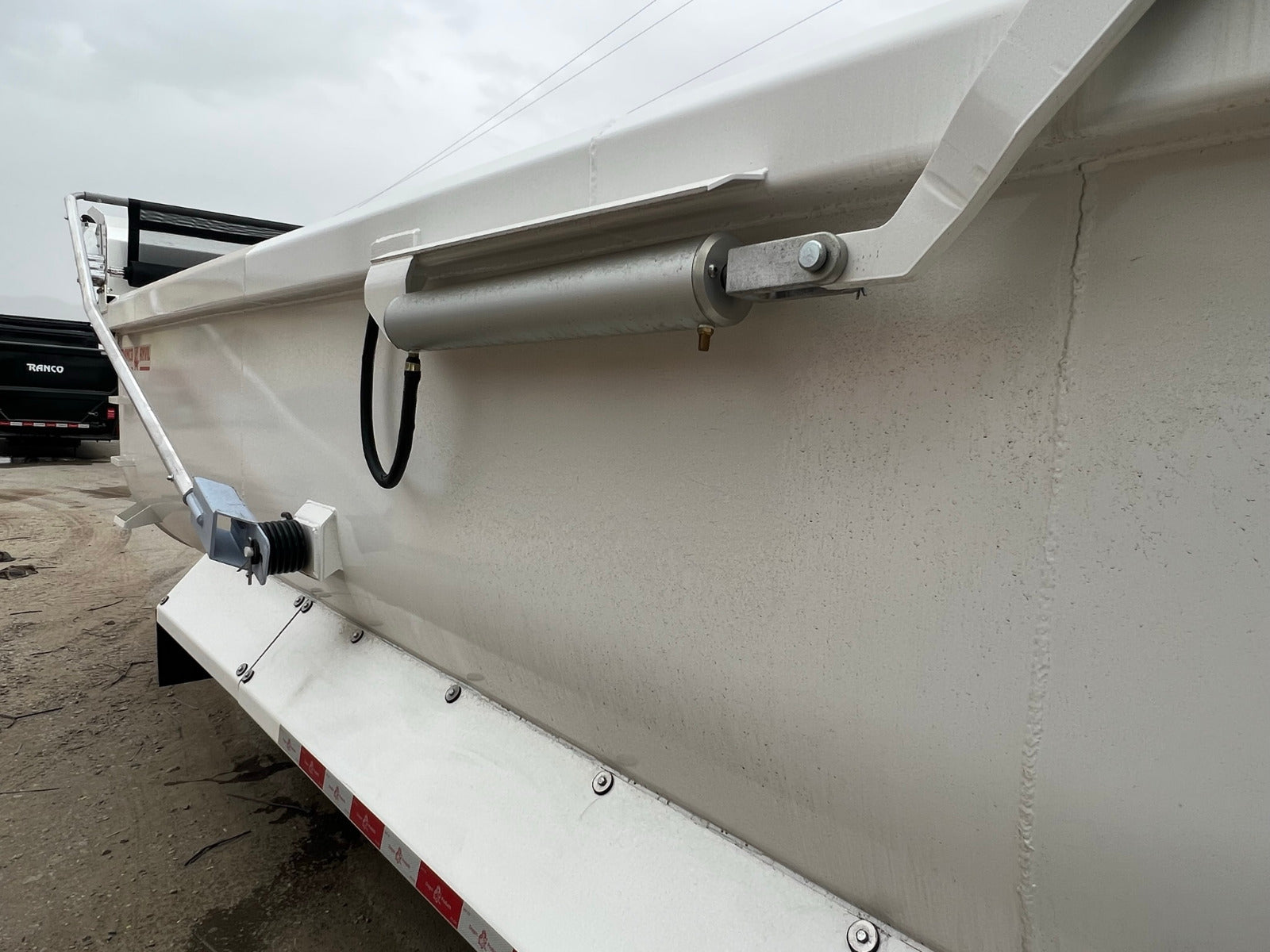

- Electrically Actuated Rear Gate with air cylinder-operated latches.
- Greaseable Joints throughout for easy maintenance.

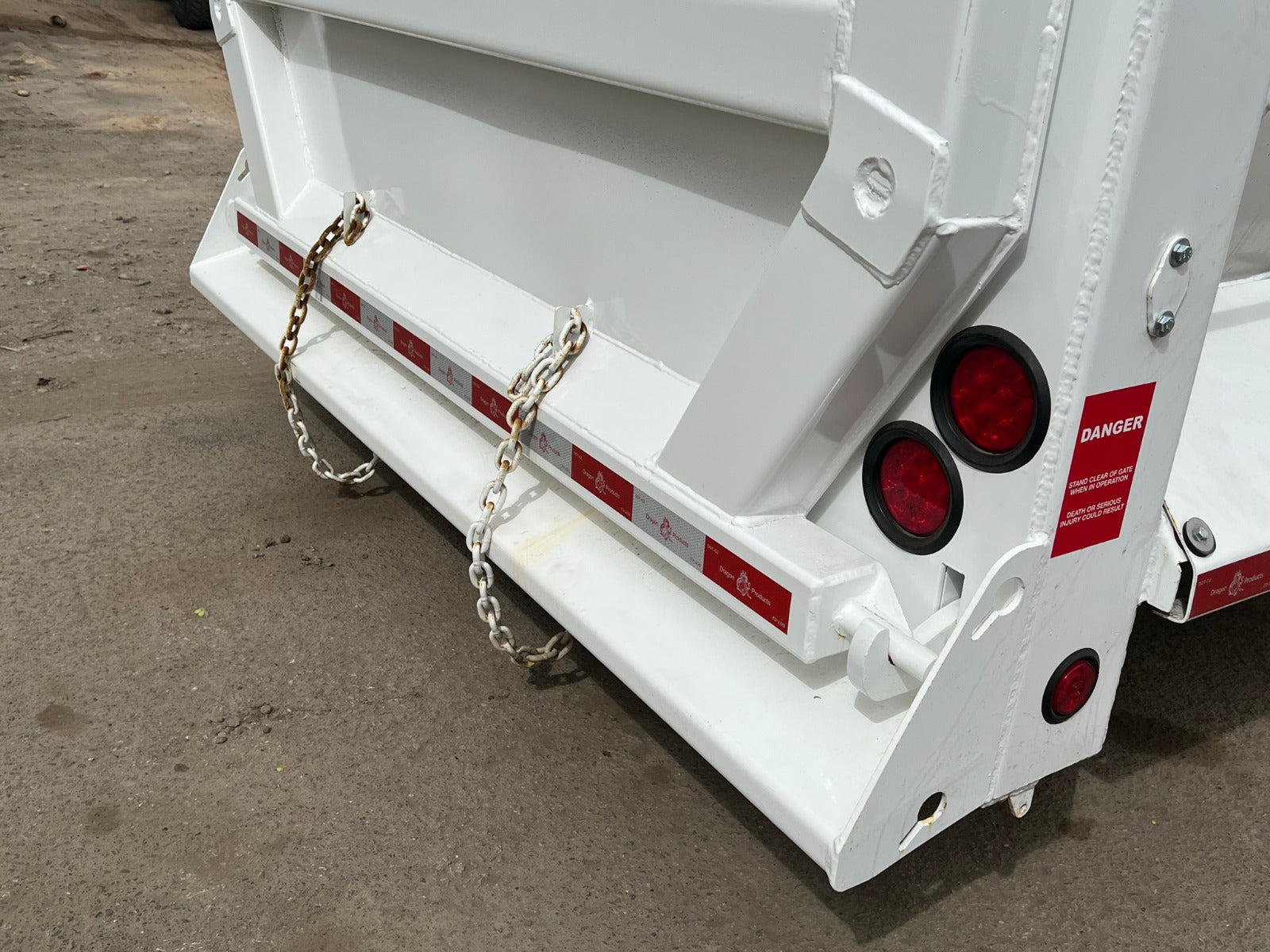

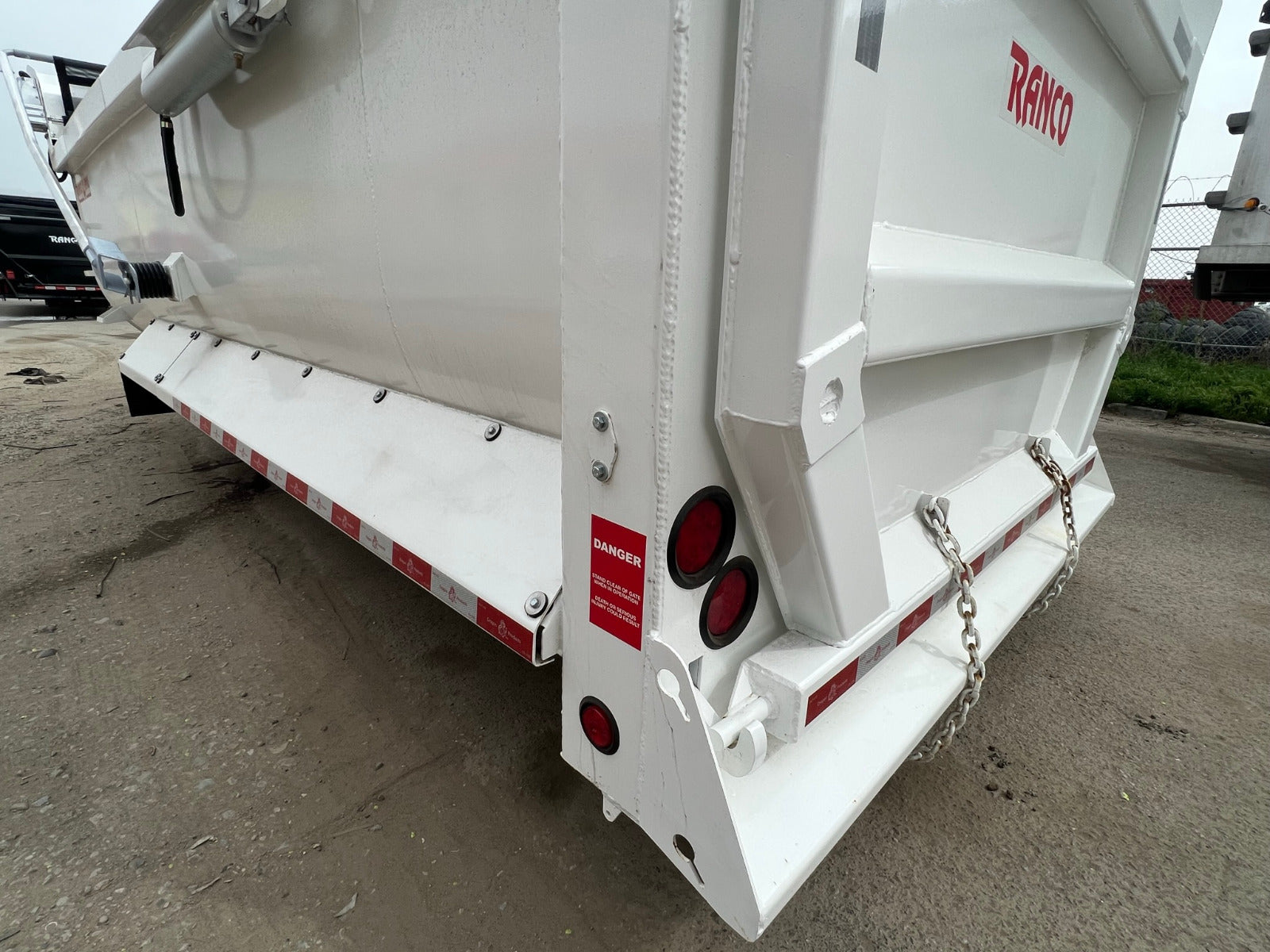

- DOT-Approved LED Lighting for safety and visibility.

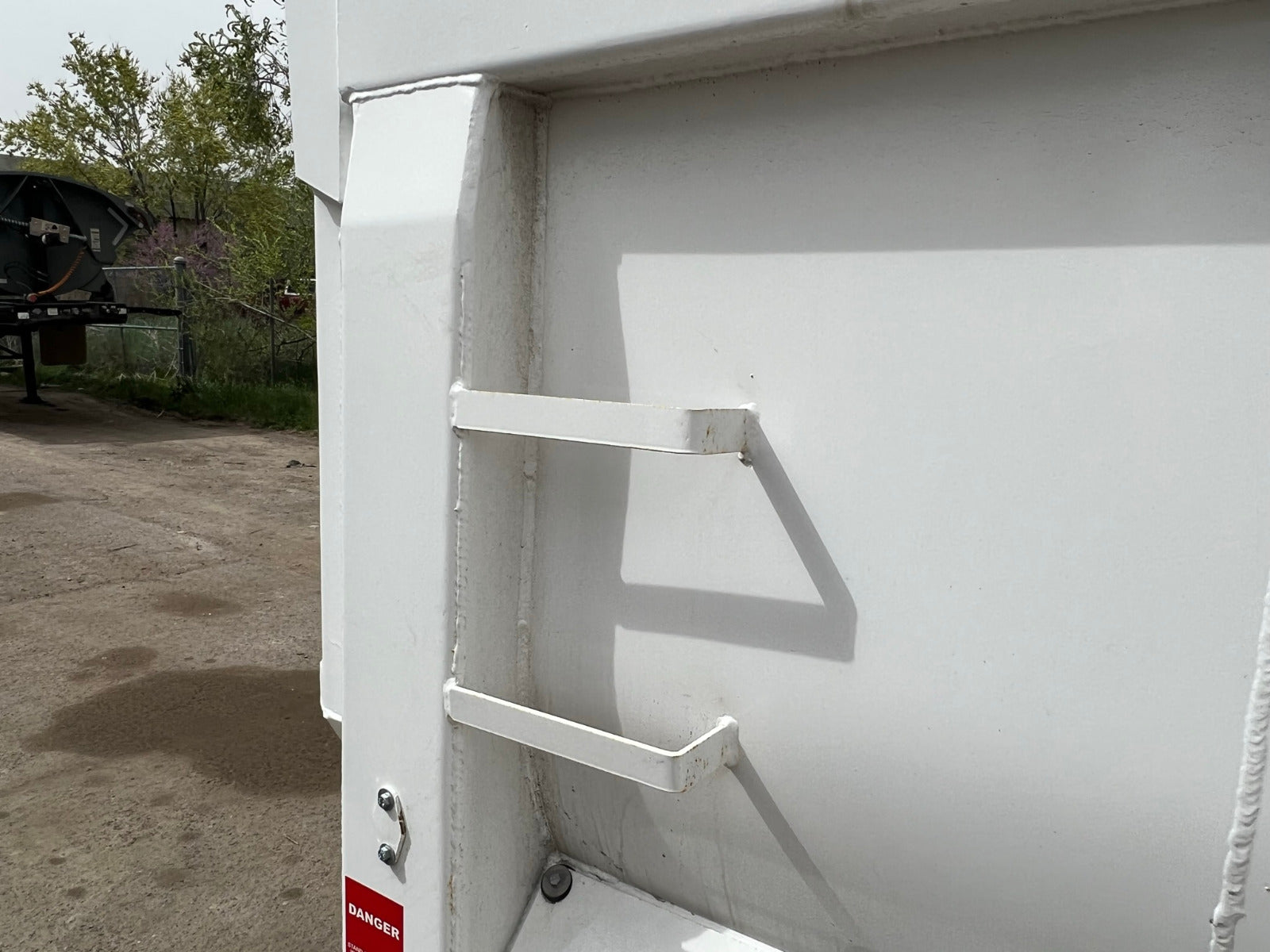

- Side Access Steps and internal ladder for operator safety.
- 22-Gallon Hydraulic Oil Tank – Power requirement varies by truck (approx. 12–15 GPM flow; check for 20–30 HP compatible systems).
- Polyurethane Paint Finish – Direct to blasted metal for lasting protection.
Detailed Specifications
| Category | Details |
|---|---|
| Length | 18 Feet |
| Wall Height | 60 Inches |
| Body Type | Steel Elliptical |
| Lower Radius | 26 Inches |
| Box Material | 1/4" AR Steel Plate |
| Inside Width | 84.5 Inches |
| Upper Rail | 3" x 4" Steel Tube with Shedder |
| Subframe | 2" x 8" Steel Tube |
| Apron | 10 Inches |
| Hoist | 7" Diameter, 4-Stage, Single Acting |
| Dump Angle | 45 Degrees |
| Gate Type | Gravity, Electrically Actuated |
| Gate Latches | Air Cylinder-Operated |
| Front Panel | 1/4" AR Steel with Heavy-Duty Doghouse |
| Cab Protector | 78" Cab Clearance |
| Oil Tank Capacity | 22 Gallons |
| Paint | Polyurethane over Blasted Metal |
| Lighting | Full DOT LED Sealed Lights |
| Access | Side Steps & Internal Box Steps |
| Tarps | Optional (Customer Specified) |
| Safety Features | Body Prop, Greaseable Fittings |
| Power Requirement | Hydraulic Flow 12–15 GPM (Approx. 20–30 HP) |
