Product Description

Rinieri Orchard Pruner | ORSL Series | Working Width 98" To 118" inches | Horsepower 50-80 HP | For Tractor

DESCRIPTION

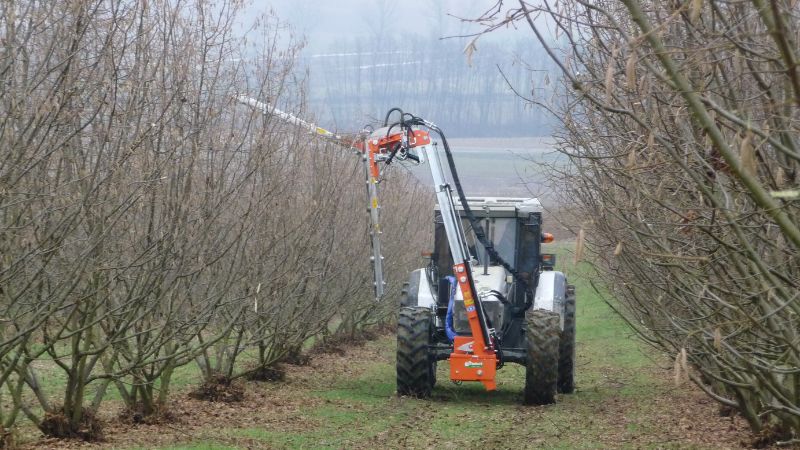

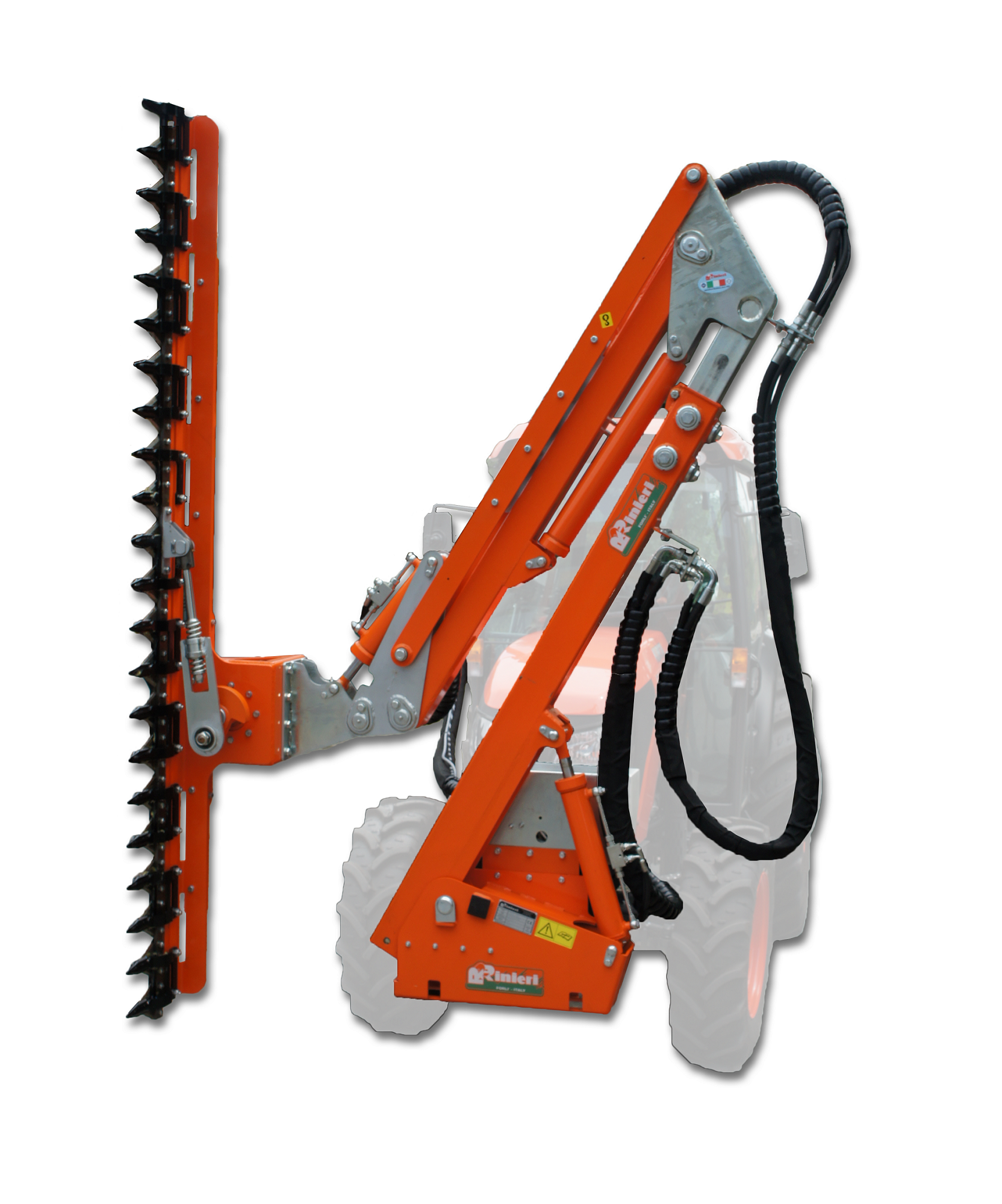

Orchard pruner with frame with parallelogram side shift suitable for traditional orchard with high max of 6 m. The sickle-cutting bar with heavyduty “Rinieri” teeth and blades works with branches up to 6 cm. The frame with parallelogram side shift permits of setting the angle of cut one time, and it does not change even if the other movements are used. A proportional joystick controls the machine. This machine can be used in traditional orchard “V” type like olives, peaches, plum and along the roads or field.

Key Features

Frame and Design

• Parallelogram Side-Shift System: Maintains a set angle of cut even with other movements, ensuring precision.
• Hydraulic Lifting (145 cm): Adjustable height for versatile pruning needs.
• Hydraulic Tilting Column: Enhances cutting angle adaptability.
• Manual Adjustment: Allows fine-tuning of the cutting bar position.

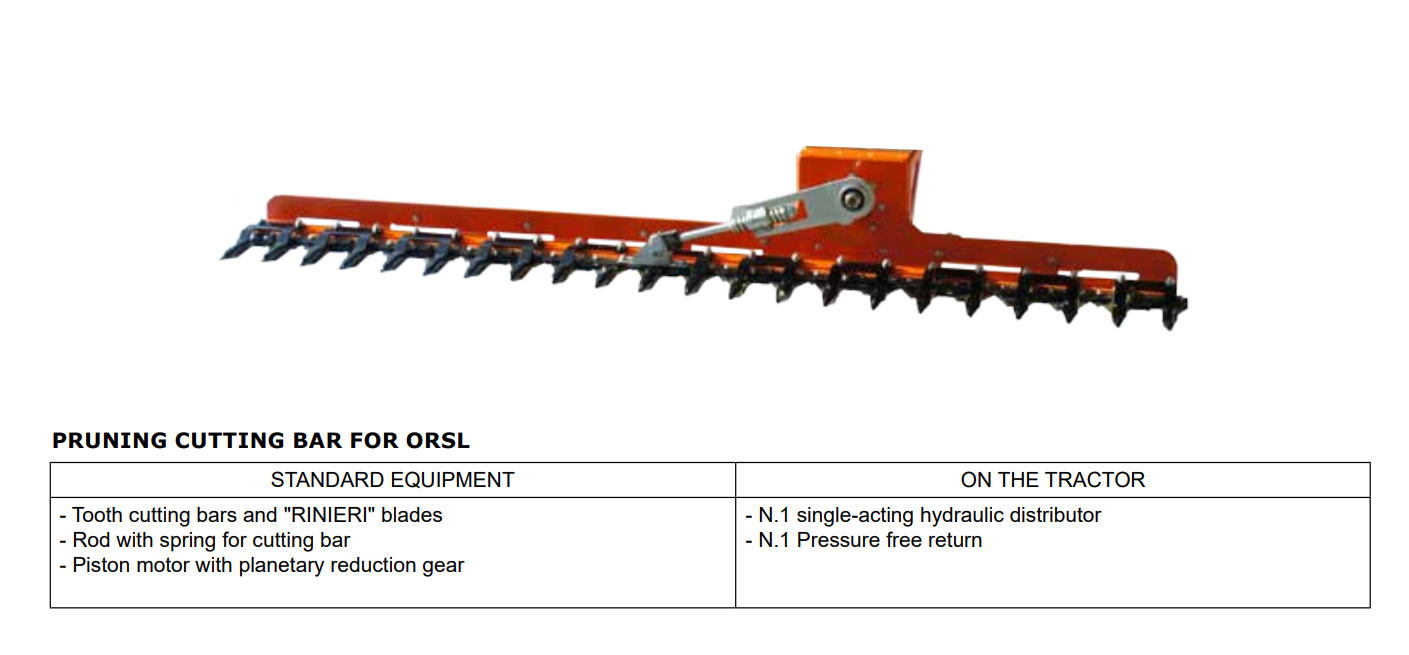

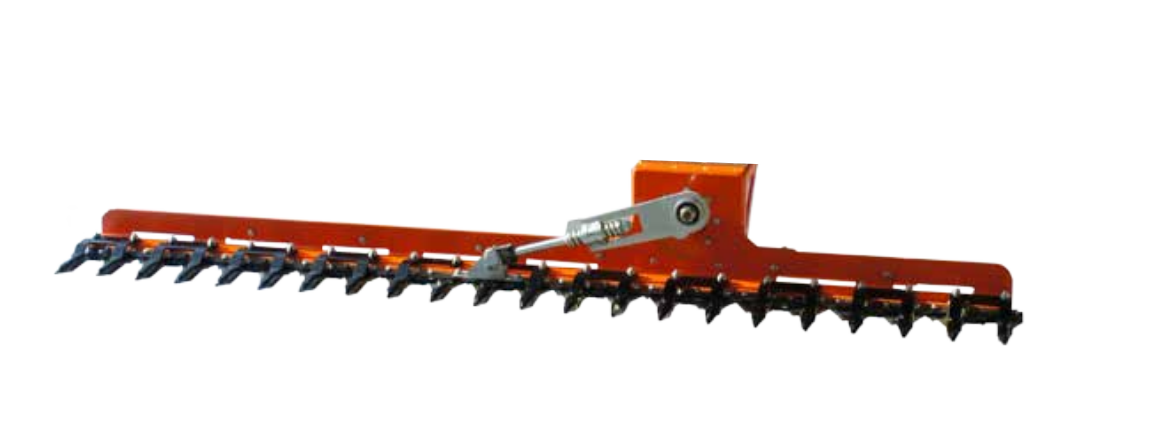

• Blade and Teeth Cutting Bars: High-quality Rinieri sickle blades for cutting branches up to 6 cm in diameter.

Safety Features

• Anti-Cavitation Valve: Protects motors during operation and ensures smooth hydraulic performance.
• Hydraulic Storage Stand: Facilitates safe and easy storage of the machine.

Hydraulic Kit

• 80 Lit/min Pump: Powerful hydraulic system for efficient operation.
• 90L Oil Tank with Oil Cooler: Prevents overheating during prolonged use.
• Gearbox and Cardan Joint: Ensures durability and reliability in demanding conditions.
• Socket 12V: Supports additional electrical functions for convenience.

Control and Usability

• Proportional Joystick Distributor (4+1): Provides easy and precise control over the machine's movements.
• Versatile Applications: Ideal for traditional orchards, "V"-type setups, and roadside or field pruning tasks.
• Compatibility: Suitable for pruning olive, peach, and plum trees, as well as other vegetation.

Detailed Specifications
