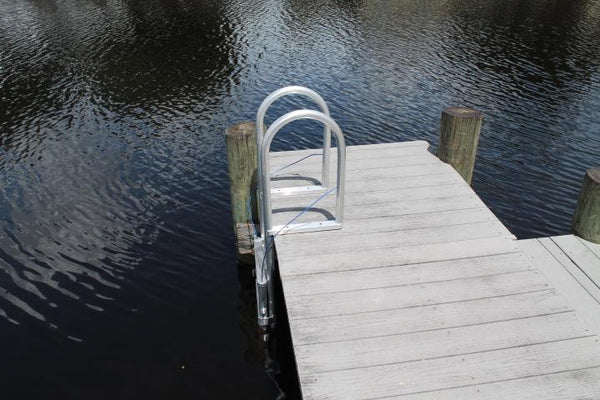

RIO MARINE CUSTOMS | 7-Step Lift Ladder | Model LD7LF | 17 9/16" W x 84" H | 550 lbs/rung Capacity | Durable & Reliable Dock Access | Fixed, Floating, Pontoon & Seawall
RIO MARINE CUSTOMS | 7-Step Lift Ladder | Model LD7LF | 17 9/16" W x 84" H | 550 lbs/rung Capacity | Durable & Reliable Dock Access | Fixed, Floating, Pontoon & Seawall
Couldn't load pickup availability
Couldn't load pickup availability
Product Description
RIO MARINE CUSTOMS | 7-Step Lift Ladder | Model LD7LF | 17 9/16" W x 84" H | 550 lbs/rung Capacity | Durable & Reliable Dock Access | Fixed, Floating, Pontoon & Seawall
DESCRIPTION

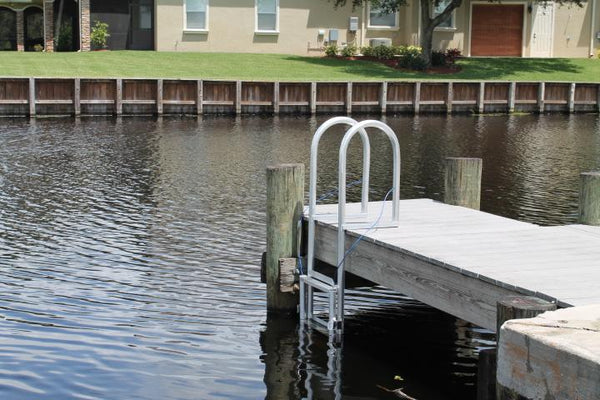

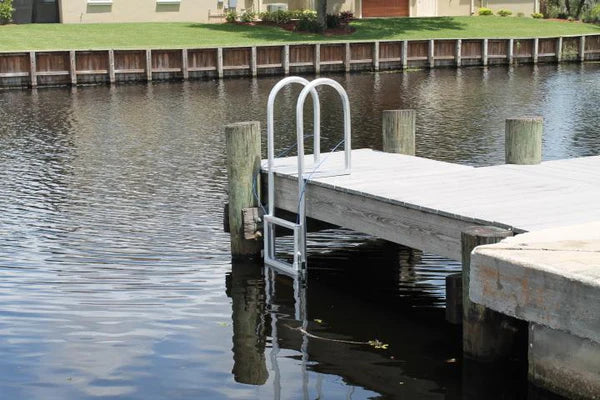

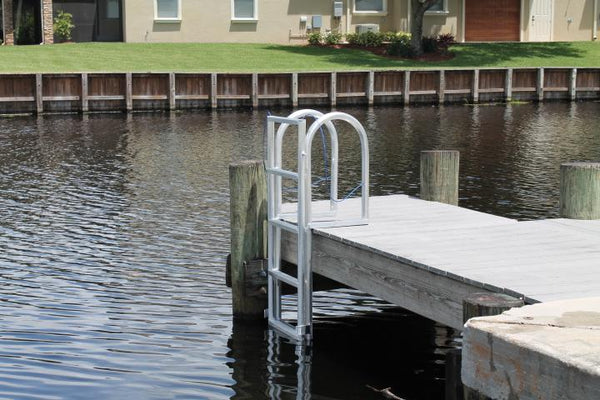

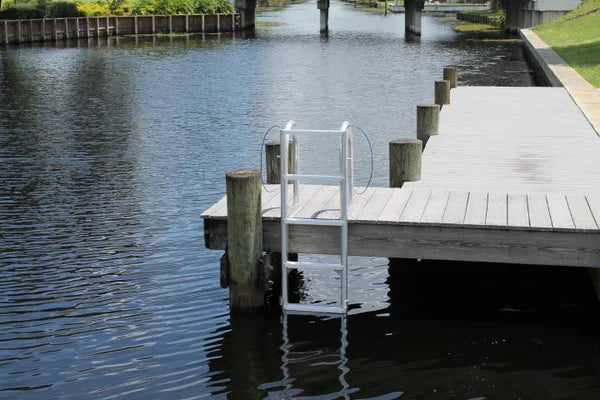

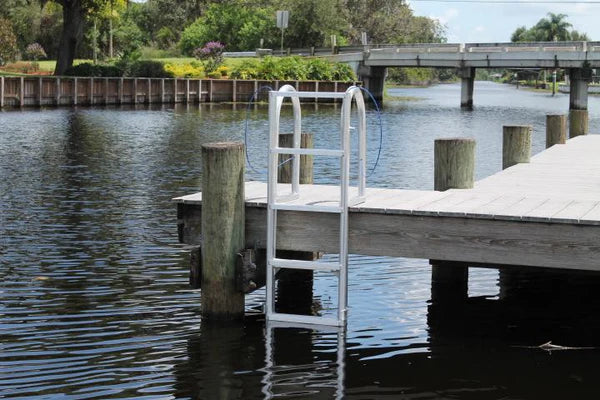

The C&M 7-Step Lift Ladder Model LD7LF from RIO Marine Customs, the perfect solution for safe and easy access to your boat or dock. Designed with both functionality and durability in mind, this aluminum dock ladder is crafted to withstand the challenges of marine environments while providing reliable performance for years to come.
Constructed using the TIG welding process, this ladder ensures exceptional strength and durability, making it suitable for use in any fixed, floating, pontoon, or seawall location. Each ladder has been rigorously tested for a safe design capacity of up to 550 lbs. per rung, providing peace of mind for users of all sizes.
The ladder features a distance of 12 inches from the mounting surface to the first step, with each subsequent step also measuring 12 inches apart. The grooved ladder rungs are 2 inches wide, providing excellent traction and stability as you climb. With an overall width of 17 9/16 inches, this ladder is designed for comfort and ease of use.

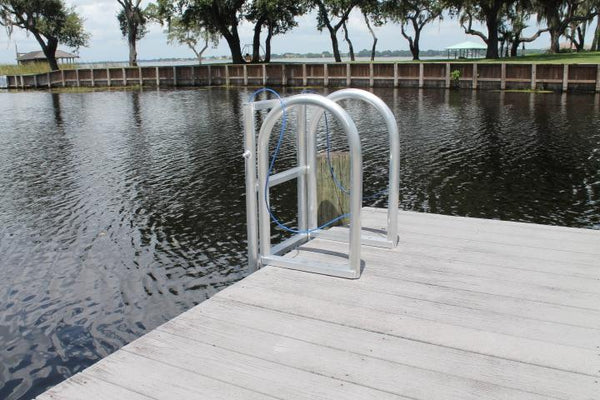

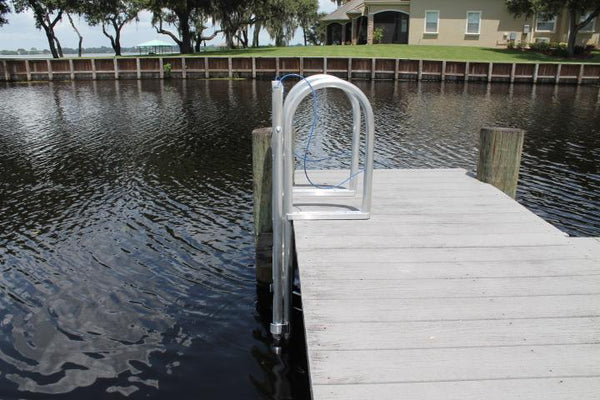

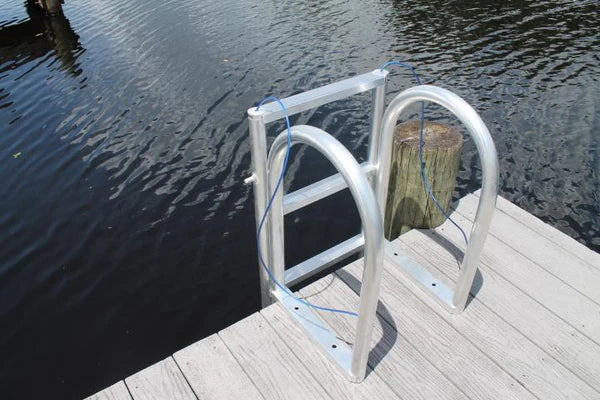

For added convenience, the ladder includes a tubular handle that measures 24 inches high from the mounting surface and extends 14 3/4 inches deep, making it easy to grip as you ascend or descend. The plastic-coated cable ensures long-lasting service, while the option to pull up the lower section above the waterline helps eliminate marine growth, extending the life of your ladder.
Custom ladder orders are also available upon request, including modifications for additional steps or "Big Foot" 3 1/4" wide step grooved rungs for enhanced stability.
Key Features
- Robust TIG Welded Construction: Ensures lasting strength and exceptional durability.
- High Weight Capacity: Tested for a safe design capacity of up to 550 lbs per rung.
- Versatile Application: Suitable for fixed, floating, pontoon, and seawall locations.
- Comfortable Step Spacing: 12-inch distance from mounting surface to the first step and between subsequent steps.
- Enhanced Traction: Grooved 2-inch wide ladder rungs provide a secure grip.
- Lift-Up Design: Lower section can be pulled above the waterline to minimize marine growth.
- Sturdy Tubular Handle: Measures 24" high x 14 3/4" deep for added stability.
- Durable Cable: Plastic-coated cable ensures long-lasting service for the lift mechanism.
- High-Quality Material: Constructed from 6063-T4 marine-grade aluminum with a mill finish.
- Easy Installation: Designed for straightforward setup.
- Customizable Options: Customized ladder orders and modifications available, including "Big Foot" rungs and additional steps.
Detailed Specifications
| Feature | Specification |
|---|---|
| Brand | RIO MARINE CUSTOMS |
| Product Name | C&M 7-Step Lift Ladder |
| Number of Steps | 7 |
| Overall Width | 17 9/16" |
| Step Width | 2" (Grooved) |
| Step Spacing | 12" |
| Distance to First Step | 12" |
| Weight Capacity (per rung) | Up to 550 lbs |
| Material | 6063-T4 Marine Grade Aluminum |
| Finish | Mill Finish |
| Welding Process | TIG Welded |
| Handle Height | 24" (from mounting surface) |
| Handle Depth | 14 3/4" |
| Lift Mechanism | Plastic Coated Cable |
| Special Features | Lift-Up Lower Section, Grooved Rungs |
| Custom Options | Available (Additional Steps, "Big Foot" Rungs) |
| Compatibility | Fixed Docks, Floating Docks, Pontoons, Seawalls |
