Product Description
RIO MARINE CUSTOMS | 7-Step Standard Ladder | Model LD7 | 18 5/8" W x 84" H | Grooved Rungs | Universal Dock & Seawall & Marine
DESCRIPTION

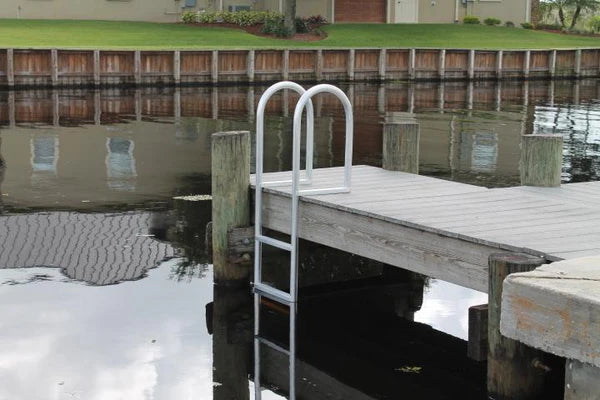

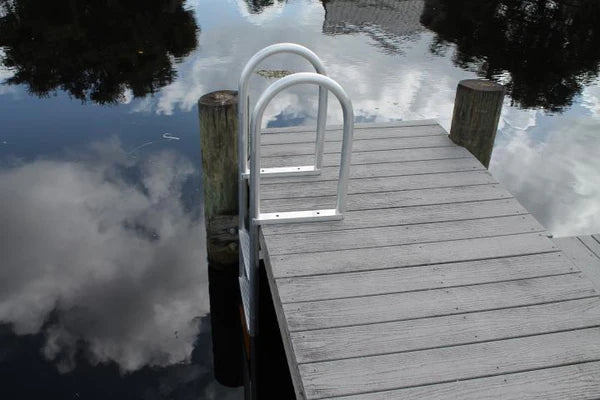

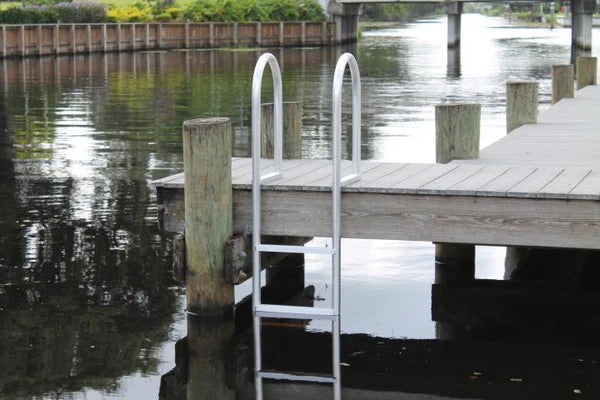

The C&M 7-Step Standard Ladder Model LD7 from RIO Marine Customs, the perfect solution for safe and convenient access to your boat or dock. Designed with both functionality and durability in mind, this aluminum dock ladder is expertly crafted to withstand the challenges of marine environments while providing reliable performance for years to come.
Constructed using the TIG welding process, this ladder ensures exceptional strength and durability, making it suitable for use in any fixed, floating, pontoon, or seawall location. Each ladder has been rigorously tested for a safe design capacity of up to 550 lbs. per rung, giving you peace of mind as you navigate in and out of the water.

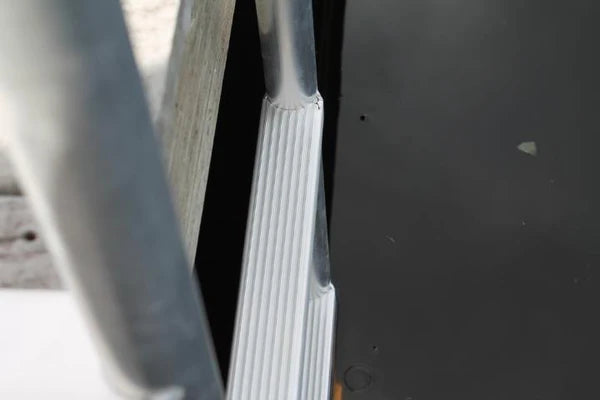

The ladder features a distance of 12 inches from the mounting surface to the first step, with each subsequent step also measuring 12 inches apart. The grooved ladder rungs are 2 inches wide, providing excellent traction and stability as you climb. With an overall width of 18 5/8 inches, this ladder is designed for comfort and ease of use.

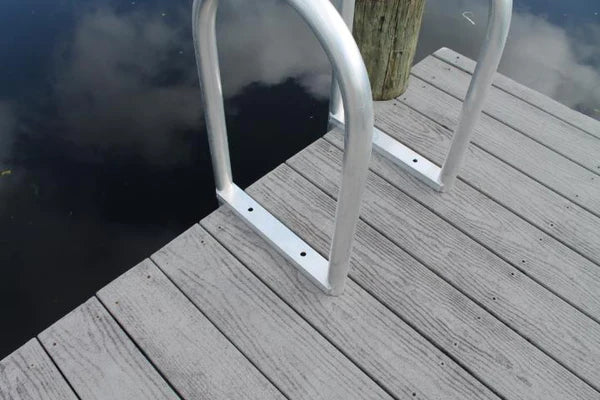

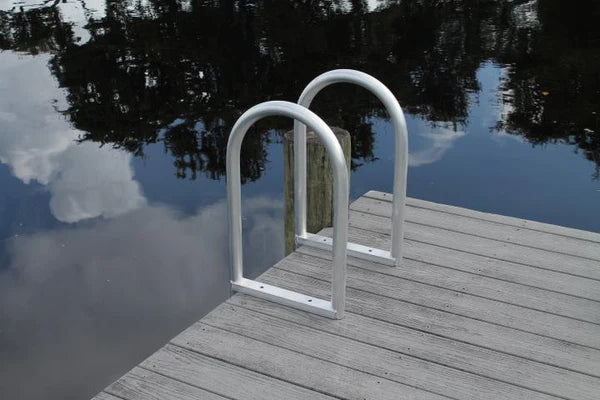

For added convenience, the ladder includes a tubular handle that measures 24 inches high from the mounting surface and extends 14 3/4 inches deep, making it easy to grip as you ascend or descend. Additionally, the ladder is available with a powder coating in a wide selection of custom colors, allowing you to personalize it to match your dock or boat.
Custom ladder orders are also available upon request, including modifications for additional steps or "Big Foot" 3 1/4" wide step grooved rungs for enhanced stability.
Key Features
- Robust TIG Welded Construction: Ensures lasting strength and exceptional durability.
- High Weight Capacity: Tested for a safe design capacity of up to 550 lbs per rung.
- Versatile Application: Suitable for fixed, floating, pontoon, and seawall locations.
- Comfortable Step Spacing: 12-inch distance from mounting surface to the first step and between subsequent steps.
- Enhanced Traction: Grooved 2-inch wide ladder rungs provide a secure grip.
- Sturdy Tubular Handle: Measures 24" high x 14 3/4" deep for added stability.
- High-Quality Material: Constructed from 6063-T4 marine-grade aluminum with a mill finish.
- Easy Installation: Designed for straightforward setup.
- Custom Color Options: Powder coating in a wide selection of custom colors is available.
- Customizable Options: Customized ladder orders and modifications available, including "Big Foot" rungs and additional steps.
- Hand-Made to Order: Each ladder is carefully crafted, ensuring high quality.
Detailed Specifications
| Attribute | Specification |
|---|---|
| Brand | Rio Marine |
| Model | LD7 |
| Type | 7‑Step Standard Dock Ladder |
| Material | 6063‑T4 marine‑grade aluminum |
| Finish | Mill finish (optional powder‑coating in various colors) |
| Height to First Step | 12″ from mounting surface |
| Step Spacing | 12″ increments between steps |
| Number of Steps | 7 |
| Rung Width | 2″ (optional “Big Foot” 3 ¼″) |
| Overall Width | 18 ⅝″ |
| Handle Height | 24″ above mounting surface |
| Handle Depth | 14 ¾″ |
| Weight Capacity | 550 lbs per rung |
| Mounting Compatibility | Fixed docks, floating docks, pontoons, seawalls |
| Custom Options | Additional steps, wider rungs, powder‑coat colors |
| Installation | Easy, standard marine mounting hardware (not included) |
