Product Description
RIO MARINE CUSTOMS | 8-Step Standard Ladder | Model LD8 | 18 5/8" W x 96" H | 550 lb Capacity | Fixed, Floating & Seawall
DESCRIPTION
The C&M 8-Step Standard Ladder Model LD8 from RIO Marine Customs, the ultimate solution for safe and convenient access to your boat or dock. Crafted with precision and care, this aluminum dock ladder is designed to withstand the challenges of marine environments while providing reliable performance for years to come.
Constructed using the TIG welding process, this ladder ensures exceptional strength and durability, making it suitable for use in any fixed, floating, pontoon, or seawall location. Each ladder has been rigorously tested for a safe design capacity of up to 550 lbs. per rung, giving you peace of mind as you navigate in and out of the water.

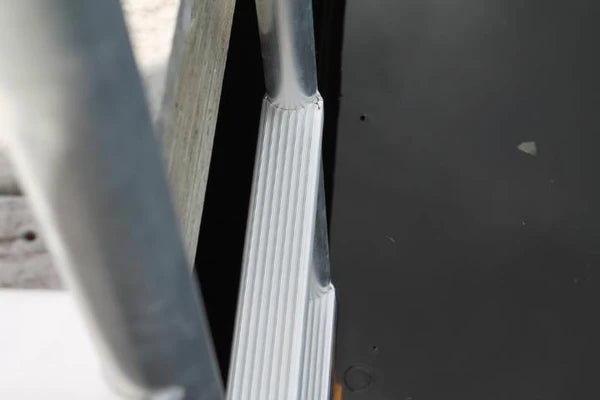

The ladder features a distance of 12 inches from the mounting surface to the first step, with each subsequent step also measuring 12 inches apart. The grooved ladder rungs are 2 inches wide, providing excellent traction and stability as you climb. With an overall width of 18 5/8 inches, this ladder is designed for comfort and ease of use.

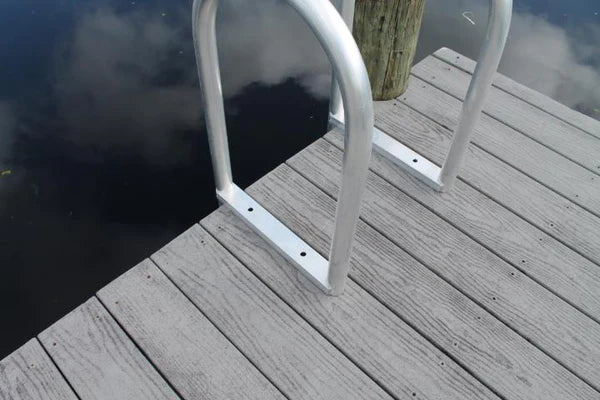

For added convenience, the ladder includes a tubular handle that measures 24 inches high from the mounting surface and extends 14 3/4 inches deep, making it easy to grip as you ascend or descend. Additionally, the ladder is available with a powder coating in a wide selection of custom colors, allowing you to personalize it to match your dock or boat.
Custom ladder orders are also available upon request, including modifications for additional steps or "Big Foot" 3 1/4" wide step grooved rungs for enhanced stability.
Key Features
- Robust TIG Welded Construction: Ensures lasting strength and exceptional durability.
- High Weight Capacity: Tested for a safe design capacity of up to 550 lbs per rung.
- Versatile Application: Suitable for fixed, floating, pontoon, and seawall locations.
- Comfortable Step Spacing: 12-inch distance from mounting surface to the first step and between subsequent steps.
- Enhanced Traction: Grooved 2-inch wide ladder rungs provide a secure grip.
- Sturdy Tubular Handle: Measures 24" high x 14 3/4" deep for added stability.
- High-Quality Material: Constructed from 6063-T4 marine-grade aluminum with a mill finish.
- Easy Installation: Designed for straightforward setup.
- Custom Color Options: Powder coating in a wide selection of custom colors is available.
- Customizable Options: Customized ladder orders and modifications available, including "Big Foot" rungs and additional steps.
- Hand-Made to Order: Each ladder is carefully crafted, ensuring high quality.
Detailed Specifications
| Feature | Specification |
|---|---|
| Brand | RIO MARINE CUSTOMS (C&M Marine Products) |
| Product Name | C&M 8-Step Standard Ladder |
| Number of Steps | 8 |
| Overall Width | 18 5/8" |
| Step Width | 2" (Grooved) |
| Step Spacing | 12" |
| Distance to First Step | 12" |
| Weight Capacity (per rung) | Up to 550 lbs |
| Material | 6063-T4 Marine Grade Aluminum |
| Finish | Mill Finish (Custom Powder Coating Available) |
| Welding Process | TIG Welded |
| Handle Height | 24" (from mounting surface) |
| Handle Depth | 14 3/4" |
| Special Features | Grooved Rungs |
| Custom Options | Available (Additional Steps, "Big Foot" Rungs, Custom Colors) |
| Compatibility | Fixed Docks, Floating Docks, Pontoons, Seawalls |
