RIO MARINE CUSTOMS | Fiberglass Boat Console | Model CMCC06 & SLCC06 | 33" W x 30" H x 39" D | Integrated Seat Design | For 19' to 24' Feet Boats
RIO MARINE CUSTOMS | Fiberglass Boat Console | Model CMCC06 & SLCC06 | 33" W x 30" H x 39" D | Integrated Seat Design | For 19' to 24' Feet Boats
Couldn't load pickup availability
Couldn't load pickup availability
Product Description
RIO MARINE CUSTOMS | Fiberglass Boat Console | Model CMCC06 & SLCC06 | 33" W x 30" H x 39" D | Integrated Seat Design | For 19' to 24' Feet Boats
DESCRIPTION

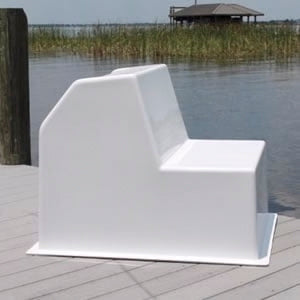

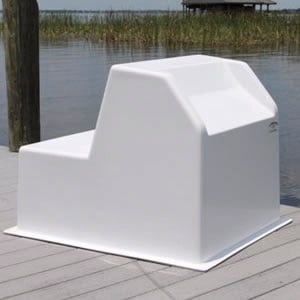

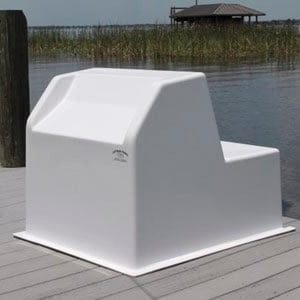

The Fiberglass Boat Console from RIO Marine Customs, a perfect blend of strength, functionality, and style designed for boats ranging from 19' to 24'. This heavy-duty center console is expertly crafted with a layer of gelcoat, a double layer of fiberglass and resin, and an additional gelcoat layer on the underside, reinforced with a layer of webbing for added durability.

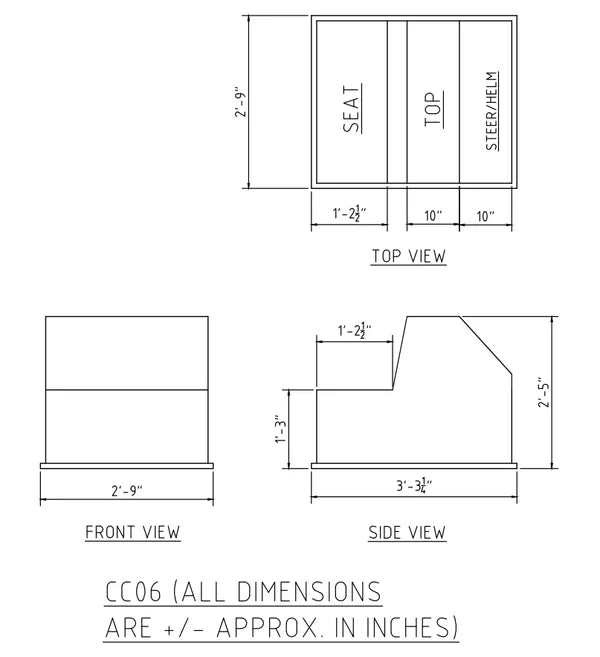

With dimensions of 30" H x 33" W x 39" D (including flange), this console features a molded seat, providing comfort and convenience for you and your passengers. The steering panel is reinforced with a 13 mm Nida-Core Honeycomb coring, ensuring stability and strength for all your essential electronics and controls.
Designed with practicality in mind, this console offers ample space for flush mounting your electronics, keeping your setup organized and easily accessible. The interior is sanded and gel-coated with decorative webbing, giving it a polished look that enhances your boat's aesthetic.
Customization is key; we offer the option to match any Awlgrip color to suit your style. Simply download our color chart and contact us for a quote. The Fiberglass Boat Console is not just a functional component; it’s a statement piece that elevates your boating experience.
Key Features
- "Heavy Duty" Multi-Layer Construction: Gelcoat exterior, double fiberglass and resin, gelcoat underside with webbing for exceptional durability.
- Reinforced Steering Panel: Features a 13 mm Nida-Core Honeycomb coring fully glassed in for strength.
- Space for Flush Mount Electronics: Designed to accommodate essential navigational equipment.
- Unique Curved Front and Double-Face Design: Enhances aesthetics and provides additional mounting options.
- Compact Dimensions: 25"H x 23"W x 23"D, perfect for small skiffs.
- Specifically Designed for 13' to 16' Skiffs: Ensures a proper fit and aesthetic.
- Custom Colors Available: We can match any Awlgrip color for personalized aesthetics.
Detailed Specifications
| Attribute | CM Version (CMCC06) | SL Version (SLCC06) |
|---|---|---|
| Overall Height | 29.5″ (including flange) | 29.5″ (including flange) |
| Width | 33″ | 33″ |
| Depth (Front to Back) | 39″ | 39″ |
| Average Thickness | ¼″–⅜″ | ⅛″–3/16″ |
| Construction | Double‑layer fiberglass w/ composite materials | Single‑layer fiberglass w/ composite materials |
| Steering Panel | 13 mm Nida‑Core Honeycomb, fully glassed in | 13 mm Nida‑Core Honeycomb (resin over, not glassed in) |
| Exterior Finish | UV‑resistant gelcoat | UV‑resistant gelcoat |
| Interior Finish | Gel‑coated with decorative webbing | Resin over Nida‑Core; no gel‑coat |
| Seat | Integrated molded seat | Integrated molded seat |
| Corner Style | Large rounded corners | Large rounded corners |
| Recommended Boat Size | 19′–24′ | 19′–24′ |
| Use Case | Ready‑to‑install, supports most attachments w/ backing plate | Builder‑ready; ideal for adding reinforcement |
