Product Description

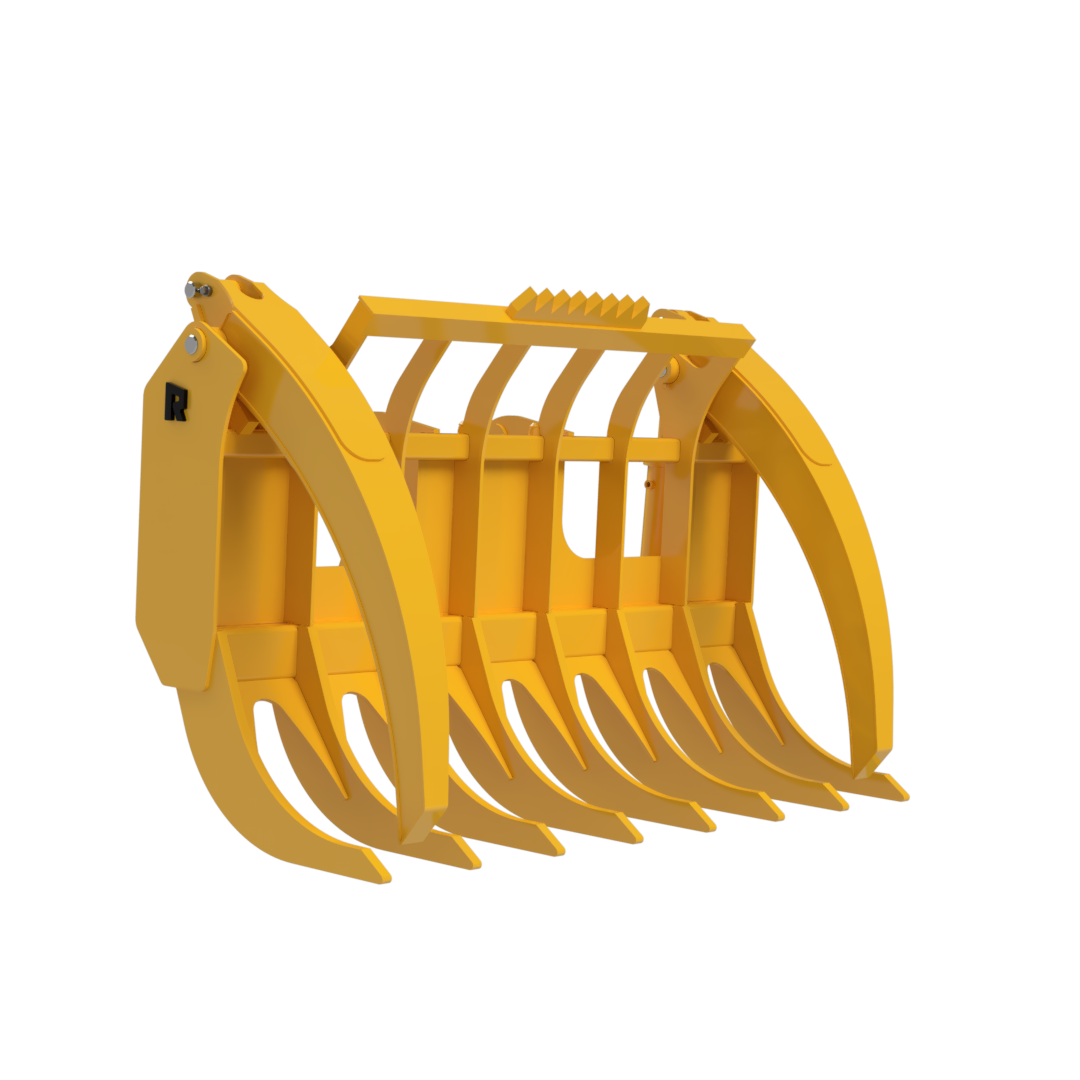

Rockland Loader Rake with Clamps | Raking Width 67" To 139" inches | Weight 1,480 To 8,880 Lbs | For Loaders
Description
If you’re looking to maximize your land cleaning productivity, you’ve come to the right place. Grab, secure, and remove debris with Rockland’s Loader Rake with clamps. Built with the same proven, rough and tumble backframe design as the Rockland Loader Rake, the added clamps on this attachment are for greater material handling. This attachment comes standard with dual, independent clamps or choose wide clamp add-on to keep weight down and easily handle large, bulky loads. Maintenance never looked so easy with Rockland’s heat-treated bushings and grease fittings at all pivot points.
Key Features
Efficiency and Versatility:
- Improved Leverage: The rake can be raised and tilted forward to exert leverage on tree trunks, making it easier to tip trees and expose roots.
- Multi-Purpose Use: With the same machine, you can dig and load stumps, build windrows for burning, and reduce cleanup time.
Durability and Strength:
- High-Strength Teeth: The rake's long teeth are made of certified high strength, heat-treated alloy steel, ensuring durability and long service life.
- Curved Teeth Design: The curved teeth enhance rolling and sifting action, and they extend forward enough to make loading debris fast and efficient.
Adjustability and Control:
- Infinite Adjustability: The dig and raking angle are controlled by the loader’s bucket rollback cylinders, allowing for precise control of operating angle and depth.
- Tree Push Bar: The brush guard features a tree push bar with teeth to keep trees centered when pushing them over.
Optional Features:
-
Hydraulic Clamps: Optional hydraulic clamps provide positive load control and increase load capacity, further enhancing efficiency in land clearing tasks.
Rugged Construction:
- Built to Last: The LR rake is constructed from high-strength, heat-treated alloy steel, designed to withstand the tough conditions of land clearing.
- Dependable Performance: The rake is engineered to deliver years of trouble-free performance, reflecting Rockland's commitment to design excellence and manufacturing quality.
Detailed Specifications
Wheel Loaders
| Machine Category | Raking Width (") | Number of Teeth | Tooth Clear Spacing (") | Tooth Penetration (") | Height (") | Weight (lbs.) | Weight with Clamps (lbs.) |
|---|---|---|---|---|---|---|---|
| 5 | 79 (2007) | 7 | 12 (305) | 12 (305) | 52 (1321) | 1000 (454) | 1820 (720) |
| 10 | 90 (2286) | 8 | 11 (297) | 16 (406) | 56 (1422) | 1450 (658) | 2285 (1030) |
| 20 | 96 (2438) | 8 | 12 (305) | 16 (406) | 57 (1448) | 2150 (976) | 3255 (1465) |
| 30 | 106 (2692) | 8 | 13.5 (343) | 16 (406) | 57 (1448) | 2475 (1123) | 4300 (1935) |
| 40 | 110 (2794) | 8 | 14 (356) | 16 (406) | 57 (1448) | 2675 (1213) | 4345 (1955) |
| 50 | 118 (2997) | 8 | 14.5 (368) | 20 (508) | 66 (1676) | 3800 (1724) | 5775 (2600) |
| 60 | 129 (3277) | 9 | 13 (330) | 20 (508) | 66 (1676) | 4975 (2259) | 6270 (2820) |
| 70 | 139 (3531) | 9 | 14 (356) | 20 (508) | 71 (1803) | 6650 (3019) | 8880 (3428) |
Crawler Loaders
| Machine Category | Raking Width (") | Number of Teeth | Tooth Clear Spacing (") | Tooth Penetration (") | Height (") | Weight (lbs.) | Weight with Clamps (lbs.) |
|---|---|---|---|---|---|---|---|
| 5 | 67 (1702) | 6 | 12.25 (311) | 12 (305) | 52 (1321) | 880 (400) | 1480 (672) |
| 10 | 82 (2083) | 7 | 12.25 (311) | 16 (406) | 56 (1422) | 1320 (599) | 2235 (1015) |
| 20 | 88 (2235) | 7 | 13 (330) | 16 (406) | 57 (1448) | 1920 (872) | 2600 (1180) |
| 30 | 94 (2388) | 8 | 11.75 (298) | 16 (406) | 57 (1448) | 2210 (1003) | 3485 (1582) |
| 40 | 94 (2388) | 8 | 11.75 (298) | 20 (508) | 66 (1676) | 3385 (1537) | 4700 (2134) |
| 50 | 108 (2743) | 8 | 13 (330) | 20 (508) | 66 (1676) | 3915 (1777) | 5465 (2481) |
| 60 | 115 (2921) | 8 | 13.5 (343) | 20 (508) | 66 (1676) | 4515 (2050) | 6630 (3010) |
| 70 | 116 (2946) | 8 | 13 (330) | 20 (508) | 71 (1803) | 5930 (2692) | 6830 (3101) |
