Rotadairon RD Series Standard Stone Buriers | Model RD-100, RD-130 & RD-145 | Working Width 43", 52.5" & 59" | Horsepower 22-50 HP | For Tractors

DESCRIPTION

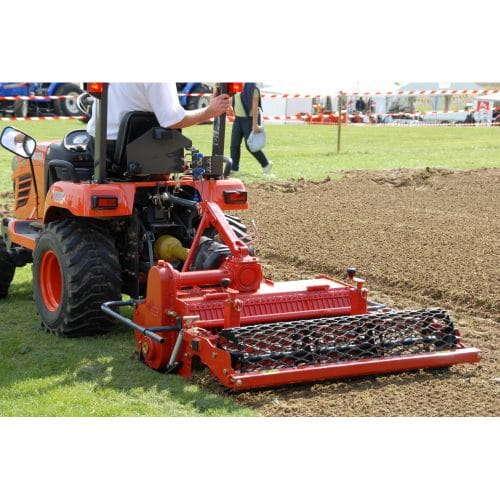

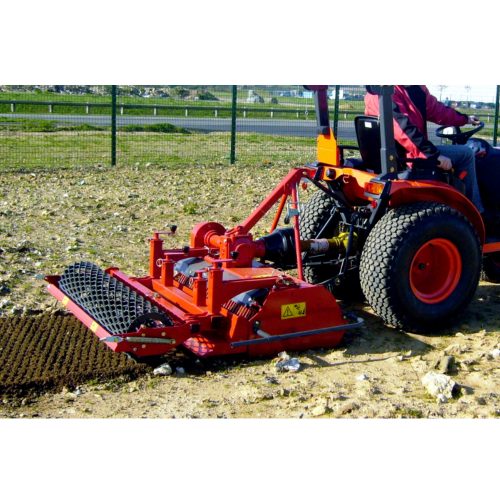

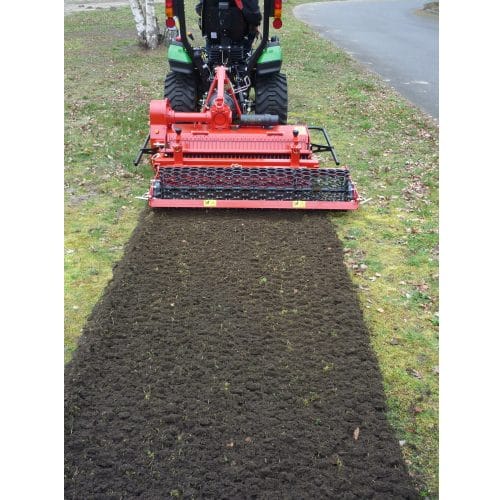

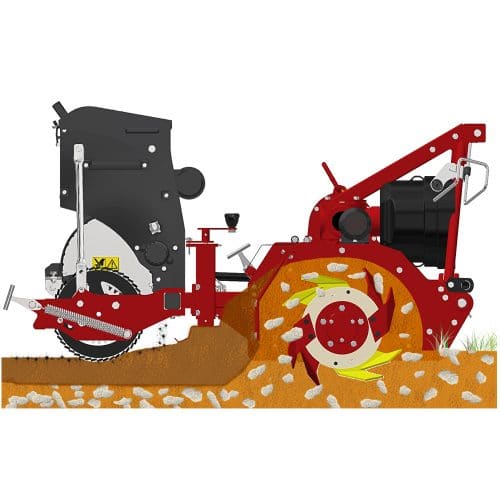

The Rotadairon RD Series is a professional-grade lineup of stone buriers designed for compact and sub-compact tractors. These machines perform multiple soil preparation tasks in a single pass — tilling, burying stones and debris, leveling, mixing, and rolling — to create a clean, seed-ready surface. With working widths from 43" to 59", each model features a robust rotor with anti-pad blades, a selection grid with 20 mm spacing, and a rear mesh or iron roller for consistent depth control. Built for durability and precision, the RD Series is ideal for landscaping contractors, turf managers, and municipal grounds crews.

Key Features

  • Working Widths: 43", 52.5", and 59" Covers small to mid-sized plots with efficient soil inversion and debris burial
  • Tractor Power Requirement: 22–50 HP • RD-100: 22–35 HP • RD-130: 25–45 HP • RD-145: 30–50 HP — compatible with compact and utility tractors
  • Maximum Working Depth: 5.5" (140 mm) Adjustable rear roller enables deep soil processing for seedbed prep
  • Rotor Diameter: 15.75" (400 mm) Oversized rotor with patented anti-sole blades for aggressive mixing and inversion
  • Blade Count • RD-100: 36 blades • RD-130: 42 blades • RD-145: 48 blades — optimized for cutting density and soil turnover

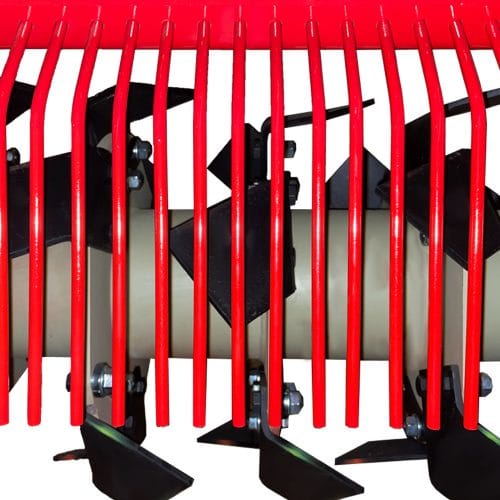

  • Grid Finger Spacing: 20 mm (4/5") Filters out large debris while retaining fine soil for a smooth finish
  • Transmission System Angle gearbox with chain in oil bath for reliable power transfer

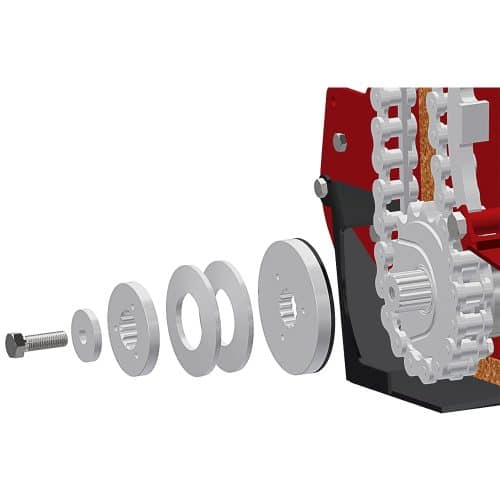

  • Oil Bath Torque Limiter Protects drivetrain from overload and ensures smooth operation
  • Forward Speed: 0.5–0.9 mph Optimized for thorough soil conditioning and safe operation
  • 3-Point Hitch Compatibility: Category I & II Secure mounting for a wide range of compact and utility tractors
  • PTO Speed: 540 RPM Matches standard tractor drivetrains for consistent rotor performance

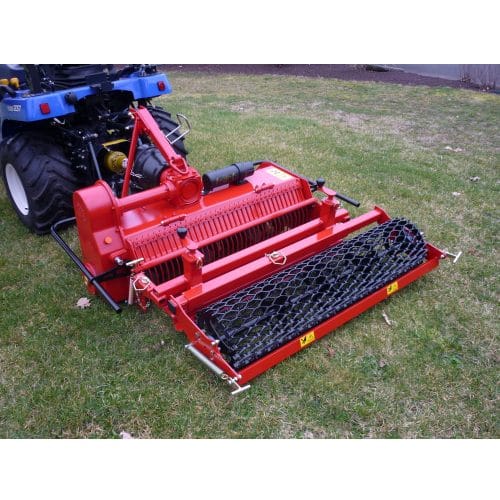

  • Roller Options • Mesh Roller: standard across all models • Iron Roller: available for RD-130 & RD-145 for added compaction and finish
  • Transport Dimensions • RD-100: 1520 × 1570 × 995 mm • RD-130: 1760 × 1570 × 995 mm • RD-145: ~1920 × 1570 × 1065 mm

Detailed Specifications

RD Series Stone Burier

Feature

RD 100

RD 130

RD 145
Working Width 1100 mm (43") 1338 mm (52.5") 1500 mm (59")
Total Width 1610 mm (63.5") 1840 mm (72.5") 2005 mm (79")
Working Depth (Max) 140 mm (5.5") 140 mm (5.5") 140 mm (5.5")
Rotor Diameter 400 mm (15.75") 400 mm (15.75") 400 mm (15.75")
Blade Count 36 42 48
Grid Finger Spacing 20 mm (4/5") 20 mm (4/5") 20 mm (4/5")
Weight (Mesh Roller) 405 kg (893 lbs) 450 kg (992 lbs) 515 kg (1135 lbs)
Weight (Iron Roller) — 525 kg (1157 lbs) 615 kg (1356 lbs)
Tractor Power Required 22–35 HP 25–45 HP 30–50 HP
PTO Speed 540 RPM 540 RPM 540 RPM
Forward Speed 0.5–0.9 mph 0.5–0.9 mph 0.5–0.9 mph
3-Point Hitch Category I & II Category I & II Category I & II
Transport Dimensions 1520×1570×995 mm 1760×1570×995 mm —
