Description

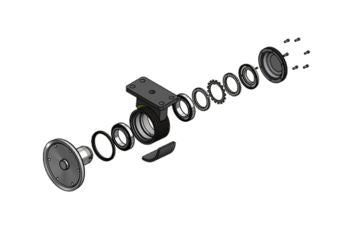

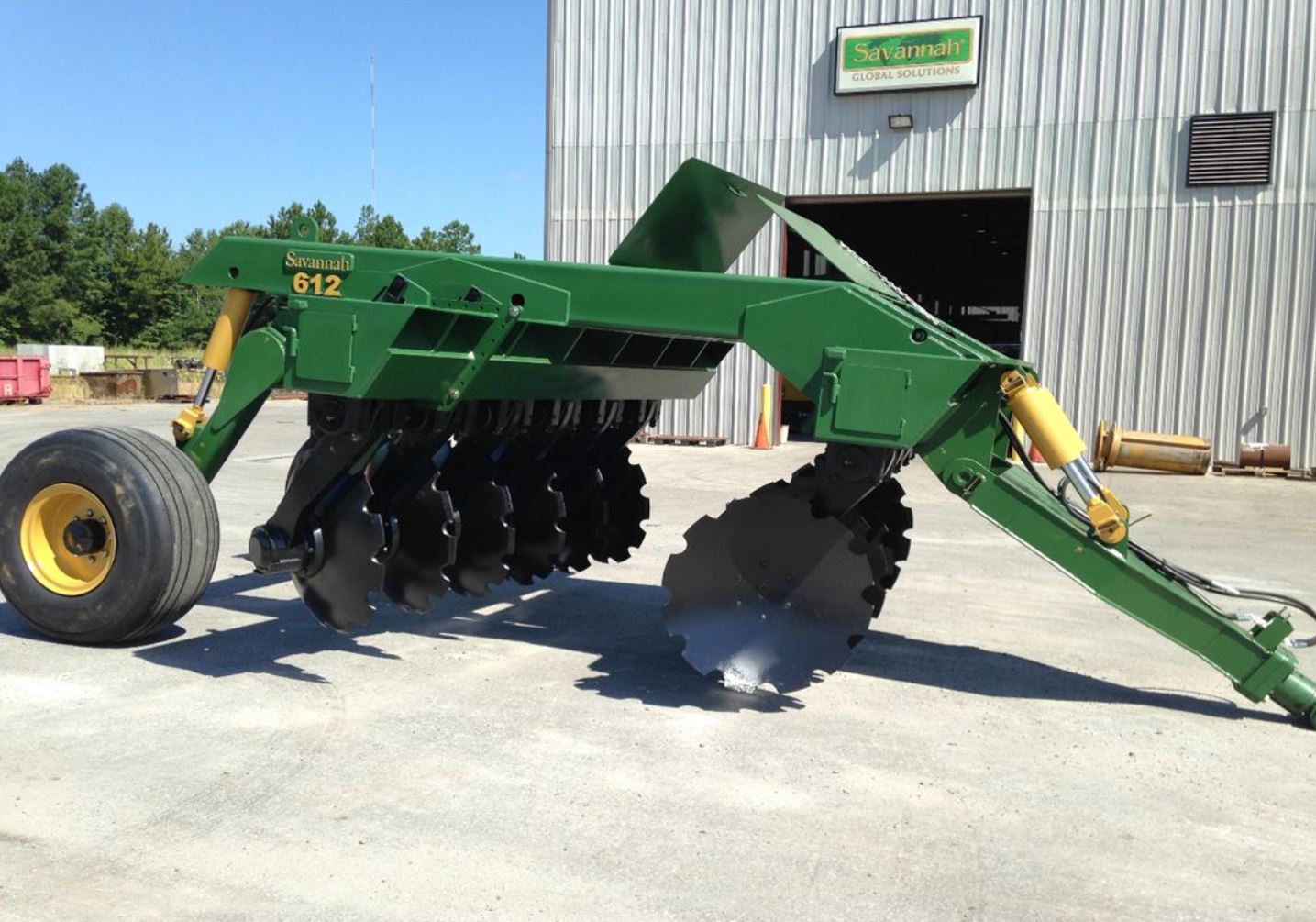

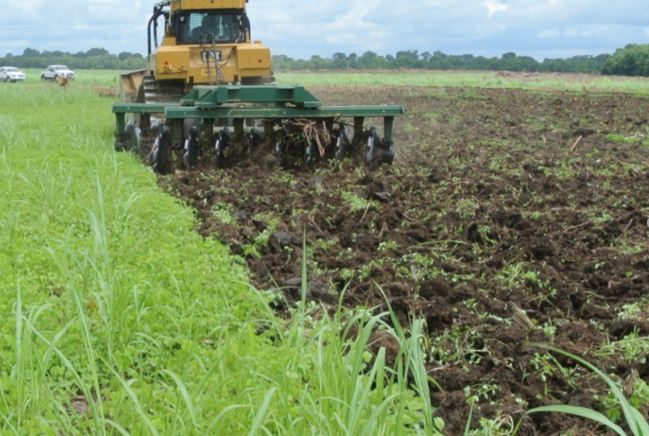

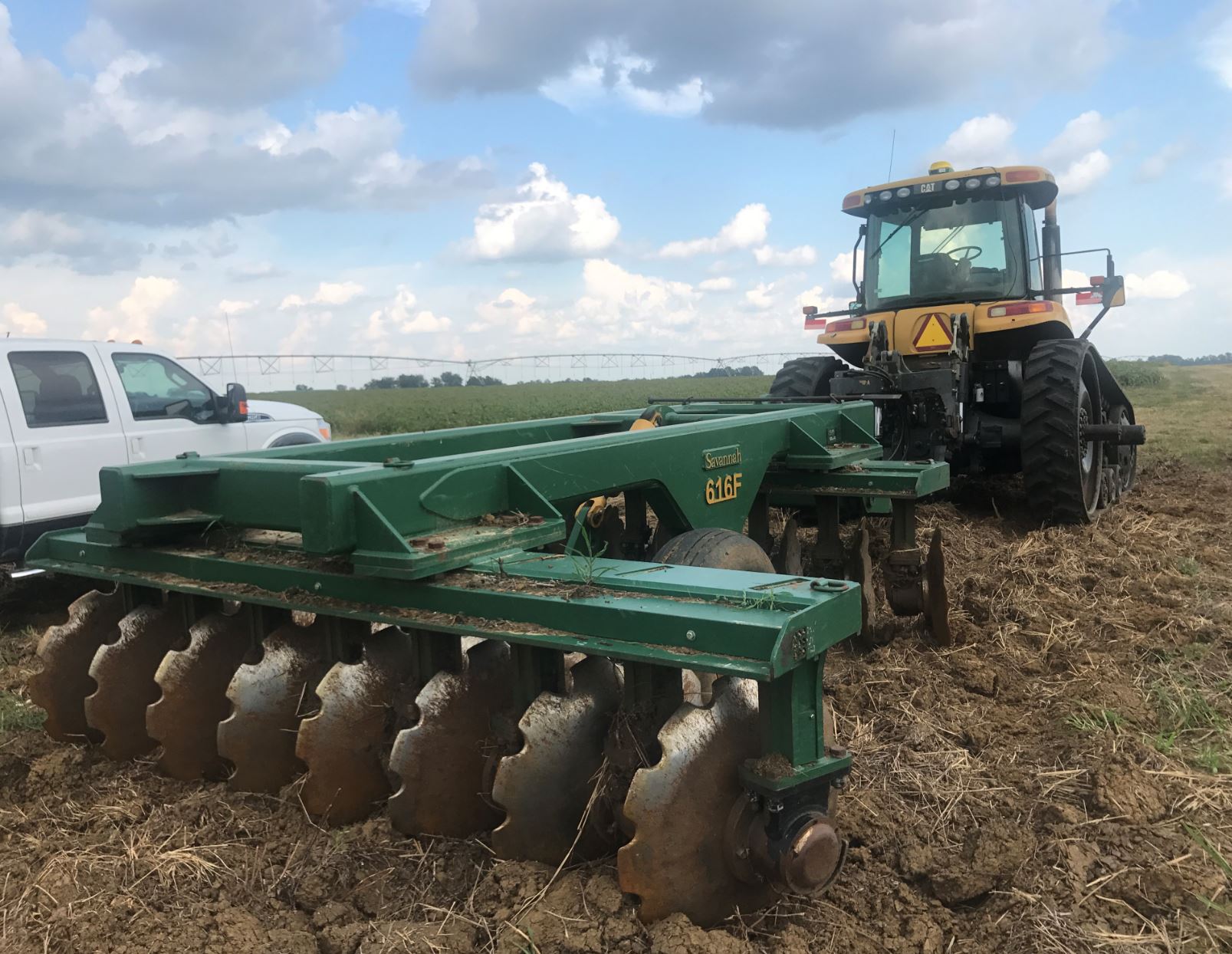

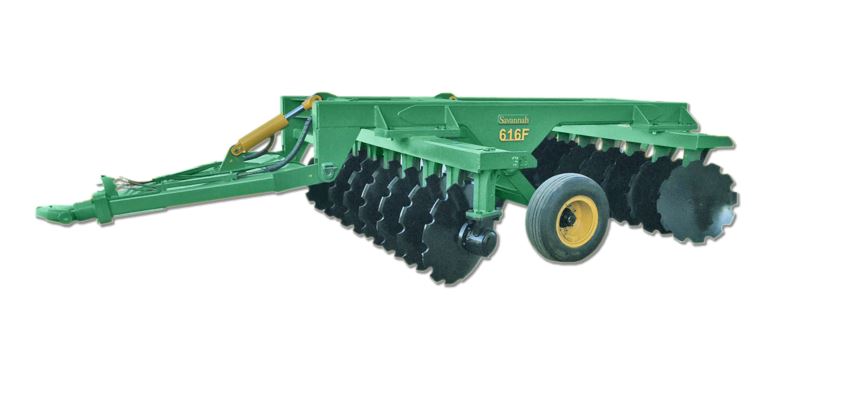

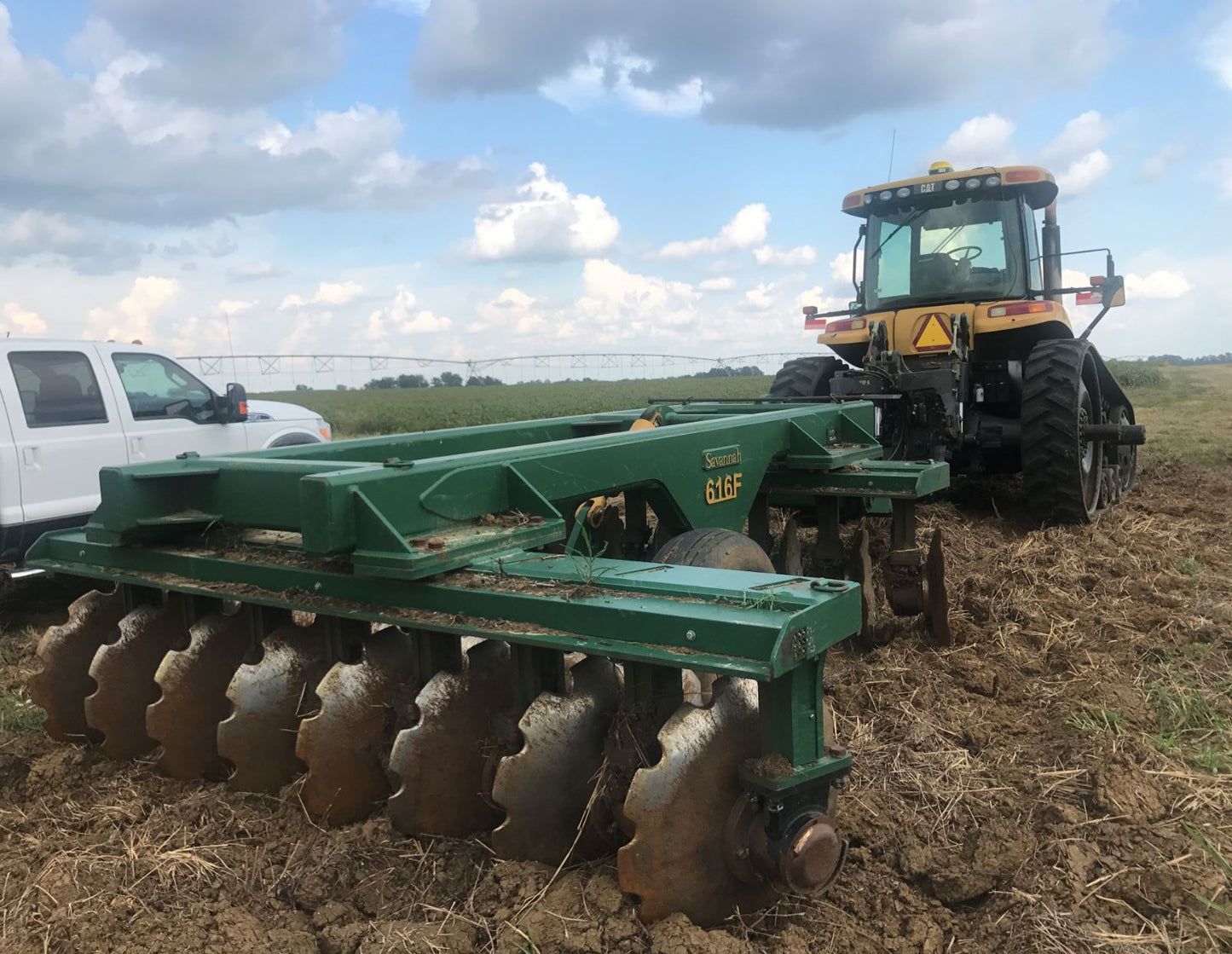

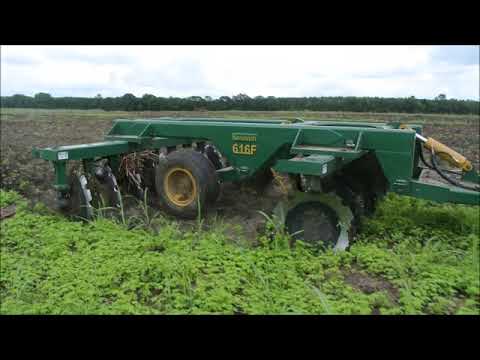

Introducing the World’s Only Stump-Jump™ Offset Disc Harrow by Savannah®. Engineered with a patented Hydraulic Relief System, this advanced harrow delivers superior cultivation over stumps, rocks, and high levels of debris. Designed for maximum efficiency and durability, each disc relieves up to 34” and is mounted on a robust 110mm spindle with double tapered roller bearings. Perfect for agricultural professionals seeking enhanced soil flow, reduced maintenance, and higher operating speeds.
Features
- Patented Hydraulic Relief System: Effortlessly navigates stumps, rocks, and debris.
- Magnum Jump Arms: Twelve 36” discs provide extensive coverage.
- Durable Construction: Heavy-duty swivel hitch assembly and industrial-grade flotation tires.
- Efficient Maintenance: Discs attach with 6 bolts for quick changes.
- Enhanced Tillage: Open face design ensures optimal soil movement.
Specifications
- Disc Arms: Twelve 36” Magnum jump arms.
- Hydraulic Accumulators: Two 2.5 gallon.
- Pivot Bearings: 2-3/4” (70mm) spherical bearings.
- Lift Cylinders: Front: Two 5” x 8” phasing cylinders with 2-1/2” shafts; Rear: Two 4-1/2” x 12” phasing cylinders with 2” shafts.
- Displacement Cylinders: Twelve 2-1/2” with 1-1/4” pins and bushings.
- Wheels: Heavy-duty truck-type hubs with 4” axles and clamp blocks.
- Tires: 50” x 20” aircraft flotation tires.
- Hitch: Heavy-duty swivel hitch assembly.
- Optional Features: Folding end on one disc gang for ease of transport, 42” diameter x 1/2” thick notched deep concavity disc blades.
- Cutting Force: Average 1,100 lbs per disc.
- Penetration Depth: Standard 14” with 36” diameter discs; optional 16” with 42” diameter discs.
Model Specifications for Stump Jump |
|||||
|---|---|---|---|---|---|
| Model Number | Width of Cut ft. (m) | Number of Disks | Suggested Horsepower | Weight Per Disk lbs (kg) | Net Weight lbs (kg) |
| 612F | 10' (3) | 12 | 225-275 | 1260 (572) | 15150 (6872) |
| 614F | 11.5' (3.5) | 14 | 250-325 | 1280 (580) | 17950 (8142) |
| 616F | 13' (4) | 16 | 300-350 | 1220 (553) | 19530 (8858) |
| 618F | 15.5' (4.7) | 18 | 350-400 | 1060 (480) | 20800 (9434) |
| 620F | 17' (5.2) | 20 | 375-450 | 1100 (500) | 22070 (10010) |
| 624F | 19.5 (6) | 24 | 450-600 | 1010 (460) | 24250 (11000) |
| 610 | 9.5 (2.9) | 10 | 250 | 15,000 (6,805) | |
| 612 | 11 (3.4) | 12 | 300 | 16,750 (7,600) | |
| 614 | 12.5 (3.8) | 14 | 350 | 18,500 (8,395) | |
What's Included
- Twelve (12) Magnum jump arms with 36” discs.
- Two (2) 2.5 gallon hydraulic accumulators.
- Two (2) 5” x 8” front lift cylinders with 2-1/2” shafts.
- Two (2) 4-1/2” x 12” rear lift cylinders with 2” shafts.
- Twelve (12) 2-1/2” jump-arm displacement cylinders.
- Heavy-duty truck-type wheel hubs with 4” axles.
- 50” x 20” aircraft flotation tires.
- Heavy-duty swivel hitch assembly.
- Optional folding end on one disc gang for ease of transport.
Upgrade your land cultivation capabilities with the Savannah® Stump-Jump™ Offset Disc Harrow. Designed for efficiency, durability, and superior tillage, this harrow is your solution for challenging agricultural and forestry applications. Order now and experience the difference in performance and reliability.
