Product Description

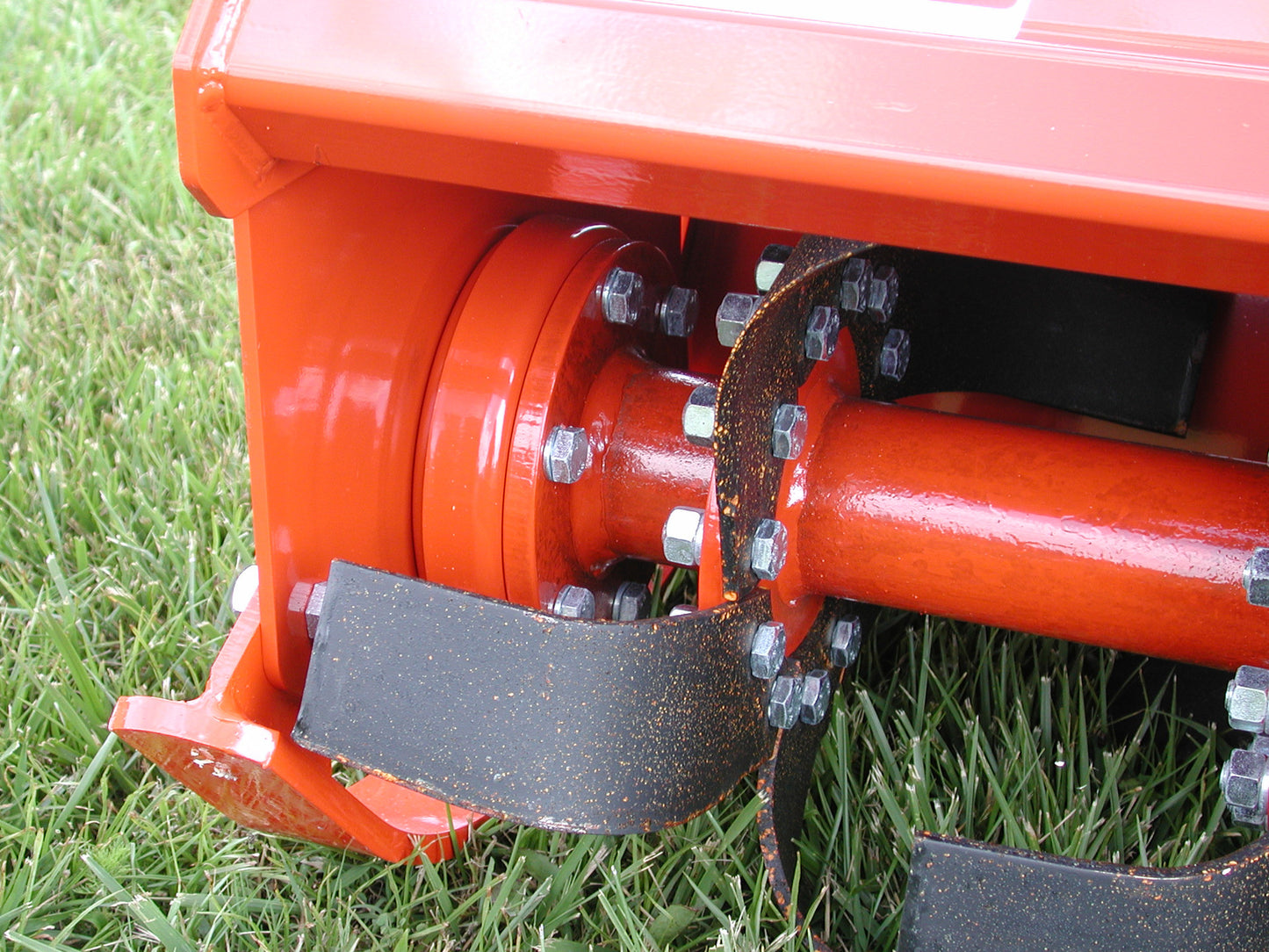

Sicma (Phoenix) 3-Point Rotary Tiller | T10 Series | Working Width 66", 74" & 80" inches | Horsepower 35-50 HP | For Tractors
DESCRIPTION
The Phoenix T10 Series Rotary Tillers are heavy-duty, gear-driven implements designed for professional-grade soil preparation. Engineered to handle the most demanding applications, they boast a durable construction and advanced features that guarantee years of trouble-free operation. With compatibility for tractors ranging from 30 to 50 HP, the T10 Series ensures exceptional performance in tilling tasks. Equipped with a slip clutch PTO system, the tillers minimize downtime by eliminating the need for frequent repairs, allowing uninterrupted work.
The T10 Series is heavier than the T5 Series, providing added stability and enhanced tilling depth, ideal for larger fields and tougher soil conditions.
Key Features
- Slip-Clutch PTO System: Offers enhanced driveline protection, replacing the traditional shear-bolt to prevent unnecessary repairs.
- Six Tines Per Flange: Ensures thorough soil penetration and efficient tilling performance.
- Adjustable Links: Upper and lower adjustable links allow customized operation for varied tasks.
- Drive Housing Oil Level Sight Glass: Facilitates easy oil level monitoring for maintenance convenience.
- Heavy-Duty Zinc Plated Jack Stand: Multi-position jack stand adds durability and stability during setup and storage.
- Powder Coat Paint Finish: Available in orange or red, offering a protective and attractive finish.
- Adjustable Drag Board: Features a zinc-plated check chain for precise soil leveling and control.
- Robust Construction: Includes double torque tube and single-piece welded center hitch for reliable, heavy-duty performance.
- Wide Compatibility: Designed for tractors in the 30-50 HP range, making it suitable for diverse applications.
- Optimal Functionality: Gear drive transmissions ensure smooth and efficient operation under challenging conditions.
Detailed Specifications
| Model | T10-66GE | T10-74GE | T10-80GE |
|---|---|---|---|
| Working Width (Inches) | 66 | 74 | 80 |
| Working Depth (Inches) | 4-8 | 4-8 | 4-8 |
| Blades per Flange | 6 | 6 | 6 |
| Total Blades | 48 | 54 | 60 |
| Side Drive | Gear | Gear | Gear |
| Driveline Protection | Slip Clutch | Slip Clutch | Slip Clutch |
| Hitch Category | Cat 1 | Cat 1 | Cat 1 |
| PTO Shaft Series | 5 | 5 | 5 |
| PTO HP Required | 35-50 | 35-50 | 35-50 |
| Optimum PTO Speed (RPM) | 540 | 540 | 540 |
| Rotor Flange Diameter (Inches) | 6.3 | 6.3 | 6.3 |
| Rotor Flange Thickness (Inches) | 0.5 | 0.5 | 0.5 |
| Approximate Weight W/PTO (LBS) | 679 | 712 | 765 |
